Honda Ridgeline (2019 year). Manual - part 26





uu

Bluetooth® HandsFreeLink®

u

HFL Menus

400

Features

To make a call using redial

1. Go to the Phone menu screen.

Phone menu screen P. 383

2. Select Redial.

u

Dialing starts automatically.

To make a call using the Call History

Call history is stored by AllDialed
Received, and Missed.
1. Go to the Phone menu screen.

Phone menu screen P. 383

2. Select Call History.
3. Select AllDialedReceived, or Missed.
4. Select a number.

u

Dialing starts automatically.

To make a call using a Speed Dial entry

1. Go to the Phone menu screen.

Phone menu screen P. 383

2. Select Speed Dial.
3. Select a number.

u

Dialing starts automatically.

1

To make a call using redial

Press and hold the

 button to redial the last

number dialed.

1

To make a call using the Call History

The call history displays the last 20 all, dialed,
received, or missed calls.
(Appears only when a phone is connected to the
system.)

1

To make a call using a Speed Dial entry

When a voice tag is stored, press the

 button to

call the number using the voice tag.

Speed Dial P. 391

Any voice-tagged speed dial entry can be dialed by
voice from any screen.
Press the

 button and follow the prompts.

Continued

401

uu

Bluetooth® HandsFreeLink®

u

HFL Menus

Features

When there is an incoming call, an audible
notification sounds (if activated) and the
Incoming call screen appears.

Press the

 button to answer the call.

Press the

 button to decline or end the call.

The following options are available during a call.
Mute: Mute your voice.
Transfer: Transfer a call from the system to your phone.
Touch Tones: Send numbers during a call. This is useful when you call a menu-
driven phone system.

The available options are shown on the lower
half of the screen.

Select the option.

u

The mute icon appears when Mute is
selected. Select Mute again to turn it off.

Receiving a Call

1

Receiving a Call

Call Waiting

Press the

 button to put the current call on hold to

answer the incoming call.

Press the

 button again to return to the current

call.
Select Ignore to ignore the incoming call if you do
not want to answer it.
Press the

 button if you want to hang up the

current call.

You can select the icons on the audio/information
screen instead of the

 and

 buttons.

Options During a Call

1

Options During a Call

Touch Tones: Available on some phones.

You can select the icons on the audio/information
screen.

Mute Icon

uu

Bluetooth® HandsFreeLink®

u

HFL Menus

402

Features

HFL can display newly received text or e-mail messages as well as the last 20
messages received on a linked cell phone. Each received message can be read aloud
and replied to using a fixed common phrase.

1. A pop-up appears and notifies you of a new

text or e-mail message.

2. Select Read to listen to the message.

u

The text or e-mail message is displayed.
The system automatically starts reading
out the message.

3. To discontinue the message read-out, select

Stop.

Receiving a Text/E-mail Message

1

Receiving a Text/E-mail Message

The system does not display any received messages
while you are driving. You can only hear them read
aloud.

The system can only receive messages that are sent a
text (SMS) messages. The message sent using the
data services will not be displayed in the list.

With some phones, you may be able to display up to
20 of the last text and/or e-mail messages received.

State or local laws may limit your use of the HFL text/e-
mail message feature. Only use the text/e-mail message
feature when conditions allow you to do so safely.

When you receive a text or e-mail message for the
first time since the phone is paired to HFL, you are
asked to turn the New Message Notification
setting to On.

To turn on or off the text/e-mail notice

P. 388

Continued

403

uu

Bluetooth® HandsFreeLink®

u

HFL Menus

Features

If a paired phone has text message or mail accounts, you can select one of them to
be active and receive notifications.

1. Go to the Phone settings screen.

Phone settings screen P. 380

2. Select the Text/Email tab, then Select

Account.

u

A pop-up menu appears on the screen.

3. Select Text Messages or an e-mail account

you want.

Selecting a Mail Account

1

Selecting a Mail Account

You can also select a mail account from the folder list
screen or the message list screen.

You can only receive notifications from one text
message or mail account at a time.

Select
Account

uu

Bluetooth® HandsFreeLink®

u

HFL Menus

404

Features

Displaying text messages

1. Go to the Phone menu screen.

Phone menu screen P. 383

2. Select Text/Email.

u

Select account if necessary.

3. Select a message.

u

The text message is displayed. The
system automatically starts reading the
message aloud.

Displaying Messages

1

Displaying Messages

The

 icon appears next to an unread message.

If you delete a message on the phone, the message
will also be deleted from the system. If you send a
message from the system, the message goes to your
phone’s outbox.

To see the previous or next message, select

 or

 on the message screen.

Message List

Text Message

405

uu

Bluetooth® HandsFreeLink®

u

HFL Menus

Continued

Features

Displaying e-mails

1. Go to the Phone menu screen.

Phone menu screen P. 383

2. Select Text/Email.

u

Select Select Account if necessary.

3. Select a folder.
4. Select a message.

u

The e-mail is displayed. The system
automatically starts reading the message
aloud.

Folder List

Message List

E-mail

uu

Bluetooth® HandsFreeLink®

u

HFL Menus

406

Features

Read or Stop reading a message

1. Go to the text or e-mail message screen.

u

The system automatically starts reading
the message aloud.

Displaying Messages P. 404

2. Select Stop to stop reading.

Select Read again to start reading the
message from the beginning.

Reply to a message

1. Go to the text or e-mail message screen.

u

The system automatically starts reading
the message aloud.

Displaying Messages P. 404

2. Select Reply.
3. Select the reply message.

u

The pop-up menu appears on the screen.

4. Select Send to send the message.

u

Message sent appears on the screen
when the reply message was successfully
sent.

1

Reply to a message

The available fixed reply messages are as follows:

Talk to you later, I’m driving.

I’m on my way.

I’m running late.

OK

Yes

No

You cannot add, edit, or delete reply messages.

Only certain phones receive and send messages when
paired and connected. For a list of compatible
phones:

U.S.: Visit automobiles.honda.com/handsfreelink/
or call 1-888-528-7876.

Canada: Visit www.handsfreelink.ca, or call 1-888-
528-7876.

407

uu

Bluetooth® HandsFreeLink®

u

HFL Menus

Continued

Features

Making a call to a sender

1. Go to the text message screen.
2. Select Call.

uu

Bluetooth® HandsFreeLink®

u

HFL Menus

408

Features

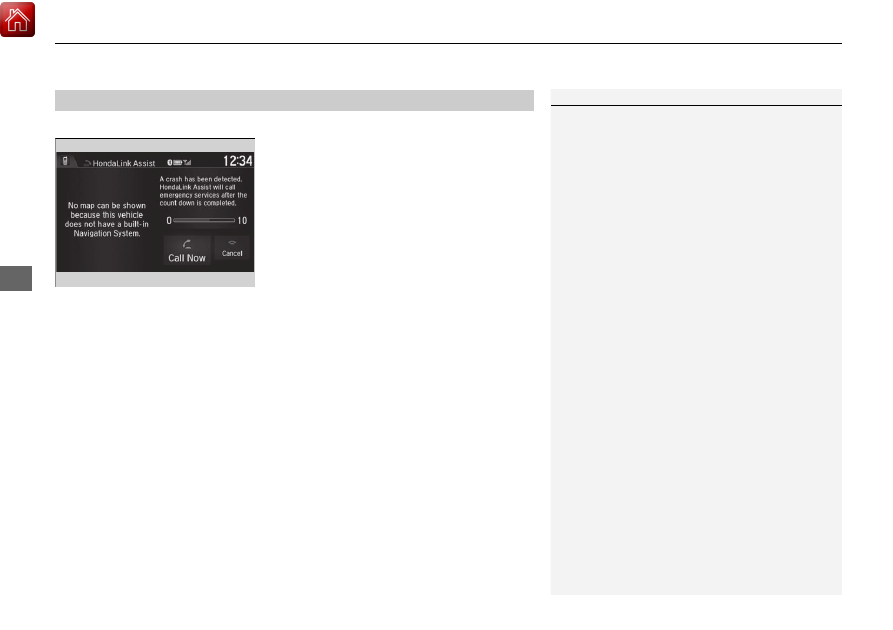

Automatic collision notification

If your vehicle’s airbags deploy or if the unit
detects that the vehicle is severely impacted,
your vehicle automatically will attempt to
connect to the HondaLink® operator. If
connected, information about your vehicle, its
location, and its condition will be sent to the
operator; you also can speak to the operator
when connected.

IMPORTANT: For vehicles equipped with HondaLink® Assist, owner activation
constitutes authorization for Honda to collect information from your vehicle needed
to provide the service, and agreement to the Terms of Use at www.hondalink.com/
TermsAndConditions
. I
n a crash, HondaLink® Assist will attempt to notify emergency
services but NEITHER HONDA NOR ITS SERVICE PROVIDERS GUARANTEE THAT
SUCH NOTIFICATION WILL OCCUR.

Honda reserves the right to terminate HondaLink® Assist services at any time or for
any reason, and in the future may not be able to provide services due to changes in,
or obsolescence of, technology integral to the service or changes in governmental
regulation.

In Case of Emergency

1

In Case of Emergency

Your vehicle may not be able to connect to the
operator if the battery level is low, the line is
disconnected, or you do not have adequate cellular
coverage.

You cannot use this emergency services when:

You travel outside the HondaLink® service coverage
areas.

There is a problem with the connecting devices,
such as the microphones, speakers, or the unit
itself.

You cannot operate other phone-related functions
using the screen while talking to the operator.
Select Hang Up to terminate the connection to your
vehicle.

1

Automatic collision notification

If the unit fails to connect to the operator, it
repeatedly tries until it succeeds.

409

uu

Bluetooth® HandsFreeLink®

u

HFL Menus

Features

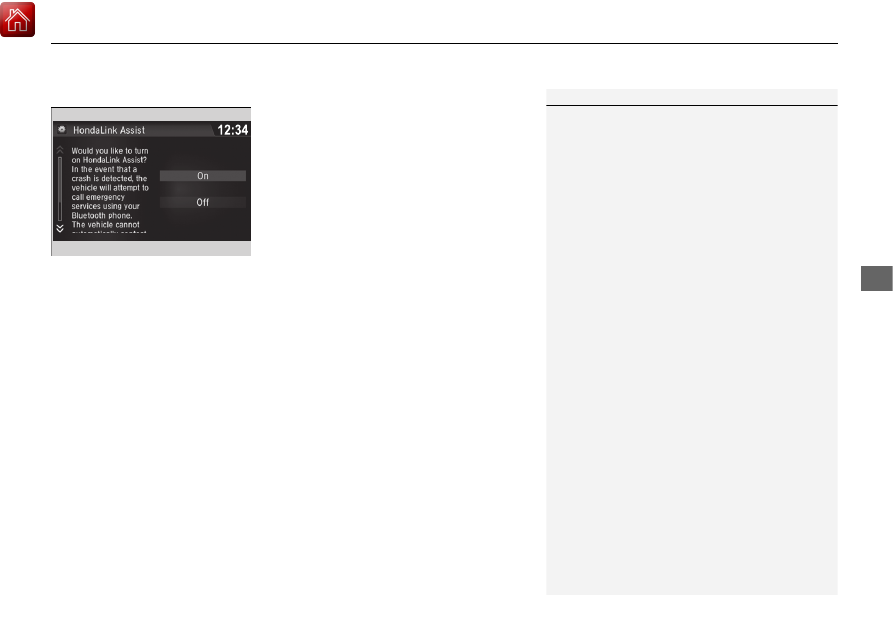

To enable notification

1. Go to the Phone settings screen.

Phone settings screen P. 380

2. Select the Phone tab, then HondaLink

Assist.

u

A pop-up menu appears on the screen.

3. Select On or Off.

1

To enable notification

Setting options:

On: Notification is available.

Off: Disable the feature.

410

411

Driving

This chapter discusses driving and refueling.

Before Driving................................... 412
Towing a Trailer................................ 420
Off-Highway Driving Guidelines ..... 432
When Driving

Starting the Engine .......................... 434
Precautions While Driving................. 440
Automatic Transmission ................... 441
Shifting ............................................ 442
ECON Button ................................... 444
Intelligent Traction Management...... 445
Cruise Control

*

................................ 447

Front Sensor Camera

*

...................... 450

Road Departure Mitigation (RDM)

System

*

......................................452

Adaptive Cruise Control (ACC)

*

....... 457

Lane Keeping Assist System (LKAS)

*

.... 470

Vehicle Stability Assist® (VSA®), aka Electronic

Stability Control (ESC), System ............. 478

Agile Handling Assist ....................... 480
Intelligent Variable Torque Management

TM



(i-VTM4

TM

) AWD System

*

............... 481

TPMS with Tire Fill Assist .................. 482
Tire Pressure Monitoring System (TPMS) -

Required Federal Explanation ......... 484

Blind spot information (BSI) System

*

.... 486

LaneWatch

TM

*

.................................. 488

Braking

Brake System ................................... 490
Anti-lock Brake System (ABS) ........... 492
Brake Assist System ......................... 493
Collision Mitigation Braking System

TM



(CMBS

TM

)

*

..................................... 494

Parking Your Vehicle

When Stopped ................................ 503
Parking Sensor System

*

................... 504

Cross Traffic Monitor

*

..................... 508

Multi-View Rear Camera.................. 512
Refueling

Fuel Information .............................. 514
How to Refuel ................................. 515

Fuel Economy and CO

2

 Emissions.... 517

* Not available on all models

412

Driving

Before Driving

Driving Preparation

Check the following items before you start driving.

• Make sure there are no obstructions on the windows, door mirrors, exterior

lights, or other parts of the vehicle.

u

Remove any frost, snow, or ice.

u

Remove any snow on the roof, as this can slip down and obstruct your field of
vision while driving. If frozen solid, remove ice once it has softened.

u

When removing ice from around the wheels, be sure not to damage the wheel
or wheel components.

• Make sure the hood is securely closed.

u

If the hood opens while driving, your front view will be blocked.

• Make sure the tires are in good condition.

u

Check air pressure, check for damage and excessive wear.

Checking and Maintaining Tires P. 547

• Make sure the tailgate is fully closed when it is not being used as an extended

pickup bed.

• Make sure the trunk is securely closed and locked.
• Make sure there are no people or objects behind or around the vehicle.

u

There are blind spots from the inside.

Exterior Checks

1

Exterior Checks

NOTICE

When doors are frozen shut, use warm water around
the door edges to melt any ice. Do not try to force
them open, as this can damage the rubber trim
around the doors. When done, wipe dry to avoid
further freezing.

Do not pour warm water into the key cylinder.
You will be unable to insert the key if the water
freezes in the hole.

Heat from the engine and exhaust can ignite
flammable materials left under the hood, causing a
fire. If you’ve parked your vehicle for an extended
period, inspect and remove any debris that may have
collected, such as dried grass and leaves that have
fallen or have been carried in for use as a nest by a
small animal. Also check under the hood for leftover
flammable materials after you or someone else has
performed maintenance on your vehicle.

Continued

413

uu

Before Driving

u

Driving Preparation

Driving

• Store or secure all items on board properly.

u

Carrying too much cargo, or improperly storing it, can affect your vehicle’s
handling, stability, stopping distance, and tires, and make it unsafe.

Maximum Load Limit P. 415

• Do not pile items higher than the seat height.

u

They can block your view and may be thrown forward in the event of sudden
braking.

• Do not place anything in the front seat footwells. Make sure to secure the floor

mat.

u

An object or unsecured floor mat can interfere with your brake and accelerator
pedal operation while driving.

• If you have any animals on board, do not let them move around in the vehicle.

u

They may interfere with driving and a crash could occur.

• Securely close and lock all doors.

Locking/Unlocking the Doors from the Inside P. 121

• Adjust your seating position properly.

u

Adjust the head restraint, too.

Adjusting the Seats P. 163
Adjusting the front head restraint positions P. 168

• Adjust the mirrors and steering wheel properly for your driving.

u

Adjust them while sitting in the proper driving position.

Adjusting the Steering Wheel P. 160
Adjusting the Mirrors P. 161

Interior Checks

1

Interior Checks

The headlight aim is set by the factory, and does not
need to be adjusted. However, if you regularly carry
heavy items in the cargo area or tow a trailer, have
the aiming readjusted at a dealer or by a qualified
technician.

414

uu

Before Driving

u

Driving Preparation

Driving

• Be sure items placed on the floor behind the front seats cannot roll under the

seats.

u

They can interfere with the driver’s ability to operate the pedals, the operation
of the seats, or the operation of the sensors under the seats.

• Everyone in the vehicle must fasten their seat belt.

Fastening a Seat Belt P. 38

• Make sure that the indicators in the instrument panel come on when you start the

vehicle, and go off soon after.

u

Always have a dealer check the vehicle if a problem is indicated.

Indicators P. 74

415

uu

Before Driving

u

Maximum Load Limit

Continued

Driving

Maximum Load Limit

The maximum load for your vehicle is 1,444 lbs (655 kg).

The maximum load for your vehicle is 1,400 lbs (635 kg).

The maximum load for your vehicle is 1,543 lbs (700 kg).

The maximum load for your vehicle is 1,477 lbs (670 kg).

See the Tire and Loading Information label attached to the driver’s
doorjamb.

This figure includes the total weight of all occupants, cargo, and
accessories, and the tongue load if you are towing a trailer.

Steps for Determining Correct Load Limit -
(1) Locate the statement “The combined weight of occupants and

cargo should never exceed XXX kg or XXX lbs.” on your
vehicle’s placard.

1

Maximum Load Limit

3

WARNING

Overloading or improper loading
can affect handling and stability
and cause a crash in which you
can be hurt or killed.

Follow all load limits and other
loading guidelines in this manual.

2WD without Moonroof models

2WD with Moonroof models

AWD without Moonroof models

AWD with Moonroof models

Label Example















Content   ..  24  25  26  27   ..
