Honda Ridgeline (2019 year). Manual - part 16





uu

Audio System Basic Operation

u

Audio/Information Screen

240

Features

You can close specific apps running in the background on the system.

1. Select and hold

.

2. Select an app you want to close.
3. Select Stop.

u

The display will return to the app list.

Closing Apps

1

Closing Apps

If you leave the apps used open in the background,
some apps may stop operating properly next time
using them.
If this happens close unused apps.

To close all apps on the system, select Stop All, then
Yes.

You cannot close the apps of HondaLink® and
Garmin

*

.

* Not available on all models

Continued

241

uu

Audio System Basic Operation

u

Audio/Information Screen

Features

Some of the audio system’s apps can be updated wirelessly when connected via Wi-
Fi, or Bluetooth® in conjunction with the HondaLink® app installed on a compatible
iOS or Android device. If an update is available, the audio system beeps and a
notification is displayed at the top of the screen with the respective app’s update
icon.

To update an app:

1. From the top of the screen, swipe down to

see the messages.

2. Select the software update notification

from the list.

Updating Apps

1

Updating Apps

The wireless updates are for the apps on the audio
system only.

To update compatible apps on your iPhone or
Android phone, please visit the App Store or Google
Play Store, respectively.

242

uu

Audio System Basic Operation

u

Audio/Information Screen

Features

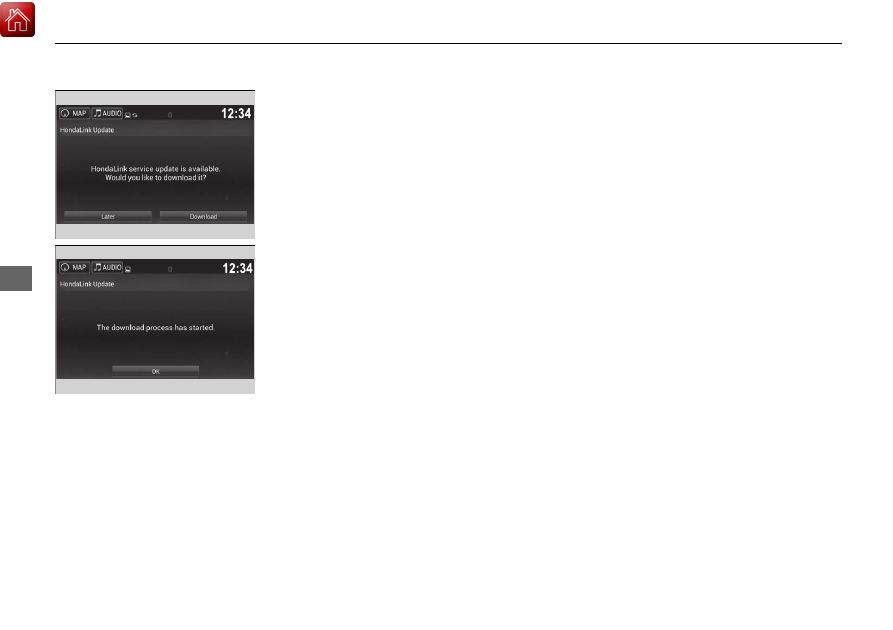

3. Select Download.

4. Select OK.

243

uu

Audio System Basic Operation

u

Adjusting the Sound

Features

Adjusting the Sound

1. Select .
2. Select Audio.
3. Select .
4. Select Sound.

Select a tab from the following choices:
• BASS-TRE: Bass, Treble
• FAD-BAL: Fader, Balance
• CTR-SUBW: Center, Subwoofer
• SVC: Speed Volume Compensation

1

Adjusting the Sound

The SVC has four modes: OffLowMid, and High.
SVC adjusts the volume level based on the vehicle
speed. As you go faster, audio volume increases. As
you slow down, audio volume decreases.

You can also adjust the sound the following
procedure.
1. Select .
2. Select Settings.
3. Select Audio.
4. Select Sound.

When the Truck Bed Audio system is played select a
tab from the following choices:

BASS-TRE: Bass, Treble

SUBW: Subwoofer

SVC: Speed Volume Compensation

244

uu

Audio System Basic Operation

u

Display Setup

Features

Display Setup

You can change the brightness or color theme of the audio/information screen.

1. Select .
2. Select Settings.
3. Select System.
4. Select the Display tab.
5. Select Display Settings.
6. Select the setting you want.
7. Select OK.

1. Select .
2. Select Settings.
3. Select System.
4. Select the Display tab.
5. Select Background Color.
6. Select the setting you want.
7. Select OK.

Changing the Screen Brightness

1

Changing the Screen Brightness

You can change the Contrast and Black Level
settings in the same manner.

Changing the Screen’s Color Theme

245

uu

Audio System Basic Operation

u

Display Setup

Features

Select the current source icon, then select an icon on the source list to switch the
audio source.

Certain manual functions are disabled or inoperable while the vehicle is in motion.
You cannot select a grayed-out option until the vehicle is stopped.

Selecting an Audio Source

Limitations for Manual Operation

Select the source icon

Source Select Screen

Source List Icons

246

uu

Audio System Basic Operation

u

Voice Control Operation

Features

Voice Control Operation

Your vehicle has a voice control system that allows hands-free operation.
The voice control system uses the

 (Talk) and

 (hang-up/back) buttons on the

steering wheel and a microphone near the map lights on the ceiling.

To achieve optimum voice recognition when using the voice control system:
• Make sure the correct screen is displayed for the voice command that you are

using.
The system recognizes only certain commands.
Available navigation commands.

Voice Portal Screen P. 247

• Close the windows.
• Adjust the dashboard and side vents so air does not blow onto the microphone

on the ceiling.

• Speak clearly in a clear, natural speaking voice without pausing between words.
• Reduce any background noise if possible. The system may misinterpret your

command if more than one person is speaking at the same time.

Voice Recognition

1

Voice Control Operation

When you press the

 button, a helpful prompt asks

what you would like to do. Press and release the



button again to bypass this prompt and give a
command.

1

Voice Recognition

The voice control system can only be used from the
driver’s seat because the microphone unit removes
noises from the front passenger’s side.

247

uu

Audio System Basic Operation

u

Voice Control Operation

Continued

Features

When the

 (Talk) button is pressed,

available voice commands appear on the
screen.
For a complete list of commands, say “Voice
Help
” after the beep or select Voice Help.

You can see the list of commands in Voice
Info
 on the Info menu screen. Select Info
then select

The system only recognizes the commands
on the following pages, at certain screens.
Free form voice commands are not
recognized.

*1: Models with navigation system

Voice Portal Screen

Phone Call

This can be only used when the phone is
connected. When the system recognizes the
Phone call command, the screen will
change the dedicated screen for the voice
recognition of the phone.
• Dial by number
• Call history
• Redial
• Call <Your Contact Name>
• Call <Phone Number>
Phone Call commands are not available if
using Apple CarPlay.

Music Search

*1

This can be only used when the iPod or USB
device is connected.

Audio

*1

When the system recognizes the Audio
command, the screen will change the
dedicated screen for the voice recognition
of the audio.
• Audio On
• Audio Off
• Radio FM
• Radio AM
• Radio SXM

*

• DISC

*

• Pandora

*

• iPod
• USB
• Other Sources
Pandora®

*

 cannot be used with Android

Auto.

Navigation

*1

The screen changes the navigation screen.

Refer to the Navigation System Manual

Voice Settings

The screen changes the Voice Recog tab
on the System settings screen.

Trip Computer

*1

The screen changes the trip computer
screen.

* Not available on all models

248

uu

Audio System Basic Operation

u

Voice Control Operation

Features

Voice Help

You can see a list of the available
commands on the screen.
• Useful Commands

*

• Phone Commands
• Audio Commands

*

• Climate Control Commands

*

• On Screen Commands
• Music Search Commands

*

• General Commands

*

• Voice Settings
• Getting Started
• All Commands

The system accepts these commands on the
voice portal top screen.
• Call <Phone Number>
• Call <Your Contact Name>
• What time is it?
• What is today’s date?

Useful Commands

The system accepts these commands on the
dedicated screen for the voice recognition
of the phone.
• Call by Number
• Call by Name
• Call <Phone Number>
• Call <Your Contact Name>

The system accepts these commands on the
dedicated screen for the voice recognition
of the audio.

Radio FM Commands

*

• Radio tune to <87.7-107.9> FM
• Radio tune to <87.7 -107.9> HD <1-8>

FM

• Radio FM preset <1-12>

Radio AM Commands

• Radio tune to <530-1710> AM
• Radio AM preset <1-6>

Radio SXM Commands

*

• SXM channel <1-999>
• SXM channel <station name>
• Radio SXM preset <1-12>

Phone Commands

Audio Commands

*1

DISC Commands

*

• DISC play
• DISC play track <1-30>

Pandora Commands

*

• Pandora play

iPod Commands

• iPod play
• iPod play track <1-30>
• Music Search
• What album is this?
• What am I listening to?

USB Commands

• USB play
• USB play track <1-30>
• Music Search
• What album is this?
• What am I listening to?

Bluetooth® audio Commands

• Bluetooth® audio play
NOTE:
Bluetooth® Audio commands may not work
on some phones or Bluetooth® Audio
devices.

* Not available on all models

249

uu

Audio System Basic Operation

u

Voice Control Operation

Features

AUX-Audio commands

• AUX audio play

When On Screen Commands is selected,
the explanation screen is displayed.

The system accepts these commands on the
Music Search screen.

Using Song By Voice

Song By Voice

TM

 is a feature that allows you

to select music from your iPod or USB device
using Voice Commands. To activate this
mode, you must push the talk switch and
say: “Music search”.

Song By Voice Commands

• What am I listening to?
• Who am I listening to?
• Who is this?
• What’s playing?
• Who’s playing?
• What album is this?

*1: Models with navigation system

On Screen Commands

Music Search Commands

*1

Play Commands

• Play artist <Name>
• Play track/song <Name>
• Play album <Name>
• Play genre/category <Name>
• Play playlist <Name>
• Play composer <Name>

List Commands

• List artist <Name>
• List album <Name>
• List genre/category <Name>
• List playlist <Name>
• List composer <Name>

• What time is it?
• What is today’s date?

General Commands

• Climate Control on
• Climate Control off
• Fan Speed <1-7>
• Temperature max heat
• Temperature max cool
• Temperature <57-87> degrees
• Defrost on
• Defrost off
• Air conditioner on
• Air conditioner off
• More
• Climate control automatic
• Vent
• Dash and floor
• Fan speed up
• Fan speed down
• Floor vents
• Floor and defrost
• Temperature up
• Temperature down

Climate Control Commands

*1

250

uu

Audio System Basic Operation

u

Playing AM/FM Radio

Features

Playing AM/FM Radio

*1:Some or all of the lists may not be displayed.

VOL (Volume) Icons
Select to adjust the volume.

 (Back) Icon

Select to go back to the previous
display.

Seek Icons
Select

 or

 to search up

and down the selected band for a
station with a strong signal.

/AUDIO (Power/Audio) Icon

Select to turn the audio system
on and off.

Open/Close Icon

*1

Displays/hides the detailed
information.

 (Menu) Icon

Select to display the menu items.

Tune Icons
Select

 or

 to tune the radio

frequency.

Audio/Information Screen

Scan Icon
Select to scan each station with a strong
signal.

Preset Icons
Tune the radio frequency for preset memory.
Select and hold the preset icon to store that
station. Select

 to display preset 7 onwards.

Multi-Information Display

Continued

251

uu

Audio System Basic Operation

u

Playing AM/FM Radio

Features

To store a station:
1. Tune to the selected station.
2. Select and hold the preset number for the station you want to store.

You can also store a preset station by the following procedure.
1. Tune to the selected station.
2. Select the open/close icon to display a list.
3. Select the Preset tab.
4. Select and hold the preset number for the station you want to store.

Lists the strongest stations on the selected band.
1. Select the open/close icon to display a list.
2. Select the Station List tab.
3. Select the station.

Manual update

Updates your available station list at any time.
1. Select the open/close icon to display a list.
2. Select the Station List tab.
3. Select Refresh.

Preset Memory

Station List

1

Preset Memory

The ST indicator appears on the display indicating
stereo FM broadcasts.
Stereo reproduction in AM is not available.

Switching the Audio Mode
Press the SOURCE button on the steering wheel or
select SOURCE on the screen.

Audio Remote Controls P. 205

You can store 6 AM stations and 12 FM stations into
preset memory.

HD Radio Technology manufactured under license
from iBiquity Digital Corporation. U.S. and Foreign
Patents. HD Radio

TM

 and the HD, HD Radio, and

“Arc” logos are proprietary trademarks of iBiquity
Digital Corp.

Models with HD Radio

TM

uu

Audio System Basic Operation

u

Playing AM/FM Radio

252

Features

Samples each of the strongest stations on the selected band for 10 seconds. To turn
off scan, select Cancel or

.

Provides text data information related to your selected RDS-capable FM station.

To find an RDS station from Station List

1. Select the open/close icon to display a list while listening to an FM station.
2. Select the Station List tab.
3. Select the station.

Manual update

Updates your available station list at any time.
1. Select the open/close icon to display a list while listening to an FM station.
2. Select the Station List tab.
3. Select Refresh.

Radio text

Displays the radio text information of the selected RDS station.
1. Select .
2. Select View Radio Text.

Scan

Samples each of the strongest stations on the selected band for 10 seconds.

To turn off scan, select Cancel or

.

Scan

Radio Data System (RDS)

1

Radio Data System (RDS)

When you select an RDS-capable FM station, the RDS
automatically turns on, and the frequency display
changes to the station name. However, when the
signals of that station become weak, the display
changes from the station name to the frequency.

253

uu

Audio System Basic Operation

u

Playing AM/FM Radio

Features

Displays the subchannel list when an HD Radio

TM

 station is selected while listening to

an FM station.
1. Select .
2. Select HD Radio Subchannel.
3. Select the channel number.

HD Subchannel

Models with HD Radio

TM

254

uu

Audio System Basic Operation

u

Playing SiriusXM® Radio

*

Features

Playing SiriusXM® Radio

*

*1:Some or all of the lists may not be displayed.

VOL (Volume) Icons
Select to adjust the volume.

 (Back) Icon

Select to go back to the previous
display.

Channel Icons
Select

 or

 to the previous

or next channel.
Select and hold to rapidly skip 10
channels at a time.

/AUDIO (Power/Audio) Icon

Press to turn the audio system
on and off.

Open/Close Icon

*1

Displays/hides the detailed
information.

 (Menu) Icon

Select to display the menu items.

Category Icons
Select

 or

 to display and select a

SiriusXM® Radio category.

Audio/Information Screen

Scan Icon
Select to scan each channel.

Preset Icons
Tune the radio frequency for preset memory.
Select and hold the preset icon to store that
station. Select

 to display preset 7 onwards.

Skip Icons
Select

or

to

change

section in the channel. Select and
hold to move rapidly within the
section.

Multi-Information Display

Album Art

Station Art

* Not available on all models

Continued

255

uu

Audio System Basic Operation

u

Playing SiriusXM® Radio

*

Features

1. Select .
2. Select Tune Mode.
3. Select Channel Mode or Category Mode.

To Change the Tune Mode

1

Playing SiriusXM® Radio

*

In the channel mode, all available channels are
selectable. In the category mode, you can select a
channel within a category (Jazz, Rock, Classical, etc.).

There may be instances when SiriusXM® Radio does
not broadcast all the data fields (artist name, title).
This does not indicate a problem with your audio
system.

SiriusXM® Radio stations load in ascending order,
which can take about a minute. Once they have
loaded you will be able to scroll up or down to make
your selections.

Switching the Audio Mode
Press the SOURCE button on the steering wheel or
select SOURCE on the screen.

Audio Remote Controls P. 205

Tune Start:
When you change to a preset channel, a song being
played on that channel restarts from the beginning
with this function. This can be turned on or off from
the Audio settings screen.

Customized Features P. 324

* Not available on all models















Content   ..  14  15  16  17   ..
