Honda Ridgeline (2019 year). Manual - part 2





16

Quick

 Referenc

e Guide

Heating and Cooling System

*



(P195)

● Toggle up and down the fan control switch to adjust the fan speed.

● Press the Mode button to select the vents air flows from.

● Toggle up and down the temperature control switch to adjust the temperature.

● Use the

 button for maximum cool setting.

● Press the

 button to turn the system on or off.

● Press the

 button to defrost the windshield.

Fan Control Switch

A/C (Air Conditioning) Button

Air flows from floor and
windshield defroster vents.

Air flows from floor vents.

Air flows from dashboard
and floor vents.

Air flows from dashboard
vents.

 Button

 (Recirculation) Button

Temperature Control Switch

 (On/Off) Button

MODE Button

 (Windshield Defroster) Button

17

Quick

 Referenc

e Guide

Features

(P199)

Audio system

(P200)

Models with color audio system

MENU/CLOCK Button

Selector Knob

 (Day/Night) Button

 (Back) Button

 (Sound) Button

VOL /

 (Volume/Power)

Knob

Preset Buttons (1-6)

 (Phone) Button

RADIO Button

 /



(Seek/Skip) Buttons

MEDIA Button

Audio/Information Screen

* Not available on all models

18

Quick

 Referenc

e Guide

/AUDIO (Power/Audio)

Icon

 (Home) Icon

VOL (Volume) Icons

 (Menu) Icon

 (Back) Icon

 (Day/night) Icon

Audio/Information Screen

Multi-Information Display

For navigation system operation

() See the Navigation System Manual

Models with Display Audio

 (Eject) Button

Disc Slot

Canadian models

19

Quick

 Referenc

e Guide

Audio Remote Controls

(P205)

(

+ /

(

- Button

Press to adjust the volume up/down.

● SOURCE Button

Press to change the audio mode:
FM1/FM2/AM/USB/iPod/
Bluetooth® Audio/AUX

Press to change the audio mode:
FM/AM/SiriusXM

*

/CD

*

/USB/iPod/

Pandora®

*

/Bluetooth® Audio/AUX

(

+ /

(

- Button

SOURCE
Button

 /

 Button

Models with color audio system

Models with Display Audio

 /

 Button

Radio: Press to change the preset station.

Press and hold to select the next or
previous strong station.

CD

*

/USB device:

Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.

* Not available on all models

20

Quick

 Referenc

e Guide

Driving

(P411)

Release Button

Depress the brake pedal and press the
release button to move out of

(

P.

Move the shift lever without pressing
the release button.

Press the release button to move the
shift lever.

Automatic Transmission

(P442)

● Shift to

(

P and depress the brake pedal when starting the engine.

● Shifting

Park
Turn off or start the engine.
Transmission is locked.
Reverse
Used when reversing.

Neutral
Transmission is not locked.

Drive
Normal driving.

Shift Lever

Intelligent Traction
Management Button

Low

Strong engine power when climbing and strong
engine braking when going down steep hills.

Drive (D4)
Press the

 button while the shift lever is in

(

D.

Used when:

Going up or down hills.

D4

 Button

D4

21

Quick

 Referenc

e Guide

VSA® On and Off

(P479)

● The Vehicle Stability Assist® (VSA®) system

helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.

● VSA® comes on automatically every time

you start the engine.

● To partially disable or fully restore VSA®

function, press and hold the button until
you hear a beep.

Cruise Control

*



(P447)

● Cruise control allows you to maintain a

set speed without keeping your foot on
the accelerator pedal.

● To use cruise control, press the CRUISE

button, then press the /SET button once
you have achieved the desired speed
(above 25 mph or 40 km/h).

CMBS

TM

 On and Off

(P497)
● When a possible collision is likely

unavoidable, the CMBS

TM

 can help you to

reduce the vehicle speed and the severity
of the collision.

● To turn the CMBS

TM

 on or off, press and

hold the button until you hear a beep.

Tire Pressure Monitoring System (TPMS)

(P482, 590)

● TPMS monitors tire pressure.

● TPMS is turned on automatically every time you start the engine.

● TPMS fill assist provides audible and visual guidance during tire pressure adjustment.

Refueling

(P514)

a

Press the fuel fill
door release button.

b

After refueling,
wait for about five
seconds before
removing the filler
nozzle.

Fuel recommendation: Unleaded gasoline, pump octane number 87 or

higher

Fuel tank capacity: 19.5 US gal (73.8 L)

* Not available on all models

22

Quick

 Referenc

e Guide

Honda Sensing®

*

Honda Sensing® is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located in the front grille and a front sensor
camera mounted to the interior side of the
windshield, behind the rear view mirror.

The camera is located
behind the rearview
mirror.

Front
Sensor
Camera

Radar Sensor

The radar sensor is
inside the front grille.

Adaptive Cruise Control
(ACC)

*



(P457)

Helps maintain a constant vehicle speed and
a set following interval behind a vehicle
detected ahead of yours, without you
having to keep your foot on the brake or
the accelerator.

Road Departure
Mitigation (RDM)
System

*



(P452)

Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings and/or leaving the roadway
altogether.

Lane Keeping Assist
System (LKAS)

*



(P470)

Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.

Collision Mitigation
Braking System

TM



(CMBS

TM

)

*



(P494)

Can assist you when there is a possibility of
your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The
CMBS

TM

 is designed to alert you when a

potential collision is determined, as well as
to reduce your vehicle speed to help
minimize collision severity when a collision is
deemed unavoidable.

23

Quick

 Referenc

e Guide

Maintenance

(P519)

Under the Hood

(P527)

● Check engine oil, engine coolant, and windshield washer

fluid. Add when necessary.

● Check brake fluid.

● Check the battery condition monthly.

a

Pull the hood release handle under the corner of the
dashboard.

b

Locate the hood latch lever, pull the lever up, and lift up
the hood.

c

When finished, close the hood and make sure it is firmly
locked in place.

Lights

(P539)

● Inspect all lights regularly.

Wiper Blades

(P545)

● Replace blades if they leave streaks

across the windshield.

Tires

(P547)

● Inspect tires and wheels regularly.

● Check tire pressures regularly.

● Install snow tires for winter

driving.

* Not available on all models

24

Quick

 Referenc

e Guide

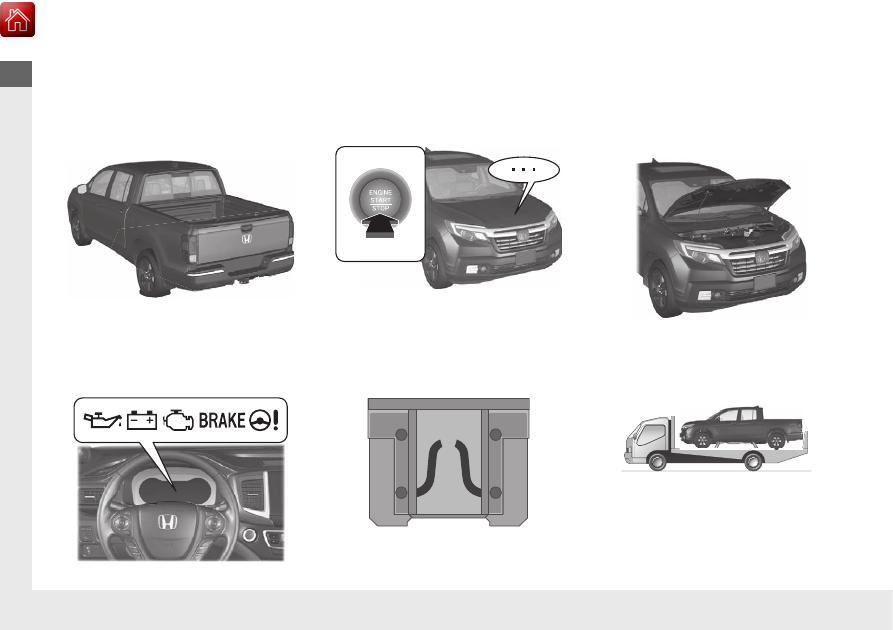

Handling the Unexpected

(P567)

Flat Tire

(P569)

● Park in a safe location and replace the

flat tire with the compact spare tire
located in the trunk.

Indicators Come On

(P587)

● Identify the indicator and consult the

owner’s manual.

Engine Won’t Start

(P578)

● If the battery is dead, jump start using a

booster battery.

Blown Fuse

(P591)

● Check for a blown fuse if an electrical

device does not operate.

Overheating

(P585)

● Park in a safe location. If you do not see

steam under the hood, open the hood,
and let the engine cool down.

Emergency Towing

(P596)

● Call a professional towing service if you

need to tow your vehicle.

25

Quick

 Referenc

e Guide

What to Do If

The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?

The steering wheel may be locked.

Move the steering wheel left and right
after pressing the ENGINE START/STOP
button.

The power mode does not
change from ON to
VEHICLE OFF (LOCK). Why?

The shift lever should be moved to

(

P

.

Why does the brake pedal
pulsate slightly when
applying the brakes?

This can occur when the ABS activate and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.

u

Anti-lock Brake System (ABS)

(P492)

Canadian models

26

Quick

 Referenc

e Guide

The rear door cannot be
opened from inside the
vehicle. Why?

Check if the childproof lock is in
the lock position. If so, open the
rear door with the outside door
handle.
To cancel this function, push the
lever to the unlock position.

Why do the doors lock
after I unlocked the doors?

If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.

Why does the beeper
sound when I open the
driver’s door?

The beeper sounds when:

The exterior lights are left on.

The power mode is in ACCESSORY.

Why does the beeper
sound when I start driving?

The beeper sounds when:

Driver and/or front passenger are not wearing their seat belts.

The parking brake pedal is not fully released.

Why do I hear a screeching
sound when I apply the
brake pedal?

The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.

27

Quick

 Referenc

e Guide

I’m seeing an amber
indicator of a tire with an
exclamation point. What is
that?

The Tire Pressure Monitoring System (TPMS) needs attention.
Check tire pressure.

u

If the Low Tire Pressure/Tire Pressure Monitoring System
(TPMS) Indicator Comes On or Blinks

(P590)

28

30

Safe Driving

For Safe Driving

The following pages explain your vehicle’s safety features and how to use them
properly. The safety precautions below are ones that we consider to be among the
most important.

Important Safety Precautions

Always wear your seat belt

A seat belt is your best protection in all types of collisions. Airbags are designed to
supplement seat belts, not replace them. So even though your vehicle is equipped
with airbags, make sure you and your passengers always wear your seat belts, and
wear them properly.

Restrain all children

Children ages 12 and under should ride properly restrained in a back seat, not the
front seat. Infants and small children should be restrained in a child seat. Larger
children should use a booster seat and a lap/shoulder seat belt until they can use the
belt properly without a booster seat.

Be aware of airbag hazards

While airbags can save lives, they can cause serious or fatal injuries to occupants
who sit too close to them, or are not properly restrained. Infants, young children,
and short adults are at the greatest risk. Be sure to follow all instructions and
warnings in this manual.

Don’t drink and drive

Alcohol and driving don’t mix. Even one drink can reduce your ability to respond to
changing conditions, and your reaction time gets worse with every additional drink.
So don’t drink and drive, and don’t let your friends drink and drive, either.

1

Important Safety Precautions

Some states, provinces and territories prohibit the use
of cell phones other than hands-free devices by the
driver while driving.

31

uu

For Safe Driving

u

Important Safety Precautions

Safe Driving

Pay appropriate attention to the task of driving safely

Engaging in cell phone conversation or other activities that keep you from paying
close attention to the road, other vehicles, and pedestrians could lead to a crash.
Remember, situations can change quickly, and only you can decide when it is safe to
divert some attention away from driving.

Control your speed

Excessive speed is a major factor in crash injuries and deaths. Generally, the higher
the speed, the greater the risk, but serious injuries can also occur at lower speeds.
Never drive faster than is safe for current conditions, regardless of the maximum
speed posted.

Keep your vehicle in safe condition

Having a tire blowout or a mechanical failure can be extremely hazardous.
To reduce the possibility of such problems, check your tire pressures and condition
frequently, and perform all regularly scheduled maintenance.

Never let passengers ride in the pickup bed or inside a truck cap (shell).

They could be killed or injured in a crash, or become ill or even die from carbon
monoxide poisoning if engine exhaust enters the cap.

Do not leave children unattended in the vehicle

Children left unattended in the vehicle may be injured if they activate one or more
of the vehicle controls. They may also cause the vehicle to move, resulting in a crash
in which the children and/or another person(s) can be injured or killed. Also,
depending on the ambient temperature, the temperature of the interior may reach
extreme levels, which can result in injury or death.
Even if the climate control system is on, never leave children in the vehicle
unattended as the climate control system can shut off at any time.















Content   ..   1  2  3   ..
