Honda Pilot (2019 year). Manual - part 14

207

uu

Adjusting the Seats

u

Armrest

Continued

Co
ntrols

Armrest

Pull down the armrest.

Pull the armrest all the way down, then pull it
up to the desired angle.

■

Using the Front Seat Armrest

Models with adjustable armrest

208

uu

Adjusting the Seats

u

Armrest

Co
ntrols

Pull down the armrest.

Pull down the armrest of the center backrest.

■

Using the Second Row Seat Armrest

Models with captain seat

Models with bench seat

209

Continued

Co
ntrols

Interior Lights/Interior Convenience Items

Interior Lights

■

ON

The interior lights come on regardless of
whether the tailgate and doors are open or
closed.

■

Door activated

The interior lights come on in the following
situations:
• When the tailgate or any doors are opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE

OFF (LOCK).

■

OFF

The interior lights remain off regardless of
whether the tailgate or the doors are open or
closed.

■

Interior Light Switches

1

Interior Light Switches

In the door activated position, the interior lights fade
out and go off about 30 seconds after the doors are
closed.

The lights go off after about 30 seconds in the
following situations:

•

When you unlock the driver’s door but do not open
it.

•

When you set the power mode to VEHICLE OFF
(LOCK) but do not open a door.

You can change the interior lights dimming time.

2 Vehicle Customization P. 125

2 Customized Features P. 432

The interior lights go off immediately in the following
situations:

•

When you lock the driver’s door.

•

When you close the driver’s door in ACCESSORY
mode.

•

When you set the power mode to ON.

If you leave any of the tailgate or doors open in
VEHICLE OFF (LOCK) mode, the interior lights go off
after about 15 minutes.

To avoid draining the battery, do not leave the
interior light on for an extended length of time when
the engine or power system is off.

Models with color audio system

Models with Display Audio

Models without panoramic roof

Door Activated Position

Off

On

Models with panoramic roof

Door Activated Position

Off

On

uu

Interior Lights/Interior Convenience Items

u

Interior Lights

210

Co
ntrols

■

Front

The map lights can be turned on and off by
pressing the lenses or buttons.

■

Map Lights

1

Map Lights

When the front interior light switch is in the door
activated position and any door is open, the map
light will not go off when you press the lens.

Models without panoramic roof

Models with panoramic roof

Models without panoramic roof

Continued

211

uu

Interior Lights/Interior Convenience Items

u

Interior Lights

Co
ntrols

■

Second and third row

The map lights can be turned on and off by
pressing the lenses when the front interior
light switch is in the door activated position.

1

Map Lights

When the front interior light switch is in the door
activated position and any door is open, the rear map
light will not go off when you press the lens.

Models without panoramic roof

Models with panoramic roof

212

uu

Interior Lights/Interior Convenience Items

u

Interior Lights

Co
ntrols

■

ON

The light comes on regardless of whether the
tailgate is open or closed.

■

Tailgate activated

The light comes on when you open the
tailgate, and goes off when closed.

■

OFF

The light stays off with or without opening the
tailgate.

■

Cargo Area Light

Off

On

Tailgate Activated Position

213

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Continued

Co
ntrols

Interior Convenience Items

Pull the lever to open the glove box. You can
lock the glove box with the built-in key.

To open the console compartment, press the
button to unlock the lid, and then slide it
rearward.

■

Glove Box

1

Glove Box

3

WARNING

An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.

Always keep the glove box closed while
driving.

Glove Box

To Lock

■

Console Compartment

Button

214

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Co
ntrols

■

Console Tray

Slide the tray when you use the console
compartment.

Continued

215

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Co
ntrols

■

Front seat beverage holders

Are located in the console between the front
seats.

■

Door side beverage holders

Are located on the both of front and rear door
side pockets.

■

Beverage Holders

1

Beverage Holders

NOTICE

Spilled liquids damage the upholstery, carpeting, and
electrical components in the interior.

Be careful when you are using the beverage holders.
Hot liquid can scald you.

Front

Rear

216

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Co
ntrols

■

Second row bench seat beverage
holders

*

Fold the armrest down to use the rear seat
beverage holders.

■

Second row captain seat beverage
holders

*

■

Third row seat beverage holders

* Not available on all models

Continued

217

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Co
ntrols

The accessory power sockets can be used when the power mode is in ACCESSORY
or ON.

■

Console panel

Open the lid and the cover to use it.

■

Console compartment

Pull the handle and open the cover to use it.

■

Accessory Power Sockets

1

Accessory Power Sockets

Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.

The accessory power socket is designed to supply
power for 12-volt DC accessories that are rated 180
watts (15 amps) or less.

To prevent battery drain, only use the power socket
with the engine running.

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

218

Co
ntrols

■

Cargo area

*

Open the cover to use it.

The AC power outlet can be used when the engine is running.

Open the cover to use it. Plug in the appliance
slightly, turn it 90° clockwise, then push it all
the way.

■

AC Power Outlet

*

1

AC Power Outlet

*

NOTICE

Do not use the AC power outlet for electric
appliances that require high initial peak wattage,
such as cathode-ray tube type televisions,
refrigerators, electric pumps, etc. It is not suitable for
devices that process precise data, such as medical
equipment, and that require an extremely stable
power supply, such as microcomputer-controlled
electric blankets, touch sensor lamps, etc.

The AC power outlet is designed to supply power for
up to 115 volt appliances that are rated 150 watts or
less.

Continued use of any electric appliance/device
exceeding these ratings may result in damage to the
appliance/device.

* Not available on all models

Continued

219

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Co
ntrols

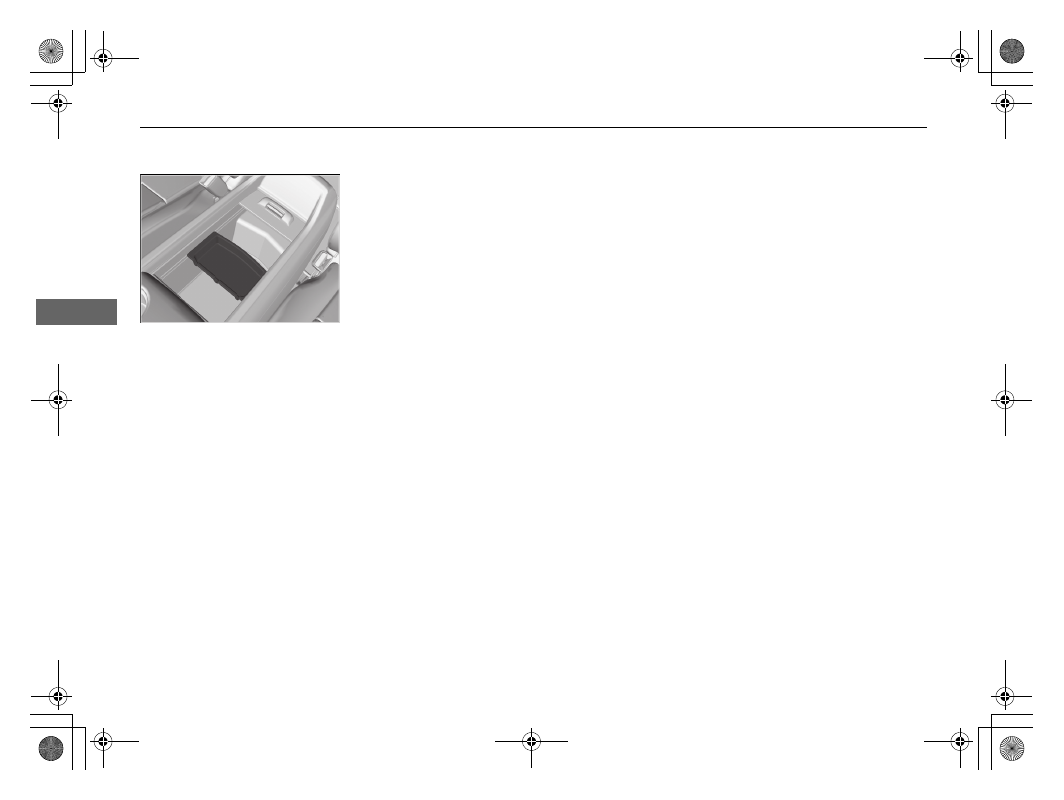

To use the wireless charger, the power mode must be in ACCESSORY or ON.
Charge a compatible device on the area indicated by the

 mark as follows:

1. Place the device you want to charge on the

charging area.

u

The system will automatically start
charging the device, and the green
indicator light will come on.

u

Make sure that the device is compatible
with the system and placed with the
chargeable side in the center of the
charging area.

2. When charging is completed, the green

indicator light will go off.

u

If the device is not located on the charge
area correctly, the green indicator light
will blink.

■

Wireless Charger

*

1

Wireless Charger

*

In order to use safely:

•

Remove any metal objects from the charge pad
before charging a device.

•

Do not open the charger case.

•

Do not use the charger if it malfunctions.

Contact your dealer.

3

CAUTION

Metal objects between the charge pad
and the device to be charged will get
hot and can burn you.
• Always remove foreign objects from

the charge pad before charging the
device.

• Be sure the surface is clear of dust and

other debris before charging.

• Do not spill liquids (i. e. water, drinks,

etc.) on the charger and the device.

• Do not use oil, grease, alcohol,

benzine or thinner for cleaning the
charge pad.

• Do not cover the system with towels,

clothing, or other objects while
charging etc.

• Avoid spraying aerosols which may

come in contact with the charge pad
surface.

Green
Indicator

Charging Area

* Not available on all models

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

220

Co
ntrols

■

When charging does not start

Perform one of the solutions in the following table.

Indicator

Cause

Solution

Slow Blink

There is an obstacle(s) between
the charging area and the
device.

Remove the
obstacle(s).

The device is not within the
charging area.

Move the device to the
center of the charging
area where

 is

located.

Fast Blink

The wireless charger is faulty.

Turn the vehicle off
and back on. If the
indicator still blinks,
contact a dealer.

1

Wireless Charger

*

Using the audio/information screen, you can disable
the wireless charger function.

2 Customized Features P. 432

This system consumes a lot of power. Do not use the
system for a long time when the engine is not
running. This may weaken the battery, making it
difficult to start the engine.

When using the wireless charger, check the user’s
manual that came with the compatible device you
want to charge.

NOTICE

Do not place any magnetic recording media or
precision machines within the charging area while
charging.
The data on your cards such as credit cards can be
lost because of the magnetic effect. Also precision
machines such as watches can go wrong.

“Qi” and

 marks are the registered trademarks

owned by Wireless Power Consortium (WPC).

In the following cases, charging may stop or not start:

•

The device is already fully charged.

•

The temperature of the device is extremely high
while charging.

•

You are at a place that emits strong
electromagnetic waves or noises, such as a TV
station, electric power plant, or gas station.

* Not available on all models

Continued

221

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Co
ntrols

There is a coat hook on the rear grab handle
of both sides. Pull it down to use it.

■

Coat Hooks

1

Wireless Charger

*

A device may not charge if the size or shape of its
chargeable side is not appropriate for use with the
charging area.

Not all devices are compatible with the system.

During the charging phase, it is normal for the
charging area and device to heat up.

Charging may be briefly interrupted when:

•

All the doors and the tailgate are closed
- to avoid interference with the proper functioning
of the smart entry system.

•

The position of the device is altered.

Do not charge more than one device at a time on a
charging area.

1

Coat Hooks

The coat hooks are not designed for large or heavy
items.

* Not available on all models

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

222

Co
ntrols

To open the sunglasses holder, push and
release the indent. To close, push it again until
it latches.

You can store eyeglasses and other small
items in this holder.

■

Conversation mirror

*

The sunglasses holder comes with a mirror.
Open the sunglasses holder fully, then push it
back to the first detent.

You can use the mirror to view the rear seats.

■

Sunglasses Holder

1

Sunglasses Holder

Keep the holder closed while driving except when
accessing stored items.

Push

* Not available on all models
