Remote Control and Wireless Headphone Care

Replacing the Battery

Main

tenan

If there is no sound coming from the wireless headphone, replace the batteries.

1. Remove the screw.

2. Open the cover.
3. Make sure to replace the batteries with the

correct polarity.

■

Wireless Headphone

Battery type: AAA

Cover

Batteries

689

Main

tenan

Climate Control System Maintenance

Air Conditioning

To ensure proper and safe operation, the Society of Automotive Engineers (SAE
J2845) recommends that the refrigerant system only be serviced by trained and
certified technicians.

Never repair or replace the air conditioning evaporator (cooling coil) with one
removed from a used or salvaged vehicle.

New replacement mobile air conditioning evaporators must be certified (and
labeled) as meeting SAE Standard J2842.

Dust and Pollen Filter

The climate control system is equipped with a dust and pollen filter that collects
pollen, dust, and other debris in the air. The Maintenance Minder

messages will let

you know when to replace the filter.

We recommend that you replace the dust and pollen filter sooner when using your
vehicle in areas with high concentrations of dust.

Air Conditioning

NOTICE

Vented refrigerant is harmful to the environment.
To avoid refrigerant from venting, never replace the
evaporator with one removed from a used or
salvaged vehicle.

Refrigerant in your vehicle’s air conditioning system is
flammable and can be ignited during servicing if
proper procedures are not followed.

The air conditioner label is found under the hood:

2 Safety Labels P. 81
2 Specifications P. 740

Canadian models

: Caution

: Flammable Refrigerant

: Requires Registered
Technician to Service

: Air Conditioning
System

Dust and Pollen Filter

If the airflow from the climate control system
deteriorates noticeably, and the windows fog up
easily, the filter may need to be replaced. Please
contact a dealer for replacement.

690

Main

tenan

Cleaning

Interior Care

Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.

Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry. Wipe the loops of the seat belt anchors using a clean cloth.

Wipe using a glass cleaner.

■

Cleaning Seat Belts

Interior Care

Do not spill liquids inside the vehicle. Electrical
devices and systems may malfunction if liquids are
splashed on them.

Do not use silicone based sprays on electrical devices
such as audio devices and switches. Doing so may
cause the items to malfunction or cause a fire inside
the vehicle.
If a silicone based spray is inadvertently used on
electrical devices, consult a dealer.

Depending on their composition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-based parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.

After using chemicals, make sure to gently wipe them
off using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.

Loop

■

Cleaning the Window

Cleaning the Window

Wires are mounted to the inside of the rear window.
Wipe along the same direction as the wires with a
soft cloth so as not to damage them.

Be careful not to spill fluids, such as water or glass
cleaner, on or around the cover of both the front
sensor camera and the rainfall/light sensor

Models with Front Sensor Camera

* Not available on all models

Continued

691

Cleaning

Interior Care

Main

tenan

The front and second row floor mats hook
over floor anchors, which keep them from
sliding forward. To remove a mat for cleaning,
turn the anchor knobs to the unlock position.
When reinstalling the mat after cleaning, turn
the knobs to the lock position.

Do not put additional floor mats on top of
the anchored mats.

■

Floor Mats

Floor Mats

If you use any floor mats that were not originally
provided with your vehicle, make sure they are
designed for your specific vehicle, fit correctly, and
are securely anchored by the floor anchors.
Position the second row seat floor mat properly. If it
is not properly positioned, the floor mat can interfere
with the front seat functions.

Unlock

Lock

Unlock

Lock

Front
(Driver side)

Second row

Cleaning

Interior Care

692

Main

tenan

To properly clean leather:
1. Use a vacuum or soft dry cloth first to remove any dirt or dust.
2. Clean the leather with a soft cloth dampened with a solution comprised of 90%

water and 10% neutral soap.

3. Wipe away any soap residue with a clean damp cloth.
4. Wipe away residual water and allow leather to air dry in the shade.

■

Maintaining Genuine Leather

Maintaining Genuine Leather

It is important to clean or wipe away dirt or dust as
soon as possible. Spills can soak into leather resulting
in stains. Dirt or dust can cause abrasions in the
leather. In addition, please note that some dark
colored clothing can rub onto the leather seats
resulting in discoloration or stains.

* Not available on all models

693

Cleaning

Exterior Care

Continued

Main

tenan

Exterior Care

Dust off the vehicle body after you drive. Regularly inspect your vehicle for scratches
on painted surfaces. A scratch on a painted surface can result in body rust. If you
find a scratch, promptly repair it.

Wash the vehicle regularly. Wash more frequently when driving in the following
conditions:
• If driving on roads with road salt.
• If driving in coastal areas.
• If tar, soot, bird droppings, insects, or tree sap are stuck to painted surfaces.

Make sure to follow the instructions indicated on the automated car wash.
• Fold in the door mirrors.
• Turn off the automatic intermittent wipers

• Keep sufficient distance between the cleaning nozzle and the vehicle body.
• Take particular care around the windows. Standing too close may cause water to

enter the vehicle interior.

• Do not spray high pressure water directly into the engine compartment. Instead,

use low pressure water and a mild detergent.

■

Washing the Vehicle

■

Using an Automated Car Wash

■

Using High Pressure Cleaners

Washing the Vehicle

Do not spray water into the air intake vents. It can
cause a malfunction.

Do not spray water onto the capless unit when the
fuel fill door is open. It can cause damage to the fuel
system or engine.

Air
Intake
Vents

Using an Automated Car Wash

When using an automated car wash that pulls the
vehicle through with a conveyor, make sure vehicle is
in car wash mode.

2 If you want to keep the transmission in

(

position [car wash mode] P. 550

* Not available on all models

Cleaning

Exterior Care

694

Main

tenan

A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.

If you get gasoline, oil, engine coolant, or battery fluid on resin coated parts, they
may be stained or the coating may peel. Promptly wipe it away using a soft cloth and
clean water.

Wipe using a glass cleaner.

Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do not use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lose their luster or appear burnished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.

■

Applying Wax

■

Maintaining the Bumpers and Other Resin Coated Parts

■

Cleaning the Window

■

Maintaining Aluminum Wheels

Applying Wax

NOTICE

Chemical solvents and strong cleaners can damage
the paint, metal, and plastic on your vehicle. Wipe
away spills immediately.

Maintaining the Bumpers and Other Resin Coated Parts

Ask a dealer about the correct coating material when
you want to repair the painted surface of the parts
made of resin.

695

Cleaning

Exterior Care

Main

tenan

The inside lenses of exterior lights (headlights, brake lights, etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics may result in moisture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of water accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by a dealer.

■

Fogged Exterior Light Lenses

696

Main

tenan

Accessories and Modifications

Accessories

When installing accessories, check the following:
• Do not install accessories on the windshield. They can obstruct your view and

delay your reaction to driving conditions.

• Do not install accessories over areas marked SRS AIRBAG, on the sides or backs

of the front seats, on front or side pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.

• Be sure electronic accessories do not overload electrical circuits or interfere with

proper operation of your vehicle.

2 Fuses P. 724

• Before installing any electronic accessory, have the installer contact a dealer for

assistance. If possible, have a dealer inspect the final installation.

Accessories and Modifications

Honda Genuine accessories are recommended to
ensure proper operation on your vehicle.

WARNING

Improper accessories or modifications can
affect your vehicle’s handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.

Follow all instructions in this owner’s
manual regarding accessories and
modifications.

697

Accessories and Modifications

Modifications

Main

tenan

Modifications

Do not modify your vehicle in a manner that may affect its handling, stability, or
reliability, or install non-genuine Honda parts or accessories that may have a similar
effect.
Even minor modifications to vehicle systems can affect overall vehicle performance.
Always make sure all equipment is properly installed and maintained, and do not
make any modification to your vehicle or its systems that might cause your vehicle
to no longer meet federal, state, province, territory, and local regulations.

The on-board diagnostic port (OBD-II/SAE J1962 connector) installed on this vehicle
is intended to be used with automobile system diagnostic devices or with other
devices that Honda has approved. Use of any other type of device may adversely
affect the vehicle’s electronic systems or allow them to be compromised, possibly
resulting in a system malfunction, drained battery, or other unexpected problems.

Do not modify or attempt to repair any of the electrical components.

700

Han

lin
g the U

expected

Tools

Types of Tools

Types of Tools

The tools are stored in front of the second row seat
and in the right side panel of the cargo area.

Wheel Nut Wrench/

Jack Handle

Jack

Jack Handle Bar

Bracket

Mounting Wing

Bolt (B)

Mounting Wing

Bolt (A)

Storage Bag

Funnel

701

Continued

Han

lin
g the U

expected

If a Tire Goes Flat

Changing a Flat Tire

If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe place. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possible to have the full-size tire repaired or
replaced.

1. Park the vehicle on a firm, level, non-slippery surface and apply the parking brake.
2. Press the

(

P button.

3. Turn on the hazard warning lights and set the power mode to VEHICLE OFF.

Changing a Flat Tire

Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm

)

When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.

The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not use another type of compact
spare tire or wheel with your vehicle.

Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.

Do not use a puncture-repairing agent on a flat tire,
as it can damage the tire pressure sensor.

Do not use the jack if it doesn’t work properly. Call
your dealer or a professional towing service.

702

If a Tire Goes Flat

Changing a Flat Tire

Han

lin
g the U

expected

1. Remove the second row floor mat.

2 Floor Mats P. 691

2. Pull up the floor carpet.
3. Lift up the floor lid using the handle and

remove it.

4. Take the tool case out of the spare tire well.

Take the jack and wheel nut wrench out of
the tool case.

5. Unscrew the wing bolt, then remove the

spare tire.

6. Place a wheel block or rock in front and rear

of the wheel diagonal to the flat tire.

■

Getting Ready to Replace the Flat Tire

Floor Carpet

Handle

Floor Lid

Spare Tire

Tool Case

Wheel
Blocks

The tire to be replaced.

703

If a Tire Goes Flat

Changing a Flat Tire

Continued

Han

lin
g the U

expected

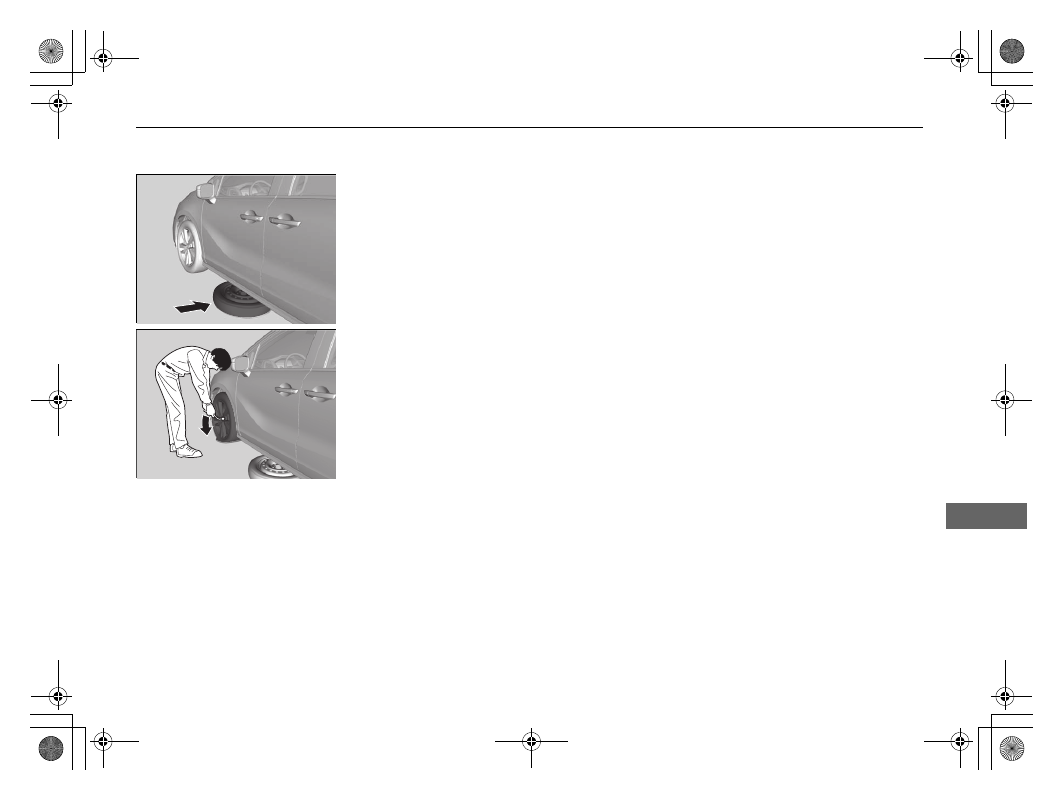

7. Place the compact spare tire (wheel side up)

under the vehicle body, near the tire that
needs to be replaced.

8. Loosen each wheel nut about one turn

using the wheel nut wrench.

If a Tire Goes Flat

Changing a Flat Tire

704

Han

lin
g the U

expected

1. Place the jack under the jacking point

closest to the tire to be changed.

2. Turn the end bracket clockwise as shown in

the image until the top of the jack contacts
the jacking point.

Make sure that the jacking point tab is
resting in the jack notch.

3. Raise the vehicle, using the jack handle bar

and the jack handle, until the tire is off the
ground.

■

How to Set Up the Jack

How to Set Up the Jack

Do not use the jack with people or luggage in the
vehicle.

Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
their shape may not match.

The following instructions must be followed to use
the jack safely:

•

Do not use while the engine is running.

•

Use only where the ground is firm and level.

•

Use only at the jacking points.

•

Do not get in the vehicle while using the jack.

•

Do not put anything on top of or underneath the
jack.

Turn off the sliding door main switch before
replacing a rear tire. If the main switch is on, the
power sliding door may accidentally operates,
causing an accident.

WARNING

The vehicle can easily roll off the jack,
seriously injuring anyone underneath.

Follow the directions for changing a tire
exactly, and no person should place any
portion of their body under a vehicle that is
supported by a jack.

Models with power sliding doors

Jack
Handle
Bar

Wheel Nut

Wrench as Jack Handle

Continued

705

If a Tire Goes Flat

Changing a Flat Tire

Han

lin
g the U

expected

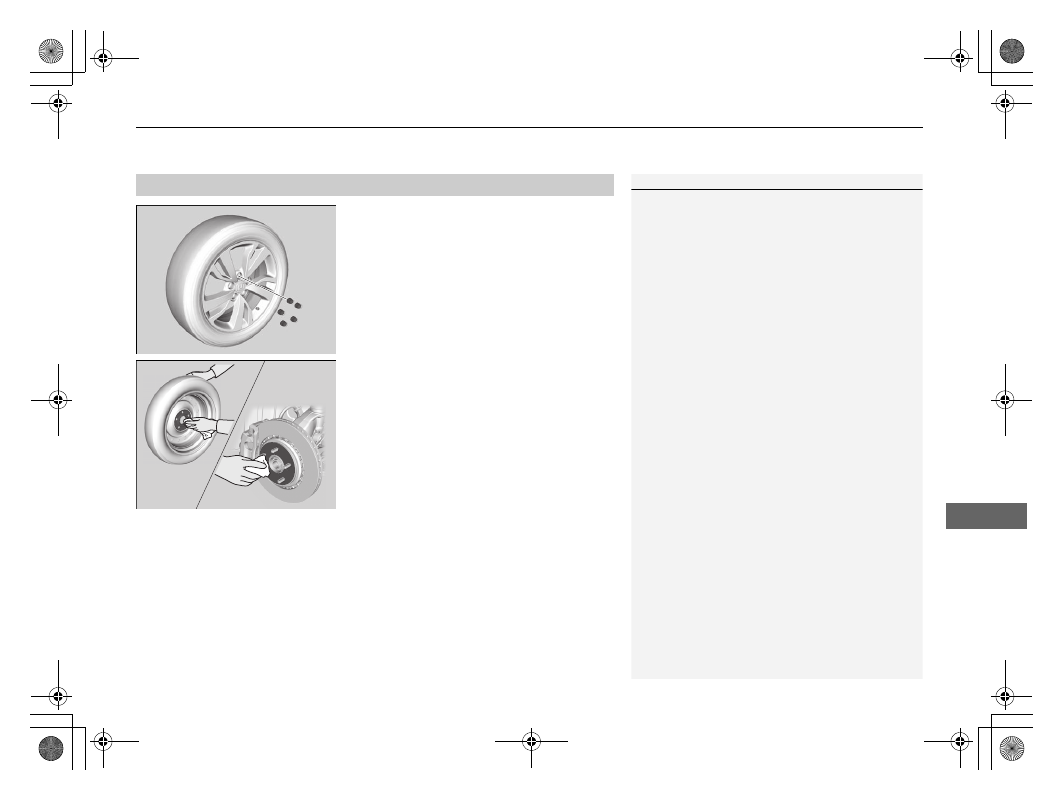

1. Remove the wheel nuts and flat tire.

2. Wipe the mounting surfaces of the wheel

with a clean cloth.

3. Mount the compact spare tire.
4. Screw the wheel nuts until they touch the

lips around the mounting holes, then stop
rotating.

■

Replacing the Flat Tire

Replacing the Flat Tire

Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.

Honda Odyssey (2019 year). Manual - part 44
