Airbags

u

Airbag System Components

Continued

Safe Driving

The front, front side, and side curtain
airbags are deployed according to the
direction and severity of impact. Both side
curtain airbags are deployed in a rollover.
The airbag system includes:

a

Two SRS (Supplemental Restraint System)
front airbags. The driver’s airbag is stored
in the center of the steering wheel; the
front passenger’s airbag is stored in the
dashboard. Both are marked SRS
AIRBAG
.

b

Two side airbags, one for the driver and
one for a front passenger. The airbags are
stored in the outer edges of the seat-
backs. Both are marked SIDE AIRBAG.

c

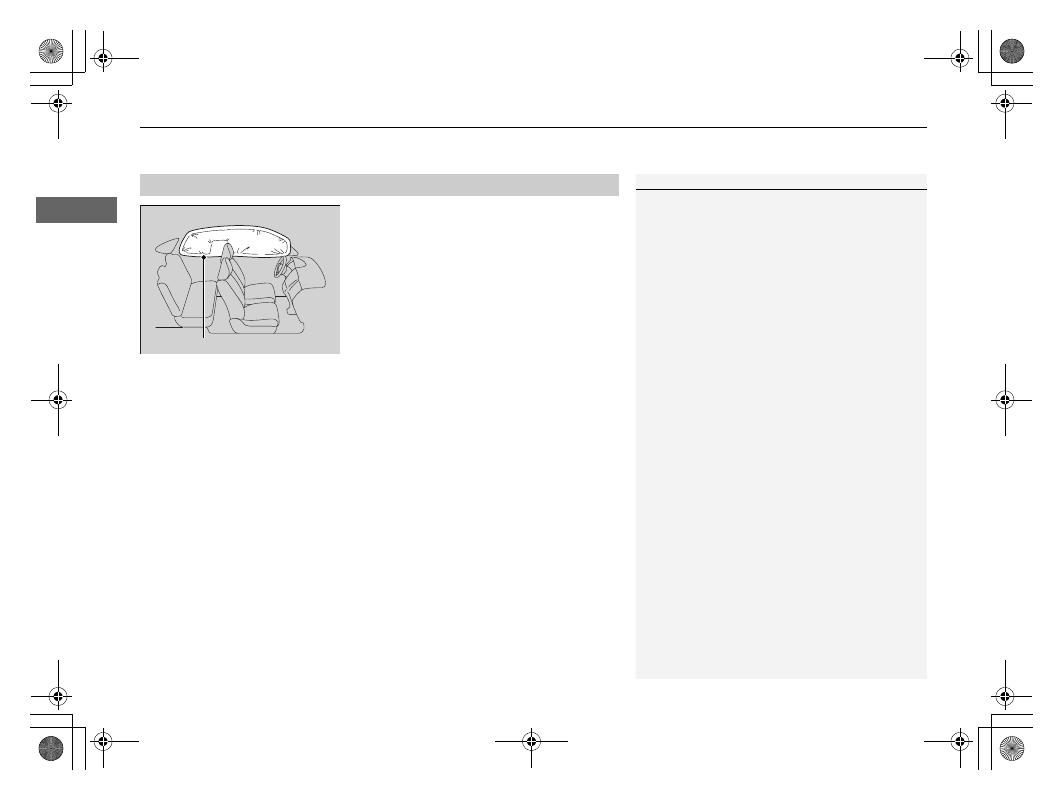

Two side curtain airbags, one for each
side of the vehicle. The airbags are stored
in the ceiling, above the side windows.
The front and rear pillars are marked
SIDE CURTAIN AIRBAG.

d

An electronic control unit that, when the
ignition switch is ON

(

w

*1

, continually

monitors information about the various
impact sensors, seat and buckle sensors,
rollover sensor, airbag activators, seat
belt tensioners, and other vehicle
information. During a crash event the
unit can record such information.

e

Automatic front seat belt tensioners. In
addition, the driver’s and front
passenger’s seat belt buckles incorporate
sensors that detect whether or not the
belts are fastened.

f

A driver’s seat position sensor. This
sensor determines the optimal force at
which the airbag will deploy in a crash.

g

Weight sensors in the front passenger’s
seat. The front passenger’s airbag will be
turned off if the weight on the seat is
approximately 65 lbs (29 kg) or less (the
weight of an infant or small child).

h

Impact sensors that can detect a
moderate-to-severe front or side impact.

i

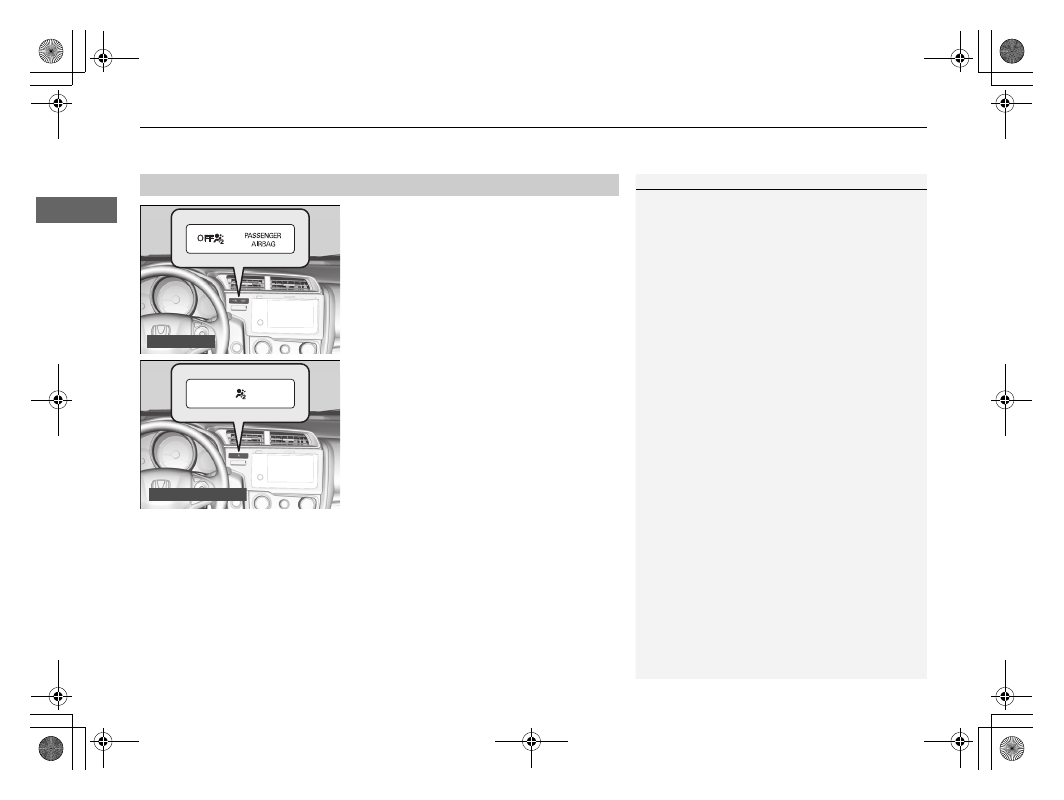

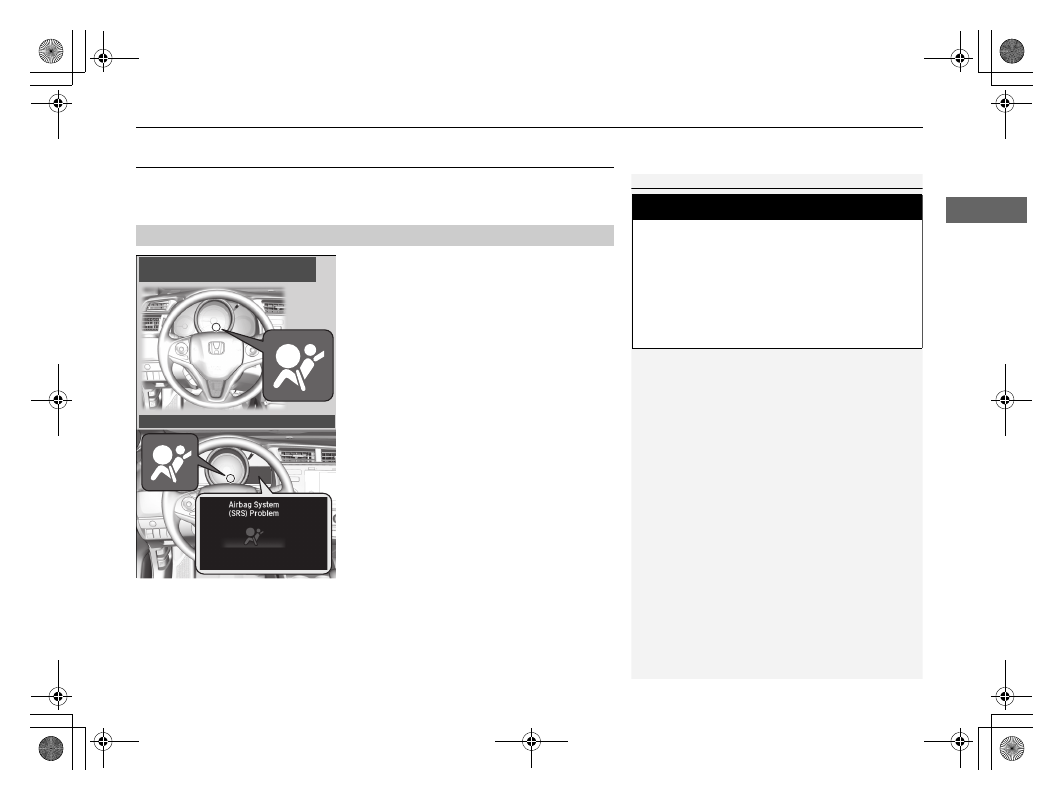

An indicator on the dashboard that alerts
you that the front passenger’s front
airbag has been turned off.

j

An indicator on the instrument panel that
alerts you to a possible problem with your
airbag system or seat belt tensioners.

k

A rollover sensor that can detect if your
vehicle is about to roll over and signal the
control unit to deploy both side curtain
airbags.

*1 : Models with the smart entry system have an

ENGINE START/STOP button instead of an ignition
switch.

uu

Airbags

u

Airbag System Components

48

Safe Driving

Airbags can pose serious hazards. To do their job, airbags must inflate with
tremendous force. So, while airbags help save lives, they can cause burns, bruises,
and other minor injuries, sometimes even fatal ones if occupants are not wearing
their seat belts properly and sitting correctly.

What you should do: Always wear your seat belt properly, and sit upright and as
far back from the steering wheel as possible while allowing full control of the
vehicle. A front passenger should move their seat as far back from the dashboard as
possible.

Remember, however, that no safety system can prevent all injuries or deaths that
can occur in a severe crash, even when seat belts are properly worn and the airbags
deploy.

Do not place hard or sharp objects between yourself and a front airbag.
Carrying hard or sharp objects on your lap, or driving with a pipe or other sharp
object in your mouth, can result in injuries if your front airbag inflates.

Do not attach or place objects on the front airbag covers. Objects on the
covers marked SRS AIRBAG could interfere with the proper operation of the airbags
or be propelled inside the vehicle and hurt someone if the airbags inflate.

Important facts about your airbags

1

Important facts about your airbags

Do not attempt to deactivate your airbags. Together,
airbags and seat belts provide the best protection.

When driving, keep hands and arms out of the
deployment path of the front airbag by holding each
side of the steering wheel. Do not cross an arm over
the airbag cover.

49

uu

Airbags

u

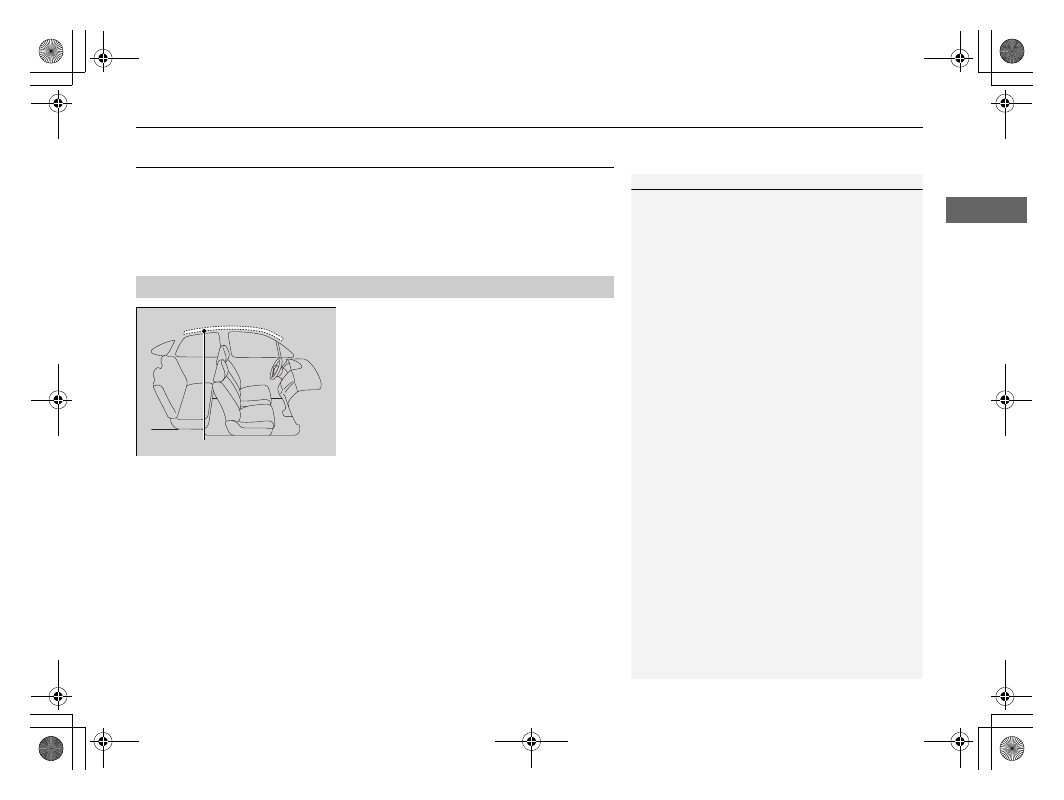

Types of Airbags

Continued

Safe Driving

Types of Airbags

Your vehicle is equipped with three types of airbags:
• Front airbags: Airbags in front of the driver’s and front passenger’s seats.
• Side airbags: Airbags in the driver’s and front passenger’s seat-backs.
• Side curtain airbags: Airbags above the side windows.
Each is discussed in the following pages.

Front Airbags (SRS)

The front SRS airbags inflate in a moderate-to-severe frontal collision to help protect
the head and chest of the driver and/or front passenger.

SRS (Supplemental Restraint System) indicates that the airbags are designed to
supplement seat belts, not replace them. Seat belts are the occupant’s primary
restraint system.

The front airbags are housed in the center of the steering wheel for the driver, and
in the dashboard for the front passenger. Both airbags are marked SRS AIRBAG.

*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

Housing Locations

1

Types of Airbags

The airbags can inflate whenever the ignition switch
is in ON

(

w

*1

.

After an airbag inflates in a crash, you may see a
small amount of smoke. This is from the combustion
process of the inflator material and is not harmful.
People with respiratory problems may experience
some temporary discomfort. If this occurs, get out of
the vehicle as soon as it is safe to do so.

1

Front Airbags (SRS)

During a frontal crash severe enough to cause one or
both front airbags to deploy, the airbags can inflate
at different rates, depending on the severity of the
crash, whether or not the seat belts are latched, and/
or other factors. Frontal airbags are designed to
supplement the seat belts to help reduce the
likelihood of head and chest injuries in frontal
crashes.

uu

Airbags

u

Front Airbags (SRS)

50

Safe Driving

Front airbags are designed to inflate during moderate-to-severe frontal collisions.
When the vehicle decelerates suddenly, the sensors send information to the control
unit which signals one or both front airbags to inflate.

A frontal collision can be either head-on or angled between two vehicles, or when a
vehicle crashes into a stationary object, such as a concrete wall.

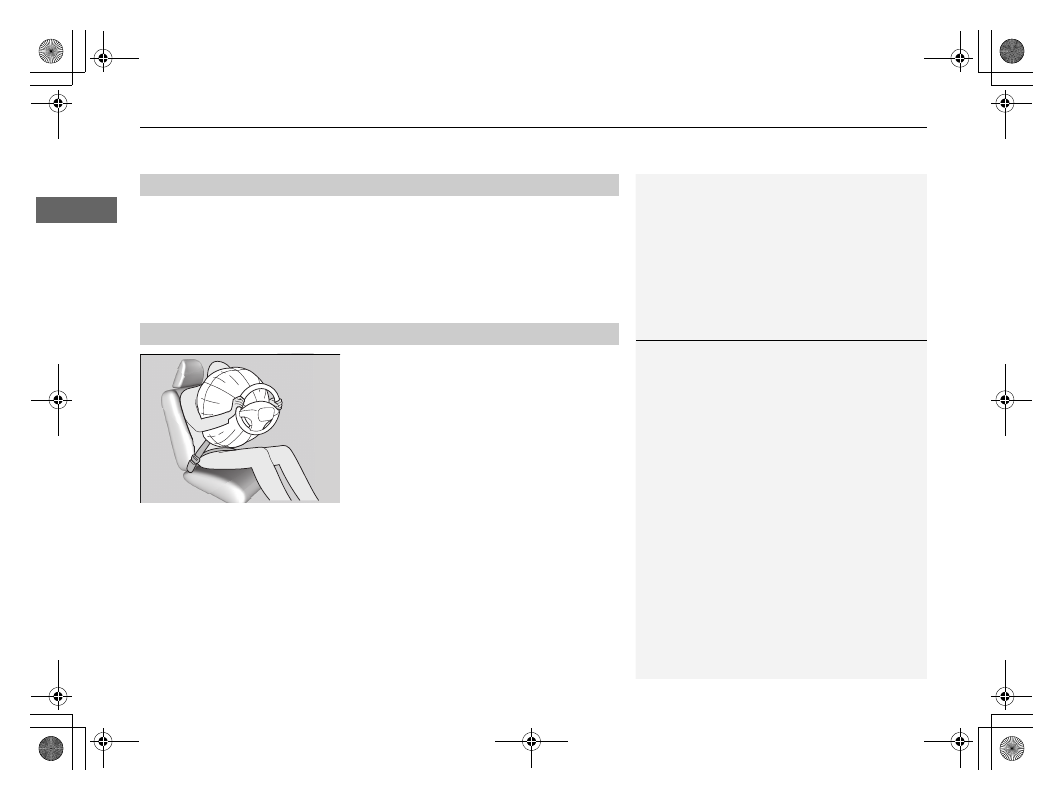

While your seat belt restrains your torso, the
front airbag provides supplemental protection
for your head and chest.

The front airbags deflate immediately so that
they won’t interfere with the driver’s visibility
or the ability to steer or operate other
controls.

The total time for inflation and deflation is so fast that most occupants are not
aware that the airbags deployed until they see them lying in front of them.

Operation

How the Front Airbags Work

1

How the Front Airbags Work

Although the driver’s and front passenger’s airbags
normally inflate within a split second of each other, it
is possible for only one airbag to deploy. This can
happen if the severity of a collision is at the margin,
or threshold, that determines whether or not the
airbags will deploy. In such cases, the seat belt will
provide sufficient protection, and the supplemental
protection offered by the airbag would be minimal.

51

uu

Airbags

u

Front Airbags (SRS)

Continued

Safe Driving

When front airbags should not deploy

Minor frontal crashes: Front airbags were designed to supplement seat belts and
help to save lives, not to prevent minor scrapes, or even broken bones that might
occur during a less than moderate-to-severe frontal crash.
Side impacts: Front airbags can provide protection when a sudden deceleration
causes a driver or front passenger to move towards the front of the vehicle. Side
airbags and side curtain airbags have been specifically designed to help reduce the
severity of injuries that can occur during a moderate-to-severe side impact which
can cause the driver or passenger to move towards the side of the vehicle.
Rear impacts: Head restraints and seat belts are your best protection during a rear
impact. Front airbags cannot provide any significant protection and are not designed
to deploy in such collisions.
Rollovers: In a rollover, your best form of protection is a seat belt or, if your vehicle
is equipped with a rollover sensor, both a seat belt and a side curtain airbag. Front
airbags, however, are not designed to deploy in a rollover as they would provide
little if any protection.

When front airbags deploy with little or no visible damage

Because the airbag system senses sudden deceleration, a strong impact to the
vehicle framework or suspension might cause one or more of the airbags to deploy.
Examples include running into a curb, the edge of a hole, or other low fixed object
that causes a sudden deceleration in the vehicle chassis. Since the impact is
underneath the vehicle, damage may not be readily apparent.

When front airbags may not deploy, even though exterior damage
appears severe

Since crushable body parts absorb crash energy during an impact, the amount of
visible damage does not always indicate proper airbag operation. In fact, some
collisions can result in severe damage but no airbag deployment because the airbags
would not have been needed or would not have provided protection even if they
had deployed.

uu

Airbags

u

Front Airbags (SRS)

52

Safe Driving

The airbags have advanced features to help reduce the likelihood of airbag related
injuries to smaller occupants.

The driver’s advanced airbag system includes a
seat position sensor.

Based on information from this sensor and the
severity of the impact, the advanced airbag
system determines the optimal deployment of
the driver’s airbag.

The front passenger’s advanced airbag system
has weight sensors.

We advise against allowing a child age 12 or
under to ride in the front passenger’s seat.
However, if you do allow a child age 12 or
under to ride in the front passenger’s
seat
, note that the system will automatically
turn off the front passenger’s airbag if the
sensors detect that the child is approximately
65 lbs (29 kg) or less.

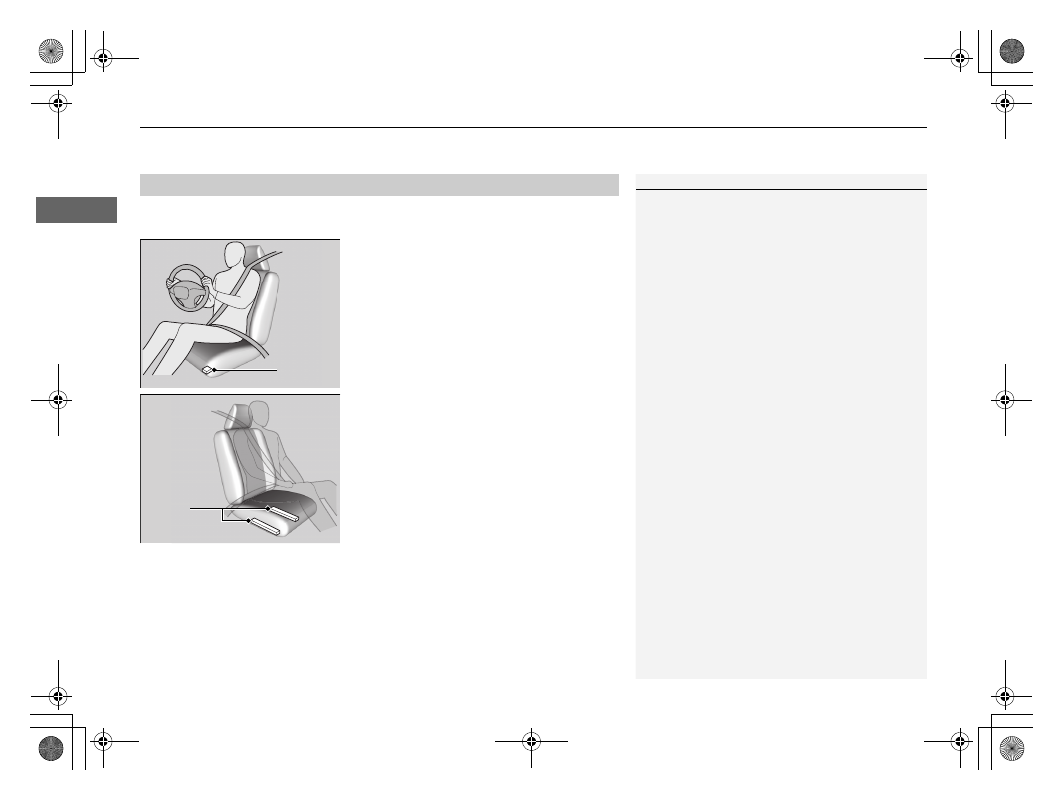

Advanced Airbags

1

Advanced Airbags

If there is a problem with the driver’s seat position
sensor, the SRS indicator will come on, and in the
event of a crash, the airbag will deploy (regardless of
the driver’s seating position) with a force
corresponding to the severity of the impact.

For the advanced airbags to work properly:

Do not spill any liquid on or under the seats.

Do not put any object under the passenger’s seat.

Make sure any objects are positioned properly on
the floor. Improperly positioned objects can
interfere with the advanced airbag sensors.

All occupants should sit upright and wear their seat
belts properly.

Do not cover the passenger’s side dashboard with
a cloth, towel, cover, etc.

Passenger Front Airbag Off Indicator

P. 58

Driver’s
Seat
Position
Sensor

Passenger’s
Seat
Weight
Sensors

53

uu

Airbags

u

Side Airbags

Continued

Safe Driving

Side Airbags

The side airbags help protect the torso and pelvis of the driver or a front passenger
during a moderate-to-severe side impact.

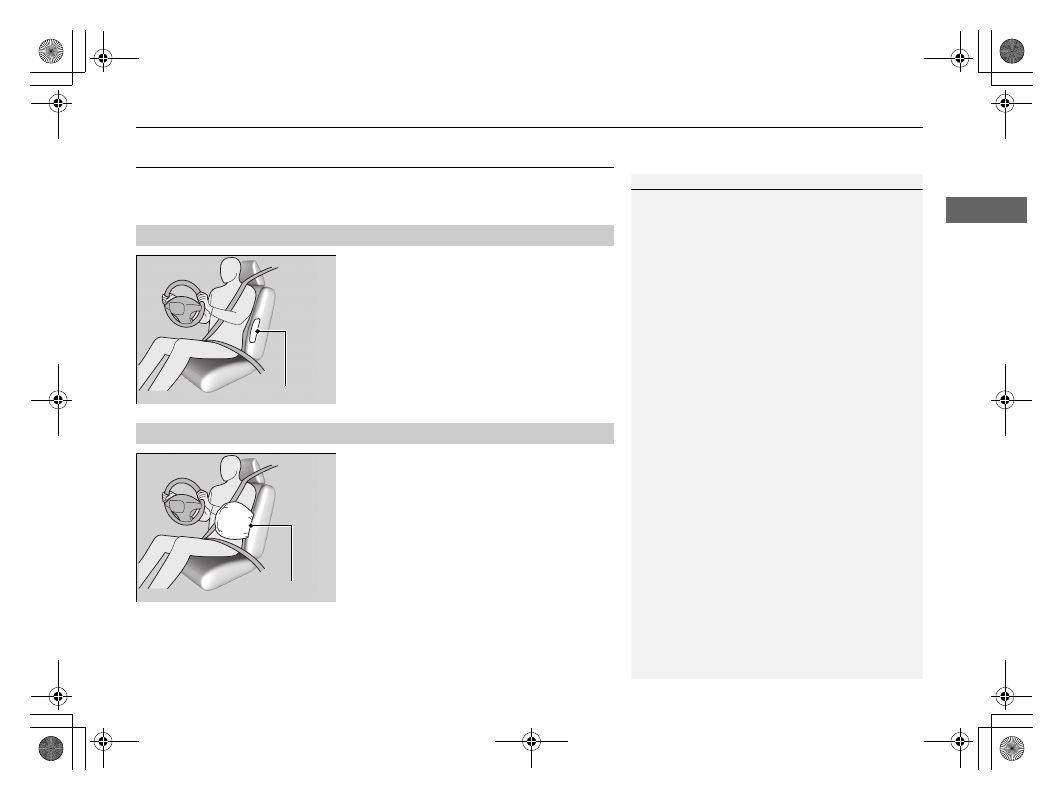

The side airbags are housed in the outside
edge of the driver’s and passenger’s seat-
backs.

Both are marked SIDE AIRBAG.

When the sensors detect a moderate-to-
severe side impact, the control unit signals the
side airbag on the impact side to immediately
inflate.

Housing Locations

1

Side Airbags

Make sure you and your front seat passenger always
sit upright. Leaning into the path of a side airbag can
prevent the airbag from deploying properly and
increases your risk of serious injury.

Do not attach accessories on or near the side airbags.
They can interfere with the proper operation of the
airbags, or hurt someone if an airbag inflates.

Do not cover or replace the front seat-back covers
without consulting a dealer.
Improperly replacing or covering front seat-back
covers can prevent your side airbags from properly
deploying during a side impact.

Housing Location

Operation

When
inflated

Side Airbag

54

uu

Airbags

u

Side Airbags

Safe Driving

When a side airbag deploys with little or no visible damage

Because the airbag system senses sudden acceleration, a strong impact to the side
of the vehicle’s framework can cause a side airbag to deploy. In such cases, there
may be little or no damage, but the side impact sensors detected a severe enough
impact to deploy the airbag.

When a side airbag may not deploy, even though visible damage appears
severe

It is possible for a side airbag to not deploy during an impact that results in
apparently severe damage. This can occur when the point of impact was toward the
far front or rear of the vehicle, or when the vehicle’s crushable body parts absorbed
most of the crash energy. In either case, the side airbag would not have been
needed nor provided protection even if it had deployed.

55

uu

Airbags

u

Side Curtain Airbags

Continued

Safe Driving

Side Curtain Airbags

The side curtain airbags help protect the heads of the driver and passengers in the
outer seating positions during a moderate-to-severe side impact. The side curtain
airbags equipped in this vehicle are also designed to help reduce the likelihood of
partial and complete ejection of vehicle occupants through side windows in crashes,
particularly rollover crashes.

The side curtain airbags are located in the
ceiling above the side windows on both sides
of the vehicle.

Housing Locations

1

Side Curtain Airbags

If the SRS control unit senses that your vehicle is
about to rollover, it immediately deploys both side
curtain airbags and activates both front seat belt
tensioners.

If the impact is on the passenger's side, the
passenger's side curtain airbag deploys even if there
are no occupants on that side of the vehicle.

Side Curtain Airbag Storage

uu

Airbags

u

Side Curtain Airbags

56

Safe Driving

The side curtain airbag is designed to deploy
in a rollover or a moderate-to-severe side
impact.

When side curtain airbags deploy in a frontal collision

One or both side curtain airbags may also inflate in a moderate-to-severe angled
frontal collision.

Operation

1

Side Curtain Airbags

To get the best protection from the side curtain
airbags, occupants should wear their seat belts
properly and sit upright and well back in their seats.

Do not attach any objects to the side windows or roof
pillars as they can interfere with the proper operation
of the side curtain airbags.

Deployed Side Curtain Airbag

57

uu

Airbags

u

Airbag System Indicators

Continued

Safe Driving

Airbag System Indicators

If a problem occurs in the airbag system, the SRS indicator will come on and a
message appears on the multi-information display

*

.

When the ignition switch is turned to
ON

(

w

*1

The indicator comes on for a few seconds,
then goes off. This tells you the system is
working properly.

If the indicator comes on at any other time, or does not come on at all, have the
system checked by a dealer as soon as possible. If you don’t, your airbags and seat
belt tensioners may not work properly when they are needed.

*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

Supplemental Restraint System (SRS) Indicator

1

Supplemental Restraint System (SRS) Indicator

3

WARNING

Ignoring the SRS indicator can result in
serious injury or death if the airbag systems
or tensioners do not work properly.

Have your vehicle checked by a dealer as
soon as possible if the SRS indicator alerts
you to a possible problem.

Models without multi-information
display

Models with multi-information display

* Not available on all models

uu

Airbags

u

Airbag System Indicators

58

Safe Driving

When the passenger airbag off
indicator comes on

The indicator comes on to alert you that the
passenger’s front airbag has been turned off.
This occurs when the front passenger’s weight
sensors detect 65 lbs (29 kg) or less, the
weight of an infant or small child, on the seat.

Children age 12 or under should always ride properly restrained in a back seat.

Child Safety P. 60

Objects placed on the seat can also cause the indicator to come on.

If the front passenger seat is empty, the passenger’s front airbag will not deploy and
the indicator will not come on.

Passenger Front Airbag Off Indicator

1

Supplemental Restraint System (SRS) Indicator

If the indicator comes on with no front passenger and
no objects on the passenger’s seat, or with an adult
riding there, something may be interfering with the
weight sensors, such as:

An object hanging on the seat or in the seat-back
pocket.

A child seat or other object pressing against the
rear of the seat-back.

A rear passenger pushing or pulling on the back of
the front passenger’s seat.

The front seat or seat-back is forced back against
an object on the seat or floor behind it.

An object placed under the front passenger’s seat.

If none of these conditions exist, have your vehicle
checked by a dealer as soon as possible.

The passenger airbag off indicator may come on and
go off repeatedly if the total weight on the seat is
near the airbag cutoff threshold.

U.S. models

Canadian models

59

uu

Airbags

u

Airbag Care

Safe Driving

Airbag Care

You do not need to, and should not, perform any maintenance on or replace any
airbag system components yourself. However, you should have your vehicle
inspected by a dealer in the following situations:

When the airbags have deployed

If an airbag has inflated, the control unit and other related parts must be replaced.
Similarly, once an automatic seat belt tensioner has been activated, it must be
replaced.

When the vehicle has been in a moderate-to-severe collision

Even if the airbags did not inflate, have your dealer inspect the following: the driver’s
seat position sensor, weight sensors in the passenger’s seat, front seat belt
tensioners, and each seat belt that was worn during the crash.

Do not remove or modify a front seat without consulting a dealer

This would likely disable or affect the proper operation of the driver’s seat position
sensor or the weight sensors in the passenger’s seat. If it is necessary to remove or
modify a front seat to accommodate a person with disabilities, contact a Honda
dealer, or for U.S. vehicles, American Honda Automobile Customer Service at
1-800-999-1009 and for Canadian vehicles, Honda Canada Customer Relations at
1-888-9-HONDA-9.

1

Airbag Care

We recommend against the use of salvaged airbag
system components, including the airbag, tensioners,
sensors, and control unit.

60

Safe Driving

Child Safety

Protecting Child Passengers

Each year, many children are injured or killed in vehicle crashes because they are
either unrestrained or not properly restrained. In fact, vehicle crashes are the
number one cause of death of children ages 12 and under.

To reduce the number of child deaths and injuries, every state, Canadian province
and territory requires that infants and children be properly restrained when they ride
in a vehicle.

Children should sit properly restrained in a rear seat. This is because:

• An inflating front or side airbag can injure

or kill a child sitting in the front seat.

• A child in the front seat is more likely to

interfere with the driver’s ability to safely
control the vehicle.

• Statistics show that children of all sizes and

ages are safer when they are properly
restrained in a rear seat.

1

Protecting Child Passengers

The National Highway Traffic Safety
Administration and Transport Canada recommend
that all children ages 12 and under be properly
restrained in a rear seat. Some states or provinces/
territories have laws restricting where children may
ride.

3

WARNING

Children who are unrestrained or
improperly restrained can be seriously
injured or killed in a crash.

Any child too small for a seat belt should be
properly restrained in a child seat. A larger
child should be properly restrained with a
seat belt, using a booster seat if necessary.

61

uu

Child Safety

u

Protecting Child Passengers

Safe Driving

• Any child who is too small to wear a seat belt correctly must be restrained in an

approved child seat that is properly secured to the vehicle using either seat belt or
the lower anchors of the LATCH system.

• Never hold a child on your lap because it is impossible to protect them in the

event of a collision.

• Never put a seat belt over yourself and a child. During a crash, the belt would

likely press deep into the child and cause serious or fatal injuries.

• Never let two children use the same seat belt. Both children could be very

seriously injured in a crash.

• Do not allow children to operate the doors, windows or seat adjustments.

• Do not leave children in the vehicle unattended, especially in hot weather when

the inside of the vehicle can get hot enough to kill them. They could also activate
vehicle controls causing it to move unexpectedly.

1

Protecting Child Passengers

To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.

To remind you of the passenger’s front airbag
hazards and child safety, your vehicle has warning
labels on the dashboard (U.S. models) and on the
front visors. Please read and follow the instructions
on these labels.

Safety Labels P. 74

3

WARNING

Allowing a child to play with a seat belt or
wrap one around their neck can result in
serious injury or death.

Instruct children not to play with any seat
belt and make sure any unused seat belt a
child can reach is buckled, fully retracted,
and locked.

62

uu

Child Safety

u

Safety of Infants and Small Children

Safe Driving

Safety of Infants and Small Children

An infant must be properly restrained in a rear-facing, reclining child seat until the
infant reaches the seat manufacturer's weight or height limit for the seat, and the
infant is at least one year old. Many experts recommend use of a rear-facing seat for
a child up to two years old if the child’s height and weight are appropriate for a rear-
facing seat.

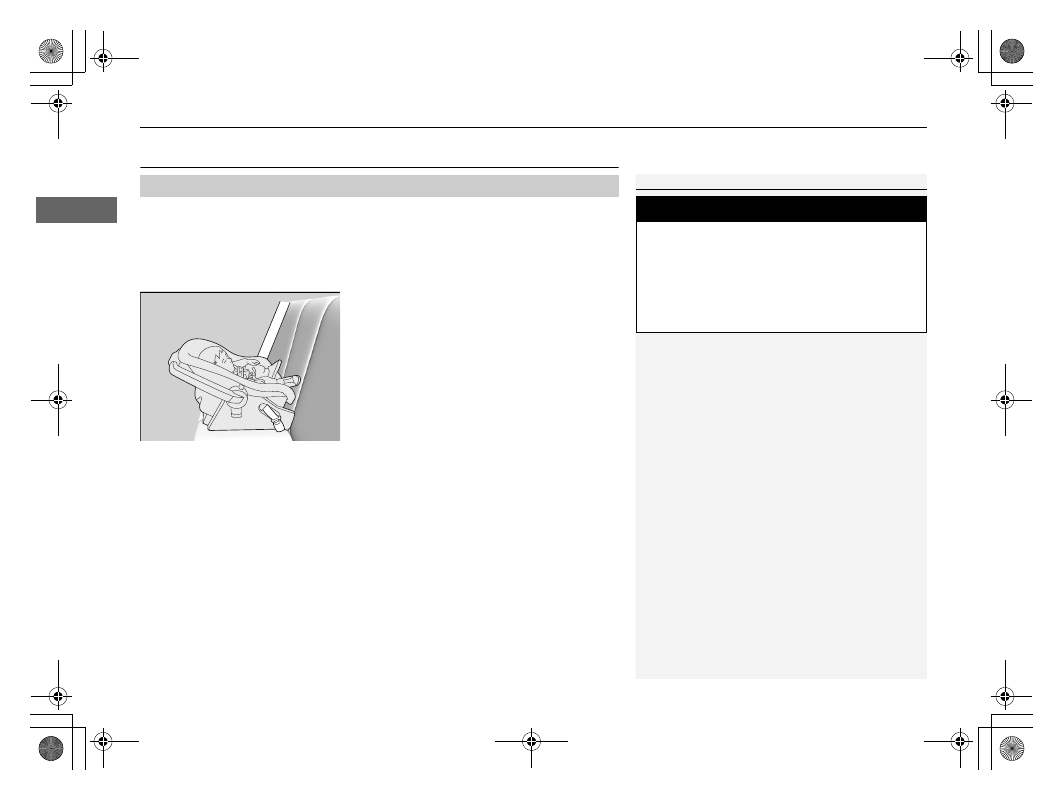

Positioning a rear-facing child seat

Child seats must be placed and secured in a
rear seating position.

When properly installed, a rear-facing child seat may prevent the driver or a front
passenger from moving their seat all the way back, or from locking their seat-back
in the desired position. Make sure that there is no contact between the child seat
and the seat in front of it.

It can also interfere with proper operation of the passenger’s advanced front airbag
system.

Airbags P. 46

If this occurs, we recommend that you install the child seat directly behind the front
passenger’s seat, move the seat as far forward as needed, and leave it unoccupied.
Or, you may wish to get a smaller rear-facing child seat.

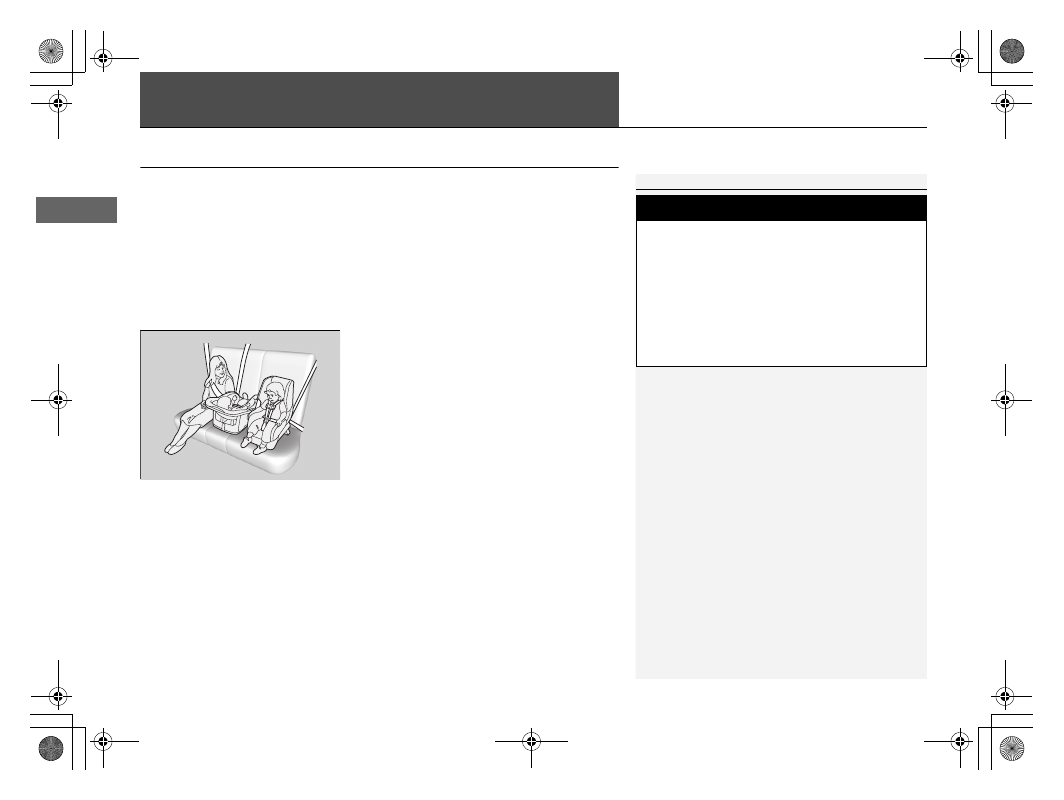

Protecting Infants

1

Protecting Infants

Many experts recommend use of a rear-facing seat
for a child up to two years old if the child’s height and
weight are appropriate for a rear-facing seat.

Rear-facing child seats should never be installed in a
forward facing position.

Always refer to the child seat manufacturer’s
instructions before installation.

Do not allow a front seat to rest against a child seat
installed in a rear seating position:
The weight sensor in the front seat may not correctly
detect the actual weight of the occupant.

3

WARNING

Placing a rear-facing child seat in the front
seat can result in serious injury or death
during a crash.

Always place a rear-facing child seat in the
rear seat, not the front.















Content   ..  2  3  4  5   ..
