Honda CR-V (2018 year). Manual - part 41





641

uu

Indicator, Coming On/Blinking

u

If the Electric Power Steering (EPS) System Indicator Comes On

Continued

Han

d

lin
g the U

n

expected

If the Electric Power Steering (EPS) System Indicator
Comes On

Reasons for the indicator to come on

• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine

speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.

• Comes on when EPS steering angle center point memory is lost. This

could be due to a number of problems to include: battery disconnect,
main fuse blow, low battery causing reset of the EPS system, wire
damage to EPS harness. Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF)

*

, Road Departure Mitigation (RDM)

*

, Vehicle

Stability Assist (VSA®) system, Vehicle Stability Assist (VSA®) OFF,
Collision Mitigation Braking System

TM

 (CMBS

TM

)

*

, low tire pressure/

Tire Pressure Monitoring System (TPMS), and Parking Brake and Brake
System (Amber) indicators also come on along with a message in the
Driver Information Interface

*

.

* Not available on all models

642

uu

Indicator, Coming On/Blinking

u

If the Electric Power Steering (EPS) System Indicator Comes On

Han

d

lin
g the U

n

expected

What to do when the indicator comes on

Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.
• If the Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)

*

Road Departure Mitigation (RDM)

*

, Vehicle Stability Assist (VSA®)

system, Vehicle Stability Assist (VSA®) OFF, Collision Mitigation
Braking System

TM

 (CMBS

TM

)

*

, low tire pressure/Tire Pressure

Monitoring System (TPMS), and Parking Brake and Brake System
(Amber) indicators come on along with a message in the Driver
Information Interface

*

, you need to calibrate the VSA® and EPS

systems.
Drive at a speed of more than 12 mph (20 km/h) for less than 10
seconds to calibrate the VSA® and EPS systems.
If the indicators come on and stay on, park your vehicle in a safe
place, turn off and restart the engine, then repeat the above
operation.
If the indicators still come on and stay on, immediately have your
vehicle inspected by a dealer.

* Not available on all models

643

uu

Indicator, Coming On/Blinking

u

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

Han

d

lin
g the U

n

expected

If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks

Reasons for the indicator to come on or blink

A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS or the compact spare tire is installed,
the indicator blinks for about one minute, and then stays on.

What to do when the indicator comes on

Drive carefully avoiding abrupt cornering and hard braking.
Stop your vehicle in a safe place. Check the tire pressure and adjust the
pressure to the specified level. The specified tire pressure is on a label on
the driver side doorjamb.

u

Calibrate the TPMS after the tire pressure is adjusted.

TPMS Calibration P. 518

What to do when the indicator blinks, then remains on

Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to blink, change the tire to a full-size tire.
The indicator will go off after driving for a few miles (kilometers).

u

Calibrate the TPMS after a full-size tire is reinstalled.

TPMS Calibration P. 518

1

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

NOTICE

Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.

644

Han

d

lin
g the U

n

expected

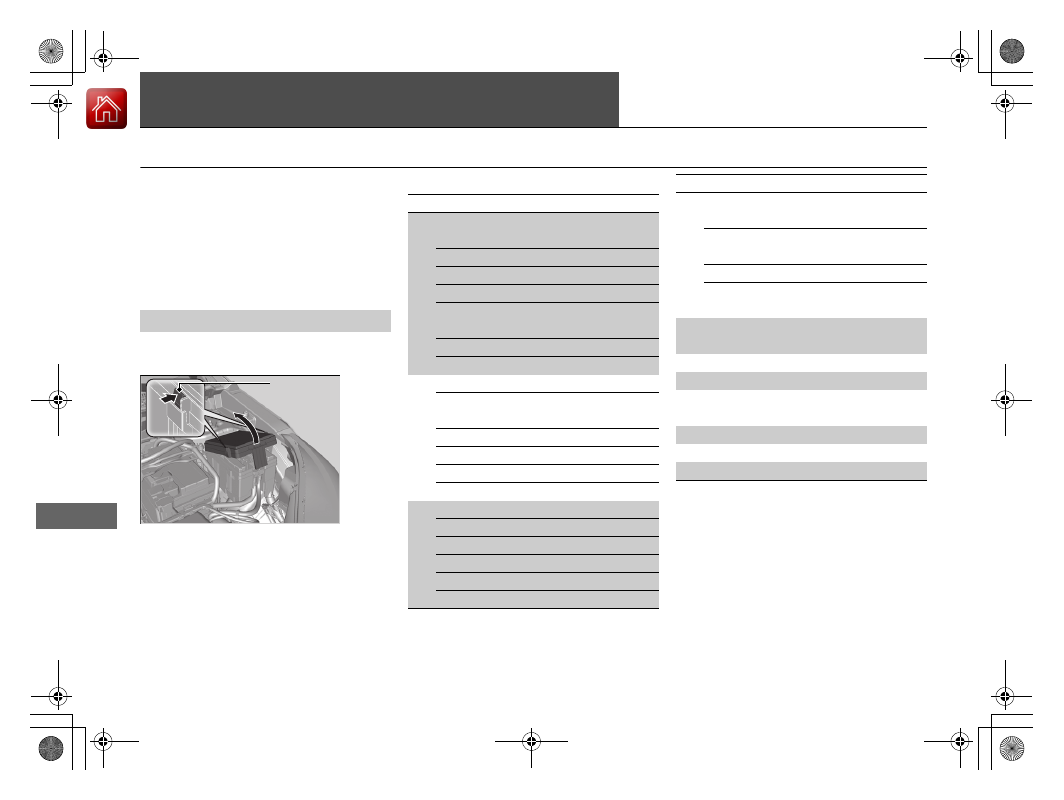

Fuses

Fuse Locations

If any electrical devices are not working,
turn the ignition switch to LOCK

(

0

*1

 and

check to see if any applicable fuse is blown.

Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

Located near the brake fluid reservoir. Push
the tabs to open the box.

Engine Compartment Fuse Box

Tab

Circuit protected and fuse rating

Circuit Protected

Amps

1

Audio AMP

*

(30 A)

*2, *3

Electric Brake Booster

40 A

Main Fan Motor

30 A

Relay Module 1

30 A

IG Main 2

*4

30 A

*3

Relay Module 2

30 A

Battery

125 A

2

EPS

70 A

IG Main 1

30 A

*4

50 A

*3

 Fuse Box Option

40 A

Fuse Box 1

60 A

Front Wiper Motor

30 A

Sub Fan Motor

30 A

3

Rear Defroster

40 A

Starter Motor

30 A

Fuse Box 2

40 A

ABS/VSA Motor

40 A

ABS/VSA FSR

40 A

Blower Motor

40 A

*1:Models with the smart entry system have

an ENGINE START/STOP button
instead of an ignition switch.

*2:Canadian models without power seat
*3:Models without smart entry system
*4:Models with smart entry system

4

Option Block 1

*

(40 A)

*2, *3

Option Block 2

*

(40 A)

*3

Power Tail Gate

*

(40 A)

*2, *3

5

VB ACT

*4

7.5 A

*3

6

Washer

15 A

7

FI Main

15 A

8

FI Sub

*4

15 A

DBW

*3

9

Stop Lights

10 A

10

Injector

20 A

11

LAF

7.5 A

Circuit Protected

Amps

* Not available on all models

645

uu

Fuses

u

Fuse Locations

Continued

Han

d

lin
g the U

n

expected

Circuit Protected

Amps

12

FI ECU

*1

10 A

*2

13

Front Wiper Deicer

*3

15 A

*4

14

Hazard

10 A

15

IG Coil

15 A

16

Transmission

*1

15 A

*2

17

18

Back Up

10 A

19

Audio

15 A

20

E-DPS

*

(20 A)

21

Rear Seat Heater

*5

(20 A)

*6

22

Front Fog Lights

*

/Lower

Shutter Grille

(15 A)

*7

15 A

*8

23

A/C Compressor/Upper

Shutter Grille

10 A

24

Horn

10 A

25

Cooling Fan

7.5 A

26

27

28

*1

ST Magnetic Switch

*2

(7.5 A)

29

30

*1:Models with smart entry system
*2:Models without smart entry system
*3:Canadian models
*4:U.S. models
*5:Canadian models with rear seat heater
*6:Models without rear seat heater
*7:U.S. models and Canadian models with

power seat

*8:Canadian models without power seat

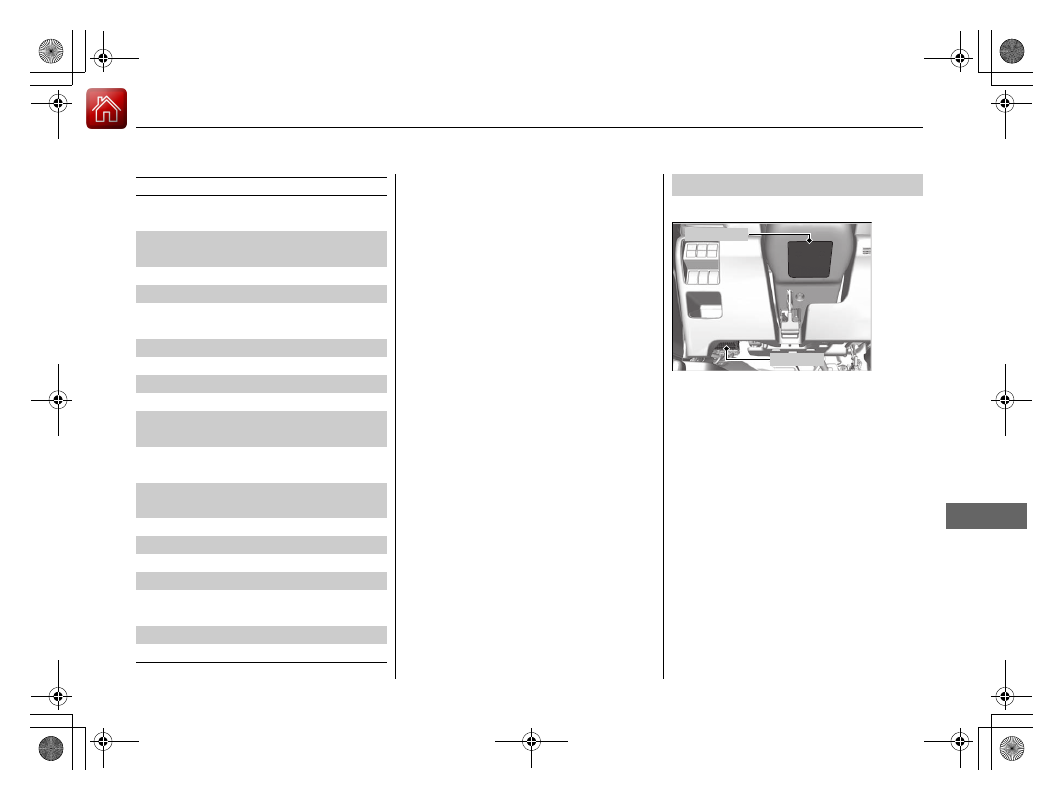

Located under the dashboard.

Fuse locations are shown on the label on
the steering column lower cover.
Locate the fuse in question by the fuse
number and label number.

Interior Fuse Box

Fuse Label

Fuse Box

* Not available on all models

646

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

Circuit protected and fuse rating

Circuit Protected

Amps

1

Accessory

10 A

2

Key Lock

5 A

3

Option 3

10 A

4

Option 2

*1

5 A

Transmission

*2

(10 A)

5

Option

10 A

6

SRS Indicator

10 A

7

Meter

10 A

8

Fuel Pump

15 A

9

A/C

10 A

10

Accessory Power Socket

(Center Console)

(20 A)

11

Engine Control

5 A

12 Passenger's Side Door Lock

10 A

13

Driver's Side Door Unlock

10 A

14

Rear Driver's Side Power

Window

20 A

15

Front Passenger's Side

Power Window

20 A

16

Door Lock

20 A

17

Transmission

*1

Option 2

*2

(10 A)

5 A

Circuit Protected

Amps

18

Front Driver's Lumber

support

*

(10 A)

19

Moonroof

*

(20 A)

20

Starter

10 A

21

ACG

10 A

22

Daytime Running Light

10 A

23

Steering Wheel Heater

*



(10 A)

24

Option

5 A

25

Driver's Door Lock

(10 A)

26

Passenger's Side Door

Unlock

10 A

27

Rear Passenger's Side

Power Window

20 A

28

Driver's Power Window

20 A

29

Front Accessory Power

Socket

20 A

30

Smart Entry

*1

STS

*2

10 A

5 A

31

Driver's Power Seat

Reclining

*

(20 A)

32

Front Seat Heater

*

(20 A)

33 Driver's Power Seat Sliding

*

(20 A)

34

ABS/VSA

10 A

35

SRS

10 A

36

HAC Option

*

20 A

37

Trailer

*

15 A

38

Driver's Side Door Lock

10 A

*1:Models with smart entry system
*2:Models without smart entry system

39

Driver's Door Unlock

(10 A)

a

Power Tailgate Closer

*

(20 A)

b

Passenger's Power Seat

Sliding

*

(20 A)

c

Passenger's Power Seat

Reclining

*

(20 A)

d

Panorama Shade Motor

(20 A)

e

Rear Blower

(20 A)

f

EPT L

(20 A)

g

EPT R

(20 A)

h

Accessory Power Socket

(Cargo Area)

(20 A)

Circuit Protected

Amps

* Not available on all models

647

uu

Fuses

u

Inspecting and Changing Fuses

Han

d

lin
g the U

n

expected

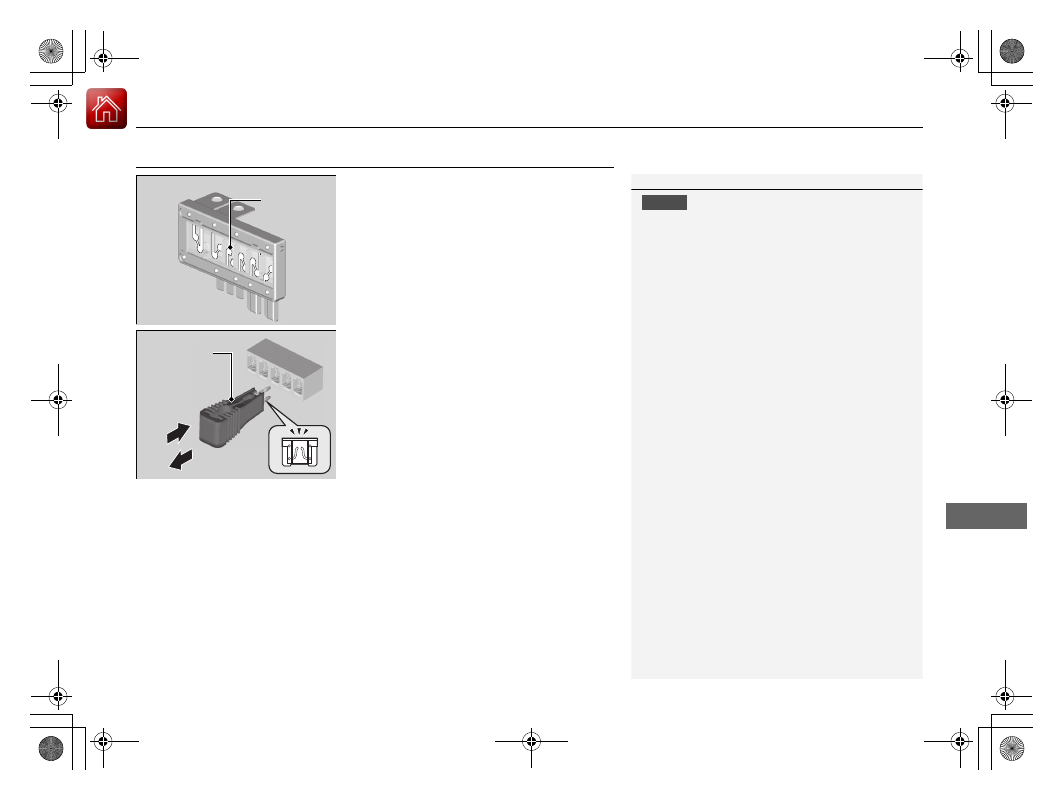

Inspecting and Changing Fuses

1. Turn the ignition switch to LOCK

(

0

*1

. Turn

headlights and all accessories off.

2. Remove the fuse box cover.
3. Check the large fuse in the engine

compartment.

u

If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.

4. Inspect the small fuses in the engine

compartment and the vehicle interior.

u

If there is a blown fuse, remove it with
the fuse puller, and replace it with a new
one.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.

1

Inspecting and Changing Fuses

NOTICE

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.

Replace fuse with a spare fuse of the same specified
amperage.

Use the charts to locate the fuse in question and
conform the specific amperage on the fuse label.

Fuse Locations P. 644

There is a fuse puller on the back of the engine
compartment fuse box cover.

Combined
Fuse

Blown Fuse

Fuse Puller

648

Han

d

lin
g the U

n

expected

Emergency Towing

Call a professional towing service if you need to tow your vehicle.

Flat bed equipment

The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.

Wheel lift equipment

The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.

1

Emergency Towing

NOTICE

Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.

NOTICE

Improper towing, such as towing behind a
motorhome or other motor vehicle can damage the
transmission.

Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.

Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flat bed equipment.

Parking Brake P. 524

All models

2WD models

649

Han

d

lin
g the U

n

expected

When You Cannot Open the Tailgate

If you cannot open the tailgate, use the following procedure:

1. Use a flat-tip screwdriver and remove the

cover on the inside of the tailgate.

u

Wrap the flat-tip screwdriver with a cloth
to prevent scratches.

2. To open the tailgate, push the tailgate

while pushing the lever to the right using a
flat-tip screw driver.

What to Do When Unable to Open the Tailgate

1

When You Cannot Open the Tailgate

Following up:
After taking these steps, contact a dealer to have the
vehicle checked.

When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.

Cover

Lever

Models with power tailgate

Screwdriver

Models without power tailgate

Lever

Screwdriver

650

Han

d

lin
g the U

n

expected

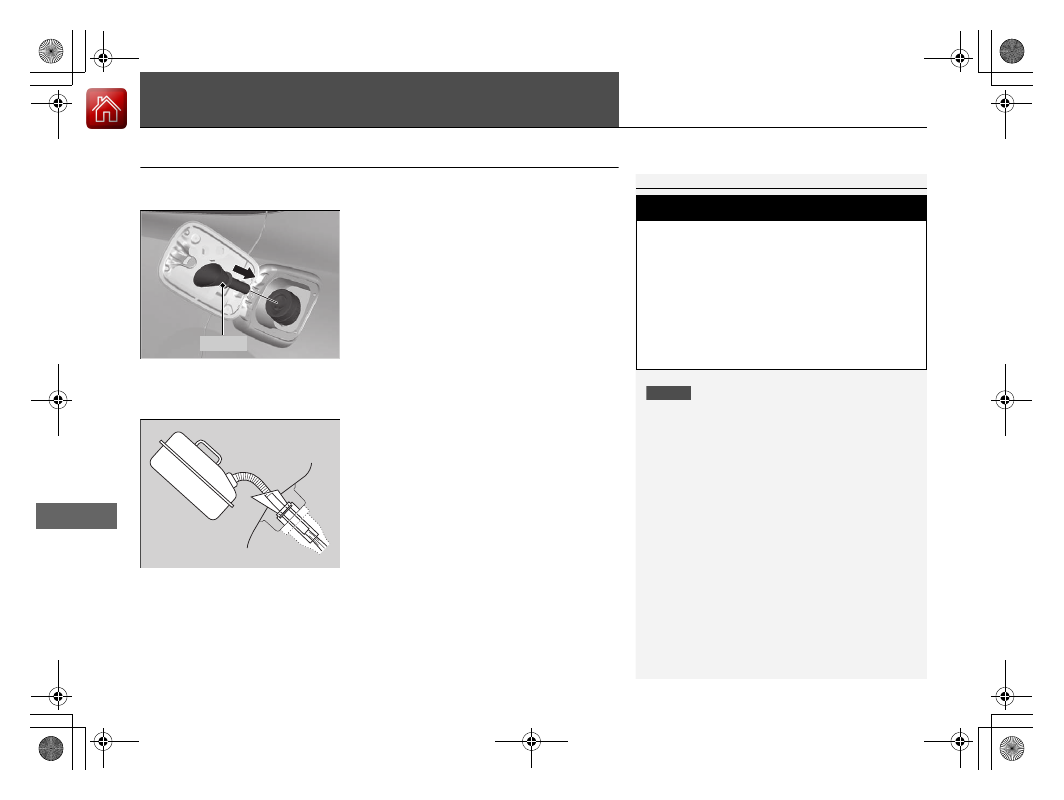

Refueling

Refueling From a Portable Fuel Container

If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.

1. Turn off the engine.
2. Press on the edge of the fuel fill door to

make it pop up slightly.

u

The fuel fill door opens.

3. Take the funnel out of the tool case in the

cargo area.

Types of Tools P. 618

4. Place the end of the funnel on the lower

part of filler opening, then insert it slowly
and fully.

u

Make sure that the end of the funnel
goes down along with the filler pipe.

5. Fill the tank with fuel from the portable fuel

container.

u

Pour fuel carefully so you do not spill any.

6. Remove the funnel from the filler neck.

u

Wipe up any fuel from the funnel before
storing it.

7. Shut the fuel fill door by hand.

1

Refueling From a Portable Fuel Container

NOTICE

Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.

Make sure the fuel in the portable fuel container is
gasoline before you refuel.

3

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

• Stop the engine, and keep heat, sparks,

and flame away.

• Handle fuel only outdoors.
• Wipe up spills immediately.

Funnel

652

Info

rm

ation

Specifications

Vehicle Specifications

*1: 2WD models
*2: AWD models

Model

Honda CR-V

No. of Passengers:
Front

2

Rear

3

Total

5

Weights:
Gross Vehicle Weight
Rating

U.S.:

4,695 lbs (2,130 kg)

Canada: 2,130 kg

Gross Axle Weight
Rating (Front)

U.S.:

2,425 lbs (1,100 kg)

Canada: 1,100 kg

Gross Axle Weight
Rating (Rear)

U.S.:

2,292 lbs (1,040 kg)

*1

2,369 lbs (1,075 kg)

*2

Canada: 1,040 kg

*1

1,075 kg

*2

Air Conditioning

*1: 2.4 L engine models
*2: 1.5 L engine models

Engine Specifications

*1: 2.4 L engine models
*2: 1.5 L engine models

Fuel

Washer Fluid

Refrigerant Type

HFO-1234yf (R-1234yf)

Charge Quantity

14.6 – 16.4 oz (415 – 465 g)

*1

15.3 – 17.1 oz (435 – 485 g)

*2

Lubricant Type

RB100EV-01

*1

RL85HM (POE)

*2

Quantity

5.80 - 6.53 cu-in (95 - 107 cm

3

)

*1

4.70 - 6.28 cu-in (77 – 103 cm

3

)

*2

Displacement

143.72 cu-in (2,356 cm

3

)

*1

91.38 cu-in (1,498 cm

3

)

*2

Spark Plugs

NGK

DILKAR7H11GS

*1

DILKAR7G11GS

*1

ILZKAR8J8SY

*2

DENSO

DXE22HQR-D11S

*1

Type

Unleaded gasoline, Pump octane number
of 87 or higher

Fuel Tank Capacity

14 US gal (53 L)

Tank Capacity

U.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)

Light Bulbs

Headlights (Low Beam)

55 W (H11)

*

LED

*

Headlights (High Beam)

60 W (HB3)

*

LED

*

Fog Lights

*

35 W (H8)

Front Turn Signal/
Front Side Marker Lights

LED

Parking/Daytime Running Lights

LED

Side Turn Signal Lights
(on Door Mirrors)

*

LED

Tail and Brake/Rear Turn Signal/
Rear Side Marker Lights

LED

Back-Up Lights

16 W

Taillights

LED

High-Mount Brake Light

LED

Rear License Plate Light

LED

Interior Lights

Map Lights

8 W

*

LED

*

Ceiling Light

8 W

*

LED

*

Cargo Area Lights

5 W

Vanity Mirror Lights

*

1.8 W

* Not available on all models

653

uu

Specifications

u

Info

rm

ation

Brake Fluid

Continuously Variable Transmission
Fluid

*1: 2WD models
*2: AWD models

Rear Differential Fluid

*

Specified

Honda Heavy Duty Brake Fluid DOT 3

Specified

Honda HCF-2 Transmission Fluid

Capacity

Change

3.9 US qt (3.7 L)

*1

4.5 US qt (4.3 L)

*2

Specified

Honda DPSF-II

Capacity

Change

1.32 US qt (1.247 L)

Engine Oil

*1: 2.4 L engine models
*2: 1.5 L engine models

Engine Coolant

*1: 2.4 L engine models
*2: 1.5 L engine models

Recommended

·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil

Capacity

Change

4.4 US qt (4.2 L)

*1

3.4 US qt (3.2 L)

*2

Change including
filter

4.7 US qt (4.4 L)

*1

3.7 US qt (3.5 L)

*2

Specified

Honda Long Life Antifreeze/Coolant Type2

Ratio

50/50 with distilled water

Capacity

1.65 US gal (6.24 L)

*1

1.64 US gal (6.20 L)

*2

(change including the remaining 0.17 US gal
(0.65 L) in the reserve tank)

*1

(change including the remaining 0.2 US gal
(0.75 L) in the reserve tank)

*2

Tire

*1: Vehicle with 17 inch wheel
*2: Vehicle with 18 inch wheel

Regular

Size

*1

235/65R17 104H

Pressure

*1

psi (kPa [kgf/cm

2

])

Front

32 (220 [2.2])

Rear

30 (210 [2.1])

Size

*2

235/60R18 103H

Pressure

*2

psi (kPa [kgf/cm

2

])

Front

33 (230 [2.3])

Rear

30 (210 [2.1])

Compact
Spare

Size

T155/90D17 112M

Pressure
psi (kPa [kgf/cm

2

])

60 (420 [4.2])

Wheel Size

Regular

17 x 7 1/2J

*1

18 x 7 1/2J

*2

Compact Spare

17 x 4T

* Not available on all models

654

Info

rm

ation

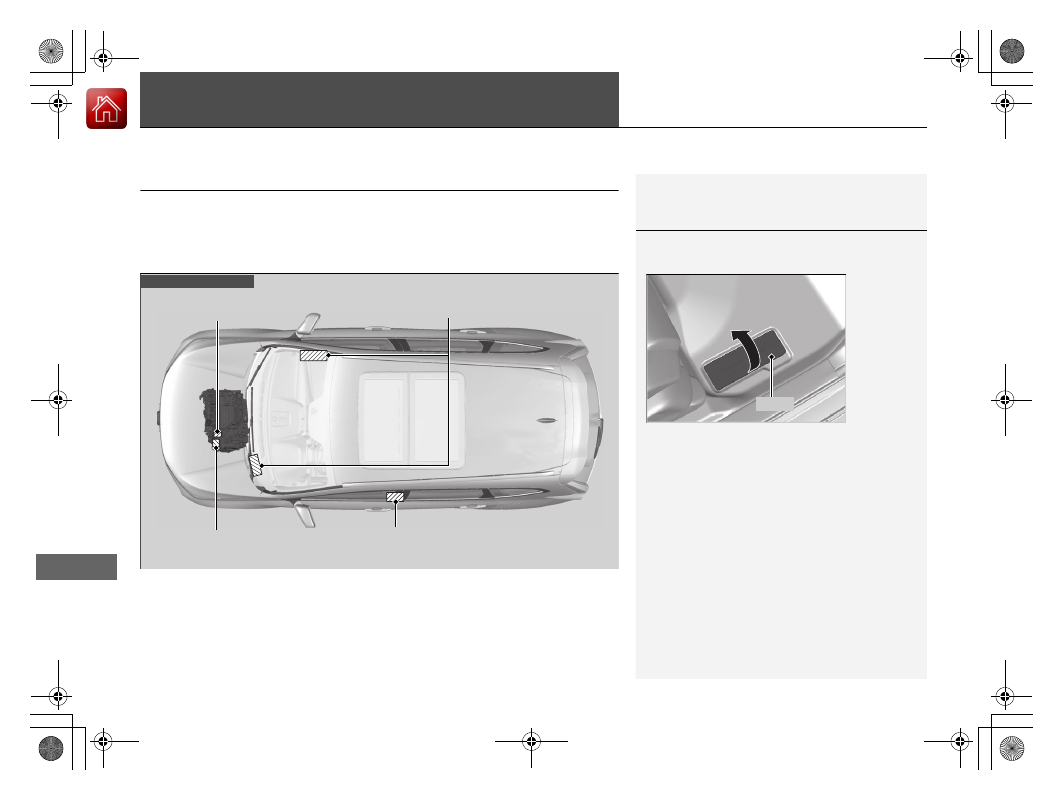

Identification Numbers

Vehicle Identification Number (VIN), Engine Number,
and Transmission Number

Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, and transmission number are
shown as follows:

1

Vehicle Identification Number (VIN), Engine Number, and
Transmission Number

The interior vehicle identification number (VIN) is
located under the cover.

Cover

Vehicle Identification Number

Engine Number

Certification Label/
Vehicle Identification Number

Continuously Variable
Transmission Number

1.5 L engine models

655

uu

Identification Numbers

u

Vehicle Identification Number (VIN), Engine Number, and Transmission Number

Info

rm

ation

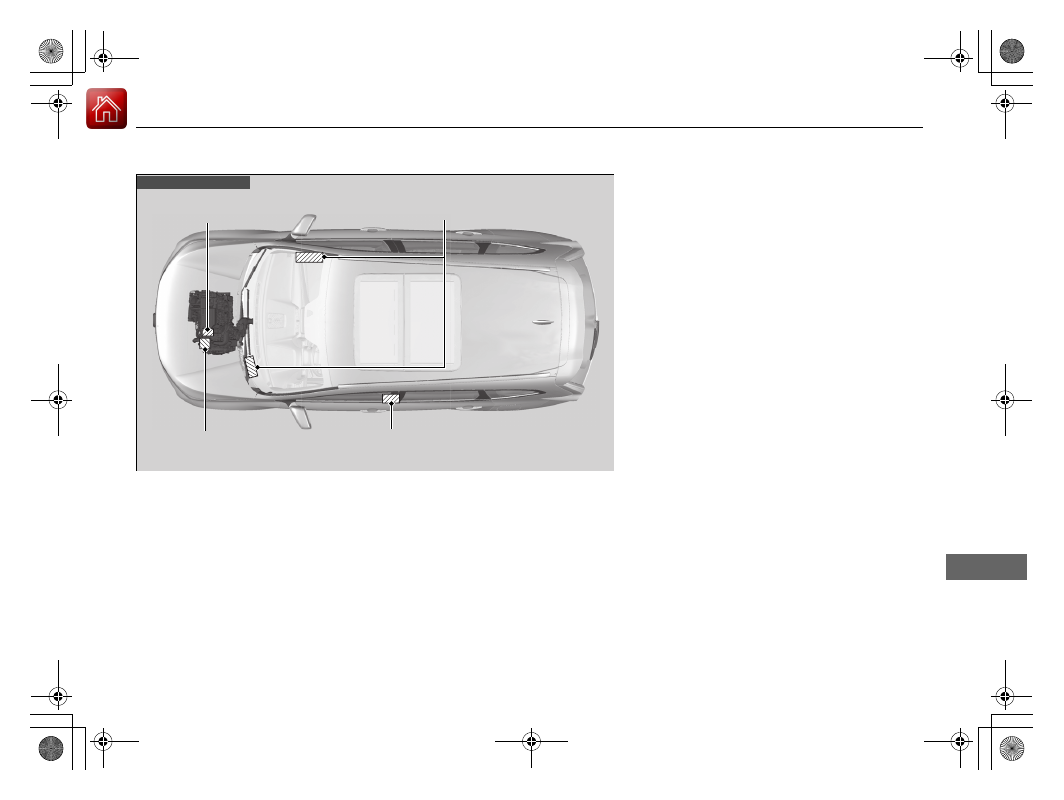

Vehicle Identification Number

Engine Number

Certification Label/
Vehicle Identification Number

Continuously Variable
Transmission Number

2.4 L engine models

656

Info

rm

ation

Devices that Emit Radio Waves

The following products and systems on your vehicle emit radio waves when in operation.

Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:

As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.

Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate the equipment.

This device complies with industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.

Audio System
Bluetooth® Audio
Bluetooth® HandsFreeLink®
HomeLink® Universal Transceiver

*

HondaLink

*

Immobilizer System
Remote Transmitter
Smart Entry System

*

Collision Mitigation Braking System

TM*

* Not available on all models

657

Info

rm

ation

Reporting Safety Defects

In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain other information about motor vehicle safety from http://
www.safercar.gov
.

In Canada
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.

If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.

To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety
.















Content   ..  39  40  41  42   ..
