Honda CR-V (2018 year). Manual

Parking Your Vehicle

Cross Traffic Monitor

544

Driving

The system activates when:
• The power mode is in ON.
• The Cross Traffic Monitor system is turned

on.

2 Cross Traffic Monitor On and Off P. 546

• The transmission is in

(

• Your vehicle is moving at 3 mph (5 km/h) or

lower.

When a vehicle is detected approaching from a rear corner, Cross Traffic Monitor
alerts you with a buzzer and a displayed warning.

The system will not detect a vehicle that approaches from directly behind your
vehicle, nor will it provide alerts about a detected vehicle when it moves directly
behind your vehicle.

The system does not detect or provide alerts for a vehicle that is moving away from
your vehicle, and it may not detect or alert for pedestrians, bicycles, or stationary
objects.

■

How the System Works

Cross Traffic Monitor

Cross Traffic Monitor may not detect an approaching
vehicle, or may delay alerting you under the following
conditions:

•

An obstacle, such as another vehicle and a wall,
near your vehicle’s rear bumper, is blocking the
radar sensor’s scope.

•

Your vehicle is moving at the speed of about 3 mph
(5 km/h) or higher.

•

A vehicle is approaching at the speed other than
between about 6 mph (10 km/h) and 16 mph (25
km/h).

•

The system picks up external interference such as
other radar sensors from another vehicle or strong
radio wave transmitted from a facility nearby.

•

Either corner of the rear bumper is covered with
snow, ice, mud or dirt.

•

When there is bad weather.

•

Your vehicle is on an incline.

•

Your vehicle is tilted due to a heavy load in the rear.

•

Your vehicle is reversing towards a wall, a pole, a
vehicle, and so on.

•

The rear bumper or the sensors have been
improperly repaired or the rear bumper has been
deformed. Have your vehicle checked by a dealer.

For proper operation, always keep the rear bumper
corner area clean.
Do not cover the rear bumper corner area with labels
or stickers of any kind.

Radar sensors:
Underneath the rear bumper
corners

* Not available on all models

Continued

545

Parking Your Vehicle

Cross Traffic Monitor

Driving

An arrow icon appears on the side a vehicle is approaching on the audio/information
screen.

■

When the System Detects a Vehicle

When the System Detects a Vehicle

If the

on the lower right changes to

when the

transmission is in

(

R, mud snow or ice may have

accumulated in the vicinity of the sensor. Check the
bumper corners for any obstructions, and thoroughly
clean the area if necessary.

If the

comes on when the transmission is in

(

there may be a problem with the Cross Traffic
Monitor system. Do not use the system and have your
vehicle checked by a dealer.

If the display remains the same with the transmission
in

(

R, there may be a problem with the rear camera

system and the Cross Traffic Monitor system.
Do not use the system and have your vehicle checked
by a dealer.

Wide View

Normal View

Arrow Icon

Top Down View

546

Parking Your Vehicle

Cross Traffic Monitor

Driving

You can switch on and off the system using the audio/information screen.
1. Select .
2. Select Settings.
3. Select Camera.
4. Select Cross Traffic Monitor.
5. Select On or Off, then select OK.

The system can also be turned on and off on
the audio/information screen by pressing the
CTM icon.

■

Cross Traffic Monitor On and Off

Icon

547

Continued

Driving

Multi-View Rear Camera

About Your Multi-View Rear Camera

The audio/information screen can display your vehicle’s rear view.
The display automatically changes to a rear view when the shift lever is moved to

(

■

Multi-View Rear Camera Display Area

About Your Multi-View Rear Camera

The rear camera view is restricted. You cannot see
the corner ends of the bumper or what is underneath
the bumper. Its unique lens also makes objects
appear closer or farther than they actually are.

Visually confirm that it is safe to drive before backing
up. Certain conditions (such as weather, lighting, and
high temperatures) may also restrict the rear view. Do
not rely on the rearview display which does not give
you all information about conditions at the back of
your vehicle.

If the camera lens is covered with dirt or moisture,
use a soft, moist cloth to keep the lens clean and free
of debris.

You can change the Fixed Guideline and Dynamic
Guideline

settings.

2 Customized Features P. 351

Fixed Guideline
On: Guidelines appear when you shift into

(

Off: Guidelines do not appear.
Dynamic Guideline

On: Guidelines move according to the steering wheel
direction.
Off: Guidelines do not move.

Guidelines

Bumper

Wide View Mode

Normal View Mode

Top Down View Mode

Approx.
39 inches (1 m)
Approx.
20 inches (50 cm)
Tailgate Open
Range

Camera

* Not available on all models

548

Multi-View Rear Camera

About Your Multi-View Rear Camera

Driving

You can view three different camera angles on the rearview display.

Press the selector knob to switch the angle.

Touch the appropriate icon to switch the angle.

: Wide view
: Normal view
: Top down view

• If the last used viewing mode was Wide or Normal, the same mode is selected the

next time you shift into

(

• If Top View was last used before you turned off the engine, Wide mode is

selected next time you turn the ignition switch to ON

(

and shift to

(

• If Top View was last used more than 10 seconds after you shift from

(

R, Wide

mode is selected the next time you turn the ignition switch to ON

(

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.

Models with color audio system

Models with Display Audio

All models

549

Driving

Refueling

Fuel Information

■

Fuel recommendation

Use of lower octane gasoline can cause a persistent, heavy metallic knocking noise
that can lead to engine damage.

■

Top tier detergent gasoline

Because the level of detergency and additives in gasoline vary in the market, Honda
endorses the use of “TOP TIER Detergent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard jointly established by leading automotive
manufacturers to meet the needs of today’s advanced engines.

Qualifying gasoline retailers will, in most cases, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of detergent additives and be free of metallic
additives. The proper level of detergent additives, and absence of harmful metallic
additives in gasoline, help avoid build-up of deposits in your engine and emission
control system.

For further important fuel-related information for your vehicle, or on information on
gasoline that does not contain MMT, visit www.hondacars.com. In Canada, visit
www.honda.ca for additional information on gasoline. For more information on top
tier gasoline, visit www.toptiergas.com.

■

Fuel tank capacity: 14 US gal (53 liters)

Unleaded gasoline, pump octane number 87 or higher

Fuel Information

NOTICE

We recommend quality gasoline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly recommend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.

Use of gasoline with these additives may adversely
affect performance, and cause the malfunction
indicator lamp on your instrument panel to come on.
If this happens, contact a dealer for service.

Some gasoline today is blended with oxygenates such
as ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use gasoline containing methanol.
If you notice any undesirable operating symptoms, try
another service station or switch to another brand of
gasoline.

550

Refueling

How to Refuel

Driving

How to Refuel

Your fuel tank is not equipped with a fuel filler cap. You can insert the filler nozzle
directly into the filler neck. The tank seals itself again when you pull out the filler
nozzle.

1. Stop your vehicle with the service station

pump on the left side of the vehicle in the
rear.

2. Turn off the engine.
3. Pull on the fuel fill door release handle

under the lower left corner of the
dashboard.

The fuel fill door opens.

How to Refuel

The fuel filler opening is designed to accept only
service station filler nozzles for refueling. Use of
smaller diameter tubes (e.g., those used to siphon
fuel for other uses) or other non-service station
devices can damage the area in and around the filler
opening.

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

• Stop the engine, and keep heat, sparks,

and flame away.

• Handle fuel only outdoors.
• Wipe up spills immediately.

Pull

551

Refueling

How to Refuel

Driving

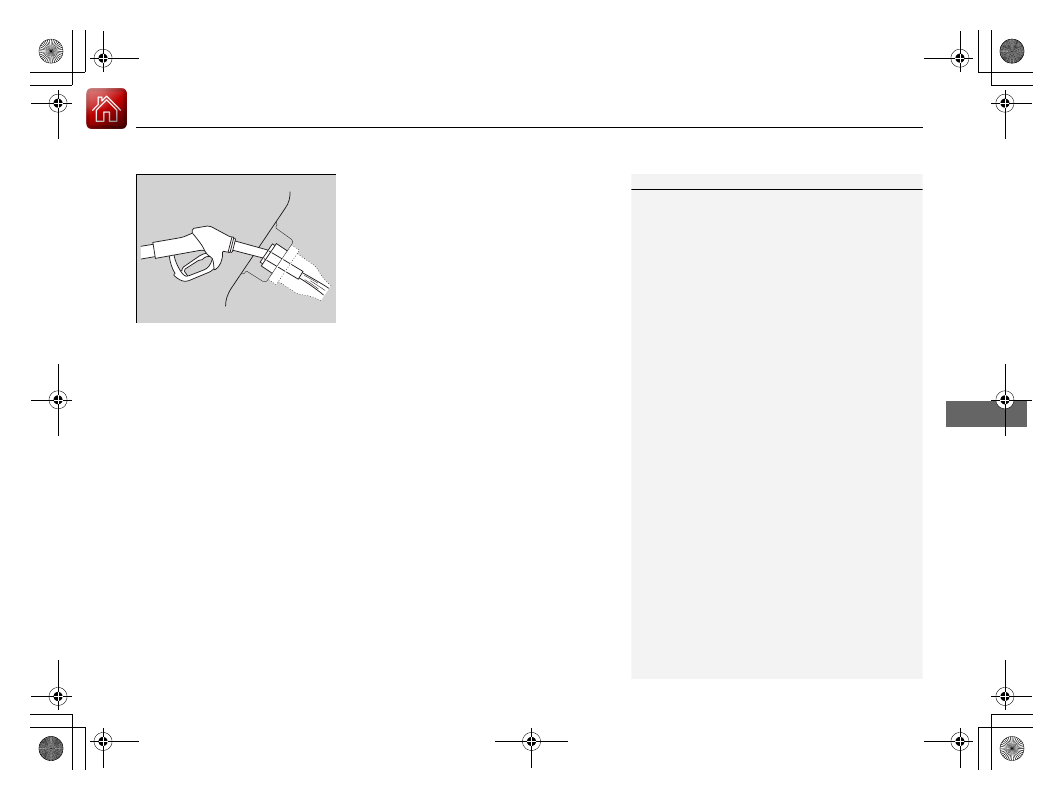

4. Place the end of the filler nozzle on the

lower part of filler opening, then insert it
slowly and fully.

Make sure that the end of the filler
nozzle goes down along with the filler
pipe.

Keep the filler nozzle level.

When the tank is full, the filler nozzle will
click off automatically.

After filling, wait about five seconds
before removing the filler nozzle.

5. Shut the fuel fill door by hand.

How to Refuel

The filler nozzle automatically stops to leave space in
the fuel tank so that fuel does not overflow as a result
of changes in air temperature.

If the filler nozzle keeps turning off when the tank is
not full, there may be a problem with the pump's fuel
vapor recovery system. Try filling at another pump. If
this does not fix the problem, consult a dealer.

Do not continue to add fuel after the filler nozzle has
automatically stopped. Additional fuel can exceed
the full tank capacity.

If you have to refuel your vehicle from a portable
container, use the funnel provided with your vehicle.

2 Refueling From a Portable Fuel Container

P. 650

552

Driving

Fuel Economy and CO

Emissions

Improving Fuel Economy and Reducing CO

Emissions

Achieving fuel economy and reducing CO

emissions is dependent on several

factors, including driving conditions, load weight, idling time, driving habits, and
vehicle condition. Depending on these and other factors, you may not achieve the
rated fuel economy of this vehicle.

You can optimize your fuel economy with proper maintenance of your vehicle.
Always maintain your vehicle in accordance with the messages displayed on the
information display

/driver information interface

• Use the recommended viscosity engine oil, displaying the API Certification Seal.
• Maintain the specified tire pressure.
• Do not load the vehicle with excess cargo.
• Keep your vehicle clean. A buildup of snow or mud on your vehicle's underside

adds weight and increases wind resistance.

■

Maintenance and Fuel Economy

Improving Fuel Economy and Reducing CO

Emissions

Direct calculation is the recommended method to
determine actual fuel consumed while driving.

In Canada, posted fuel economy numbers are
established following a simulated test. For more
information on how this test is performed, please visit
http://oee.nrcan.gc.ca/

Miles driven

Gallons of

fuel

Miles per

Gallon

100

Liter

Kilometers

L per 100 km

* Not available on all models

553

Driving

Turbo Engine Vehicle

Handling Precautions

The turbocharger is a high-precision device to obtain greater horsepower by
delivering a large volume of compressed air into the engine using a turbine driven by
the engine's exhaust gas pressure.

• When the engine is cold just after starting, avoid revving the engine or sudden

acceleration.

• Always replace the engine oil and engine oil filter according to the Maintenance

Minder. The turbine rotates at very high speeds over 100,000 rpm and its
temperature reaches over 1,292°F (700°C). It is lubricated and cooled by engine
oil. If you fail to replace the engine oil and filter at the scheduled distance or
interval, deteriorated engine oil may cause failure such as sticking and abnormal
noise of the turbine bearing.

Turbo Engine Vehicle

The scheduled maintenance intervals for replacing
the filter is indicated on the information display

driver information interface

. Follow the information

of when to replace them.

2 Maintenance Minder

P. 559

The temperature gauge pointer is at the

mark

when you restart the engine after driving under high
load conditions such as at high speed or in hilly
terrain. This is normal. The gauge goes down after
you idle or drive the vehicle for about one minute.

* Not available on all models

556

Main

tenan

Before Performing Maintenance

Inspection and Maintenance

For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.)

■

Daily inspections

Perform inspections before long distance trips, when washing the vehicle, or when
refueling.

■

Periodic inspections

• Check the brake fluid level monthly.

2 Checking the Brake Fluid P. 584

• Check the tire pressure monthly. Examine the tread for wear and foreign objects.

2 Checking and Maintaining Tires P. 597

• Check the operation of the exterior lights monthly.

2 Replacing Light Bulbs P. 586

• Check the condition of the wiper blades at least every six months.

2 Checking and Maintaining Wiper Blades P. 593

■

Types of Inspection and Maintenance

Inspection and Maintenance

Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.

According to state and federal regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all maintenance services should
be performed in accordance with the intervals
indicated by the information display

/driver

information interface

2 Maintenance Service Items P. 561, 566

If you want to perform complex maintenance tasks
that require more skills and tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com.

2 Authorized Manuals P. 662

If you want to perform maintenance yourself, make
sure that you have the necessary tools and skills first.
After performing maintenance, update the records in
the separate maintenance booklet.

U.S. models

* Not available on all models

557

Before Performing Maintenance

Safety When Performing Maintenance

Main

tenan

Safety When Performing Maintenance

Some of the most important safety precautions are given here.
However, we cannot warn you of every conceivable hazard that can arise in
performing maintenance. Only you can decide whether you should perform a given
task.

• To reduce the possibility of fire or explosion, keep cigarettes, sparks, and flames

away from the battery and all fuel related parts.

• Never leave rags, towels, or other flammable objects under the hood.

Heat from the engine and exhaust can ignite them causing a fire.

• To clean parts, use a commercially available degreaser or parts cleaner, not

gasoline.

• Wear eye protection and protective clothing when working with the battery or

compressed air.

• Engine exhaust contains carbon monoxide, which is poisonous and can kill you.

Only operate the engine if there is sufficient ventilation.

• The vehicle must be in a stationary condition.

Make sure your vehicle is parked on level ground, the parking brake is set, and
the engine is off.

• Be aware that hot parts can burn you.

Make sure to let the engine and exhaust system cool thoroughly before
touching vehicle parts.

• Be aware that moving parts can injure you.

Do not start the engine unless instructed, and keep your hands and limbs away
from moving parts.

■

Maintenance Safety

■

Vehicle Safety

Safety When Performing Maintenance

WARNING

Improperly maintaining this vehicle or
failing to correct a problem before driving
can cause a crash in which you can be
seriously hurt or killed.

Always follow the inspection and
maintenance recommendations according
to the schedules in this owner's manual.

WARNING

Failure to properly follow maintenance
instructions and precautions can cause you
to be seriously hurt or killed.

Always follow the procedures and
precautions in this owner's manual.

559

Continued

Main

tenan

Maintenance Minder

Select the Maintenance Minder to see maintenance items that are due soon and to
see the percentage of life remaining in the engine oil.

When the engine oil life is less than 15%, a Maintenance Minder message will
appear every time you turn the ignition switch to ON

(

, reminding you to bring

your vehicle to a dealer for service.

To Use Maintenance Minder

1. Turn the ignition switch to ON

(

2. Press the

(TRIP) knob repeatedly until

the engine oil life appears on the
information display.

The Maintenance Minder indicator (

) stays

on in the instrument panel after the engine oil
life becomes 0%. Have the indicated
maintenance done by a dealer immediately.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.

■

Displaying the Maintenance Minder Information

Models with information display

Displaying the Maintenance Minder Information

Based on the engine operating conditions, the
remaining engine oil life is calculated and displayed
as a percentage.

There is a list of maintenance main and sub items you
can view on the information display.

2 Maintenance Service Items P. 561

Displayed Engine Oil

Life (%)

Calculated Engine Oil

Life (%)

100

100 to 91

90 to 81

80 to 71

70 to 61

60 to 51

50 to 41

40 to 31

30 to 21

20 to 16

15 to 11

10 to 6

5 to 1

Honda CR-V (2018 year). Manual - part 35
