California Proposition 65 Warning

Event Data Recorders

This vehicle is equipped with an event data recorder (EDR).
The main purpose of an EDR is to record, in certain crash or near
crash-like situations, such as an air bag deployment or hitting a
road obstacle, data that will assist in understanding how a vehicle’s
systems performed. The EDR is designed to record data related
to vehicle dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this vehicle is
designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were

buckled/fastened;

• How far (if at all) the driver was depressing the accelerator

and/or brake pedal; and,

• How fast the vehicle was traveling.
These data can help provide a better understanding of the
circumstances in which crashes and injuries occur. NOTE: EDR data
are recorded by your vehicle only if a non-trivial crash situation
occurs; no data are recorded by the EDR under normal driving
conditions and no personal data (e.g., name, gender, age, and
crash location) are recorded. However, other parties, such as law
enforcement, could combine the EDR data with the type of
personally identifying data routinely acquired during a crash
investigation.

WARNING:  This product contains or emits
chemicals known to the state of California to cause
cancer and birth defects or other reproductive
harm.

To read data recorded by an EDR, special equipment is required,
and access to the vehicle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as law enforcement, that
have the special equipment, can read the information if they have
access to the vehicle or the EDR.

The data belongs to the vehicle owner and may not be accessed by
anyone else except as legally required or with the permission of the
vehicle owner.

Service Diagnostic Recorders

This vehicle is equipped with service-related devices that record
information about powertrain performance. The data can be used
to verify emissions law requirements and/or help technicians
diagnose and solve service problems. It may also be combined with
data from other sources for research purposes, but it remains
confidential.

California Perchlorate Contamination Prevention Act

The airbags, seat belt tensioners, and CR type batteries in this
vehicle may contain perchlorate materials - special handling may
apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate/

As you read this manual, you will find information that is preceded
by a

 symbol. This information is intended to help you avoid

damage to your vehicle, other property, or the environment.

NOTICE

A Few Words About Safety

Your safety, and the safety of others, is very important. And
operating this vehicle safely is an important responsibility.

To help you make informed decisions about safety, we have
provided operating procedures and other information on labels and
in this manual. This information alerts you to potential hazards that
could hurt you or others.

Of course, it is not practical or possible to warn you about all the
hazards associated with operating or maintaining your vehicle. You
must use your own good judgment.

You will find this important safety information in a variety of forms,
including:

● Safety Labels - on the vehicle.
● Safety Messages - preceded by a safety alert symbol

3

 and

one of three signal words: DANGERWARNING, or CAUTION.
These signal words mean:

● Safety Headings - such as Important Safety Precautions.
● Safety Section - such as Safe Driving.
● Instructions - how to use this vehicle correctly and safely.

This entire book is filled with important safety information - please
read it carefully.

3DANGER

You WILL be KILLED or SERIOUSLY HURT if
you don’t follow instructions.

3WARNING

You CAN be KILLED or SERIOUSLY HURT if
you don’t follow instructions.

3CAUTION

You CAN be HURT if you don’t follow
instructions.

Contents

This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.

This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.

Images throughout this owner’s manual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular model may not have some of these
features.

This owner’s manual is for vehicles sold in the United States and
Canada.

The information and specifications included in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.

Safe Driving P. 27

For Safe Driving P. 28

Seat Belts P. 32

Airbags P. 39

Instrument Panel P. 69

Indicators P. 70

Gauges and Displays P. 83

Controls P. 87

Setting the Clock P. 88

Locking and Unlocking the Doors P. 91

Opening and Closing the Moonroof P. 113
Adjusting the Seats P. 133
Climate Control System

*

 P. 157

Features P. 163

Audio System P. 164

Audio System Basic Operation P. 169, 182, 215

Customized Features

*

 P. 280

HomeLink® Universal Transceiver

*

 P. 317

Driving P. 409

Before Driving P410

Towing a Trailer P. 415

Parking Your Vehicle P. 453 Rearview Camera P. 454

Multi-View Rear Camera P. 455

Maintenance P. 461

Before Performing Maintenance P. 462

Maintenance Minder

TM

 P. 465

Checking and Maintaining Wiper Blades P. 493
Heating and Cooling System

*

/Climate Control System

*

 Maintenance P. 509

Handling the Unexpected P. 515

Tools P. 516

If a Tire Goes Flat P517

Overheating P. 532

Indicator, Coming On/Blinking P. 534

When You Cannot Unlock the Fuel Fill Door P. 543

Information P. 545

Specifications P. 546

Identification Numbers P. 550

Emissions Testing P. 553

Warranty Coverages P. 555

4

Quick

 Referenc

e Guide

Quick Reference Guide

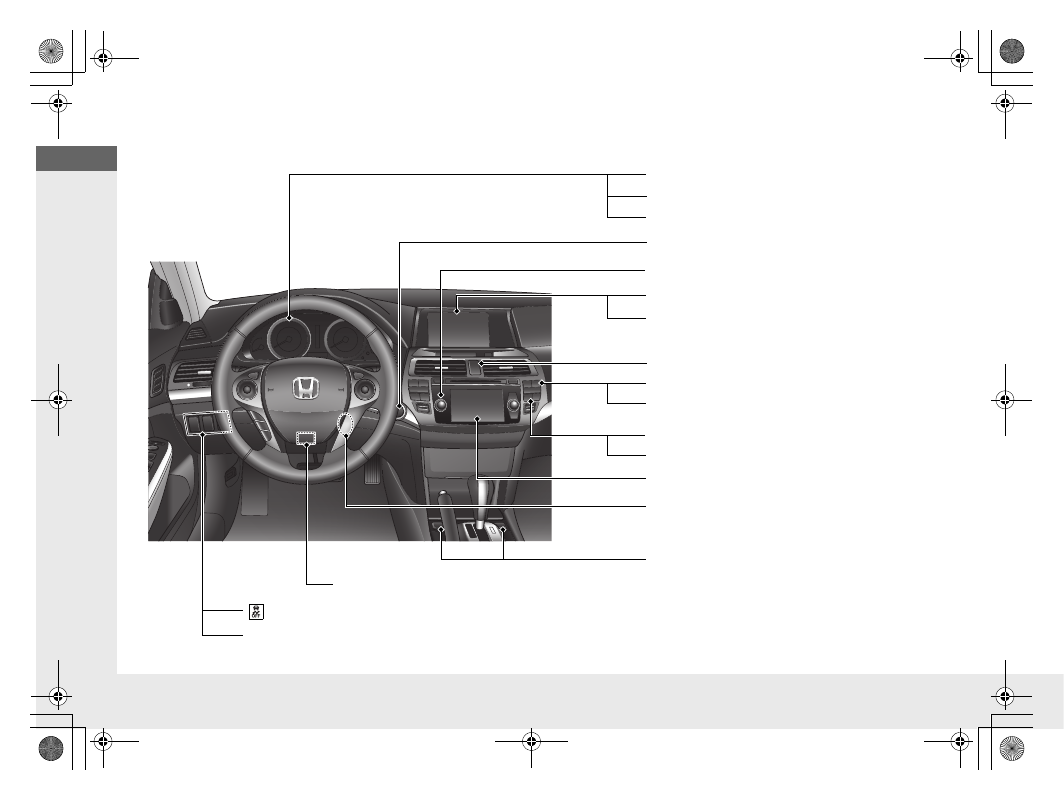

Visual Index

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.

System Indicators

(P 70)

Information Display

*



(P 84)

Audio System

(P 169, 182, 215)

ENGINE START/STOP Button

*1



(P 115)

Ignition Switch

*1



(P 114)

 (Vehicle Stability Assist (VSA®) System OFF) Button

(P 443)

Lane Departure Warning (LDW) Button

*



(P 440)

Audio/Information Screen

(P 186, 218)

Seat Heater Switches

*



(P 153)

Steering Wheel Adjustments

(P 129)

Heating and Cooling System

*



(P 154)

Gauges

(P 83)

Navigation System

*



() See the Navigation System Manual

Audio with Touch Screen

*



(P 183, 216)

Hazard Warning Button

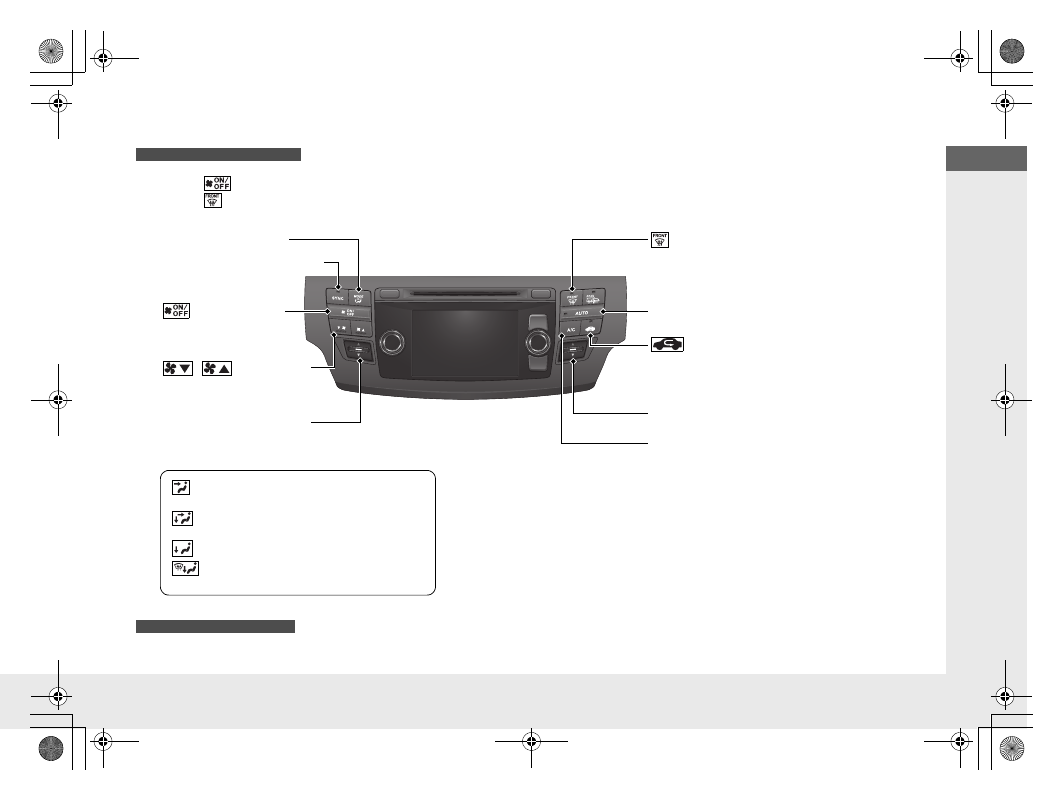

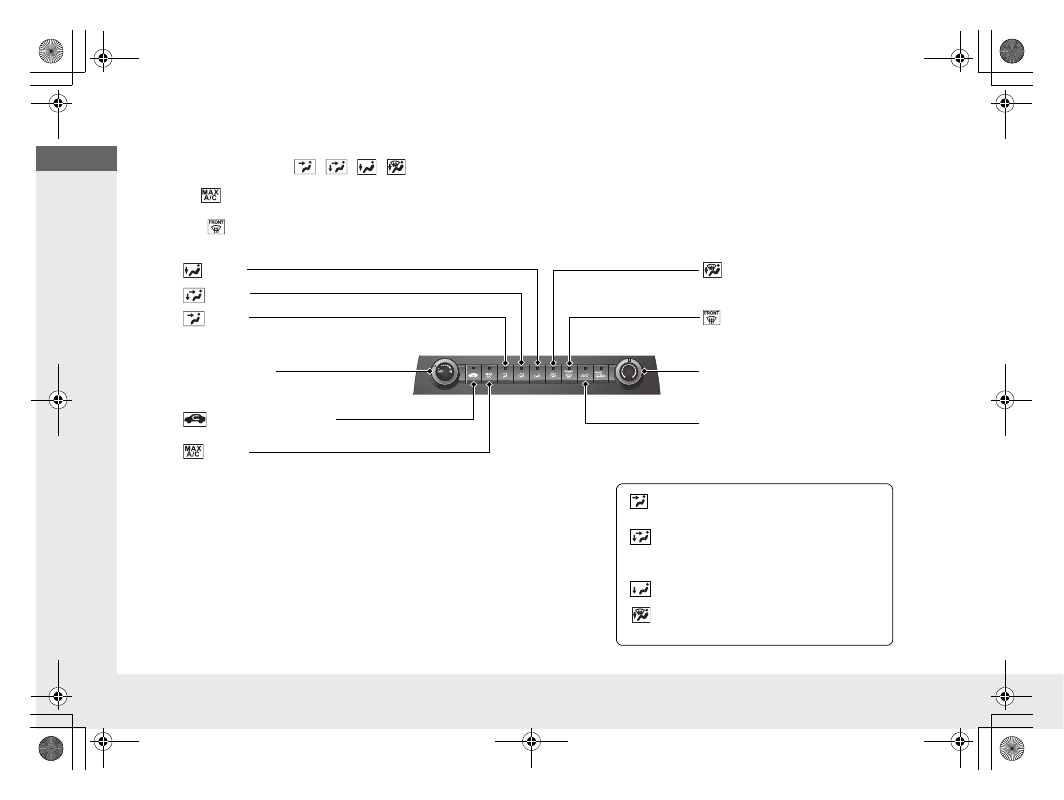

Climate Control System

*



(P 157)

Rear Window Defogger

(P 126)

Heated Mirror Button

(P 126)

5

Quick

 Referenc

e Guide

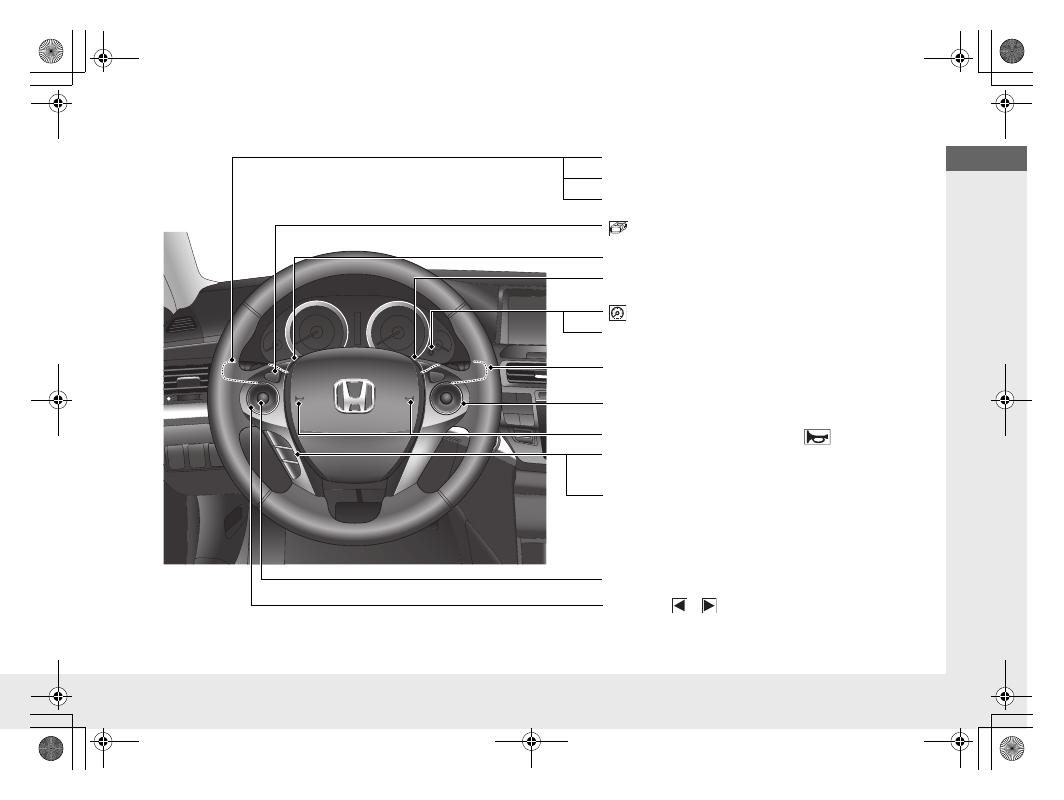

Wipers/Washers

(P 123)

Navigation System Voice Control Buttons

*



(P224)



See the Navigation System Manual

(

+

 /

(

-

 /

 /

 Buttons

(P 168)

SOURCE Button

(P 168)

 (Display) Button

*



(P 186, 218)

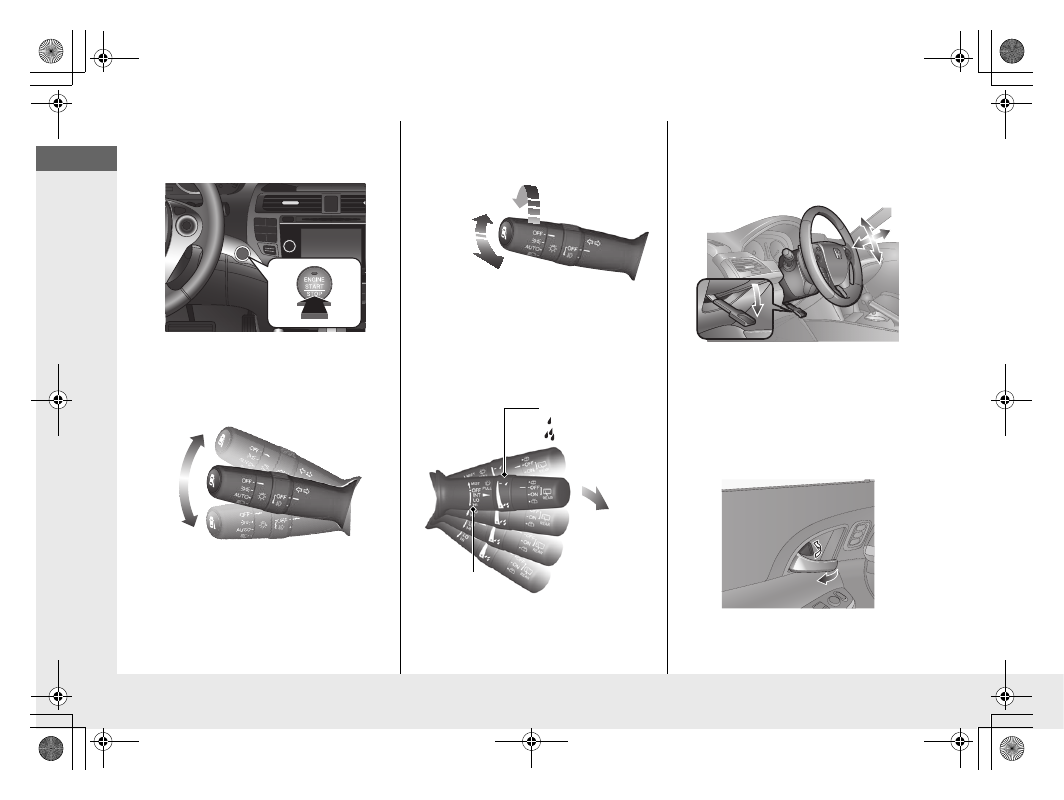

Headlights/Turn Signals

(P 119)

Fog Lights

(P 122)

Paddle Shifter (Shift down)

*



(P 431)

Paddle Shifter (Shift up)

*



(P 431)

Lane Watch

TM*



(P 444)

Horn (Press an area around

.)

Bluetooth® HandsFreeLink® System
Voice Control Buttons

(P 319, 331, 366)

 (Select/Reset) Knob

(P 84)

Brightness Control

(P 125)

Cruise Control Buttons

(P 432)

* Not available on all models

Visual Index

6

Quick

 Referenc

e Guide

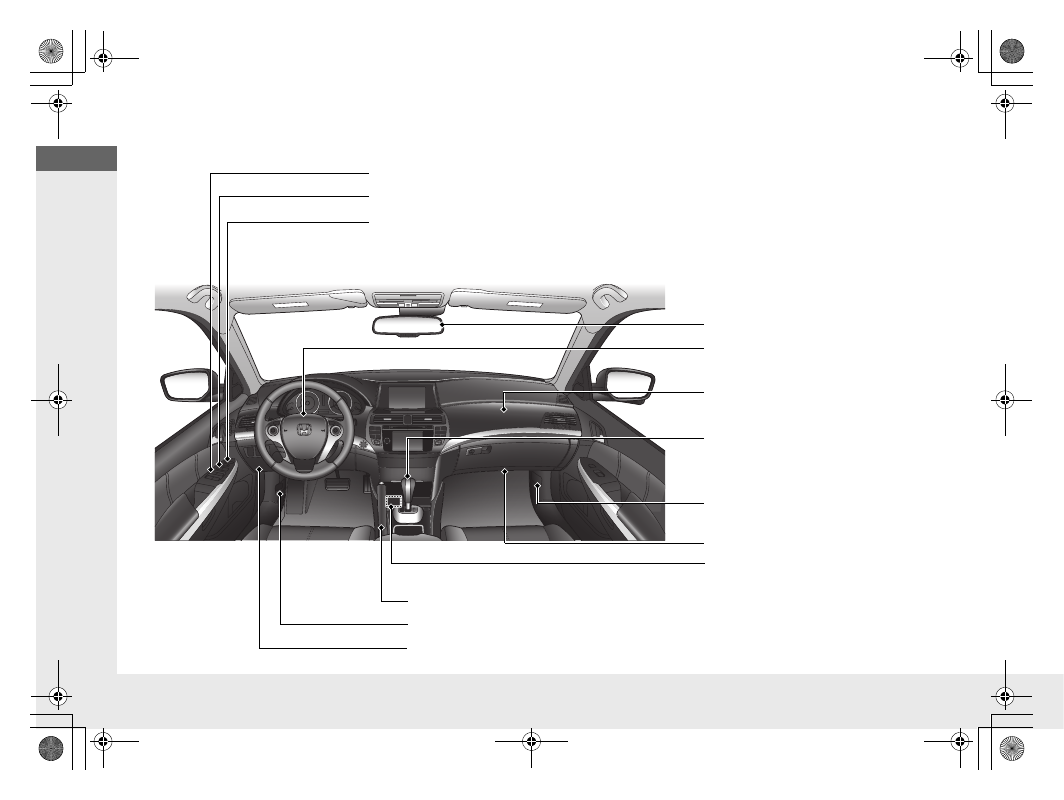

Power Door Lock Master Switch

(P 100)

Power Window Switches

(P 110)

Rearview Mirror

(P 130)

Hood Release Handle

(P 471)

Shift Lever
Automatic Transmission

(P 425, 426, 428)

Glove Box

(P 144)

Driver’s Front Airbag

(P 42)

Door Mirror Controls

(P 131)

Passenger’s Front Airbag

(P 42)

Accessory Power Socket

(P 147)

Interior Fuse Box
(Passenger’s side)

(P 539)

Interior Fuse Box (Driver’s side)

(P 539)

Parking Brake

(P 449)

7

Quick

 Referenc

e Guide

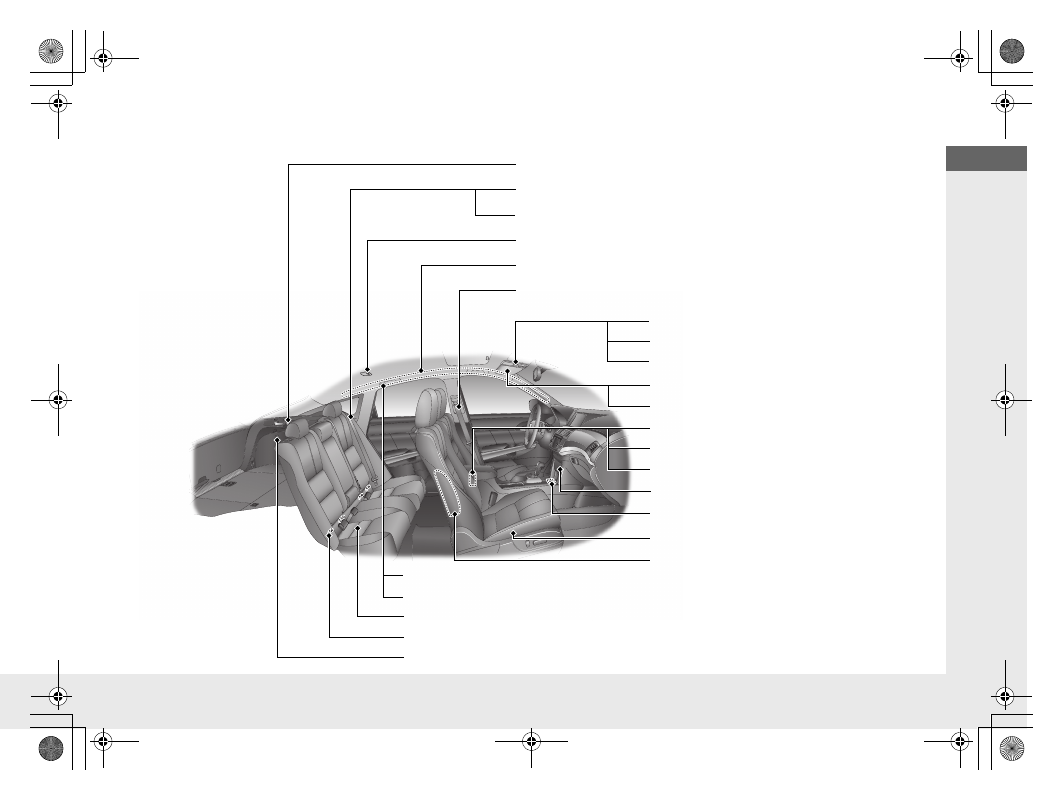

Seat Belt (Installing a Child Seat)

(P 61)

Moonroof Switch

(P113 )

Map Lights

(P 143)

Front Seat

(P 133)

Seat Belts

(P 32)

Side Airbags

(P 46)

LATCH to Secure a Child Seat

(P 59)

Ceiling Light

(P 142)

Side Curtain Airbags

(P 49)

Grab Handle

Cargo Area Light

(P 143)

Seat Belt to Secure a Child Seat

(P 62)

Sunglasses Holder

(P 152)

Accessory Power Socket

(P 147)

USB Adapter Cable

(P 165)

Accessory Power Socket

(P 147)

Auxiliary Input Jack

(P 165)

Coat Hook

(P 148)

Center Pocket

*



(P 152)

Rear Seat

(P 139)

Sun Visors

Vanity Mirrors

Accessory Power Socket

(P 148)

* Not available on all models

Visual Index

8

Quick

 Referenc

e Guide

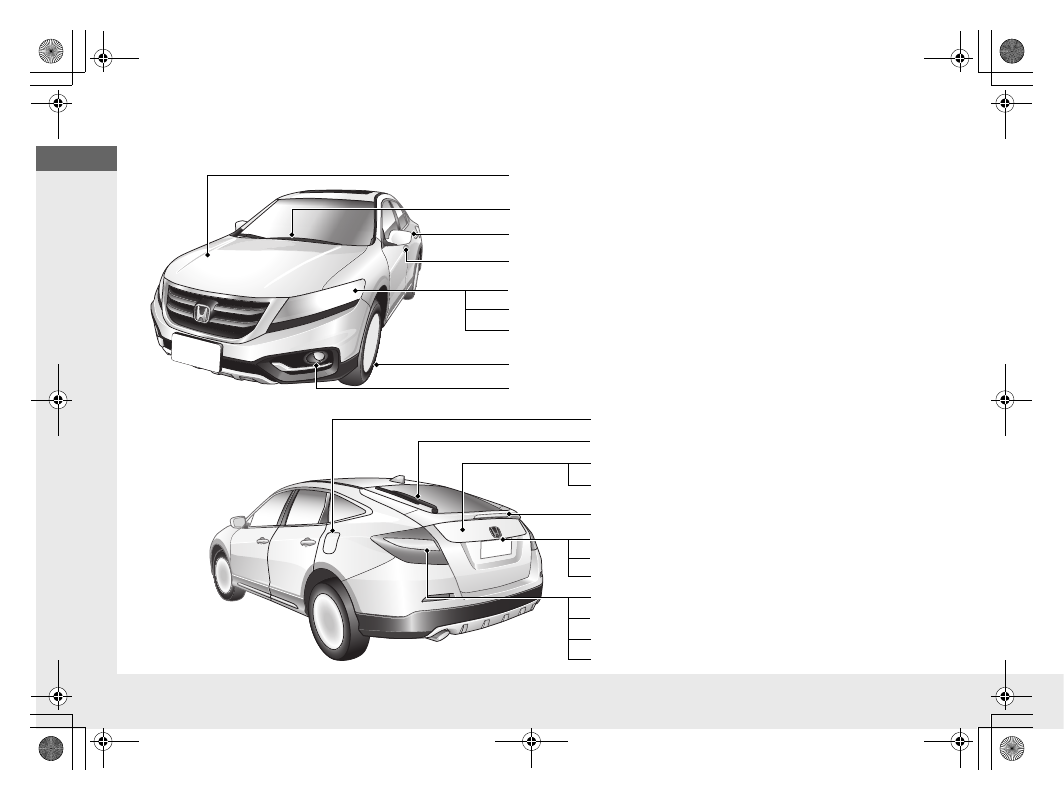

Windshield Wipers

(P 123, 493)

Maintenance Under the Hood

(P 469)

Fog Lights

(P 122, 486)

Front Turn Signal/Parking Lights

(P 119, 489)

Side Marker Lights

(P 119, 488)

Tires

(P 497, 517)

How to Refuel

(P 457)

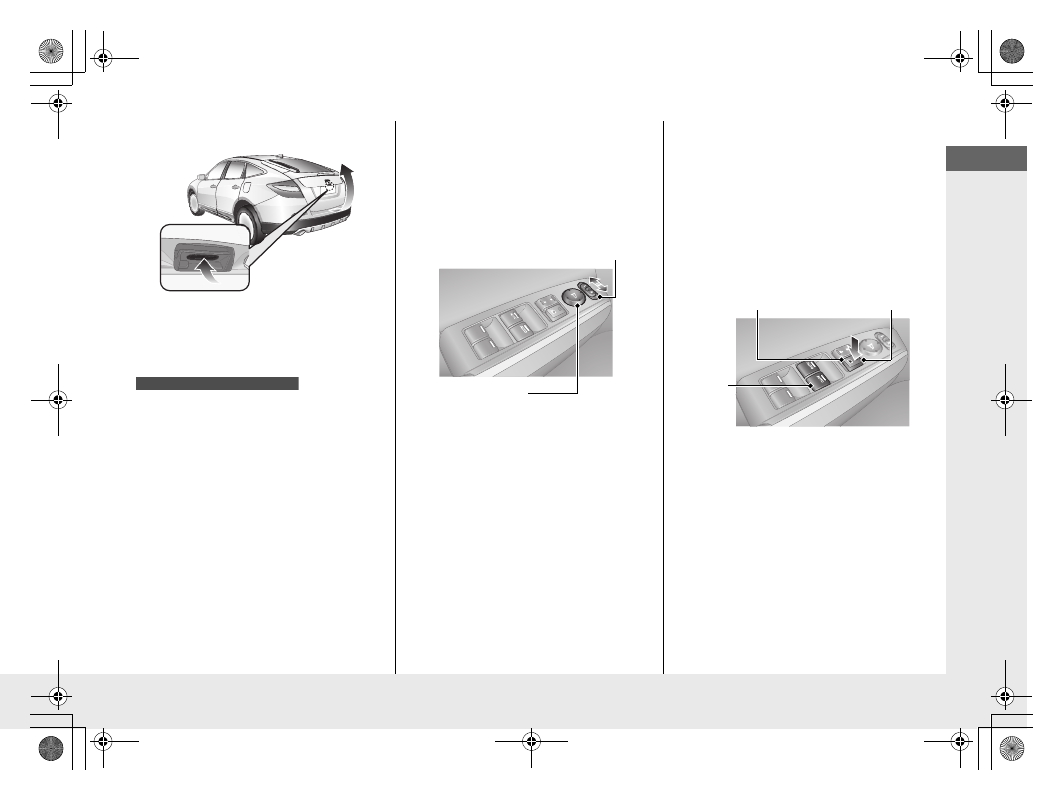

Opening/Closing the Tailgate

(P 105)

Rear Wiper

(P 124, 495)

Back-Up Lights

(P 490)

Brake/Taillights

(P 490)

Rear Turn Signal Lights

(P 490)

Rear Side Marker Lights

(P 490)

Multi-View Rear Camera

(P 455)

Rearview Camera

(P 454)

Rear License Plate Lights

(P 492)

Headlights

(P 119, 484)

Power Door Mirrors

(P 131)

Door Lock/Unlock Control

(P 94)

High-Mount Brake Light

(P 492)

Tailgate Release Button

(P 106)

9

Quick

 Referenc

e Guide

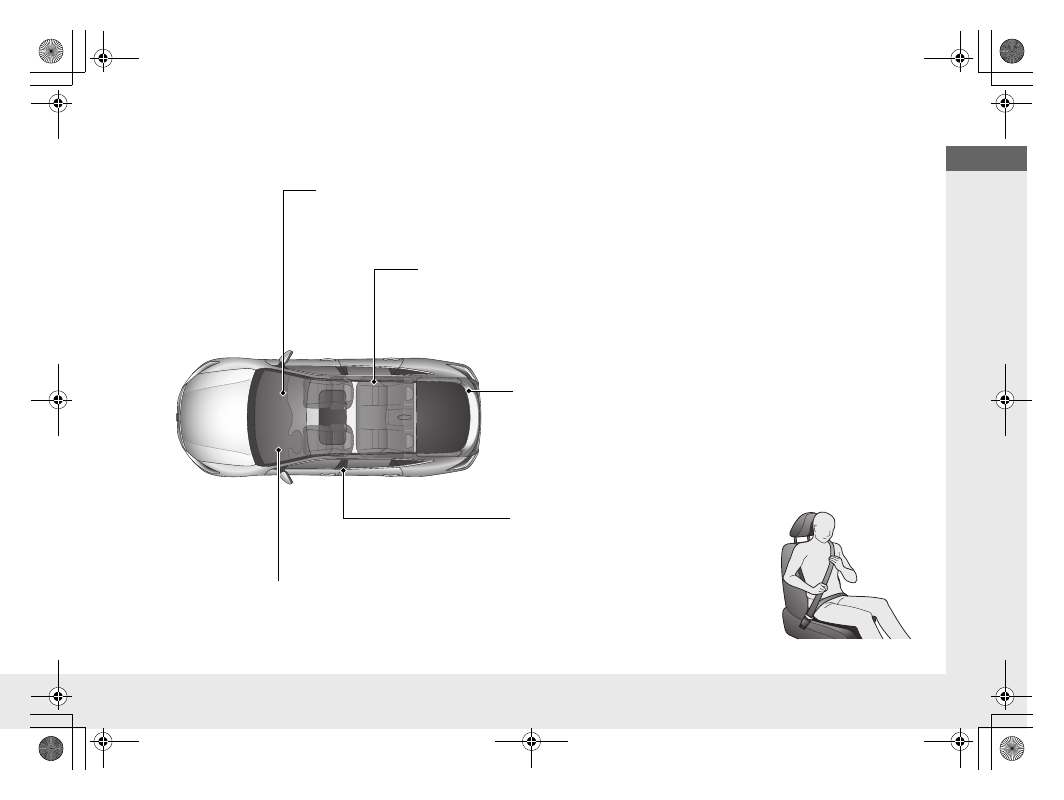

Safe Driving

(P 27)

Airbags

(P 39)

● Your vehicle is fitted with airbags to help protect you and

your passengers during a moderate-to-severe collision.

Child Safety

(P 54)

● All children 12 and younger should be seated in the rear seat.

● Smaller children should be properly restrained in a forward-facing child seat.

● Infants must be properly restrained in a rear-facing child seat.

Exhaust Gas Hazard

(P 66)

● Your vehicle emits dangerous exhaust gases that contain carbon

monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.

Before Driving Checklist

(P 31)

● Before driving, check that the front seats, head restraints,

steering wheel, and mirrors have been properly adjusted.

Seat Belts

(P 32)

● Fasten your seat belt and sit upright well

back in the seat.

● Check that your passengers are wearing

their seat belts correctly.

Fasten your lap belt as
low as possible.

10

Quick

 Referenc

e Guide

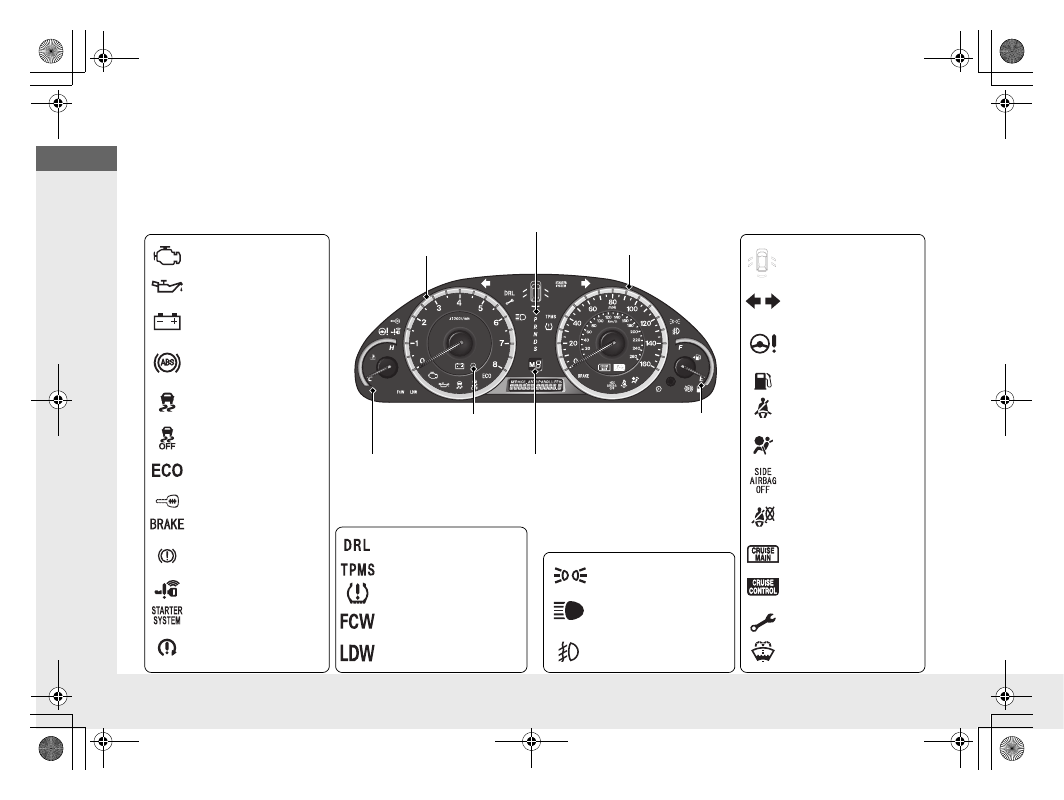

Instrument Panel

(P 69)

System Indicators

Malfunction

Indicator Lamp

Low Oil Pressure

Indicator

Charging System

Indicator

Anti-lock Brake

System (ABS

Indicator

Vehicle Stability

Assist (VSA®) System

Indicator

VSA® OFF Indicator

Low Tire Pressure

Indicator

Lights Indicators

Lights On Indicator

High Beam Indicator

Fog Light Indicator

Immobilizer System

Indicator

Seat Belt Reminder

Indicator

System Indicators

CRUISE CONTROL

Indicator

Parking Brake and

Brake System

Indicator (Red)

Supplemental

Restraint System

Indicator

Side Airbag Off

Indicator

CRUISE MAIN

Indicator

Tachometer

Speedometer

Fuel Gauge

Security System Alarm
Indicator

Shift Lever Position Indicator

Low Fuel Indicator

Gauges

(P 83)

/Information Display

(P 84)

/System Indicators

(P 70)

Fuel Economy

Indicator

*

TPMS Indicator

Maintenance Minder

Indicator

Washer Level

Indicator

*

Temperature Gauge

Electric Power

Steering (EPS) System

Indicator

*

Turn Signal and

Hazard Warning

Indicators

System Indicators

Canada

U.S.

Canada

U.S.

Starter System

Indicator

*

Door and Tailgate

Open Indicator

Smart Entry System

Indicator

*

Canada

U.S.

Forward Collision

Warning (FCW) Indicator

*

Lane Departure Warning

(LDW) Indicator

*

M (Sequential shift mode) Indicator/
Shift Indicator

*

Daytime Running

Lights Indicator

11

Quick

 Referenc

e Guide

Controls

(P 87)

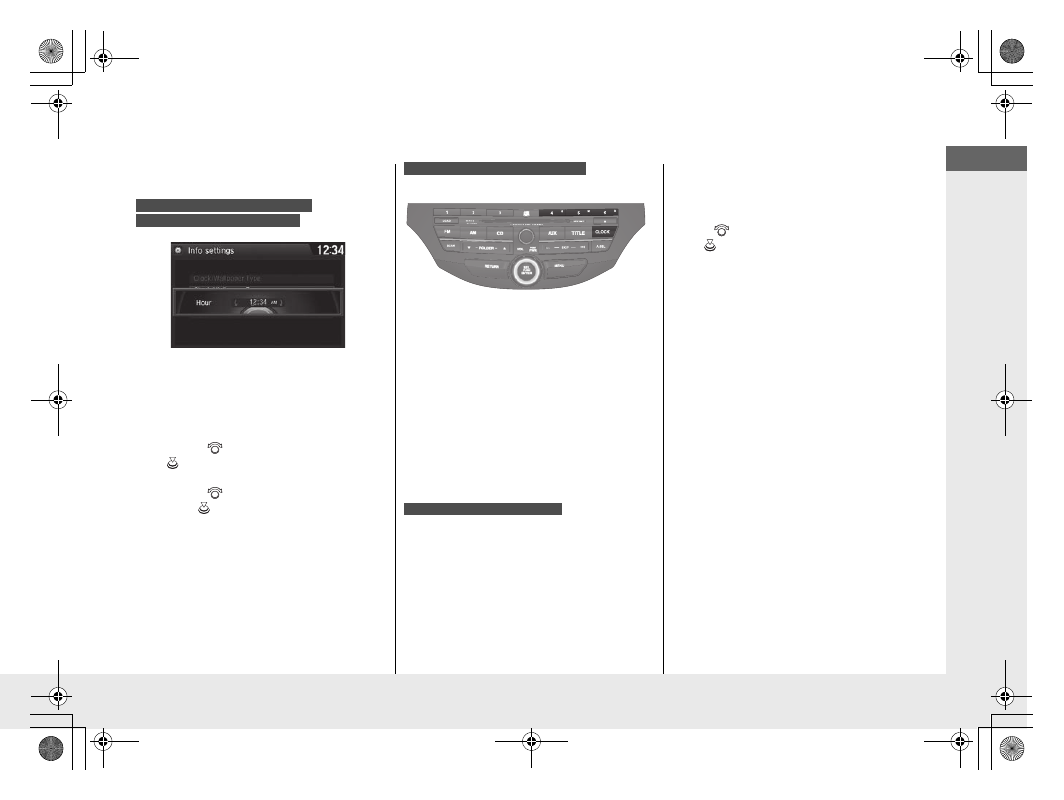

Clock

(P88 )

a

Press the DISP button, then select Info
Settings
.

b

Select Clock Adjustment.

c

Rotate

 to change hour, then press

.

d

Rotate

 to change minute, then

press .

Models without navigation system
Audio system with touch screen

a

Press the CLOCK button until you hear
a beep. The displayed time begins
flashing.

b

Press the

(

4 (Hour) or

(

5 (Minute)

button to set the time. Press the

(

(Reset) button to set the time to the
nearest hour.

c

Press the CLOCK button again to set
the time.

The navigation system receives signals from
GPS satellites, updating the clock
automatically.

Audio system without touch screen

Models with navigation system

These indicators are used to show how to
operate the selector knob or the MENU/SEL
(Menu/Selector) knob.

Rotate

 to select.

Press

 to enter.

* Not available on all models

12

Quick

 Referenc

e Guide

ENGINE START/STOP
Button

*



(P115 )

Turn Signals

(P119)

Turn Signal Control Lever

Right

Left

Lights

(P119)

Wipers and Washers

(P123)

Light Control Switches

Low Beam

High Beam

Flashing

Wiper/Washer Control Lever

Adjustment Ring

: Long Delay
: Short Delay

MIST
OFF
INT
: Low speed with intermittent
LO: Low speed wipe
HI: High speed wipe

Pull toward
you to spray
washer fluid.

Steering Wheel

(P129)

● To adjust, push the adjustment lever

down, adjust to the desired position, then
lock the lever back in place.

Unlocking the Front
Doors from the Inside

(P99)
● Pull either front door inner handle to

unlock and open it in one motion.

13

Quick

 Referenc

e Guide

Tailgate

(P105)

● With all the doors unlocked, press the

tailgate release button and lift open the
tailgate.

● Press the tailgate release button to

unlock and open the tailgate when you
carry the smart entry remote.

Models with smart entry system

Power Door Mirrors

(P131)
● With the ignition switch in ON

(

w

*1

, move

the selector switch to L or R.

● Push the appropriate edge of the

adjustment switch to adjust the mirror.

Selector Switch

Adjustment Switch

Power Windows

(P110)

● With the ignition switch in ON

(

w

*1

, open

and close the power windows.

● If the power window lock button is in the

off position, each passenger’s window
can be opened and closed with its own
switch.

● If the power window lock button is in the

on position (indicator is on), each
passenger’s window switch is disabled.

*1:Models with the smart entry system have

an ENGINE START/STOP button
instead of an ignition switch.

Power Window Lock Button

Window
Switch

Indicator

* Not available on all models

14

Quick

 Referenc

e Guide

Heating and Cooling System

*



(P154)

● Rotate the fan control dial to adjust the fan speed and airflow.

● Press the Mode buttons (

 /

 /

 /

) to select the vents air flows from.

● Rotate the temperature control dial to adjust the temperature.

● Use the

 button for maximum cool setting.

● Rotate the fan control dial to OFF to turn the system off.

● Press the

 button to defrost the windshield.

Fan Control Dial

 (Windshield Defroster) Button

A/C (Air Conditioning) Button

Air flows from floor and
windshield defroster vents.

Air flows from floor vents.

Air flows from floor and
dashboard vents, and back of the
center console.

Air flows from dashboard vents,
and back of the center console.

 Button

 Button

 Button

 (Recirculation) Button

Temperature Control Dial

 Button

 Button

Mode Buttons

15

Quick

 Referenc

e Guide

Climate Control System

*



(P157)

● Press the AUTO button to activate the climate control system.

● Press the

 button to turn the system on or off.

● Press the

 button to defrost the windshield.

The climate control system is voice operable.

(P 226)

Models with audio touch screen

Driver’s Side Temperature
Control Switch

 (Windshield Defroster) Button

SYNC (Synchronized) Button

Air flows from floor and windshield
defroster vents.

Air flows from floor vents.

Air flows from floor and dashboard
vents, and back of the center console.

Air flows from dashboard vents and
back of the center console.

AUTO Button

 (On/Off) Button

 (Recirculation) Button

MODE Control Button

 /

 (Fan Control)

Buttons

A/C (Air Conditioning) Button

Passenger’s Side Temperature Control Switch

Models with navigation system

* Not available on all models















Content   ..    1  2   ..
