Honda Civic (2019 year). Manual - part 41





640

uu

Indicator, Coming On/Blinking

u

If the Brake System Indicator (Red) Comes On or Blinks at the Same Time When the Brake System Indicator (Amber) Comes On

Han

d

lin
g the U

n

expected

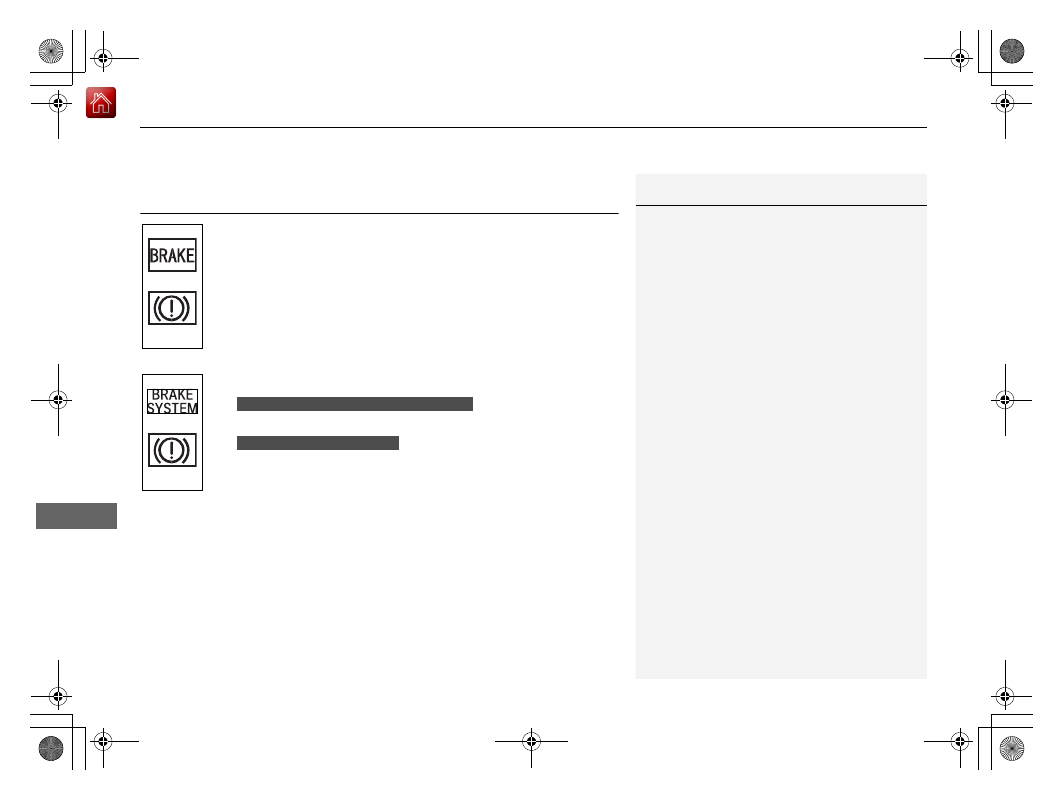

If the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake System
Indicator (Amber) Comes On

If the brake system indicator (red) comes on or blinks at the

same time when the brake system indicator (amber) comes on,
release the parking brake manually or automatically.

Parking Brake P. 529

•If the brake system indicator (red) continuously comes on or blinks at

the same time when the brake system indicator (amber) comes on,
stop the vehicle in a safe place and have it inspected by a dealer
immediately.

u

Preventing the vehicle from moving

Move the shift lever to

(

P.

Move the shift lever to

(

1 or

(

R.

•If only the brake system indicator (red) is turned off, avoid using the

parking brake and have your vehicle checked by a dealer immediately.

1

If the Brake System Indicator (Red) Comes On or Blinks at the Same
Time When the Brake System Indicator (Amber) Comes On

If you apply the parking brake, you may not be able
to release it.

If the brake system indicator (red) and the brake
system indicator (amber) come on at the same time,
the parking brake is working.

If the brake system indicator (red) blinks at the same
time when the brake system indicator (amber) comes
on, the parking brake may not work because it is
checking the system.

U.S.

Canada

(Red)

U.S.

Canada

(Amber)

Continuously variable transmission models

Manual transmission models

641

uu

Indicator, Coming On/Blinking

u

If the Electric Power Steering (EPS) System Indicator Comes On

Han

d

lin
g the U

n

expected

If the Electric Power Steering (EPS) System Indicator
Comes On

Reasons for the indicator to come on

• Comes on when there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine

speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.

What to do when the indicator comes on

Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.

642

uu

Indicator, Coming On/Blinking

u

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

Han

d

lin
g the U

n

expected

If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks

Reasons for the indicator to come on or blink

A tire pressure is significantly low, or the TPMS has not been calibrated.
If there is a problem with the TPMS or the compact spare tire

*

 is

installed, the indicator blinks for about one minute, and then stays on.

What to do when the indicator comes on

Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Check the tire pressure and adjust the
pressure to the specified level. The specified tire pressure is on a label on
the driver side doorjamb.

u

Calibrate the TPMS after the tire pressure is adjusted.

What to do when the indicator blinks, then remains on

Have the tire inspected by a dealer as soon as possible. If the compact
spare tire

*

 has triggered the indicator to blink, change the tire to a full-

size tire. The indicator goes off after a while.

u

Calibrate the TPMS after a full-size tire is reinstalled.

U.S. models

1

If the Low Tire Pressure/TPMS Indicator Comes On or Blinks

NOTICE

Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.

* Not available on all models

643

Continued

Han

d

lin
g the U

n

expected

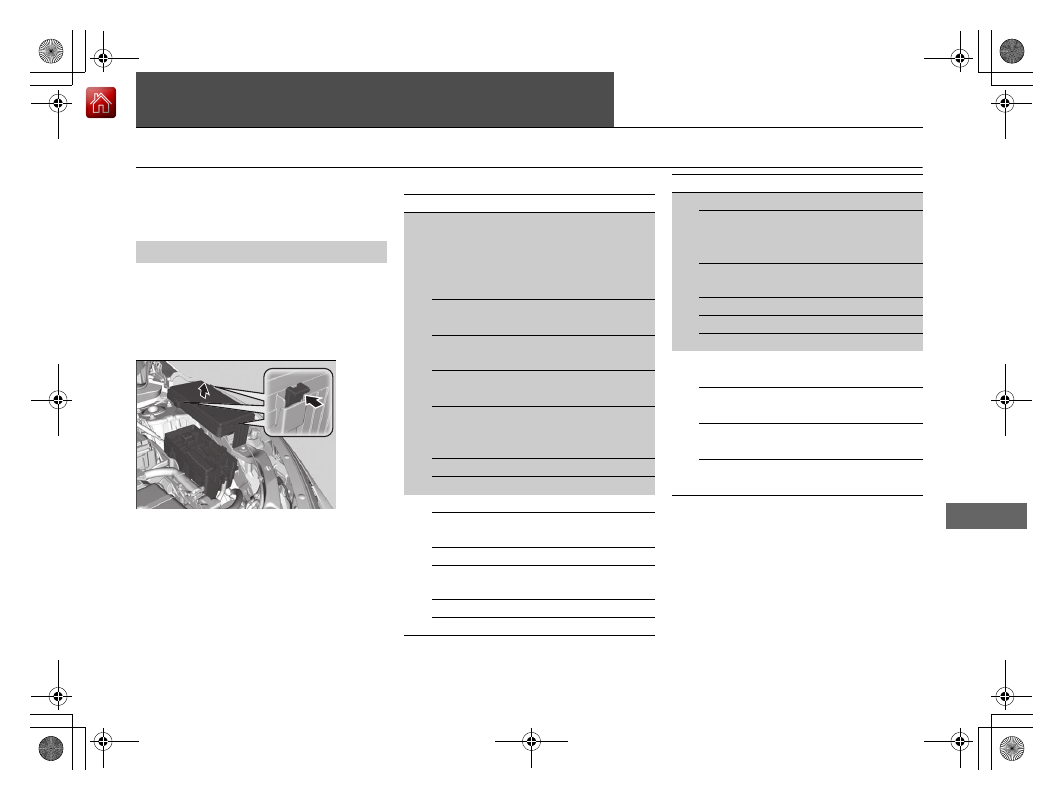

Fuses

Fuse Locations

If any electrical devices are not working,
turn the ignition switch to LOCK

(

0

*1

 and

check to see if any applicable fuse is blown.

Located near the battery. Push the tabs to
open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.

Engine Compartment Fuse Box

Circuit protected and fuse rating

Circuit Protected

Amps

1

Passenger’s Power Seat

*

/

Rear Seat Heaters

*, *2, *8

(60 A)

Adaptive Damper System/

Rear Seat Heaters

*, *3, *8

60 A

Option Block 1

*9

(60 A)

Cooling Fan

*4, *8

(30 A)

DCDC 1

*, *9

Cooling Fan

*5

(50 A)

*8

50 A

*9

*8

Premium Amp

*, *9

(30 A)

IG Main

*6, *8

IG Main 2

*6, *9

30 A

(30 A)

*7

Headlight High Beam Main

30 A

Battery

125 A

2

EPS

70 A

IG Main

*8

IG Main 1

*9

30 A

*6

50 A

*7

Fuse Box Option

*

(40 A)

Fuse Box

*8

Fuse Box 1

*9

60 A

Front Wiper Motor

30 A

Headlight Low Beam Main

30 A

*1:Models with the smart entry system have

an ENGINE START/STOP button
instead of an ignition switch.

*2:Models without SPORT mode
*3:Models with SPORT mode
*4:2.0L engine models
*5:1.5L engine models
*6:Models with smart entry system
*7:Models without smart entry system
*8:Models without detachable towing hook
*9:Models with detachable towing hook

3

Rear Defroster

40 A

Starter Motor

*6

30 A

*8

(30 A)

*9

*7

Fuse Box

*8

Fuse Box 2

*9

40 A

ABS/VSA Motor

40 A

ABS/VSA FSR

40 A

Blower Motor

40 A

4

*8

PTC 4

*, *9

(40 A)

*8

PTC 3

*, *9

(40 A)

*8

PTC 2

*, *9

(40 A)

*8

PTC 1

*, *9

(40 A)

Circuit Protected

Amps

* Not available on all models

644

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

Circuit Protected

Amps

5

Cooling Fan

5 A

*8

(5 A)

*9

6

Washer

15 A

7

FI Main

15 A

8

FI Sub

*8

15 A

Stop Lights

*9

10 A

9

Stop Lights

*8

10 A

FI Sub

*9

15 A

10

Injector

*5

(15 A)

11

LAF

5 A

12

FI ECU

10 A

13

Parking Lights

*8

10 A

Hazard

*9

15 A

14

Hazard

*8

15 A

Rear Seat Heaters

*, *9

(15 A)

15

IG Coil

15 A

16

Transmission

*10

(15 A)

17

Daytime Running Lights

10 A

*8

(10 A)

*9

18

Back Up

10 A

19

Audio

15 A

*8

(15 A)

*9

20

Audio AMP

*, *8

(30 A)

Parking Lights

*9

10 A

21

Interior Lights

10 A

22

Front Fog Lights

*

(15 A)

23

A/C Compressor

*

(10 A)

*8

10 A

*9

24

Horn

10 A

25

Left Headlight Low Beam

*8

10 A

*9

26

Right Headlight Low Beam

*8

10 A

Left Headlight Low Beam

*9

27

VB ACT

*5, *8

(10 A)

Right Headlight Low Beam

*9

10 A

28

Left Headlight High Beam

*8

10 A

*9

29

Right Headlight High Beam

*8

10 A

Left Headlight High Beam

*9

30

*8

Right Headlight High Beam

*9

10 A

31

Rear Seat Heaters

*, *8

(15 A)

Passenger’s Power Seat

Sliding

*, *9

(20 A)

32

Passenger’s Power Seat

Sliding

*, *2, *8

(20 A)

*3, *8

Passenger’s Power Seat

Reclining

*, *9

(20 A)

33

Passenger’s Power Seat

Reclining

*, *2, *8

(20 A)

Adaptive Damper System

*3, *8

15 A

VB ACT

*9

(5 A)

Circuit Protected

Amps

*2:Models without SPORT mode
*3:Models with SPORT mode
*5:1.5L engine models
*8:Models without detachable towing hook
*9:Models with detachable towing hook
*10:Continuously variable transmission models

34

*8

35

*8

36

*8

Circuit Protected

Amps

* Not available on all models

645

uu

Fuses

u

Fuse Locations

Continued

Han

d

lin
g the U

n

expected

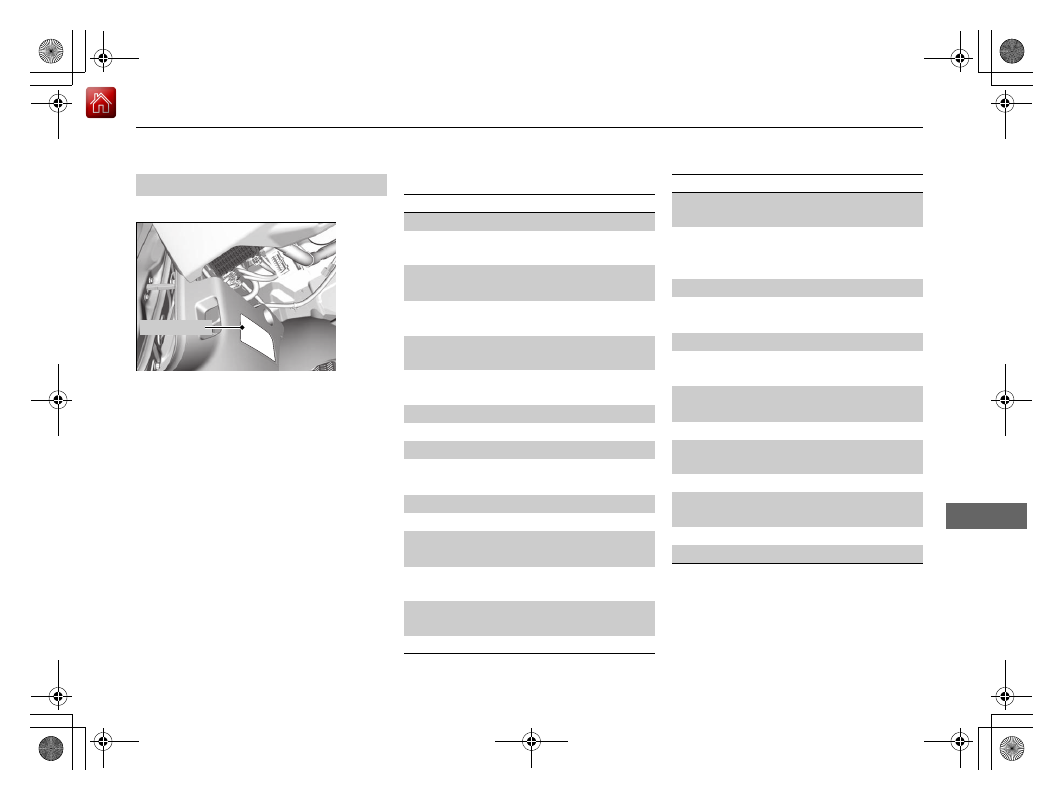

Located under the dashboard.

Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.

Interior Fuse Box

Fuse Label

Circuit protected and fuse rating

Circuit Protected

Amps

1

Accessory

10 A

2

*1

Key Lock

*2, *3

(5 A)

3

*4

Rear Wiper

*, *5

(10 A)

4

Front Sensor Camera

*1

Transmission

*2, *3

(5 A)

(10 A)

5

Option

10 A

*4

(10 A)

*5

6

SRS Indicator

10 A

*4

(10 A)

*5

7

Meter

10 A

8

Fuel Pump

15 A

9

AIRCON

10 A

10

*4

Rear Accessory Socket

*5

(20 A)

11

Engine Control

5 A

12

Passenger Side Door Lock

10 A

13

Driver Side Rear Door Unlock

*4

(10 A)

Driver’s Side Door Unlock

*5

10 A

14

Rear Driver’s Side Power

Window

(20 A)

15

Front Passenger’s Power

Window

20 A

16

Door Lock

20 A

*1:Models with smart entry system
*2:Models without smart entry system
*3:Continuously variable transmission models
*4:Models without detachable towing hook
*5:Models with detachable towing hook

17

Transmission

*1, *3

Front Sensor Camera

*2

(10 A)

(5 A)

18

*4

Driver’s Power Seat Lumbar

Support

*5

(10 A)

19

Moonroof

*

(20 A)

20

*4

Starter

*5

(10 A)

21

ACG

10 A

22

Daytime Running Lights

10 A

*4

(10 A)

*5

23

*4

Rear Fog Light

*, *5

(10 A)

24

Front Sensor Camera

*

(5 A)

25

Driver’s Door Lock

10 A

*4

(10 A)

*5

26

Passenger Side Door Unlock

10 A

27

Rear Passenger’s Side

Power Window

(20 A)

28

Driver’s Power Window

20 A

29 Front Accessory Power Socket

20 A

Circuit Protected

Amps

* Not available on all models

646

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

*1:Models with smart entry system
*2:Models without smart entry system
*4:Models without detachable towing hook
*5:Models with detachable towing hook

Circuit Protected

Amps

30

Smart Entry

*1

10 A

*4

(10 A)

*5

*2

31 Driver’s Power Seat Reclining

*

(20 A)

32

Front Seat Heater

*

(20 A)

33 Driver’s Power Seat Sliding

*

(20 A)

34

VSA/ABS

10 A

35

SRS

10 A

36

37

*4

Option

*5

(10 A)

38

Driver Side Rear Door Lock

*4

(10 A)

Driver’s Side Door Lock

*5

10 A

39

Driver’s Door Unlock

10 A

*4

(10 A)

*5

* Not available on all models

647

uu

Fuses

u

Inspecting and Changing Fuses

Han

d

lin
g the U

n

expected

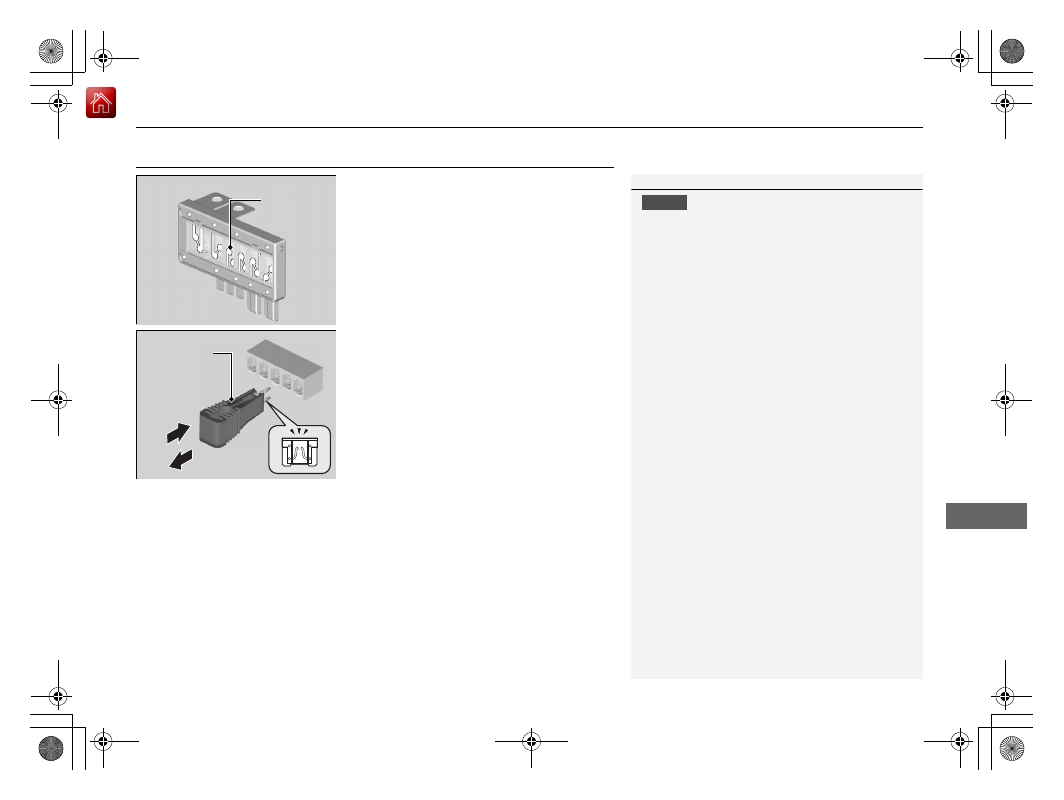

Inspecting and Changing Fuses

1. Turn the ignition switch to LOCK

(

0

*1

. Turn

headlights and all accessories off.

2. Remove the fuse box cover.
3. Check the large fuse in the engine

compartment.

u

If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.

4. Inspect the small fuses in the engine

compartment and the vehicle interior.

u

If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.

*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.

1

Inspecting and Changing Fuses

NOTICE

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.

There is a fuse puller on the back of the engine
compartment fuse box cover.

Combined
Fuse

Blown Fuse

Fuse Puller

648

Han

d

lin
g the U

n

expected

Emergency Towing

Call a professional towing service if you need to tow your vehicle.

Flat bed equipment

The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.

Wheel lift equipment

The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.

1

Emergency Towing

NOTICE

Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle's weight.

NOTICE

Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.

Never tow your vehicle with just a rope or chain.
It is very dangerous, since ropes or chains may shift
from side to side or break.

Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flat bed equipment.

Parking Brake P. 529

649

Han

d

lin
g the U

n

expected

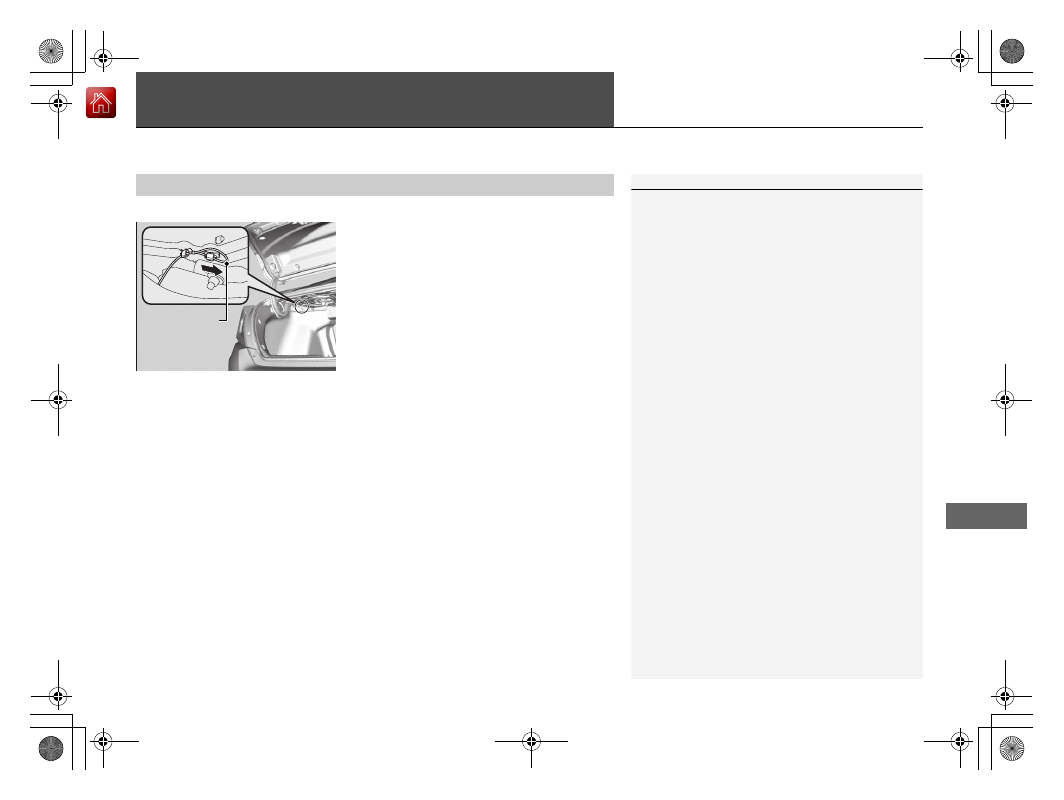

When You Cannot Unlock the Fuel Fill Door

If you cannot unlock the fuel fill door, use the following procedure.

1. Open the trunk.
2. Pull the green release cord beneath the rear

tray as shown.

u

The release cord unlocks the fuel fill door
when it is pulled.

What to Do When Unable to Unlock the Fuel Fill Door

1

When You Cannot Unlock the Fuel Fill Door

After taking these steps, contact a dealer to have
your vehicle checked.

Release Cord

650

Han

d

lin
g the U

n

expected

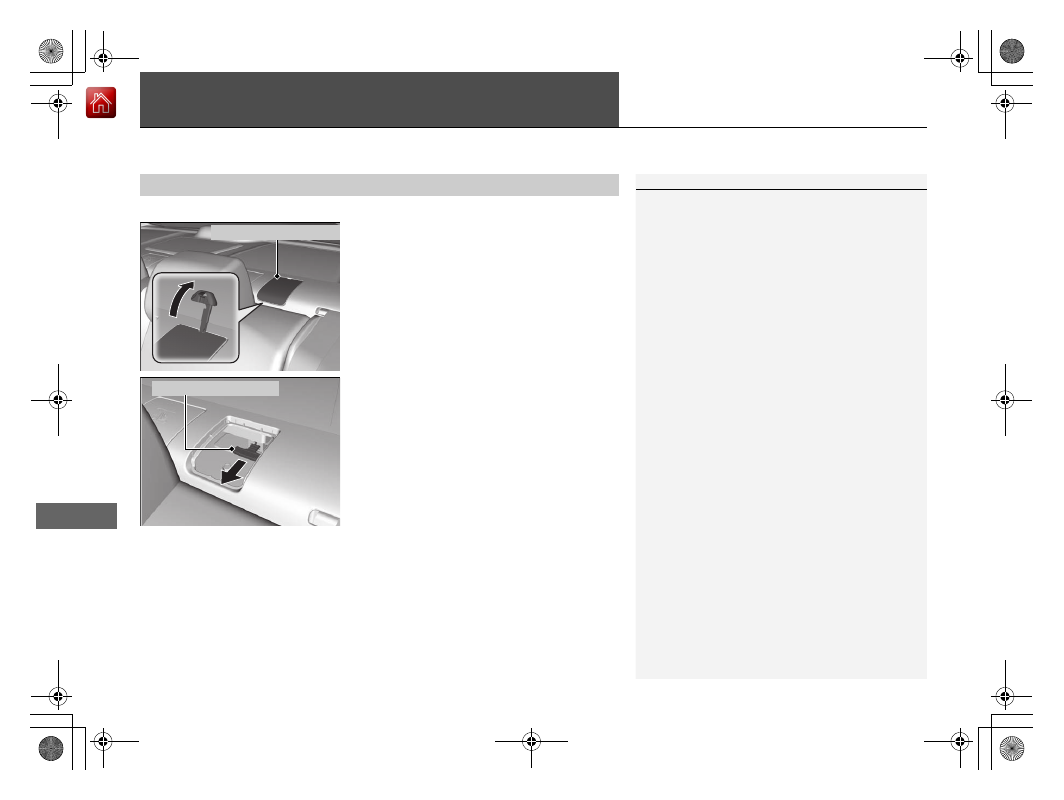

When You Cannot Open the Trunk

If you cannot open the trunk, use the following procedure.

1. Remove the cover with a key.

u

Wrap a key with a cloth to prevent
scratching the cover.

2. Pull the release lever.
3. Replace the cover.

What to Do When Unable to Open the Trunk

1

When You Cannot Open the Trunk

Following up:
After taking these steps, contact a dealer to have
your vehicle checked.

Trunk Release Cover

Trunk Release Lever

651

Han

d

lin
g the U

n

expected

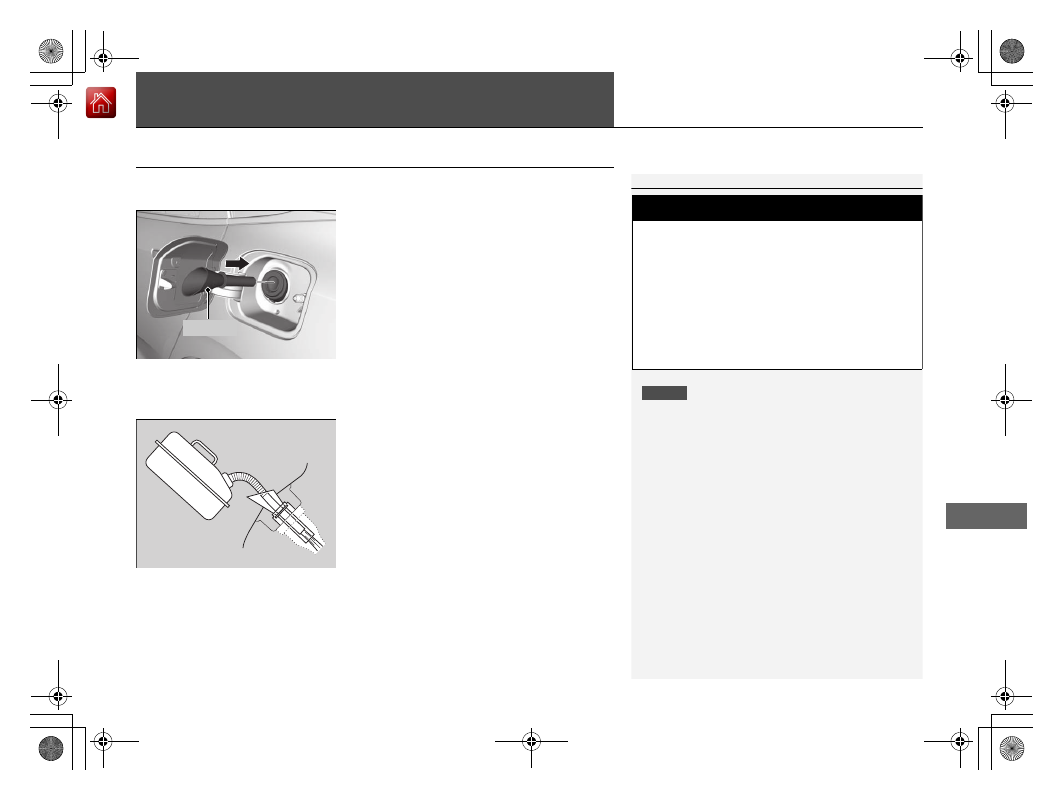

Refueling

Refueling From a Portable Fuel Container

If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.

1. Turn off the engine.
2. Press on the edge of the fuel fill door to

make it pop up slightly.

u

The fuel fill door opens.

3. Take the funnel out of the tool case in the

trunk.

Types of Tools P. 608

4. Place the end of the funnel on the lower

part of filler opening, then insert it slowly
and fully.

u

Make sure that the end of the funnel
goes down along with the filler pipe.

5. Fill the tank with fuel from the portable fuel

container.

u

Pour fuel carefully so you do not spill any.

6. Remove the funnel from the filler neck.

u

Wipe up any fuel from the funnel before
storing it.

7. Shut the fuel fill door by hand.

1

Refueling From a Portable Fuel Container

NOTICE

Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.

Make sure the fuel in the portable fuel container is
gasoline before you refuel.

3

WARNING

Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.

• Stop the engine, and keep heat, sparks,

and flame away.

• Handle fuel only outdoors.
• Wipe up spills immediately.

Funnel

654

Info

rm

ation

Specifications

Vehicle Specifications

Air Conditioning

*

Model

Civic

No. of Passengers:
Front

2

Rear

3

Total

5

Weights:
Gross Vehicle
Weight Rating

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Front)

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Rear)

See the certification label on the driver’s
doorjamb

Refrigerant Type

HFO-1234yf (R-1234yf)

Charge Quantity

13.2 – 15.0 oz (375 – 425 g)

Lubricant Type

RL85HM (POE)

Quantity

4.7 – 6.3 cu-in (77 – 103 cm

3

)

2.0 L engine models

Engine Specifications

Fuel

Washer Fluid

Displacement

121.76 cu-in (1,996 cm

3

)

Spark Plugs

NGK

DILKAR7H11GS
DILKAR7G11GS

DENSO

DXE22HQR-D11S

Fuel:
Type

Unleaded gasoline, Pump octane number
of 87 or higher

Fuel Tank Capacity

12.39 US gal (46.9 L)

Tank Capacity

U.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)

Light Bulbs

*1: Canadian DX model
*2: Except Canadian DX model

Headlights (Low Beam)

55 W (H11)

Headlights (High Beam)

60 W (HB3)

Fog Lights

*

35 W (H8)

Parking/Daytime Running Lights

LED

Front Side Marker Lights

3 W

Front Turn Signal Lights

21 W (Amber)

Brake Lights

21 W

Rear Turn Signal Lights

21 W (Amber)

Tail/Rear Side Marker Lights

LED

Back-Up Lights

16 W

Taillights

LED

High-Mount Brake Light

21 W

Rear License Plate Light

LED

Interior Lights

Map Lights

8 W

*1

5 W

*2

Ceiling Light

8 W

Vanity Mirror Lights

*

2 W

Glove Box Light

LED

Trunk Light

5 W

* Not available on all models

655

uu

Specifications

u

Continued

Info

rm

ation

Brake/Clutch

*

 Fluid

Continuously Variable Transmission
Fluid

*

Manual Transmission Fluid

*

Specified

Honda Heavy Duty Brake Fluid DOT 3

Specified

Honda HCF-2

Capacity

Change

3.7 US qt (3.5 L)

Specified

Honda MTF

Capacity

Change

2.0 US qt (1.9 L)

Engine Oil

Engine Coolant

Recommended

·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil

Capacity

Change

4.2 US qt (4.0 L)

Change
including
filter

4.4 US qt (4.2 L)

Specified

Honda Long-Life Antifreeze/Coolant Type2

Ratio

50/50 with distilled water

Capacity

1.4 US gal (5.32 L)
(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)

Tire

*1: Except SPORT models
*2: SPORT models

Regular

Size

215/55R16 93H

*1

235/40R18 91W

*2

Pressure
psi (kPa [kgf/cm

2

])

Front

32 (220 [2.2])

*1

33 (250 [2.3])

*2

Rear 32 (220 [2.2])

*1, *2

Compact
Spare

Size

T125/80D16 97M

*1

T125/70R17 98M

*2

Pressure
psi (kPa [kgf/cm

2

])

60 (420 [4.2])

Wheel Size

Regular

16 x 7J

*1

18 x 8J

*2

Compact Spare

16 x 4T

*1

17 x 4T

*2

* Not available on all models

656

uu

Specifications

u

Info

rm

ation

Vehicle Specifications

Air Conditioning

Model

Civic

No. of Passengers:
Front

2

Rear

3

Total

5

Weights:
Gross Vehicle
Weight Rating

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Front)

See the certification label on the driver’s
doorjamb

Gross Axle Weight
Rating (Rear)

See the certification label on the driver’s
doorjamb

Refrigerant Type

HFO-1234yf (R-1234yf)

Charge Quantity

13.2 – 15.0 oz (375 – 425 g)

Lubricant Type

RL85HM (POE)

Quantity

4.7 – 6.3 cu-in (77 – 103 cm

3

)

1.5 L engine models

Engine Specifications

*1: Models without SPORT mode
*2: Models with SPORT mode

Fuel

*1: Models without SPORT mode
*2: Models with SPORT mode
*3: Models without detachable towing hook
*4: Models with detachable towing hook

Washer Fluid

Displacement

91.38 cu-in (1,498 cm

3

)

Spark Plugs

NGK
NGK

ILZKAR8H8S

*1

ILZKAR8J8SY

*2

Fuel:
Type

Unleaded gasoline, Pump octane number
of 87 or higher

*1

Unleaded premium gasoline, Pump octane
number of 91 or higher

*2

Fuel Tank Capacity

12.39 US gal (46.9 L)

*3

12.4 US gal (47.0 L)

*4

Tank Capacity

U.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)

Light Bulbs

*1: Models without SPORT mode with 215/50R17 tires
*2: U.S. model with SPORT mode
*3: Models without SPORT mode with 235/40R18 tires
*4: Canadian model with SPORT mode
*5: Except Canadian TOURING model
*6: Canadian TOURING model
*7: Models without SPORT mode
*8: Models with SPORT mode
*9: Models with detachable towing hook
*10:Models without detachable towing hook

Headlights (Low Beam)

55 W (H11)

*1, *2

LED

*3, *4

Headlights (High Beam)

60 W (HB3)

*1, *2

LED

*3, *4

Fog Lights

35 W (H8)

*5

LED

*6

Parking/Daytime Running Lights

LED

Front Side Marker Lights

3 W

Front Turn Signal Lights

21 W (Amber)

*1, *2

LED

*3, *4

Side Turn Signal Lights
(on Door Mirrors)

*

LED

Brake Lights

21 W

Rear Turn Signal Lights

21 W (Amber)

Tail/Rear Side Marker Lights

LED

Back-Up Lights

16 W

Taillights

LED

High-Mount Brake Light

21 W

*7

LED

*8

Rear License Plate Light

LED

Interior Lights

Map Lights

8 W

*9

5 W

*10

Ceiling Light

8 W

Vanity Mirror Lights

*

2 W

Glove Box Light

LED

Trunk Light

5 W

* Not available on all models

657

uu

Specifications

u

Info

rm

ation

Brake/Clutch

*

 Fluid

Continuously Variable Transmission
Fluid

*

Manual Transmission Fluid

*

Specified

Honda Heavy Duty Brake Fluid DOT 3

Specified

Honda HCF-2

Capacity

Change

3.9 US qt (3.7 L)

Specified

Honda MTF

Capacity

Change

2.0 US qt (1.9 L)

Engine Oil

Engine Coolant

*1: Continuously variable transmission models
*2: Manual transmission models
*3: Models without detachable towing hook
*4: Models with detachable towing hook

Recommended

·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil

Capacity

Change

3.4 US qt (3.2 L)

Change
including
filter

3.7 US qt (3.5 L)

Specified

Honda Long-Life Antifreeze/Coolant Type2

Ratio

50/50 with distilled water

Capacity

1.34 US gal (5.09 L)

*1, *3



(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
1.32 US gal (5.01 L)

*2, *3



(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
1.30 US gal (4.92 L)

*4



(change including the remaining
0.15 US gal (0.58 L) in the reserve tank)

Tire

*1: Models without SPORT mode except TOURING
*2: TOURING models
*3: Models with SPORT mode
*4: U.S. model with SPORT mode with optional 235/40R18 95Y

tires

*5: U.S. model with SPORT mode with optional spare tire
*6: Canadian model with SPORT mode

Regular

Size

215/50R17 91H

*1

235/40R18 91W

*2, *3

235/40R18 95Y

*4

Pressure
psi (kPa [kgf/cm

2

])

Front
32 (220 [2.2])

*1

33 (225 [2.3])

*2, *3, *4

Rear
32 (220 [2.2])

*1, *2, *3, *4

Compact
Spare

*

Size

T125/80D16 97M

*1

T125/70R17 98M

*2, *5, *6

Pressure
psi (kPa [kgf/cm

2

])

60 (420 [4.2])

Wheel Size

Regular

17 x 7J

*1

18 x 8J

*2, *3, *4

Compact Spare

*

16 x 4T

*1

17 x 4T

*2, *5, *6

* Not available on all models
