Honda Civic (2019 year). Manual - part 36





560

uu

Maintenance Under the Hood

u

Recommended Engine Oil

Main

tenan

ce

Recommended Engine Oil

Oil is a major contributor to your engine's
performance and longevity. If you drive the
vehicle with insufficient or deteriorated oil,
the engine may fail or be damaged.

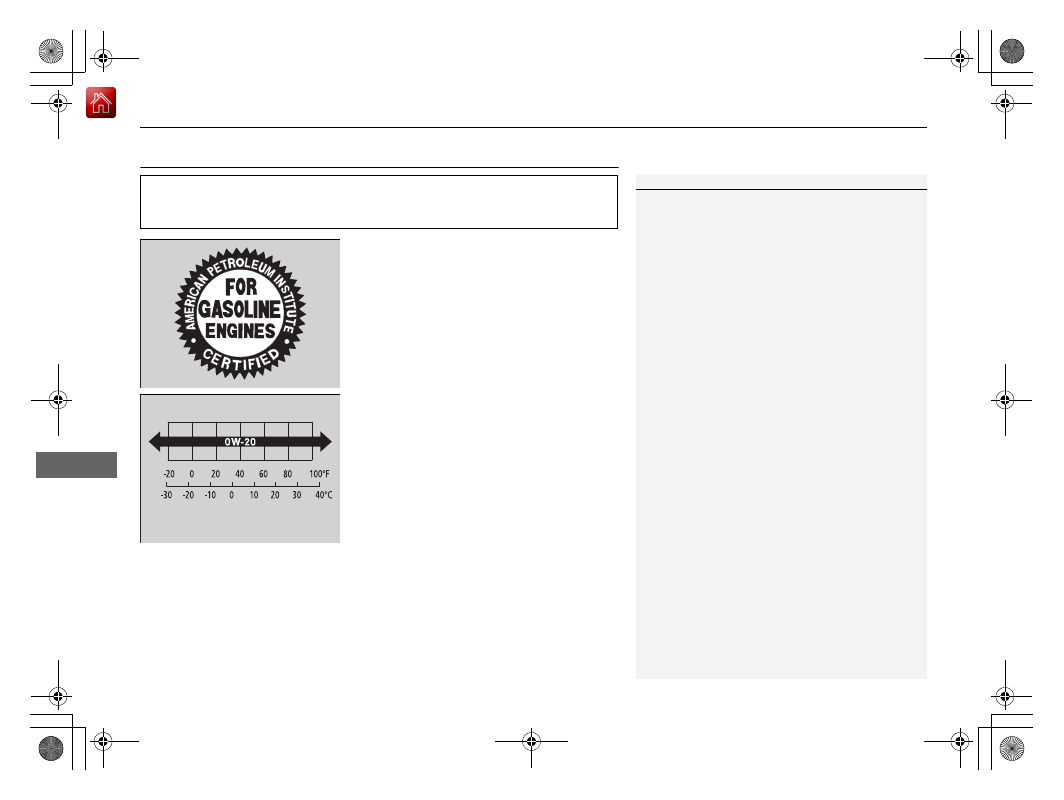

This seal indicates the oil is energy conserving
and that it meets the American Petroleum
Institute’s latest requirements.

Use Genuine Honda Motor Oil or another
commercial engine oil of suitable viscosity for
the ambient temperature as shown.

Synthetic oil

You may also use synthetic motor oil if it is labeled with the API Certification Seal
and is the specified viscosity grade.

• Genuine Honda Motor Oil
• Premium-grade 0W-20 detergent oil with an API Certification Seal on the

container.

1

Recommended Engine Oil

Engine Oil Additives
Your vehicle does not require oil additives. In fact,
they may adversely affect the engine performance
and durability.

Ambient Temperature

561

uu

Maintenance Under the Hood

u

Oil Check

Continued

Main

tenan

ce

Oil Check

We recommend that you check the engine oil level every time you refuel.
Park the vehicle on level ground.
Wait approximately three minutes after turning the engine off before you check the
oil.

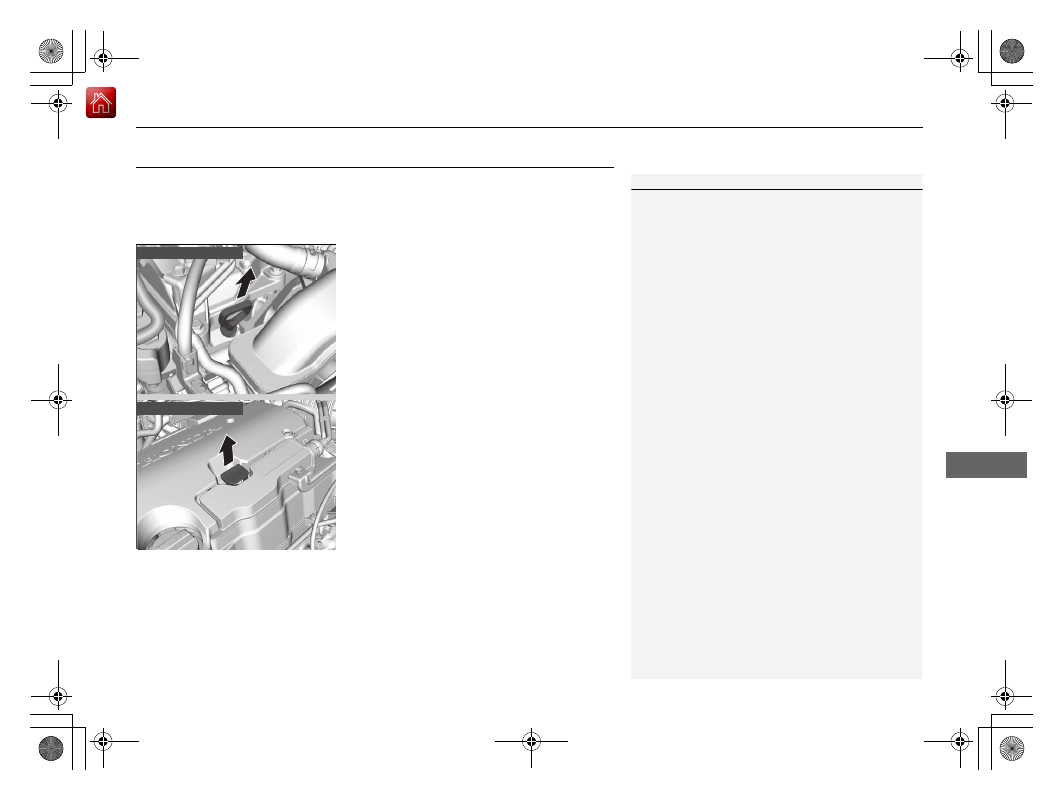

1. Remove the dipstick (orange).
2. Wipe the dipstick with a clean cloth or

paper towel.

3. Insert the dipstick back all the way into its

hole.

1

Oil Check

If the oil level is near or below the lower mark, slowly
add oil, being careful not to overfill.

1.5 L engine models

2.0 L engine models

562

uu

Maintenance Under the Hood

u

Oil Check

Main

tenan

ce

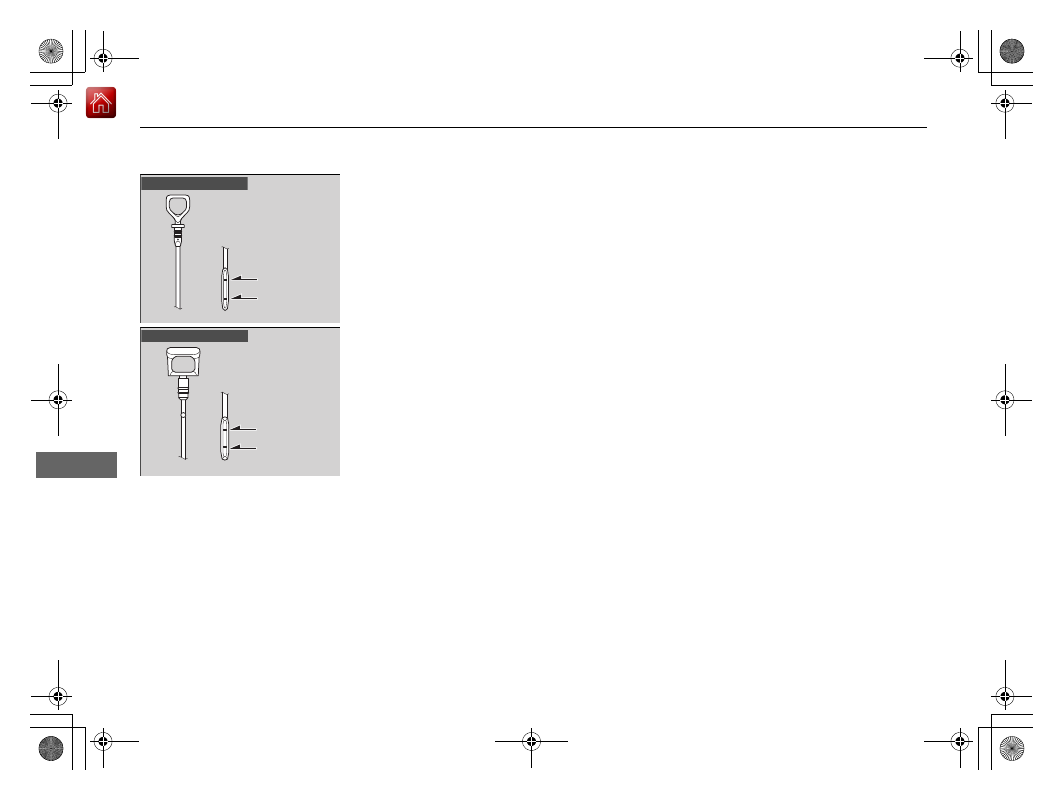

4. Remove the dipstick again, and check the

level. It should be between the upper and
lower marks. Add oil if necessary.

Upper Mark

Lower Mark

1.5 L engine models

Upper Mark

Lower Mark

2.0 L engine models

563

uu

Maintenance Under the Hood

u

Adding Engine Oil

Main

tenan

ce

Adding Engine Oil

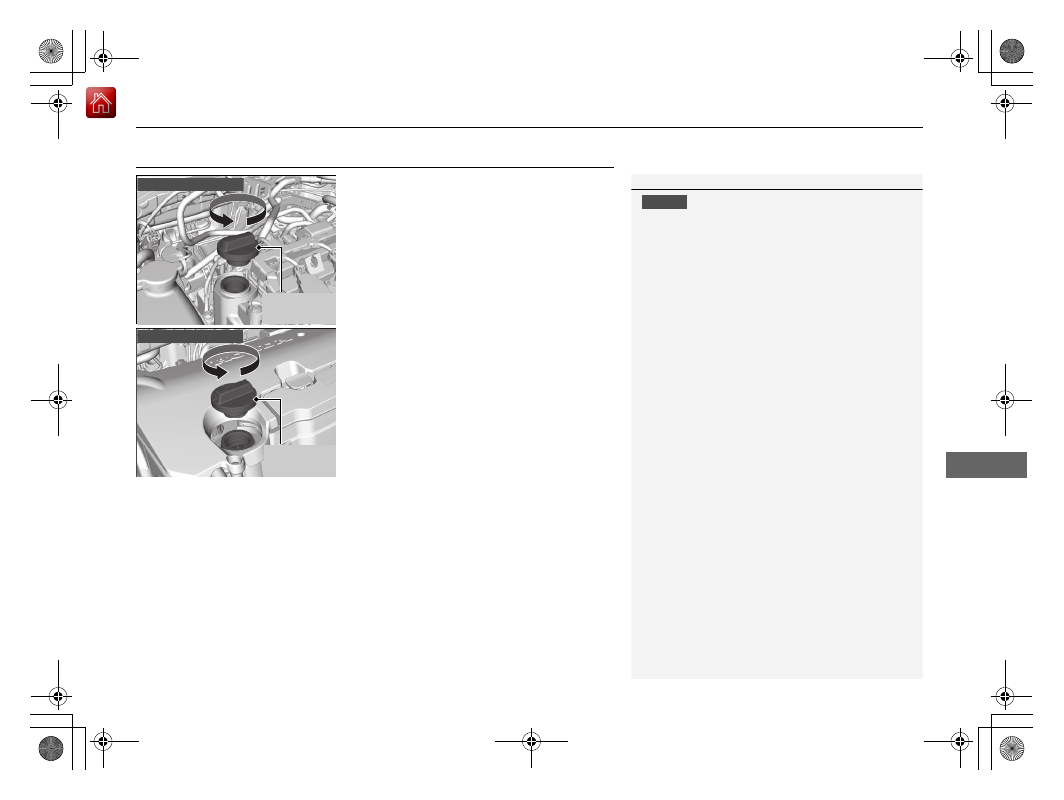

1. Unscrew and remove the engine oil fill cap.
2. Add oil slowly.
3. Reinstall the engine oil fill cap, and tighten

it securely.

4. Wait for three minutes and recheck the

engine oil dipstick.

1

Adding Engine Oil

NOTICE

Do not fill the engine oil above the upper mark.
Overfilling the engine oil can result in leaks and
engine damage.

If any oil spills, wipe it away immediately. Spilled oil
may damage the engine compartment components.

Engine Oil
Fill Cap

1.5 L engine models

Engine Oil
Fill Cap

2.0 L engine models

564

uu

Maintenance Under the Hood

u

Changing the Engine Oil and Oil Filter

Main

tenan

ce

Changing the Engine Oil and Oil Filter

You must change the engine oil and oil filter regularly in order to maintain the
engine’s lubrication. The engine may be damaged if they are not changed regularly.

Change the oil and filter in accordance with the maintenance message on the driver
information interface.

1. Run the engine until it reaches normal

operating temperature, and then turn the
engine off.

2. Open the hood and remove the engine oil

fill cap.

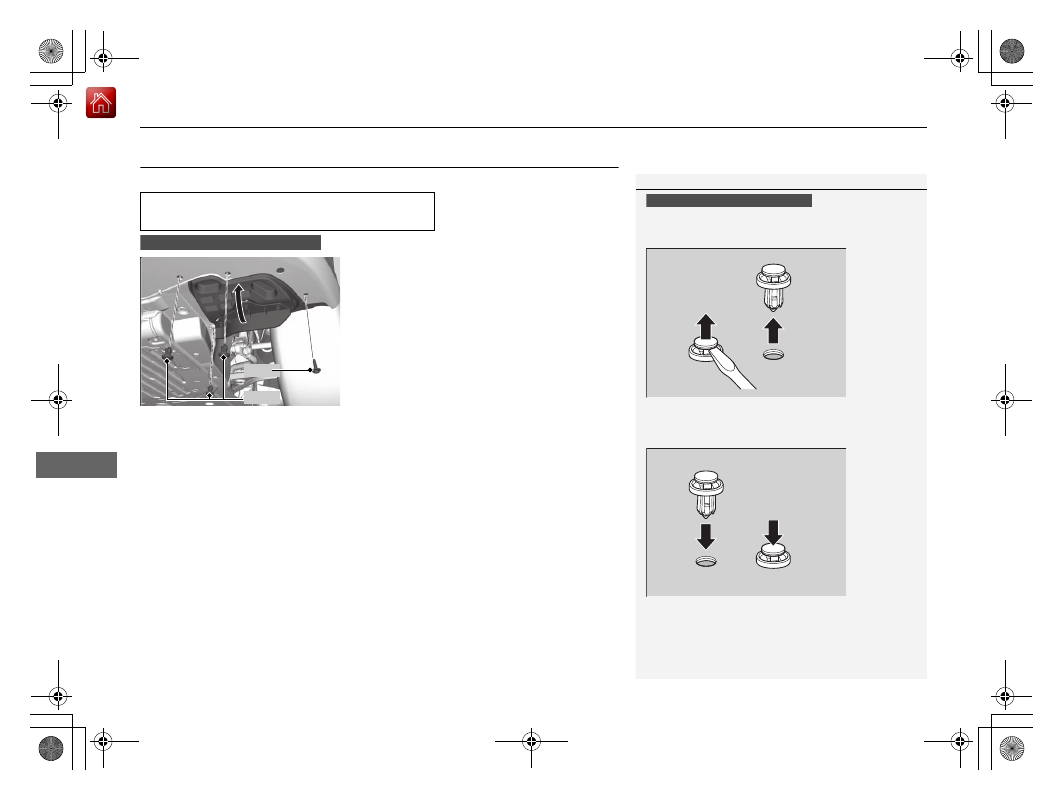

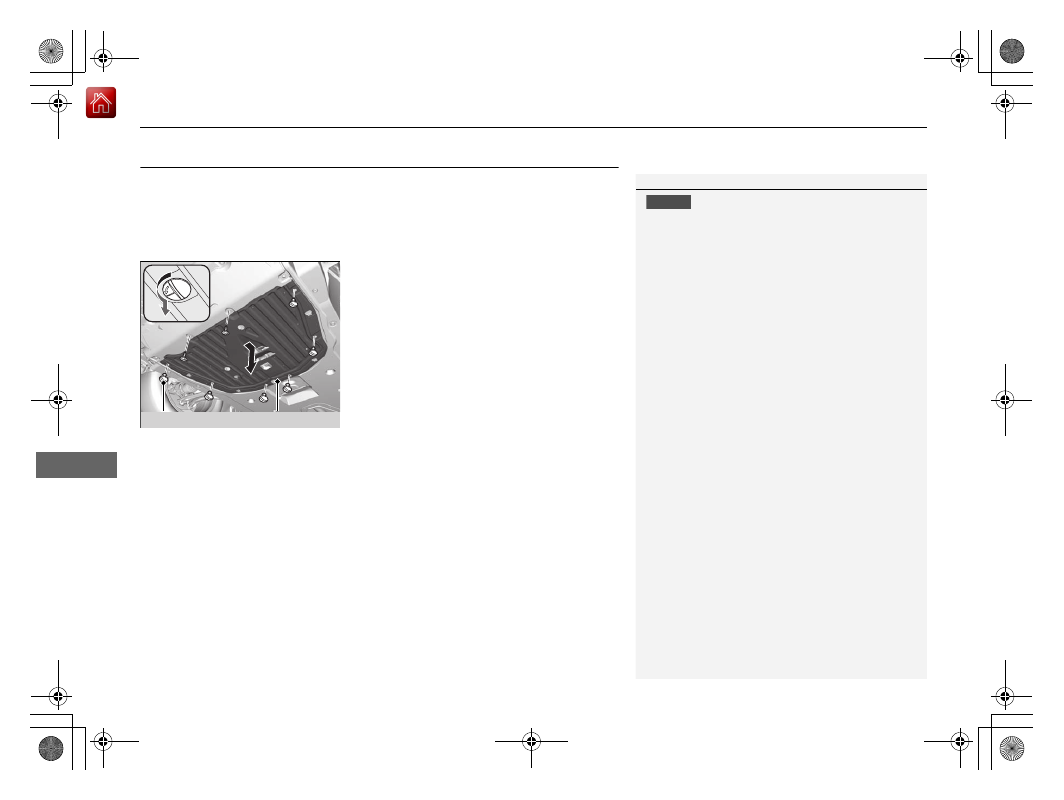

3. Remove the Phillips-head screws and

slotted head screws by turning 90°
counter-clockwise on the undercarriage
and remove the under cover.

1

Changing the Engine Oil and Oil Filter

NOTICE

You may damage the environment if you do not
dispose of the oil in a suitable way. If you are
changing the oil by yourself, appropriately dispose of
the used oil. Put the oil in a sealed container and take
it to a recycling center. Do not throw the oil away
into a garbage can or onto the ground.

Under Cover

Screw

565

uu

Maintenance Under the Hood

u

Changing the Engine Oil and Oil Filter

Continued

Main

tenan

ce

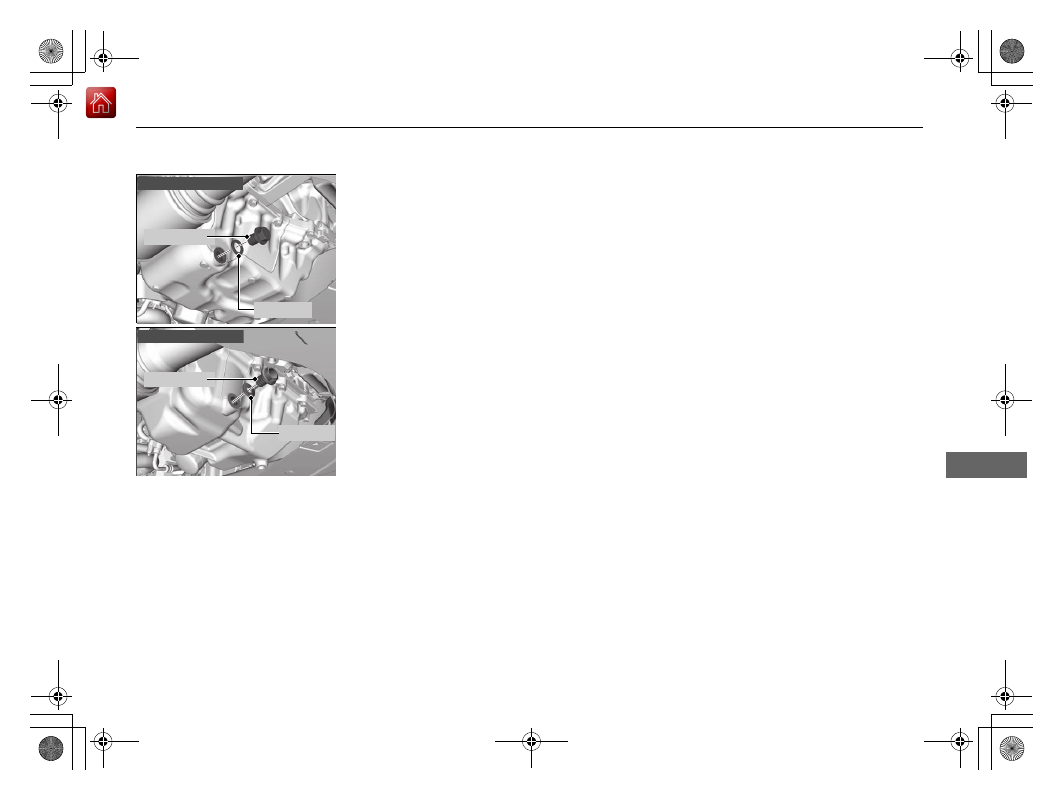

4. Remove the drain bolt and washer from

the bottom of the engine, and drain the
oil into a suitable container.

1.5 L engine models

Drain Bolt

Washer

2.0 L engine models

Drain Bolt

Washer

uu

Maintenance Under the Hood

u

Changing the Engine Oil and Oil Filter

566

Main

tenan

ce

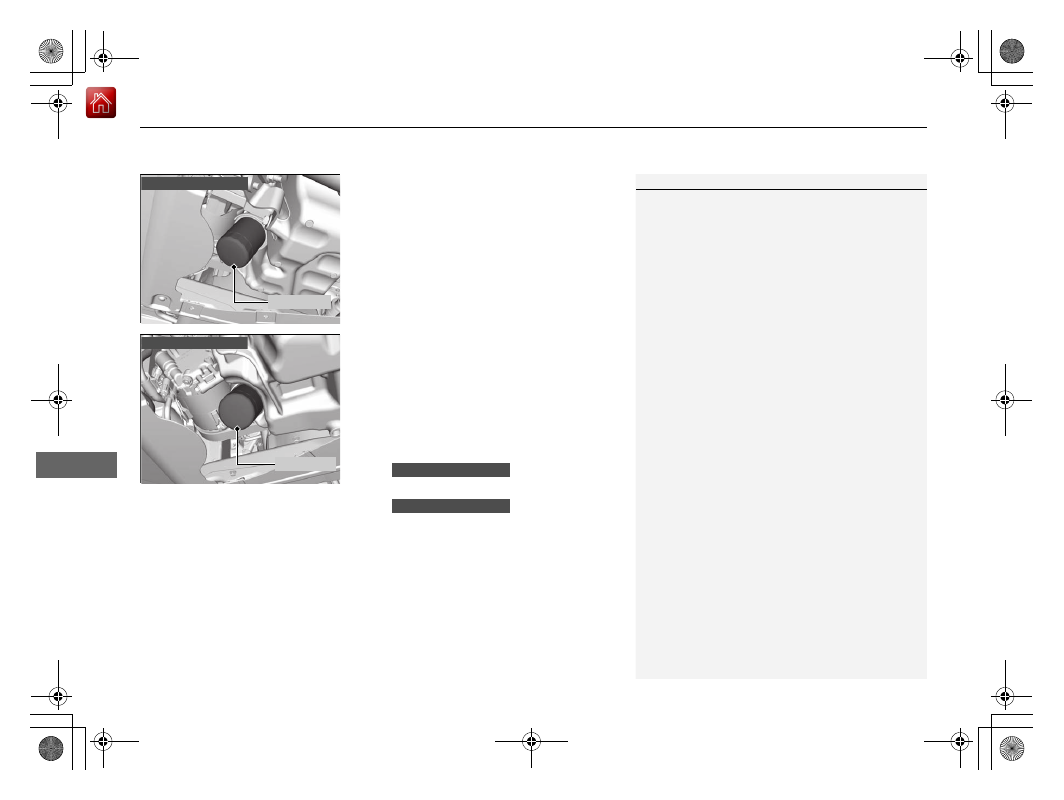

5. Remove the oil filter and dispose of the

remaining oil.

6. Check that the filter gasket is not stuck to

the engine contact surface.

u

If it is stuck, you must detach it.

7. Wipe away dirt and dust adhering to the

contact surface of the engine block, and
install a new oil filter.

u

Apply a light coat of new engine oil to
the oil filter gasket.

8. Put a new washer on the drain bolt, then

reinstall the drain bolt.

u

Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)

9. Pour the recommended engine oil into the

engine.

u

Engine oil change capacity (including
filter):

3.7 US qt (3.5 L)

4.4 US qt (4.2 L)

10. Reinstall the engine oil fill cap securely and

start the engine.

11. Run the engine for a few minutes, and

then check that there is no leak from the
drain bolt or oil filter.

12. Stop the engine, wait for three minutes,

and then check the oil level on the
dipstick.

u

If necessary, add more engine oil.

1

Changing the Engine Oil and Oil Filter

You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.

When installing the new oil filter, follow the
instructions supplied with the oil filter.

Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.

Oil Filter

1.5 L engine models

2.0 L engine models

Oil Filter

1.5 L engine models

2.0 L engine models

567

uu

Maintenance Under the Hood

u

Engine Coolant

Continued

Main

tenan

ce

Engine Coolant

This coolant is premixed with 50% antifreeze and 50% water. Do not add any
straight antifreeze or water.

We recommend you check the engine coolant level every time you refuel. Check the
reserve tank. Add the engine coolant accordingly.

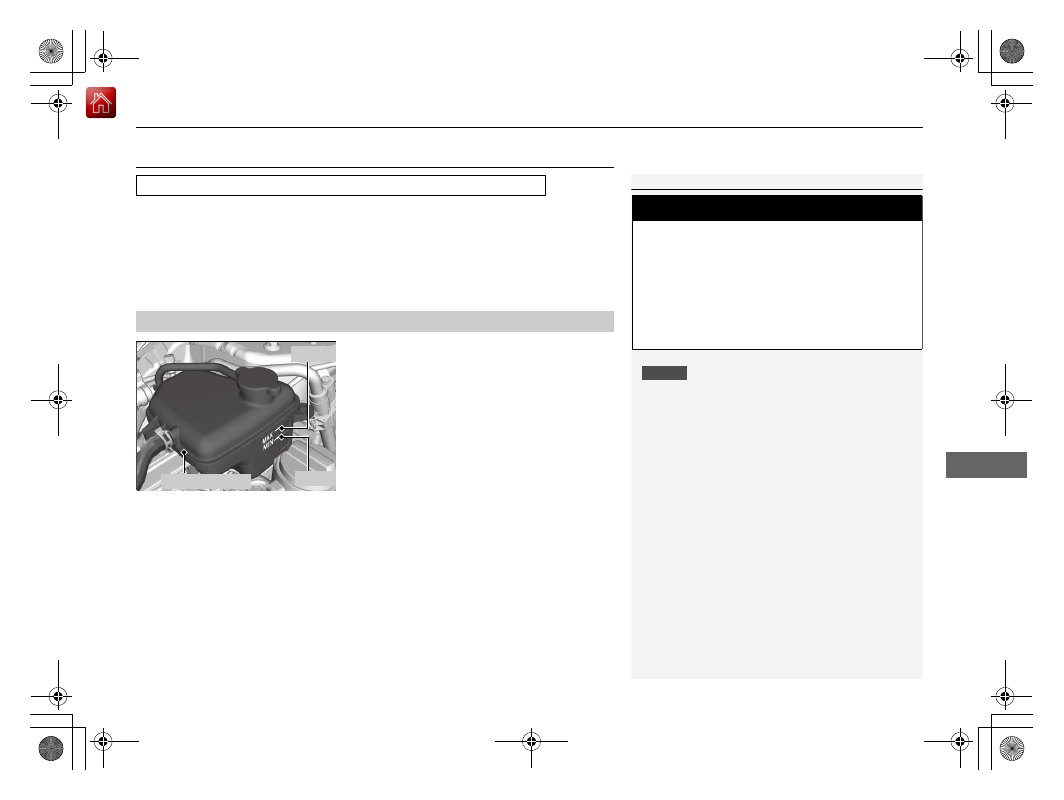

1. Make sure the engine and radiator are

cool.

2. Check the amount of coolant in the reserve

tank.

u

If the coolant level is below the MIN
mark, add the specified coolant until it
reaches the MAX mark.

3. Inspect the cooling system for leaks.

Specified coolant: Honda Long Life Antifreeze/Coolant Type 2

Checking the Coolant

1

Engine Coolant

NOTICE

Genuine Honda engine coolant is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as about −31°F (−35°C). If your
vehicle is consistently subjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult a dealer for
details.

If Honda antifreeze/coolant is not available, you may
use another major brand of non-silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminum engines.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda antifreeze/coolant as soon as
possible.

3

WARNING

Removing the reserve tank cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.

Always let the engine and radiator cool
down before removing the reserve tank
cap.

MAX

MIN

Reserve Tank

uu

Maintenance Under the Hood

u

Engine Coolant

568

Main

tenan

ce

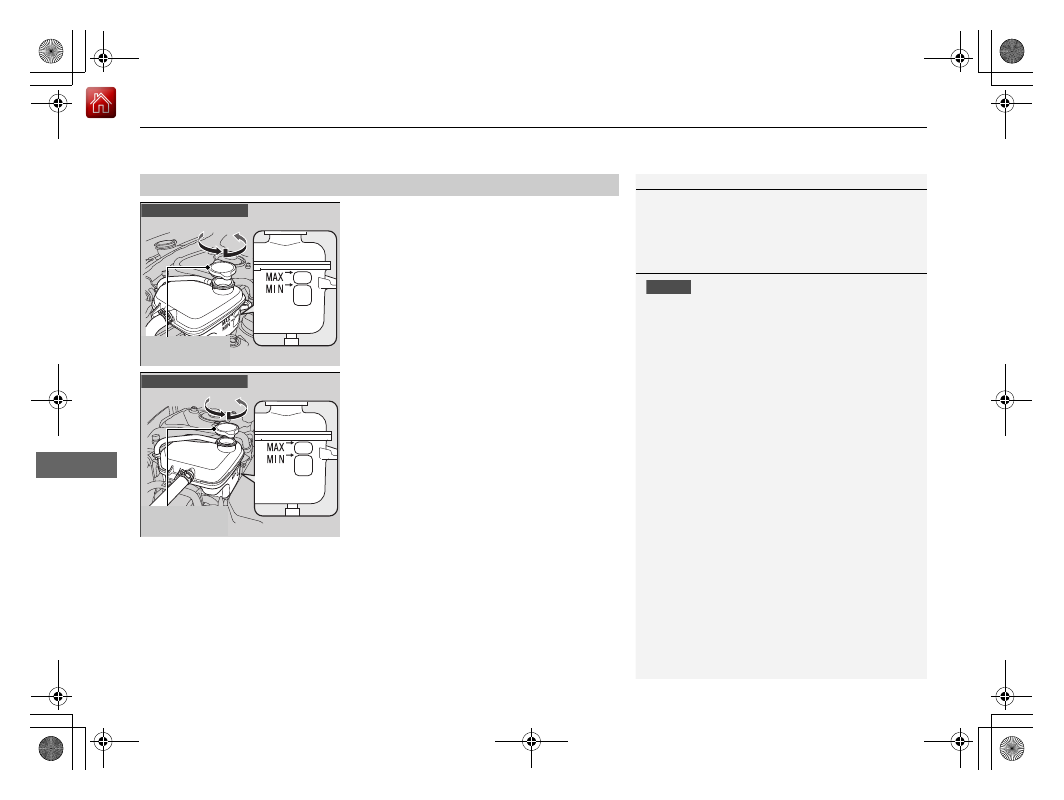

1. Make sure the engine and radiator are

cool.

2. Turn the reserve tank cap 1/8 turn counter-

clockwise and relieve any pressure in the
cooling system.

3. Push down and turn the reserve tank cap

counter-clockwise to remove it.

4. Pour coolant into the reserve tank until it

reaches the MAX mark.

5. Put the reserve tank cap back on, and

tighten it fully.

Adding the Coolant

1

Engine Coolant

Do not add rust inhibitors or other additives to your
vehicle’s cooling system. They may not be compatible
with the coolant or with the engine components.

1

Adding the Coolant

NOTICE

Pour the fluid slowly and carefully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.

Reserve Tank
Cap

1.5 L engine models

Reserve Tank
Cap

2.0 L engine models

569

uu

Maintenance Under the Hood

u

Transmission Fluid

Main

tenan

ce

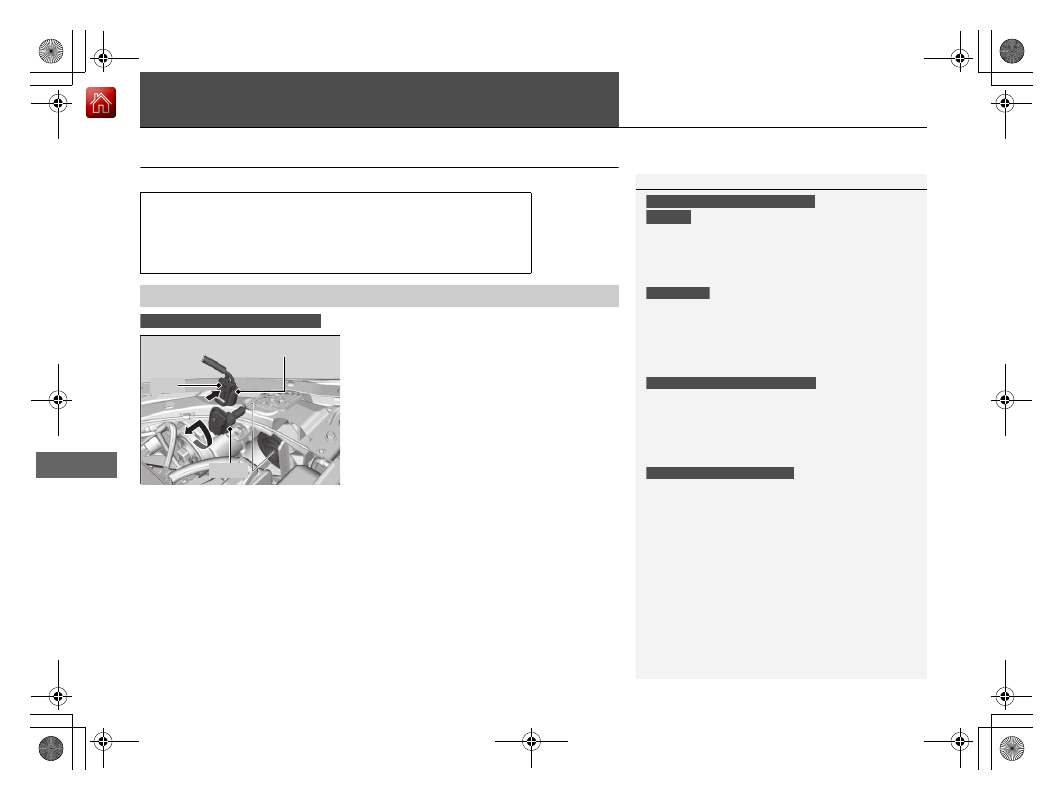

Transmission Fluid

Have a dealer check the fluid level and replace if necessary.

Do not attempt to check or change the continuously variable transmission fluid
yourself.

Have a dealer check the fluid level and replace if necessary.

Do not attempt to check or change the manual transmission fluid yourself.

Continuously Variable Transmission (CVT) Fluid

Specified fluid: Honda HCF-2

Manual Transmission Fluid

Specified fluid: Honda MTF

Models with continuously variable transmission

1

Continuously Variable Transmission (CVT) Fluid

NOTICE

Do not mix Honda HCF-2 with other
transmission fluids.
Using a transmission fluid other than Honda HCF-2 may
adversely affect the operation and durability of your
vehicle's transmission, and damage the transmission.
Any damage caused by using a transmission fluid that
is not equivalent to Honda HCF-2 is not covered by
Honda's new vehicle limited warranty.

Models with manual transmission

1

Manual Transmission Fluid

NOTICE

If Honda MTF is not available, you may use the API
certificated SAE 0W-20 or 5W-20 viscosity motor oil
as a temporary measure.
Replace with MTF as soon as possible. Motor oil does
not contain the proper additives for the transmission
and continued use can cause decreased shifting
performance and lead to transmission damage.

570

uu

Maintenance Under the Hood

u

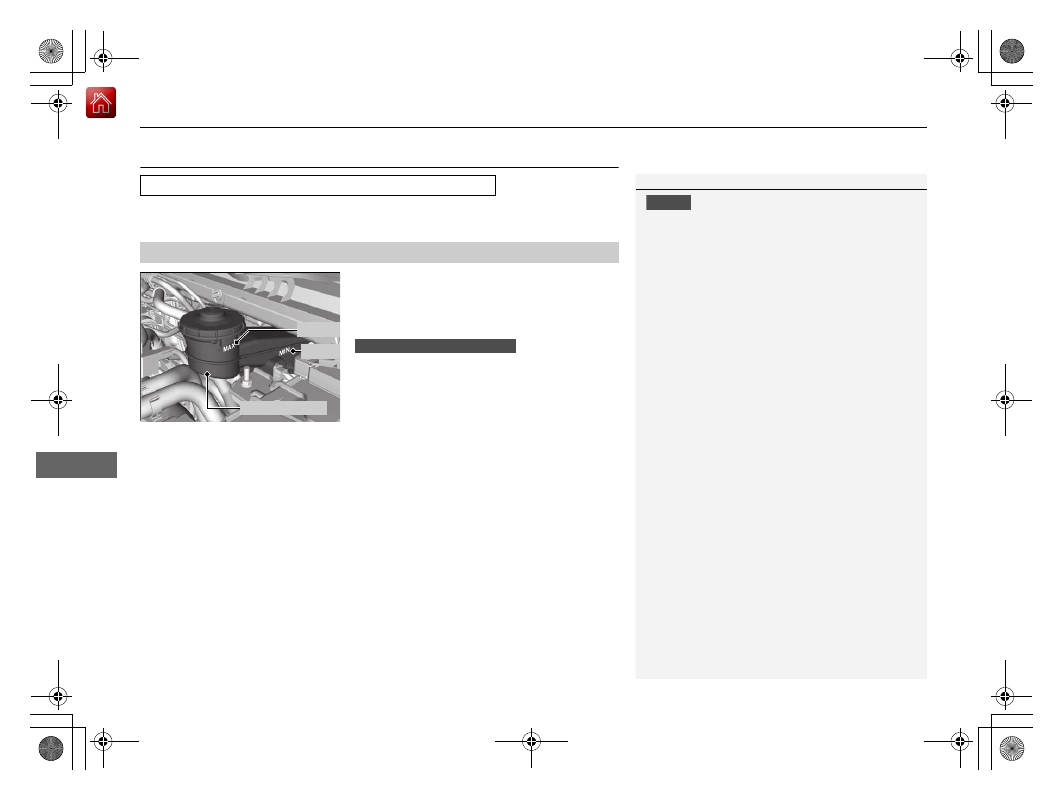

Brake/Clutch

*

 Fluid

Main

tenan

ce

Brake/Clutch

*

 Fluid

Use the same fluid for both the brakes and clutch.

The fluid level should be between the MIN
and MAX marks on the side of the reserve
tank.

The brake fluid reserve tank is also used for
your vehicle’s clutch fluid. As long as you keep
the brake fluid level as instructed above, there
is no need for checking the clutch fluid level.

Specified fluid: Honda Heavy Duty Brake Fluid DOT 3

Checking the Brake Fluid

1

Brake/Clutch

*

 Fluid

NOTICE

Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.

If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.

Using any non-Honda brake fluid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and refilled with Honda Heavy
Duty Brake Fluid DOT 3 as soon as possible.

If the brake fluid level is at or below the MIN mark,
have a dealer inspect the vehicle for leaks or worn
brake pads as soon as possible.

Reserve Tank

MIN

MAX

Manual transmission models

* Not available on all models

571

uu

Maintenance Under the Hood

u

Refilling Window Washer Fluid

Main

tenan

ce

Refilling Window Washer Fluid

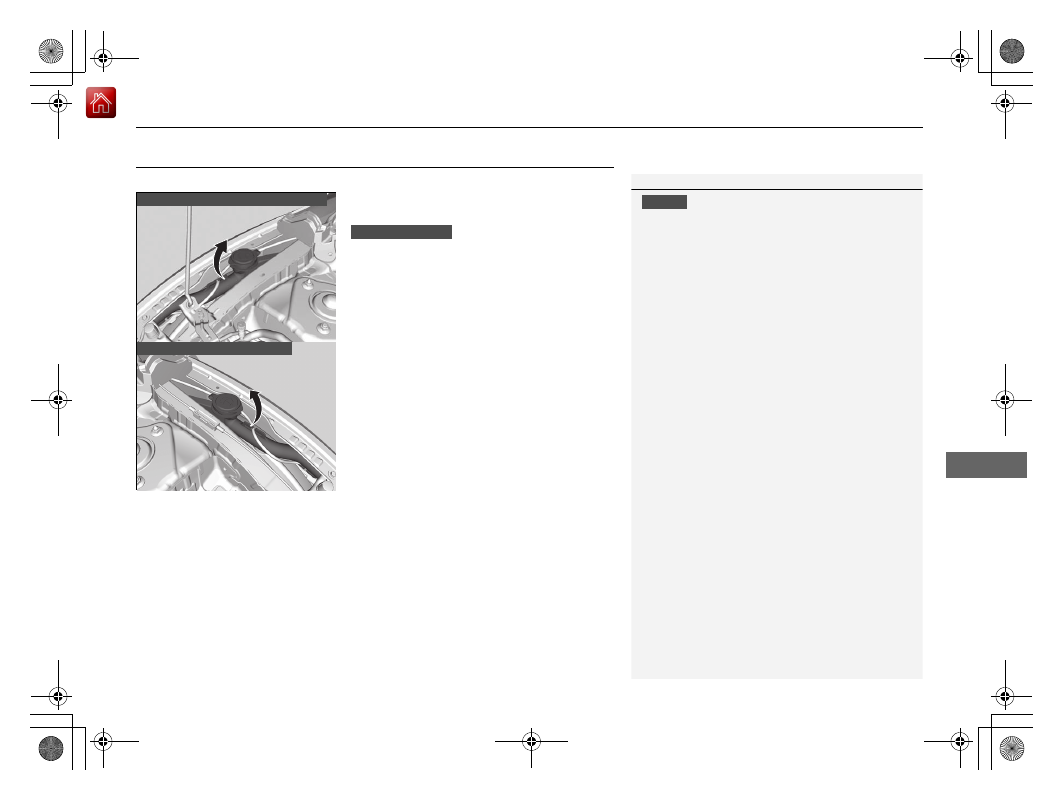

Check the amount of window washer fluid by looking at the reservoir.

If the level is low, fill the washer reservoir.

If the washer fluid is low, a message appears
on the driver information interface.

Pour the washer fluid carefully. Do not overflow the reservoir.

1

Refilling Window Washer Fluid

NOTICE

Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage your vehicle’s paint. A
vinegar/water solution can damage the windshield
washer pump.
Use only commercially available windshield washer
fluid.
Avoid prolonged use of hard water to prevent lime
scale build up.

Except Canadian 1.5 L engine models

Canadian 1.5 L engine models

Canadian models

572

Main

tenan

ce

Replacing Light Bulbs

Headlight Bulbs

When replacing, use the following bulbs.

1. Push the tab to remove the coupler.
2. Rotate the old bulb counter-clockwise to

remove.

3. Insert a new bulb into the headlight

assembly and turn it clockwise.

4. Insert the coupler into the connector of the

bulb.

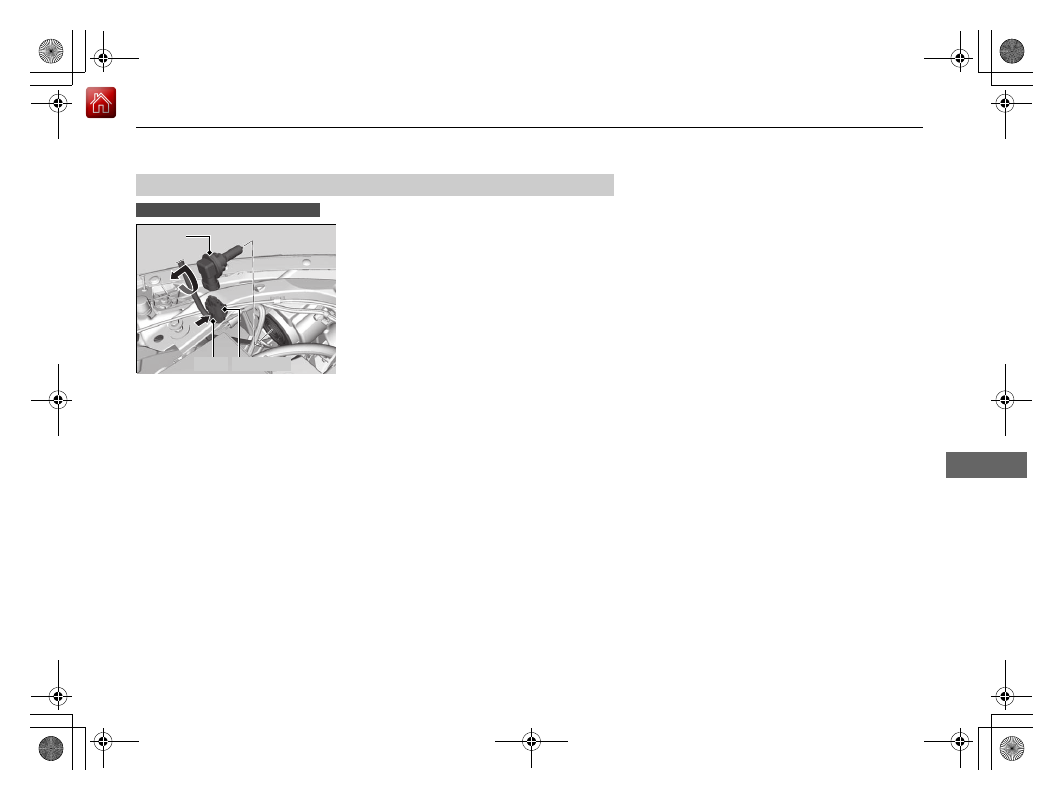

High beam headlight:

60 W (HB3 for halogen bulb type)

*

High beam headlight:

LED type

*

Low beam headlight:

55 W (H11 for halogen bulb type)

*

Low beam headlight:

LED type

*

High Beam Headlights

1

Headlight Bulbs

NOTICE

Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overheat and shatter.

The headlight aim is set by the factory, and does not
need to be adjusted. However, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.

When replacing a halogen bulb, handle it by its base,
and protect the glass from contact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.

Headlights are LED type. Have an authorized Honda
dealer inspect and replace the light assembly.

Models with halogen headlights

All models

Models with halogen headlights

Models with LED headlights

Models with halogen headlights

Tab

Coupler

Bulb

* Not available on all models

573

uu

Replacing Light Bulbs

u

Headlight Bulbs

Main

tenan

ce

1. Push the tab to remove the coupler.
2. Rotate the old bulb counter-clockwise to

remove.

3. Insert a new bulb into the headlight

assembly and turn it clockwise.

4. Insert the coupler into the connector of the

bulb.

Low Beam Headlights

Models with halogen headlights

Tab

Coupler

Bulb

574

uu

Replacing Light Bulbs

u

Fog Light Bulbs

*

Main

tenan

ce

Fog Light Bulbs

*

When replacing, use the following bulbs.

1. Remove the clips using a flat-tip

screwdriver, remove the bolt, and push up
the under cover.

Fog Light: 35 W (H8 for halogen bulb type)

*

Fog Light: LED type

*

1

Fog Light Bulbs

*

Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.

Insert the clip with the center pin raised, and push
until it is flat.

Models with halogen fog lights

Push until the pin
is flat.

Models with halogen fog lights

Clips

Bolt

* Not available on all models

575

uu

Replacing Light Bulbs

u

Fog Light Bulbs

*

Main

tenan

ce

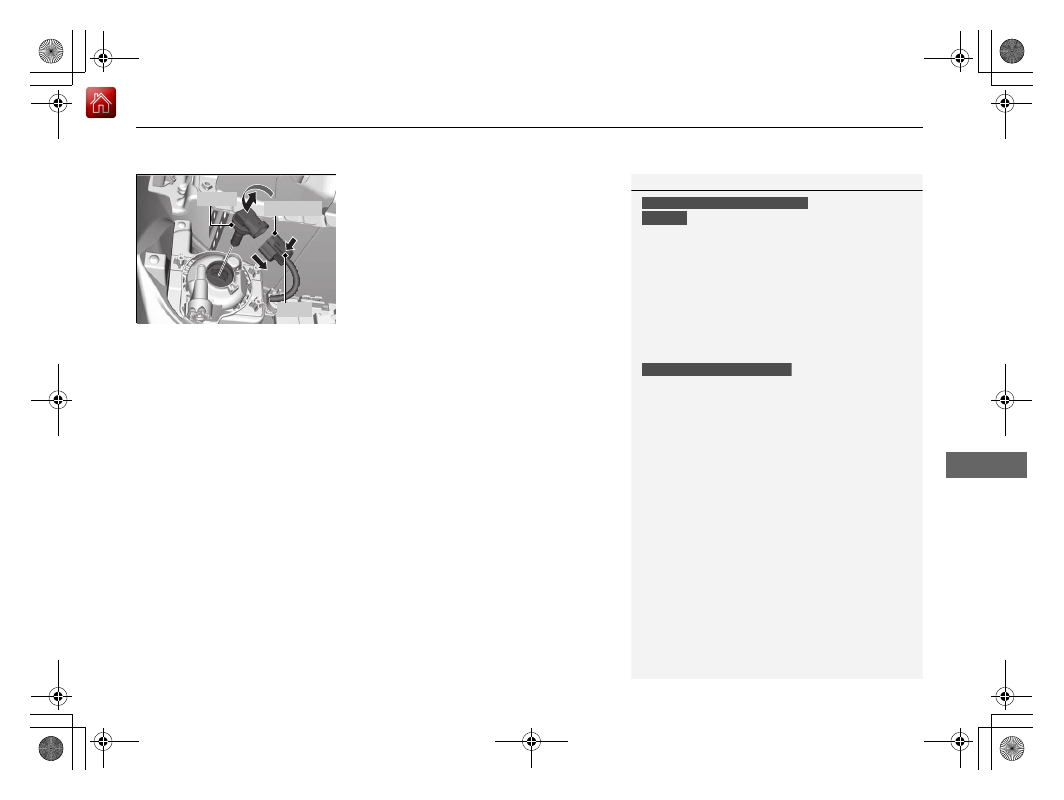

2. Push the tab to remove the coupler.
3. Rotate the old bulb counter-clockwise to

remove.

4. Insert a new bulb into the fog light

assembly and turn it clockwise.

5. Insert the coupler into the connector of the

bulb.

1

Fog Light Bulbs

*

NOTICE

Halogen bulbs get very hot when lit. Oil, perspiration,
or a scratch on the glass can cause the bulb to
overheat and shatter.

When replacing a halogen bulb, handle it by its
plastic case, and protect the glass from contact with
your skin or hard objects. If you touch the glass, clean
it with denatured alcohol and a clean cloth.

Fog lights are LED type. Have an authorized Honda
dealer inspect and replace the light assembly.

Models with halogen fog lights

Models with LED fog lights

Tab

Coupler

Bulb

* Not available on all models















Content   ..  34  35  36  37   ..
