Honda Civic (2019 year). Manual - part 2





16

Quick

 Referenc

e Guide

Climate Control System

*



(P204)

● Press the AUTO button to activate the climate control system.

● Press the

 button to turn the system on or off.

● Press the   button to defrost the windshield.

U.S. models with color audio system

Fan Control Dial

 (Windshield Defroster) Button

Temperature Control Dial

Air flows from floor and
windshield defroster vents.

Air flows from floor vents.

Air flows from floor and
dashboard vents.

Air flows from dashboard
vents.

 (Recirculation) Button

 (MODE Control) Button

 (ON/OFF) Button

AUTO Button

A/C (Air Conditioning) Button

17

Quick

 Referenc

e Guide

Models with Display Audio
Models without SYNC button

Fan Control Dial

 (Windshield Defroster) Button

Temperature Control Dial

Air flows from floor and
windshield defroster vents.

Air flows from floor vents.

Air flows from floor and
dashboard vents.

Air flows from dashboard
vents.

 (Recirculation) Button

 (CLIMATE) Button

 (Fresh Air) Button

 (ON/OFF) Button

AUTO Button

Audio/Information Screen

MODE Control Icon

A/C (Air Conditioning) Icon

Fan Control Icon

* Not available on all models

18

Quick

 Referenc

e Guide

Models with Display Audio
Models with SYNC button

Passenger’s Side Temperature
Control Dial

 (Windshield Defroster) Button

Driver’s Side Temperature
Control Dial

 (Recirculation) Button

 (CLIMATE) Button

 (ON/OFF) Button

AUTO Button

SYNC (Synchronization) Button

Air flows from floor and
windshield defroster vents.

Air flows from floor vents.

Air flows from floor and
dashboard vents.

Air flows from dashboard
vents.

Audio/Information Screen

MODE Control Icon

A/C (Air Conditioning) Icon

Fan Control Icon

Fan Control Buttons

Quick

 Referenc

e Guide

19

Features

(P 213)

Audio Remote Controls

(P 218)

(

+ /

(

- Bar

Press to adjust the volume up/down.

 /

 Button

Press

 or

 to cycle through the audio

mode as follows:

FM

AM

USB

iPod

Bluetooth® Audio

FM

AM

SiriusXM®

*

USB

iPod

Bluetooth® Audio

Pandora®

*

Apps

ENTER Button

 /

 /

 /

 Button

3

4

(

+ /

(

- Bar

3

4

3

4

Models with color audio system

Models with Display Audio

● ENTER Button

• When listening to the radio and

SiriusXM®

*

a

Press ENTER to switch the display to a
preset list you stored in the preset
buttons.

b

Press

 or

 to select a preset, then

press ENTER.

• When listening to a USB flash drive

a

Press ENTER to display the folder list.

b

Press

 or

 to select a folder.

c

Press ENTER to display a list of tracks in
that folder.

d

Press

 or

 to select a track, then

press ENTER.

Models with Display Audio

3

4

3

4

3

4

• When listening to an iPod

a

Press ENTER to display the iPod music
list.

b

Press

 or

 to select a category.

c

Press ENTER to display a list of items in
the category.

d

Press

 or

 to select an item, then

press ENTER.

u

Press ENTER and press

 or



repeatedly until a desired item you
want to listen is displayed.

• When listening to Internet Radio

*

a

Press ENTER to display the station list.

b

Press

 or

 to select an item, then

press ENTER.

• When listening to Bluetooth® Audio

a

Press ENTER to display the track list.

b

Press

 or

 to select a track, then

press ENTER.

3

4

3

4

3

4

3

4

3

4

* Not available on all models

20

Quick

 Referenc

e Guide

 /

 Button

 Button:

Press to change contents.

Driver Information Interface

(P113)

Radio:Press to change the preset station.

Press and hold to select the next or
previous strong station.

USB device:

Press to skip to the beginning of
the next song or return to the
beginning of the current song.
Press and hold to change a folder.

21

Quick

 Referenc

e Guide

Audio system

(P 214)



(P 221)

Models with color audio system

 (Seek/Skip) Button

RADIO Button

Driver Information Interface

 (Day/Night) Button

MEDIA Button

Preset Buttons (1-6)

 (Seek/Skip) Button

VOL/

 (Volume/Power) Knob

Audio/Information Screen

 (Back) Button

 (Sound) Button

MENU/CLOCK Button

LIST/SELECT (List/Selector) Knob

 (Phone) Button

22

Quick

 Referenc

e Guide



(P 239)

For navigation system operation

() See the Navigation System Manual

Models with Display Audio

 (Map) Button

*

VOL/

 AUDIO (Volume/

Power/Audio) Knob

 (Home) Button

 (Back) Button

Audio/Information Screen

 (Audio) Button

Driver Information Interface

 (Instrument Panel) Icon

 (Day/Night) Button

*

 (Phone) Button

23

Quick

 Referenc

e Guide

Driving

(P 427)

Manual Transmission

*



(P 450)

Continuously Variable Transmission

*



(P 444, 446)
● Shift to

(

P and depress the brake pedal when starting the engine.

● Shifting

M Indicator

Shift Indicator

Park

Turn off or start the engine.
Transmission is locked.

Neutral

Transmission is not locked.

Drive (S)

● Better acceleration.

● Increased engine braking.

● Going up or down hills.

● On models with paddle

shifter, 7-speed manual
shift mode can be used.

Models without
paddle shifter

Models with
paddle shifter

Depress the brake pedal
and press the release button
to move out of

(

P.

Press the release button to
move the shift lever.

Move the shift lever without
pressing the release button.

Reverse

Used when reversing.

Drive

● Normal driving.

● On models with paddle

shifter, 7-speed mode can
be used temporarily.

Low

*

● Further increased engine

braking.

● Going up or down hills.

Shift Down

(

Paddle Shifter

Shift Up

(

Paddle Shifter

7-Speed Manual Shift
Mode

*



(P448)

● Allows you to manually shift

the transmission up or down
without removing your hands
from the steering wheel.

When the shift lever is in

(

S

● Pulling a paddle shifter

changes the mode from
continuously variable
transmission to 7-speed manual
shift mode.

● The M indicator and the

selected speed number are
displayed in the shift indicator.

When the shift lever is in

(

D

● Pulling a paddle shifter

temporarily changes the mode
from continuously variable
transmission to 7-speed manual
shift mode. The selected speed
number is displayed in the shift
indicator.

Release
Button

Shift Lever

* Not available on all models

24

Quick

 Referenc

e Guide

VSA® On and Off

(P 460)

● The Vehicle Stability Assist® (VSA®) system

helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.

● VSA® comes on automatically every time

you start the engine.

● To partially disable or fully restore VSA®

function, press and hold the button until
you hear a beep.

Cruise Control

*



(P 456)

● Cruise control allows you to maintain a

set speed without keeping your foot on
the accelerator pedal.

● To use cruise control, press the CRUISE

button, then press the –/SET button once
you have achieved the desired speed
(above 25 mph or 40 km/h).

CMBS

TM

 On and Off

*



(P 477)

● When a possible collision is likely

unavoidable, the CMBS

TM

 can help you to

reduce the vehicle speed and the severity
of the collision.

● The CMBS

TM

 is turned on every time you

start the engine.

● To turn the CMBS

TM

 on or off, press and

hold the button until you hear a beep.

Tire Pressure Monitoring
System (TPMS)

(P 463)

● Detects a change in tire conditions and

overall dimensions due to decrease in tire
pressures.

● The TPMS is turned on automatically

every time you start the engine.

● A calibration procedure must be

performed when certain conditions arise.

U.S. models

25

Quick

 Referenc

e Guide

Refueling

(P 541)

Fuel recommendation:

Unleaded gasoline, pump octane number 87 or higher

Unleaded premium gasoline, pump octane number 91 or
higher

Fuel tank capacity:

12.39 US gal (46.9 L)

12.4 US gal (47.0 L)

Models without SPORT mode

Models with SPORT mode

Models without detachable towing hook

Models with detachable towing hook

a

Unlock the driver’s
door.

Locking/Unlocking

the Doors from
the Inside

(P146)

b

Press on the edge of
the fuel fill door to
make it pop up
slightly.

c

After refueling, wait
for about five
seconds before
removing the filler
nozzle.

Wait for five seconds

* Not available on all models

26

Quick

 Referenc

e Guide

Honda Sensing®

*



(P 470)

Honda Sensing® is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located in the lower bumper and a front
sensor camera mounted to the interior side
of the windshield, behind the rearview
mirror.

Front Sensor Camera

The camera is located
behind the rearview
mirror.

Radar Sensor

The radar sensor is in
the lower bumper.

Collision Mitigation
Braking System

TM



(CMBS

TM

(P 473)

Can assist you when there is a possibility of
your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The
CMBS

TM

 is designed to alert you when a

potential collision is determined, as well as
to reduce your vehicle speed to help
minimize collision severity when a collision is
deemed unavoidable.

Adaptive Cruise Control
(ACC) with Low Speed
Follow (LSF)

*



(P483)

Helps maintain a constant vehicle speed and
a set following interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, without you having to
keep your foot on the brake or the
accelerator.

Adaptive Cruise Control
(ACC)

*

(P 499)

Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours, without you
having to keep your foot on the brake or
the accelerator.

Lane Keeping Assist
System (LKAS)

(P 514)

Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.

Road Departure
Mitigation (RDM) System

(P 522)

Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings and/or leaving the roadway
altogether.

27

Quick

 Referenc

e Guide

Maintenance

(P 547)

Under the Hood

(P 557)

● Check engine oil, engine coolant, and windshield washer fluid. Add

when necessary.

● Check brake/clutch

*

 fluid.

● Check the battery condition monthly.

a

Pull the hood release handle under the corner of the dashboard.

b

Locate the hood latch lever, pull it up, and then raise the hood.
Once you have raised the hood slightly, you can release the lever.

c

When finished, close the hood and make sure it is firmly locked in
place.

Lights

(P 572)

● Inspect all lights regularly.

Wiper Blades

(P 581)

● Replace blades if they leave streaks

across the windshield.

Tires

(P 584)

● Inspect tires and wheels

regularly.

● Check tire pressures regularly.

● Install snow tires for winter

driving.

* Not available on all models

28

Quick

 Referenc

e Guide

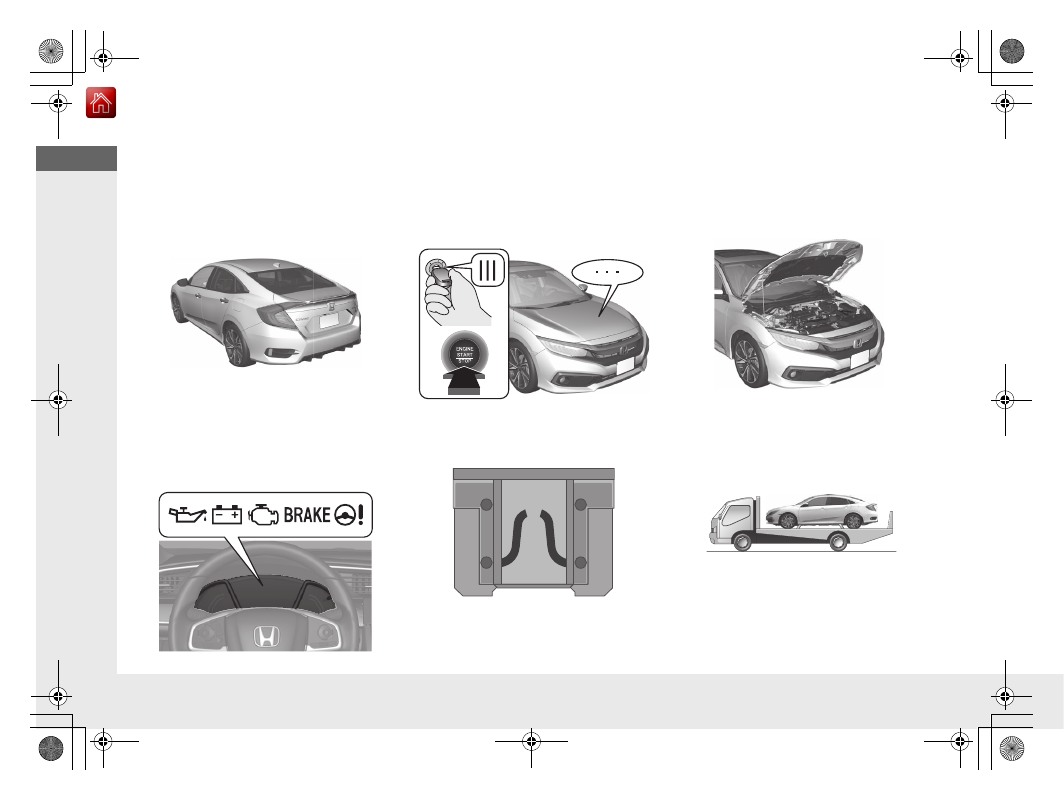

Handling the Unexpected

(P 607)

Flat Tire

(P 609, 616)

● Park in a safe location and replace the

flat tire with the compact spare tire

*

 in

the trunk, or repair the flat tire using the
tire repair kit

*

.

Indicators Come On

(P 637)
● Identify the indicator and consult the

owner's manual.

Engine Won’t Start

(P 628)
● If the battery is dead, jump start using a

booster battery.

Blown Fuse

(P 643)

● Check for a blown fuse if an electrical

device does not operate.

Overheating

(P 635)

● Park in a safe location. If you do not see

steam under the hood, open the hood,
and let the engine cool down.

Emergency Towing

(P 648)
● Call a professional towing service if you

need to tow your vehicle.

29

Quick

 Referenc

e Guide

What to Do If

*1:Except U.S. models with continuously variable transmission

The ignition switch does
not turn from

(

0

 to

(

q

Why?

The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?

The steering wheel may be locked.

Try to turn the steering wheel left and right
while turning the ignition key.

Move the steering wheel left and right after pressing the
ENGINE START/STOP button.

The ignition switch does
not turn from

(

q

 to

(

0

 and

I cannot remove the key.
Why?

The power mode does not
change from ACCESSORY
to VEHICLE OFF (LOCK).
Why?

The shift lever should be moved to

(

P

.

Why does the brake pedal
pulsate slightly when
applying the brakes?

This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.

Anti-lock Brake System (ABS) (P 535)

Models without smart entry system

Models with smart entry system

Models without smart entry system

Models with smart entry system

*1

Models without smart entry system

Models with smart entry system

* Not available on all models

30

Quick

 Referenc

e Guide

The rear door cannot be
opened from inside the
vehicle. Why?

Check if the childproof lock is in
the lock position. If so, open the
rear door with the outside door
handle.
To cancel this function, slide the
lever up to the unlock position.

Why do the doors lock
after I unlocked the doors?

If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.

Why does the beeper
sound when I open the
driver's door?

The beeper sounds when:

The exterior lights are left on.

The key is left in the ignition switch.

The power mode is in ACCESSORY.

Why does a beeper sound
when I walk away from the
vehicle after I close the
door?

The beeper sounds if you move outside the walk away auto
door lock operating range before the door completely closes.

Locking the doors and trunk (Walk away auto lock®) (P 141)

Models without smart entry system

Models with smart entry system

Models with smart entry system

31

Quick

 Referenc

e Guide

Why does the beeper
sound when I start driving?

The beeper sounds when the driver and/or front passenger are
not wearing their seat belts.

Why do I hear a screeching
sound when I apply the
brake pedal?

The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.

I’m seeing an amber
indicator of a tire with an
exclamation point. What is
that?

The Tire Pressure Monitoring System (TPMS) needs attention. If
you recently inflated or changed a tire, you have to recalibrate
the system.

Tire Pressure Monitoring System (TPMS) (P 463)

Pressing the electric
parking brake switch does
not release the parking
brake. Why?

Press the electric parking brake switch with the brake pedal
depressed.

Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?

Fasten the driver’s seat belt.

Check if the transmission is in

(

P

 or

(

N

. If so, select any other

position.

U.S. models















Content   ..   1  2  3   ..
