Honda Civic Hybrid (2015 year). Manual - part 23





353

Continued

Han

d

lin
g the U

n

expected

Fuses

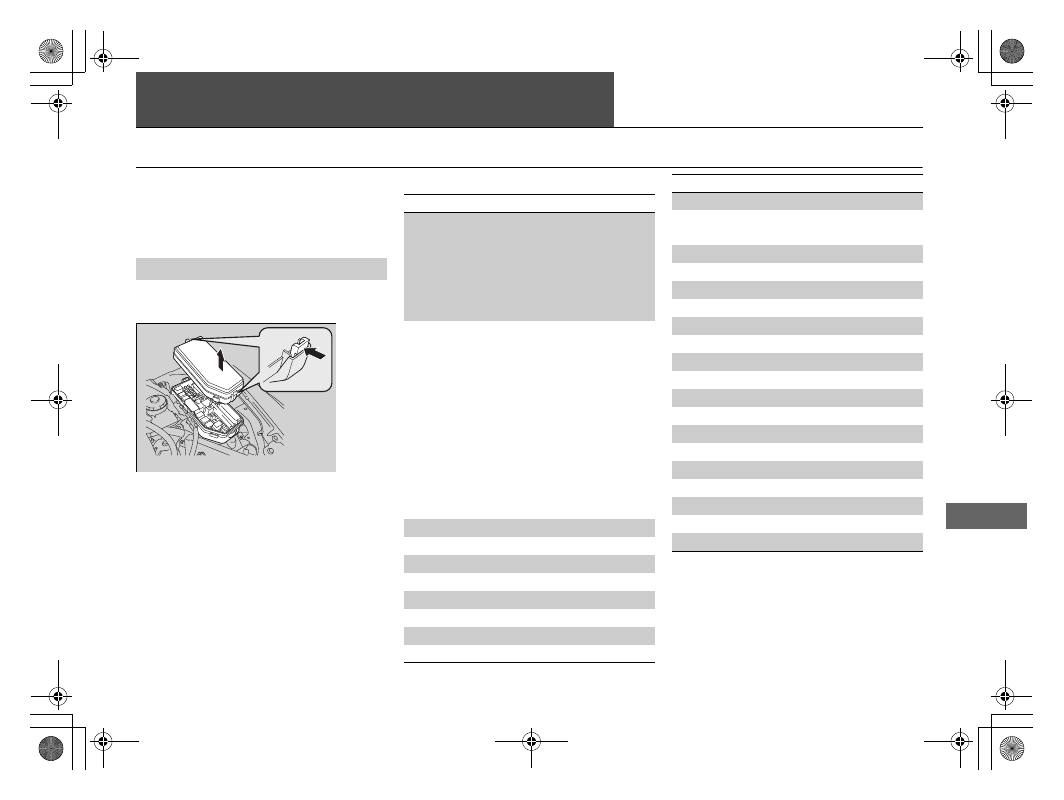

Fuse Locations

If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.

Located near the brake fluid reservoir. Push
the tabs to open the box.

Fuse locations are shown on the fuse box
cover.
Locate the fuse in question by the fuse
number and box cover number.

Engine Compartment Fuse Box

Circuit protected and fuse rating

Circuit Protected

Amps

1

EPS

70 A

Booster Motor

40 A

ABS/VSA Motor

30 A

ABS/VSA FSR

30 A

Wiper Motor

30 A

Main Fuse

100 A

2

IG Main

30 A

Fuse Box Main

60 A

Fuse Box Main 2

60 A

Headlight Main

30 A

ST MG

30 A

Rear Defogger

30 A

Blower

40 A

Sub Fan Motor

20 A

Main Fan Motor

20 A

3

4

IG Coil 2

15 A

5

Starter DIAG, ST MG

7.5 A

6

IG Coil 1

15 A

7

8

9

10

11

Oil Level

7.5 A

12

LED Daytime Running

Lights

10 A

13

IMA 1

7.5 A

14

Hazard

10 A

15

FI Sub

15 A

16

IG Coil

20 A

17

Stop

15 A

18

Horn

10 A

19

IMA 2

10 A

20 Right Headlight Low Beam

15 A

21

IGP

15 A

22

DBW

15 A

23

Left Headlight Low Beam

15 A

24

Booster SOL

15 A

25

MG Clutch

7.5 A

26

Washer

15 A

27

SMALL

20 A

28

Interior Lights

7.5 A

29

Backup

10 A

Circuit Protected

Amps

354

uu

Fuses

u

Fuse Locations

Han

d

lin
g the U

n

expected

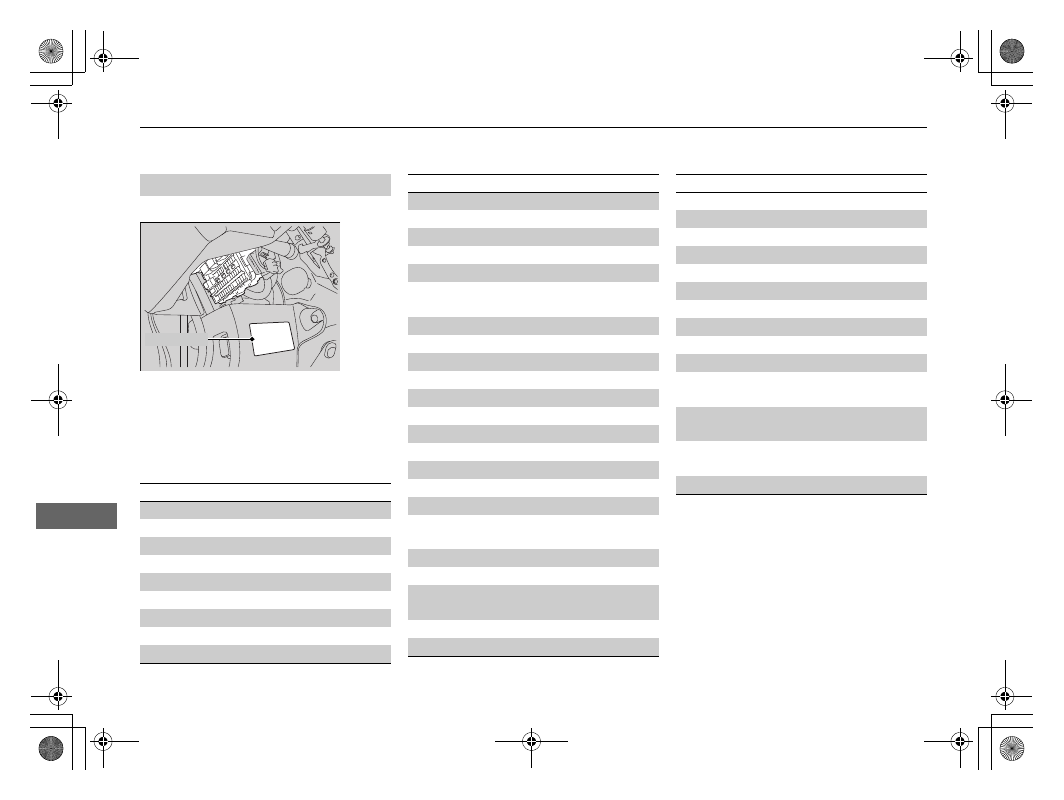

Located under the dashboard.

Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.

Circuit protected and fuse rating

Interior Fuse Box

Fuse Label

Circuit Protected

Amps

1

2

ACG

10 A

3

SRS

10 A

4

Fuel Pump

15 A

5

Meter

7.5 A

6

Power Window

7.5 A

7

VB SOL

15 A

8

Door Lock Motor 2 (Unlock)

15 A

9

Door Lock Motor 1 (Unlock)

15 A

10

11

12

13

14

Seat Heaters

*

(15 A)

15

Driver’s Door Lock Motor

(Unlock)

(10 A)

16

17

18

19

ACC

7.5 A

20

ACC Key Lock

7.5 A

21

Daytime Running Lights

7.5 A

22

HAC

7.5 A

23

HAC

(7.5 A)

24

ABS/VSA

7.5 A

25

ACC

7.5 A

26

27

Accessory Power Socket

(Front)

20 A

28

29

ODS

7.5 A

30

Driver’s Door Lock Motor

(Lock)

(10 A)

31

SMART

10 A

32

Door Lock Motor 2 (Lock)

15 A

Circuit Protected

Amps

33

Door Lock Motor 1 (Lock)

15 A

34

Small Lights

7.5 A

35

Illumination

7.5 A

36

37

38

Left Headlight High Beam

10 A

39 Right Headlight High Beam

10 A

40

41

Door Lock

20 A

42

Driver’s Power Window

20 A

43

Rear Passenger’s Side

Power Window

(20 A)

44

Front Passenger’s Side

Power Window

20 A

45

Rear Driver’s Side Power

Window

(20 A)

46

Circuit Protected

Amps

* Not available on all models

355

uu

Fuses

u

Inspecting and Changing Fuses

Han

d

lin
g the U

n

expected

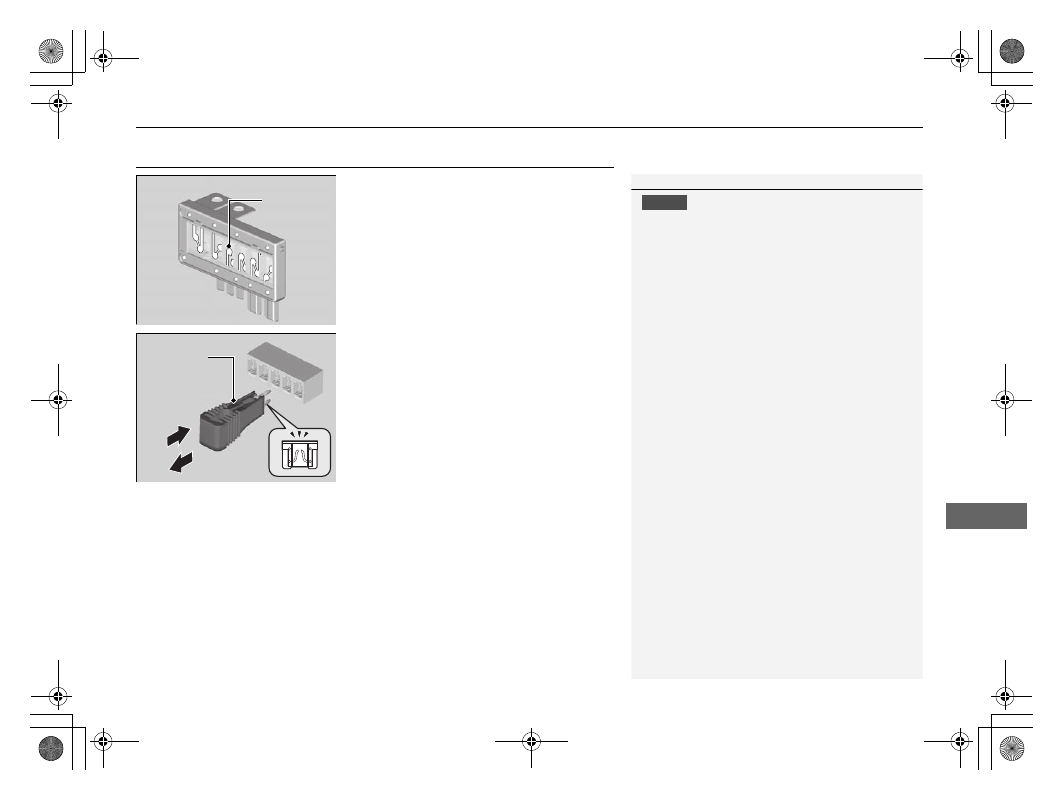

Inspecting and Changing Fuses

1. Set the power mode to VEHICLE OFF

(LOCK). Turn headlights and all accessories
off.

2. Remove the fuse box cover.
3. Check the large fuse in the engine

compartment.

u

If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.

4. Inspect the small fuses in the engine

compartment and the vehicle interior.

u

If there is a burned out fuse, remove it
with the fuse puller and replace it with a
new one.

1

Inspecting and Changing Fuses

NOTICE

Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.

Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 353 to 354.

There is a fuse puller on the back of the engine
compartment fuse box cover.

Combined
Fuse

Blown Fuse

Fuse Puller

356

Han

d

lin
g the U

n

expected

Emergency Towing

Call a professional towing service if you need to tow your vehicle.

Flat bed equipment

The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.

Wheel lift equipment

The tow truck uses two pivoting arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.

1

Emergency Towing

NOTICE

Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.

NOTICE

Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.

Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.

358

Info

rm

ation

Specifications

Vehicle Specifications

Model

Honda Civic Hybrid

No. of Passengers:
Front

2

Rear

3

Total

5

Weights:
Gross Vehicle Weight
Rating

U.S.: 3,837 lbs (1,740 kg)
Canada: 1,740 kg

Gross Axle Weight
Rating (Front)

U.S.: 2,007 lbs (910 kg)
Canada: 910 kg

Gross Axle Weight
Rating (Rear)

U.S.: 1,852 lbs (840 kg)
Canada: 840 kg

Air Conditioning:
Refrigerant Type

HFC-134a (R-134a)

Charge Quantity

13.2 – 15.0 oz (375 – 425 g)

Lubricant Type

SE-10Y

Engine Specifications

Fuel

Washer Fluid

Displacement

91 cu-in (1,497 cm

3

)

Spark Plugs

NGK

DILFR6J11

Type

Unleaded gasoline, Pump octane number
of 87 or higher

Fuel Tank Capacity

13.2 US gal (50 ℓ)

Tank Capacity

U.S.: 2.6 US qt (2.5 ℓ)
Canada: 4.8 US qt (4.5 ℓ)

Light Bulbs

Headlights (Low Beam)

51W (HB4)

Headlights (High Beam)

60W (HB3)

Front Turn Signal/Parking/Side
Marker Lights

28/8W

Daytime Running Lights

LED

Rear Side Marker Lights

LED

Brake/Taillights

LED

Back-Up Lights

16W

Taillights

LED

Rear Turn Signal Lights

21W (Amber)

High-Mount Brake Light

LED

License Plate Light

5W

Trunk Light

5W

Interior Lights

Map Light

8W

Ceiling Light

8W

359

uu

Specifications

u

Info

rm

ation

Brake Fluid

Transmission Fluid

Specified

Honda Heavy Duty Brake Fluid DOT 3

Specified

Honda CVTF (continuously variable
transmission fluid)

Capacity

Change

2.95 US qt (2.8 ℓ)

Engine Oil

Engine Coolant

Recommended

·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil

Capacity

Change

3.6 US qt (3.4 ℓ)

Change
including
filter

3.8 US qt (3.6 ℓ)

Specified

Honda Long Life Antifreeze/Coolant Type2

Ratio

50/50 with distilled water

Capacity

1.37 US gal (5.18 ℓ)
(change including the remaining
0.125 US gal (0.475 ℓ) in the reserve tank)

Tire

*1: Optional

Regular

Size

P195/65R15 89S

Pressure
psi (kPa [kgf/cm

2

])

32 (220 [2.2])

Compact
Spare

*1

Size

T135/80D15 99M

Pressure
psi (kPa [kgf/cm

2

])

60 (420 [4.2])

Wheel Size

Regular

15 x 6J

Compact Spare

*1

15 x 4T

360

Info

rm

ation

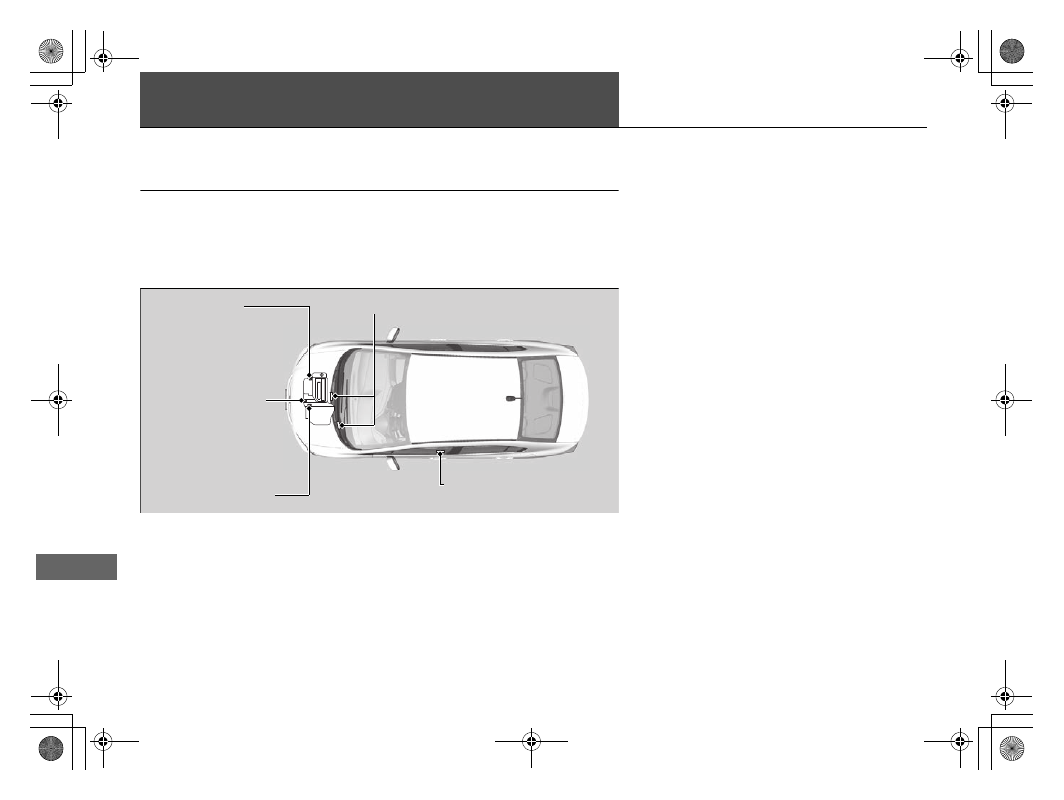

Identification Numbers

Vehicle Identification Number (VIN), Engine Number
and Transmission Number

Your vehicle has a 17-digit vehicle identification number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.

The locations of your vehicle’s VIN, engine number and transmission number are
shown as follows.

Vehicle Identification Number

Engine Number

Certification Label/
Vehicle Identification Number

Transmission Number

IMA Motor Number

361

Info

rm

ation

Devices that Emit Radio Waves

The following products and systems on your vehicle emit radio waves when in
operation.

Each of the above complies with the appropriate requirements or the required
standards of FCC (Federal Communications Commission) and Industry Canada
Standard, described below:

As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.

Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.

This device complies with Industry Canada Standard RSS-Gen/210/310. Operation is
subject to the following two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.

Audio System
Bluetooth® Audio
Bluetooth® HandsFreeLink®
Immobilizer System
Smart Entry System

362

Info

rm

ation

Reporting Safety Defects

In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov; or write to: Administrator, NHTSA, 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain other information about motor vehicle safety from http://
www.safercar.gov
.

In Canada
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.

If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.

To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety
.

363

Continued

Info

rm

ation

Emissions Testing

Testing of Readiness Codes

Your vehicle uses “readiness codes,” as part of its onboard self diagnostic system.
Some states refer to these codes during testing to see if your vehicle’s emissions
components are working properly.
The codes may not be read if you go through the testing just after the battery has
gone dead or been disconnected.

To check if they are set, set the power mode to ON, without starting the engine. The
malfunction indicator lamp will come on for several seconds. If it then goes off, the
readiness codes are set. If it blinks five times, the readiness codes are not set.

If you are required to have your vehicle tested before the readiness codes are ready,
prepare the vehicle for retesting by doing the following:

1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle for 20

seconds.

5. Keep the vehicle in

(

P. Increase the engine speed to 2,000 rpm, and hold it there

for about 3 minutes.

6. Let the engine idle with your foot off the accelerator for 20 seconds.

1

Testing of Readiness Codes

The readiness codes are erased when the 12 volt
battery is disconnected, and set again only after
several days of driving under a variety of conditions.

If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.

If the testing facility determines the readiness codes
are still not set, see a dealer.

364

uu

Emissions Testing

u

Testing of Readiness Codes

Info

rm

ation

7. Select a nearby, lightly traveled major highway where you can maintain a speed

of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in

(

D. Do not use cruise control. When traffic allows, drive for 90 seconds without

moving the accelerator pedal. (Vehicle speed may vary slightly; this is okay.) If you
cannot do this for a continuous 90 seconds because of traffic conditions, drive for
at least 30 seconds, then repeat it two more times (for a total of 90 seconds).

8. Drive in city/suburban traffic for at least 10 minutes. When traffic conditions

allow, let the vehicle coast for several seconds without using the accelerator pedal
or the brake pedal.

9. Park the vehicle and leave the engine off for 30 minutes.

365

Continued

Info

rm

ation

Warranty Coverages

U.S. Owners

Your new vehicle is covered by these warranties:

New Vehicle Limited Warranty – covers your new vehicle, except for the
emissions control systems and accessories, against defects in materials and
workmanship.

Emissions Control Systems Defects Warranty and Emissions Performance
Warranty –
 these two warranties cover your vehicle’s emissions control systems.
Time, mileage, and coverage are conditional. Please read your warranty booklet for
exact information.

Seat Belt Limited Warranty – a seat belt that fails to function properly is covered
by a limited warranty. Please read your warranty booklet for details.

Rust Perforation Limited Warranty – all exterior body panels are covered for
rust-through from the inside for the specified time period with no mileage limit.

Accessory Limited Warranty – Honda accessories are covered under this
warranty. Time and mileage limits depend on the type of accessory and other
factors. Please read your warranty booklet for details.

Replacement Parts Limited Warranty – covers all Honda replacement parts
against defects in materials and workmanship.

366

uu

Warranty Coverages

u

Info

rm

ation

Replacement Battery Limited Warranty – provides prorated coverage for a
replacement battery purchased from your dealer.

Replacement Muffler Lifetime Limited Warranty – provides coverage for as
long as the purchaser of the muffler owns the vehicle.

Restrictions and exclusions apply to all these warranties. Please read the Honda
warranty information booklet that came with your vehicle for precise information on
warranty coverages. Your vehicle’s original tires are covered by their manufacturer.
Tire warranty information is in a separate booklet.

Canadian Owners

Please refer to the warranty manual that came with your vehicle.

367

Info

rm

ation

Authorized Manuals

Service Express:

For electronic copies of service publications, you can purchase a subscription to
Service Express. Visit www.techinfo.honda.com for pricing and options.

For U.S. Owners:

Manuals can be purchased from Helm Incorporated. You can order a manual by
phone at (800) 782-4356 (credit card orders only), or online at www.helminc.com.

1

Authorized Manuals

For Canadian Owners:
Please contact a dealer to order any manuals that you
may require.

368

Info

rm

ation

Customer Service Information

Honda dealership personnel are trained professionals.

They should be able to answer all your questions. If you encounter a problem that
your dealership does not solve to your satisfaction, please discuss it with the
dealership’s service manager or general manager. If you are dissatisfied with the
decision made by the dealership’s management, contact Honda Customer Services.

U.S. Owners:
American Honda Motor Co., Inc.
Honda Automobile Customer Services
Mail Stop 500-2N-7A
1919 Torrance Blvd.
Torrance, CA 90501-2746
Tel: (800) 999-1009

Canadian Owners:
Honda Canada Inc.
Customer Relations
180 Honda Boulevard
Markham, ON
L6C 0H9
Tel: 1-888-9-HONDA-9
Fax: 1-877-939-0909
E-mail: Honda_cr@ch.honda.com

In Puerto Rico and the U.S. Virgin
Islands:
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 620-7546

1

Customer Service Information

When you call or write, please give us the following
information:

Vehicle Identification Number

Vehicle Identification Number (VIN),

Engine Number and Transmission
Number
 P. 360

Date of purchase

Odometer reading of your vehicle

Your name, address, and telephone number

A detailed description of the problem

Name of the dealer who sold the vehicle to you















Content   ..  21  22  23
