Maintenance Under the Hood

u

Changing the Engine Oil and Oil Filter

624

Main

tenan

ce

6. Remove the oil filter and dispose of the

remaining oil.

7. Check that the filter gasket is not stuck to

the engine contact surface.

u

If it is stuck, you must detach it.

8. Wipe away dirt and dust adhering to the

contact surface of the engine block, and
install a new oil filter.

u

Apply a light coat of new engine oil to
the filter gasket.

9. Put a new washer on the drain bolt, then

reinstall the drain bolt.

u

Tightening torque:
30 lbf∙ft (40 N∙m, 4.0 kgf∙m)

10. Pour the recommended engine oil into the

engine.

u

Engine oil change capacity (including
filter):

3.7 US qt (3.5 L)

5.0 US qt (4.8 L)

11. Reinstall the engine oil fill cap securely and

start the engine.

12. Run the engine for a few minutes, and

then check that there is no leak from the
drain bolt or oil filter.

13. Stop the engine, wait for three minutes,

and then check the oil level on the dipstick.

u

If necessary, add more engine oil.

1

Changing the Engine Oil and Oil Filter

You will need a special wrench to replace the oil
filter. You can buy this wrench from a dealer.

When installing the new oil filter, follow the
instructions supplied with the oil filter.

Reinstall the engine oil fill cap. Start the engine. The
low oil pressure indicator should go off within five
seconds. If it does not, turn off the engine, and check
your work.

1.5 L engine models

2.0 L engine models

Oil Filter

Oil Filter

1.5 L engine models

2.0 L engine models

625

uu

Maintenance Under the Hood

u

Engine Coolant

Continued

Main

tenan

ce

Engine Coolant

This coolant is premixed with 50% antifreeze and 50% water. Do not add any
straight antifreeze or water.

We recommend you check the engine coolant level every time you refuel. Check the
reserve tank first. If it is completely empty, also check the coolant level in the
radiator. Add the engine coolant accordingly.

1. Make sure the engine and radiator are

cool.

2. Check the amount of coolant in the reserve

tank.

u

If the coolant level is below the MIN
mark, add the specified coolant until it
reaches the MAX mark.

3. Inspect the cooling system for leaks.

Specified coolant: Honda Long Life Antifreeze/Coolant Type 2

■

Reserve Tank

1

Engine Coolant

NOTICE

Genuine Honda engine coolant is a 50/50 mixture of
antifreeze and water that can withstand freezing at
temperatures as low as about -31°F (-35°C). If your
vehicle is consistently subjected to temperatures
below this, the concentration of antifreeze in the
coolant should be increased. Consult a dealer for
details.

If Honda antifreeze/coolant is not available, you may
use another major brand of non-silicate coolant as a
temporary replacement. Check that it is a high quality
coolant recommended for aluminum engines.
Continued use of any non-Honda coolant can result
in corrosion, causing the cooling system to
malfunction or fail. Have the cooling system flushed
and refilled with Honda antifreeze/coolant as soon as
possible.

Do not add rust inhibitors or other additives to your
vehicle’s cooling system. They may not be compatible
with the coolant or with the engine components.

3

WARNING

Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.

Always let the engine and radiator cool
down before removing the radiator cap.

Reserve
Tank

MAX
MIN

uu

Maintenance Under the Hood

u

Engine Coolant

626

Main

tenan

ce

1. Make sure the engine and radiator are

cool.

2. Turn the radiator cap 1/8 turn counter-

clockwise and relieve any pressure in the
cooling system.

3. Push down and turn the radiator cap

counterclockwise to remove it.

4. The coolant level should be up to the base

of the filler neck. Add coolant if it is low.

5. Put the radiator cap back on, and tighten it

fully.

■

Radiator

1

Radiator

NOTICE

Pour the fluid slowly and carefully so you do not spill
any. Clean up any spills immediately; they can
damage components in the engine compartment.

Radiator Cap

627

uu

Maintenance Under the Hood

u

Transmission Fluid

Continued

Main

tenan

ce

Transmission Fluid

Have a dealer check the fluid level and replace if necessary.

Do not attempt to check or change the automatic transmission fluid yourself.

Have a dealer check the fluid level and replace if necessary.

Do not attempt to check or change the automatic transmission fluid yourself.

■

Continuously Variable Transmission (CVT) Fluid

*

Specified fluid: Honda HCF-2 Transmission Fluid

■

Manual Transmission Fluid

*

Specified fluid: Honda Manual Transmission Fluid (MTF)

1

Continuously Variable Transmission (CVT) Fluid

*

NOTICE

Do not mix HCF-2 with other transmission fluids.
Using a transmission fluid other than HCF-2 may
adversely affect the operation and durability of your
vehicle’s transmission, and damage the transmission.
Any damage caused by using a transmission fluid that
is not equivalent to HCF-2 is not covered by Honda’s
new vehicle limited warranty.

1

Manual Transmission Fluid

*

NOTICE

If Honda MTF is not available, you may use the API
certificated SAE 0 W-20 or 5 W-20 viscosity motor oil
as a temporary measure.
Replace with MTF as soon as possible. Motor oil does
not contain the proper additives for the transmission
and continued use can cause decreased shifting
performance and lead to transmission damage.

* Not available on all models

uu

Maintenance Under the Hood

u

Transmission Fluid

628

Main

tenan

ce

Have a dealer check the fluid level and replace if necessary.

Do not attempt to check or change the automatic transmission fluid yourself.

■

Automatic Transmission Fluid

*

Specified fluid: Honda Automatic Transmission Fluid ATF-Type 2.0

1

Automatic Transmission Fluid

*

NOTICE

Do not mix Honda ATF-Type 2.0 with other
transmission fluids.
Using a transmission fluid other than Honda
ATF-Type 2.0 may adversely affect the operation and
durability of your vehicle’s transmission, and damage
the transmission.
Any damage caused by using a transmission fluid that
is not equivalent to Honda ATF-Type 2.0 is not
covered by Honda’s new vehicle limited warranty.

* Not available on all models

629

uu

Maintenance Under the Hood

u

Brake/Clutch

*

 Fluid

Main

tenan

ce

Brake/Clutch

*

 Fluid

Use the same fluid for both the brakes and clutch.

The fluid level should be between the MIN
and MAX marks on the side of the reserve
tank.

The brake fluid reserve tank is also used for
your vehicle’s clutch fluid. As long as you keep
the brake fluid level as instructed above, there
is no need for checking the clutch fluid level.

Specified fluid: Honda Heavy Duty Brake Fluid DOT 3

■

Checking the Brake Fluid

1

Brake/Clutch

*

 Fluid

NOTICE

Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.

If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.

Using any non-Honda brake fluid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and refilled with Honda Heavy
Duty Brake Fluid DOT 3 as soon as possible.

If the brake fluid level is at or below the MIN mark,
have a dealer inspect the vehicle for leaks or worn
brake pads as soon as possible.

Reserve Tank

MIN

MAX

Manual transmission models

* Not available on all models

630

uu

Maintenance Under the Hood

u

Refilling Window Washer Fluid

Main

tenan

ce

Refilling Window Washer Fluid

Check the amount of window washer fluid.

If the level is low, fill the washer reservoir.

If the washer fluid is low, a message appears
on the driver information interface.

Pour the washer fluid carefully. Do not overflow the reservoir.

1

Refilling Window Washer Fluid

NOTICE

Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage your vehicle’s paint. A
vinegar/water solution can damage the windshield
washer pump.
Use only commercially available windshield washer
fluid. Avoid prolonged use of hard water to prevent
lime scale build up.

Canadian models

All models

631

Continued

Main

tenan

ce

Replacing Light Bulbs

Headlight Bulbs

When replacing, use the following bulbs.

High beam headlight: LED type

*

High beam headlight: 60 W (HB3 for halogen bulb type)

*

Low beam headlight: LED type

1

Headlight Bulbs

NOTICE

Halogen bulbs get very hot when lit.
Oil, perspiration, or a scratch on the glass can cause
the bulb to overheat and shatter.

The headlight aim is set by the factory, and does not
need to be adjusted. However, if you regularly carry
heavy items in the trunk or tow a trailer

*

, have the

aiming readjusted at a dealer or by a qualified
technician.

When replacing a halogen bulb, handle it by its base,
and protect the glass from contact with your skin or
hard objects. If you touch the glass, clean it with
denatured alcohol and a clean cloth.

Models with halogen high beam headlights

All models

Models with halogen high beam headlights

* Not available on all models

uu

Replacing Light Bulbs

u

Headlight Bulbs

632

Main

tenan

ce

1. Remove the hose and the holding clip using

a flat-tip screwdriver, then remove the
upper part of the window washer reserve
tank.

u

Check the amount of window washer
fluid is below the upper part of the
window washer reserve tank and remove
it.

2. Push the tab to remove the coupler.
3. Rotate the old bulb counter-clockwise to

remove.

4. Insert a new bulb into the headlight

assembly and turn it clockwise.

5. Insert the coupler into the connector of the

bulb.

Low beam headlights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.

■

High Beam Headlights

1

High Beam Headlights

High beam headlights are LED type. Have an
authorized Honda dealer inspect and replace the light
assembly.

When removing the clip, insert a flat-tip screwdriver,
then lift and remove the clip.

Insert the clip with the pin raised, and push until it is
flat.

Models with LED high beam headlights

Push until the pin
is flat.

Models with halogen high beam headlights

Holding clip

Hose

Passenger side

Tab

Coupler

Bulb

Both sides

■

Low Beam Headlights

633

uu

Replacing Light Bulbs

u

Fog Lights

*

Main

tenan

ce

Fog Lights

*

Fog lights are LED type. Have an authorized Honda dealer inspect and replace the
light assembly.

Parking/Daytime Running Lights

Parking/daytime running lights are LED type. Have an authorized Honda dealer
inspect and replace the light assembly.

Front Turn Signal Lights

Front turn signal lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.

Front Side Marker Lights

Front side marker lights are LED type. Have an authorized Honda dealer inspect and
replace the light assembly.

Side Turn Signal/Emergency Indicator Lights

*

Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.

* Not available on all models

634

uu

Replacing Light Bulbs

u

Brake, Taillight, Rear Side Marker Lights and Rear Turn Signal Light Bulbs

Main

tenan

ce

Brake, Taillight, Rear Side Marker Lights and Rear
Turn Signal Light Bulbs

When replacing, use the following bulbs.

1. Pry on the edge of the cover using a flat-tip

screwdriver to remove the covers.

u

Wrap the flat-tip screwdriver with a cloth
to prevent scratches.

2. Remove the bolts.
3. Pull the light assembly out of the rear pillar.

Brake Light: LED
Taillight: LED
Rear Side Marker Light: LED
Rear Turn Signal Light: 21 W (Amber)

1

Brake, Taillight, Rear Side Marker Lights and Rear Turn Signal
Light Bulbs

Brake and rear side marker/taillights are LED type.
Have an authorized Honda dealer inspect and replace
the light assembly.

Cover

Bolts

635

uu

Replacing Light Bulbs

u

Brake, Taillight, Rear Side Marker Lights and Rear Turn Signal Light Bulbs

Main

tenan

ce

4. Turn the socket counter-clockwise and

remove it.

5. Push and turn the old bulb clockwise and

remove it, and insert a new bulb.

Bulb

Socket

636

uu

Replacing Light Bulbs

u

Taillight, Brake Light

*

 and Back-Up Light Bulbs

Main

tenan

ce

Taillight, Brake Light

*

 and Back-Up Light Bulbs

When replacing, use the following bulbs.

1. Remove the holding clips using a flat-tip

screwdriver, then pull the lining back.

2. Turn the socket counter-clockwise and

remove it.

3. Remove the old bulb and insert a new bulb.

Taillight: LED
Brake Light

*

: LED

Back-Up Light: 16 W

1

Taillight, Brake Light

*

 and Back-Up Light Bulbs

Taillights and brake lights

*

 are LED type. Have an

authorized Honda dealer inspect and replace the light
assembly.

When removing the clip, insert a flat-tip screwdriver,
then lift and remove the clip.

Insert the clip with the pin raised, and push until it is flat.

Clip

Push until the
pin is flat.

Holding Clip

Bulb

Socket

Driver side

* Not available on all models

637

uu

Replacing Light Bulbs

u

Taillight, Brake Light

*

 and Back-Up Light Bulbs

Main

tenan

ce

2. Turn the socket clockwise and remove it.
3. Remove the old bulb and insert a new bulb.

Bulb

Socket

Passenger side

638

uu

Replacing Light Bulbs

u

Rear License Plate Light

Main

tenan

ce

Rear License Plate Light

Rear license plate light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.

High-Mount Brake Light

High-mount brake light is LED type. Have an authorized Honda dealer inspect and
replace the light assembly.

639

Continued

Main

tenan

ce

Checking and Maintaining Wiper Blades

Checking Wiper Blades

If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.

Changing the Wiper Blade Rubber

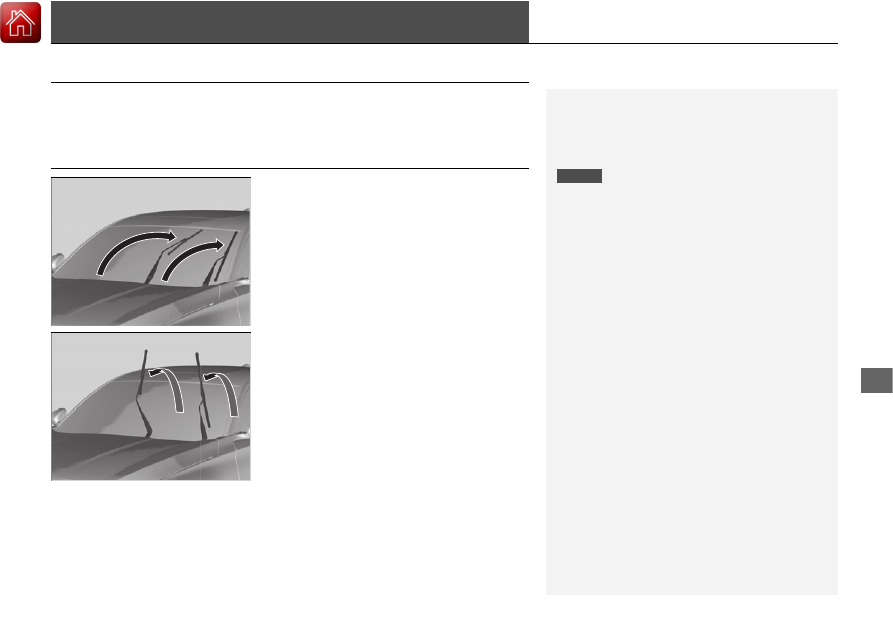

1. Set the power mode to VEHICLE OFF.
2. While holding the wiper switch in the

MIST position, set the power mode to ON,
then to VEHICLE OFF.

u

Both wiper arms are set to the
maintenance position as shown in the
image.

3. Lift the driver side wiper arm first, then the

passenger side.

1

Changing the Wiper Blade Rubber

NOTICE

Avoid dropping the wiper arm onto the windshield, it
may damage the wiper arm and/or the windshield.
