Honda Accord (2019 year). Manual - part 14





208

Co
ntrols

Adjusting the Mirrors

Interior Rearview Mirror

Adjust the angle of the rearview mirror when you are sitting in the correct driving
position.

Flip the tab to switch the position.
The night position will help to reduce the glare
from headlights behind you when driving
after dark.

When you are driving after dark, the
automatic dimming rearview mirror reduces
the glare from headlights behind you. Press
the auto mirror button to turn this function on
and off. When activated, the auto indicator
comes on.

Rearview Mirror with Day and Night Positions

*

1

Adjusting the Mirrors

Keep the inside and outside mirrors clean and
adjusted for best visibility.

Adjust the mirrors before you start driving.

Adjusting the Seats P. 210

Tab

Daytime
Position

Night
Position

Up

Down

Automatic Dimming Rearview Mirror

*

1

Automatic Dimming Rearview Mirror

*

The auto dimming function cancels when the
transmission is in

(

R.

Auto Mirror Button

Down

Up

* Not available on all models

209

uu

Adjusting the Mirrors

u

Power Door Mirrors

Co
ntrols

Power Door Mirrors

You can adjust the door mirrors when the
power mode is in ON.

Mirror position adjustment

L/R selector switch: Select the left or right
mirror. After adjusting the mirror, return the
switch to the center position.
Mirror position adjustment switch: Press
the switch left, right, up, or down to move the
mirror.

If activated, passenger’s side door mirror
automatically tilts downward when you put
the transmission into

(

R; this improves close-

in visibility on the passenger’s side of the
vehicle when backing up. The mirror
automatically returns to its original position
when you take the transmission out of

(

R.

To activate this feature, set the power mode to ON and slide the selector switch to
the passenger’s side.

Selector
Switch

Adjustment Switch

Reverse Tilt Door Mirror

*

Selector Switch

* Not available on all models

210

Co
ntrols

Adjusting the Seats

Front Seats

Adjust the driver’s seat as far back as possible
while allowing you to maintain full control of
the vehicle. You should be able to sit upright,
well back in the seat and be able to
adequately press the pedals without leaning
forward, and grip the steering wheel
comfortably. The passenger’s seat should be
adjusted in a similar manner, so that it is as far
back from the front airbag in the dashboard
as possible.

Adjusting the front power seat(s)

*

1

Adjusting the Seats

The National Highway Traffic Safety Administration
and Transport Canada recommend that drivers allow
at least 10 inches (25 cm) between the center of the
steering wheel and the chest.

Always make seat adjustments before driving.

3

WARNING

Sitting too close to a front airbag can result
in serious injury or death if the front
airbags inflate.

Always sit as far back from the front
airbags as possible while maintaining
control of the vehicle.

Move back.

Allow sufficient
space.

Adjusting the Seat Positions

Horizontal Position
Adjustment

Height Adjustment
(Driver’s seat only)

Seat-back Angle
Adjustment

Driver’s seat is shown

* Not available on all models

211

uu

Adjusting the Seats

u

Front Seats

Continued

Co
ntrols

Lumbar Support Adjustment Switch

*

Press the top: To move the lumbar support
up.
Press the bottom: To move the lumbar
support down.
Press the front: To increase the entire
lumbar support.
Press the rear: To decrease the entire lumbar
support.

Lumbar
Support
Adjustment
Switch

* Not available on all models

uu

Adjusting the Seats

u

Front Seats

212

Co
ntrols

Adjusting the front manual seat(s)

*

1

Adjusting the front manual seat(s)

*

Once a seat is adjusted correctly, rock it back and
forth to make sure it is locked in position.

Horizontal Position
Adjustment
Pull up on the bar to move the
seat, then release the bar.

Height Adjustment
(Driver side only)
Pull up or push down the lever
to raise or lower the seat.

Seat-back Angle
Adjustment
Pull up the lever to
change the angle.

Driver’s seat is shown.

* Not available on all models

213

uu

Adjusting the Seats

u

Front Seats

Co
ntrols

Adjust the driver’s seat-back to a comfortable,
upright position, leaving ample space
between your chest and the airbag cover in
the center of the steering wheel.

The front seat passenger should also adjust
their seat-back to a comfortable, upright
position.

Reclining a seat-back so that the shoulder part of the belt no longer rests against the
occupant’s chest reduces the protective capability of the belt. It also increases the
chance of sliding under the belt in a crash and being seriously injured. The farther a
seat-back is reclined, the greater the risk of injury.

Adjusting the Seat-Backs

1

Adjusting the Seat-Backs

Do not put a cushion, or other object, between the
seat-back and your back.

Doing so may interfere with proper seat belt or airbag
operation.

If you cannot get far enough away from the steering
wheel and still reach the controls, we recommend
that you investigate whether some type of adaptive
equipment may help.

3

WARNING

Reclining the seat-back too far can result in
serious injury or death in a crash.

Adjust the seat-back to an upright position,
and sit well back in the seat.

214

uu

Adjusting the Seats

u

Rear Seats

Co
ntrols

Rear Seats

1. Remove the center shoulder belt from the

guide.

2. Pull the release lever in the trunk to release

the lock.

3. Fold the seat-back down.

Folding Down the Rear Seat(s)

1

Folding Down the Rear Seat(s)

The rear seat-back(s

*

) can be folded down to

accommodate bulkier items in the trunk.

Never drive with the seat-back folded down and the
trunk lid open.

Exhaust Gas Hazard P. 75

To lock a seat-back upright, push it backwards until it
locks.
When returning the seat-back to its original position,
push it firmly back. Also, make sure all rear shoulder
belts are positioned in front of the seat-back, and the
center shoulder belt is re-positioned in the guide.

Make sure that the folded seat-back does not press
against the front passenger seat, as this can cause the
weight sensors in the front passenger seat to work
improperly.

Passenger Front Airbag Off Indicator P. 59

Make sure all items in the trunk or items
extending through the opening into the rear
seat is properly secured. Loose items can fly
forward if you have to brake hard.

The front seat(s) must be far enough forward so they
do not interfere with the rear seats as they fold
down.

Guide

Center
Shoulder Belt

Release
Lever

Release
Lever

*

* Not available on all models

215

uu

Adjusting the Seats

u

Maintain a Proper Sitting Position

Co
ntrols

Maintain a Proper Sitting Position

After all occupants have adjusted their seats and head restraints, and put on their
seat belts, it is very important that they continue to sit upright, well back in their
seats, with their feet on the floor, until the vehicle is safely parked and the power
mode is off.

Sitting improperly can increase the chance of injury during a crash. For example, if
an occupant slouches, lies down, turns sideways, sits forward, leans forward or
sideways, or puts one or both feet up, the chance of injury during a crash is greatly
increased.

In addition, an occupant who is out of position in the front seat can be seriously or
fatally injured in a crash by striking interior parts of the vehicle or being struck by an
inflating front airbag.

1

Maintain a Proper Sitting Position

3

WARNING

Sitting improperly or out of position can
result in serious injury or death in a crash.

Always sit upright, well back in the seat,
with your feet on the floor.

216

uu

Adjusting the Seats

u

Head Restraints

Co
ntrols

Head Restraints

Your vehicle is equipped with head restraints in all seating positions.

Head restraints are most effective for
protection against whiplash and other rear-
impact crash injuries when the center of the
back of the occupant’s head rests against the
center of the restraint. The tops of the
occupant’s ears should be level with the
center height of the restraint.

Adjusting the Front and Rear Outer

*

 Head Restraint Positions

1

Head Restraints

In order for the head restraint system to work
properly:

Do not hang any items on the head restraints, or
from the restraint legs.

Do not place any object between an occupant and
the seat-back.

Install each restraint in its proper location.

3

WARNING

Improperly positioning head restraints
reduces their effectiveness and increases
the likelihood of serious injury in a crash.

Make sure head restraints are in place and
positioned properly before driving.

Position head in the center
of the head restraint.

* Not available on all models

217

uu

Adjusting the Seats

u

Head Restraints

Continued

Co
ntrols

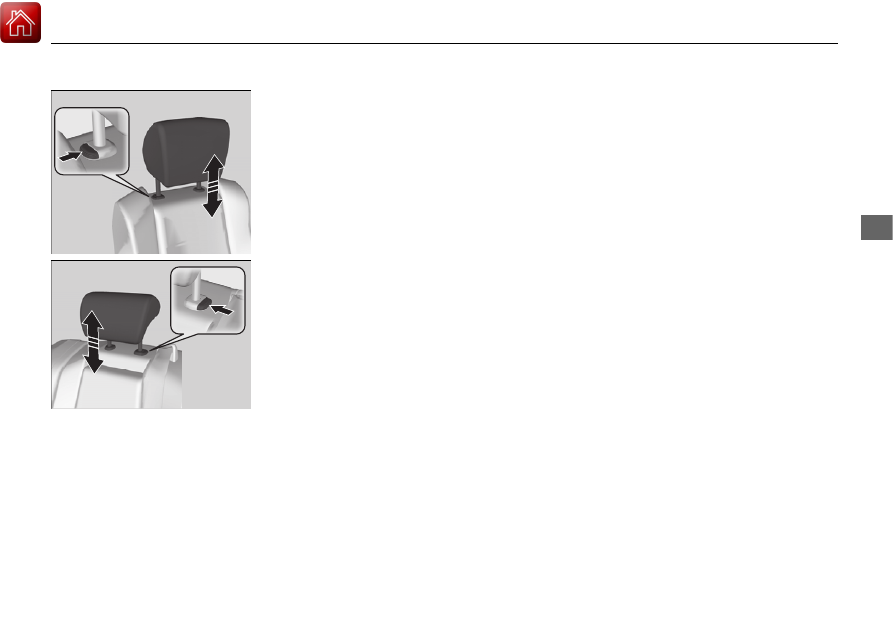

To raise the head restraint: Pull it upward.
To lower the head restraint: Push it down
while pressing the release button.

Front

Rear

uu

Adjusting the Seats

u

Head Restraints

218

Co
ntrols

Head restraints can be removed for cleaning or repair.

To remove a head restraint:
Pull the restraint up as far as it will go. Then push the release button, and pull the
restraint up and out.

To reinstall a head restraint:
Insert the legs back in place, then adjust the head restraint to an appropriate height
while pressing the release button. Pull up on the restraint to make sure it is locked
in position.

Removing and Reinstalling the Head Restraints

1

Removing and Reinstalling the Head Restraints

3

WARNING

Failure to reinstall, or correctly reinstall, the
head restraints can result in severe injury
during a crash.

Always replace the head restraints before
driving.

219

uu

Adjusting the Seats

u

Armrest

Continued

Co
ntrols

Armrest

The console lid can be used as an armrest.

Using the Front Seat Armrest

Automatic transmission/
Continuously variable
transmission models

Manual transmission models

220

uu

Adjusting the Seats

u

Armrest

Co
ntrols

Pull down the armrest in the center backrest.

Using the Rear Seat Armrest

221

Continued

Co
ntrols

Interior Lights/Interior Convenience Items

Interior Lights

ON

The interior lights come on regardless of
whether the doors are open or closed.

Door activated

The interior lights come on in the following
situations:
• When any doors are opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE

OFF.

OFF

The interior lights remain off regardless of
whether the doors are open or closed.

Interior Light Switches

1

Interior Light Switches

In the door activated position, the interior lights fade
out and go off about 30 seconds after the doors are
closed.
The lights go off after about 30 seconds in the
following situations:

When you unlock the driver’s door but do not open it.

When you set the power mode to VEHICLE OFF but
do not open a door.

You can change the interior lights dimming time.

Customized Features P. 370, 381

The interior lights go off immediately in the following
situations:

When you lock the driver’s door.

When you close the driver’s door in ACCESSORY
mode.

When you set the power mode to ON.

To avoid draining the battery, do not leave the
interior lights on for an extended length of time
when the engine is off.

If you leave any of the doors open in VEHICLE OFF
mode, the interior lights go off after about 15
minutes.

Door Activated Position

OFF

Front

*

Door Activated
Position

ON

OFF

Rear

* Not available on all models

uu

Interior Lights/Interior Convenience Items

u

Interior Lights

222

Co
ntrols

The map lights can be turned on and off by
pressing the lenses.

When the parking lights are on, push the
ambient light switch to turn the ambient lights
on.

Map Lights

1

Map Lights

When the interior light switch is in the door activated
position and any door is open, the map light will not
go off when you press the lens.

Models with moonroof

Ambient Lights

*

Ambient Lights

* Not available on all models

223

uu

Interior Lights/Interior Convenience Items

u

Interior Convenience Items

Continued

Co
ntrols

Interior Convenience Items

Pull the handle to open the glove box.

You can lock the glove box with the built-in
key.

Push the cover to open the pocket.

Glove Box

1

Glove Box

3

WARNING

An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.

Always keep the glove box closed while
driving.

Glove Box

Handle

To Lock

Models with trunk main switch

Center Pocket















Content   ..  12  13  14  15   ..
