Honda Accord Sedan (2016 year). Manual

561

If a Tire Goes Flat

Changing a Flat Tire

Continued

Han

lin
g the U

expected

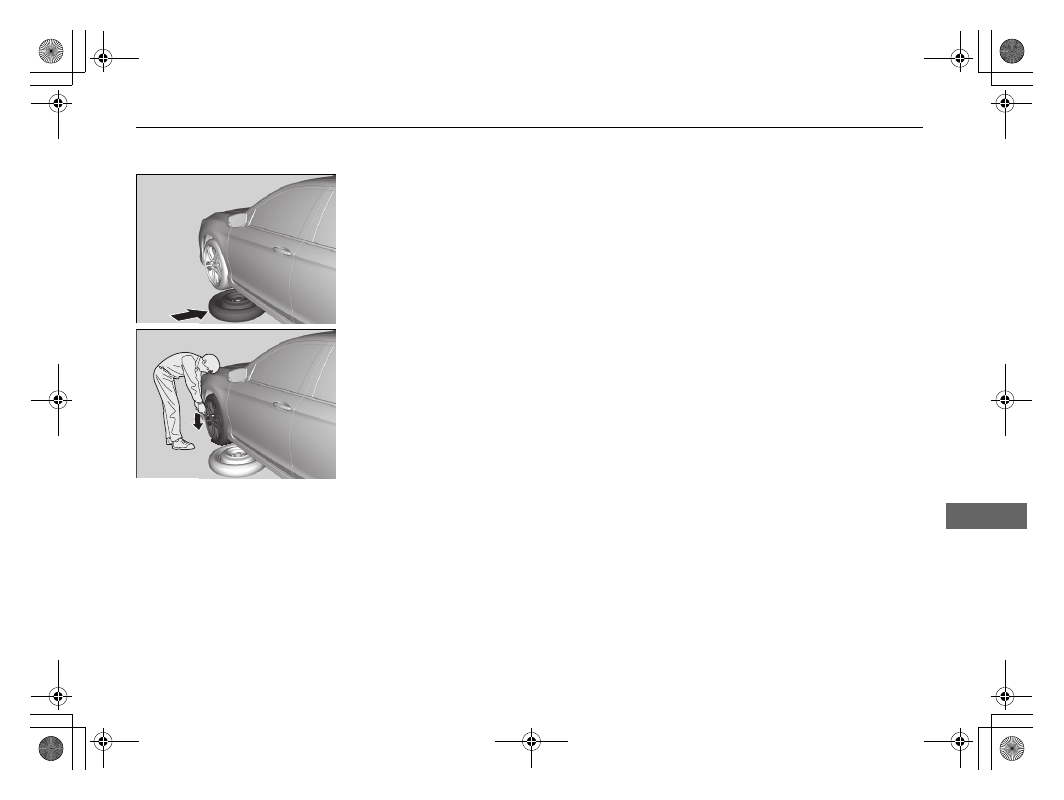

5. Place the compact spare tire (wheel side up)

under the vehicle body, near the tire that
needs to be replaced.

6. Loosen each wheel nut about one turn

using the wheel nut wrench.

If a Tire Goes Flat

Changing a Flat Tire

562

Han

lin
g the U

expected

1. Place the jack under the jacking point

closest to the tire to be changed.

2. Turn the end bracket clockwise as shown in

the image until the top of the jack contacts
the jacking point.

Make sure that the jacking point tab is
resting in the jack notch.

3. Raise the vehicle, using the jack handle bar

and the jack handle, until the tire is off the
ground.

■

How to Set Up the Jack

How to Set Up the Jack

Do not use the jack with people or luggage in the
vehicle.

Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
may not fit the jacking point.

The following instructions must be followed to use
the jack safely:

•

Do not use while the engine is running.

•

Use only where the ground is firm and level.

•

Use only at the jacking points.

•

Do not get in the vehicle while using the jack.

•

Do not put anything on top of or underneath the
jack.

WARNING

The vehicle can easily roll off the jack,
seriously injuring anyone underneath.

Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.

Jacking Points

Jacking Point

Jack
Handle
Bar

Wheel Nut

Wrench as Jack Handle

Continued

563

If a Tire Goes Flat

Changing a Flat Tire

Han

lin
g the U

expected

1. Remove the wheel nuts and flat tire.

2. Wipe the mounting surfaces of the wheel

with a clean cloth.

3. Mount the compact spare tire.
4. Screw the wheel nuts until they touch the

lips around the mounting holes, then stop
rotating.

5. Lower the vehicle and remove the jack.

Tighten the wheel nuts in the order
indicated in the image. Go around,
tightening the nuts, two to three times in
this order.
Wheel nut torque:
80 lbf∙ft (108 N∙m, 11 kgf∙m)

■

Replacing the Flat Tire

Replacing the Flat Tire

Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.

If a Tire Goes Flat

Changing a Flat Tire

564

Han

lin
g the U

expected

1. Remove the center cap.
2. Place the flat tire face down in the spare tire

well.

3. Remove the spacer cone from the wing

bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.

4. Securely put the jack and wheel nut wrench

back in the tool case. Store the case in the
trunk.

If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. Tire Pressures Low
appears on the multi-information display

, but this is normal.

Calibrate the TPMS when you replace the tire with a specified regular tire.

2 TPMS Calibration P. 475

■

Storing the Flat Tire

Storing the Flat Tire

WARNING

Loose items can fly around the interior in a
crash and can seriously injure the
occupants.

Store the wheel, jack, and tools securely
before driving.

Spacer Cone

Wing Bolt

For
compact
spare tire

For
full-size
tire

■

TPMS and the Spare Tire

* Not available on all models

565

Han

lin
g the U

expected

Engine Does Not Start

Checking the Engine

If the engine does not start, check the starter.

Starter condition

Checklist

Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.

Check for a message on the multi-information display.

●

If the To Start, Hold Remote Near Start Button message appears

2 If the Smart Entry Remote Battery is Weak P. 566

Make sure the smart entry remote is in its operating range.

2 ENGINE START/STOP Button Operating Range P. 140

Check brightness of the interior lights.
Turn on the interior lights and check the brightness.

●

If the interior lights are dim or do not come on at all

2 Battery P. 548

●

If the interior lights come on normally

2 Fuses P. 578

The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly.

Review the engine start procedure.
Follow its instructions, and try to start the engine again.

2 Starting the Engine P. 421, 42 3

Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.

2 Immobilizer System P. 132

Check the fuel level.
There should be enough fuel in the tank.

2 Fuel Gauge P. 95

Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.

2 Inspecting and Changing Fuses P. 581

If the problem continues:

2 Emergency Towing P. 582

Checking the Engine

If you must start the vehicle immediately, use an
assisting vehicle to jump start it.

2 Jump Starting P. 568

Models with multi-information display
Models with smart entry system

566

Engine Does Not Start

If the Smart Entry Remote Battery is Weak

Han

lin
g the U

expected

If the Smart Entry Remote Battery is Weak

If the beeper sounds, the indicator on the ENGINE START/STOP button flashes,
and the engine won’t start.

The To Start, Hold Remote Near Start Button message appears on the multi-
information display.

Start the engine as follows.

1. Touch the center of the ENGINE START/

STOP button with the H logo on the smart
entry remote while the indicator on the
ENGINE START/STOP button is flashing.
The buttons on the smart entry remote
should be facing you.

The indicator flashes for about 30
seconds.

2. Depress the brake pedal (automatic

transmission) or clutch pedal (manual
transmission) and press the ENGINE
START/STOP button within 10 seconds
after the beeper sounds and the indicator
stays on.

If you don’t depress the pedal, the mode
will change to ACCESSORY.

Models with smart entry system

Models with multi-information display

All models

567

Engine Does Not Start

Emergency Engine Stop

Han

lin
g the U

expected

Emergency Engine Stop

The ENGINE START/STOP button may be used to stop the engine due to an
emergency situation even while driving. If you must stop the engine, do either of the
following operations:
• Press and hold the ENGINE START/STOP button for about two seconds.
• Firmly press the ENGINE START/STOP button twice.

The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort and time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place. With manual transmission models you can also downshift the
transmission to utilize engine braking.

The power mode is in ACCESSORY when the engine is stopped.
To change the mode to VEHICLE OFF, move the shift lever to

(

P after the vehicle

comes to a complete stop.

Then press the ENGINE START/STOP button twice without depressing the brake
pedal.

The power mode changes to VEHICLE OFF.

Models with smart entry system

Emergency Engine Stop

Do not press the button while driving unless it is
absolutely necessary for the engine to be switched
off.

U.S. automatic transmission/CVT models

Canadian automatic transmission/CVT models

Manual transmission models

568

Han

lin
g the U

expected

Jump Starting

Jump Starting Procedure

Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood.

1. Connect the first jumper cable to your

vehicle's battery + terminal.

2. Connect the other end of the first jumper

cable to the booster battery + terminal.

Use a 12-volt booster battery only.

When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15-
volt. Check the charger manual for the
proper setting.

3. Connect the second jumper cable to the

booster battery - terminal.

Jump Starting

Securely attach the jumper cables clips so that they
do not come off when the engine vibrates. Also be
careful not to tangle the jumper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.

WARNING

A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.

Keep all sparks, open flames, and smoking
materials away from the battery.

Booster Battery

4-cylinder models

6-cylinder models

Booster Battery

Continued

569

Jump Starting

Jump Starting Procedure

Han

lin
g the U

expected

4. Connect the other end of the second

jumper cable to the engine mounting bolt
as shown. Do not connect this jumper cable
to any other part.

5. If your vehicle is connected to another

vehicle, start the assisting vehicle's engine
and increase its rpm slightly.

6. Attempt to start your vehicle's engine. If it

turns over slowly, check that the jumper
cables have good metal-to-metal contact.

Jump Starting

Battery performance degrades in cold conditions and
may prevent the engine from starting.

4-cylinder models

6-cylinder models

570

Jump Starting

Jump Starting Procedure

Han

lin
g the U

expected

Once your vehicle's engine has started, remove the jumper cables in the following
order.

1. Disconnect the jumper cable from your vehicle's ground.
2. Disconnect the other end of the jumper cable from the booster battery -

terminal.

3. Disconnect the jumper cable from your vehicle's battery + terminal.
4. Disconnect the other end of the jumper cable from the booster battery +

terminal.

Have your vehicle inspected by a nearby service station or a dealer.

■

What to Do After the Engine Starts

571

Han

lin
g the U

expected

Shift Lever Does Not Move

Follow the procedure below if you cannot move the shift lever out of the

(

position.

1. Set the parking brake.

2. Remove the key from the ignition switch.

2. Remove the built-in key from the smart

entry remote.

3. Wrap a cloth around the tip of a small flat-

tip screwdriver. Put it into the shift lock
release slot as shown in the image, and
remove the cover.

4. Insert the key into the shift lock release slot.
5. While pushing the key down, press the shift

lever release button and place the shift lever
into

(

The lock is now released. Have the shift
lever checked by a dealer as soon as
possible.

■

Releasing the Lock

Automatic transmission/CVT models

Slot

Cover

Models without smart entry system

Models with smart entry system

All models

Release Button

Shift Lock
Release Slot

572

Han

lin
g the U

expected

Overheating

How to Handle Overheating

Overheating symptoms are as follows:
• The temperature gauge needle is at the

mark or the engine suddenly loses

power.

• Steam or spray comes out of the engine compartment.

■

First thing to do

1. Immediately park the vehicle in a safe place.
2. Turn off all accessories and turn on the hazard warning lights.

No steam or spray present: Keep the engine running and open the hood.

Steam or spray is present: Turn off the engine and wait until it subsides.
Then open the hood.

How to Handle Overheating

NOTICE

Continuing to drive with the temperature gauge
needle at the

mark may damage the engine.

WARNING

Steam and spray from an overheated
engine can seriously scald you.

Do not open the hood if steam is coming
out.

573

Overheating

How to Handle Overheating

Han

lin
g the U

expected

■

Next thing to do

1. Check that the cooling fan is operating and

stop the engine once the temperature
gauge needle comes down.

If the cooling fan is not operating,
immediately stop the engine.

2. Once the engine has cooled down, inspect

the coolant level and check the cooling
system components for leaks.

If the coolant level in the engine coolant
reserve tank is low, add coolant until it
reaches the MAX mark.

If there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.

■

Last thing to do

Once the engine has cooled sufficiently, restart it and check the temperature gauge.
If the temperature gauge needle has gone down, resume driving. If it has not gone
down, contact a dealer for repairs.

How to Handle Overheating

If the coolant is leaking, contact a dealer for repairs.

Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.

WARNING

Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.

Always let the engine and radiator cool
down before removing the radiator cap.

MAX

Engine Coolant Reserve Tank

MIN

574

Han

lin
g the U

expected

Indicator, Coming On/Blinking

If the Low Oil Pressure Indicator Comes On

■

Reasons for the indicator to come on

Comes on when the engine oil pressure is low.

■

What to do as soon as the indicator comes on

1. Immediately park the vehicle in a safe place.
2. If necessary, turn the hazard warning lights on.

■

What to do after parking the vehicle

1. Stop the engine and let it sit for about three minute.
2. Open the hood and check the oil level.

Add oil as necessary.

3. Start the engine and check the low oil pressure indicator.

The indicator goes off: Start driving again.

The indicator does not go off within 10 seconds: Stop the engine
and contact a dealer for repairs immediately.

If the Charging System Indicator Comes On

■

Reasons for the indicator to come on

Comes on when the battery is not being charged.

■

What to do when the indicator comes on

Turn off the climate control system, rear defogger, and other electrical
systems, and immediately contact a dealer for repairs.

If the Low Oil Pressure Indicator Comes On

NOTICE

Running the engine with low oil pressure can cause
serious mechanical damage almost immediately.

If the Charging System Indicator Comes On

If you need to stop temporarily, do not turn off the
engine. Restarting the engine may rapidly discharge
the battery.

575

Indicator, Coming On/Blinking

If the Malfunction Indicator Lamp Comes On or Blinks

Han

lin
g the U

expected

If the Malfunction Indicator Lamp Comes On or
Blinks

■

Reasons for the indicator lamp to come on or blink

• Comes on if there is a problem with the engine emissions control

system, or the fuel fill cap is missing, or loose.

• Blinks when engine misfiring is detected.

■

What to do when the indicator lamp comes on

Avoid high speeds and immediately get your vehicle inspected at a
dealer.

■

What to do when the indicator lamp blinks

Park the vehicle in a safe place with no flammable items and wait at least
10 minutes or more with the engine stopped until it cools.

■

The message appears on when:

An evaporative system leak is detected. This may be caused by the fuel fill cap being
loose or not being installed.

■

What to do when the message appears:

1. Stop the engine.
2. Check if the fuel fill cap is fully installed.

If not, loosen the cap, and then retighten it until it clicks at least once.

3. Drive for several days of normal driving.

The message should go off.

■

When the malfunction indicator lamp comes on

The malfunction indicator lamp comes on if the system continues to detect a leak of
gasoline vapor. If this happens, check the fuel fill cap using the procedures described
above.

■

Check/Tighten Fuel Cap Message

If the Malfunction Indicator Lamp Comes On or Blinks

NOTICE

If you drive with the malfunction indicator lamp on,
the emissions control system and the engine could be
damaged.

If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.

576

Indicator, Coming On/Blinking

If the Brake System Indicator (Red) Comes On

Han

lin
g the U

expected

If the Brake System Indicator (Red) Comes On

■

Reasons for the indicator to come on

• The brake fluid is low.
• There is a malfunction in the brake system.

■

What to do when the indicator comes on while driving

Press the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action. If necessary, downshift the

transmission to slow the vehicle using engine braking.

If the Electric Power Steering (EPS) System Indicator
Comes On

■

Reasons for the indicator to come on

• Comes on if there is a problem with the EPS system.
• If you depress the accelerator pedal repeatedly to increase the engine

speed while the engine is idling, the indicator comes on, and
sometimes the steering wheel becomes harder to operate.

■

What to do when the indicator comes on

Stop the vehicle in a safe place and restart the engine.
If the indicator comes on and stays on, immediately have your vehicle
inspected by a dealer.

If the Brake System Indicator (Red) Comes On

Have your vehicle repaired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe place. If necessary, downshift
the gears.

If the brake system indicator and ABS indicator come
on simultaneously, the electronic brake distribution
system is not working. This can result in vehicle
instability under sudden braking.
Have your vehicle inspected by a dealer immediately.

U.S.

Canada

Honda Accord Sedan (2016 year). Manual - part 36
