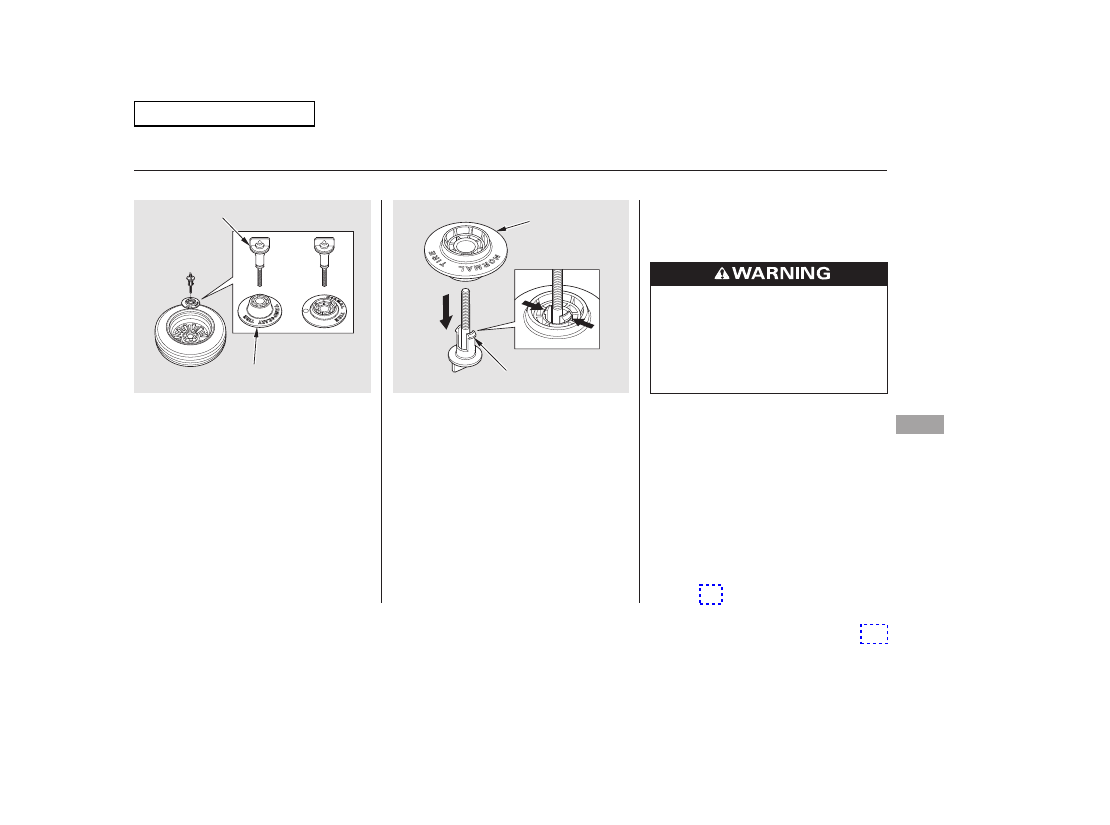

Place the flat tire face down in the
spare tire well.

Remove the spacer cone from the
wing bolt, turn it over, and put it
back on the bolt.

To remove the spacer cone, squeeze
the tabs on the wing bolt to
disengage it from the center of the
spacer cone, then pull the bolt
downward.

To install the wing bolt to the spacer
cone, reverse this procedure.

Secure the flat tire by screwing
the wing bolt back into its hole.

Store the jack and tools in the tool
kit case. Place the tool kit case in
the flat tire.

Your vehicle’s original tire has a
tire pressure monitoring system
sensor. To replace a tire, refer to

(see

page

Lower the trunk floor, then close
the trunk lid.

Store the center cap in the trunk.
Make sure it does not get
scratched or damaged.

16.

17.

19.

18.

20.

21.

22.

328

Changing a Flat Tire

Changing a Tire with TPMS

ing
Ca
re

of
th

ne
x

397

WING BOLT

SPACER CONE

TAB

Loose items can fly around the
interior in a crash and could
seriously injure the occupants.

Store the wheel, jack, and tools
securely before driving.

Main Menu

Diagnosing why the engine won’t
start falls into two areas, depending
on what you hear when you turn the
ignition switch to the START (III)
position:

You hear nothing, or almost
nothing. The engine’s starter
motor does not operate at all, or
operates very slowly.

You can hear the starter motor
operating normally, or the starter
motor sounds like it is spinning
faster than normal, but the engine
does not start up and run.

When you turn the ignition switch to
the START (III) position, you do not
hear the normal noise of the engine
trying to start. You may hear a
clicking sound, a series of clicks, or
nothing at all.

Check these things:

Check the transmission interlock.
If you have a manual transmission,
the clutch pedal must be pushed
all the way to the floor or the
starter will not operate. With an
automatic transmission, it must be
in Park or neutral.

Turn the ignition switch to the ON
(II) position. Turn on the
headlights, and check their
brightness. If the headlights are
very dim or do not come on at all,
the battery is discharged. See

on page

Turn the ignition switch to the
START (III) position. If the
headlights do not dim, check the
condition of the fuses. If the fuses
are OK, there is probably
something wrong with the
electrical circuit for the ignition
switch or starter motor. You will
need a qualified mechanic to
determine the problem (see

on page

If the headlights dim noticeably or
go out when you try to start the
engine, either the battery is dis-
charged or the connections are
corroded. Check the condition of the
battery connections (see page

You can then try jump starting the
vehicle from a booster battery (see
page

400

387

415

If the Engine Won’t Start

Nothing Happens or the Starter
Motor Operates Very Slowly

Jump Starting

Emergency Towing

398

Main Menu

In this case, the starter motor’s
speed sounds normal, or even faster
than normal, when you turn the
ignition switch to the START (III)
position, but the engine does not run.

Are you using the proper starting
procedure? Refer to

on page

Are you using a properly coded
key? An improperly coded key will
cause the immobilizer system
indicator in the instrument panel
to blink rapidly (see page

Do you have fuel? Check the fuel
gauge; the low fuel indicator may
not be working.

There may be an electrical
problem, such as no power to the
fuel pump. Check all the fuses
(see page

If you find nothing wrong, you will
need a qualified technician to find
the problem. See

on page

305

408

415

If the Engine Won’t Start

The Starter Operates Normally

Starting the

Engine

Emergency

Towing

ing
Ca
re

of
th

ne
x

399

Main Menu

＋

−

CONTINUED

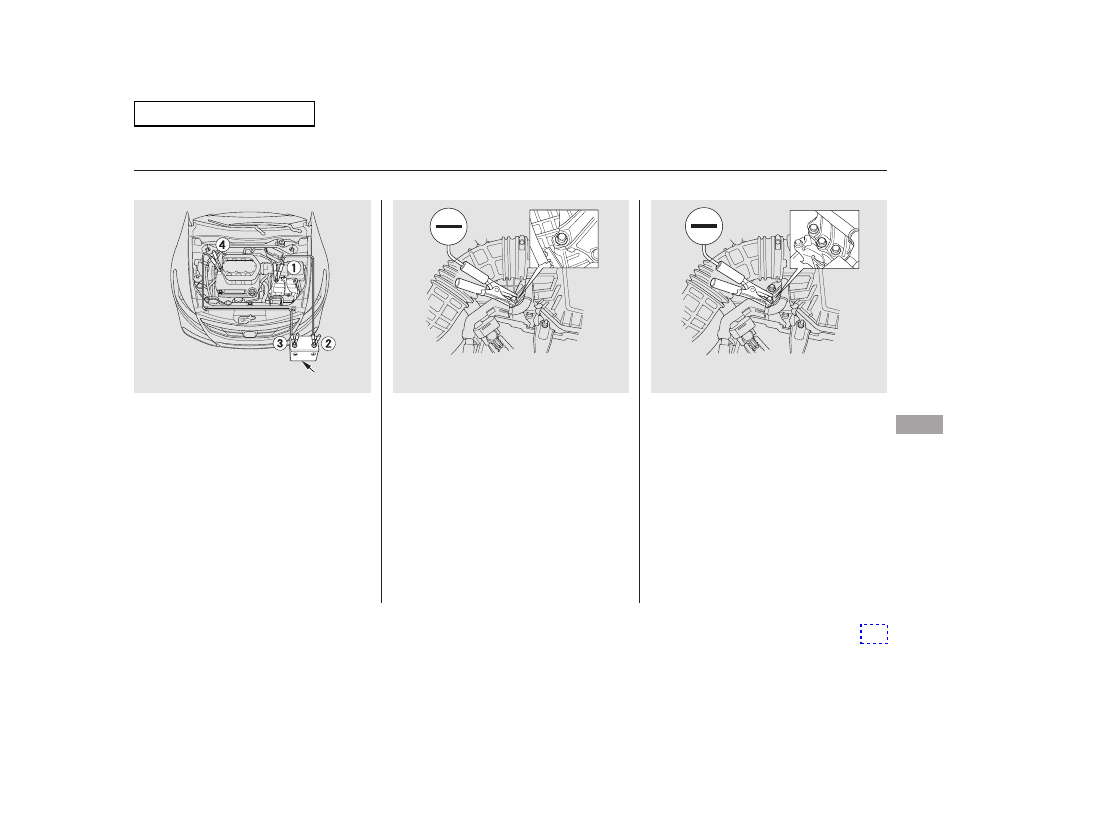

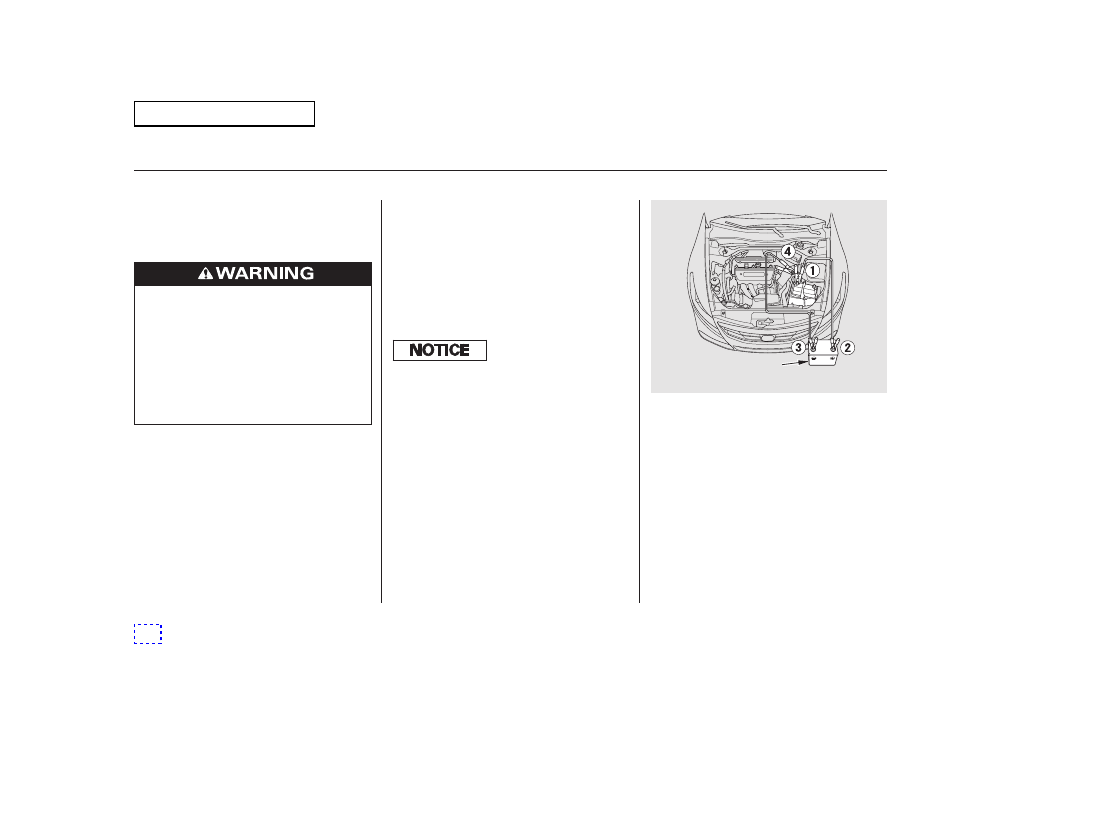

Connect one jumper cable to the
positive (

) terminal on your

battery. Connect the other end to
the positive (

) terminal on the

booster battery.

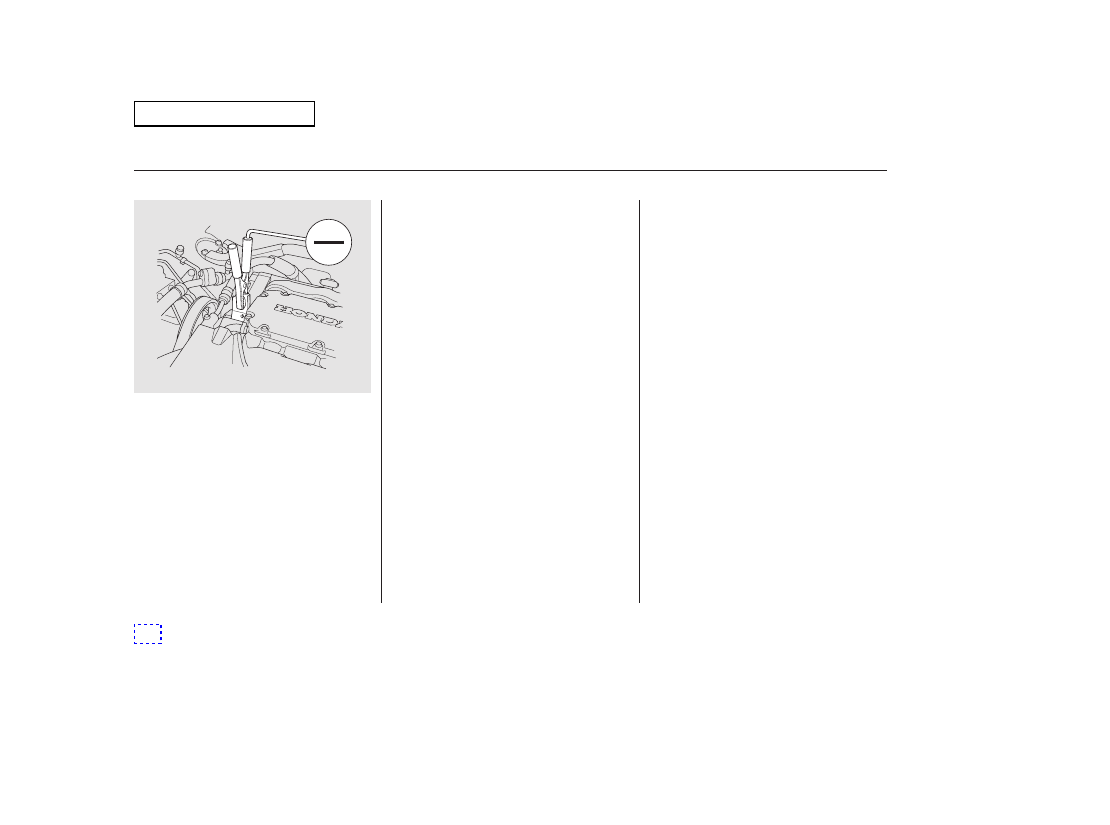

Connect the second jumper cable
to the negative (

) terminal on

the booster battery. Connect the
other end to the engine mounting
bolt (automatic) or the
transmission mounting bolt
(manual), as shown. Do not
connect this jumper cable to any
other part of the engine.

4-cylinder models

Jump Starting

ing
Ca
re

of
th

ne
x

401

BOOSTER BATTERY

V6 models

4-cylinder models with automatic
transmission

4-cylinder models with manual
transmission

Main Menu

The pointer of your vehicle’s
temperature gauge should stay in
the midrange under most conditions.
If it climbs to the red mark, you
should determine the reason (hot
day, driving up a steep hill, etc.).

If your vehicle overheats, you should
take immediate action. The only
indication may be the temperature
gauge climbing to or above the red
mark. Or you may see steam or
spray coming from under the hood.

Safely pull to the side of the road.
Put the transmission in neutral
(manual) or Park (automatic), and
set the parking brake. Turn off all
accessories, and turn on the
hazard warning lights.

If you see steam and/or spray
coming from under the hood, turn
off the engine. Wait until you see
no more signs of steam or spray,
then open the hood.

If you do not see steam or spray,
leave the engine running and
watch the temperature gauge. If
the high heat is due to overloading,
the engine should start to cool
down almost immediately. If it
does, wait until the temperature
gauge comes down to the midpoint,
then continue driving.

If the temperature gauge stays at
the red mark, turn off the engine.

Look for any obvious coolant leaks,
such as a split radiator hose.
Everything is still extremely hot,
so use caution. If you find a leak, it
must be repaired before you
continue driving (see

on page

415

CONTINUED

Emergency

Towing

If the Engine Overheats

ing
Ca
re

of
th

ne
x

403

Steam and spray from an
overheated engine can
seriously scald you.

Do not open the hood if steam
is coming out.

Driving with the temperature gauge
pointer at the red mark can cause
serious damage to the engine.

Main Menu

If you do not find an obvious leak,
check the coolant level in the
radiator reserve tank. Add coolant
if the level is below the MIN mark.

Using gloves or a large heavy
cloth, turn the radiator cap
counterclockwise, without pushing
down, to the first stop. After the
pressure releases, push down on
the cap, and turn it until it comes
off.

Start the engine, and set the
temperature to maximum heat
(climate control to AUTO at
‘‘

’’). Add coolant to the

radiator up to the base of the filler
neck. If you do not have the
proper coolant mixture available,
you can add plain water.
Remember to have the cooling
system drained and refilled with
the proper mixture as soon as you
can.

Put the radiator cap back on
tightly. Run the engine, and check
the temperature gauge. If it goes
back to the red mark, the engine
needs repair (see

on page

If the temperature stays normal,
check the coolant level in the
radiator reserve tank. If it has
gone down, add coolant to the
MAX mark. Put the cap back on
tightly.

If there was no coolant in the
reserve tank, you may need to add
coolant to the radiator. Let the
engine cool down until the pointer
reaches the middle of the tempera-
ture gauge, or lower, before check-
ing the radiator.

11.

10.

415

If the Engine Overheats

Emergency

Towing

404

Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.

Always let the engine and
radiator cool down before
removing the radiator cap.

Main Menu

This indicator should never come on
when the engine is running. If it
starts flashing or stays on, the oil
pressure has dropped very low or
lost pressure. Serious engine
damage is possible, and you should
take immediate action.

Let the vehicle sit for a minute.
Open the hood, and check the oil
level (see page

). An engine

very low on oil can lose pressure
during cornering and other driving
maneuvers.

If necessary, add oil to bring the
level back to the full mark on the
dipstick (see page

Start the engine, and watch the oil
pressure indicator. If it does not go
out within 10 seconds, turn off the
engine. There is a mechanical
problem that needs to be repaired
before you can continue driving
(see

on page

If the charging system indicator
comes on brightly when the engine
is running, the battery is not being
charged.

Immediately turn off all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly.

Go to a service station or garage
where you can get technical
assistance.

Safely pull off the road and shut
off the engine. Turn on the hazard
warning lights.

290

415

350

Low Oil Pressure
Indicator

Emergency Towing

Charging System
Indicator

Low Oil Pressure Indicator, Charging System Indicator

ing
Ca
re

of
th

ne
x

405

Running the engine with low oil
pressure can cause serious mechanical
damage almost immediately. Turn of f
the engine as soon as you can saf ely get
the vehicle stopped.

Main Menu

If the indicator comes on
while driving, it means one

of the engine’s emissions control
systems may have a problem. Even
though you may feel no difference in
your vehicle’s performance, it can
reduce your fuel economy and cause
increased emissions. Continued
operation may cause serious damage.

If your vehicle has an automatic
transmission, the malfunction
indicator lamp may also come on
with the ‘‘D’’ indicator.

If the indicator comes on repeatedly,
even though it may turn off as you
continue driving, have your vehicle
checked by your dealer as soon as
possible.

Your vehicle has certain ‘‘readiness
codes’’ that are part of the on-board
diagnostics for the emissions
systems. In some states, part of the
emissions testing is to make sure

these codes are set. If they are not
set, the test cannot be completed.

If the battery in your vehicle has
been disconnected or gone dead,
these codes may be erased. It can
take several days of driving under
various conditions to set the codes
again.

If you have recently refueled your
vehicle, the indicator coming on
could be due to a loose or missing
fuel fill cap. Tighten the cap until it
clicks at least once. Tightening the
cap will not turn the indicator off
immediately; it takes several days of
normal driving.

To check if they are set, turn the
ignition switch to the ON (II)
position, without starting the engine.
The malfunction indicator lamp will
come on for 20 seconds. If it then
goes off, the readiness codes are set.
If it blinks five times, the readiness
codes are not set. If possible, do not
take your vehicle for an emissions
test until the readiness codes are set.
Refer to

for

more information (see page

433

Readiness Codes

Emissions Testing

Malfunction Indicator Lamp

406

If you keep driving with the
malf unction indicator lamp on, you can
damage your vehicle’s emissions
controls and the engine. Those repairs
may not be covered by your vehicle’s
warranties.

Main Menu

If you must drive the vehicle a short
distance in this condition, drive
slowly and carefully.

However, if the brake pedal does not
feel normal, you should take
immediate action. A problem in one
part of the system’s dual circuit
design will still give you braking at
two wheels. You will feel the brake
pedal go down much farther before
the vehicle begins to slow down, and
you will have to press harder on the
pedal.

Slow down by shifting to a lower
gear, and pull to the side of the road
when it is safe. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed and repaired as
soon as possible (see

on page

If the ABS indicator and the VSA
system indicator come on with the
brake system indicator, have your
vehicle inspected by your dealer
immediately.

The brake system
indicator normally
comes on when

you turn the ignition switch to the
ON (II) position and as a reminder to
check the parking brake. It will stay
on if you do not fully release the
parking brake.

If the brake system indicator comes
on while driving, the brake fluid level
is probably low. Press lightly on the
brake pedal to see if it feels normal.
If it does, check the brake fluid level
the next time you stop at a service
station (see page

If the fluid level is low, take your
vehicle to a dealer, and have the
brake system inspected for leaks or
worn brake pads.

362

415

Emergency

Towing

Brake System Indicator

ing
Ca
re

of
th

ne
x

407

U.S.

Canada

Main Menu

Also check the combined fuse box in
the under-hood fuse box.

If something electrical in your
vehicle stops working, the first thing
you should check for is a blown fuse.
Determine from the chart on pages

and

, or the diagram on

the fuse box lid or the fuse label,
which fuse or fuses control that
component. Check those fuses first,
but check all the fuses before
deciding that a blown fuse is not the
cause. Replace any blown fuses and
check if the device works.

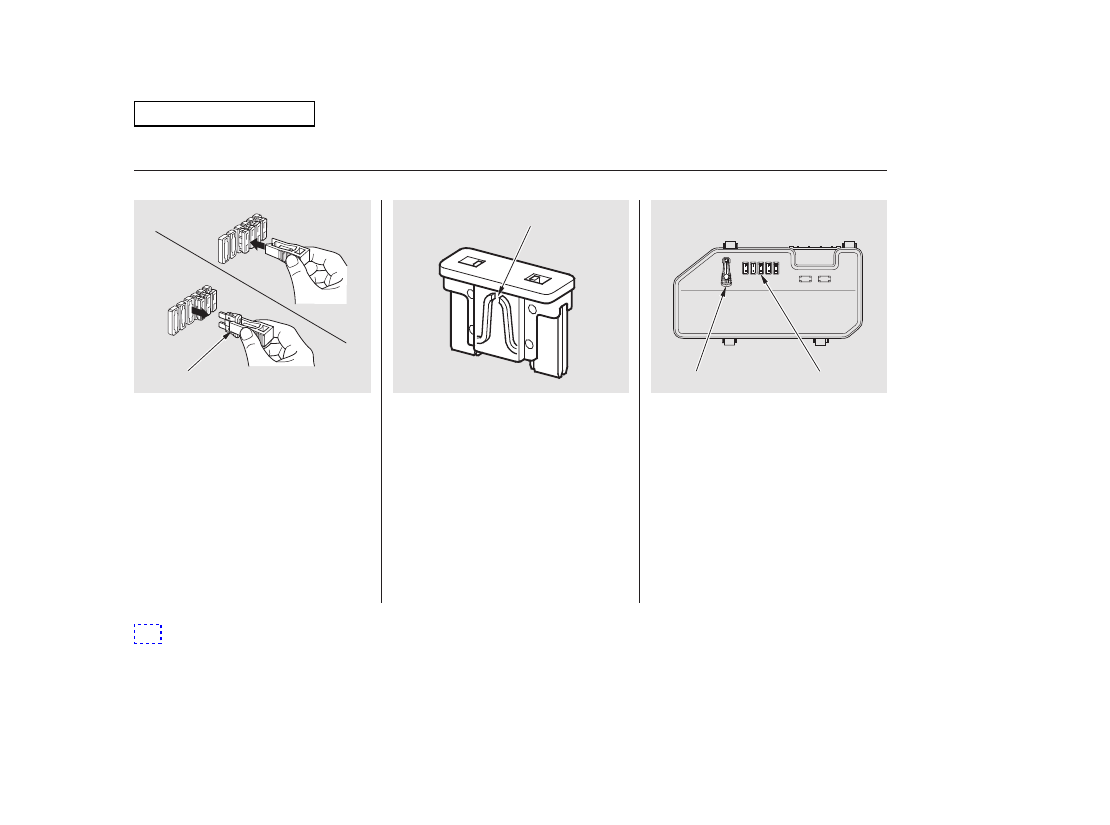

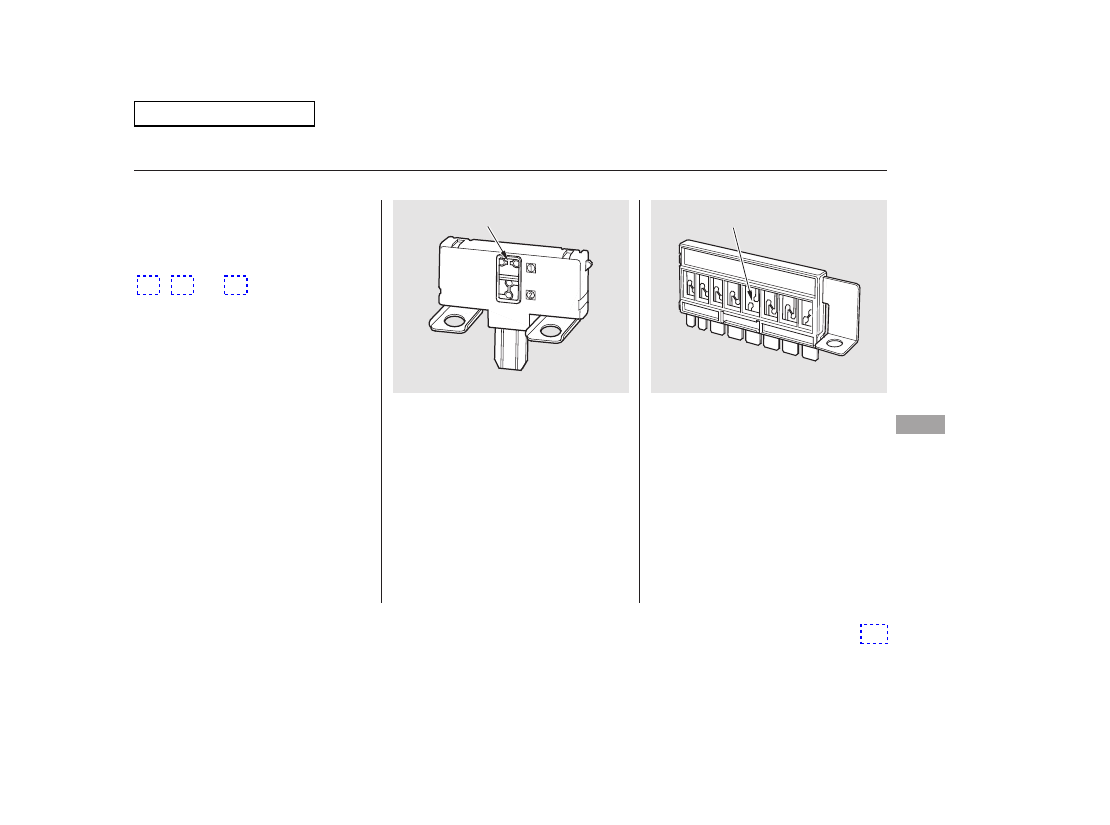

Check each of the large fuses in
the under-hood fuse box by
looking at the wire inside.
Removing these fuses requires a
Phillips-head screwdriver.

Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are off.

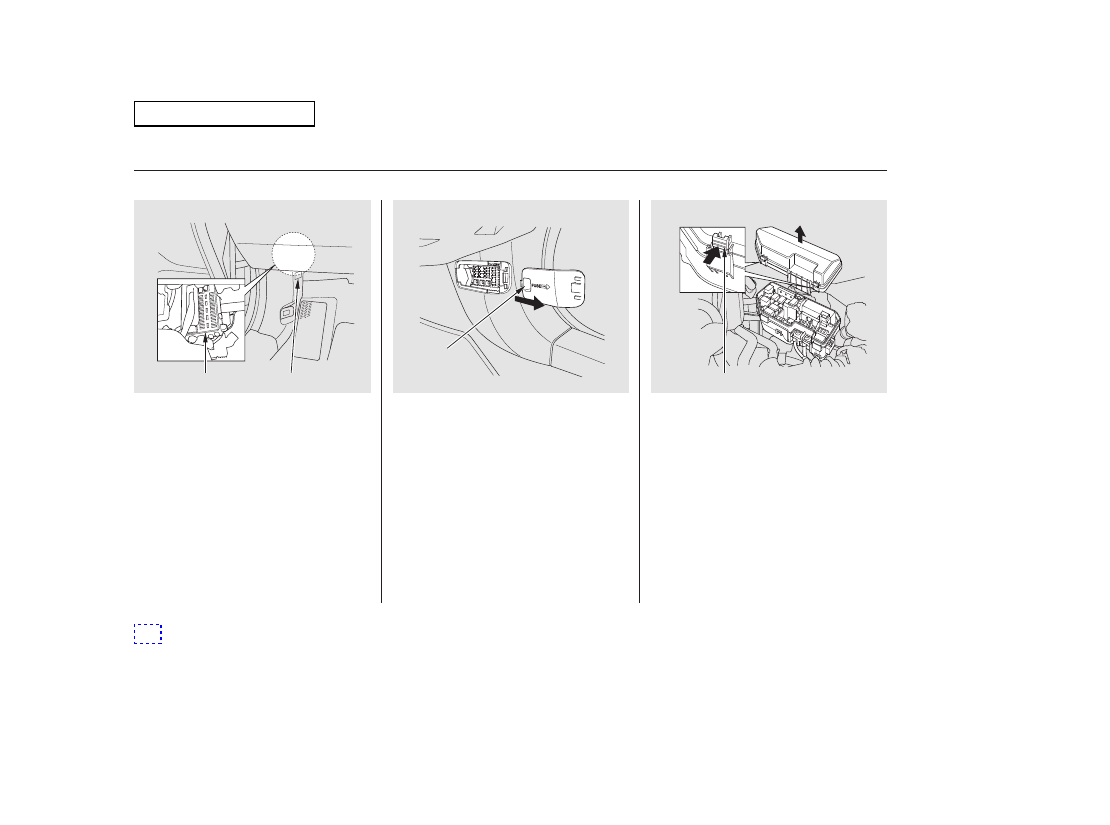

On the under-hood and passenger’s
side interior fuse boxes, remove
the cover from each fuse box.

412 413

414

CONTINUED

Fuses

Checking and Replacing Fuses

ing
Ca
re

of
th

ne
x

409

FUSE

BLOWN

Main Menu

If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem with your
vehicle. Leave the blown fuse in
that circuit, and have your vehicle
checked by a qualified technician.

If you replace the blown fuse with a
spare fuse that has a lower rating, it
might blow out again. This does not
indicate that anything is wrong.
Replace the fuse with one of the
correct rating as soon as you can.

If you cannot drive the vehicle
without fixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
from one of the other circuits. Make
sure you can do without that circuit
temporarily (such as the accessory
power socket).

Fuses

ing
Ca
re

of
th

ne
x

411

Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.

Main Menu

−
−

−
−
−
−
−

−

−
−
−
−
−

＊

−

−
−

−
−
−

−
−

−

＊
＊

−
−

＊

No.

Circuits Protected

Amps.

No.

Amps.

Circuits Protected

Amps.

No.

Driver’s Side Fuse Box

IG Main

Rear Defroster

Sub Fan Motor

Not Used

Heater Motor

Hazard

Horn, Stop

Not Used

IG Coil

FI Sub

Back Up

Interior Lights

FI Main

DBW

Not Used

Back Up, FI ECU

MG Clutch

Fan Relay

Battery

Passenger’s Side Fuse Box

Not Used

ABS/VSA

ABS/VSA Motor

Passenger’s Side Fuse Box

Not Used

100 A

120 A

40 A

30 A

(40 A)

30 A

(60 A)

30 A

Not Used

Sub Fan Motor

Wiper Motor

Main Fan Motor

Driver’s Side Light Main

Driver’s Side Fuse Box

Passenger’s Side Light Main

(40 A)

50 A

40 A

20 A

40 A

15 A

20 A

15 A

10 A

7.5 A

15 A

7.5 A

V6 models

1 :

2 :

4-cylinder models

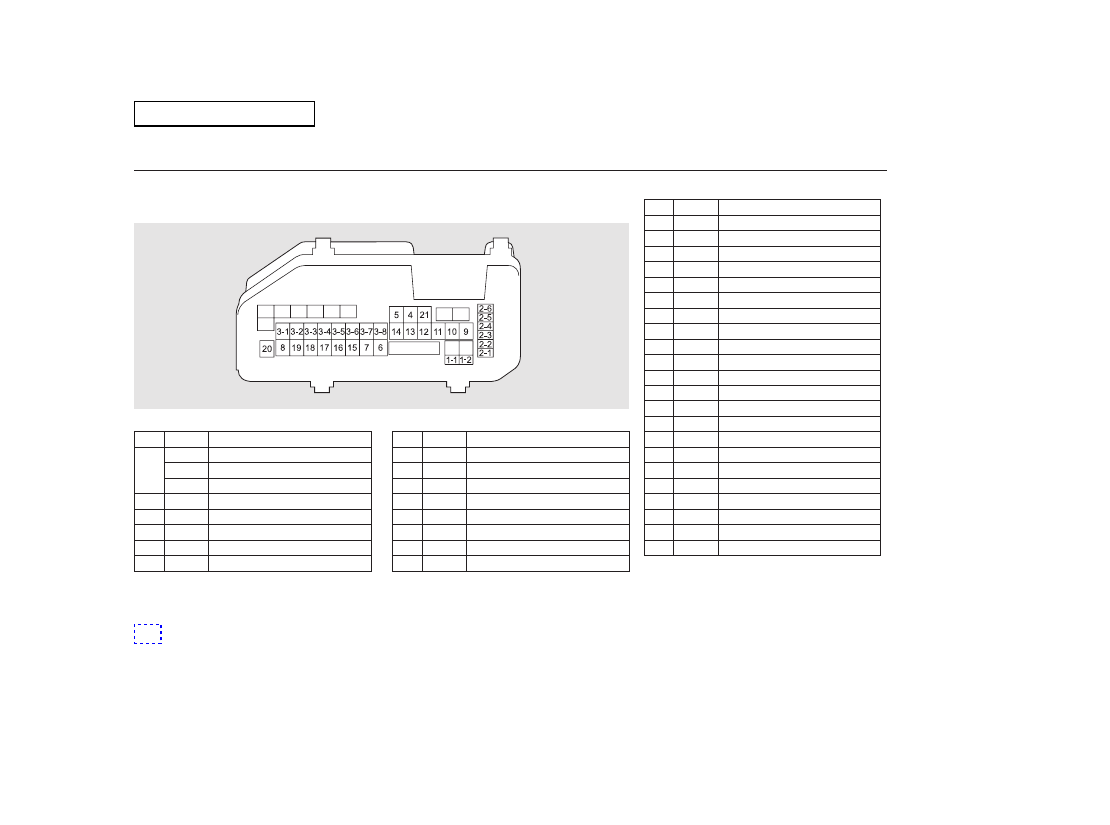

Fuse Locations

412

UNDER-HOOD FUSE BOX

Main Menu

Honda Accord Coupe L4 (2011 year). Manual - part 26
