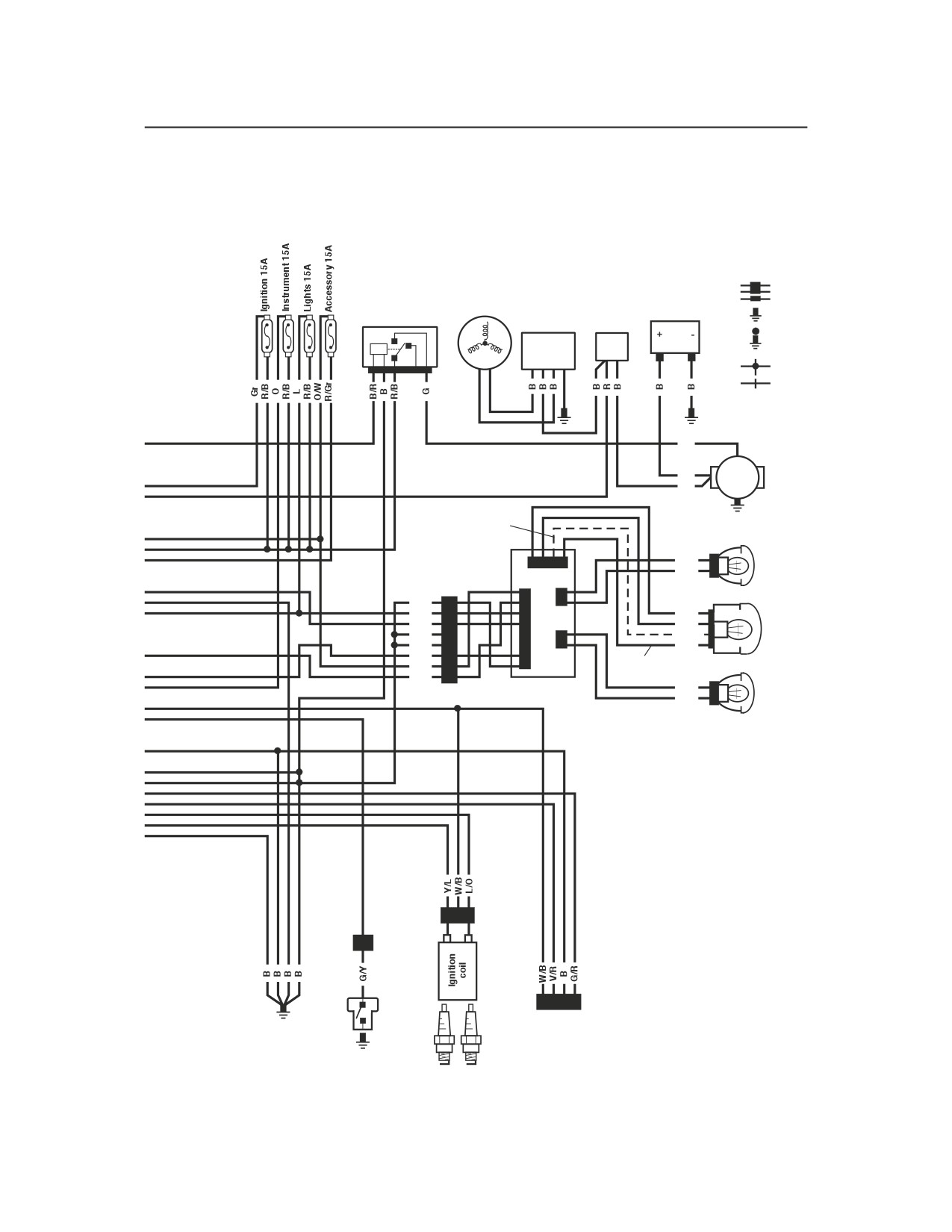

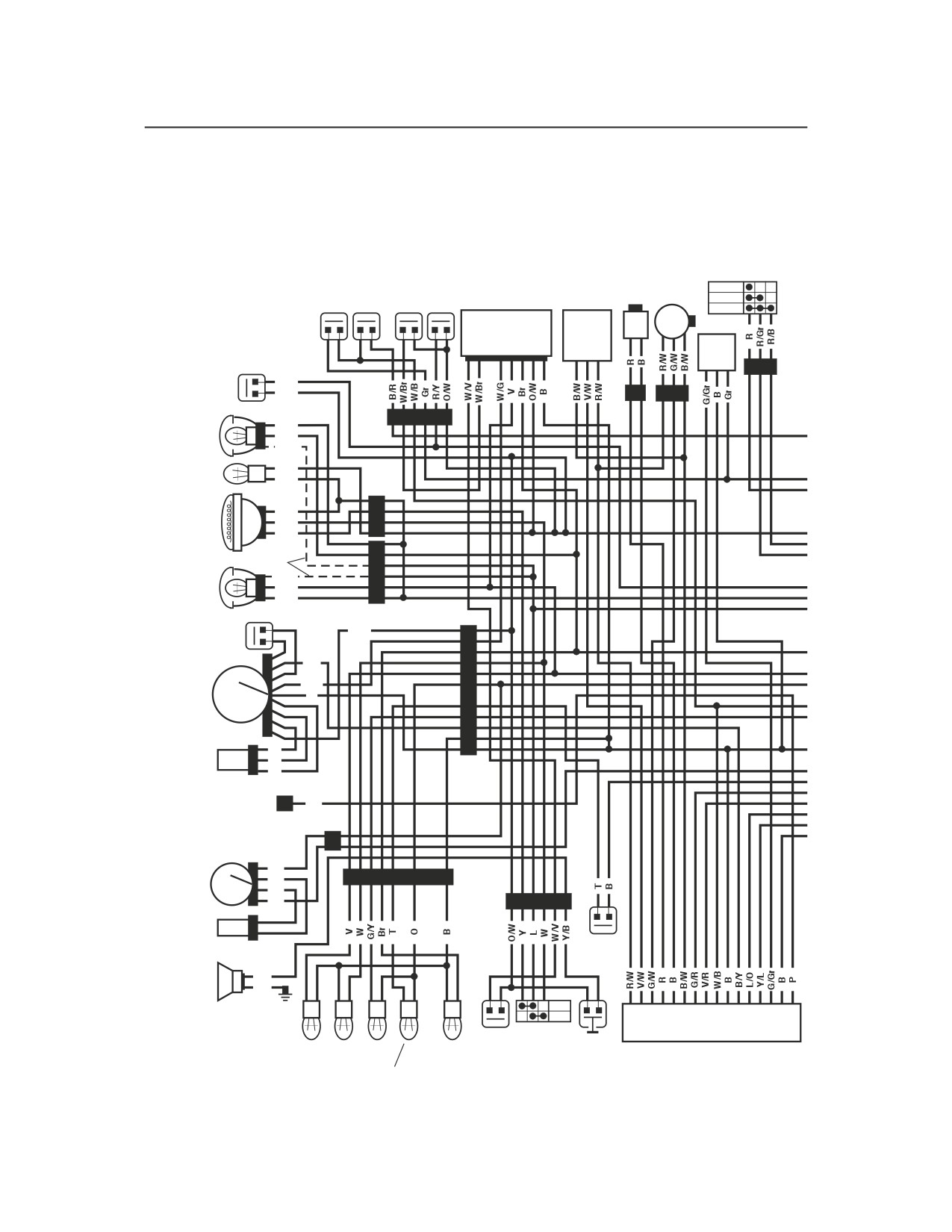

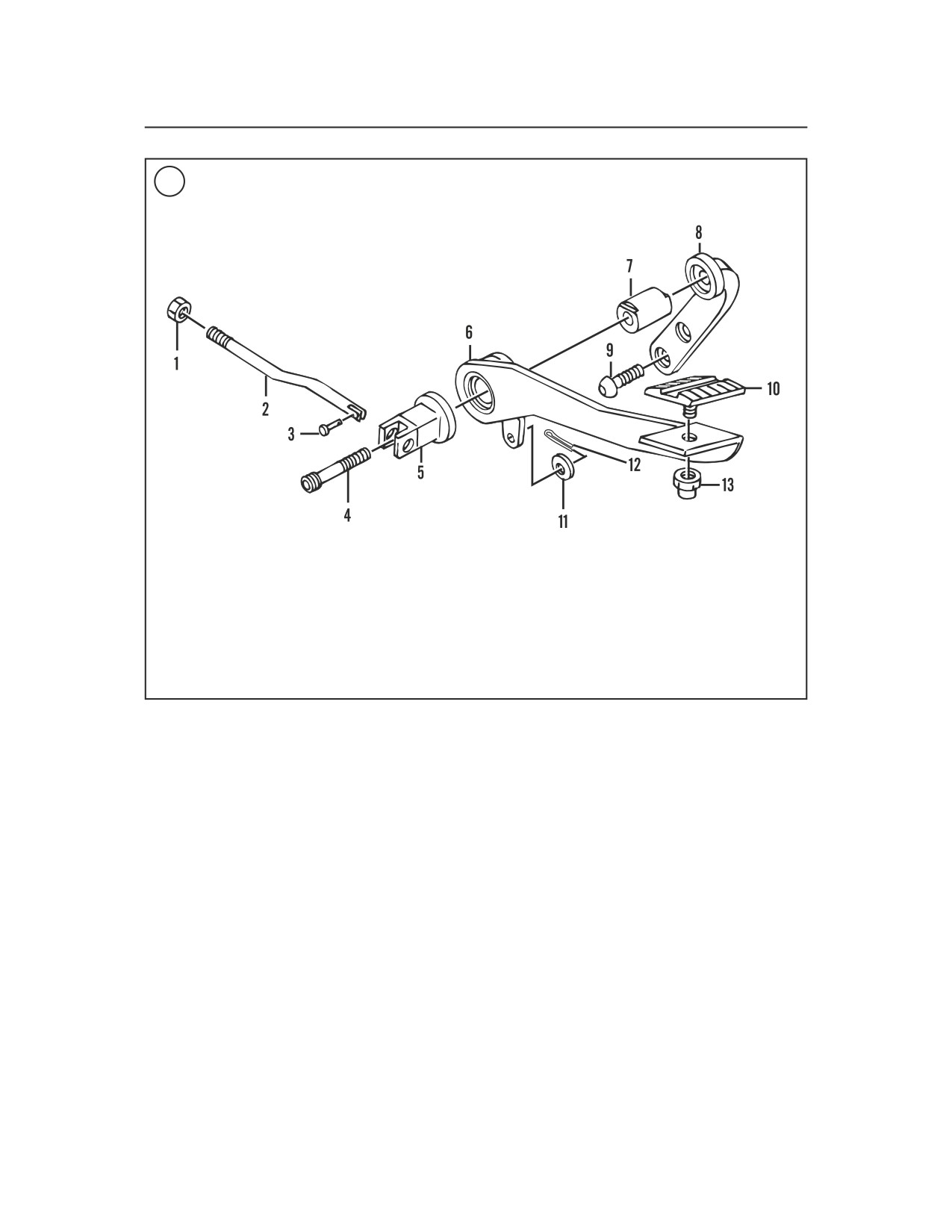

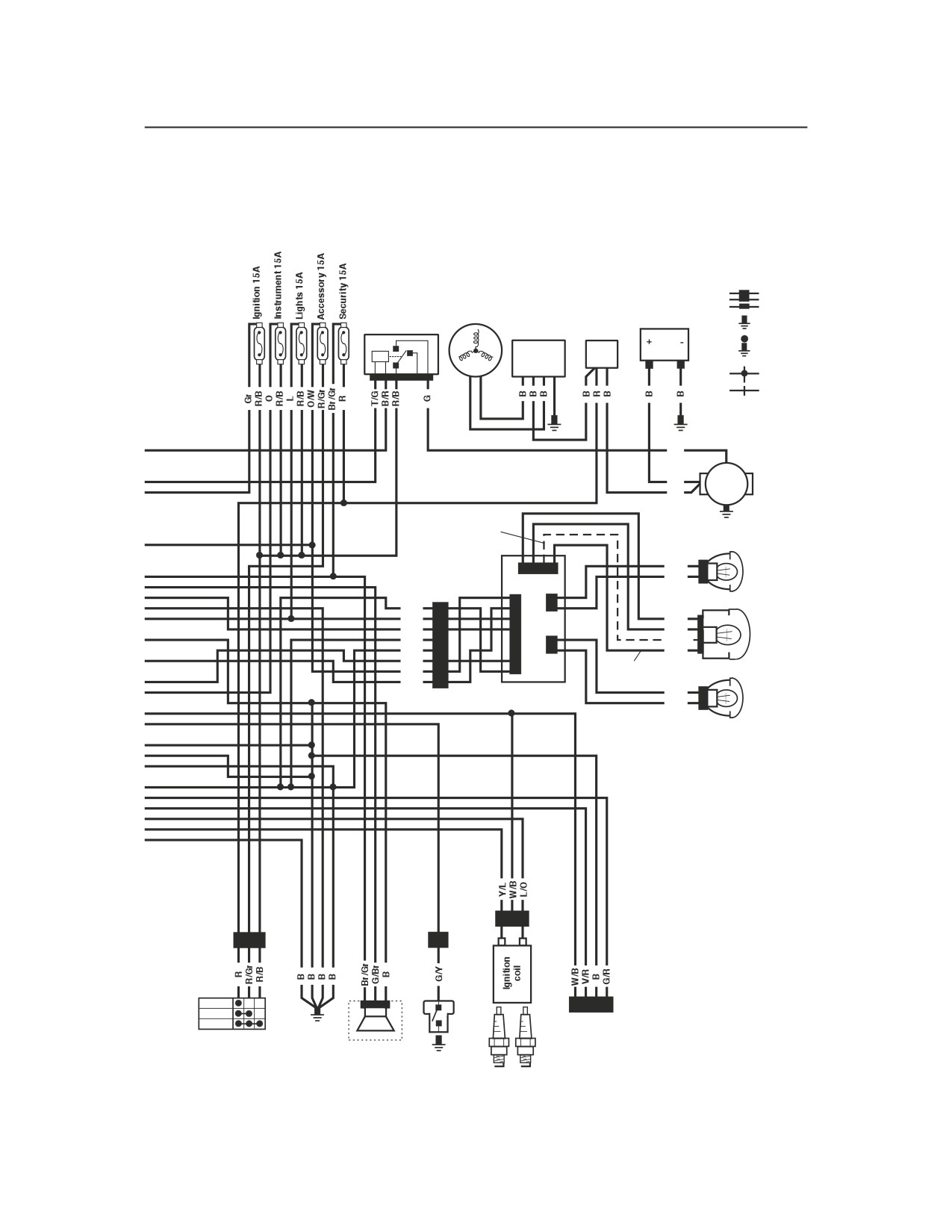

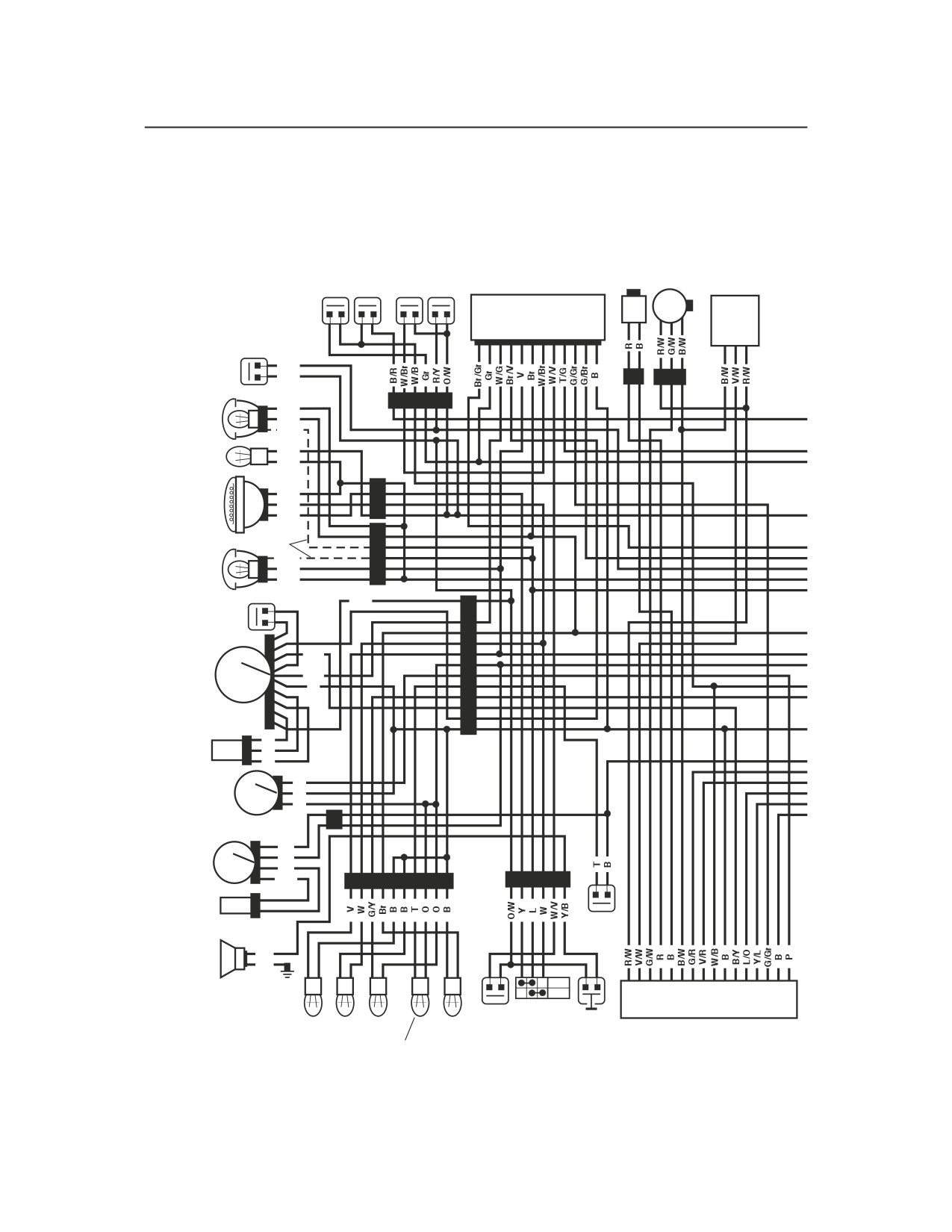

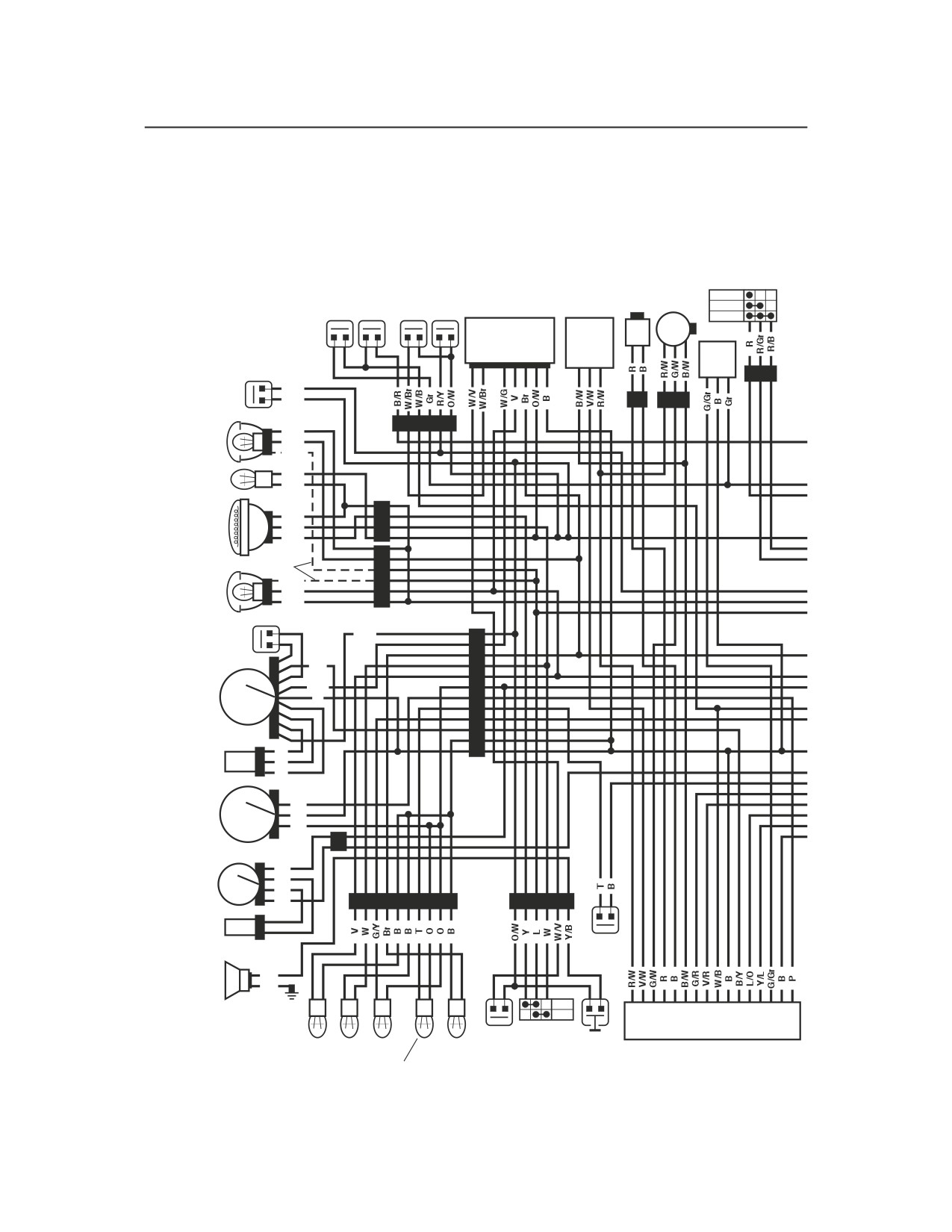

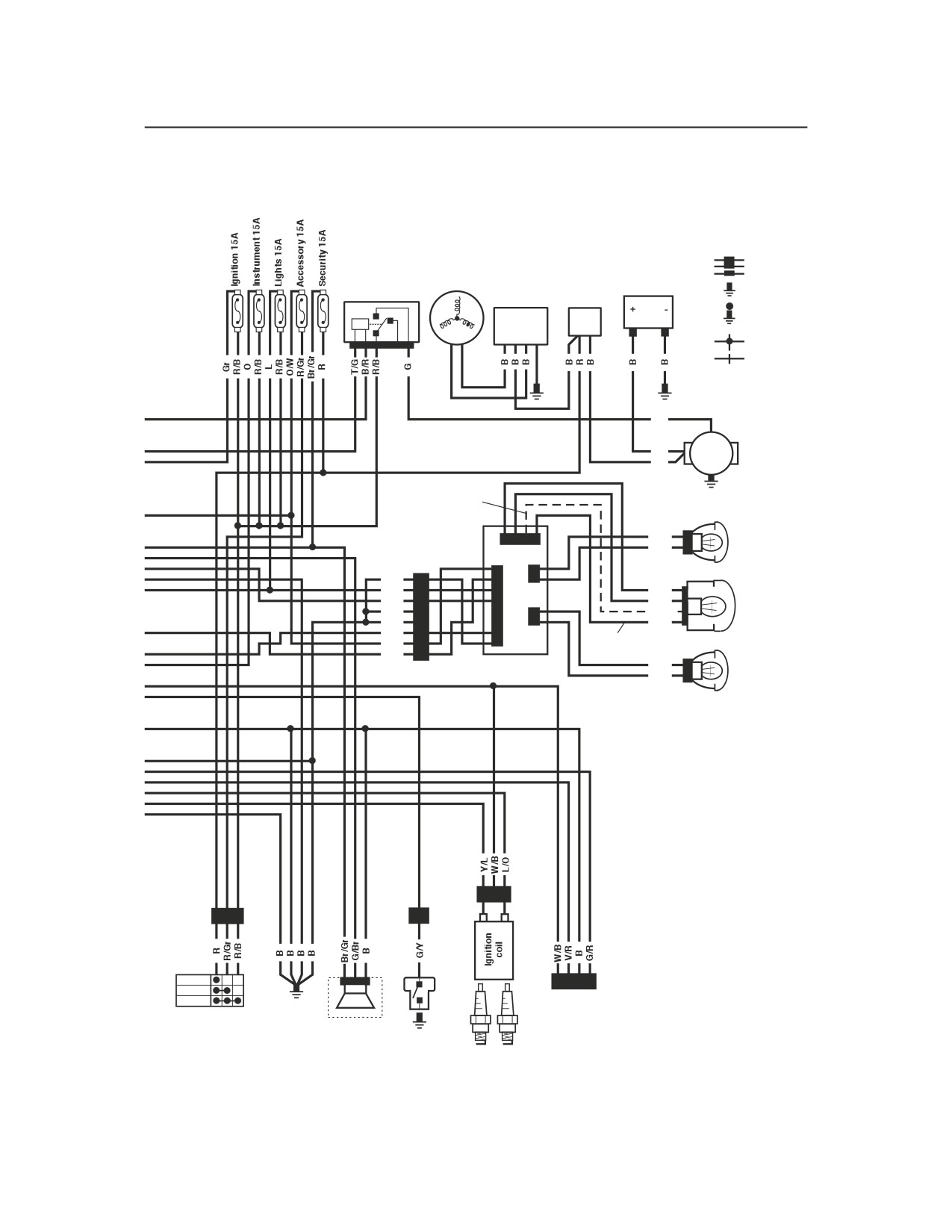

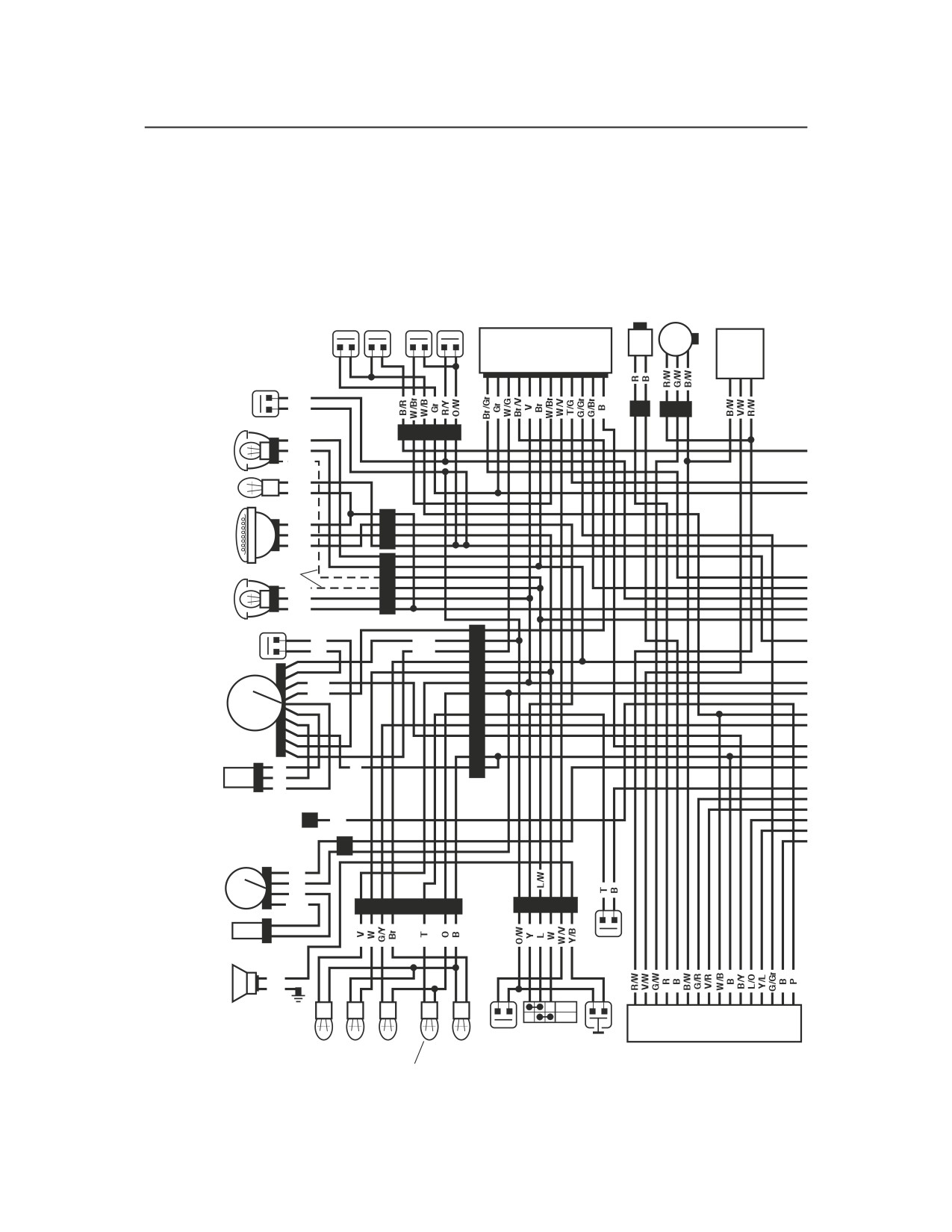

SUPPLEMENT
The fuse ratings are identical to prior years. Refer to
2. Disconnect the negative battery cable as described
Figure 86 or Figure 87 for fuse location on the panel.
in Chapter Eight.
3. Hold onto both sides of the cover, pull straight out
Fuse Replacement
and remove the cover (Figure 83) from the electrical
panel.
NOTE
4. Insert a small flat blade screwdriver under the
On models so equipped, always disarm
blown fuse and disengage it from the fuse panel.
the optional TSSM security system
prior to disconnecting the battery or the
5. Install a new fuse and press it into the fuse panel
siren will sound.
until it bottoms.
1. Remove the seat as described in Chapter Thirteen.
6. Install the cover onto the electrical panel.
Table 11 REPLACEMENT BULBS
Item
Size (all 12 volt) × quantity
Headlamp
55/60
Position lamp*
3.9
Indicator lamps
FXDL, FXDLI
1.1 × 4
FXDP
2.1 × 4
All models except FXDL and FXDP
2.2 × 3
Fuel gauge
FXDL FXDLI, FXDWG, FXDWGI
2.7
FXD, FXDI, FXDC, FXDCI, FXDX,
FXDXI, FXDX-CONV, FXDXT
3.7
FXDP
NA
Front turn signal/running light
27/7 × 2
Front turn signal*
21 × 2
Rear turn signal
27 ×2
Rear turn signal
21 × 2
Tail/brake lamp
2003
7/27
2004-on
7/25
Tail/brake lamp*
5/21
* Indicates bulb specification for HD International models.
Table 12 ELECTRICAL SYSTEM TORQUE SPECIFICATIONS
Item
ft.-lb.
in.-lb.
N•m
Crankshaft Allen screws
-
90-120
10.2-13.6
Electrical panel
Long screws
-
50
5.6
Short screw
-
100
11.3
Ignition coil screws
-
50
5.6
Starter jackshaft bolt
-
60-80
6.8-9.0
Stator screws
-
55-75
6.2-8.4
Voltage regulator bolts
-
60-80
6.8-9.0
|
