CRANK POSITION SENSOR (CKP)

GENERAL

The CKP sensor is a variable reluctance (VR) sensor. It gener-
ates an AC signal by sensing the passing of 30 teeth cast into
the left side flywheel. Two consecutive teeth are missing in the
flywheel to establish a reference point. The CKP sensor sends
a signal to the ECM. This signal is used to reference engine
position (TDC) and engine speed. The CKP sensor is located
near the lower front left corner of the engine crankcase.

NOTE

This part cannot be repaired. Replace upon failure.

REMOVAL

To prevent accidental vehicle start-up, which could cause
death or serious injury, remove main fuse before pro-
ceeding. (00251b)

1.

Remove main fuse.

2.

See

Figure 6-88

. Disconnect CKP sensor harness con-

nector [79A] from wiring harness connector [79B] (4), loc-
ated along left frame downtube.

3.

Remove CKP wire harness from j-clip (3).

4.

Remove screw (2). Carefully remove CKP sensor (1) and
O-ring from engine crankcase.

4

2

1

3

sm01279

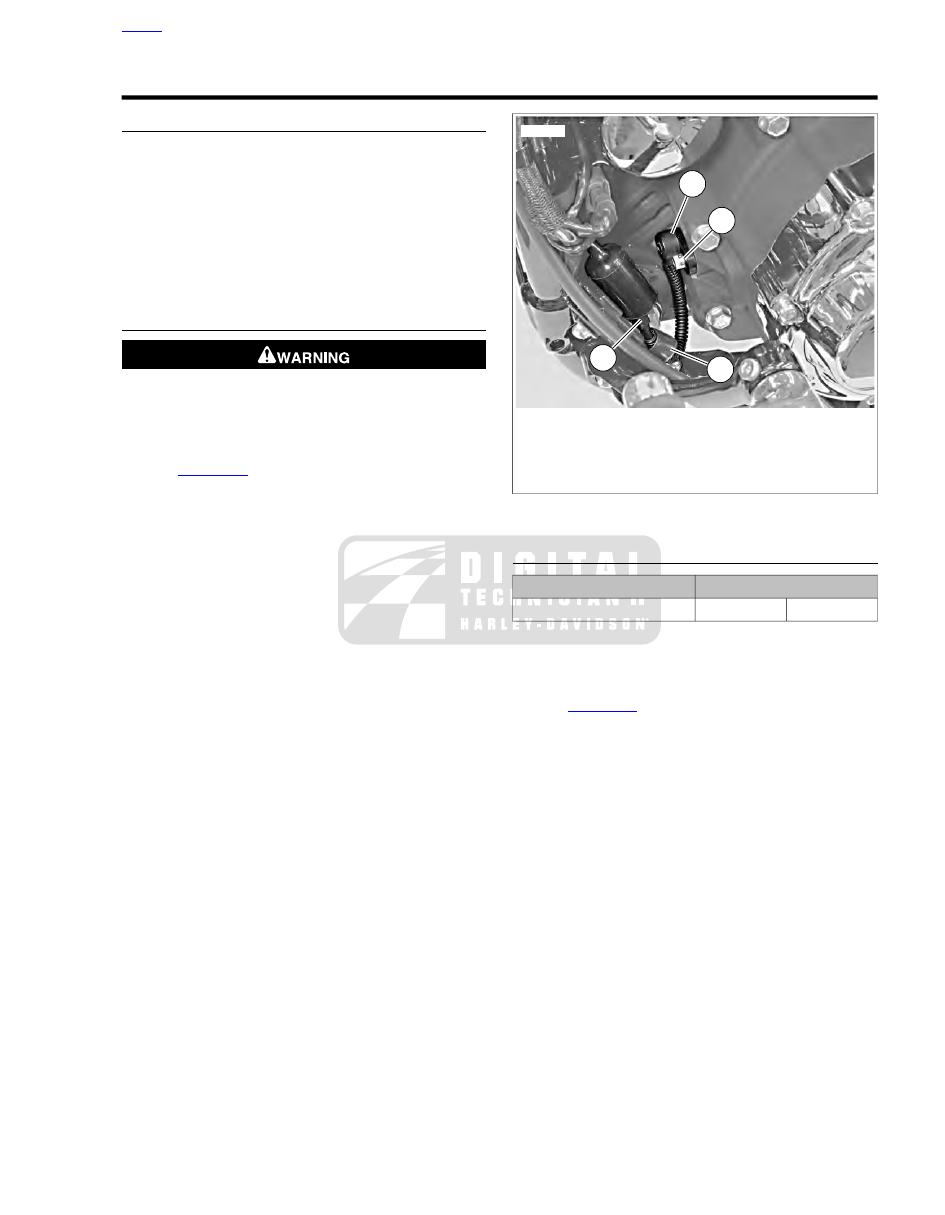

1. CKP sensor
2. Screw
3. Wire harness j-clip
4. CKP sensor harness connector [79] (under pro-

tective rubber boot)

Figure 6-88. CKP Sensor (typical, XL model shown)

INSTALLATION

TORQUE VALUE

FASTENER

10.3-13.6 Nm

90-120

in-lbs

CKP screw

NOTE

The CKP sensor O-ring has a blue teflon coating that provides
lubrication during installation. No other lubrication is needed..

1.

See

Figure 6-88

. Carefully install CKP sensor (1) and O-

ring into engine crankcase with screw (2). Tighten to 90-
120

in-lbs

(10.3-13.6 Nm).

2.

Route CKP sensor wiring harness through j-clip (3).

3.

Attach CKP sensor harness connector [79A] to wiring
harness connector [79B] (4).

4.

Install main fuse.

5.

Start engine and verify operation.

HOME

2013 Sportster Service: Electrical 6-59

15A

I

J

C

D

15A

15A

15A

15A

M

0

P

R

S

U

G

H

A

B

2

5

8

3

4

6

1

K

L

E

F

7

ed01886

1. [61B] Fuse block top view (located under left

side cover)

2. ACCY fuse
3. Battery fuse
4. ECM fuse
5. Lights fuse
6. Start relay
7. System relay
8. Ignition fuse

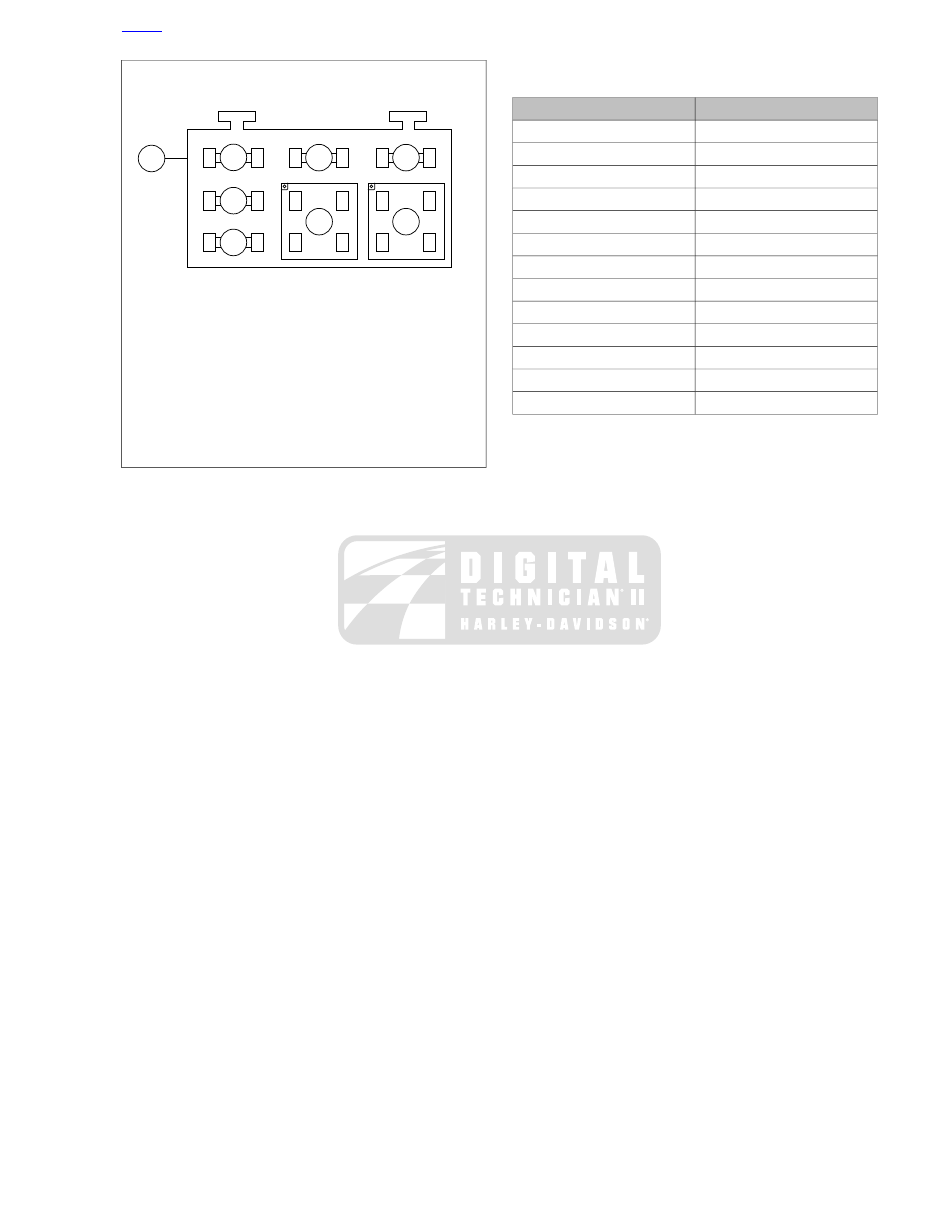

Figure B-2. Fuse Block and Socket Terminals

Table B-2. Wire Color Codes

WIRE COLOR

ALPHA CODE

Blue

BE

Black

BK

Brown

BN

Green

GN

Gray

GY

Light Green

LGN

Orange

O

Pink

PK

Red

R

Tan

TN

Violet

V

White

W

Yellow

Y

HOME

2013 Sportster Service: Appendix B Wiring B-5

2013 SPORTSTER WIRING DIAGRAMS

Refer to the table below for wiring diagram information.

Wiring Diagram List

LOCATION

DIAGRAM

Figure B-3

Battery Power

Figure B-4

Ignition Power

Figure B-5

Accessory Power

Figure B-6

Chassis Grounds

Figure B-7

Main Harness: 2013 Sportster

Figure B-8

Engine Management: 2013 Sportster

Figure B-9

Starting and Charging Circuit: 2013 Sportster

Figure B-10

Lighting (1 of 2): 2013 Sportster

Figure B-11

Lighting (2 of 2): 2013 Sportster

Figure B-12

Instrument, Indicators, and Hand Controls: 2013 Sportster

Figure B-13

Security Circuit: 2013 Sportster

Figure B-14

Security Circuit with Anti-Theft Tracking Module: 2013 Sportster

HOME

B-6 2013 Sportster Service: Appendix B Wiring

86

85

30

87

2

1

3

5

K

F

L

E

1

[160B]

[20B]

[20A]

Battery

BK

BK

BK

BK

R

R

R

R

R

R

R

R

R

R

ECM
Fuse

15A

[61B]

S

A

B

U

Battery

Fuse

15A

P

R

R

R

Ignition Switch

P&A

Battery

[5B]

2

2

[142B]

[142A]

A

A

Security

Siren

(Optional)

[30B]

[30A]

1

1

TSM, TSSM

[78B]

[78A]

31

31

ECM

XR

XL

System

Relay

+

+

[77B]

[77A]

Voltage

Regulator

BN/GY

BN/GY

BE/GY

BN/GY

BN/GY

BN/GY

BN/GY

[108A]

[108B]

B

B

Speedometer

BN/GY

BE/GY

BE/GY

BN/GY

BE/GY

B+

IGN

ACC

OFF

IGN

ACC

Starter

Main Fuse

30A

[5]

[39A]

[39B]

5

5

Tachometer

BN/GY

BN/GY

BN/GY

[39A]

[39B]

5

5

Speedometer

BN/GY

Red

Band

em00958

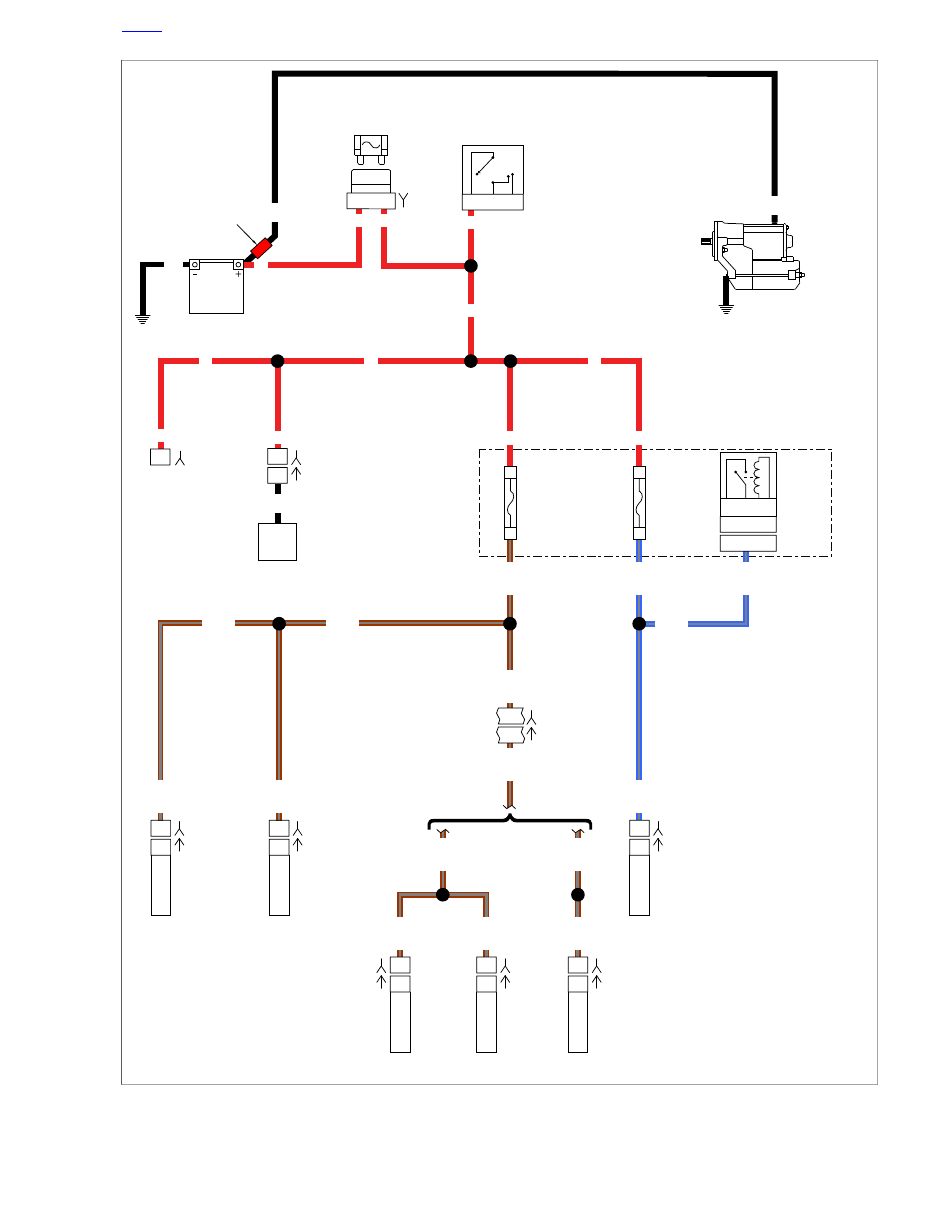

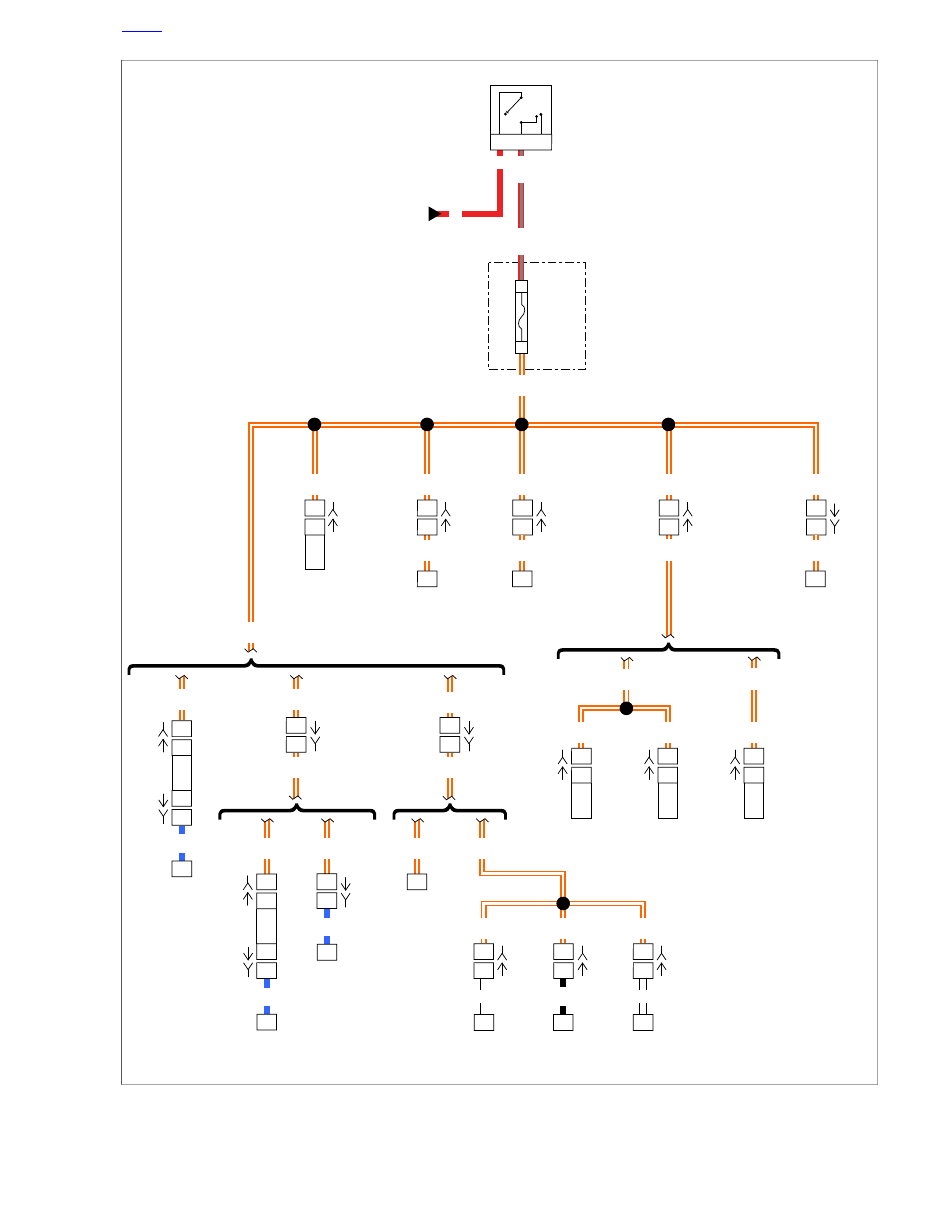

Figure B-3. Battery Power

HOME

2013 Sportster Service: Appendix B Wiring B-7

86

85

30

87

2

1

3

5

I

D

J

C

4

2

2

[30B]

[30A]

[24B]

[24A]

[22B]

[22A]

[20B]

[20A]

Battery

Power

BE

BE

BE

BE

BE

BE

BE

BE

GY

IGN

Fuse

15A

[61B]

A

B

Lights

Fuse

15A

G

H

R/BK

R/BK

R/BK

R/BK

R

R

Ignition Switch

TSM,

TSSM,

HFSM

3

3

DLC

[91A]

3

3

BE

BE

BE

3

3

3

3

4

4

Left

Turn

Lamp

Right

Turn

Lamp

Right
Turn/

Tail

Lamp

Except

XR

Dual Stop Lamps

Single Stop Lamp

XR

Left

Turn/

Tail

Lamp

Tail

Lamp

Converter

Module

Circuit

Board

[31A]

[31B]

BE

1

1

Tail

Lamp

(DOM)

[93A]

[93B]

BE

3

3

6

6

Start

Relay

B+

IGN

ACC

OFF

IGN

ACC

GY

GY

GY

GY

GY

XR

XL

[108B]

[108A]

[39B]

[39A]

1

1

Speedometer

1

1

Tachometer

Indicators

Indicators

O

O

O

O

O

O

O

Headlamp

Hi/Lo

Switch

Low

High

Engine

Stop

Switch

[7A]

[7B]

BE

BE

BE

BE

3

3

[7A]

[7B]

BE

BE

3

3

BE

BE

3

3

[19A]

[19B]

[18A]

[18B]

[94B]

[94A]

em01323

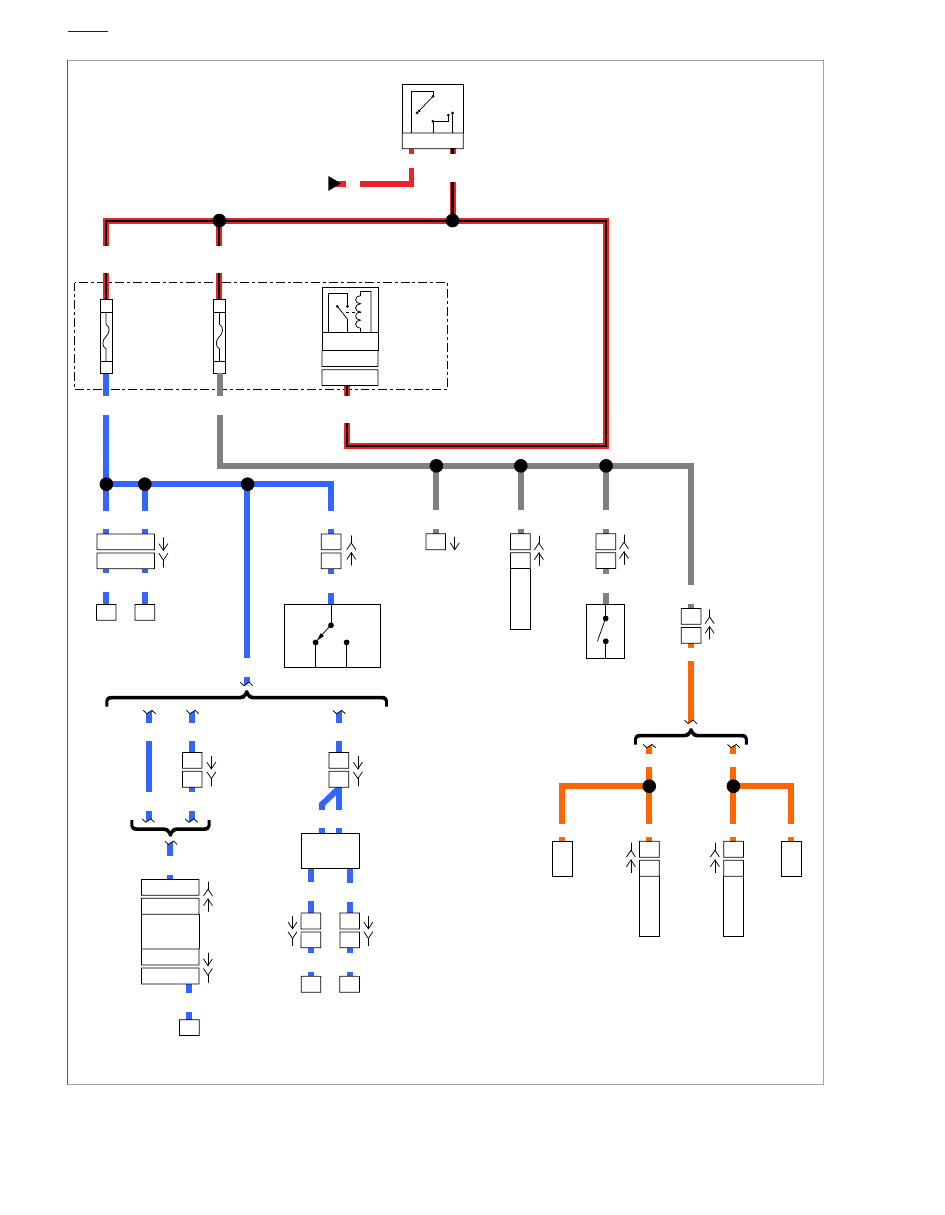

Figure B-4. Ignition Power

HOME

B-8 2013 Sportster Service: Appendix B Wiring

1

1

1

1

O/W

O/W

O/W

O/W

O/W

O/W

O/W

O/W

O/W

O/W

O/W

[20B]

[20A]

[22B]

[22A]

[24B]

[24A]

[121B-B]

[121B-A]

ACC

Fuse

15A

[61B]

M

O

R/GY

R/GY

R

R

Ignition Switch

Left

Turn

Switch

O/W

O/W

Right

Turn

Switch

1

1

1

1

1

1

Position

Lamp

(HDI)

Rear

Stop

Lamp

Switch

[38A]

[38B]

B+

IGN

ACC

OFF

IGN

ACC

Battery

Power

Except

XR

XR

Single Stop Lamp

Dual Stop Lamps

XR

XL

DOM

XL1200C/CP/

CA/CB

Except

XL1200C/CP/

CA/CB

HDI

1

1

[7A]

[7B]

[40A]

[40B]

O/W

O/W

1

1

O/W

O/W

[7A]

[7B]

BE

2

2

1

O/W

O/W

O/W

O/W

O/W

1

6

6

Tail

Lamp

(HDI)

Tail

Lamp

Converter

Module

Circuit

Board

[94B]

[94A]

O/W

O/W

O/W

O/W

[108B]

[108A]

A

A

[39B]

[39A]

6

6

[39B]

[39A]

[93A]

[93B]

O/W

BE

1

1

Tail

Lamp

BE

2

2

1

1

Tail

Lamp

(HDI)

Circuit

Board

[94B]

[94A]

[93A]

[93B]

1

1

3

3

3

3

[19B]

[19A]

[18B]

[18A]

[40B]

[40A]

Left
Tail

Lamp

Right

Tail

Lamp

License

Plate

Lamp

BK

W

W

Speedometer

Speedometer

Tachometer

O/W

em01446

Figure B-5. Accessory Power

HOME

2013 Sportster Service: Appendix B Wiring B-9

ECM

Fuel Pump

And Sender

Assembly

Left

Turn/Stop
Tail Lamp

Right

Turn/Stop
Tail Lamp

License

Plate

Lamp

VSS

TSM, TSSM,

HFSM

Left

Turn

Indicator

High

Beam

Indicator

Right

Turn

Indicator

Left

Turn

Signal

Right

Turn

Signal

DOM

HDI

Except

XL1200C/CP/CA/CB

XL1200C/

CP/CA/CB

Circuit

Board

Except

XR

Dual Stop Lamps

Single Stop Lamp

XR

GND 1

Left Turn Signal

Right Turn Signal

Clutch
Switch

DLC

4

28

10

28

10

2

Position Lamp

(HDI)

Headlamp

Voltage

Regulator

7

7

C

C

12

12

12

12

4

4

-

-

6

6

1

1

8

8

4

Fuel Tank
(XR Only)

1

1

[78A]

[78B]

[24A]

[24B]

[77A]

[77B]

[38B]

[38A]

[31B]

[31A]

Tachometer

Tail

Lamp

7

7

Speedometer

Speedometer

D

D

[20B]

[20A]

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

Indicators

Indicators

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

Battery

BK

BK

Battery

Ground

4

4

4

4

6

6

BK

BK

BK

BK

BK

BK

BK

2

2

1

1

1

1

BK

[7A]

[7B]

BK

BK

BK

BK

6

6

BK

[7A]

[7B]

6

6

6

6

4

4

2

2

2

2

4

4

2

2

2

2

Security Siren

(Optional)

Horn

B

B

C

C

[142A]

[142B]

[39A]

[39B]

[122A]

[122B]

Fuel Sender

Resistor

Assembly

1

1

[200A]

[200B]

3

3

[133A]

[133B]

[210A]

[210B]

[141B]

[141A]

[91A]

[19B]

[19A]

[40B]

[40A]

[18B]

[18A]

XL

XR

Tail Lamp
Converter

Module

[93A]

[93B]

Tail

Lamp

BK

BK

3

3

[40A]

[40B]

[39A]

[39B]

[108A]

[108B]

[18A]

[18B]

[19A]

[19B]

[30A]

[30B]

[94B]

[94A]

Left

Turn

Signal

Right

Turn

Signal

Circuit

Board

Tail

Lamp

BK

BK

[93A]

[93B]

[18A]

[18B]

[19A]

[19B]

[94B]

[94A]

[65B]

[65A]

em01447

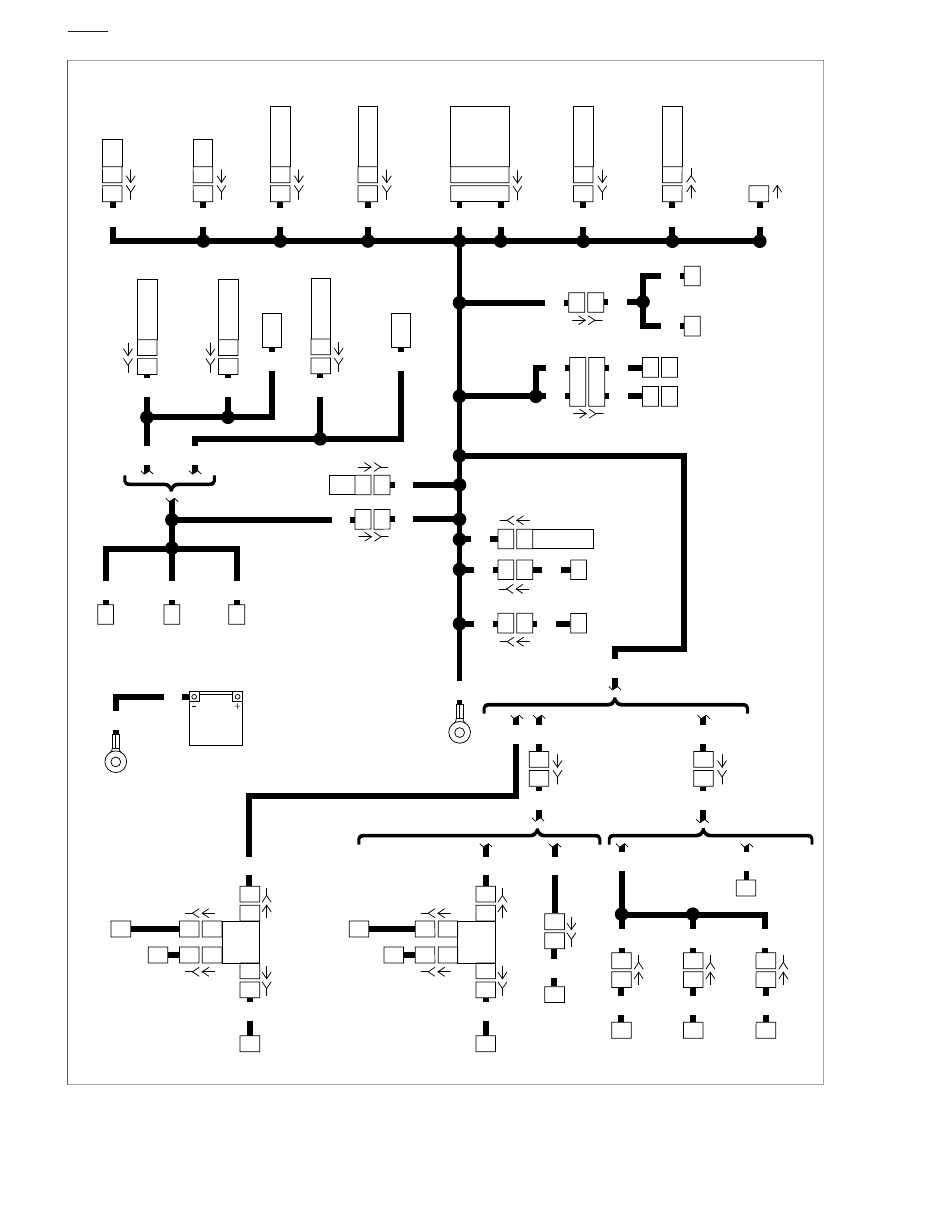

Figure B-6. Chassis Grounds

HOME

B-10 2013 Sportster Service: Appendix B Wiring

Main Fuse

30A

B

A

GND 1

Battery

Ground

Fuel

Tank

ECM

TSM, TSSM, HFSM

IAC (A) Hi

IAC (B) Low

Injector Rear

Injector Front

Battery

IAC (B) Hi

IAC (A) Low

See Instruments,

Indicator Lamps,

And Hand Controls

See Instruments,

Indicator Lamps,

And Hand Controls

See Instruments,

Indicator Lamps,

And Hand Controls

Starter

Red

Band

P&A

Battery

1 2 3 4 5 6 7 8 9 10

12

1

1

2

2

1

2

1 2

DLC

JSS

(HDI)

Ignition

Coil

1 2 3 4

P

o

w

er

Coil

Rear

Coil

F

ront

P

o

w

er

See

Engine

Management

C
B
A

C
B
A

VSS

Front

O2

Sensor

ET

Sensor

Rear

O2

Sensor

Fuel Pump

And Sender

ASSY

1 2 3 4 5 6

1

1

7 8

A

B
C

A

B
C

Power

Signal

Ground

2

1

2

1 Antenna ’A’

Antenna ’B’

Hands Free Antenna

Fuel Sender

Resistor Assy

Oil

Pressure

Sending

Unit

Neutral

Switch

B A

1

Battery

(XR)

Battery

Ignition

Serial Data

Neutral Switch

Left Turn Feed

Right Turn Feed

Right Turn Switch Input

Left Turn Switch Input

Start Relay Control

Clutch Switch

Alarm Signal

Ground

Receive Antenna
XMIT Antenna A
XMIT Antenna B

System Relay

Serial Data

ET

IAT

O2 Sensor (A)

JSS (HDI)

Ground

Coil Rear

CKP Sensor (–)

Switched Power

5V Sensor power

O2 Sensor (B)

TPS Input

TMAP Sensor Input

5V Sensor Ground

Ground

Coil Front

CKP Sensor (+)

VSS Input

1
2
3
4
5
6
7
8
9

10
11
12

1
2
3
4
5
6
7
8
9

10
11
12

1
2
3

1
2
3

2

5
6
7
8
9

10
11
12
13
14

17
18
19

21

23
24
25
26

28
29
30
31

33

35
36

2

5
6
7
8
9

10
11
12
13
14

17
18
19

21

AIS (XR-HDI Only)

20

20

23
24
25
26

28
29
30
31

33

35
36

1
2
3
4
5
6
7
8
9

11
12
13
14

CKP

Sensor

2 1

2 1

Rear

Stop Lamp

Switch

A

B

BK

BK

BK

BK

BK

BK

BK

BK

GN

TN

TN

R

W

1 2 3

1 2 3

BK

BE

BE

R/W

GN/BN

GN/BN

GN/GY

GN/GY

PK/GN

PK/GN

BE/GY

GY/BE

GY/BE

BE/GN

BE/GN

BK/BE

BK/BE

Security

Siren

(Optional)

HFSM Only

To

Horn

See

Starting

And

Charging

Circuit

2 1

2 1

TN

TN

BN

BK

GY

BK

GY

GY

BK

BK

BK

BK

BE

BE

BN

GY

BK

BK

BK

BK

BK

BK

BE

BK

BK

Y/W

R/W

R/W

W/Y

W/Y

V/W

V/W

W/V

O/Y

O/W

Y/R

Y/W

BK

Y/R

Y/W

O/W

O/W

O/W

O/W

R/Y

R/Y

W/V

R

BK

R

Y

Y

V

W

W

V

BN

V

R

R

R

R

R

R

W

LGN/V

LGN/V

LGN/V

LGN/Y

LGN/Y

LGN/V

TN/GN

LGN/BN

LGN/BN

BN/GY

BN/GY

BN/GY

GN/Y

GN/Y

Y/GN

Y/GN

Y/GN

Y/BK

Y/BK

BK/R

Y/BK

Y/BE

Y/BE

W/BN

W/BN

GN/O

PK/Y

PK/Y

W/BK

W/BK

BK/O

GY/O

BK/O

GY/O

BE/O

BE/O

BN/R

BN/R

BK/R

BK/R

BK/R

GY/V

GY/V

BK/PK

BK/PK

BK/W

BK/W

BK/W

BK/W

BK/W

PK/O

PK/O

Y/GN

Ignition 15A

Battery 15A

ECM 15A

[61B]

System Relay

B

A

R

P

ACCY 15A

O

M

Lights 15A

H

G

U

S

Start Relay

R

R

R

R

R/BK

R/BK

R/BK

R/GY

R/GY

Y/GN

R/BK

W/BK

GN/O

GN

GY

BE

BK/R

TN/GN

BE/GY

BN/GY

BE/GY

O/W

D C B A

D

1 2 3 4

1 2 3 4

1 2 3

1 2 3

4

5 6

1

2

3 4 5

6

C B A

[83A]

[83B]

[79A]

[79B]

[22B]

[20B]

[141A]

[31A]

[38A]

[142B]

[142A]

[30B]

[30A]

[208B]

[208A]

[209A]

[209B]

[78B]

[78A]

[121B]

[121A]

[120B]

[120A]

[136B]

[136A]

[131B]

[131A]

[24B]

[122B]

[137B]

[137A]

[138B]

[138A]

[90B]

[90A]

[133B]

[133A]

[91A]

[145A]

[160B]

Ignition

Switch

B+

IGN

ACC

OFF

IGN

ACC

85

86

30

87

2

1

3

5

L

E

85

86

30

87

2

1

3

5

J

I

D

K
F

C

[65B]

[65A]

See Lighting

(2 Of 2)

See Lighting

(2 Of 2)

See Lighting

(2 Of 2)

BE

BN

BK

O/W

R/Y

V

[5B]

[128B]

[128A]

[210A]

[210B]

[200B]

et00474

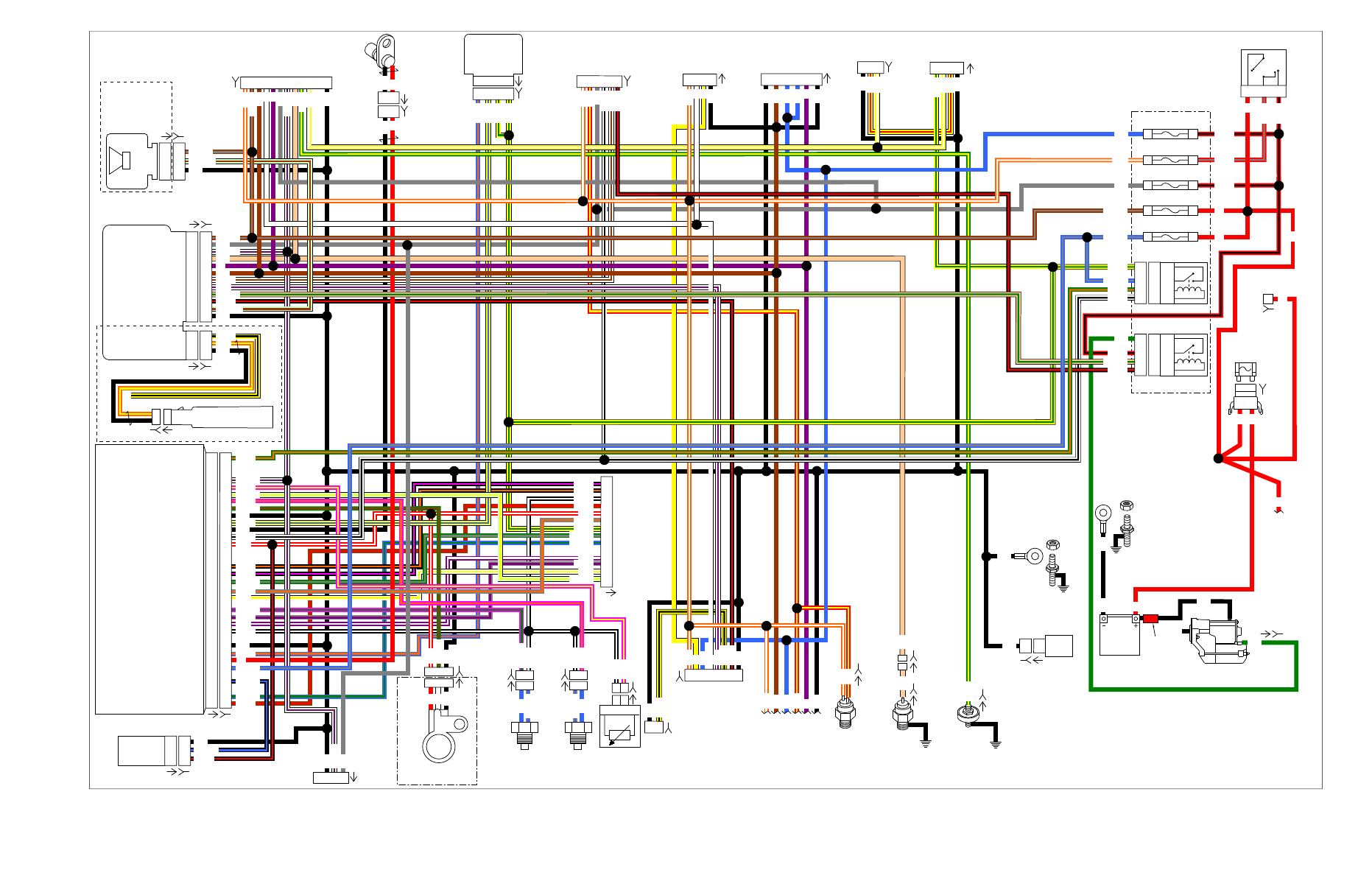

Figure B-7. Main Harness: 2013 Sportster

Figure B-7.

Figure B-7.

Main Harness: 2013 Sportster

Main Harness: 2013 Sportster

Battery

Ignition

Serial Data

Ground

Receive Antenna

XMIT Antenna A
XMIT Antenna B

IAC (A) Hi

IAC (B) Low

Injector Rear

AIS (XR Only)

Injector Front

21

20

23
24
25
26

28
29
30
31

33

35
36

4

3

2

19

18

17

14

13

12

11

10

9

8

7

6

5

2

21

20

23
24
25
26

28
29
30
31

33

35
36

19

18

17

14

13

12

11

10

9

8

7

6

5

2

Battery

IAC (B) Hi

IAC (A) Low

System Relay

Serial Data

ET Sensor

IAT

O2 Sensor (A)

JSS (HDI)

Ground

Coil Rear

CKP (–)

Switched Power

5V Sensor Power

O2 sensor (B)

TPS Input

TMAP Sensor Input

5V Sensor Ground

Ground

Coil Front

CKP Sensor (+)

VSS Input

Ignition 15A

Battery 15A

ECM 15A

B

A

GND 1

ECM

TSM, TSSM, HFSM

[61B]

System Relay

See Instruments,

Indicator Lamps,

And Hand Controls

See Instruments,

Indicator Lamps,

And Hand Controls

Engine

Harness

4 3

2

6 7

10

12

1 2

1

1

1

2

2

2

DLC

Ignition

Coil

D C B A

D C B A

P

o

w

er

Coil

Rear

Coil

F

ront

P

o

w

er

[20B]

Front

O2

Sensor

Rear

O2

Sensor

Fuel Pump

And Sender

ASSY

Main Fuse

30A

1 2 3 4

Fuel Sender

Resistor ASSY

Battery

[208A]

1

2
3
4
5

7
8

9

11
12
13
14

1

2
3
4
5

6

6
7
8

9

11
12
13
14

IAC

D C B A

D C B A

TMAP

TPS

(XR)

1 2 3 4

1 2 3 4

A

A

B

B

C

C

ET

Sensor

2

2

1

1

Rear

Injector

Front

Injector

[85A]

[85B]

[84A]

[84B]

A B

A B

A B

A B

CKP

Sensor

1 2 3

1

2

1

2

HFSM Only

1
2
3

12

1
2
3

1
2
3

12

1
2
3

JSS

(HDI)

R

W

1 2 3

1 2 3

BN/GY

GY

GY

GY

BK

BK

BK

BK

BK

BK

BK

BK

BE

BE

BK

BK

BK

GY

BK

W/Y

V/W

V/W

Y/W

Y/W

Y/W

Y/R

Y/R

R/W

R/W

R/W

R/W

W/Y

R

R

R

R

R

BK

R

W

LGN/V

LGN/V

LGN/Y

LGN/V

LGN/Y

LGN/V

BN/GY

PK/GN

BE/GN

BE/GY

GN/BN

BK/PK

GN/GY

GN/BN

GN/GY

PK/GN

BK/PK

BE/GN

GY/BE

GY/BE

Y/BE

Y/GN

PK/O

PK/Y

GY/V

Y/GN

Y/GN

Y/GN

Y/GN

Y/BE

BN/R

BK/W

BK/W

BK/W

BK/O

BK/W

BK/W

BE/O

BK/W

BN/R

BE/O

GY/O

Y/GN

GY/V

W/BK

BK/O

GY/O

W/BK

PK/Y

GN/O

PK/O

W/Y

W/Y

V/W

V/W

R/W

R/W

LGN/Y

LGN/Y

BK/PK

BK/PK

BE/GN

BE/GN

GN/GY

GN/GY

Y/GN

Y/GN

BK/O

GY/O

GY/O

BK/O

BN/R

BN/R

BK/W

BK/W

GY/V

GY/V

Battery

Ground

AIS

(XR, HDI

Only)

[78B]

[78A]

[91A]

[138B]

[138A]

[137B]

[137A]

[90B]

[90A]

[87B]

[87A]

[80B]

[80A]

[88B]

[88A]

[145B]

[145A]

[200B]

[178A]

[178B]

[83A]

[83B]

[79A]

[79B]

[30B]

[30A]

2

1

2

1

B

A

R

P

U

S

Y/GN

BE/GY

BE/GY

BN/GY

GY

R

R

R

R/BK

R/BK

Ignition Switch

B+

IGN

ACC

OFF

IGN

ACC

85

86

30

87

2

1

3

5

F

K

L

E

BK

[22B]

[141A]

Fuel

Tank

1

1

BK

BK

[210A]

[210B]

W/BK

GN/O

[5B]

[133B]

[133A]

et00475

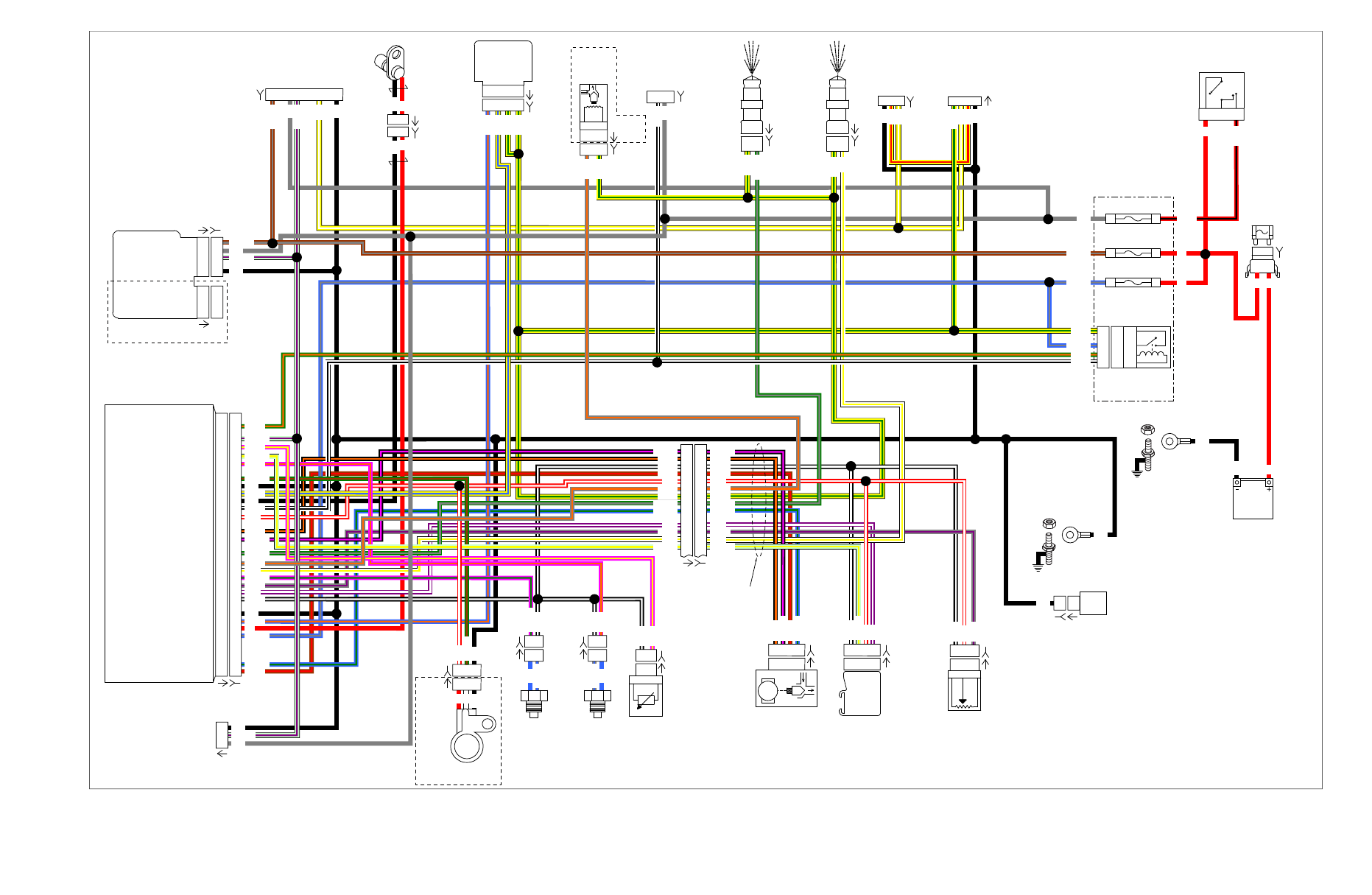

Figure B-8. Engine Management: 2013 Sportster

Figure B-8.

Figure B-8.

Engine Management: 2013 Sportster

Engine Management: 2013 Sportster

Engine Stop Switch
Start Switch

Right Hand

Controls

GND 1

TSM, TSSM, HFSM

HFSM Only

6

4 3

6

1
2

4

9

10
12

1
2

4

9

10
12

3

Starter

Main Fuse

30A

B A

Battery

Charging

Main Fuse

30A

1 2

Stator

1 2

Voltage

Regulator

Battery

–

+

B

A

–

+

GND 1

1
2
3
4

Red

Band

W/BK

Neutral

Switch

Left Hand

Controls

Clutch Switch

Starting

7

8

7

8

BK

BK/R

BK

TN

BK

BK

TN

TN

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

BK

GY

GN

GY

GY

BK/R

BK/R

BK/R

BK/R

Battery

Ignition

Neutral Switch

Start Relay Control

Clutch Switch

Chassis Ground

Receive Antenna
XMIT Antenna A
XMIT Antenna B

Battery

Ground

BK

Battery

Ground

R

R

R

R

R

R

R

BN/GY

[136B]

[136A]

[47B]

[47A]

[24B]

[24A]

[131B]

[131A]

[22A]

[22B]

[77A]

[77B]

[30B]

[30A]

[208A]

Ignition 15A

Battery 15A

[61B]

Start Relay

B

A

R

P

BN/GY

TN/GN

GY

GN

R

R

R/BK

R/BK

R/BK

BK/R

Ignition Switch

B+

IGN

ACC

OFF

IGN

ACC

85

86

30

87

2

1

3

5

D

I

J

C

[5B]

[128B]

[128A]

[5B]

TN/GN

Star

t

Rela

y

Enab

le

Star

t

Rela

y

Input

C

D

C

D

C

C

Anti-Theft

Tracking

Module

(If Equipped)

TN/GN

TN/GN

TN/GN

TN/GN

GN

GN

[267B]

[267A]

[266B]

[266A]

et00545

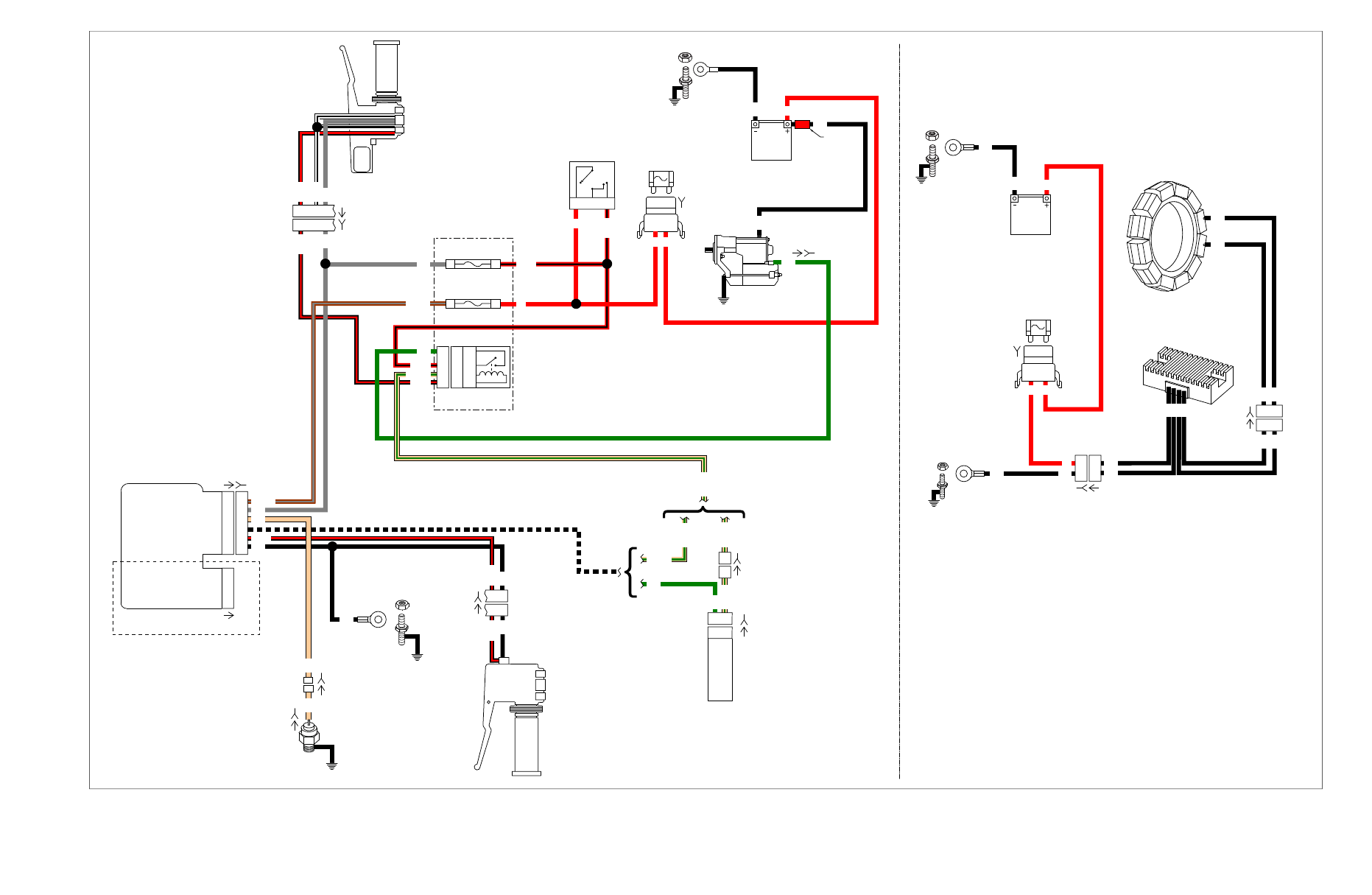

Figure B-9. Starting and Charging Circuit: 2013 Sportster

Figure B-9.

Figure B-9.

Starting and Charging Circuit: 2013 Sportster

Starting and Charging Circuit: 2013 Sportster

A

B

Ignition 15A

ACCY 15A

Ignition Switch

Battery 15A

Main Fuse

30A

B

A

GND 1

ECM

TSM, TSSM, HFSM

[61B]

Headlamp Hi/Lo Switch

Left Turn Switch

Left Hand

Controls

Right Turn Switch

Front Stop Lamp Switch

Right Hand

Controls

2

5

1

2

5

1

6 5 4 3 2 1

See Instruments,

Indicator Lamps, And

Hand Controls

Rear

Stop Lamp

Switch

1 2 3 4 5

1 2 3 4 5

1 2 3 4 5 7 12

1 2 3 4

See Lighting

(2 Of 2)

See Lighting

(2 Of 2)

See Lighting

(2 Of 2)

Lights 15A

Battery

1
2
3

5
6
7
8

12

1
2
3

5
6
7
8

12

5

10

28

5

10

28

HFSM Only

Serial Data

Ground

Ground

Battery
Ignition

Serial Data

Left Turn Feed

Right Turn Feed

Right Turn Switch Input

Left Turn Switch Input

Ground

1
2
3
4

1
2
3
4

Receive Antenna

XMIT Antenna A
XMIT Antenna B

GY

BK

BN

BN

W/V

O/W

V

W

V

LGN/V

LGN/V

BN/GY

BN/GY

W/BN

BK

O/W

R/Y

O/W

R/Y

W/BN

W/BN

BE

BE

BN

BK

BK

R

R

R

R

R

V

R/GY

R/BK

R/BK

R/BK

R/GY

GY

BK

BE

BK

O/W

BN/GY

BE

BN

BK

O/W

O/W

O/W

R/Y

O/W

R/Y

V

BE

BE

BK

O/W

W/V

W/V

Y

Y

Y

W

W

W

BK

BK

LGN/V

Battery

Ground

[31A]

[121B]

[121A]

[24B]

[24A]

[22A]

[22B]

[38A]

[20B]

[208B]

[208A]

[78B]

[78A]

[30B]

[30A]

R

P

O

M

H

G

B

A

B+

IGN

ACC

OFF

IGN

ACC

[5B]

et00477

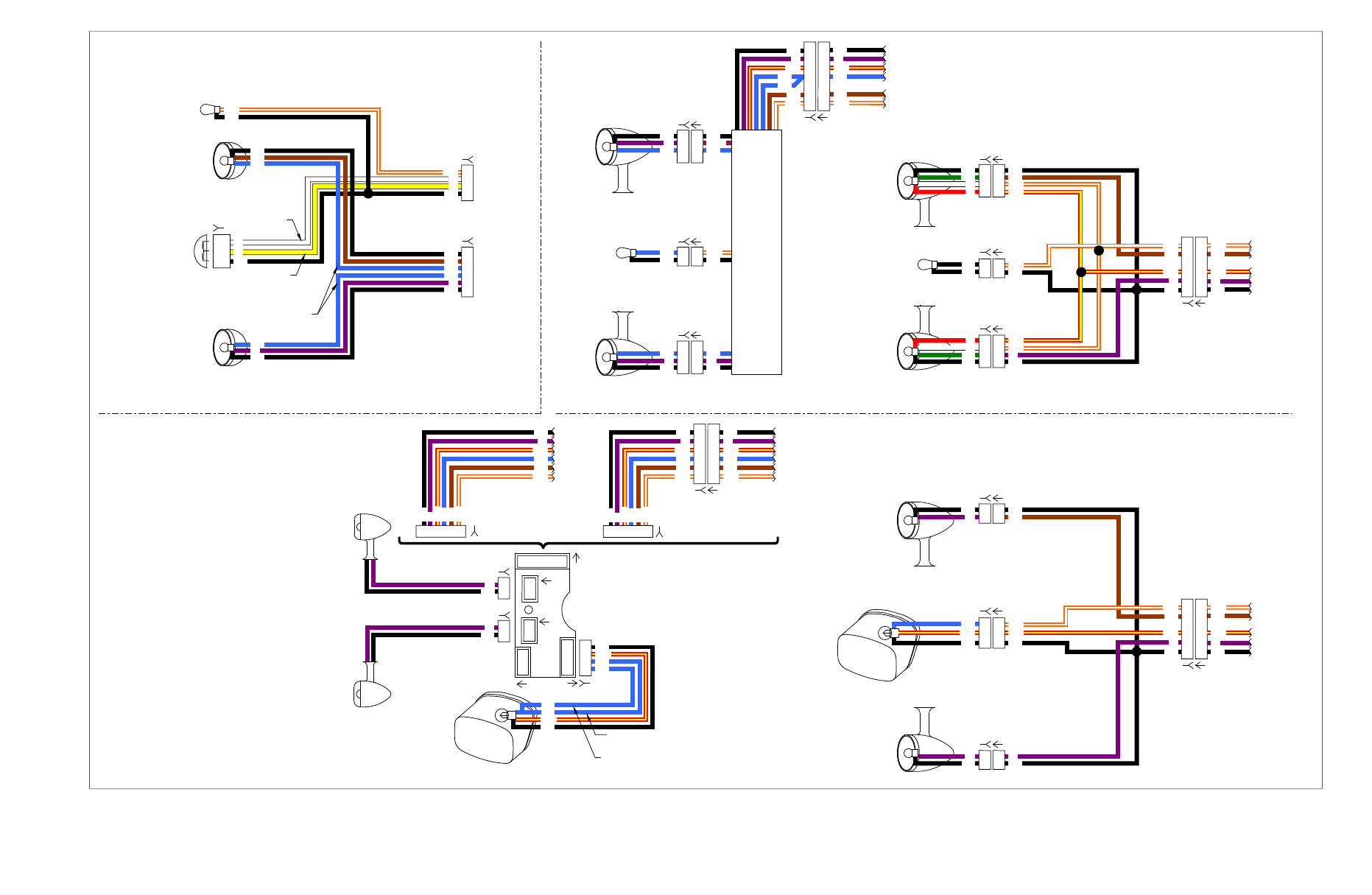

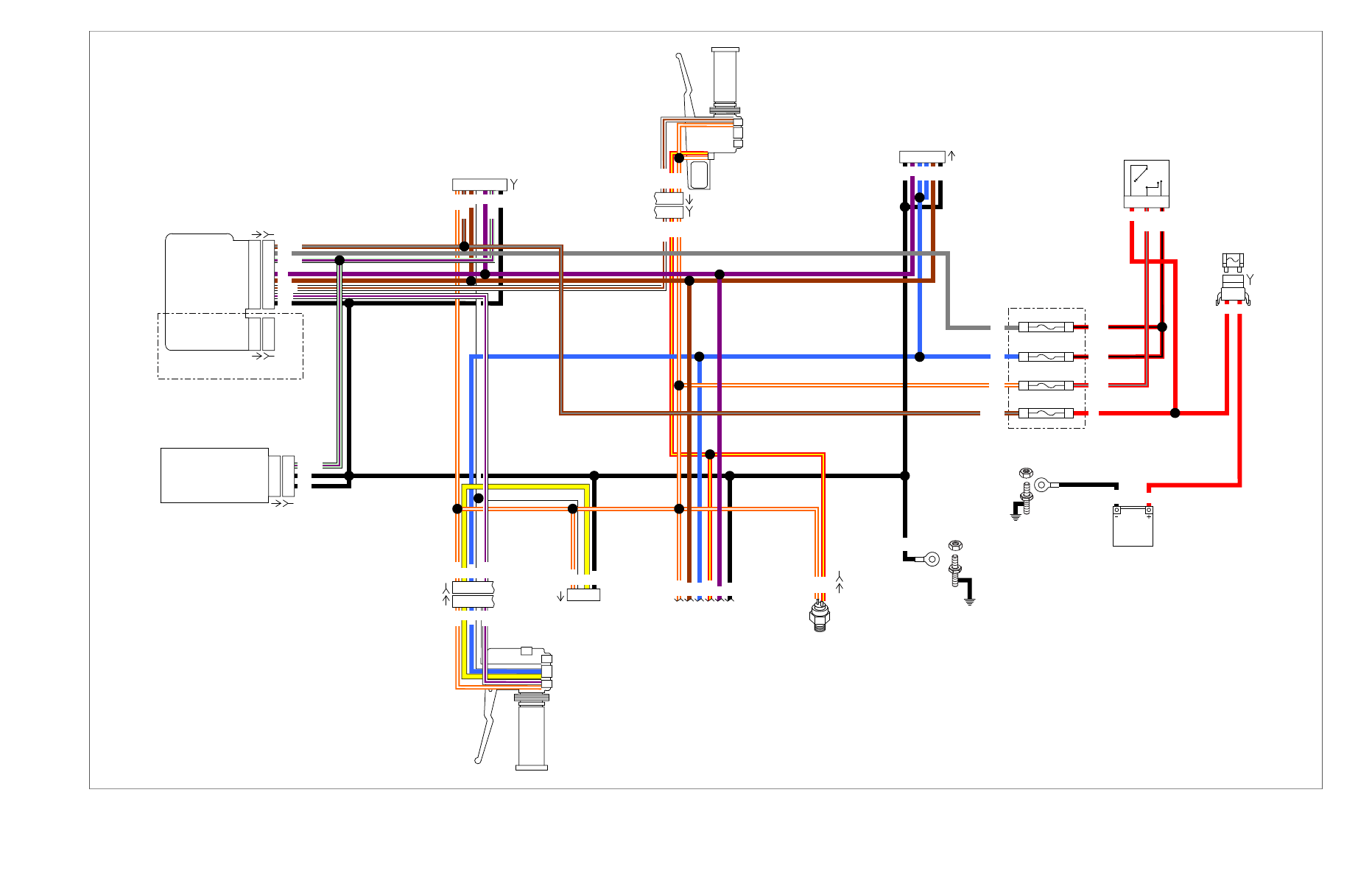

Figure B-10. Lighting (1 of 2): 2013 Sportster

Figure B-10.

Figure B-10.

Lighting (1 of 2): 2013 Sportster

Lighting (1 of 2): 2013 Sportster

BK

BK

BE

BE
BK

V

BE

BK

V

BN

BE

BK

BE

BK

V

R/Y

R/Y

O/W

O/W

O/W

O/W

O/W

Front Lighting

See Main

Harness

See Main

Harness

See Main

Harness

Left

Turn

Right

Turn

Running Lamps

(DOM Only)

Position Lamp

(HDI Only)

1
2
3
4
5
6

1
2
3
4

1

2

3

4

5

6

2
3

1

2

1

2
1

3

2
3

1

2

1

2
1

3

Headlamp

Left

Turn/

Taillamp

Right
Turn/

Taillamp

Tail

Lamp

Converter

Module

1

2

3

4

5

6

1

2

3

4

5

6

High

Beam

Low

Beam

License

Plate

Lamp

BK

BK

BK

BK

BK

BK

BN

BN
BE

BE
BE

BE

O/W

O/W

V

V

Y

W

BK

BE
BE

V

BK

BN

BE

BN

BE

BK

O/W

O/W

R/Y

R/Y

V

V

[38B]

[31B]

BK

GN

BK

BK

GN

BK

W

R

BK
BN

BK

W

R

BK

V

Dual Stop Lamp (Except DOM)

XL1200C/CP

/CA/CB

Dual Stop Lamp (DOM)

2
3

1

2

1

2
1

3

2
3

4

4

1

2

1

2
1

3

4

4

Left

Turn/
Stop/

Taillamp

Right
Turn/
Stop/

Taillamp

License

Plate

Lamp

Single Stop Lamp

Configuration

Except XR, XL1200C/CP

/CA/CB

XR

BE
BE

Right

Turn

Left

Turn

1
2

1
2

See Main

Harness

2

1

1
2
3

1

2

3

4

5

6

2

1

1

2

3

4

5

6

4
3
2
1

1

2

3

4

Tail

(DOM Only)

Tail

(HDI Only)

BK

BK

BK

BK

BK

BN

BE

BN

BE

BK

O/W

O/W

R/Y

R/Y

R/Y

R/Y

V

V

V

BE
BE

BK

R/Y

BE

[94B]

[18B]

[19B]

[18A]

[19A]

[93B]

[93A]

V

BK

BN

BE

O/W

R/Y

V

BN

R/Y

R/Y

O/W

BK

V

[94B]

[94A]

V/BN

[7A]

[7B]

See Main

Harness

1

2

3

4

5

6

1

2

3

4

5

6

BK

BN

BE

O/W

R/Y

V

[7A]

[7B]

See Main

Harness

6

5

4

2

1

6

5

4

2

1

BK

BN

[7A]

[7B]

O/W

V

R/Y

[18A]

[18B]

[18A]

[18B]

[19A]

[19B]

[19A]

[19B]

[40A]

[40B]

[40A]

[40B]

O/W

BK

BK

BK
BN

BK

BK

V

V

V

2

1

2

1

2
1

2

1

2

3

3

1

2
1

Left

Turn

Right

Turn

BN

R/Y

R/Y

O/W

BK

V

See Main

Harness

6

5

4

2

1

6

5

4

2

1

BK

BN

[7A]

[7B]

O/W

V

R/Y

[18A]

[18B]

[19A]

[19B]

[40A]

[40B]

W

Y

HI

LO

GND

BK

et00546

Figure B-11. Lighting (2 of 2): 2013 Sportster
