Harley Davidson Parts Catalog 2019: touring models - page 9
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
19
57000064BYM
INNER FAIRING
FLHTCU
ASSEMBLY, with
11100050, 11100051,
11100057, 61400063,
61400064 and 76000234
(satin black)
19
57000064DH
INNER FAIRING
FLHTK, FLHTK SHRINE,
ASSEMBLY, with
FLHTKL
11100050, 11100051,
11100057, 61400063,
61400064 and 76000234
(gloss black)
19
57000065BYM
INNER FAIRING
FLHT, FLHX
ASSEMBLY, with
11100050, 11100051,
11100057, 61400063,
61400064 and 76000234
(satin black)
19
57000065DH
INNER FAIRING
FLHXS
ASSEMBLY, with
11100050, 11100051,
11100057, 61400063,
61400064 and 76000234
(gloss black)
20
57000186
BRACKET, support, inner
FLHT, FLHTCU, FLHTK,
fairing
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
21
57000299
FOAM INSERT, media
FLHTCU, FLHTK, FLHTK
compartment
SHRINE, FLHTKL, FLHX,
FLHXS
22
57200012
AIR DEFLECTOR, with
FLHTCU, FLHTK, FLHTK
57638-08 (left)
SHRINE, FLHTKL
23
57200017
AIR DEFLECTOR, with
FLHTCU, FLHTK, FLHTK
57638-08 (right)
SHRINE, FLHTKL
24
61400063
TRIM, inner fairing (left)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
25
61400064
TRIM, inner fairing (right)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
26
69200031A
WIRE HARNESS, USB
FLHTCU, FLHTK, FLHTK
jumper
SHRINE, FLHTKL, FLHX,
FLHXS
240/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
27
69200170
POWER OUTLET, fairing,
FLHT, FLHTCU, FLHTK,
with 69200171
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
28
69200171
CAP, power outlet
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
29
76000107A
MEDIA COMPARTMENT
FLHTCU, FLHTK, FLHTK
ASSEMBLY, with
SHRINE, FLHTKL, FLHX,
57000299, 69200031A
FLHXS
and 76000127
29
76000944
MEDIA COMPARTMENT
FLHT
ASSEMBLY, with
76000127
30
76000127
LATCH (2)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
31
76000234
GASKET, media storage
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
32
76000409BYM
DOOR, media
FLHT, FLHTCU, FLHX
compartment, outer
(black denim)
32
76000409DH
DOOR, media
FLHTK, FLHTK SHRINE,
compartment, outer
FLHTKL, FLHXS
(gloss black)
33
76000055
SPEAKER GRILLE
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX
33
76000322
SPEAKER GRILLE (left)
FLHX, FLHXS
(not shown)
34
76000055
SPEAKER GRILLE
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX
34
76000321
SPEAKER GRILLE (right)
FLHX, FLHXS
(not shown)
35
10500017
SCREW (6)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
36
76000187
GLOVEBOX, with
FLHT
12600070 and 12600071
241/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
37
12600070
BOLT (4)
FLHT
38
12600071
RETAINER (4)
FLHT
39
12100154
PLUG
FLHT

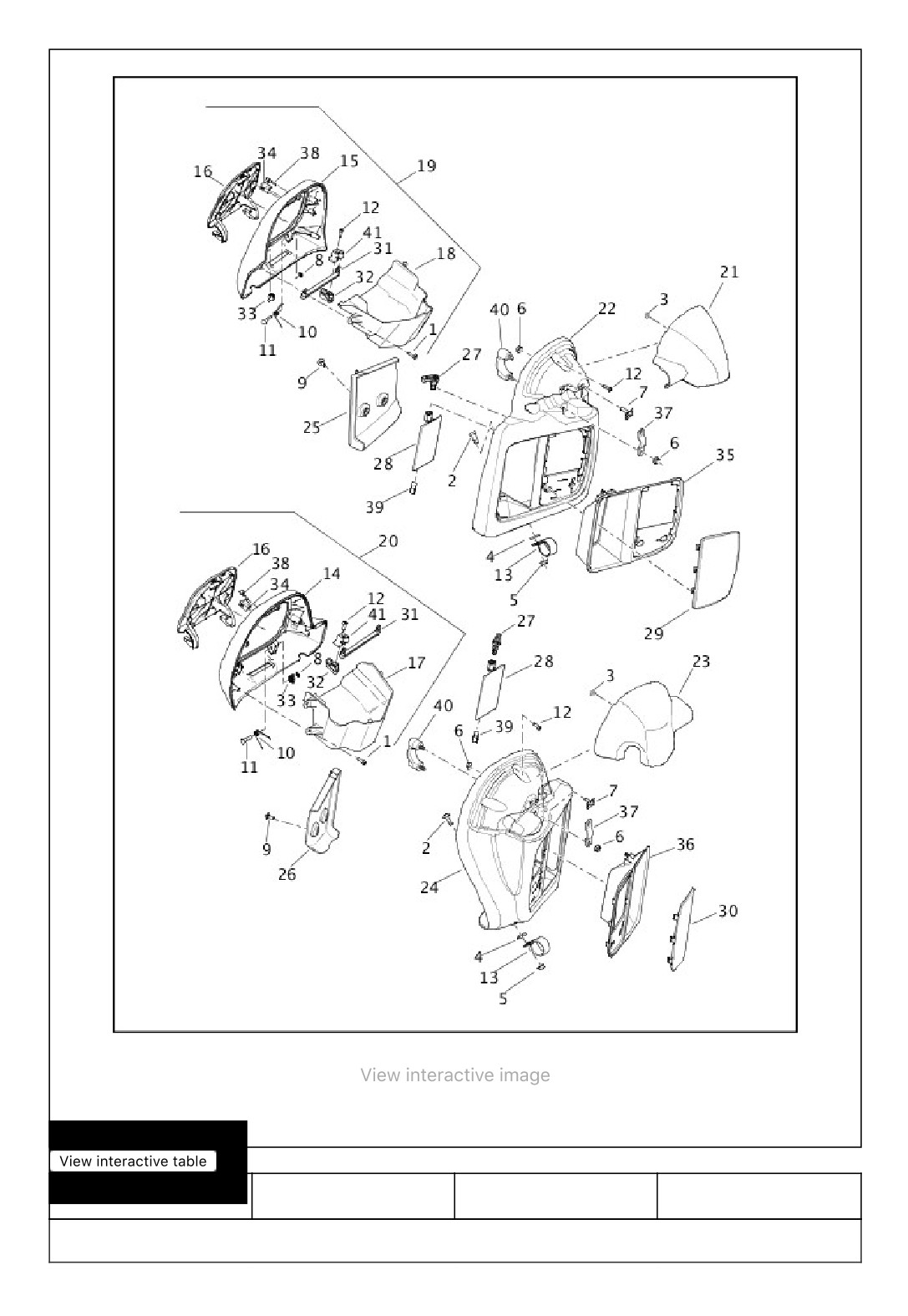

FAIRING, INNER - FLHT, FLHTCU, FLHTK, FLHTKL, FLHX AND FLHXS (3 OF 3)
242/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
243/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
10200134
SCREW (6)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
2
10200141
SCREW (2)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
3
10200142
SCREW (6)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
4
10200205
SCREW (12)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
5
10900005
STUD, double sided (4)
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
6
57000017
SKIRT, outer fairing
FLHT, FLHTCU, FLHTK,
(chrome)
FLHTK SHRINE, FLHTKL,
FLHX
6
57100227
SKIRT, outer fairing (gloss
FLHXS
black)
7
57000169A
BRACKET, fairing
FLHT, FLHTCU, FLHTK,
support (left)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
8
57000170
BRACKET, fairing
FLHT, FLHTCU, FLHTK,
support (right)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
9
57000172
SPEAKER ENCLOSURE
FLHT, FLHTCU, FLHTK,
ASSEMBLY (left)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
10
57000175
SPEAKER ENCLOSURE
FLHT, FLHTCU, FLHTK,
ASSEMBLY (right)
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS
11
69200172
SWITCH ASSEMBLY,
FLHTCU, FLHTK, FLHTK
auxiliary/fog lamps, with
SHRINE, FLHTKL
69200173, 71400031 and
71400044
12
69200173
SWITCH
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL
13
70900138
HOLE PLUG, fairing cap
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL
244/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
13
70900138
HOLE PLUG, fairing cap
FLHT, FLHX, FLHXS
(2)
14
70900392BYM
DASH PANEL, fairing
FLHT, FLHTCU, FLHX
(black denim)
14
70900392DH
DASH PANEL, fairing
FLHTK, FLHTK SHRINE,
(gloss black)
FLHTKL, FLHXS
15
71400031
SWITCH BUTTON, blank
FLHTCU, FLHTK, FLHTK
(2)
SHRINE, FLHTKL
16
71400044
SWITCH, auxiliary/fog
FLHTCU, FLHTK, FLHTK
lamps
SHRINE, FLHTKL

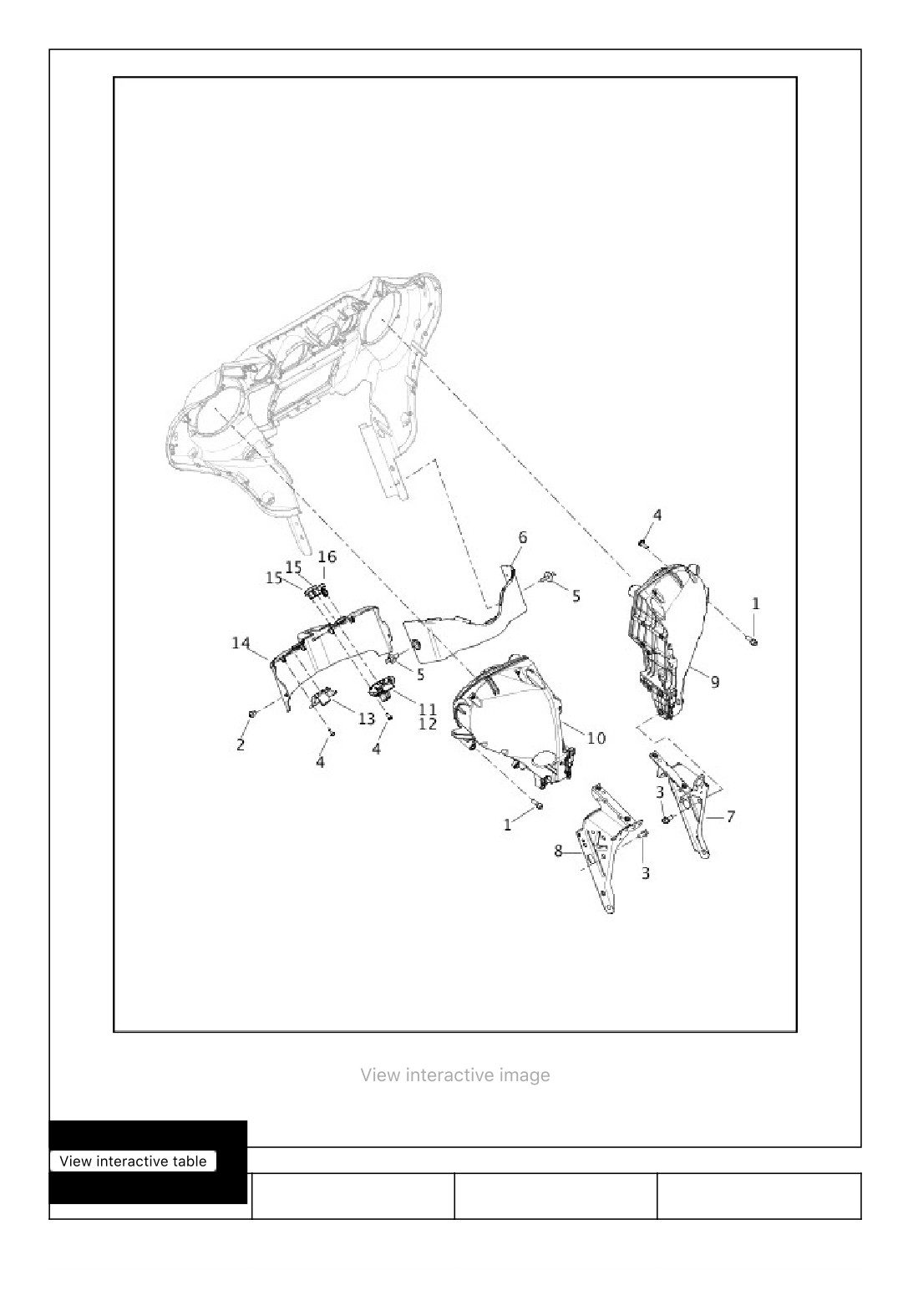

FAIRING, INNER - FLTRU, FLTRX AND FLTRXS (1 OF 2)
245/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
1062
SCREW (4)
FLTRU, FLTRX, FLTRXS
246/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
2563
SCREW (14)
FLTRU, FLTRX, FLTRXS
3
2647B
SCREW (4)
FLTRU, FLTRX
3
10200349
SCREW (black) (4)
FLTRXS
4
3787
BOLT (2)
FLTRU, FLTRX, FLTRXS
5
4612
SCREW (10)
FLTRU, FLTRX, FLTRXS
6
4694
SCREW (8)
FLTRU, FLTRX, FLTRXS
7
4706
SCREW (2)
FLTRU, FLTRX, FLTRXS
8
5118
SEAL PIN (2)
FLTRU, FLTRX, FLTRXS
9
6703
WASHER (2)
FLTRU, FLTRX, FLTRXS
10
7601
LOCKNUT (2)
FLTRU, FLTRX, FLTRXS
11
10065
CABLE STRAP
FLTRU, FLTRX, FLTRXS
12
10177
CABLE STRAP (4)
FLTRU, FLTRX, FLTRXS
13
11036
RETAINING RING (2)
FLTRU, FLTRX, FLTRXS
14
11668
FOAM PAD (10)
FLTRU, FLTRX, FLTRXS
15
58888-98A
BUMPER, fairing door (4)
FLTRU, FLTRX, FLTRXS
16
61313-88
BUMPER (4)
FLTRU, FLTRX, FLTRXS
17
72066-06A
HOUSING, four-way
FLTRU, FLTRX, FLTRXS
socket (black) (2)
18
72097-06
SEAL PIN, orange (2)
FLTRU, FLTRX, FLTRXS
19
72135-06
SECONDARY LOCK,
FLTRU, FLTRX, FLTRXS
four-way socket (2)
20
72264-94
TERMINAL, 18-20 AWG
FLTRU, FLTRX, FLTRXS
(2)
21
72484-08
TERMINAL, socket, 20
FLTRU, FLTRX, FLTRXS
AWG (6)
22
72486-08
WIRE SEAL, 20 AWG
FLTRU, FLTRX, FLTRXS
(green) (6)
23
72908-11
HOUSING, four-way
FLTRU, FLTRX, FLTRXS
socket (black) (2)
247/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
24
72910-11
TERMINAL, socket, 20-
FLTRU, FLTRX, FLTRXS
22 AWG (6)
25
73152-96BK
HOUSING, two-way
FLTRU, FLTRX, FLTRXS
socket (black)
26
73191-96
TERMINAL, socket, 16-
FLTRU, FLTRX, FLTRXS
20 AWG (2)
27
10200120
SCREW (4)
FLTRU, FLTRX, FLTRXS
28
10200134
SCREW (14)
FLTRU, FLTRX, FLTRXS
29
10500017
SCREW (6)
FLTRU, FLTRX, FLTRXS
30
29200061
BUTTON ASSEMBLY,
FLTRU, FLTRX, FLTRXS
with 57100167 (right)
30
29200062
BUTTON ASSEMBLY,
FLTRU, FLTRX, FLTRXS
with 57100167 (left) (not
shown)
31
29200063
ROD, linkage (2)
FLTRU, FLTRX, FLTRXS
32
29200071
AIR DUCT ASSEMBLY,
FLTRU, FLTRX, FLTRXS
with 5, 13, 29, 30 and 31
(right)
32
29200072
AIR DUCT ASSEMBLY,
FLTRU, FLTRX, FLTRXS
with 5, 13, 29, 30 and 31
(left) (not shown)
33
47200262
BRACKET (right)
FLTRU, FLTRX
33
47200261
BRACKET (left) (not
FLTRU, FLTRX
shown)
33
47200278
BRACKET KIT, with
FLTRXS
10200349, 47200281 and
brackets
34
47200266
BRACKET, inner fairing
FLTRU, FLTRX, FLTRXS
mount

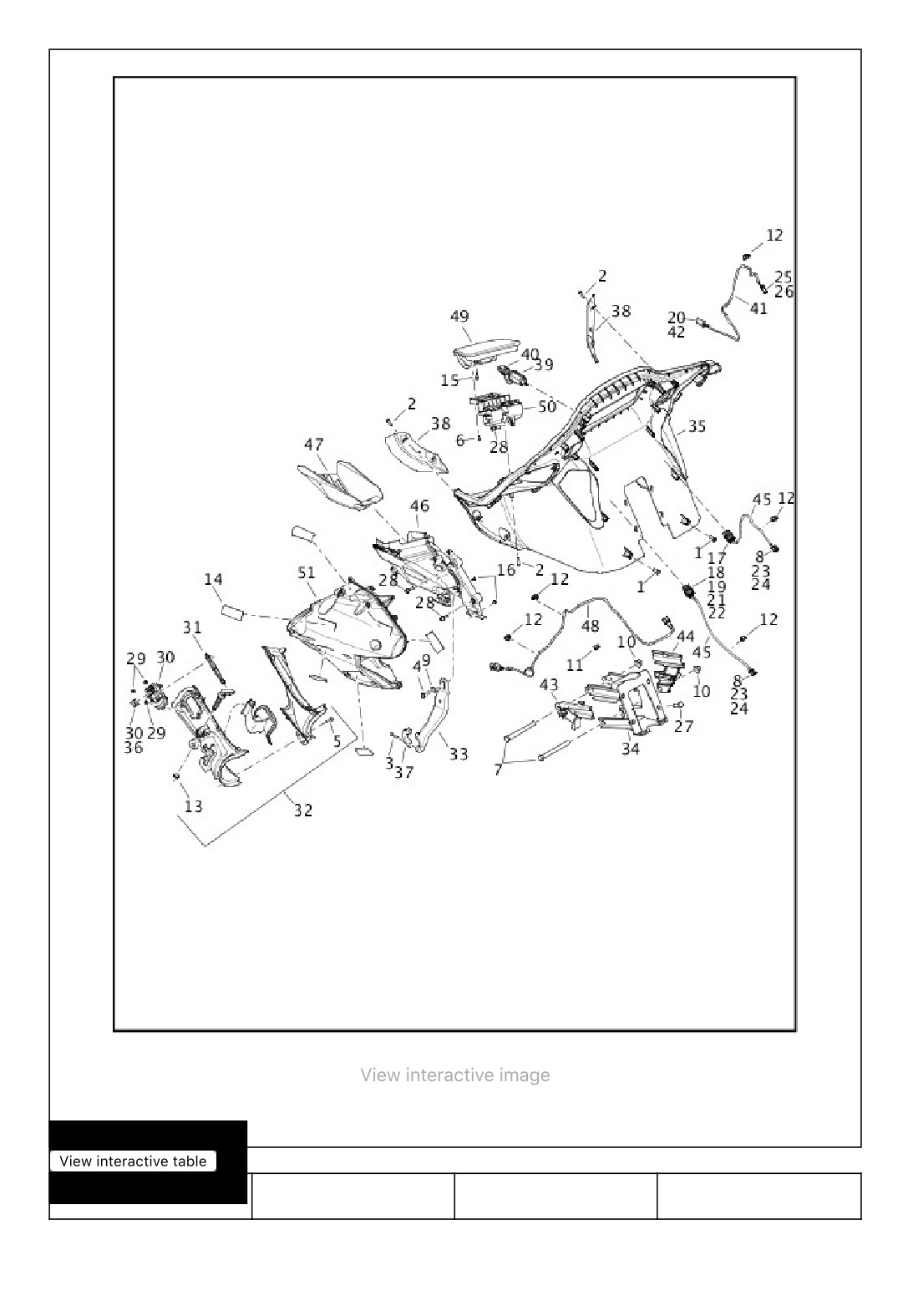

FAIRING, INNER - FLTRU, FLTRX AND FLTRXS (2 OF 2)
248/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
249/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
35
57000305
INNER FAIRING
FLTRU, FLTRX, FLTRXS
(unpainted)
35
57000374BYM
INNER FAIRING (black
FLTRU, FLTRXS
denim)
35
57000374DH
INNER FAIRING (vivid
FLTRU, FLTRXS
denim)
36
57100167
DOOR LATCH (2)
FLTRU, FLTRX, FLTRXS
37
57100247
CLAMP (2)
FLTRU, FLTRX
37
47200281
CLAMP (2)
FLTRXS
38
57200063
WILLIE WING (right)
FLTRU, FLTRX, FLTRXS
38
57200064
WILLIE WING (left)
FLTRU, FLTRX, FLTRXS
39
69200170
POWER OUTLET, with
FLTRU, FLTRX, FLTRXS
69200171
40
69200171
CAP
FLTRU, FLTRX, FLTRXS
41
69200248
WIRE HARNESS, power
FLTRU, FLTRX, FLTRXS
outlet jumper, with 12,
20, 25, 26 and 42
42
69200337
HOUSING, two-way
FLTRU, FLTRX, FLTRXS
socket (gray)
43
69200701
GUIDE, wire harness
FLTRU, FLTRX, FLTRXS
(right)
44
69200702
GUIDE, wire harness (left)
FLTRU, FLTRX, FLTRXS
45
69200753
WIRE HARNESS, gauge
FLTRU, FLTRX, FLTRXS
jumper, with 8, 12, 17,
18, 19, 21, 22, 23 and 24
(2)
46
76000370A
MEDIA STORAGE
FLTRU, FLTRX, FLTRXS
COMPARTMENT, with
16, 47 and 48 (right)
46
76000422
MEDIA STORAGE
FLTRU, FLTRX, FLTRXS
COMPARTMENT, with 16
and 47 (left) (not shown)
47
76000373
LINER, media (right)
FLTRU, FLTRX, FLTRXS
47
76000425
LINER, media (left) (not
FLTRU, FLTRX, FLTRXS
shown)
250/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
48
76000374A
USB CABLE ASSEMBLY
FLTRU, FLTRX, FLTRXS
49
76000376BYM
MEDIA DOOR
FLTRU, FLTRX
ASSEMBLY, storage, with
15 (black denim) (right)
49
76000376DH
MEDIA DOOR
FLTRXS
ASSEMBLY, storage, with
15 (right) (vivid black)
49
76000426BYM
MEDIA DOOR
FLTRU, FLTRX
ASSEMBLY, storage, with
15 (left) (not shown)
(black denim)
49
76000426DH
MEDIA DOOR
FLTRXS
ASSEMBLY, storage, with
15 (left) (not shown) (vivid
black)
50
76000398
HINGE ASSEMBLY,
FLTRU, FLTRX, FLTRXS
media storage (right)
50
76000436
HINGE ASSEMBLY,
FLTRU, FLTRX, FLTRXS
media storage (left) (not
shown)
51
76000458
SPEAKER ENCLOSURE,
FLTRU, FLTRX, FLTRXS
with 11668 (right)
51
76000460
SPEAKER ENCLOSURE,
FLTRU, FLTRX, FLTRXS
with 11668 (left) (not
shown)
FAIRING, LOWERS, AIR COOLED - FLHTCU
251/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
NOTE: Refer to Painted Parts Book for painted part numbers.
252/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
2995
SCREW (6)
FLHTCU
2
3655A
SCREW (2)
FLHTCU
3
6235
WASHER (2)
FLHTCU
4
7415A
WASHER (2)
FLHTCU
5
7576
NUT (2)
FLHTCU
6
7716
LOCKNUT (6)
FLHTCU
7
8175
CLIP (2)
FLHTCU
8
10100033
PUSH NUT (4)
FLHTCU
9
10200052
SCREW (4)
FLHTCU
10
11700005
SPRING, torsion, door (2)
FLHTCU
11
12000005
PIN, door hinge (4)
FLHTCU
12
12600049
SCREW (8)
FLHTCU
13
47200275
CLAMP (2)
FLHTCU
14
57100098
FRAME, glove box (right)
FLHTCU
15
57100101
FRAME, glove box (left)
FLHTCU
16
57100102A
DOOR, glove box (2)
FLHTCU
17
57100103
TRAY, glove box (right)
FLHTCU
18
57100104
TRAY, glove box (left)
FLHTCU
19
57100108A
GLOVE BOX ASSEMBLY,
FLHTCU
with 2995, 10100033,
11700005, 12000005,
12600049, 57100101,
57100102, 57100104,
57100164, 57100165,
57100166, 57100167,
57100188 and 57100225
(left)
253/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
20
57100110A
GLOVE BOX ASSEMBLY,
FLHTCU
with 2995, 10100033,
11700005, 12000005,
12600049, 57100098,
57100102, 57100103,
57100164, 57100165,
57100166, 57100167,
57100188 and 57100225
(right)
21
57100111
CAP, fairing lower (left)
FLHTCU
(unpainted)
22
57100112
FAIRING (lower) (left)
FLHTCU
(unpainted)
23
57100113
CAP, fairing (lower) (right)
FLHTCU
(unpainted)
24
57100114
FAIRING (lower) (right)
FLHTCU
(unpainted)
25
57100149
COVER, lower fairing
FLHTCU
(left)
26
57100150
COVER, lower fairing
FLHTCU
(right)
27
57100154
HINGE (2)
FLHTCU
28
57100155
DOOR, vent (2)
FLHTCU
29
57100161
PLATE (lower) (left)
FLHTCU
30
57100162
PLATE (lower) (right)
FLHTCU
31
57100164
LINK, door vent (2)
FLHTCU
32
57100165
KNOB, door vent (2)
FLHTCU
33
57100166
DAMPER, door (2)
FLHTCU
34
57100167
LATCH, door (2)
FLHTCU
35
57100170
FASCIA ASSEMBLY
FLHTCU
(lower) (left)
36
57100171
FASCIA ASSEMBLY
FLHTCU
(lower) (right)
37
57100187
RETAINER, U-bolt (2)
FLHTCU
254/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
38
57100188
BUMPER, glove box door
FLHTCU
(4)
39
57100200
PIN, door, vent (2)
FLHTCU
40
57100208
CLAMP, lower fairing (2)
FLHTCU
41
57100225
SLIDER, door, vent (2)
FLHTCU

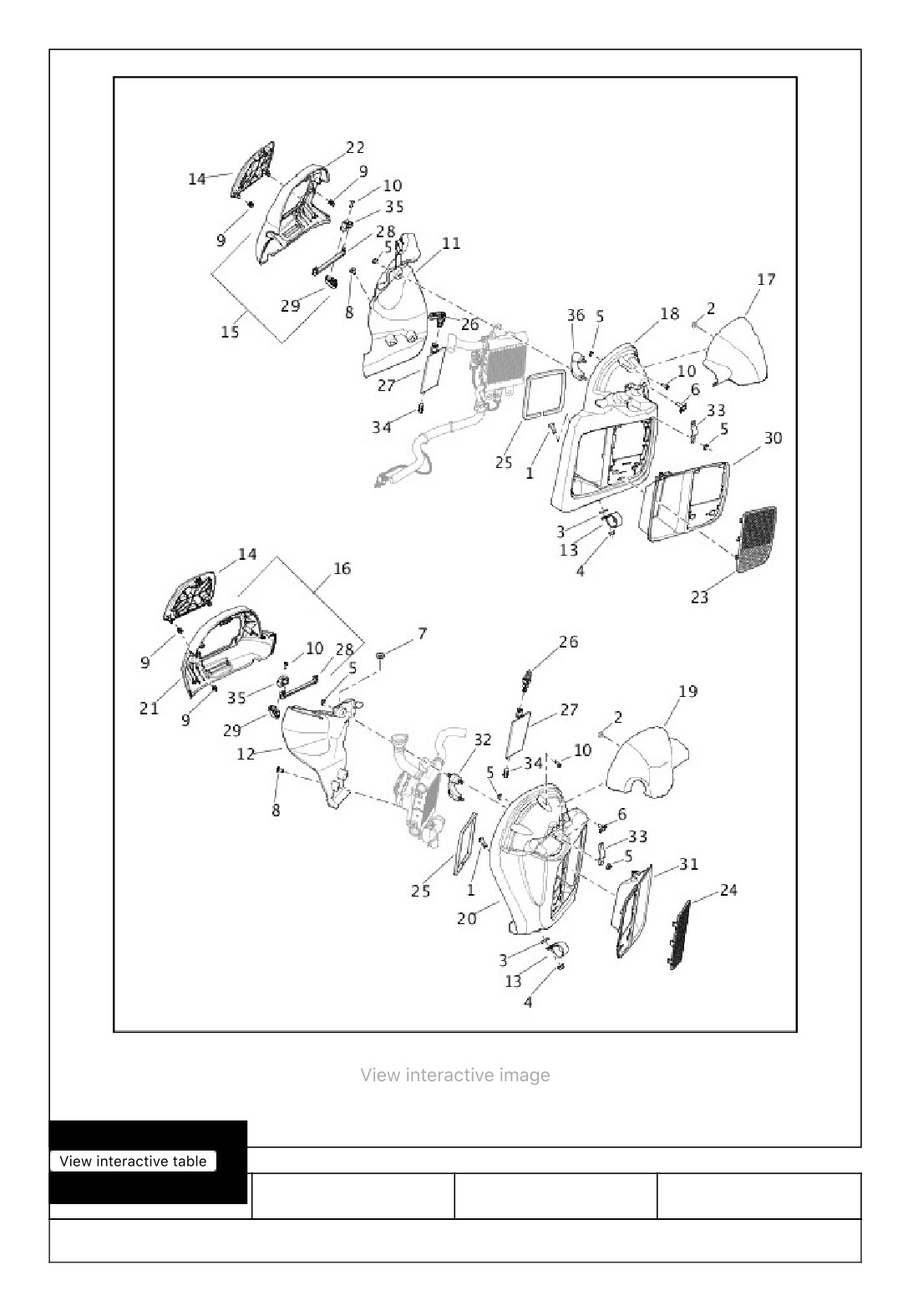

FAIRING, LOWERS, TWIN-COOLED™ - FLHTK, FLHTKL AND FLTRU (1 OF 2)
255/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
NOTE: Refer to Painted Parts Book for painted part numbers.
256/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
3655A
SCREW (2)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
2
6235
WASHER (2)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
3
7415A
WASHER (2)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
4
7576
NUT (2)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
5
7716
LOCKNUT (8)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
6
8175
BOLT, retainer (2)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
7
11519
MOUNT, rubber (right)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
8
10200052
SCREW (4)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
9
12200025
CLIP (10)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
10
12600049
SCREW (8)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
11
26800008
DUCT, radiator (left)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
12
26800009
DUCT, radiator (right)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
13
47200275
CLAMP (2)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
14
57100099
PANEL ASSEMBLY, glove
FLHTK, FLHTK SHRINE,
box, with 12200025 (2)
FLHTKL, FLTRU
15
57100107
GLOVE BOX ASSEMBLY,
FLHTK, FLHTK SHRINE,
with 12600049,
FLHTKL, FLTRU
57100148, 57100164,
57100165 and 57100225
(left)
16
57100109
GLOVE BOX ASSEMBLY,
FLHTK, FLHTK SHRINE,
with 12600049,
FLHTKL, FLTRU
57100147, 57100164,
57100165 and 57100225
(right)
257/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
17
57100111
CAP, fairing (lower) (left)
FLHTK, FLHTK SHRINE,
(unpainted)
FLHTKL, FLTRU
18
57100112
FAIRING (lower) (left)
FLHTK, FLHTK SHRINE,
(unpainted)
FLHTKL, FLTRU
19
57100113
CAP, fairing (lower) (right)
FLHTK, FLHTK SHRINE,
(unpainted)
FLHTKL, FLTRU
20
57100114
FAIRING (lower) (right)
FLHTK, FLHTK SHRINE,
(unpainted)
FLHTKL, FLTRU
FAIRING, LOWERS, TWIN-COOLED™ - FLHTK, FLHTKL AND FLTRU (2 OF 2)
258/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
NOTE: Refer to Painted Parts Book for painted part numbers.
259/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
21
57100147
FRAME, glove box, with
FLHTK, FLHTK SHRINE,
12200025 (right)
FLHTKL, FLTRU
22
57100148
FRAME, glove box, with
FLHTK, FLHTK SHRINE,
12200025 (left)
FLHTKL, FLTRU
23
57100151
SCREEN, radiator (left)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
24
57100152
SCREEN, radiator (right)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
25
57100153
GASKET, radiator (2)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
26
57100154
HINGE (2)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
27
57100155
DOOR, vent (2)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
28
57100164
LINK, door, vent (2)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
29
57100165
KNOB, door, vent (2)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
30
57100170
FASCIA ASSEMBLY
FLHTK, FLHTK SHRINE,
(lower) (left)
FLHTKL, FLTRU
31
57100171
FASCIA ASSEMBLY
FLHTK, FLHTK SHRINE,
(lower) (right)
FLHTKL, FLTRU
32
57100172
CLAMP, lower fairing
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
33
57100187
RETAINER, U-bolt (2)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
34
57100200
PIN, door, vent (2)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
35
57100225
SLIDER, door, vent (2)
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU
36
57100256
CLAMP, lower fairing
FLHTK, FLHTK SHRINE,
FLHTKL, FLTRU

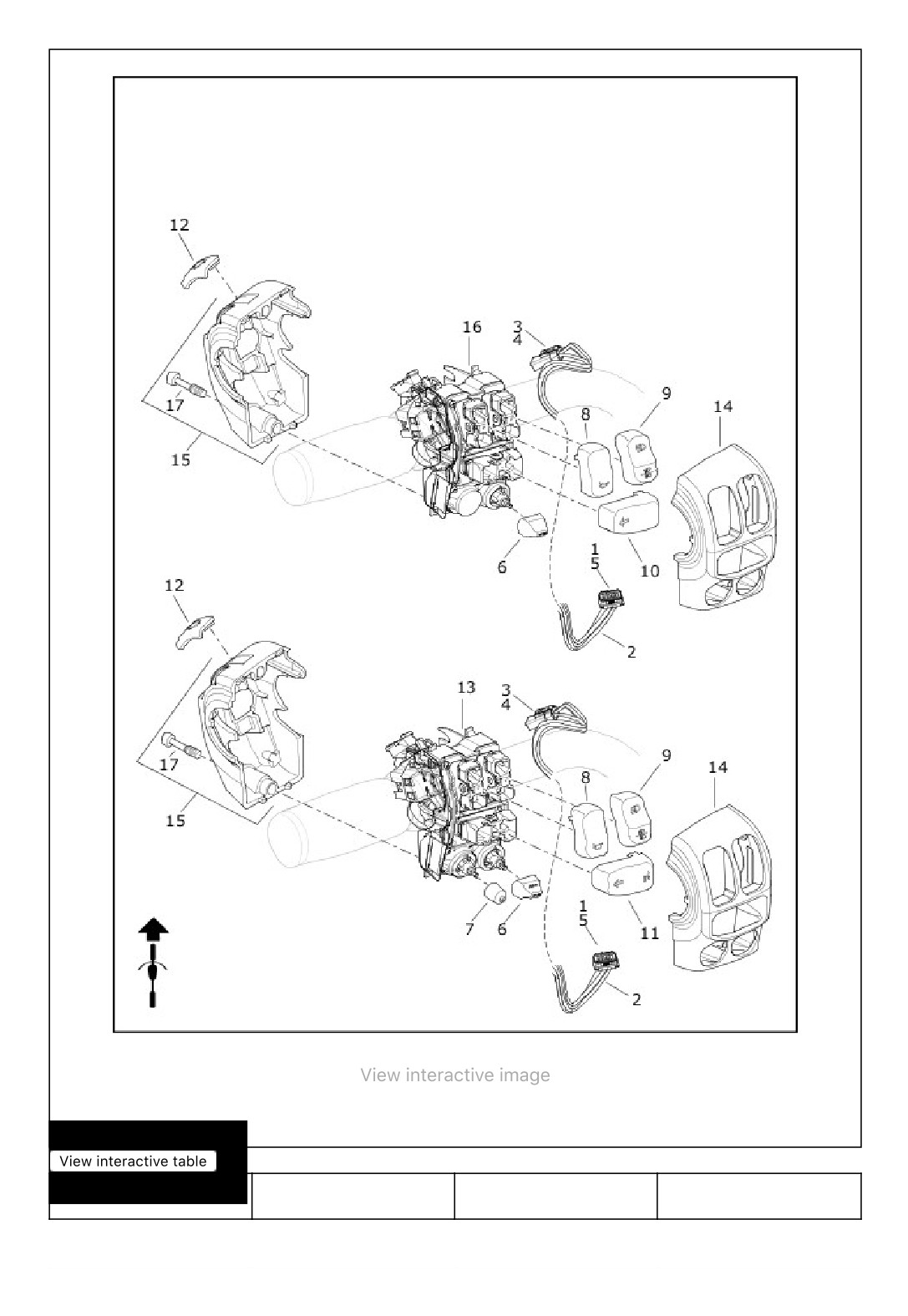

SWITCHES, HANDLEBAR, LEFT - EXCEPT FLHRXS
260/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
261/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
72908-11
HOUSING, four-way
FLHR, FLHRC, FLHT,
socket (black)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
2
69200178
WIRE HARNESS, left
FLHR, FLHRC, FLHT,
hand control jumper, with
FLHTCU, FLHTK, FLHTK
72908-11, 69200306,
SHRINE, FLHTKL, FLHX,
69200307 and 69200308
FLHXS, FLTRX, FLTRXS
69200630
WIRE HARNESS, left
FLTRU
hand control jumper, with
72908-11, 69200306,
69200307 and 69200308
3
69200306
SOCKET HOUSING, four-
FLHR, FLHRC, FLHT,
way
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
4
69200307
TERMINAL, socket, 22
FLHR, FLHRC, FLHT,
AWG (4)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
5
69200308
TERMINAL, socket, 22
FLHR, FLHRC, FLHT,
AWG (4)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
6
71500044
SWITCH CAP, cruise
FLHR, FLHRC, FLHT,
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
7
71500045
SWITCH CAP, audio
FLHTCU, FLHTK, FLHTK
home
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
8
71500047
SWITCH CAP, horn
FLHR, FLHRC, FLHT,
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
262/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
9
71500048
SWITCH CAP, lights, high
FLHR, FLHRC, FLHT,
beam, low beam and
FLHTCU, FLHTK, FLHTK
flash to pass
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
10
71500053
SWITCH CAP, left turn
FLHR, FLHRC, FLHT
signal
11
71500055
SWITCH CAP, left turn
FLHTCU, FLHTK, FLHTK
signal and voice
SHRINE, FLHTKL, FLHX,
recognition
FLHXS, FLTRU, FLTRX,
FLTRXS
12
71500094
SWITCH CAP, trigger
FLHR, FLHRC, FLHT,
switch
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
13
71500128B
SWITCH PACK, left hand
FLHTCU, FLHTK, FLHTK
control, with 71500044,
SHRINE, FLHTKL, FLHX,
71500045, 71500047,
FLHXS, FLTRU, FLTRX,
71500048 and 71500055
FLTRXS
14
71500338
COVER, front, left hand
FLHR, FLHRC, FLHT,
control
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
15
71500342
COVER, rear, left hand
FLHR, FLHRC, FLHT,
control, with 10500008
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
16
71500419A
SWITCH PACK, left hand
FLHR, FLHRC, FLHT
control, with 71500044,
71500047, 71500048 and
71500053
17
10500008
SCREW (2)
FLHR, FLHRC, FLHT,
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS

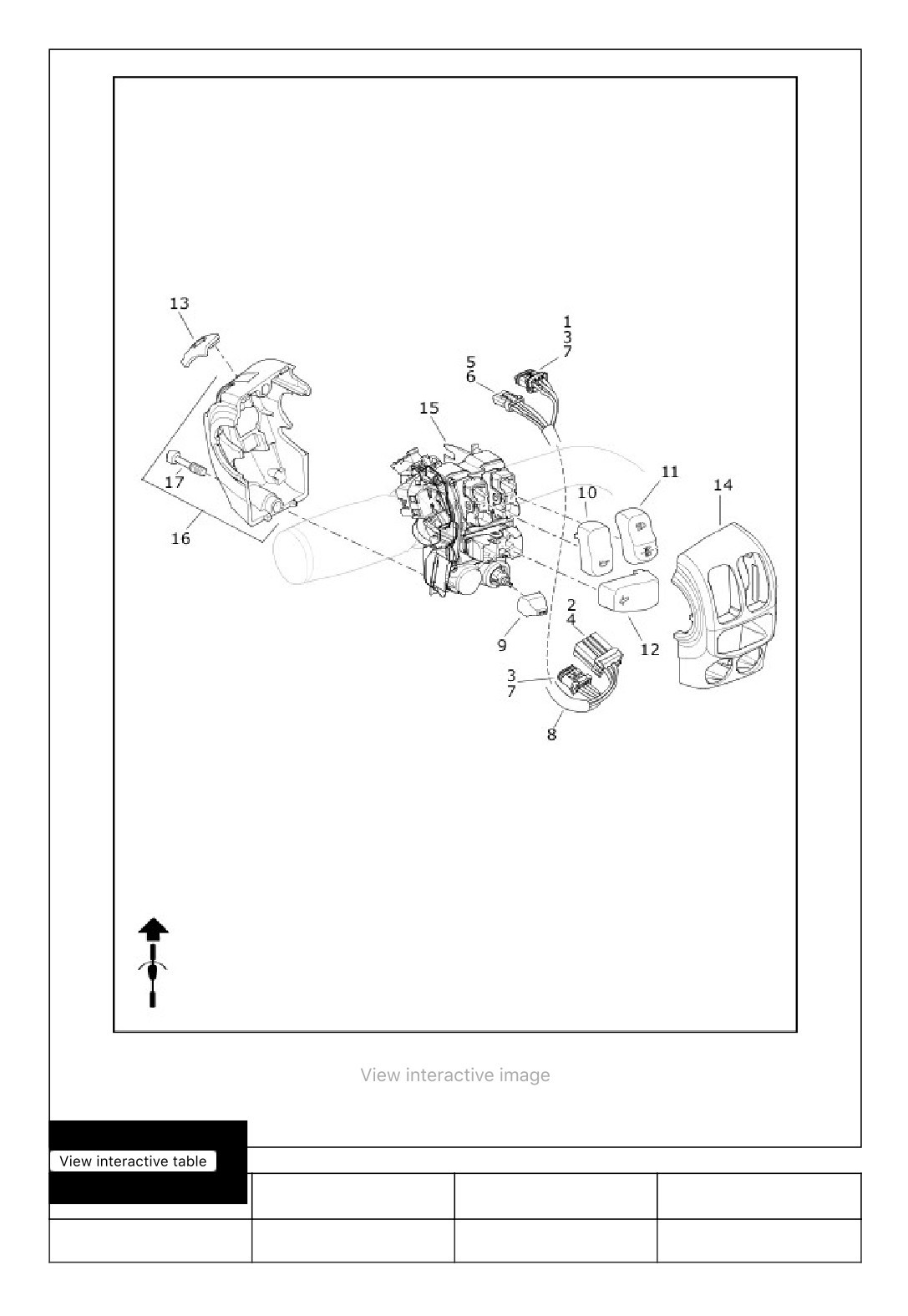

SWITCHES, HANDLEBAR, LEFT - FLHRXS
263/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
5118
SEAL PIN
FLHRXS
264/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
72560-07
TERMINAL, socket, 22
FLHRXS
AWG (3)
3
72908-11
HOUSING, four-way
FLHRXS
socket (black) (2)
4
73154-96BK
HOUSING, four-way
FLHRXS
socket
5
69200306
HOUSING, four-way
FLHRXS
socket
6
69200307
TERMINAL, socket, 22
FLHRXS
AWG (4)
7
69200308
TERMINAL, socket, 22
FLHRXS
AWG (7)
8
69201723
WIRE HARNESS, left
FLHRXS
hand control jumper, with
5118, 72560-07, 72908-
11, 73154-96BK,
69200306, 69200307 and
69200308
9
71500044
SWITCH CAP, cruise
FLHRXS
10
71500047
SWITCH CAP, horn
FLHRXS
11
71500048
SWITCH CAP, lights, high
FLHRXS
beam, low beam and
flash to pass
12
71500053
SWITCH CAP, left turn
FLHRXS
signal
13
71500094
SWITCH CAP, trigger
FLHRXS
switch
14
71500338
COVER, front, left hand
FLHRXS
control
15
71500419A
SWITCH PACK, left hand
FLHRXS
control, with 71500044,
71500047, 71500048 and
71500053
16
71500473
COVER, rear, left hand
FLHRXS
control, with 10500008
17
10500008
SCREW (2)
FLHRXS

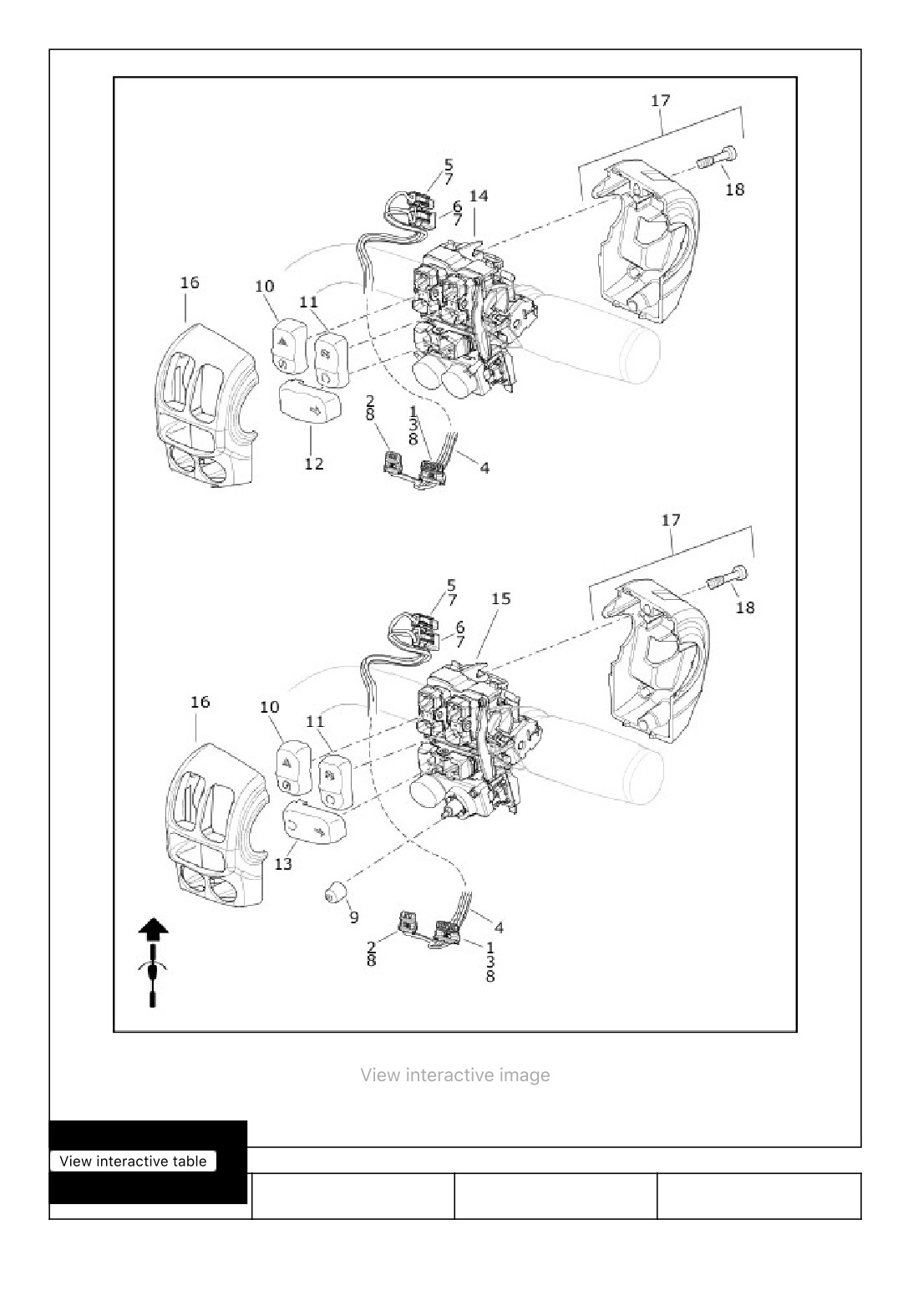

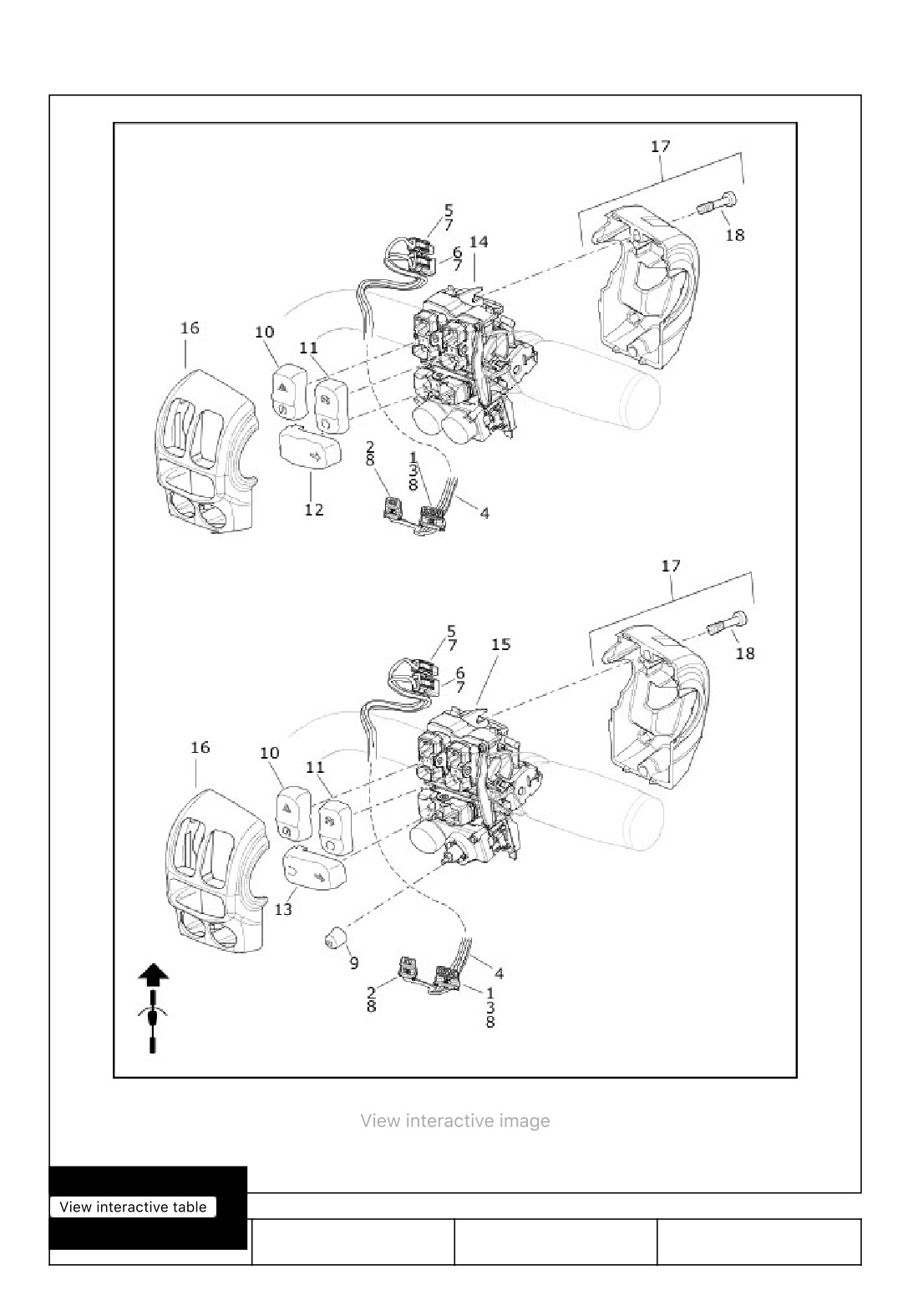

SWITCHES, HANDLEBAR, RIGHT - EXCEPT FLHRXS (1 OF 2)
265/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
266/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
5118
SEAL PIN
FLHR, FLHRC, FLHT,
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
2
72906-11
HOUSING, two-way
FLHR, FLHRC, FLHT,
socket (black)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
3
72908-11
HOUSING, four-way
FLHR, FLHRC, FLHT,
socket (black)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
4
69200179
WIRE HARNESS, right
FLHR, FLHRC, FLHT,
hand control jumper, with
FLHTCU, FLHTK, FLHTK
5118, 72906-11, 72908-
SHRINE, FLHTKL, FLHX,
11, 69200305, 69200306,
FLHXS, FLTRX, FLTRXS
69200307 and 69200308
4
69200631
WIRE HARNESS, right
FLTRU
hand control jumper, with
5118, 72906-11, 72908-
11, 69200305, 69200306,
69200307 and 69200308
5
69200305
HOUSING, two-way
FLHR, FLHRC, FLHT,
socket (white)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
6
69200306
HOUSING, four-way
FLHR, FLHRC, FLHT,
socket (white)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
7
69200307
TERMINAL, socket, 22
FLHR, FLHRC, FLHT,
AWG (5)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
8
69200308
TERMINAL, socket, 22
FLHR, FLHRC, FLHT,
AWG (5)
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
267/956
4/5/2019
SWITCHES, HANDLEBAR, RIGHT - EXCEPT FLHRXS (2 OF 2)
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
268/956
4/5/2019
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
9
71500046
SWITCH CAP, audio
FLHTCU, FLHTK, FLHTK
select
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
10
71500049
SWITCH CAP,
FLHR, FLHRC, FLHT,
start/hazard
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
11
71500050
SWITCH CAP, stop and
FLHR, FLHRC, FLHT,
run
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
12
71500057
SWITCH CAP, right turn
FLHR, FLHRC, FLHT
signal
13
71500478
SWITCH CAP, right turn
FLHTK, FLHTK SHRINE,
signal and back
FLHTKL, FLHXS, FLTRU,
FLTRXS
13
71500478
SWITCH CAP, right turn
FLHTCU, FLHX, FLTRX
signal and back (used
with BOOM!™ BOX GTS)
13
71500063
SWITCH CAP, right turn
FLHTCU, FLHX, FLTRX
signal and info (not
illustrated) (used with
BOOM!™ BOX 4.3)
14
71500127C
SWITCH PACK, right
FLHR, FLHRC, FLHT
hand control, with
71500049, 71500050 and
71500057
15
71500501
SWITCH PACK, right
FLHTK, FLHTK SHRINE,
hand control, with
FLHTKL, FLHXS, FLTRU,
71500046, 71500049,
FLTRXS
71500050 and 71500478
15
71500501
SWITCH PACK, right
FLHTCU, FLHX, FLTRX
hand control, with
71500046, 71500049,
71500050 and 71500478
(used with BOOM!™
BOX GTS)
269/956
