Harley Davidson SIP Parts Catalog 4/5/2019: touring models - page 17

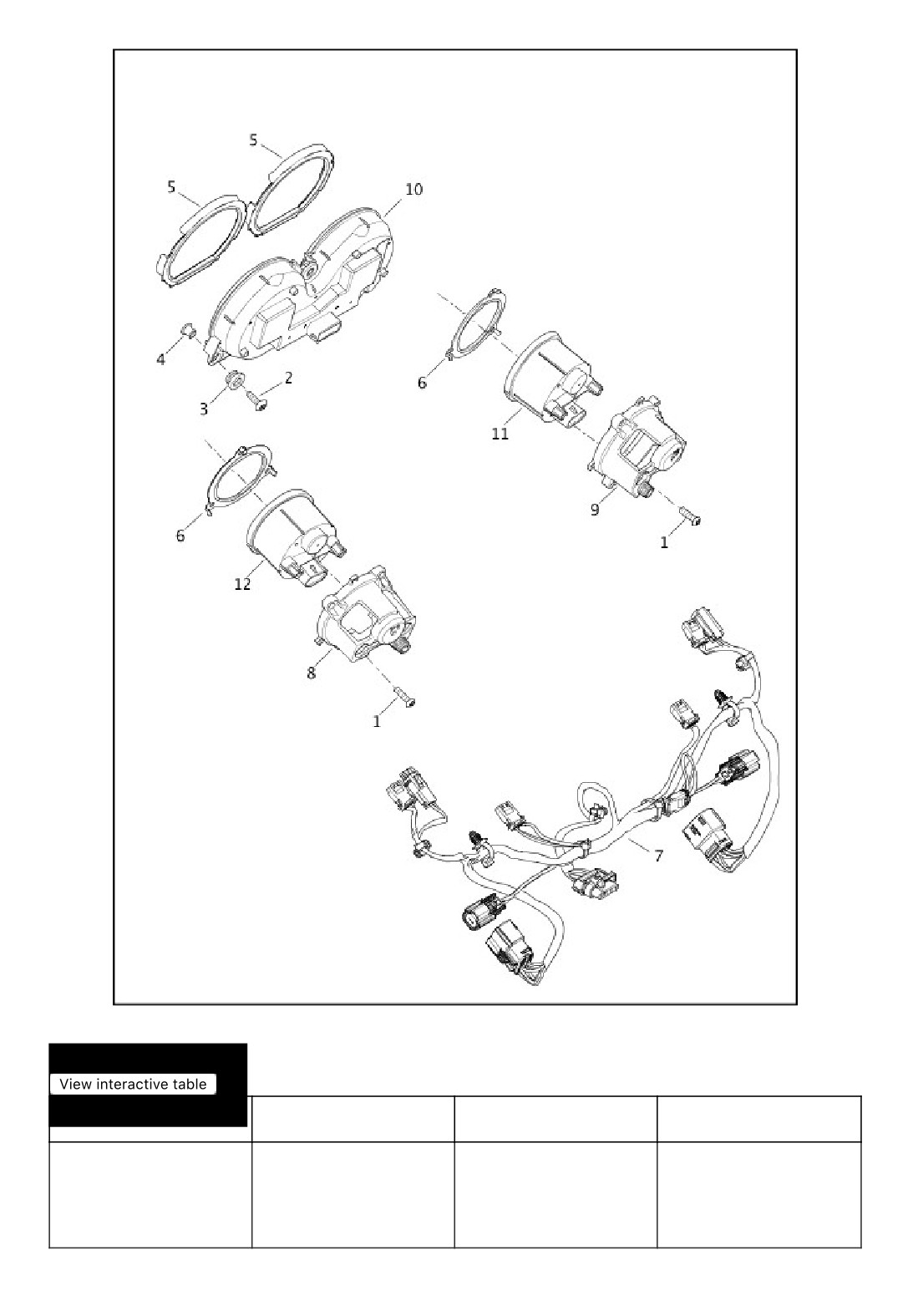

INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
10
70900121C
INSTRUMENT MODULE,
FLTRU, FLTRXS
mph, with 12100020 and
12400034 (Domestic,
California) (black)
642/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
10
70900122B
INSTRUMENT MODULE,
FLTRU, FLTRXS
km/h, with 12100020 and
12400034 (Canada, HDI,
Japan, Asia-Pacific)
(black)
10
70900123B
INSTRUMENT MODULE,
FLTRU, FLTRXS
dual - mph/km/h, with
12100020 and 12400034
(England) (black)
10
70900124C
INSTRUMENT MODULE,
FLTRX
mph, with 12100020 and
12400034 (Domestic,
California) (silver)
10
70900125B
INSTRUMENT MODULE,
FLTRX
km/h, with 12100020 and
12400034 (Canada, HDI,
Australia, Japan, Asia-
Pacific) (silver)

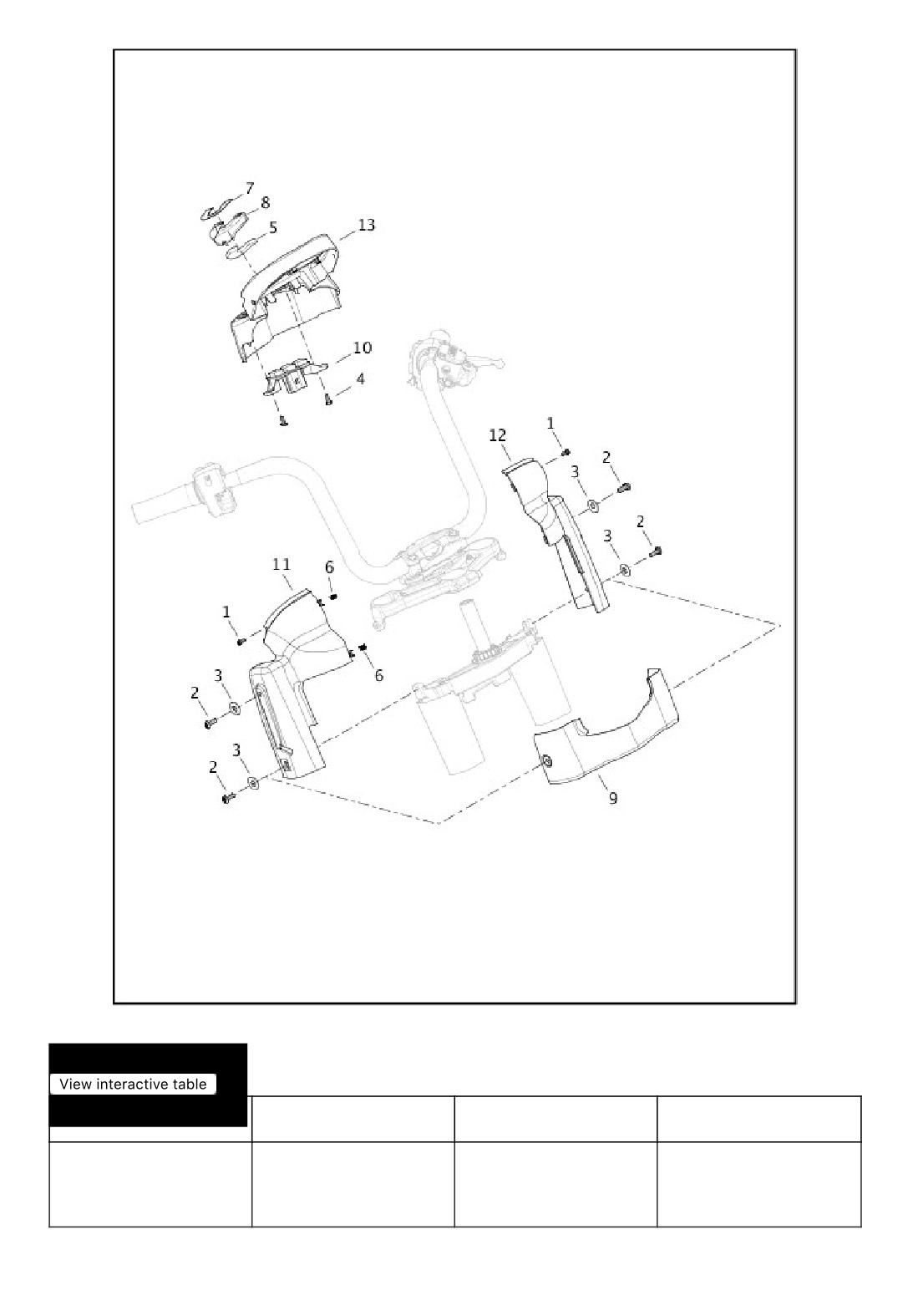

INSTRUMENT HOUSING - FLTRU, FLTRX AND FLTRXS
643/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
8
25700870
COVER ASSEMBLY,
FLTRXS
ignition switch, with
11100152
644/956

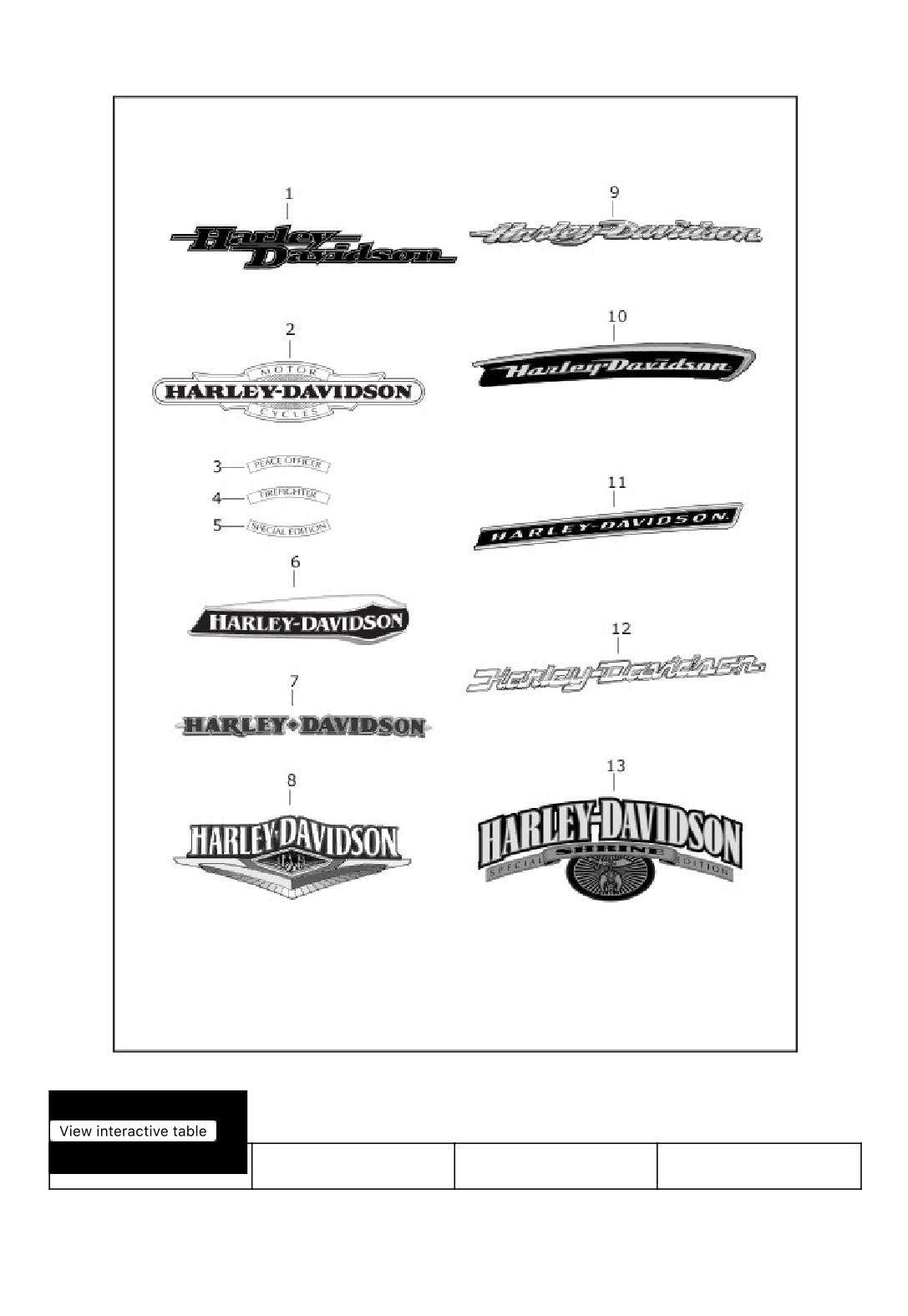

FUEL TANK TRIM (2 OF 2)
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
645/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
8
14100079
MEDALLION (right) (for
FLHRC
vivid black, bonnevile salt
pearl, billiard blue, 2-tone
wicked red/twisted
cherry tanks)
8
14100080
MEDALLION (left) (for
FLHRC
vivid black, bonnevile salt
pearl, billiard blue, 2-tone
wicked red/twisted
cherry tanks)
11
14100835
MEDALLION (left) (for
FLHRXS
vivid black, twisted
cherry, bonneville salt
denim, midnight blue
tanks)
11
14100836
MEDALLION (right) (for
FLHRXS
vivid black, twisted
cherry, bonneville salt
denim, midnight blue
tanks)
12
14101144BAGI
MEDALLION (left) (for 2-
FLHRXS, FLHXS, FLTRXS
tone scorched
orange/silver flux tanks)
12
14101145BAGI
MEDALLION (right) (for 2-
FLHRXS, FLHXS, FLTRXS
tone scorched
orange/silver flux tanks)
12
14101144BAGH
MEDALLION (left) (for 2-
FLHTK, FLTRU
tone scorched
orange/silver flux tanks)
12
14101145BAGH
MEDALLION (right) (for 2-
FLHTK, FLTRU
tone scorched
orange/silver flux tanks)

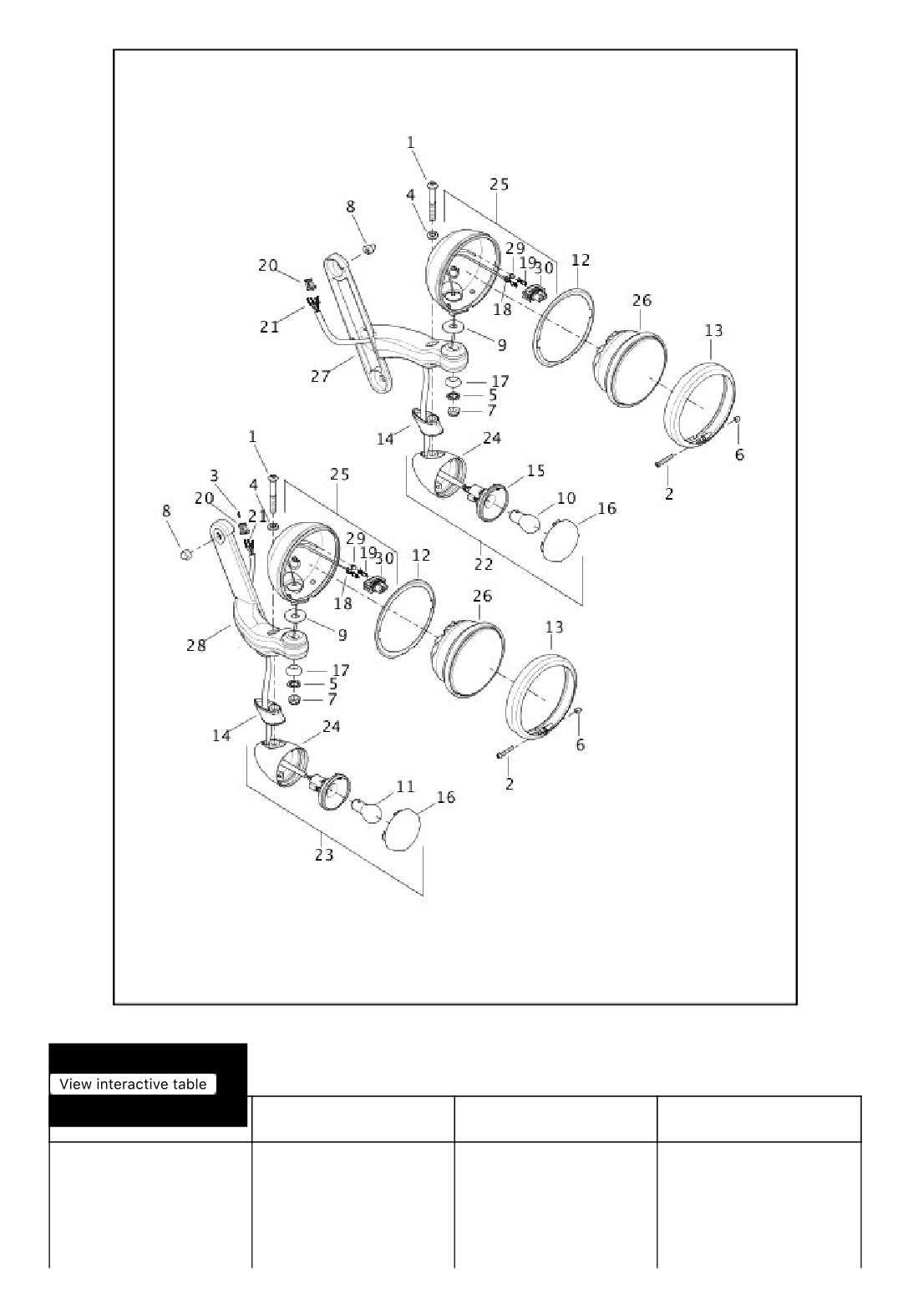

AUXILIARY/FOG LAMPS AND TURN SIGNALS, FRONT -
FLHTCU, FLHTK AND FLHTKL (2 OF 2)
646/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
25
67800254A
HOUSING, auxiliary/fog
FLHTCU, FLHTK, FLHTK
lamp, with 72298-95,
SHRINE, FLHTKL
72356-95, 72910-11,
69200199 and 69200259
(2)
647/956

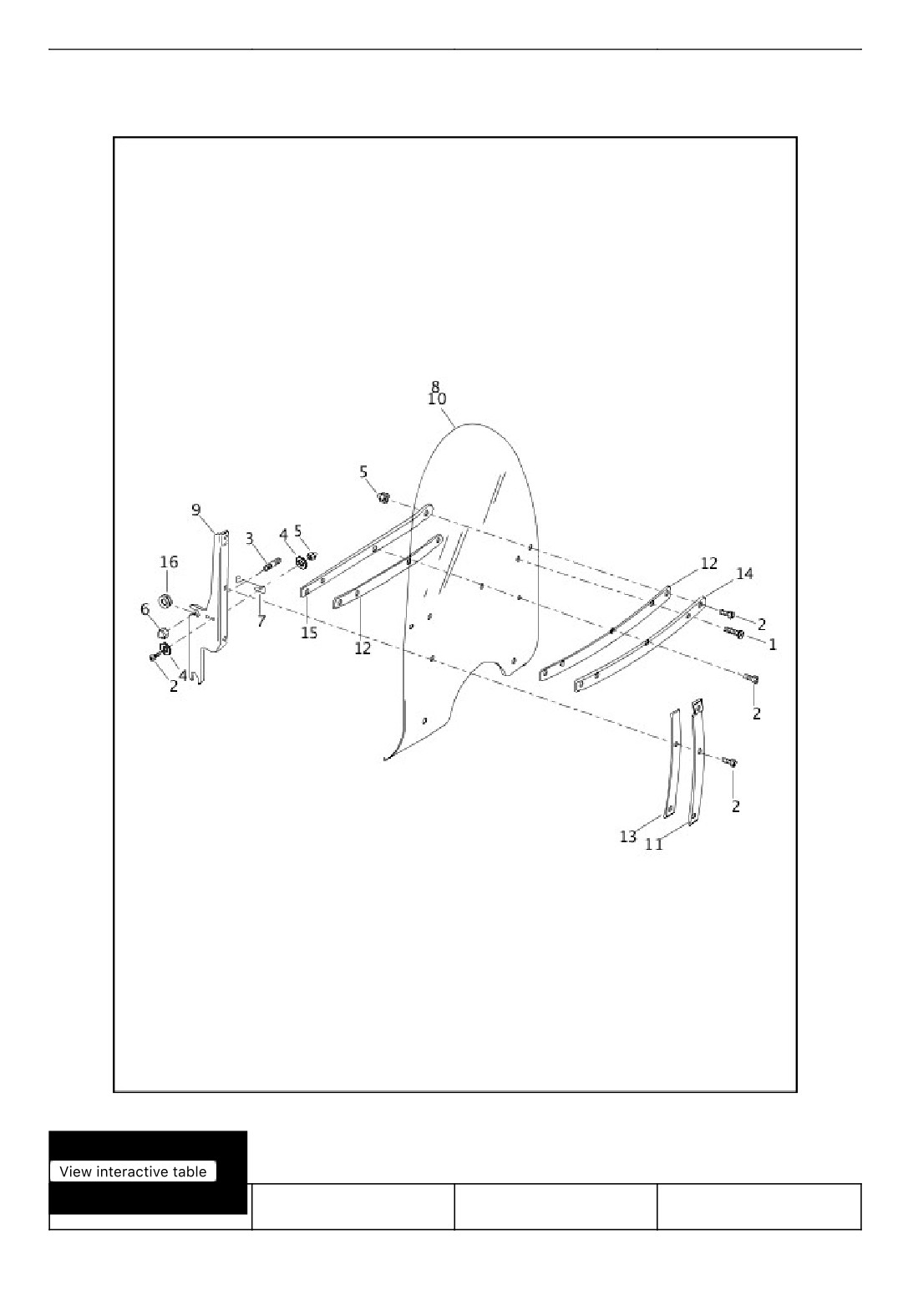

WINDSHIELD - FLHR AND FLHRC
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
648/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
2921A
SCREW (11)
FLHR, FLHRC

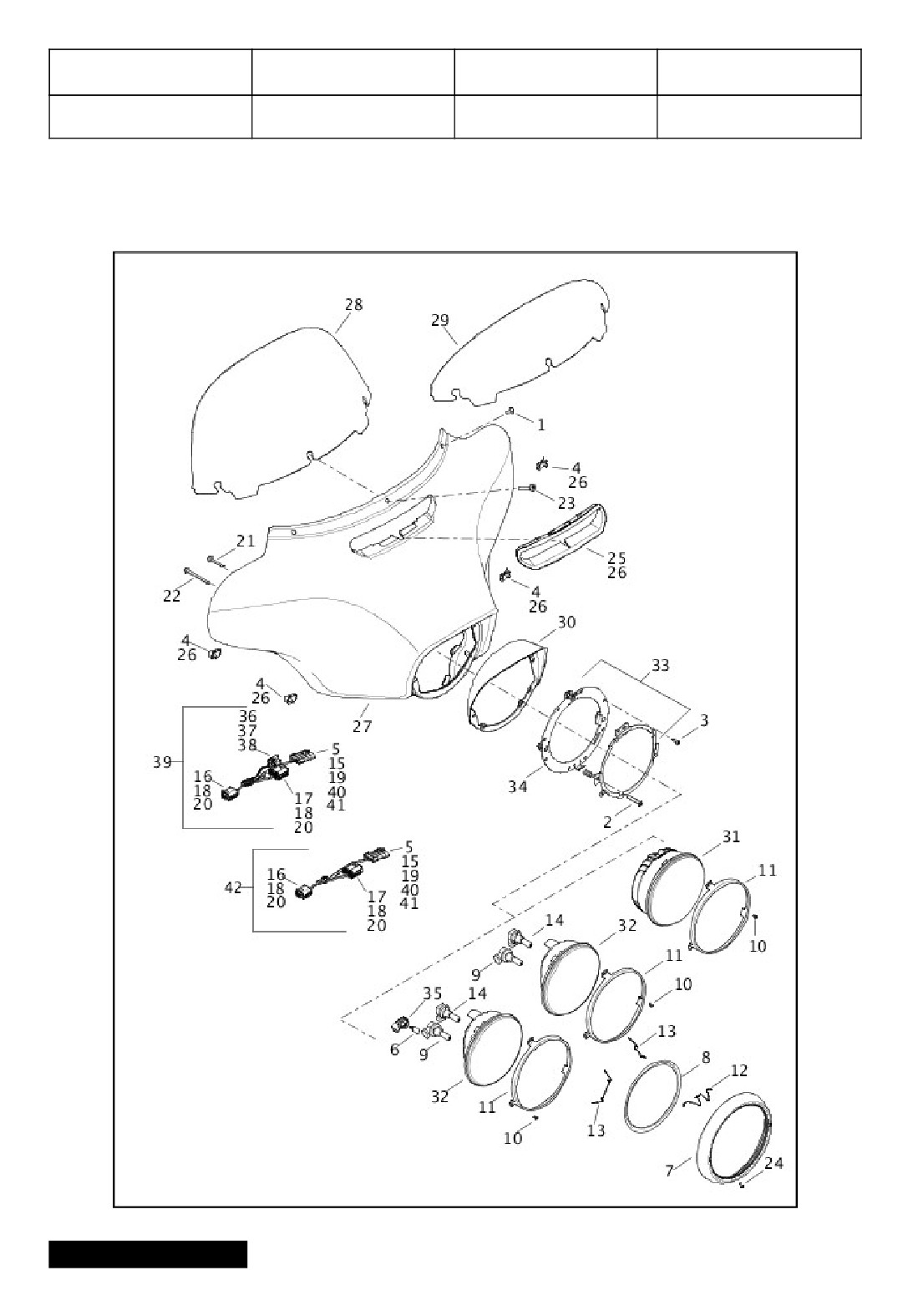

WINDSHIELD, FAIRING AND HEADLAMP - FLHT, FLHTCU,
FLHTK, FLHTKL, FLHX AND FLHXS (2 OF 2)
649/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
28
57400441
WINDSHIELD (clear)
FLHT
(Domestic, Australia)

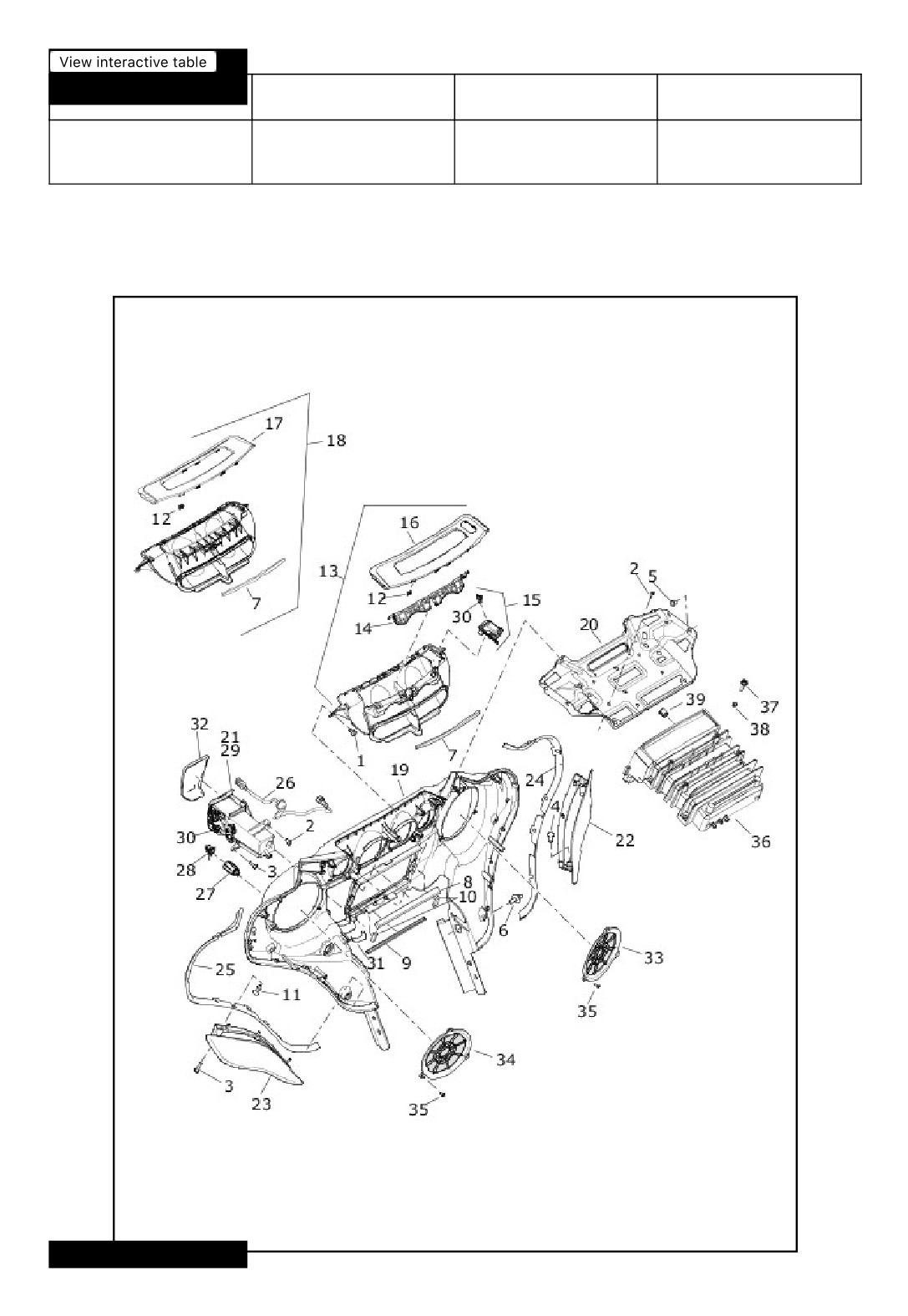

FAIRING, INNER - FLHT, FLHTCU, FLHTK, FLHTKL, FLHX AND
FLHXS (1 OF 3)
650/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
17
29200087
BEZEL, air duct, inner
FLHT
fairing, with 12200064
18
29200088
AIR DUCT, inner fairing,
FLHT
with 11100038 and
29200087

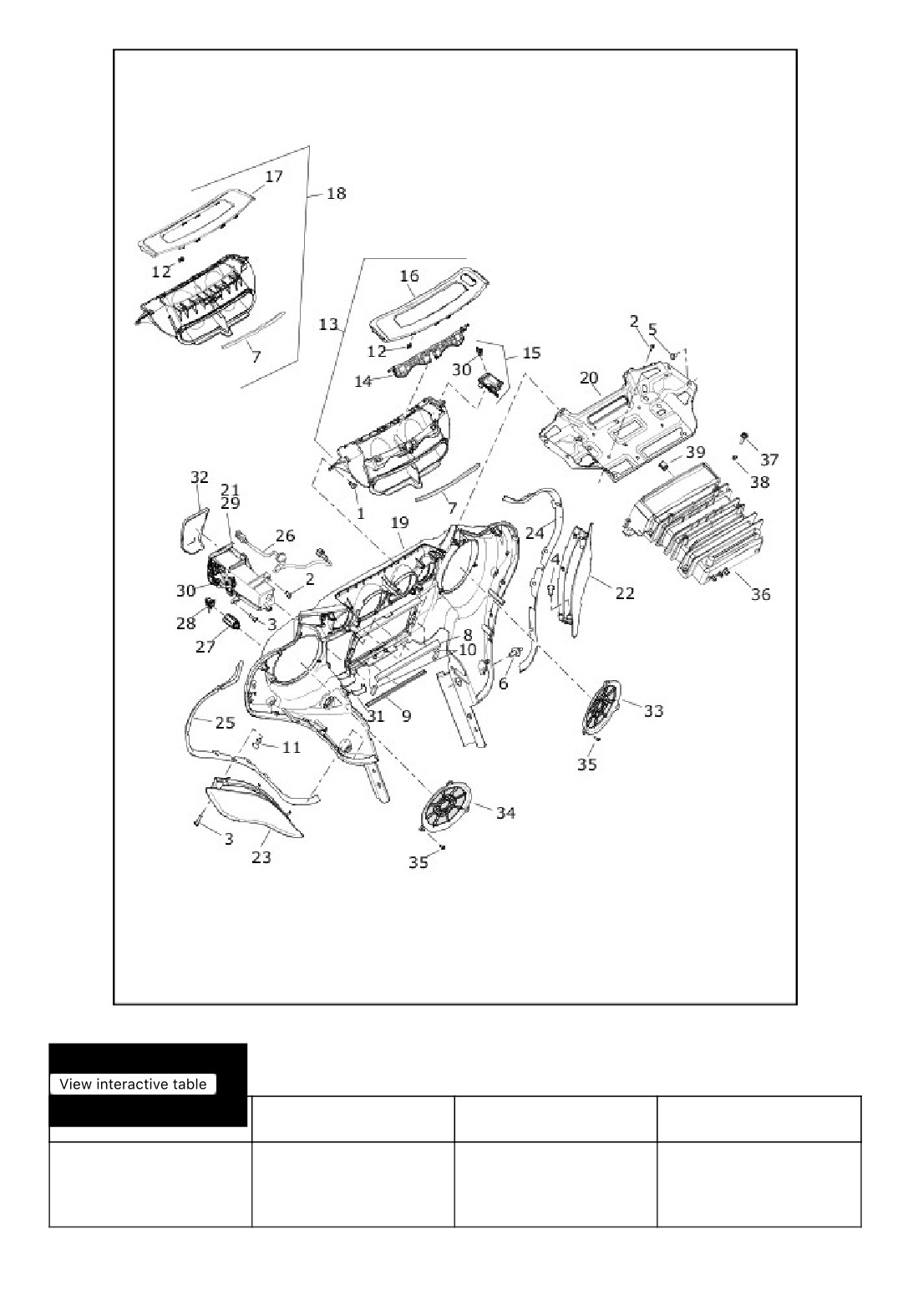

FAIRING, INNER - FLHT, FLHTCU, FLHTK, FLHTKL, FLHX AND
FLHXS (2 OF 3)
651/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
26
69200031A
WIRE HARNESS, USB
FLHTCU, FLHTK, FLHTK
jumper
SHRINE, FLHTKL, FLHX,
FLHXS
652/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
29
76000107A
MEDIA COMPARTMENT
FLHTCU, FLHTK, FLHTK
ASSEMBLY, with
SHRINE, FLHTKL, FLHX,
57000299, 69200031A
FLHXS
and 76000127
29
76000944
MEDIA COMPARTMENT
FLHT
ASSEMBLY, with
76000127
36
76000187
GLOVEBOX, with
FLHT
12600070 and 12600071
37
12600070
BOLT (4)
FLHT
38
12600071
RETAINER (4)
FLHT
39
12100154
PLUG
FLHT

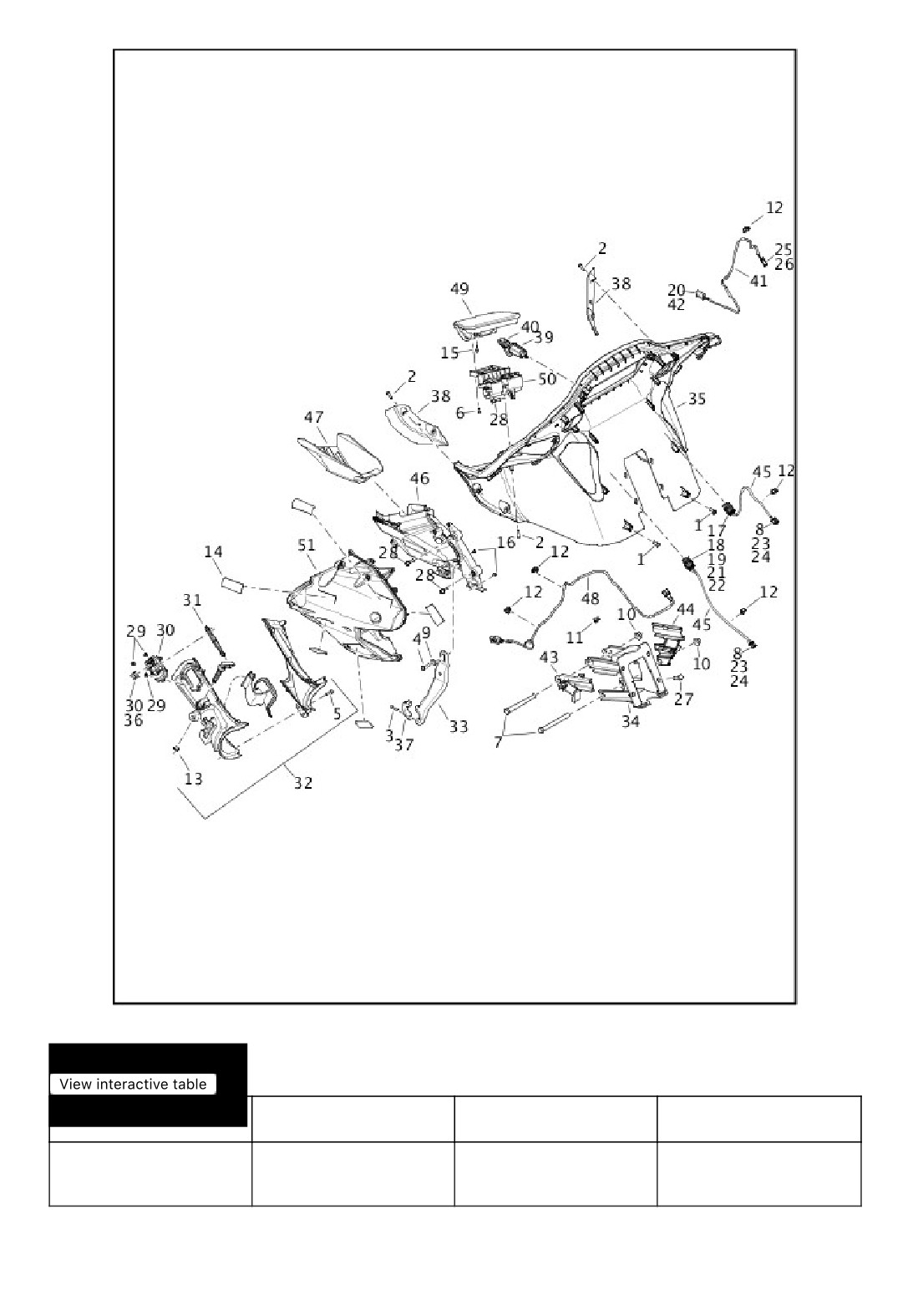

FAIRING, INNER - FLTRU, FLTRX AND FLTRXS (2 OF 2)
653/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
35
57000374DH
INNER FAIRING (vivid
FLTRU, FLTRXS
denim)
654/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
46
76000370A
MEDIA STORAGE
FLTRU, FLTRX, FLTRXS
COMPARTMENT, with
16, 47 and 48 (right)
48
76000374A
USB CABLE ASSEMBLY
FLTRU, FLTRX, FLTRXS

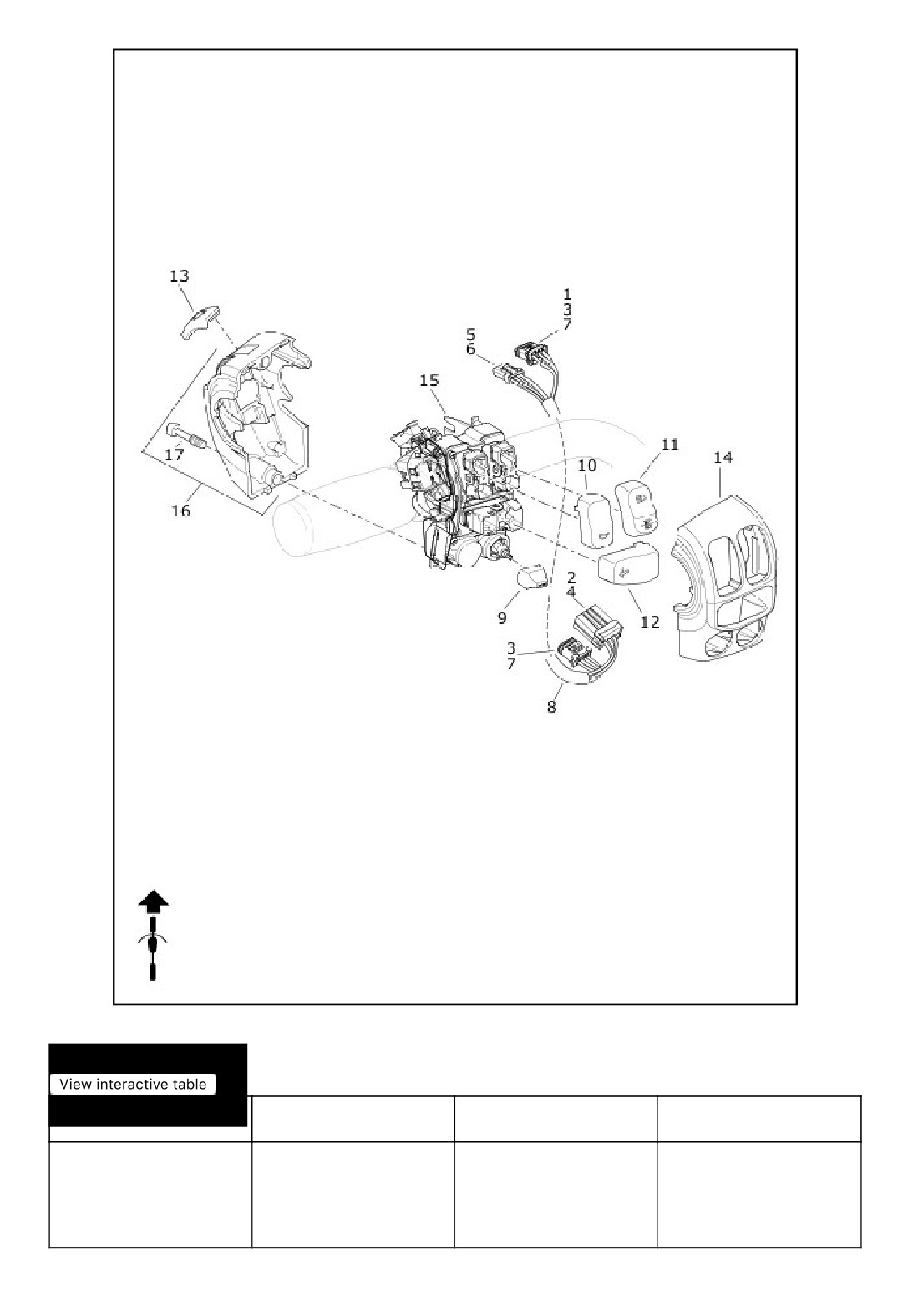

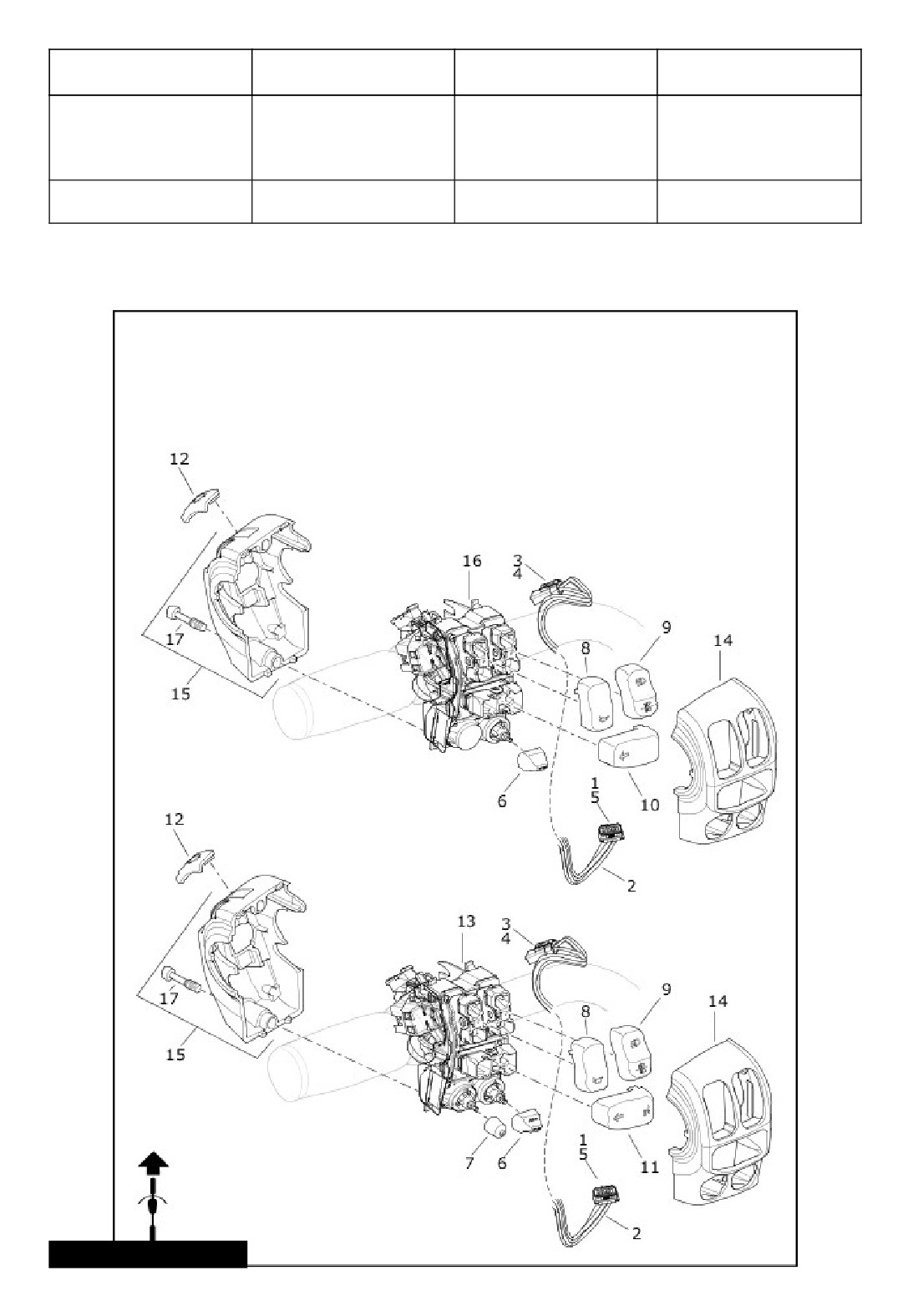

SWITCHES, HANDLEBAR, LEFT - EXCEPT FLHRXS
655/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
13
71500128B
SWITCH PACK, left hand
FLHTCU, FLHTK, FLHTK
control, with 71500044,
SHRINE, FLHTKL, FLHX,
71500045, 71500047,
FLHXS, FLTRU, FLTRX,
71500048 and 71500055
FLTRXS
16
71500419A
SWITCH PACK, left hand
FLHR, FLHRC, FLHT
control, with 71500044,
71500047, 71500048 and
71500053
17
10500008
SCREW (2)
FLHR, FLHRC, FLHT,
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
SWITCHES, HANDLEBAR, LEFT - FLHRXS
656/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
15
71500419A
SWITCH PACK, left hand
FLHRXS
control, with 71500044,
71500047, 71500048 and
71500053
657/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
17
10500008
SCREW (2)
FLHRXS

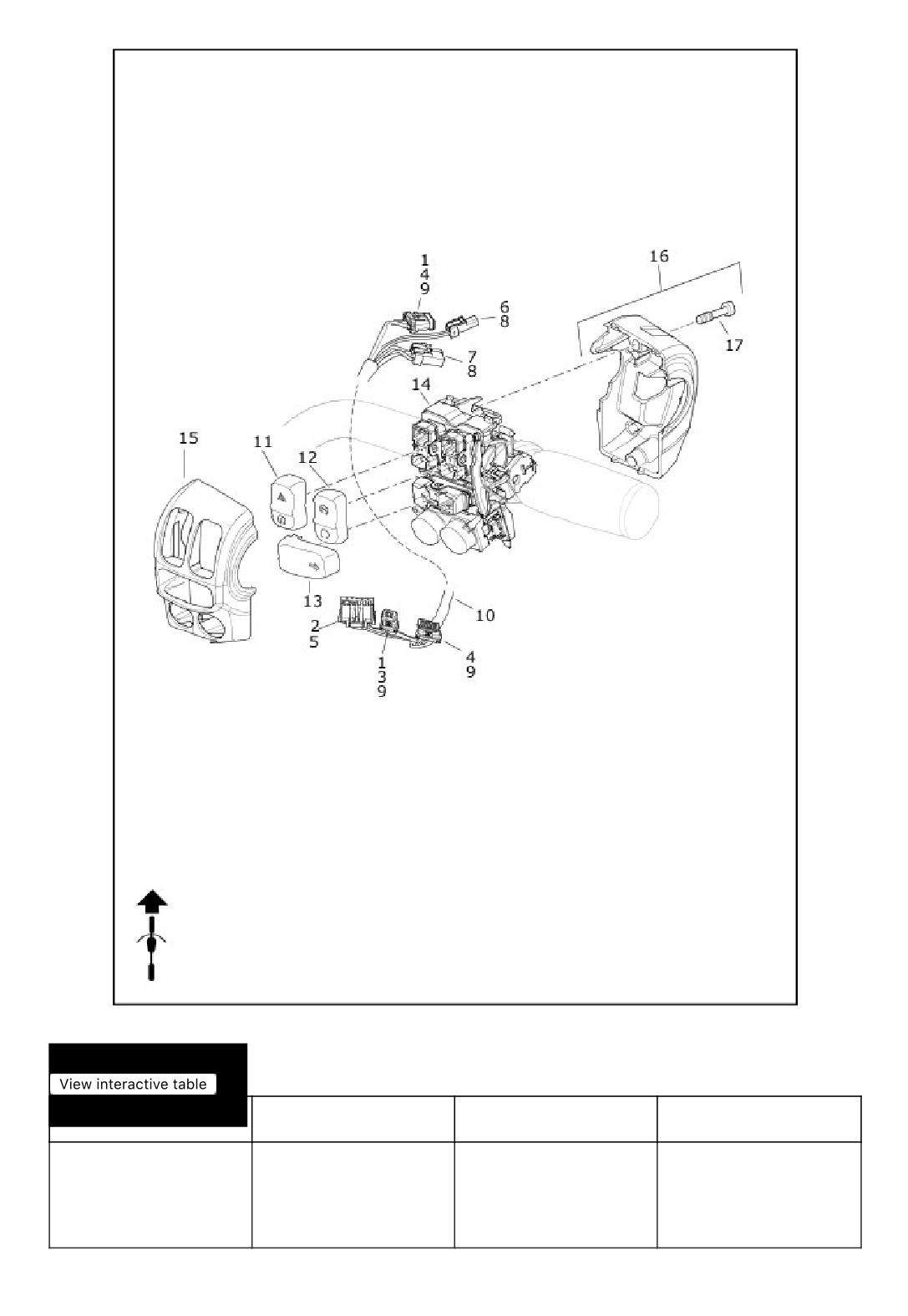

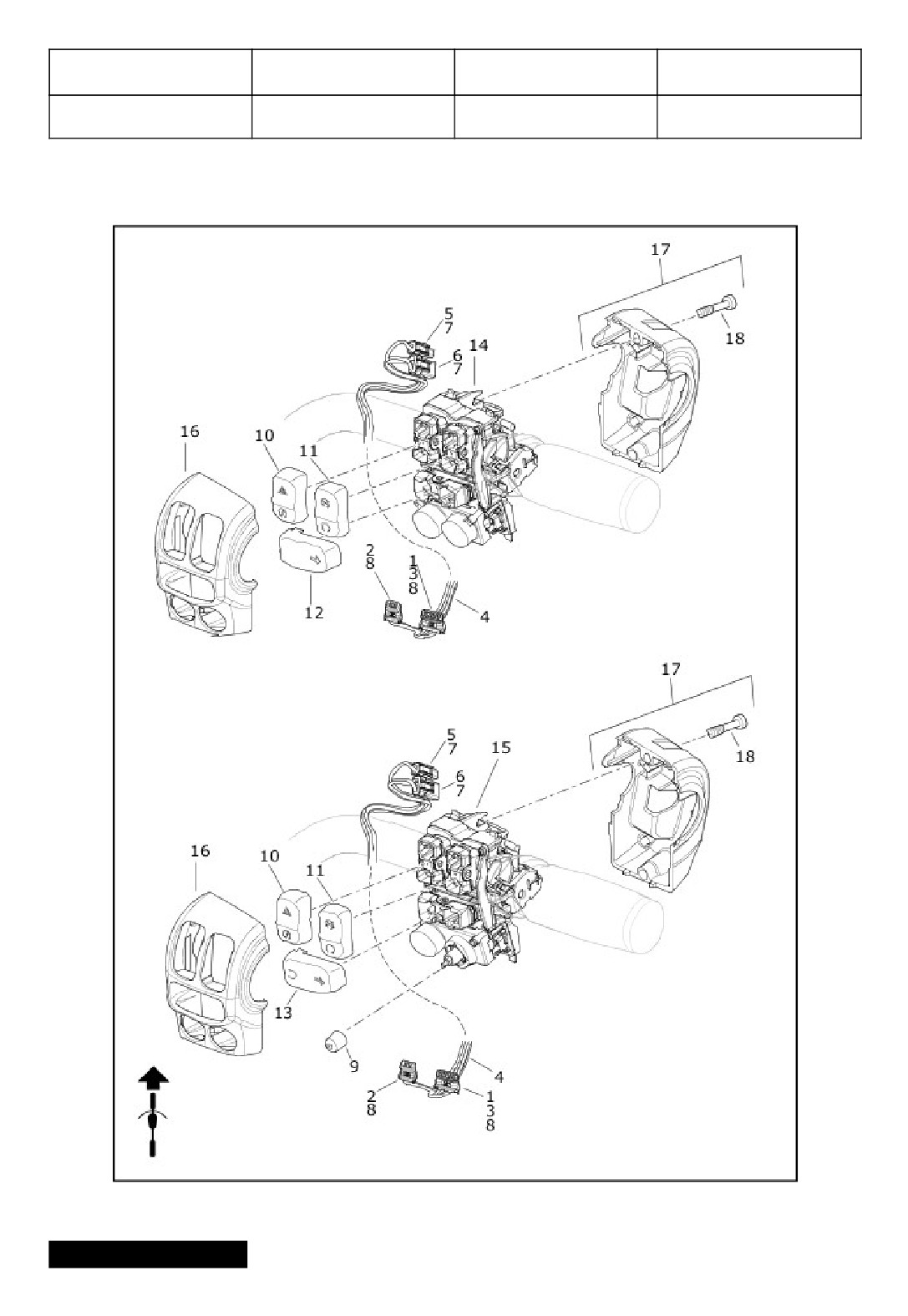

SWITCHES, HANDLEBAR, RIGHT - EXCEPT FLHRXS (2 OF 2)
658/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
13
71500478
SWITCH CAP, right turn
FLHTK, FLHTK SHRINE,
signal and back
FLHTKL, FLHXS, FLTRU,
FLTRXS
13
71500478
SWITCH CAP, right turn
FLHTCU, FLHX, FLTRX
signal and back (used
with BOOM!™ BOX GTS)
14
71500127C
SWITCH PACK, right
FLHR, FLHRC, FLHT
hand control, with
71500049, 71500050 and
71500057
15
71500501
SWITCH PACK, right
FLHTK, FLHTK SHRINE,
hand control, with
FLHTKL, FLHXS, FLTRU,
71500046, 71500049,
FLTRXS
71500050 and 71500478
15
71500501
SWITCH PACK, right
FLHTCU, FLHX, FLTRX
hand control, with
71500046, 71500049,
71500050 and 71500478
(used with BOOM!™
BOX GTS)
15
71500129C
SWITCH PACK, right
FLHTCU, FLHX, FLTRX
hand control, with
71500046, 71500049,
71500050 and 71500063
(used with BOOM!™
BOX 4.3)
18
10500008
SCREW (2)
FLHR, FLHRC, FLHT,
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS, FLTRU, FLTRX,
FLTRXS
SWITCHES, HANDLEBAR, RIGHT - FLHRXS
659/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
14
71500127C
SWITCH PACK, right
FLHRXS
hand control, with
71500049, 71500050 and
71500057
660/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
17
10500008
SCREW (2)
FLHRXS

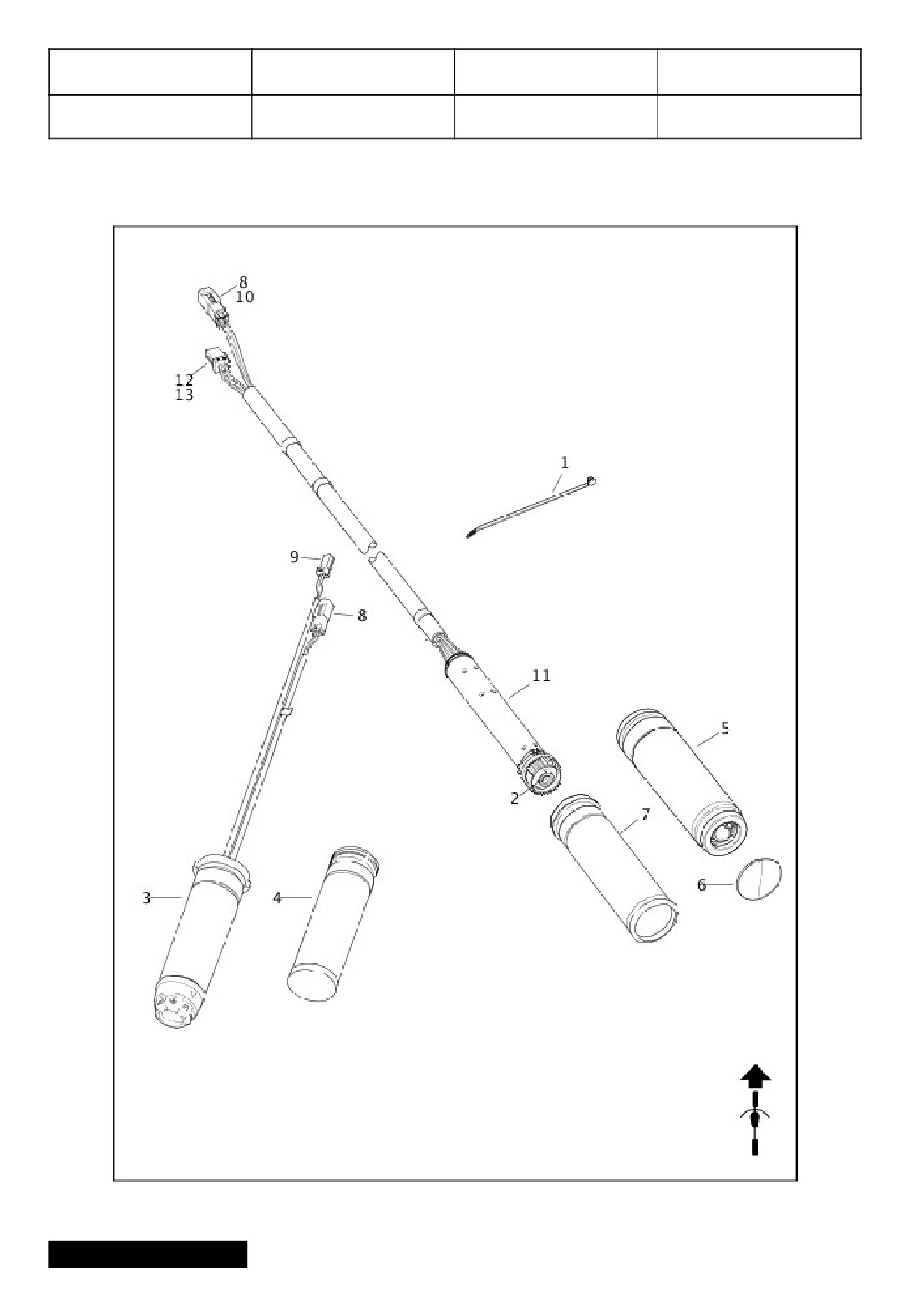

THROTTLE CONTROL
661/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
11
32700050A
SENSOR, twist grip, with
ALL
32306-08, 72902-01BK,
72990-01, 69200307 and
69201162

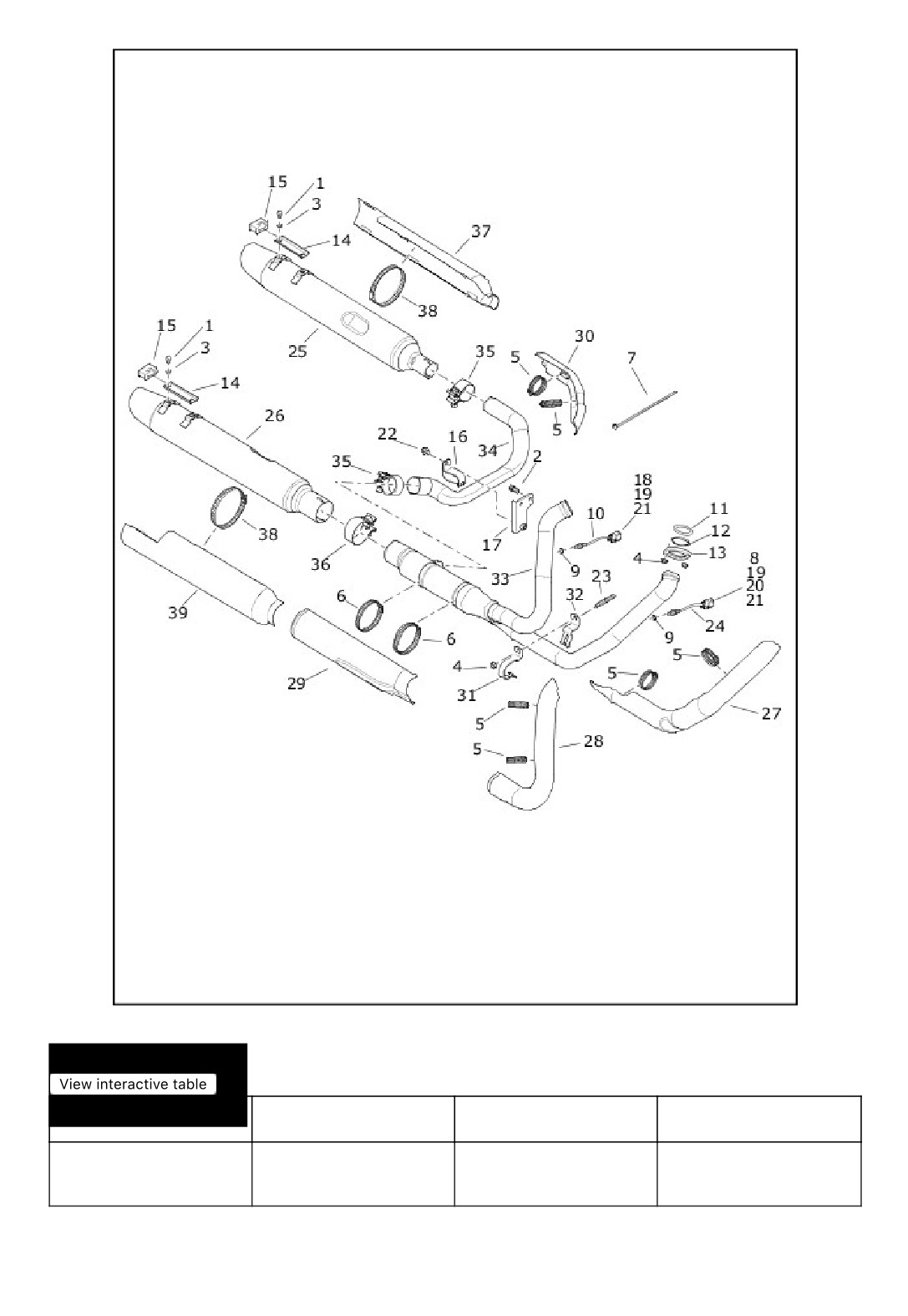

EXHAUST SYSTEM (1 OF 2)
662/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
16
66861-09B
CLAMP, exhaust pipe,
ALL
hinged
663/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
25
64900235A
MUFFLER (left) (chrome)
FLHR, FLHT, FLHTCU,
(Domestic, Canada,
FLHTK, FLHTK SHRINE,
California)
FLHTKL, FLHX, FLTRU,
FLTRX
25
64900765A
MUFFLER (left) (black)
FLHRXS, FLHXS, FLTRXS
(Domestic, Canada,
California)
25
64900815
MUFFLER (left) (chrome)
FLHR, FLHTK, FLHTK
(China)
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
25
64900817
MUFFLER (left) (black)
FLHRXS, FLHXS, FLTRXS
(China)
EXHAUST SYSTEM (2 OF 2)
664/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
26
64900236A
MUFFLER (right)
FLHR, FLHT, FLHTCU,
(chrome) (Domestic,
FLHTK, FLHTK SHRINE,
Canada, California)
FLHTKL, FLHX, FLTRU,
FLTRX
665/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
26
64900766A
MUFFLER (right) (black)
FLHRXS, FLHXS, FLTRXS
(Domestic, Canada,
California)
26
64900814
MUFFLER (right)
FLHR, FLHTK, FLHTK
(chrome) (China)
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
26
64900816
MUFFLER (right) (black)
FLHRXS, FLHXS, FLTRXS
(China)
37
65400545
SHIELD, muffler (left)
FLHR, FLHTK, FLHTK
(chrome) (China)
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
37
65400546
SHIELD, muffler (left)
FLHRXS, FLHXS, FLTRXS
(black) (China)
38
66047-05
CLAMP (China) (6)
ALL
39
65400547
SHIELD, muffler (right)
FLHR, FLHTK, FLHTK
(chrome) (China)
SHRINE, FLHTKL, FLHX,
FLTRU, FLTRX
39
65400548
SHIELD, muffler (right)
FLHRXS, FLHXS, FLTRXS
(black) (China)
WIRING HARNESS, MAIN, NON-ABS - FLHT, FLHX (2 OF 8)
666/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
69202354
PLUG, weather
FLHT

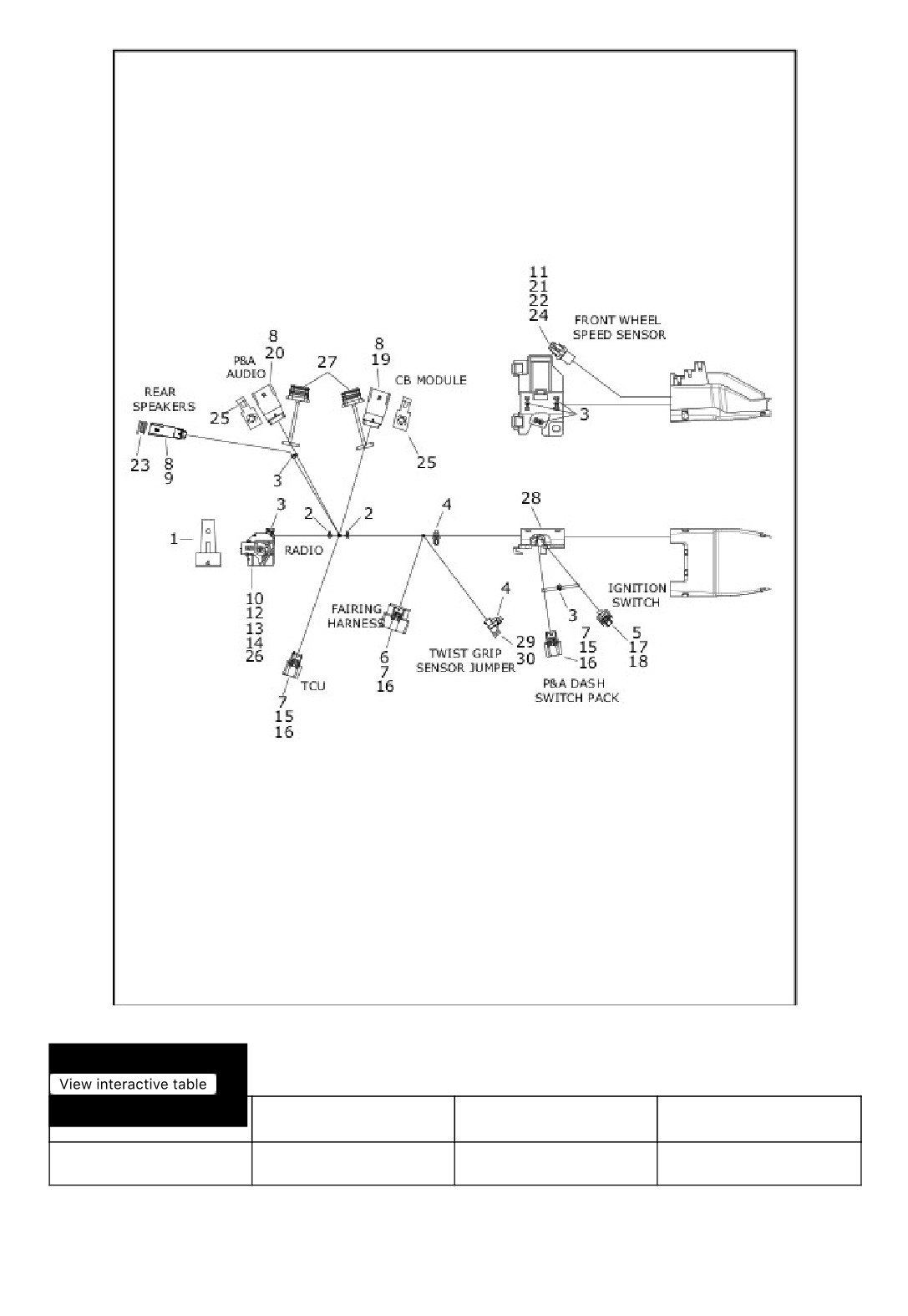

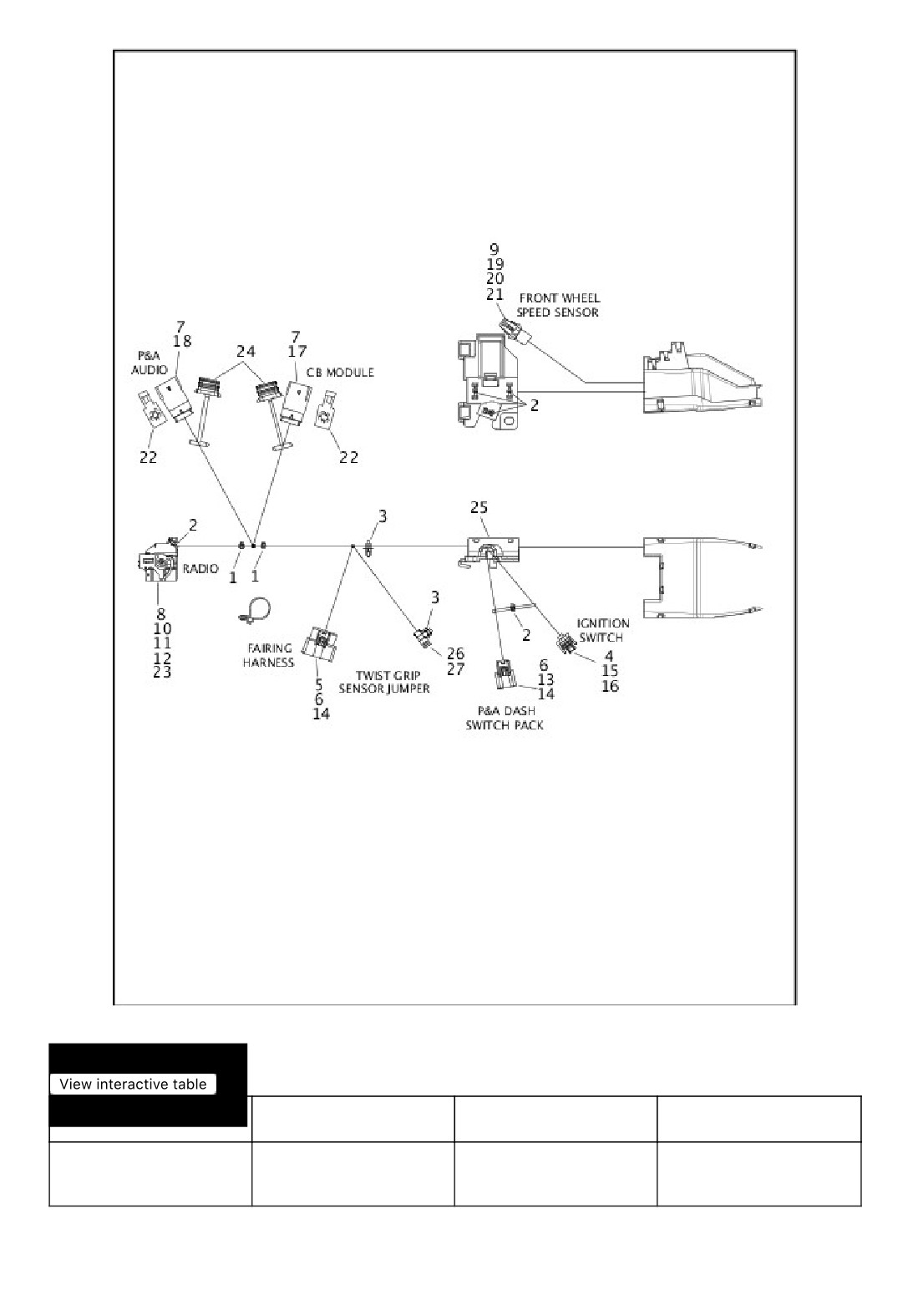

WIRING HARNESS, MAIN, ABS - FLHT, FLHX, FLHXS (2 OF 8)
667/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
69202354
PLUG, weather
FLHT
WIRING HARNESS, MAIN, ABS - FLHTCU (2 OF 8)
668/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
20
72639-10
SECONDARY LOCK,
FLHTCU
two-way socket
669/956

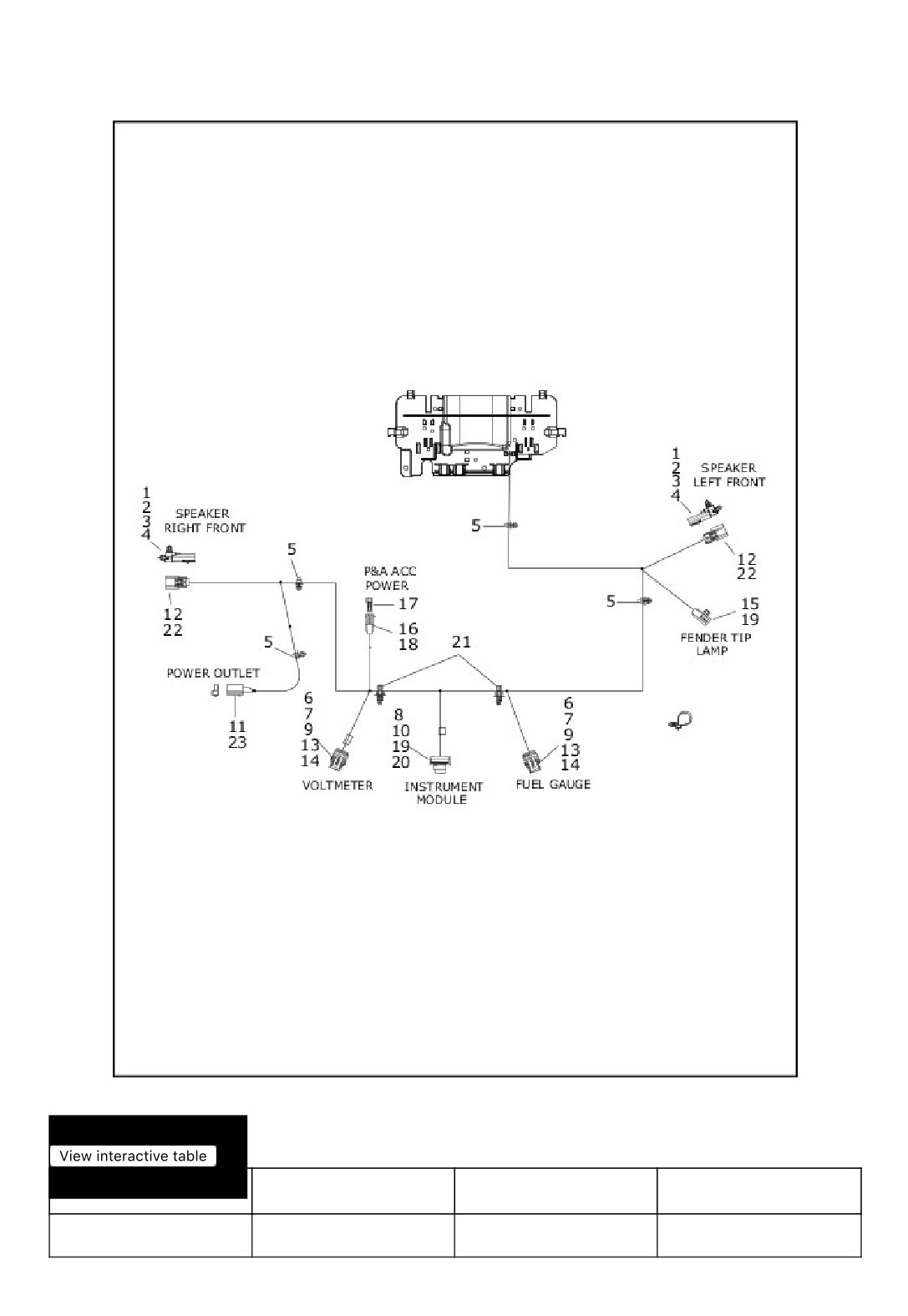

WIRING HARNESS, FAIRING - FLHT, FLHTCU, FLHTK,
FLHTKL, FLHX AND FLHXS (2 OF 2)
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
72473-07
SEAL PIN (natural) (2)
FLHT
670/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
73213-07
RETAINER, anchored
FLHT
3
69200272
HOUSING, two-way pin
FLHT
(black)
4
69202385
PLUG, weather, two-way
FLHT
pin

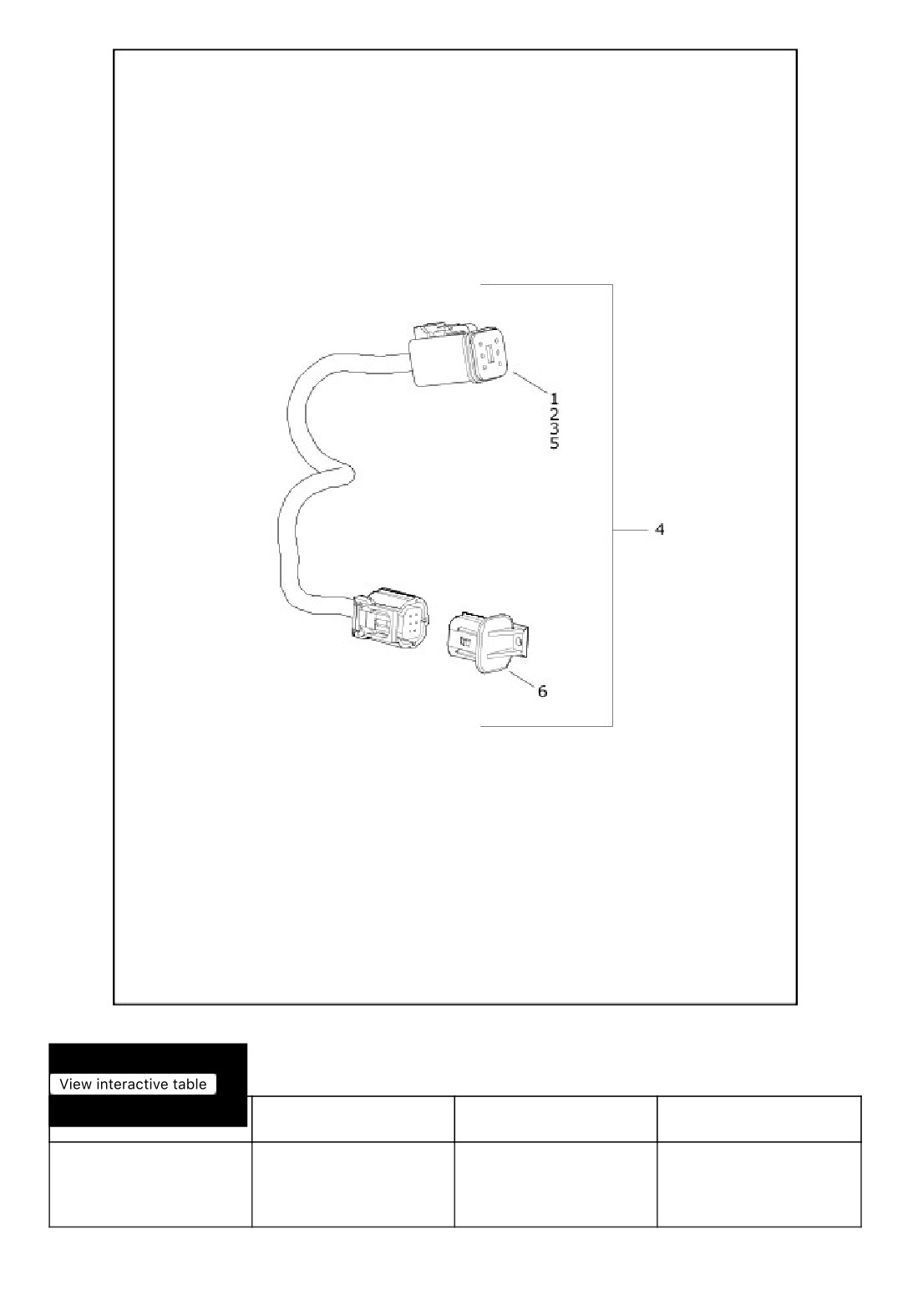

WIRING HARNESS, ON BOARD DIAGNOSTICS (OBD)
JUMPER (CHINA ONLY)
671/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
1
72116-94BK
HOUSING, six-way
FLHR, FLHRXS, FLHTK,
socket (black) (replaces
FLHTKL, FLHX, FLHXS,
gray connector)
FLTRU, FLTRX, FLTRXS
672/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
72156-94
SECONDARY LOCK, six-
FLHR, FLHRXS, FLHTK,
way socket
FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX, FLTRXS
3
72195-94
SEAL PIN (2)
FLHR, FLHRXS, FLHTK,
FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX, FLTRXS
4
69202097
WIRING HARNESS, OBD
FLHR, FLHRXS, FLHTK,
JUMPER
FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX, FLTRXS
5
69202102
TERMINAL, socket, 22
FLHR, FLHRXS, FLHTK,
AWG (4)
FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX, FLTRXS
6
69202108
CAP (2)
FLHR, FLHRXS, FLHTK,
FLHTKL, FLHX, FLHXS,
FLTRU, FLTRX, FLTRXS

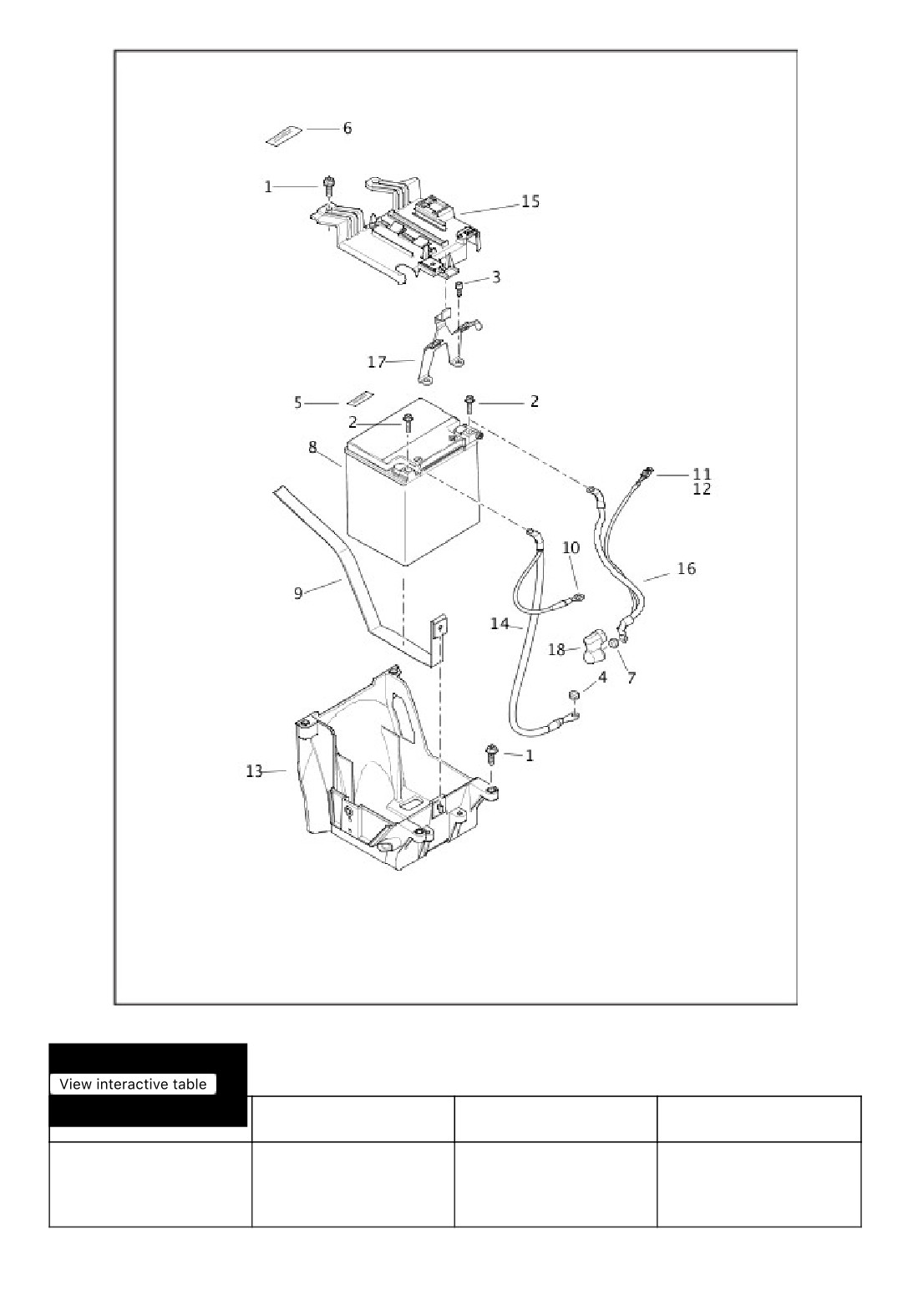

BATTERY
673/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
5
14001739
LABEL, battery warning
FLHRC, FLHRXS, FLHTK,
(Brazil)
FLHTK SHRINE, FLHX,
FLHXS, FLTRU, FLTRXS
674/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
10
9819
TERMINAL, ring, 12 AWG
ALL
13
66000010A
BATTERY TRAY
ALL

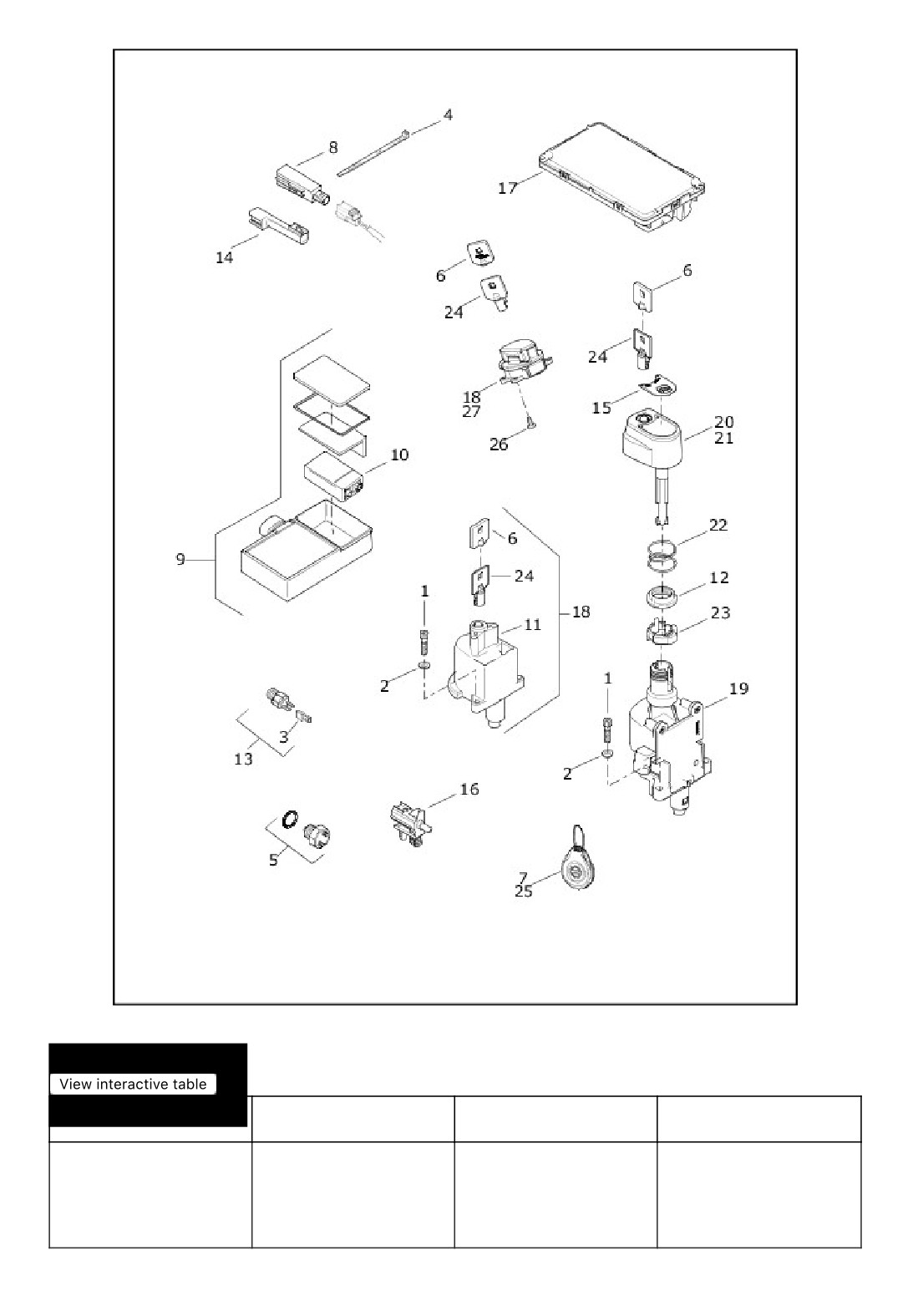

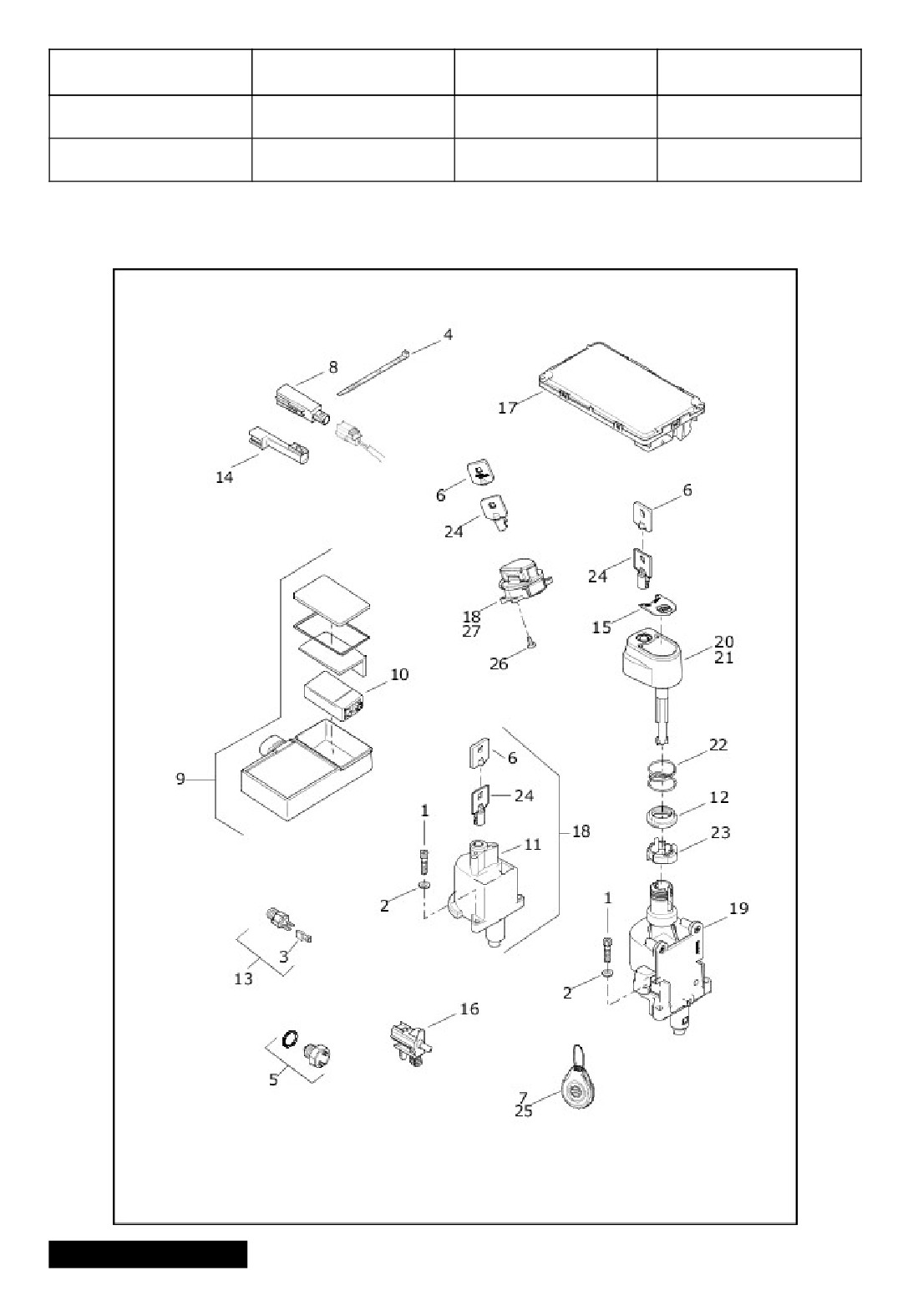

SWITCHES (1 OF 2)
675/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
12
71660-03A
NUT, ignition switch
FLHT, FLHTCU, FLHTK,
FLHTK SHRINE, FLHTKL,
FLHX, FLHXS, FLTRU,
FLTRX, FLTRXS
17
41000341E
BODY CONTROL
ALL
MODULE (BCM) with
security (Except Japan)
17
41000342E
BODY CONTROL
FLHR, FLHRXS, FLHT,
MODULE (BCM) with
FLHTK, FLHTK SHRINE,
security (Japan)
FLHTKL, FLHXS, FLTRU,
FLTRX, FLTRXS
17
41000351E
BODY CONTROL
FLHR, FLHTCU, FLHX,
MODULE (BCM) without
FLTRX
security
SWITCHES (2 OF 2)
676/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
19
71400013B
HOUSING, ignition
FLHT, FLHTK, FLHTK
switch, with 71660-03
SHRINE, FLHTKL, FLHX,
and 71400081 (HDI)
FLHXS, FLTRU, FLTRX,
FLTRXS
677/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
20
71400015B
LOCKSET, complete,
FLHTCU, FLHTK, FLHTK
with keys, ignition knob,
SHRINE, FLHTKL, FLTRU
saddlebag and Tour-Pak
locks
20
71400016B
LOCKSET, complete,
FLHT, FLHX, FLHXS,
with keys, ignition knob
FLTRX
and saddlebag lock
21
71400017B
KNOB, ignition switch,
FLHT, FLHTCU, FLHTK,
with 14100158 (specify
FLHTK SHRINE, FLHTKL,
key number)
FLHX, FLHXS, FLTRU,
FLTRX
21
71400126B
KNOB, ignition switch
FLHXS, FLTRXS
(specify key number)

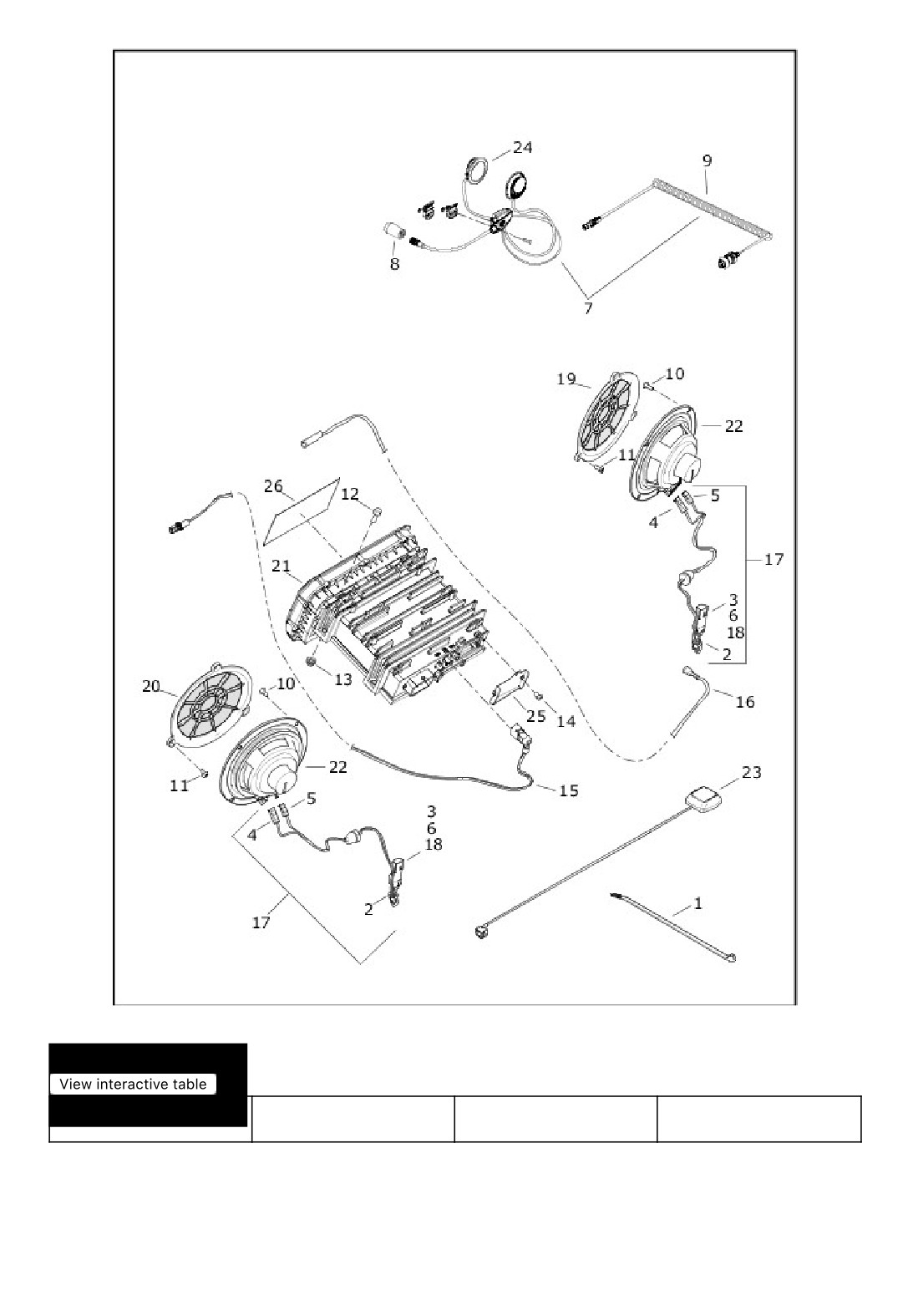

SOUND SYSTEM - FLHTCU, FLHTK, FLHTKL, FLHX AND
FLHXS (2 OF 2)
678/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
679/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
21
76000783
RADIO, BOOM!™ BOX
FLHTCU, FLHTK, FLHTK
GTS, with 12600070,
SHRINE, FLHTKL, FLHX,
12600071, 12600073 and
FLHXS
76000252 (Domestic,
California, Canada) (See
NOTE 1)
21
76000784
RADIO, BOOM!™ BOX
FLHTK, FLHTKL, FLHX,
GTS, with 12600070,
FLHXS
12600071, 12600073 and
76000252 (HDI, England)
(See NOTE 2)
21
76000785
RADIO, BOOM!™ BOX
FLHTK, FLHX, FLHXS
GTS, with 12600070,
12600071, 12600073 and
76000252 (HDI, Australia,
Japan, Asia-Pacific,
Brazil, China) (See NOTE
3)
21
76000785
RADIO, BOOM!™ BOX
FLHTKL
GTS, with 12600070,
12600071, 12600073 and
76000252 (HDI, Japan,
Asia-Pacific, China) (See
NOTE 3)
21
76000075D
RADIO, BOOM!™ BOX
FLHTCU, FLHX
4.3, with 12600070 and
12600071 (Domestic,
California)
23
76000789
ANTENNA, GPS
FLHTCU, FLHTK, FLHTK
SHRINE, FLHTKL, FLHX,
FLHXS

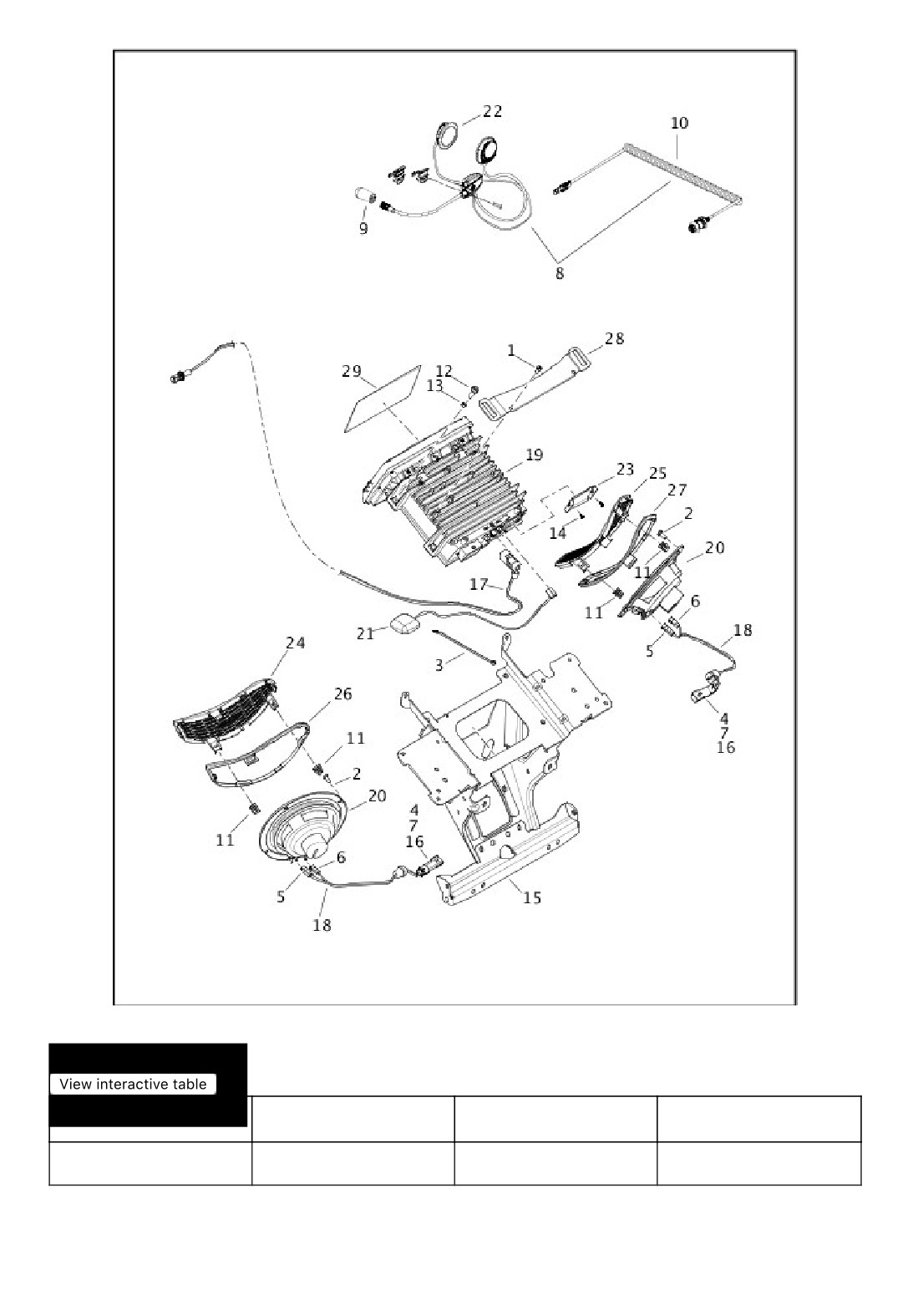

SOUND SYSTEM - FLTRU, FLTRX AND FLTRXS (1 OF 2)
680/956
INDEX NO.
PART NO.
DESCRIPTION
MODEL(S)
2
3152
SCREW (8)
FLTRU, FLTRX, FLTRXS
681/956
