Harley Davidson 2011 Touring Models. Electrical Diagnostic Manual

Table 8-2. Diagnostic Trouble Codes (DTCs) and Symptoms

GO TO

DESCRIPTION

DTC/SYMPTOM

DTC U1304 through DTC U1317 can only be viewed as historic
codes using DIGITAL TECHNICIAN II (Part No. HD-48650).
The faults are detectable as current codes only if they happen
to occur while in the diagnostic mode. To diagnose these condi-
tions without the use of DIGITAL TECHNICIAN II (Part No. HD-
48650), see

8.5 ADVANCED AUDIO SYSTEM SYMPTOMS

J1850 lost communications with ECM

U1016

J1850 bus shorted low

U1300

J1850 bus shorted high

U1301

Infotainment bus off error

U1302

Infotainment bus lost communications with
future

U1304

Infotainment bus lost communications with
future

U1305

Infotainment bus lost communications with
hands-free phone module

U1306

Infotainment bus lost communications with
CB

U1307

Infotainment bus lost communications with
future

U1308

Infotainment bus lost communications with
future

U1309

Infotainment bus lost communications with
future

U1310

Infotainment bus lost communications with
future

U1311

Infotainment bus lost communications with
future

U1312

Infotainment bus lost communications with
XM

U1313

Infotainment bus lost communications with
navigation

U1314

Infotainment bus lost communications with
future

U1315

Infotainment bus lost communications with
future

U1316

Infotainment bus lost communications with
high output amplifier

U1317

Symptom 1: Radio Inoperative

Radio Inoperative

Symptom 2: Poor or No Reception

Poor or No Reception

Symptom 3: Static Present with Engine Running

Static Present With Engine Running

Symptom 4: CB Transmitter Inoperative

CB Transmitter Inoperative

Symptom 5: CB Receiver Inoperative

CB Receiver Inoperative

Symptom 6: Intercom Inoperative

Intercom Inoperative

Symptom 7: Handheld Microphone/PTT Inoperative

Handheld Microphone/PTT Inoperative

Symptom 8: Fairing Mounted Speaker Switch Malfunction

Speaker Switch Malfunction

Symptom 9: Headset Speakers Inoperative

Headset Speakers Inoperative

Symptom 10: No or Low Audio from Microphones

No or Low Audio From Microphones

Symptom 11: No or Low Audio with High Output Amplifier

No or Low Audio With High Output Ampli-
fier

Symptom 12: No or Low Audio from XM or XM Inoperative

No or Low Audio From XM or XM Inoper-
ative

Symptom 13: No or Intermittent Reception on XM Module

XM - No or Intermittent Reception

Symptom 14: Navigation Inoperative

Navigation Inoperative

HOME

8-4 2011 Touring Diagnostics: Audio System

8.2

DTC B2006-B2015, RADIO SWITCH
DIAGNOSTICS

DESCRIPTION AND OPERATION

The sound system is designed to capture faults for each of the
radio switch inputs. When a fault is detected, a DTC is gener-
ated. The DTC and related data appears on the radio display
when the system is in the diagnostic mode. Refer to

Table 8-3

Table 8-3. Code Description

DESCRIPTION

DTC

Radio switch stuck or open

B2006

Handlebar switch shorted high

B2007

Handlebar switch shorted low

B2008

Handlebar switch stuck or open

B2009

Passenger switch shorted high

B2010

Passenger switch shorted low

B2011

Passenger switch stuck or open

B2012

DIAGNOSTICS

TOOL NAME

PART NUMBER

ADVANCED AUDIO SYSTEM
BREAKOUT BOX

HD-47918

Diagnostic Tips

Unless specified otherwise, install ADVANCED AUDIO
SYSTEM BREAKOUT BOX (Part No. HD-47918) when called
for in the following diagnostic procedures.

The diagnostic tests in this section have been developed to
take into consideration the technician understands there are
connectors and jumper harness adapters in the audio system
that are not specifically called out in the tests. See

B.1 CON-

NECTORS

for connector locations when necessary.

If two functional wires are crossed in the wiring harness, a code
may not set. The symptom experienced is that separate
switches may operate the same function and the other function
will not operate at all. Another indication of this is if the radio
face plate displays a different function than requested. For
example: when pressing the passenger PTT, the radio face
plate display says "Audio Up OK". If any conditions similar to
this exist, test the wiring of the desired and displayed functions
for continuity and repair any wires shorted together.

ed02068

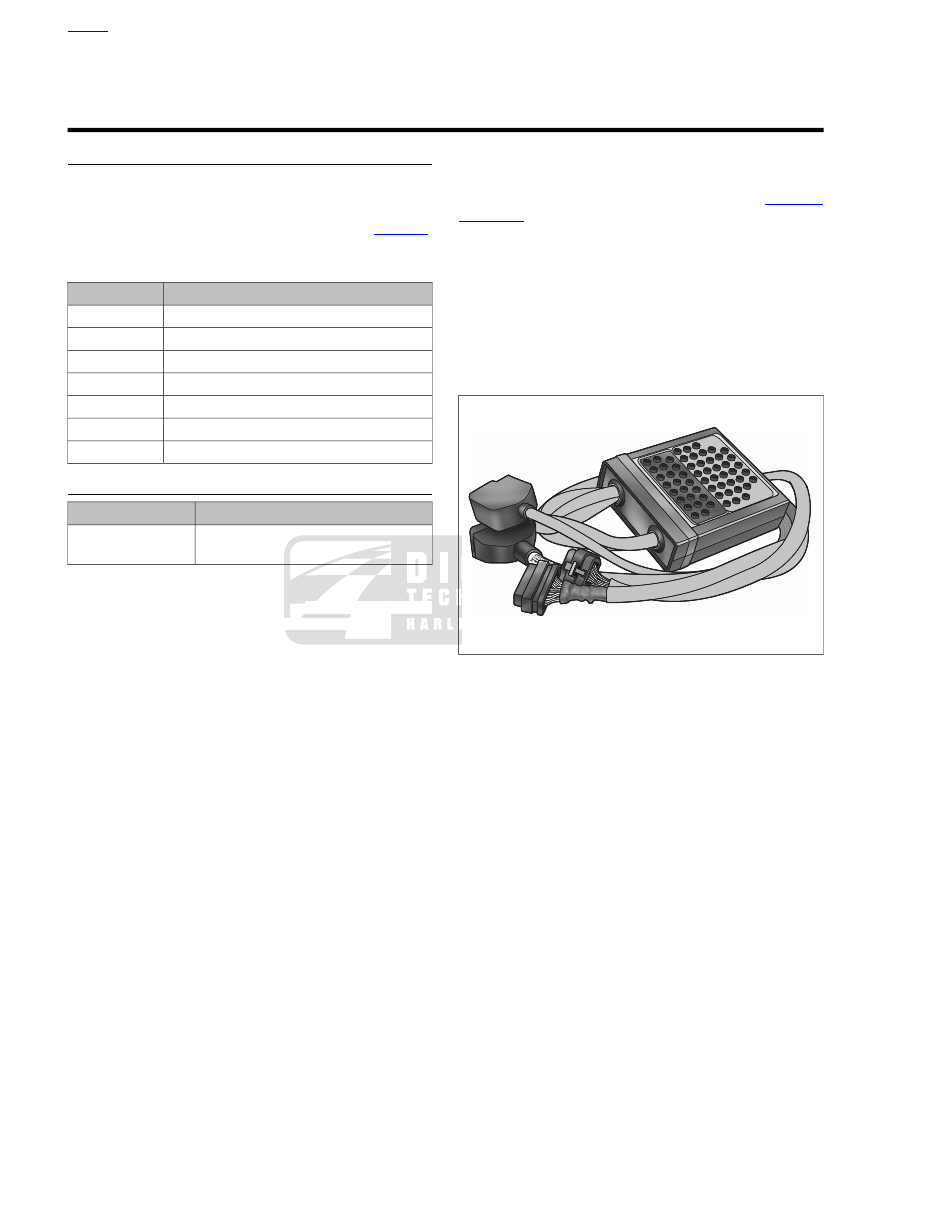

Figure 8-2. Radio Breakout Box (Part No. HD-47918)

HOME

8-6 2011 Touring Diagnostics: Audio System

Left Hand Controls

Interconnect

Harness

PTT & SQ

(Push To Talk & Squelch)

(Ultra Models Only)

Radio Audio Control

Left Hand

Controls

SWITCH

POSITION

VIOLET/

BLACK

GRAY/

GREEN

ORANGE/

BLACK

BROWN/

BLACK

+SQ UP

PTT (PUSH)

-SQ DN

SWITCH

POSITION

PINK/

WHITE

GREEN/

BLUE

BROWN/

BLACK

GRAY/

GREEN

+VOL

AUDIO

-VOL

Radio

Right Hand

Controls

(BK)

[27A]

7
8

22
23

GY/GN

BN/BK

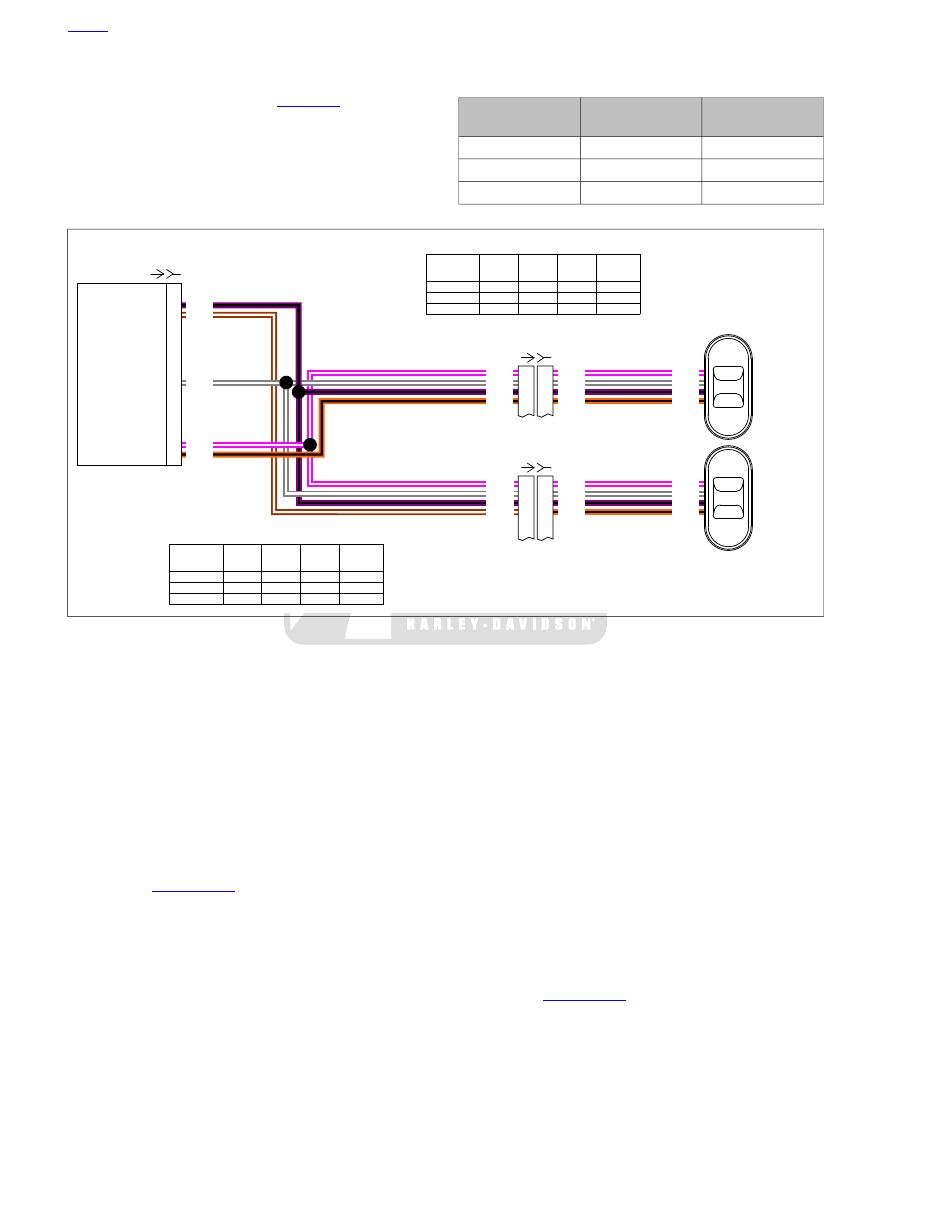

O/BK

V/BK

GY/GN

BN/BK

O/BK

V/BK

GY/GN

GN/BE

BN/BK

O/BK

V/BK

PK/W

Horn Switch

Headlamp Hi/Lo Switch

Left Directional Switch

[24B]

[24A]

[27B]

em00713

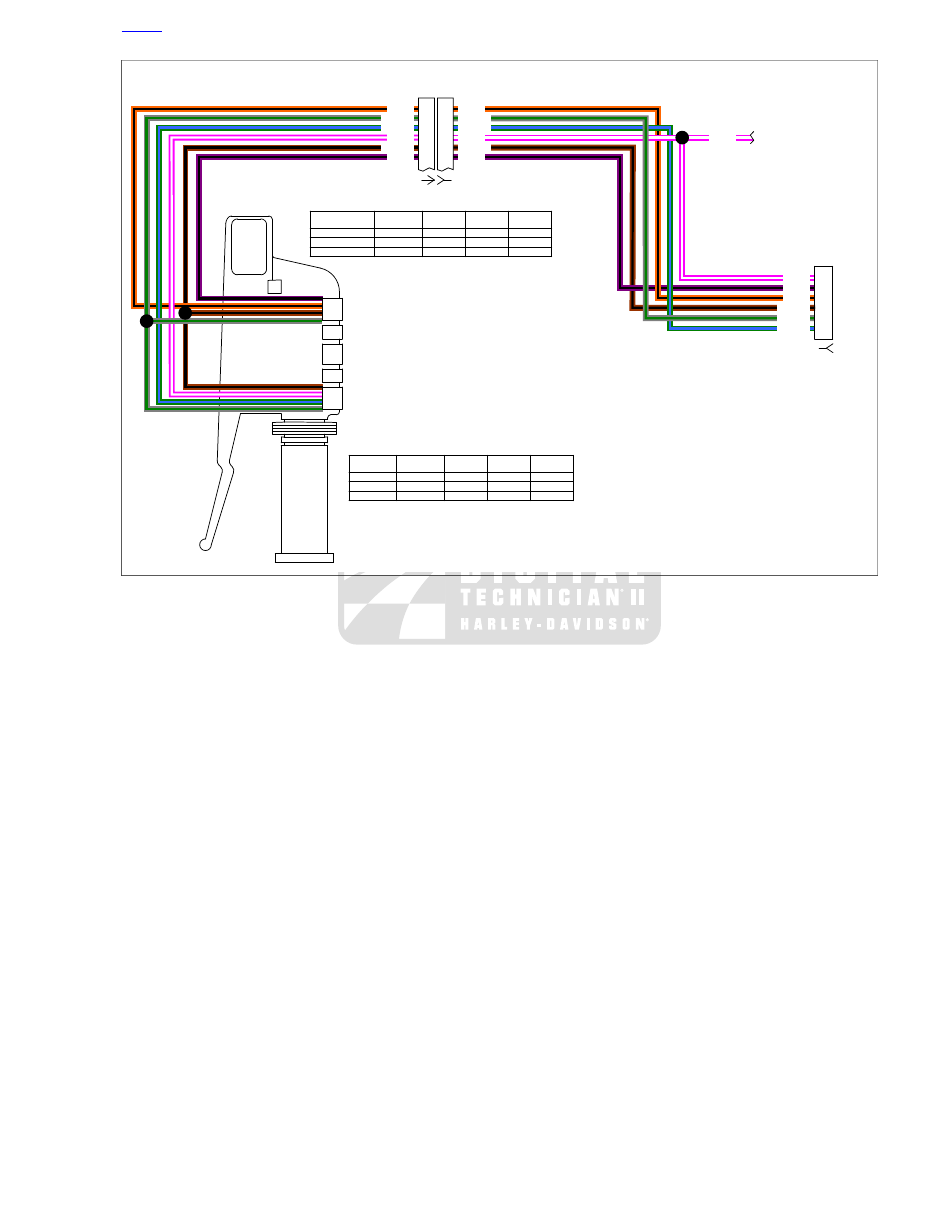

Figure 8-3. Handlebar Audio, PTT and Squelch Switch Circuit

HOME

2011 Touring Diagnostics: Audio System 8-7

Radio Function Switch

Right Directional Switch

Right Hand Controls

SWITCH

POSITION
UP

MODE

DOWN

BROWN/

WHITE

PINK/

WHITE

VIOLET/

BLACK

GRAY/

WHITE

Stop Lamp Switch

Right Hand

Controls

Interconnect

[27A]

Radio

7
8
9

3
4
5
6

BN/W
GY/W
PK/W

V/BK

BN/W

GY/W

PK/W

V/BK

BN/W
GY/W
PK/W

V/BK

(BK)

[27B]

[22B]

[22A]

Left Hand

Controls

PK/W

em00179

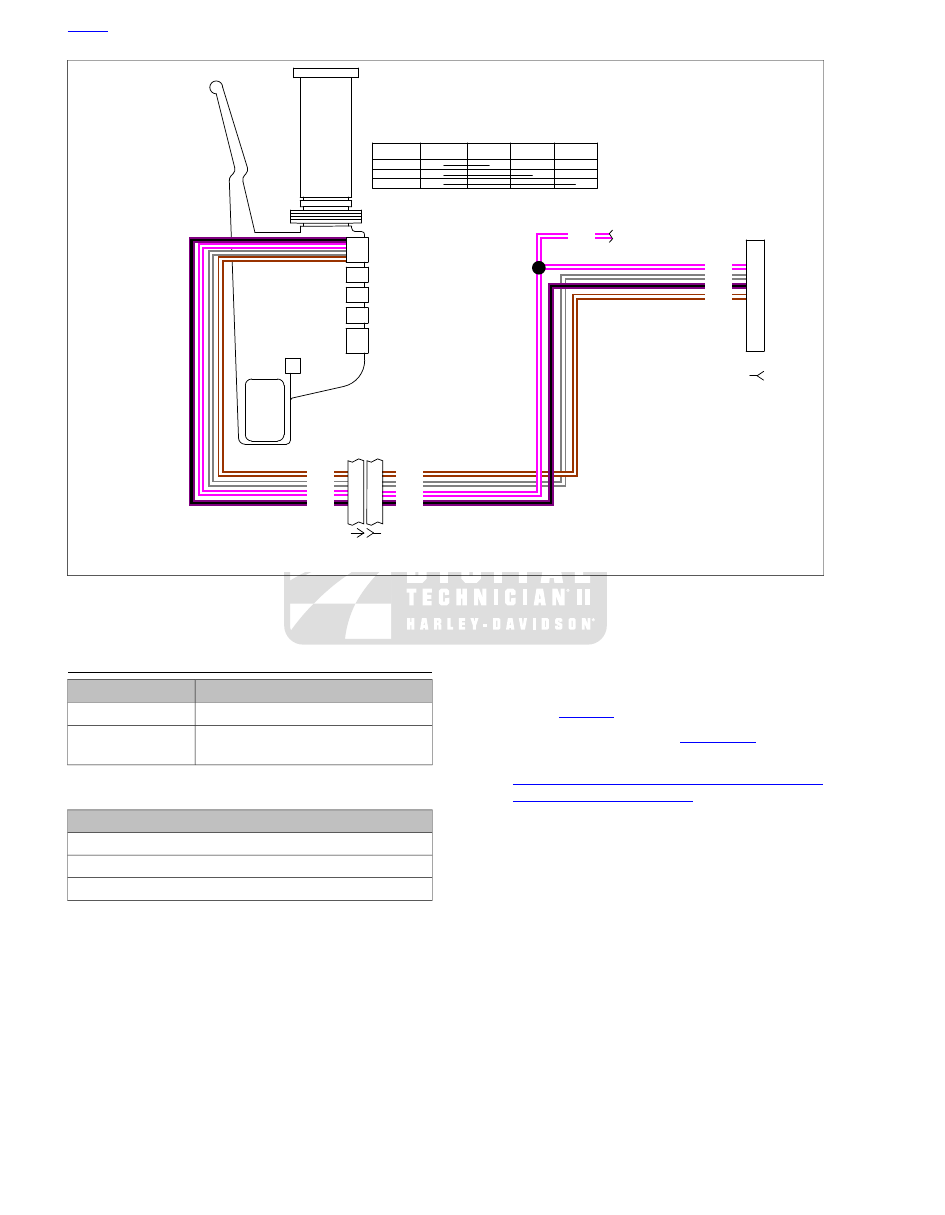

Figure 8-4. Handlebar Mode Switch Circuit

RADIO SWITCH DIAGNOSTICS

TOOL NAME

PART NUMBER

HARNESS CONNECTOR TEST KIT

HD-41404-C

ADVANCED AUDIO SYSTEM
BREAKOUT BOX

HD-47918

Table 8-4. Radio Switch Diagnostic Faults

POSSIBLE CAUSES

Mechanical switch malfunction

Electrical switch malfunction

Radio malfunction

1. Checking for Diagnostic Trouble Codes
(DTCs) Test

While pressing any two softkeys (presets), turn IGN ON
to enter diagnostic mode.

Does radio power up and enter diagnostic mode?

Yes. Tests should run automatically. If DTC B2007,
B2008, B2010, B2011, B2013 or B2014 is present,
refer to

Table 8-5

No, only radio powers up.

Go to Test 2.

No, the radio does not power up. See

8.5 ADVANCED AUDIO SYSTEM SYMPTOMS,
Symptom 1: Radio Inoperative

HOME

8-8 2011 Touring Diagnostics: Audio System

Table 8-5. Shorted Switch Problems

GO TO

DESCRIPTION OF FAULT

DTC

Test 3

Handlebar audio switch shorted high

B2007

Test 5

Handlebar mode switch shorted high

Test 7

Handlebar PTT/squelch switch
shorted high

Test 9

Handlebar audio switch shorted low

B2008

Test 11

Handlebar mode switch shorted low

Test 13

Handlebar PTT/squelch switch
shorted low

Test 21

Passenger audio/PTT switch shorted
high

B2010

Test 23

Passenger mode switch shorted high

Test 25

Passenger audio/PTT switch shorted
low

B2011

Test 27

Passenger mode switch shorted low

2. Switch Function Test

While watching the radio display, press each switch; audio
up/down, audio, mode up/down, mode, PTT, squelch +/-.

NOTE

Verify the operated switch function is the same function being
displayed on the radio face plate. A different function displayed
on the face plate could indicate two function wires are shorted.
See diagnostic tips.

Does the display show the selected function when the
switch is pressed?

Yes. No fault found.

No. Refer to

Table 8-6

Table 8-6. Switch Mechanical Problems

GO TO

DESCRIPTION OF FAULT

DTC

Replace

radio.

(6101)

Radio faceplate switches stuck or
open

B2006

Test 15

Handlebar audio switch stuck or
open

B2009

Test 17

Handlebar mode switch stuck or
open

Test 19

Handlebar PTT/squelch switch stuck
or open

Test 29

Passenger audio/PTT switch stuck
or open

B2012

Test 31

Passenger mode switch stuck or
open

3. DTC B2007, Handlebar Audio Switch
Shorted High (Part A) Test

Remove outer fairing and connect ADVANCED AUDIO
SYSTEM BREAKOUT BOX (Part No. HD-47918) leaving
radio [27A] disconnected.

With IGN ON, measure voltage at breakout box terminals
3 (PK/W), 8 (BN/BK), 22 (GY/GN) or 23 (GN/BE) to ground
as indicated on the radio display.

Is voltage greater than 7V?

Yes.

Go to Test 4.

No. Replace radio. See the service manual. (6101)

4. DTC B2007, Handlebar Audio Switch
Shorted High (Part B) Test

Disconnect left hand controls [24].

With IGN ON, measure voltage using HARNESS CON-
NECTOR TEST KIT (Part No. HD-41404-C) and multi-
meter from [24A] terminals 8 (BN/BK), 9 (PK/W), 10
(GN/BE) or 11 (GY/GN) to ground as indicated on the
radio display.

Is voltage greater than 7V?

Yes. Repair short in handlebar harness on wire
indicated on radio display. (5041)

No. Repair short in interconnect harness on wire
indicated on radio display. (5041)

5. DTC B2007, Handlebar Mode Switch
Shorted High (Part A) Test

Remove outer fairing and connect ADVANCED AUDIO
SYSTEM BREAKOUT BOX (Part No. HD-47918) leaving
radio [27A] disconnected.

With IGN ON, measure voltage at breakout box terminals
3 (PK/W), 4 (GY/W), 5 (V/BK) or 6 (BN/W) to ground as
indicated on the radio display.

Is voltage greater than 7V?

Yes.

Go to Test 6.

No. Replace radio. See the service manual. (6101)

6. DTC B2007, Handlebar Mode Switch
Shorted High (Part B) Test

Disconnect right hand controls [22].

With IGN ON, measure voltage using HARNESS CON-
NECTOR TEST KIT (Part No. HD-41404-C) and multi-
meter from [22A] terminals 7 (BN/W), 8 (GY/W), 9 (PK/W)
or 10 (V/BK) to ground as indicated on the radio display.

Is voltage greater than 7V?

Yes. Repair short in handlebar harness on wire
indicated on radio display. (5041)

No. Repair short in interconnect harness on wire
indicated on radio display. (5041)

7. DTC B2007, Handlebar PTT/Squelch
Switch Shorted High (Part A) Test

Remove outer fairing and connect ADVANCED AUDIO
SYSTEM BREAKOUT BOX (Part No. HD-47918), leaving
radio [27A] disconnected.

HOME

2011 Touring Diagnostics: Audio System 8-9

With IGN ON, measure voltage at breakout box terminals
5 (V/BK), 7 (O/BK), 8 (BN/BK) or 22 (GY/GN) to ground
as indicated on the radio display.

Is voltage greater than 7V?

Yes.

Go to Test 8.

No. Replace radio. See the service manual. (6101)

8. DTC B2007, Handlebar PTT/Squelch
Switch Shorted High (Part B) Test

Disconnect left hand controls [24].

With IGN ON, measure voltage using HARNESS CON-
NECTOR TEST KIT (Part No. HD-41404-C) and multi-
meter from [24A] terminals 8 (BN/BK), 11 (GY/GN), 13
(V/BK) or 14 (O/BK) to ground as indicated on the radio
display.

Is voltage greater than 7V?

Yes. Repair short in handlebar harness on wire
indicated on radio display. (5041)

No. Repair short in interconnect harness on wire
indicated on radio display. (5041)

9. DTC B2008, Handlebar Audio Switch
Shorted Low (Part A) Test

Remove outer fairing and connect ADVANCED AUDIO
SYSTEM BREAKOUT BOX (Part No. HD-47918), leaving
radio [27A] disconnected.

With IGN OFF, measure resistance using HARNESS
CONNECTOR TEST KIT (Part No. HD-41404-C) and
multimeter from [27B] terminals 3 (PK/W), 8 (BN/BK), 22
(GY/GN) or 23 (GN/BE) to ground as indicated on the
radio display.

Is resistance less than 5000 Ohms?

Yes.

Go to Test 10.

No. Replace radio. See the service manual. (6101)

10. DTC B2008, Handlebar Audio Switch
Shorted Low (Part B) Test

Disconnect left hand controls [24].

With IGN OFF, measure resistance at breakout box ter-
minals 8 (BN/BK), 9 (PK/W), 10 (GN/BE) or 11 (GY/GN)
to ground as indicated on the radio display.

Is resistance less than 5000 Ohms?

Yes. Repair short in handlebar harness on wire
indicated on radio display. (5041)

No. Repair short in interconnect harness on wire
indicated on radio display. (5041)

11. DTC B2008, Handlebar Mode Switch
Shorted Low (Part A) Test

Remove outer fairing and connect ADVANCED AUDIO
SYSTEM BREAKOUT BOX (Part No. HD-47918), leaving
radio [27A] disconnected.

With IGN OFF, measure resistance at breakout box ter-
minals 3 (PK/W), 4 (GY/W), 5 (V/BK) or 6 (BN/W) to
ground as indicated on the radio display.

Is resistance less than 5000 Ohms?

Yes.

Go to Test 12.

No. Replace radio. See the service manual. (6101)

12. DTC B2008, Handlebar Mode Switch
Shorted Low (Part B) Test

Disconnect right hand controls [22].

With IGN OFF, measure resistance using HARNESS
CONNECTOR TEST KIT (Part No. HD-41404-C) and
multimeter from [22A] terminals 7 (BN/W), 8 (GY/W), 9
(PK/W) or 10 (V/BK) to ground as indicated on the radio
display.

Is resistance less than 5000 Ohms?

Yes. Repair short in handlebar harness on wire
indicated on radio display. (5041)

No. Repair short in interconnect harness on wire
indicated on radio display. (5041)

13. DTC B2008, Handlebar PTT/Squelch
Switch Shorted Low (Part A) Test

Remove outer fairing and connect ADVANCED AUDIO
SYSTEM BREAKOUT BOX (Part No. HD-47918), leaving
radio [27A] disconnected.

With IGN OFF, measure resistance at breakout box ter-
minals 5 (V/BK), 7 (O/BK), 8 (BN/BK) or 22 (GY/GN) to
ground as indicated on the radio display.

Is resistance less than 5000 Ohms?

Yes.

Go to Test 14.

No. Replace radio. See the service manual. (6101)

14. DTC B2008, Handlebar PTT/Squelch
Switch Shorted Low (Part B) Test

Disconnect left hand controls [24].

With IGN OFF, measure resistance using HARNESS
CONNECTOR TEST KIT (Part No. HD-41404-C) and
multimeter from [24A] terminals 8 (BN/BK), 11 (GY/GN),
13 (V/BK) or 14 (O/BK) to ground as indicated on the radio
display.

Is resistance less than 5000 Ohms?

Yes. Repair short in handlebar harness on wire
indicated on radio display. (5041)

No. Repair short in interconnect harness on wire
indicated on radio display. (5041)

15. DTC B2009, Handlebar Audio Switch
Stuck or Open (Part A) Test

Remove outer fairing and connect ADVANCED AUDIO
SYSTEM BREAKOUT BOX (Part No. HD-47918), leaving
radio [27A] disconnected.

HOME

8-10 2011 Touring Diagnostics: Audio System

Test for continuity at the appropriate breakout box ter-
minals with the audio switch pressed as indicated in

Table 8-7

Is each wire pair less than 0.5 Ohms as each switch is
pressed, and not when the switch is released?

Yes. Replace radio. See the service manual. (6101)

No.

Go to Test 16.

Table 8-7. Audio Switch Stuck or Open Test

TO TERMINAL

FROM TERMINAL

SWITCH POSI-

TION

23 (GN/BE)

3 (PK/W)

Audio +

22 (GY/GN)

3 (PK/W)

Audio -

8 (BN/BK)

3 (PK/W)

Audio (centered)

16. DTC B2009, Handlebar Audio Switch
Stuck or Open (Part B) Test

Disconnect left hand controls [24].

Test for continuity at [24A], using HARNESS CON-
NECTOR TEST KIT (Part No. HD-41404-C) with the audio
switch pressed as indicated in

Table 8-8

Is each wire pair less than 0.5 Ohms as each switch is
pressed, and not when the switch is released?

Yes. Repair open in interconnect harness. (5041)

No. Replace switch or repair switch wiring. See the
service manual. (5186)

Table 8-8. Audio Switch Stuck or Open Test

TO TERMINAL

FROM TERMINAL

SWITCH POSI-

TION

10 (GN/BE)

9 (PK/W)

Audio +

11 (GY/GN)

9 (PK/W)

Audio -

8 (BN/BK)

9 (PK/W)

Audio (centered)

17. DTC B2009, Handlebar Mode Switch
Stuck or Open (Part A) Test

Remove outer fairing and connect ADVANCED AUDIO
SYSTEM BREAKOUT BOX (Part No. HD-47918), leaving
radio [27A] disconnected.

Test for continuity at the appropriate breakout box ter-
minals with the mode switch pressed as indicated in

Table 8-9

Is each wire pair less than 0.5 Ohms as each switch is
pressed, and not when the switch is released?

Yes. Replace radio. See the service manual. (6101)

No.

Go to Test 18.

Table 8-9. Mode Switch Stuck or Open Test

TO TERMINAL

FROM TERMINAL

SWITCH POSI-

TION

3 (PK/W)

6 (BN/W)

Mode Up

4 (GY/W)

6 (BN/W)

Mode Dn

5 (V/BK)

6 (BN/W)

Mode In

18. DTC B2009, Handlebar Mode Switch
Stuck or Open (Part B) Test

Disconnect right hand controls [22].

Test for continuity at [22A], using HARNESS CON-
NECTOR TEST KIT (Part No. HD-41404-C) with the mode
switch pressed as indicated in

Table 8-10

Is each wire pair less than 0.5 Ohms as each switch is
pressed, and not when the switch is released?

Yes. Repair open in interconnect harness. (5041)

No. Replace switch or repair switch wiring. See the
service manual. (5183)

Table 8-10. Mode Switch Stuck or Open Test

TO TERMINAL

FROM TERMINAL

SWITCH POSI-

TION

9 (PK/W)

7 (BN/W)

Mode Up

8 (GY/W)

7 (BN/W)

Mode Dn

10 (V/BK)

7 (BN/W)

Mode In

19. DTC B2009, Handlebar PTT/Squelch
Switch Stuck or Open (Part A) Test

Remove outer fairing and connect ADVANCED AUDIO
SYSTEM BREAKOUT BOX (Part No. HD-47918), leaving
radio [27A] disconnected.

Test for continuity at appropriate breakout box terminals
with the PTT/squelch switch pressed as indicated in

Table 8-11

Is each wire pair less than 0.5 Ohms as each switch is
pressed, and not when the switch is released?

Yes. Replace radio. See the service manual. (6101)

No.

Go to Test 20.

Table 8-11. PTT/Squelch Switch Stuck or Open Test

TO TERMINAL

FROM TERMINAL

SWITCH POSI-

TION

22 (GY/GN)

5 (V/BK)

Squelch +

8 (BN/BK)

5 (V/BK)

Squelch -

7 (O/BK)

5 (V/BK)

PTT

20. DTC B2009, Handlebar PTT/Squelch
Switch Stuck or Open (Part B) Test

Disconnect left hand controls [24].

HOME

2011 Touring Diagnostics: Audio System 8-11

Test for continuity at [24A] using HARNESS CONNECTOR
TEST KIT (Part No. HD-41404-C) with the PTT/squelch
switch pressed as indicated in

Table 8-12

Does continuity exist as each switch is pressed, and not
when the switch is released?

Yes. Repair open in interconnect harness. (5041)

No. Replace switch or repair switch wiring. See the
service manual. (5184)

Table 8-12. PTT/Squelch Switch Stuck or Open Test

TO TERMINAL

FROM TERMINAL

SWITCH POSI-

TION

11 (GY/GN)

13 (V/BK)

Squelch +

8 (BN/BK)

13 (V/BK)

Squelch -

14 (O/BK)

13 (V/BK)

PTT

O/BK

V/BK

GY/W

PK/W

O/BK

V/BK

GY/W

PK/W

BN/W

V/BK

GY/W

PK/W

BN/W

(BK)

1
2
3
4

COLOR
POSITION

ORANGE/
BLACK

PINK/
WHITE

VIOLET/
BLACK

GRAY/
WHITE

+VOL

PTT

-VOL

Right Rear Passenger Controls

Left Rear

Speaker &

Controls

Radio

DOWN

MODE SEL

[42B]

[42A]

COLOR
POSITION

BROWN/
WHITE

PINK/
WHITE

VIOLET/
BLACK

GRAY/
WHITE

MODE

DOWN

Left Rear Passenger Controls

O/BK

V/BK

GY/W

PK/W

O/BK

V/BK

GY/W

PK/W

O/BK

V/BK

GY/W

PK/W

O/BK

V/BK

GY/W

PK/W

(BK)

1
2
3
4

Right Rear

Speaker &

Controls

(BK)

11
12

PTT/Mode

Common

VOL-/Down

VOL+/Up 34

[41B]

[41A]

VOL+

VOL-

PTT

[28B]

[28A]

em00670

Figure 8-5. Passenger Audio/PTT and Mode Switch Circuit

21. DTC B2010, Passenger Audio/PTT
Switch Shorted High (Part A) Test

Remove outer fairing and connect ADVANCED AUDIO
SYSTEM BREAKOUT BOX (Part No. HD-47918), leaving
radio [28A] disconnected.

With IGN ON, measure voltage at breakout box terminals
34 (PK/W), 23 (GY/W), 11 (V/BK) or 35 (O/BK) to ground
as indicated on the radio display.

Is voltage greater than 7V?

Yes.

Go to Test 22.

No. Replace radio. See the service manual. (6101)

22. DTC B2010, Passenger Audio/PTT
Switch Shorted High (Part B) Test

Disconnect right rear speaker controls [41].

With IGN ON, measure voltage using HARNESS CON-
NECTOR TEST KIT (Part No. HD-41404-C) and multi-
meter from [41A] terminals 1 (PK/W), 2 (GY/W), 3 (V/BK)
or 4 (O/BK) to ground as indicated on the radio display.

Is voltage greater than 7V?

Yes. Repair short in audio harness on wire indicated
on radio display. (5041)

No. Repair short in passenger rear control switch
harness on wire indicated on radio display. (5041)

23. DTC B2010, Passenger Mode Switch
Shorted High (Part A) Test

Remove outer fairing and connect ADVANCED AUDIO
SYSTEM BREAKOUT BOX (Part No. HD-47918), leaving
radio [28A] disconnected.

With IGN ON, measure voltage at breakout box terminals
34 (PK/W), 23 (GY/W), 11 (V/BK) or 12 (BN/W) to ground
as indicated on the radio display.

Is voltage greater than 7V?

Yes.

Go to Test 24.

No. Replace radio. See the service manual. (6101)

24. DTC B2010, Passenger Mode Switch
Shorted High (Part B) Test

Disconnect left rear speaker controls [42].

HOME

8-12 2011 Touring Diagnostics: Audio System

With IGN ON, measure voltage using HARNESS CON-
NECTOR TEST KIT (Part No. HD-41404-C) and multi-
meter from [42A] terminals 1 (PK/W), 2 (GY/W), 3 (V/BK)
or 4 (BN/W) to ground as indicated on the radio display.

Is voltage greater than 7V?

Yes. Repair short in audio harness on wire indicated
on radio display. (5041)

No. Repair short in passenger rear control switch
harness on wire indicated on radio display. (5041)

25. DTC B2011, Passenger Audio/PTT
Switch Shorted Low (Part A) Test

Remove outer fairing and connect ADVANCED AUDIO
SYSTEM BREAKOUT BOX (Part No. HD-47918), leaving
radio [28A] disconnected.

With IGN OFF, test for continuity at breakout box terminals
34 (PK/W), 23 (GY/W), 11 (V/BK) or 35 (O/BK) to ground
as indicated on the radio display.

Is continuity present?

Yes.

Go to Test 26.

No. Replace radio. See the service manual. (6101)

26. DTC B2011, Passenger Audio/PTT
Switch Shorted Low (Part B) Test

Disconnect right rear speaker controls [41].

With IGN OFF, test for continuity using HARNESS CON-
NECTOR TEST KIT (Part No. HD-41404-C) and multi-
meter from [41A] terminals 1 (PK/W), 2 (GY/W), 3 (V/BK)
or 4 (O/BK) to ground as indicated on the radio display.

Is continuity present?

Yes. Repair short in audio harness on wire indicated
on radio display. (5041)

No. Repair short in passenger rear control switch
harness on wire indicated on radio display. (5041)

27. DTC B2011, Passenger Mode Switch
Shorted Low (Part A) Test

Remove outer fairing and connect ADVANCED AUDIO
SYSTEM BREAKOUT BOX (Part No. HD-47918), leaving
radio [28A] disconnected.

With IGN OFF, test for continuity at breakout box terminals
34 (PK/W), 23 (GY/W), 11 (V/BK) or 12 (BN/W) to ground
as indicated on the radio display.

Is continuity present?

Yes.

Go to Test 28.

No. Replace radio. See the service manual. (6101)

28. DTC B2011, Passenger Mode Switch
Shorted Low (Part B) Test

Disconnect left rear speaker controls [42].

With IGN OFF, test for continuity using HARNESS CON-
NECTOR TEST KIT (Part No. HD-41404-C) and multi-

meter from [42A] terminals 1 (PK/W), 2 (GY/W), 3 (V/BK)
or 4 (BN/W) to ground as indicated on the radio display.

Is continuity present?

Yes. Repair short in audio harness on wire indicated
on radio display. (5041)

No. Repair short in passenger rear control switch
harness on wire indicated on radio display. [(BN/W)
becomes (O/BK) in speaker box]. (5041)

29. DTC B2012, Passenger Audio/PTT
Switch Stuck or Open (Part A) Test

Remove outer fairing and connect ADVANCED AUDIO
SYSTEM BREAKOUT BOX (Part No. HD-47918), leaving
radio [28A] disconnected.

Test for continuity at the appropriate breakout box ter-
minals with the audio switch pressed as indicated in

Table 8-13

Is each wire pair less than 0.5 Ohms as each switch is
pressed, and not when the switch is released?

Yes. Switch operation normal. Replace radio. See
the service manual. (6101)

No.

Go to Test 30.

Table 8-13. Audio/PTT Switch Stuck or Open Test

TO TERMINAL

FROM TERMINAL

SWITCH POSI-

TION

34 (PK/W)

35 (O/BK)

Vol. Up

23 (GY/W)

35 (O/BK)

Vol. Down

11 (V/BK)

35 (O/BK)

PTT

30. DTC B2012, Passenger Audio/PTT
Switch Stuck or Open (Part B) Test

Disconnect left rear speaker controls [41].

Test for continuity using HARNESS CONNECTOR TEST
KIT (Part No. HD-41404-C) at [41B] with the audio switch
pressed as indicated in

Table 8-14

Is each wire pair less than 0.5 Ohms as each switch is
pressed, and not when the switch is released?

Yes. Repair open or replace audio harness. (5041)

No. Replace rear volume/PTT switch or repair switch
wiring. See the service manual. (6627)

Table 8-14. Audio/PTT Switch Stuck or Open Test

TO TERMINAL

FROM TERMINAL

SWITCH POSI-

TION

1 (PK/W)

4 (O/BK)

Vol. Up

2 (GY/W)

4 (O/BK)

Vol. Dn

3 (V/BK)

4 (O/BK)

PTT

HOME

2011 Touring Diagnostics: Audio System 8-13

31. DTC B2012, Passenger Mode Switch
Stuck or Open (Part A) Test

Remove outer fairing and connect ADVANCED AUDIO
SYSTEM BREAKOUT BOX (Part No. HD-47918), leaving
radio [28A] disconnected.

Test for continuity at the appropriate breakout box ter-
minals with the mode switch pressed as indicated in

Table 8-15

Is each wire pair less than 0.5 Ohms as each switch is
pressed, and not when the switch is released?

Yes. Switch operation normal. Replace radio. See
the service manual. (6101)

No.

Go to Test 32.

Table 8-15. Mode Switch Stuck or Open Test

TO TERMINAL

FROM TERMINAL

SWITCH POSI-

TION

34 (PK/W)

12 (BN/W)

Mode Up

23 (GY/W)

12 (BN/W)

Mode Dn

11 (V/BK)

12 (BN/W)

Mode In

32. DTC B2012, Passenger Mode Switch
Stuck or Open (Part B) Test

Disconnect left rear speaker controls [42].

Test for continuity on [42B] terminals using HARNESS
CONNECTOR TEST KIT (Part No. HD-41404-C) with the
mode switch pressed as indicated in

Table 8-16

Does continuity exist as each switch is pressed, and not
when the switch is released?

Yes. Repair open in audio harness. (5041)

No. Replace switch or repair switch wiring. See the
service manual. (6627)

Table 8-16. Mode Switch Stuck or Open Test

TO TERMINAL

FROM TERMINAL

SWITCH POSI-

TION

1 (PK/W)

4 (O/BK)

Mode Up

2 (GY/W)

4 (O/BK)

Mode Dn

3 (V/BK)

4 (O/BK)

Mode In

HOME

8-14 2011 Touring Diagnostics: Audio System

8.3

DTC B2016-B2027, RADIO SPEAKER
DIAGNOSTICS

DESCRIPTION AND OPERATION

TOOL NAME

PART NUMBER

ADVANCED AUDIO SYSTEM
BREAKOUT BOX

HD-47918

The sound system is designed to capture faults for each of the
radio speaker outputs. When a fault is detected, a DTC is
generated. The DTC and related data appears on the radio
display when the system is in the diagnostic mode. Refer to

Table 8-17

Table 8-17. Code Description

DESCRIPTION

DTC

Front speakers shorted

B2016

Front speakers open

B2017

Front speakers shorted to ground

B2018

Front speakers shorted to battery

B2019

Rear speakers shorted

B2020

Rear speakers open

B2021

Rear speakers shorted to ground

B2022

Rear speakers shorted to battery

B2023

Diagnostic Tips

Unless specified otherwise, install ADVANCED AUDIO
SYSTEM BREAKOUT BOX (Part No. HD-47918) when called
for in the following diagnostic procedures.

B.1 CON-

NECTORS

for connector locations when necessary.

B2016 FRONT SPEAKERS SHORTED:
WITHOUT AMPLIFIER

TOOL NAME

PART NUMBER

BREAKOUT BOX

HD-47918

Table 8-18. B2016 Front Speakers Shorted: Without

Amplifier Diagnostic Faults

POSSIBLE CAUSES

Speaker malfunction

Speaker wires shorted together

Radio malfunction

1. Front Speakers Shorted (Part A) Test

Install BREAKOUT BOX (Part No. HD-47918) to radio
harness [27] leaving radio disconnected.

Measure the resistance between breakout box terminals
16 and 17 (left speaker) or terminals 1 and 18 (right
speaker).

Is resistance less than 1.0 Ohm?

Yes.

Go to Test 2.

No. Replace radio. See the service manual. (6101)

2. Front Speakers Shorted (Part B) Test

Disconnect the affected speaker(s).

Measure the resistance between breakout box terminals
16 and 17 (left speaker) or terminals 1 and 18 (right
speaker).

Is resistance less than 1.0 Ohm?

Yes. Repair short between radio [27B] terminals 16
(W/O) and 17 (LGN/W) (left speaker) or between ter-
minals 1 (LGN/BK) and 18 (GY/R) (right speaker).
(5041)

No. Replace speaker. See the service manual. (6605)

B2016 FRONT SPEAKERS SHORTED:WITH
AMPLIFIER

TOOL NAME

PART NUMBER

BREAKOUT BOX

HD-47918

Table 8-19. B2016 Front Speakers Shorted:With Amplifier

Diagnostic Faults

POSSIBLE CAUSES

Speaker malfunction

Speaker wires shorted together

Amplifier malfunction

1. Front Speakers Shorted (Part A) Test

Install BREAKOUT BOX (Part No. HD-47918) to amplifier
harness [149], leaving amplifier disconnected.

Measure the resistance between breakout box terminals
7 and 14 (left speaker) or terminals 6 and 13 (right
speaker).

Is resistance less than 1.0 Ohm?

Yes.

Go to Test 2.

No. Replace amplifier. (6107)

2. Front Speakers Shorted (Part B) Test

Disconnect the affected speaker(s).

Measure the resistance between breakout box terminals
7 and 14 (left speaker) or terminals 6 and 13 (right
speaker).

HOME

2011 Touring Diagnostics: Audio System 8-15

Is resistance less than 1.0 Ohm?

Yes. Repair short between amplifier [149B] terminals
7 (W/O) and 14 (LGN/W) (left speaker) or between
terminals 6 (GY/R) and 13 (LGN/BK) (right speaker).
(5041)

No. Replace speaker. See the service manual. (6605)

B2017 FRONT SPEAKERS OPEN:WITHOUT
AMPLIFIER

TOOL NAME

PART NUMBER

BREAKOUT BOX

HD-47918

Table 8-20. B2017 Front Speakers Open:Without Amplifier

Diagnostic Faults

POSSIBLE CAUSES

Speaker malfunction

Speaker wires open

Radio malfunction

Radio

[27A]

(BK)

Radio

[27A]

(BK)

[34B]

[35B]

Front Speakers Without Amplifier

Amplifier

[149A]

(BK)

Right
Front

Speaker

Left

Front

Speaker

Right
Front

Speaker

Left

Front

Speaker

[34B]

[35B]

Front Speakers With Amplifier

16
17
18

6
7

11
12
13
14

18
19

W/O

LGN/W

W/O

LGN/W

LGN/BK

GY/R

W/O

LGN/W

LGN/BK

GY/R

LGN/BK

W/O

LGN/W

GY/R

LGN/BK

W/O

LGN/W

GY/R

LGN/BK

W/O

LGN/W

GY/R

LGN/BK
LGN/BK

GY/R

LGN/BK

[27B]

16
17
18

[34A]

[34B]

[35C]

[35B]

[149B]

em00184

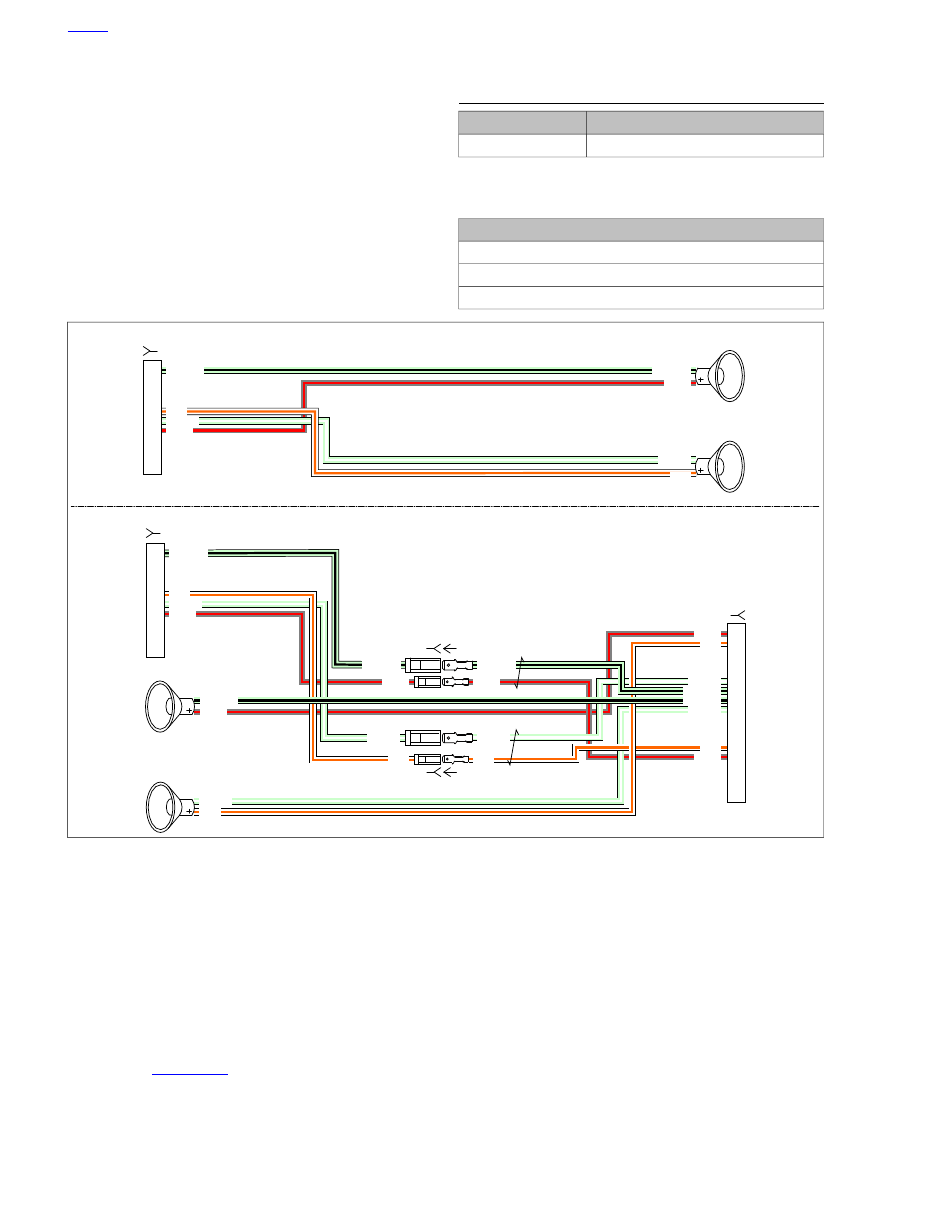

Figure 8-6. Front Speaker Circuit

1. Front Speakers Open (Part A) Test

Install BREAKOUT BOX (Part No. HD-47918) to radio
harness [27] leaving radio disconnected.

Measure the resistance between breakout box terminals
16 and 17 (left speaker) or terminals 1 and 18 (right
speaker).

Is resistance greater than 3.0 Ohms?

Yes.

Go to Test 2.

No. Replace radio. See the service manual. (6101)

2. Front Speakers Open (Part B) Test

Disconnect the affected speaker(s).

Measure the resistance between speaker terminals at
[34A] or [35A].

HOME

8-16 2011 Touring Diagnostics: Audio System

Is resistance greater than 3.0 Ohms?

Yes. Replace speaker. See the service manual.
(6605)

No. Repair open wire(s) between radio [27B] terminals
16 (W/O) and 17 (LGN/W) (left speaker) or between
terminals 1 (LGN/BK) and 18 (GY/R) (right speaker).
(5041)

B2017 FRONT SPEAKERS OPEN: WITH
AMPLIFIER

TOOL NAME

PART NUMBER

BREAKOUT BOX

HD-47918

Table 8-21. B2017 Front Speakers Open: With Amplifier

Diagnostic Faults

POSSIBLE CAUSES

Speaker malfunction

Speaker wires shorted to ground

Amplifier malfunction

1. Front Speakers Open (Part A) Test

Install BREAKOUT BOX (Part No. HD-47918) to amplifier
harness [149] leaving amplifier disconnected.

Measure the resistance between breakout box terminals
7 and 14 (left speaker) or terminals 6 and 13 (right
speaker).

Is resistance greater than 3.0 Ohms?

Yes.

Go to Test 2.

No. Replace amplifier. (6107)

2. Front Speakers Open (Part B) Test

Disconnect the affected speaker(s).

Measure the resistance between speaker terminals at
[34A] or [35A].

Is resistance greater than 3.0 Ohms?

Yes. Replace speaker. See the service manual.
(6605)

No. Repair short between amplifier [149B] terminals
7 (W/O) and 14 (LGN/W) (left speaker) or between
terminals 6 (GY/R) and 13 (LGN/BK) (right speaker).
(5041)

B2018 FRONT SPEAKERS SHORTED TO
GROUND: WITHOUT AMPLIFIER

TOOL NAME

PART NUMBER

BREAKOUT BOX

HD-47918

Table 8-22. B2018 Front Speakers Shorted to Ground:

Without Amplifier Diagnostic Faults

POSSIBLE CAUSES

Speaker wires shorted to ground

Radio malfunction

1. Front Speakers Shorted to Ground Test

Install BREAKOUT BOX (Part No. HD-47918) to radio
harness [27] leaving radio disconnected.

Test for continuity from breakout box terminals 16 and 17
(left speaker) or terminals 1 and 18 (right speaker) to
ground.

Is continuity present?

Yes. Repair short to ground from radio [27B] terminals
16 (W/O) or 17 (LGN/W) (left speaker) or between
terminals 1 (LGN/BK) and 18 (GY/R) (right speaker).
(5041)

No. Replace radio. See the service manual. (6101)

B2018 FRONT SPEAKERS SHORTED TO
GROUND: WITH AMPLIFIER

TOOL NAME

PART NUMBER

BREAKOUT BOX

HD-47918

Table 8-23. B2018 Front Speakers Shorted to Ground:

With Amplifier Diagnostic Faults

POSSIBLE CAUSES

Speaker wires shorted to ground

Amplifier malfunction

1. Front Speakers Shorted to Ground

Install BREAKOUT BOX (Part No. HD-47918) to amplifier
harness [149] leaving amplifier disconnected.

Test for continuity from breakout box terminals 7 and 14
(left speaker) or terminals 6 and 13 (right speaker) to
ground.

Is continuity present?

Yes. Repair short to ground from amplifier [149B]
terminals 7 (W/O) or 14 (LGN/W) (left speaker) or
between terminals 6 (GY/R) or 13 (LGN/BK) (right
speaker). (5041)

No. Replace amplifier. (6107)

HOME

2011 Touring Diagnostics: Audio System 8-17

B2019 FRONT SPEAKERS SHORTED TO
BATTERY: WITHOUT AMPLIFIER

TOOL NAME

PART NUMBER

BREAKOUT BOX

HD-47918

Table 8-24. B2019 Front Speakers Shorted to Battery:

Without Amplifier Diagnostic Faults

POSSIBLE CAUSES

Speaker wires shorted to battery

Radio malfunction

1. Front Speakers Shorted to Battery Test

Install BREAKOUT BOX (Part No. HD-47918) to radio
harness [27] leaving radio disconnected.

Turn IGN ON.

Test for voltage between breakout box terminals 16 and
17 (left speaker) to ground, or terminals 1 and 18 (right
speaker) to ground.

Is voltage present?

Yes. Repair short to voltage from radio [27B] terminals
16 (W/O) and 17 (LGN/W) (left speaker) or terminals
1 (LGN/BK) and 18 (GY/R) (right speaker). (5041)

No. Replace radio. See the service manual. (6101)

B2019 FRONT SPEAKERS SHORTED TO
BATTERY: WITH AMPLIFIER

TOOL NAME

PART NUMBER

BREAKOUT BOX

HD-47918

Table 8-25. B2019 Front Speakers Shorted to Battery:

With Amplifier Diagnostic Faults

POSSIBLE CAUSES

Speaker wires shorted to battery

Radio malfunction

1. Front Speakers Shorted to Battery Test

Install BREAKOUT BOX (Part No. HD-47918) to amplifier
harness [149] leaving amplifier disconnected.

Turn IGN ON.

Test for voltage between breakout box terminals 7 and 14
(left speaker) to ground, or terminals 6 and 13 (right
speaker) to ground.

Is voltage present?

Yes. Repair short to voltage from amplifier [149B]
terminals 7 (W/O) and 14 (LGN/W) (left speaker) or
terminals 6 (GY/R) and 13 (LGN/BK) (right speaker).
(5041)

No. Replace radio. See the service manual. (6107)

B2020 REAR SPEAKERS SHORTED:
WITHOUT AMPLIFIER

TOOL NAME

PART NUMBER

BREAKOUT BOX

HD-47918

Table 8-26. B2020 Rear Speakers Shorted: Without

Amplifier Diagnostic Faults

POSSIBLE CAUSES

Speaker malfunction

Speaker wires shorted together

Radio malfunction

HOME

8-18 2011 Touring Diagnostics: Audio System

(BK)

Ultra

Radio

(BK)

[28A]

Rear Speakers Without Amplifier

(BK)

Rear Speakers With Amplifier

With Amplifier And No Sidecar

These Leads Are Not Active

From The Radio And Should

Be Secured Inside The Speaker

Pods With No Connection

1
2

24
25

5
6

LGN/BN

GN
LGN/BN

W/BN

LGN/BN

W/BN

LGN/BN

W/BN

LGN/BN

W/BN

LGN/BN

W/BN

[37A]

[37B]

[36A]

[36B]

[41A] [41B]

[28B]

[42A] [42B]

[42B ]

[37D]

[37A]

[36D]

[36A]

[41B]

[36B]

[37B]

[149B]

em00861

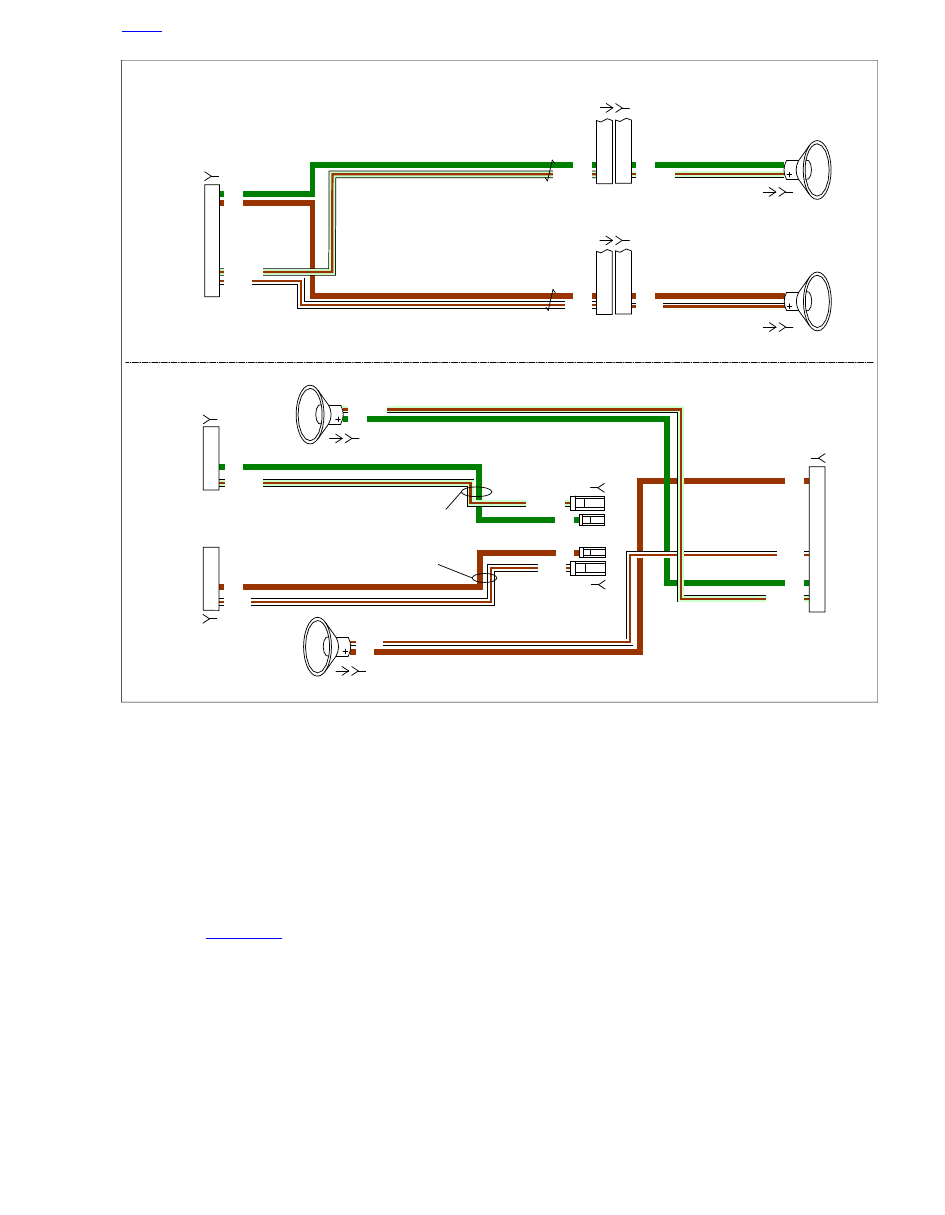

Figure 8-7. Rear Speaker Circuit

1. Rear Speakers Shorted (Part A) Test

Install BREAKOUT BOX (Part No. HD-47918) to radio
harness [28] leaving radio disconnected.

Measure the resistance between breakout box terminals
2 and 25 (left speaker) or terminals 1 and 24 (right
speaker).

Is resistance less than 1.0 Ohm?

Yes.

Go to Test 2.

No. Replace radio. See the service manual. (6101)

2. Rear Speakers Shorted (Part B) Test

Disconnect the affected speaker(s).

Measure the resistance between breakout box terminals
2 and 25 (left speaker) or terminals 1 and 24 (right
speaker).

Is resistance less than 1.0 Ohm?

Yes. Repair short between radio [28B] terminals 2
(BN) and 25 (W/BN) (left speaker) or between ter-
minals 1 (GN) and 24 (LGN/BN) (right speaker).
(5041)

No. Replace speaker. See the service manual. (6606)

HOME

2011 Touring Diagnostics: Audio System 8-19

Harley Davidson 2011 Touring Models. Electrical Diagnostic Manual - page 31
