Harley Davidson 2011 Touring Models. Electrical Diagnostic Manual - page 25

B.1

CONNECTORS

CONNECTOR LOCATIONS

Function/Location

On the motorcycle, a connector can be identified by its function
and location. Refer to

Table B-1

.

Place and Color

The place (number of wire cavities of a connector housing)
and color of the connector can also aid identification.

Connector Number

On wiring diagrams and in service/repair instructions, con-
nectors are identified by a number in brackets.

Repair Instructions

The repair instructions in this service manual are by connector
type. Refer to

Table B-1

.

Table B-1. Connector Locations

LOCATION

TERMINAL

PROBE

COLOR

TYPE

DESCRIPTION

NO.

Inner fairing - right radio support
bracket (FLH models)

Gray

16-place Molex MX 150 Sealed
(BK)

Main to interconnect harness

[1]

Inner fairing - right side below radio
(FLT models)

Inner fairing - left radio support
bracket

Gray

12-place MX 150 Sealed (GY)

Main to interconnect harness

[2]

Under seat

Black

4-place Deutsch DT Sealed
(BK)

P&A Accessory

[4]

Under left side cover

Red

2-place Delphi 800 Metripack
Sealed (BK)

Main fuse

[5]

Inner fairing - left side of radio (FLH
models)

Black

6-place Deutsch DT Sealed
(BK)

Audio to interconnect harness

[6]

Inner fairing - right fairing support
brace (FLT models)

Top of rear fender (under seat)

Gray

8-place Tyco 070 Multilock
Unsealed (BK)

Rear fender lights harness

[7]

Inside Tour-Pak (inboard of upper
frame tube on FLHX)

Gray

3-place Tyco 070 Multilock
Unsealed (BK)

Tour-Pak lights (rear facia lamp
on FLHX)

[12]

Behind fuel tank (under seat)

Gray

4-place Tyco 070 Multilock
Unsealed (BK)

Fuel tank harness

[13]

Inner fairing - right fairing bracket
(FLH models)

Gray

4-place Delphi 630 Sealed (BK)

Main to interconnect harness

[15]

Inner fairing - below radio (right side
FLT models)

Circuit board under tail lamp
assembly

Gray

2-place Tyco 070 Multilock
Unsealed (BK)

Right rear turn signal

[18]

Circuit board under tail lamp
assembly

Gray

2-place Tyco 070 Multilock
Unsealed (BK)

Left rear turn signal

[19]

Under seat

Gray

16-place Molex MX 150 Sealed
(BK)

Console harness

[20]

Inner fairing - above radio (All except
FLHR/C)

Gray

Black

10-place Tyco 070 Multilock
Unsealed (BK) (All except
FLHR/C)

Indicator lamps

[21]

Under console (FLHR/C)

8-place Deutsch DTM Sealed
(BK) (FLHR/C)

Inner fairing - right fairing support
bracket (All except FLHR/C)

Gray

12-place Molex MX 150 Sealed
(BK) (All except FLHR/C)

Interconnect to right handlebar
switches

[22]

Inside headlamp nacelle - fork stem
nut lock plate (right side) (FLHR/C)

6-place Molex MX 150 Sealed
(BK) (FLHR/C)

HOME

2011 Touring Diagnostics:  Appendix B Wiring  B-1

Table B-1. Connector Locations

LOCATION

TERMINAL

PROBE

COLOR

TYPE

DESCRIPTION

NO.

Inner fairing - left fairing support
brace (All except FLHR/C)

Gray

16-place Molex MX 150 Sealed
(GY) (All except FLHR/C)

Interconnect to left handlebar
switches

[24]

Inside headlamp nacelle - fork stem
nut (left side) (FLHR/C)

8-place Molex MX 150 Sealed
(GY) (FLHR/C)

Inner fairing - back of radio (right
side)

Breakout Box

23-place Tyco Superseal
Sealed (BK)

Radio

[27]

Inner fairing - back of radio (left side)

Breakout Box

35-place Tyco Superseal
Sealed (BK)

Radio

[28]

Back of headlamp

Gray

Flag terminals

HDI position lamp

[29]

Under right side cover

Breakout Box

12-place Deutsch DT Sealed
(GY)

TSM/TSSM/HFSM

[30]

Inside headlamp nacelle - fork stem
nut lock plate (left side) (FLHR/C)

Gray

6-place Tyco 070 Multilock
Unsealed (BK)

Front turn signals

[31]

Inner fairing - left fairing support
brace (outboard side) (FLH models)

Gray

4-place Tyco 070 Multilock
Unsealed (BK)

Left front turn signal/auxiliary
lamp

[31L]

Inner fairing - left (outboard side)
(FLT models)

Inner fairing - right fairing support
brace (outboard side) (FLH models)

Gray

4-place Tyco 070 Multilock
Unsealed (BK)

Right front turn signal/auxiliary
lamp

[31R]

Inner fairing - right (outboard side)
(FLT models)

Inner fairing - below upper for bracket
(left side) (All except FLHR/C)

Gray

2-place Tyco 070 Multilock
Unsealed (BK)

Front fender tip lamp jumper
harness (DOM)

[32]

Inside headlamp nacelle (FLHR/C)

Bottom of ignition switch (All except
FLHR/C)

Red

3-place AutoFuse Unsealed
(FLHR/C)

Ignition Switch

[33]

Under console (FLHR/C)

Faston 250 Spade terminals
(FLHX, FLHTK, FLHTC/U,
FLTRX/U) (BK)

Inner fairing (back of speaker)

Gray

Tyco Insulated Spade terminals
(BK)

Right front speaker

[34]

Inner fairing (back of speaker)

Gray

Tyco Insulated Spade terminals
(BK)

Left front speaker

[35]

Inner fairing (back of headlamp) (All
except FLHR/C)

Gray

Tyco Unsealed Spade (BK)

Headlamp

[38]

Inside headlamp nacelle (FLHR/C)

Inner fairing (back of speedometer)
(FLHTC/U, FLHTK, FLHX)

Breakout Box

12-place Delphi Micro 64
Sealed (GY)

Speedometer

[39]

Instrument nacelle (back of speedo-
meter) (FLT models)
Back of speedometer (back of con-
sole) (FLHR/C)

Inside rear right speaker box

Black

6-place Molex MX 150 Sealed
(BK)

Rear right speaker/passenger
controls

[41]

Inside rear left speaker box

Black

6-place Molex MX 150 Sealed
(BK)

Rear left speaker/passenger
controls

[42]

Circuit board under tail lamp
assembly

Gray

3-place Tyco 070 Multilock
Unsealed (BK)

Rear fender tip lamp (DOM)

[45]

Bottom of voltage regulator (left side)

Green

3-place Dekko (BK)

Stator

[47]

Inner fairing - back of CB module

CB antenna cable

[50]

Inner fairing - back of radio (left side)

Radio antenna cable

[51]

HOME

B-2  2011 Touring Diagnostics:  Appendix B Wiring

Table B-1. Connector Locations

LOCATION

TERMINAL

PROBE

COLOR

TYPE

DESCRIPTION

NO.

Inside of Tour-Pak

Radio antenna cable to mast

[52]

Rear of battery box (under seat)

Black

12-place Deutsch DTM Sealed
(BK)

Console pod

[53]

Under left side cover

Gray

Delphi PED 280 Unsealed

Fuse block/relays

[64]

Top of transmission case (under
starter)

Gray

3-place Delphi GT 150 Sealed
(BK)

VSS

[65]

Inside headlamp nacelle (FLHR/C)

Gray

4-place Tyco Mate-N-lok
Unsealed (BK)

Accessory switch

[67]

Inside headlamp nacelle (FLHR/C)

Gray

2-place Tyco 070 Multilock
Unsealed (W)

Auxiliary lamps

[73]

Below rear left speaker box

7-place DIN (BK)

Passenger headset

[76]

Bottom of voltage regulator (right
side)

Green

2-place Dekko (BK)

Voltage regulator

[77]

Under seat

Breakout Box

73-place Delphi Micro 64
Sealed (BK)

ECM

[78]

Rear of lower front frame cross-
member

Brown

2-place Deutsch DTM Sealed
(BK)

CKP sensor

[79]

Top of induction module

Gray

4-place Bosch Compact 1.1M
Sealed (BK)

TMAP sensor

[80]

Bottom front of battery tray

Gray

4-place Delphi GT 150 Sealed
(BK)

Ignition coil

[83]

Below fuel tank (left side)

Purple

2-place Molex BPT Sealed (BK)

Front fuel injector

[84]

Below fuel tank (left side)

Purple

2-place Molex BPT Sealed (BK)

Rear fuel injector

[85]

Back of front cylinder (left side)

Gray

2-place Delphi GT 150 Sealed
(BK)

ET sensor

[90]

Under left side cover

Black

4-place Deutsch DT Sealed
(GY)

DLC

[91]

Circuit board under tail lamp
assembly

Gray

4-place Tyco 070 Multilock
Unsealed (BK)

Tail lamp

[93]

Circuit board under tail lamp
assembly

Gray

6-place Tyco 070 Multilock
Unsealed (BK)

Rear fender lights harness in
circuit board

[94]

Under seat

Purple

2-place Delphi 150 Metripack
Sealed (BK)

Purge solenoid

[95]

Inner fairing - above upper fork
bracket (right side)

Gray

12-place Tyco 070 Multilock
Unsealed (BK)

Fairing cap switches

[105]

Inside instrument nacelle (under
bezel) (FLT models)

Gray

12-place Tyco 070 Multilock
Unsealed (BK)

Interconnect to nacelle switch
harness

[105A,

105B]

Inside instrument nacelle (under
bezel) (FLT models)

Gray

4-place Tyco 070 Multilock
Unsealed (BK)

Nacelle switch harness to
speaker switch

[105C,

105D]

Steering head, left side (FLHTC/U,
FLHTK)

Gray

3-place Tyco 070 Multilock
Unsealed (BK)

Ambient Air Temperature (AAT)
sensor

[107]

Inside instrument nacelle (under
bezel) (FLT models)

Inner fairing (back of tachometer)
(FLH models)

Breakout Box

Red

12-place Delphi Micro 64
Sealed (GY)

Tachometer

[108]

Instrument nacelle (back of tacho-
meter) (FLT models)

Inside headlamp nacelle (FLHR/C)

Gray

4-place Tyco Mate-N-Lok
Unsealed (BK)

Auxiliary lamps switch

[109]

HOME

2011 Touring Diagnostics:  Appendix B Wiring  B-3

Table B-1. Connector Locations

LOCATION

TERMINAL

PROBE

COLOR

TYPE

DESCRIPTION

NO.

Inner fairing (back of voltmeter)

Red

2-way Tyco Positive Lock
Spade Unsealed (BK)

Voltmeter lamp

[110]

Inner fairing (back of voltmeter)

Red

3-way Faston 250 Spade
Unsealed (BK)

Voltmeter

[111]

Inner fairing (back of oil pressure
gauge)

Red

2-way Tyco Positive Lock
Spade Unsealed (BK)

Oil pressure gauge lamp

[112]

Inner fairing (back of oil pressure
gauge)

Red

3-way Faston 250 Spade
Unsealed (BK)

Oil pressure gauge

[113]

Inner fairing (back of air temperature
gauge)

Red

2-way Tyco Positive Lock
Spade Unsealed (BK)

Air temperature gauge lamp

[114]

Inner fairing (back of air temperature
gauge)

Red

3-way Faston 250 Spade
Unsealed (BK)

Air temperature gauge

[115]

Inner fairing (back of fuel gauge)

Red

2-way Tyco Positive Lock
Spade Unsealed (BK)

Fuel gauge lamp

[116]

Inner fairing (back of fuel gauge) (All
except FLHR/C)

Red

3-way Faston 250 Spade
Unsealed (BK)

Fuel gauge

[117]

Bottom fuel tank left side (FLHR/C)

Front right crankcase (FLHR/C)

Black

Push On Right Angle Molded
terminal (BK)

Oil pressure switch

[120]

Mid-chassis, lower right side between
frame and exhaust pipe)

Red

Tyco Insulated Spade terminals
(BK)

Rear stop lamp switch

[121]

Between cylinders (left side)

Red

Flag terminals (BK)

Horn

[122]

Top of starter

Red

Delphi 56 Spade terminal (W)

Starter solenoid

[128]

Top of transmission (right side)

Push On Right Angle Molded
terminals (BK)

Neutral switch

[131]

Inner fairing

Red

Tyco Insulated Spade terminals

Cigar lighter

[132]

Rear of lower front frame cross-
member.

3-place Molex MX 150 Sealed
(BK)

Jiffy stand sensor (if equipped)

[133]

HDI: Rear of lower front frame
crossmember.

Gray

Under seat

Gray

3-place Delphi GT 150 Sealed

Sidecar BAS

[134]

Under right side cover

Gray

4-place Molex MX 150 Sealed
(BK)

HO2 sensor rear exhaust
header

[137]

Under right side cover

Gray

4-place Molex MX 150 Sealed
(GY)

HO2 sensor front exhaust
header

[138]

Front right crankcase (FLHX, FLHTK,
FLHTC/U, FLTR/U/X)

Gray

4-place Delphi 150 Metripack
Sealed (BK)

Oil pressure sender

[139]

Under console on top of fuel tank
canopy

Gray

4-place Delphi GT 280 Sealed
(BK)

Fuel pump and fuel level
sender

[141]

Under left side cover

Gray

3-place Delphi GT 150 Sealed
(BK)

Security siren (optional)

[142]

Under front fender tip lamp bracket

Gray

2-place Tyco 070 Multilock
Unsealed (BK)

Front fender tip lamp (if
equipped)

[143]

Under Tour-Pak

24-place Tyco Ampseal Sealed
(BK)

Audio amplifier

[149]

Inside headlamp nacelle (FLHR/C)

Gray

3-place Molex MX 150 Sealed
(BK)

Left handlebar switches (cruise
control)

[158]

Inside headlamp nacelle (FLHR/C)

Gray

3-place Molex MX 150 Sealed
(GY)

Right handlebar switches
(cruise control)

[159]

HOME

B-4  2011 Touring Diagnostics:  Appendix B Wiring

Table B-1. Connector Locations

LOCATION

TERMINAL

PROBE

COLOR

TYPE

DESCRIPTION

NO.

Under seat

Red

1-place Delphi 480 Metripack
Unsealed (GY)

B+

[160]

Under right side cover

Breakout Box

20-place Molex MX 150 Sealed
(BK)

ABS module

[166]

Inner fairing - below upper fork
bracket (left side) (All except
FLHR/C)

Gray

2-place Delphi 150 Metripack
Sealed (BK)

Front WSS

[167]

Inside headlamp nacelle (FLHR/C)

Under right side cover

Gray

2-place Delphi 150 Metripack
Sealed (BK)

Rear WSS

[168]

HDI: Under right side cover

Gray

5-place Tyco Superseal 1.5
Sealed (BK)

Active exhaust actuator (if
equipped)

[179]

Inner fairing - left side of radio
(FLHTC/U, FLHTK, FLHX)

Black

12-place Deutsch (BK)

CB module

[184]

Inner fairing - back of radio

Black

12-place Deutsch DTM Sealed
(BK)

XM module, antenna

[185]

Inner fairing

Black

8-place Deutsch DTM Sealed
(BK)

Hands-free module

[187]

Inside outer fairing, left side (FLHTK)

3-place Tyco 040 Unsealed

Heated handgrip to main har-
ness

[189]

Under left side cover (below fuse
box)

Black

4-place Deutsch DT Sealed
(BK)

ABS diode

[201]

Bracket attached to the throttle body

2-place Tyco Superseal 1.5
Sealed

ACR (front)

[203F]

Bracket attached to the throttle body

2-place Tyco Superseal 1.5
Sealed

ACR (rear)

[203R]

Inner fairing - right fairing support
bracket (FLHT/C/K, FLHX)

Gray

6-place Molex MX 150 Sealed
(BK)

TGS harness

[204]

Inner fairing - right side below radio
(FLT models)
Inside headlamp nacelle - fork stem
nut lock plate (FLHR/C)

Inside outer fairing, right side
(FLHTK)

2-place Tyco 040 Unsealed

Heated handgrip interconnect

[206]

Under right side cover

Black

4-place Deutsch DT Sealed
(GY)

HFSM antenna jumper harness

[208]

Under seat

Gray

2-place Molex MX 64 Unsealed
(BK)

HFSM antenna

[209]

Right side of engine (induction
module)

Gray

6-place Molex MX 150 Sealed
(BK)

TCA

[211]

Under seat (FLHR/C)

Gray

4-place Delphi 630 Sealed (BK)

Console ignition switch intercon-
nect

[222]

Handlebar throttle (inside right side
handlebar)

7-place Tyco Mini Multilock
(BK)

TGS

[224]

Rear fender tip fascia module (FLHX,
FLTRX)

Breakout Box

12-place Delphi Micro 64
Sealed (GY)

Rear lighting jumper harness

[226]

Inside handlebars, right side

2-place Tyco 040 Unsealed

Right heated grip

[237]

Under left side cover

Gray

6-place Molex MX 150 Sealed
(BK)

Rear lighting jumper harness

[257]

HOME

2011 Touring Diagnostics:  Appendix B Wiring  B-5

Table B-1. Connector Locations

LOCATION

TERMINAL

PROBE

COLOR

TYPE

DESCRIPTION

NO.

Inside Tour-Pak (FLHTK)

Gray

2-place Tyco 070 Multilock
Unsealed (BK)

Power outlet

[258]

Rear fender tip fascia module (FLHX,
FLTRX)

Breakout Box

12-place Delphi Micro 64
Sealed (GY)

Rear lighting jumper harness

[262]

Under seat

Ring terminals

Harness grounds

[GND1]

[GND1A]

[GND2]

HOME

B-6  2011 Touring Diagnostics:  Appendix B Wiring

B.2

WIRING DIAGRAMS

WIRING DIAGRAM INFORMATION

Wire Color Codes

Wire traces on wiring diagrams are labeled with alpha codes.
Refer to

Table B-2

.

For Solid Color Wires: See

Figure B-1

. The alpha code

identifies wire color.

For Striped Wires: The code is written with a slash (/) between
the solid color code and the stripe code. For example, a trace
labeled GN/Y is a green wire with a yellow stripe.

Wiring Diagram Symbols

See

Figure B-1

. On wiring diagrams and in service/repair

instructions, connectors are identified by a number in brackets
[ ]. The letter inside the brackets identifies whether the housing
is a socket or pin housing.

A=Pin: The letter A and the pin symbol after a connector
number identifies the pin side of the terminal connectors.

B=Socket: The letter B and the socket symbol after a con-
nector number identifies the socket side of the terminal con-
nectors. Other symbols found on the wiring diagrams include
the following:

Diode: The diode allows current flow in one direction only in
a circuit.

Wire break: The wire breaks are used to show option variances
or page breaks.

No Connection: Two wires crossing over each other in a wiring
diagram that are shown with no splice indicating they are not
connected together.

Circuit to/from: This symbol is used to identify there is a more
complete circuit diagram on another page. The symbol is also
identifying the direction of current flow.

Splice: Splices are where two or more wires are connected
together along a wiring diagram. The location of the splice
indicated in the wiring diagram is not the true location of the
splice in the actual harness but to identify that the wires are
spliced to that circuit.

Ground: Grounds can be classified as either clean or dirty
grounds. Clean grounds are identified by a (BK/GN) wire and
are normally used for sensors or modules. These grounds
usually do not have electric motors, coils or anything that may
cause electrical interference on the ground circuit. The dirty
grounds are identified by a (BK) wire and are used for compon-
ents that are not as sensitive to electrical interference.

Twisted pair: This symbol indicates the two wires are twisted
together in the harness. This minimizes the circuit's electromag-
netic interference from external sources. If repairs are neces-
sary to these wires they should remain as twisted wires.

9

12

13

1

2

1

2

8

11

10

7

6

5

3

4

W

W

GN/Y

GN/Y

1

2

1

2

[21A]

[21B]

ed03175

1.

Connector number

2.

Terminal code (A=pin, B=socket)

3.

Solid wire color

4.

Striped wire color

5.

Socket symbol

6.

Pin symbol

7.

Diode

8.

Wire break

9.

No connection

10. Circuit to/from
11. Splice
12. Ground
13. Twisted pair

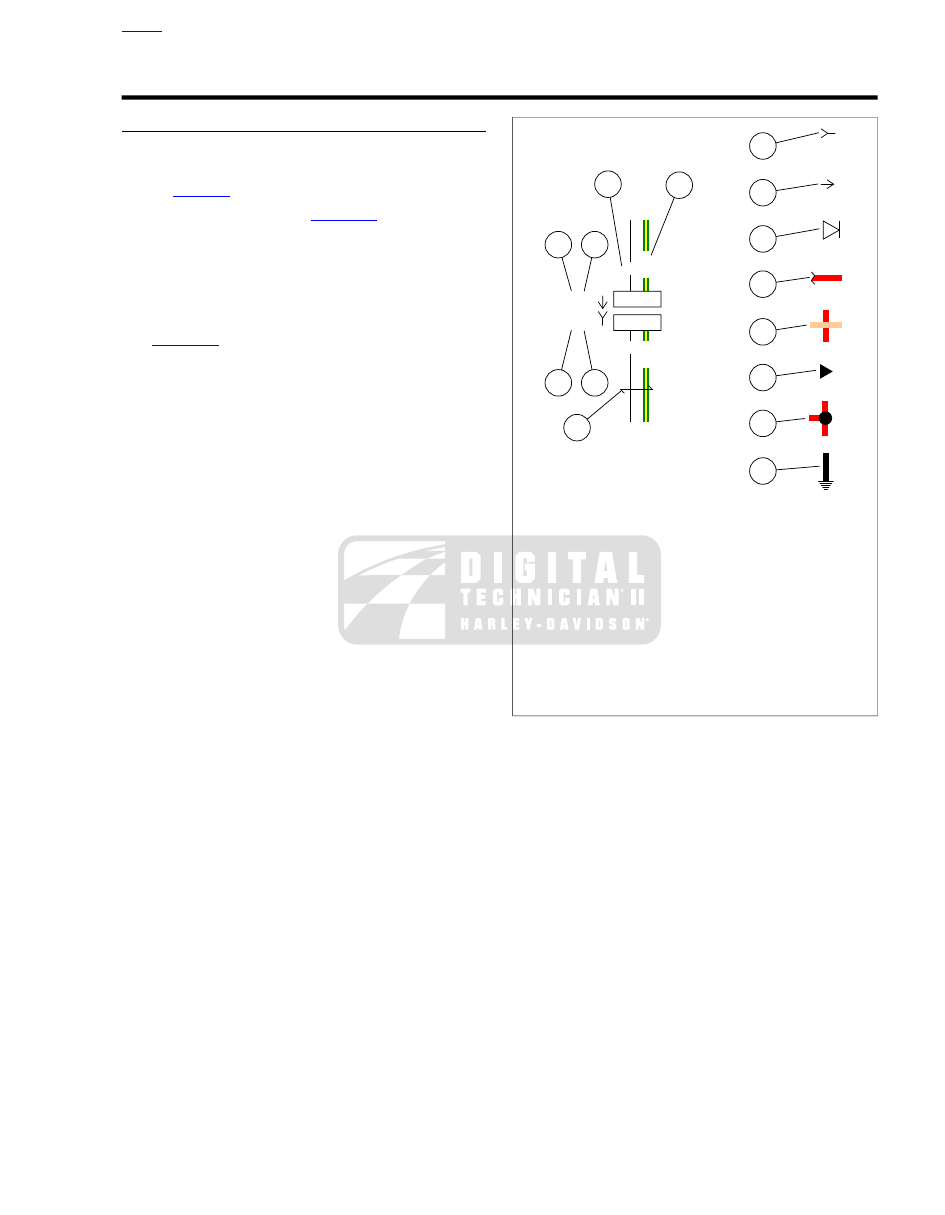

Figure B-1. Connector/Wiring Diagram Symbols

HOME

2011 Touring Diagnostics:  Appendix B Wiring  B-7

15

15

15

15

15

15

15

15

15

15

15

15

15

15

30

30

15

A

B

B

D

F

H

C

D

E

F

G

J

H

1

2

3

4

3

4

A

C

E

64-1

64-2

14

1

2

3

4

5

8

9

12

16

17

21

23

20

19

22

18

7

6

10

13

15

11

ed03115

1.

Fuse block [64-1]

2.

Brake

3.

Accessory

4.

P&A

5.

Radio power/siren

6.

Radio memory

7.

Battery

8.

ECM power

9.

Pwr outlet

10. Exhaust CNTRL
11. System relay
12. Start relay
13. Fuel pump
14. Fuse block [64-2]
15. Instruments
16. Ignition
17. Lighting relay
18. Brake relay
19. Headlamp
20. Lights
21. Spare
22. ABS
23. Spare

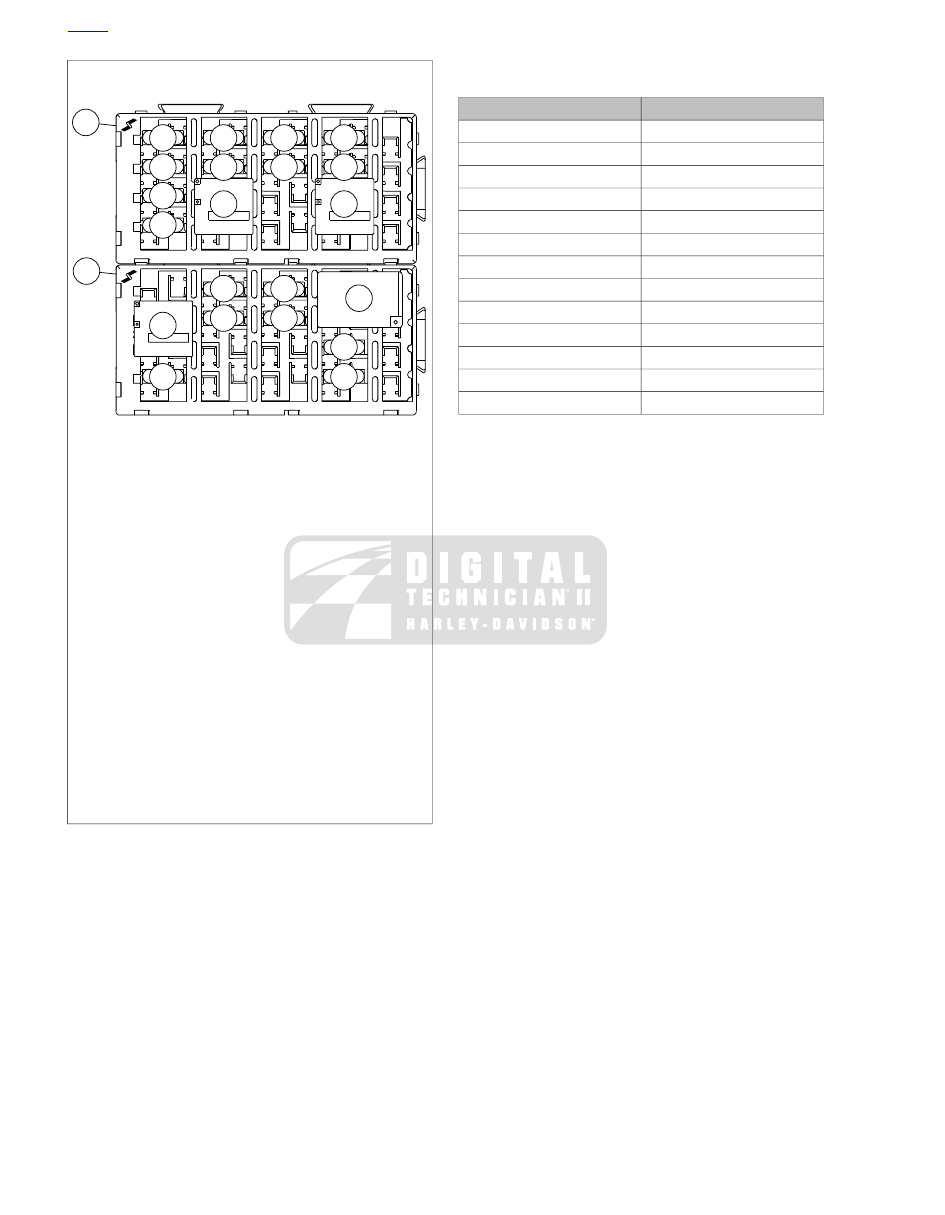

Figure B-2. Fuse Block and Socket Terminals

Table B-2. Wire Color Codes

WIRE COLOR

ALPHA CODE

Blue

BE

Black

BK

Brown

BN

Green

GN

Gray

GY

Light Green

LGN

Orange

O

Pink

PK

Red

R

Tan

TN

Violet

V

White

W

Yellow

Y

HOME

B-8  2011 Touring Diagnostics:  Appendix B Wiring

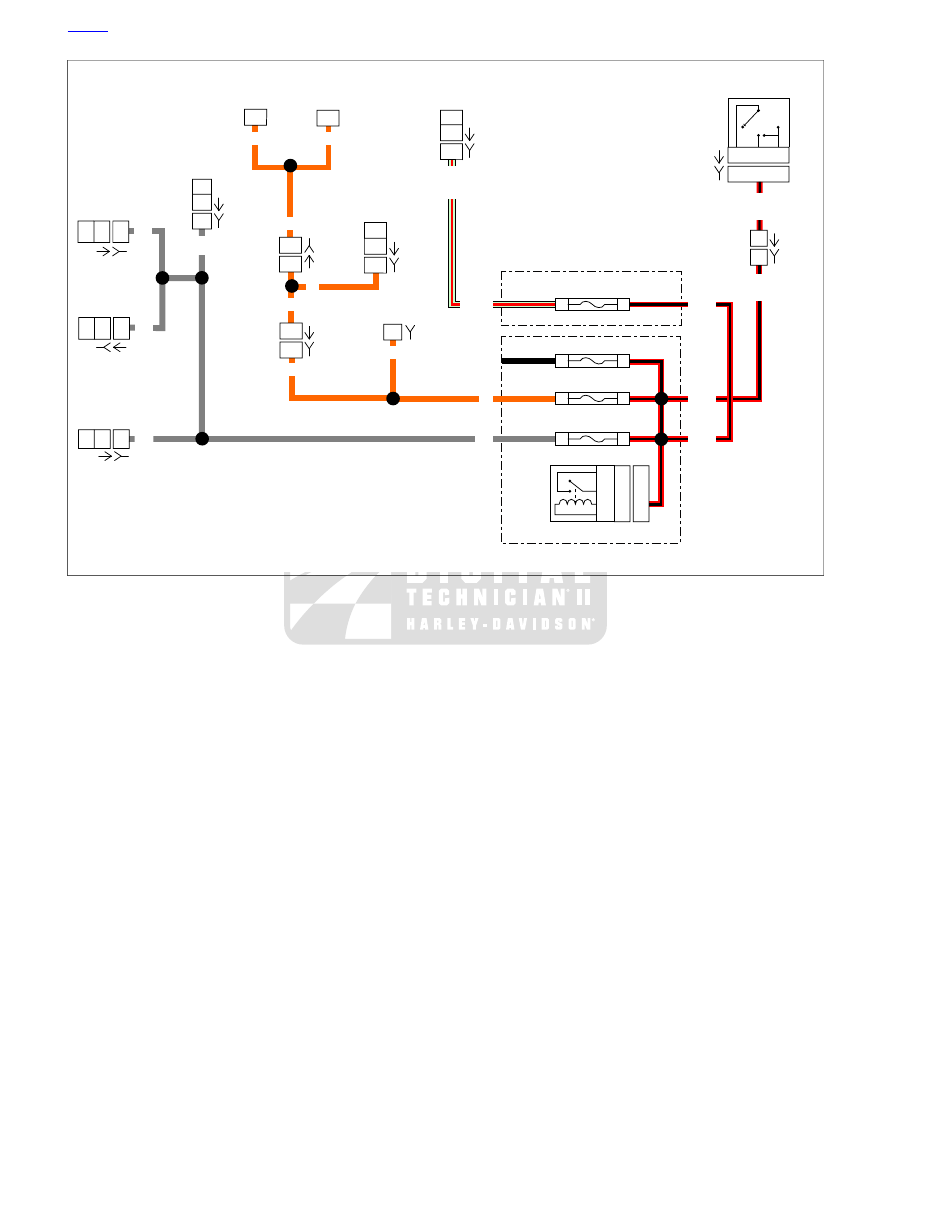

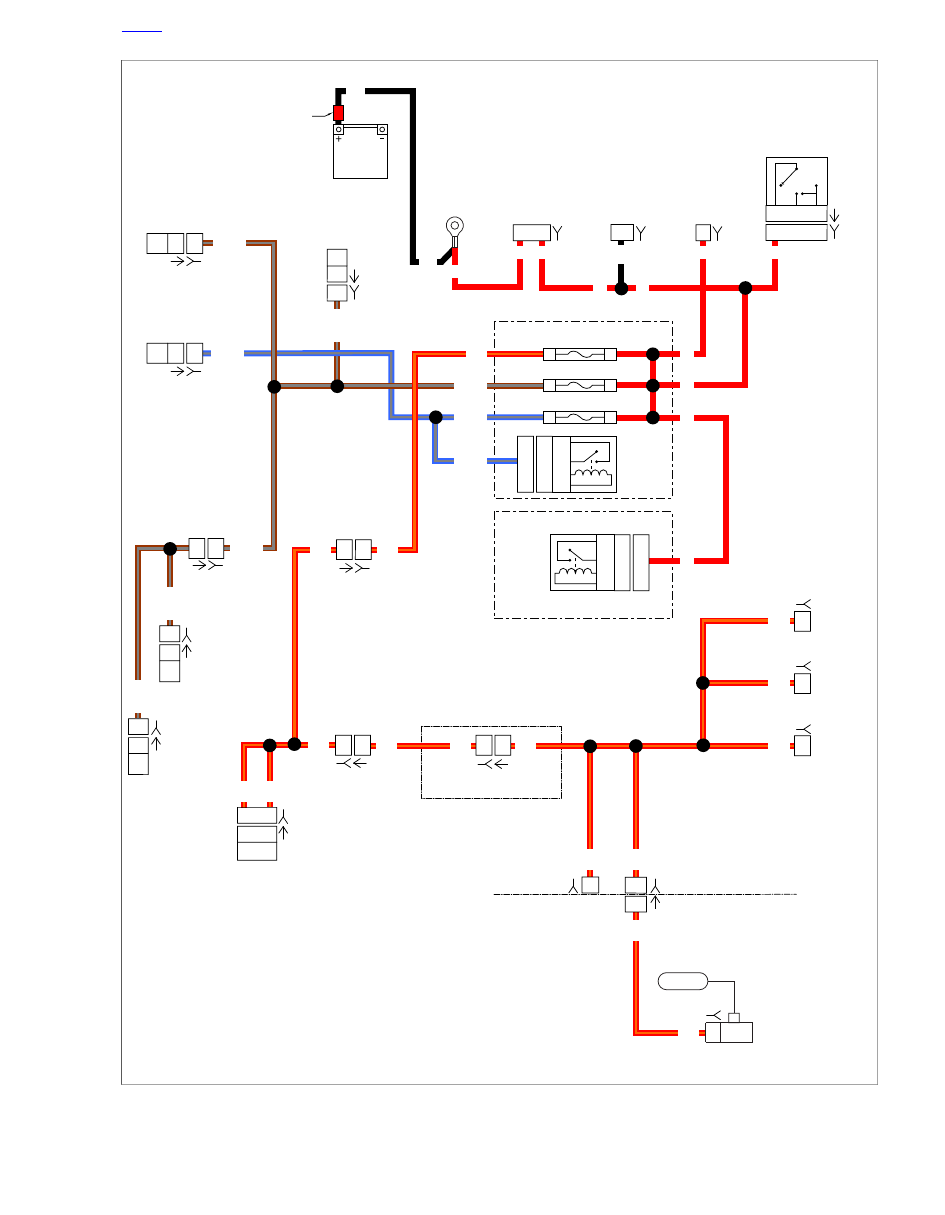

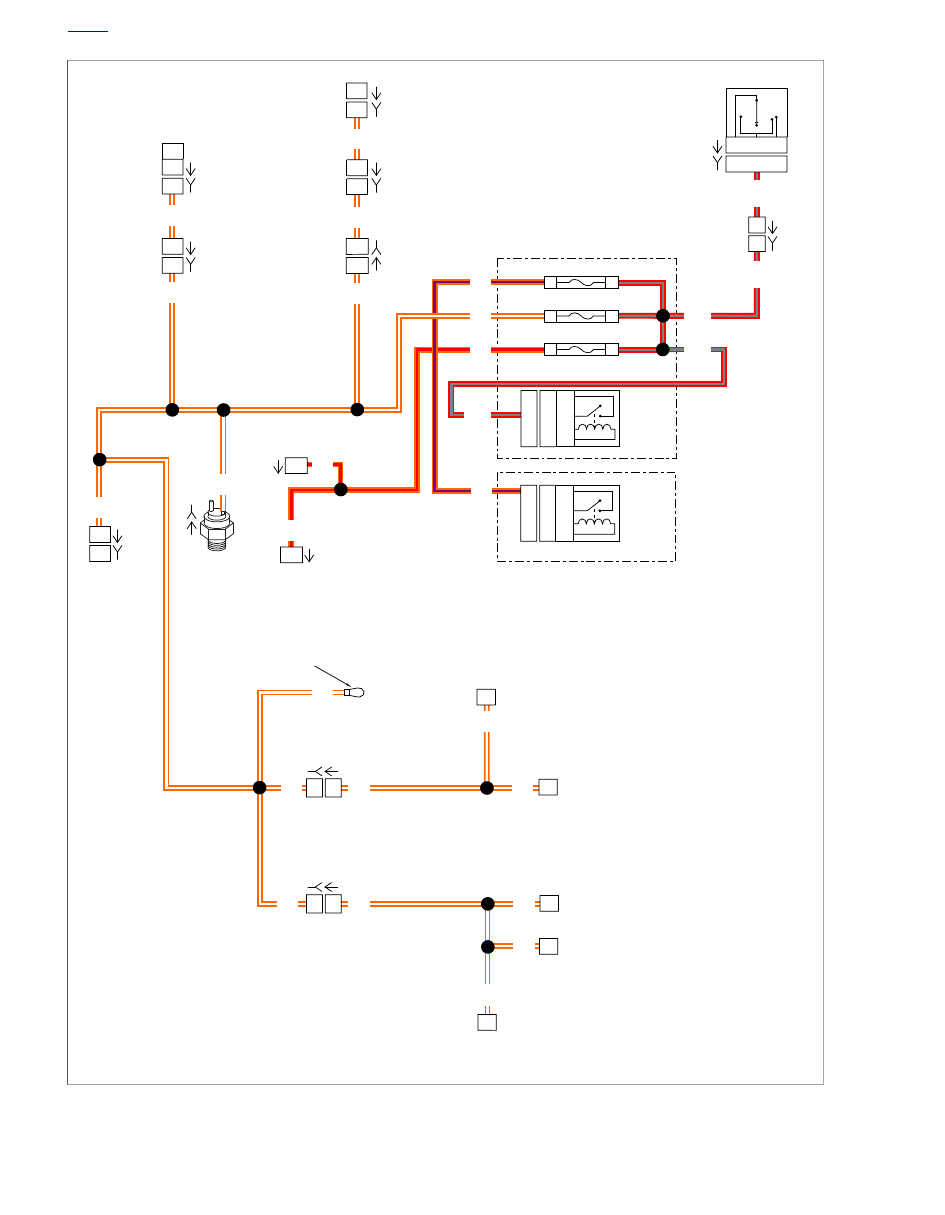

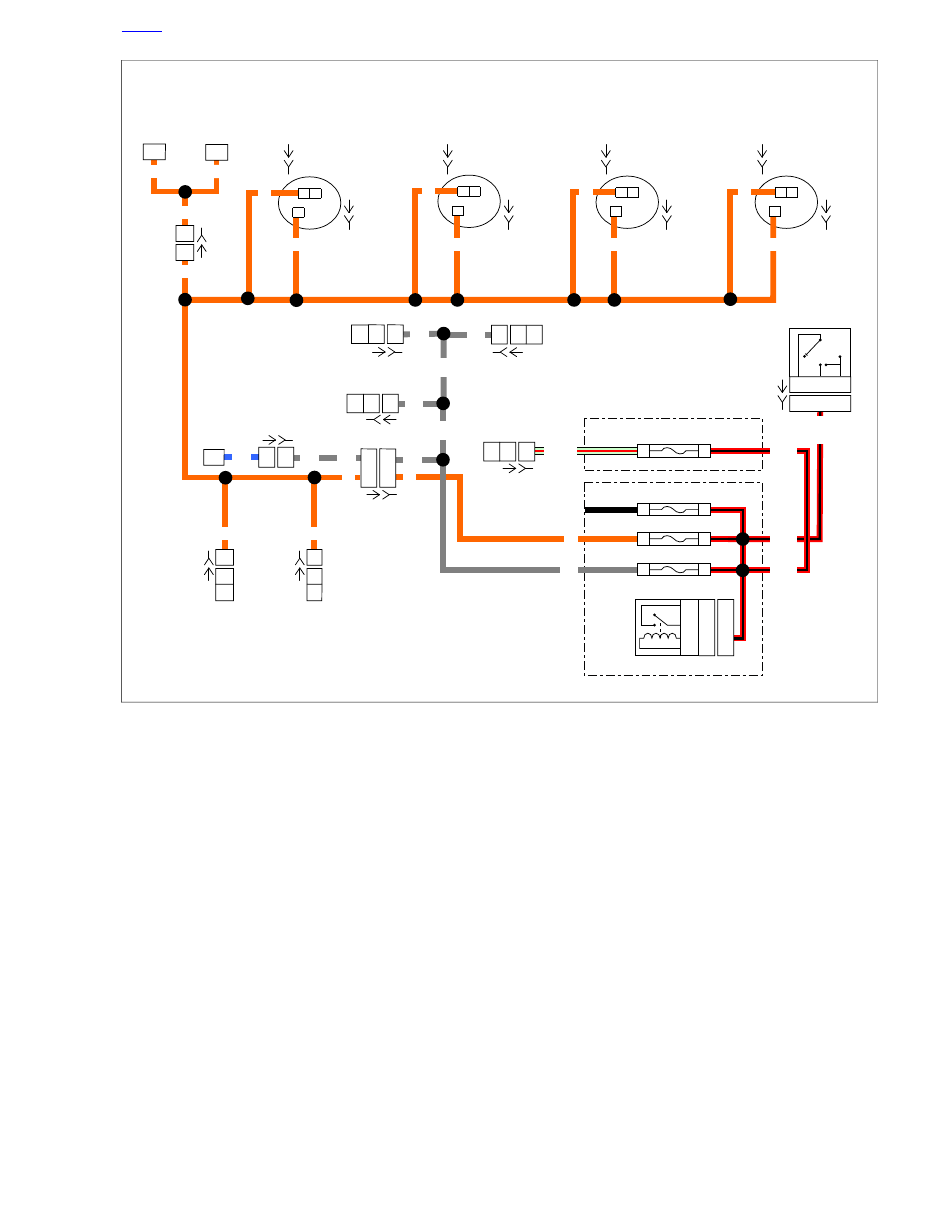

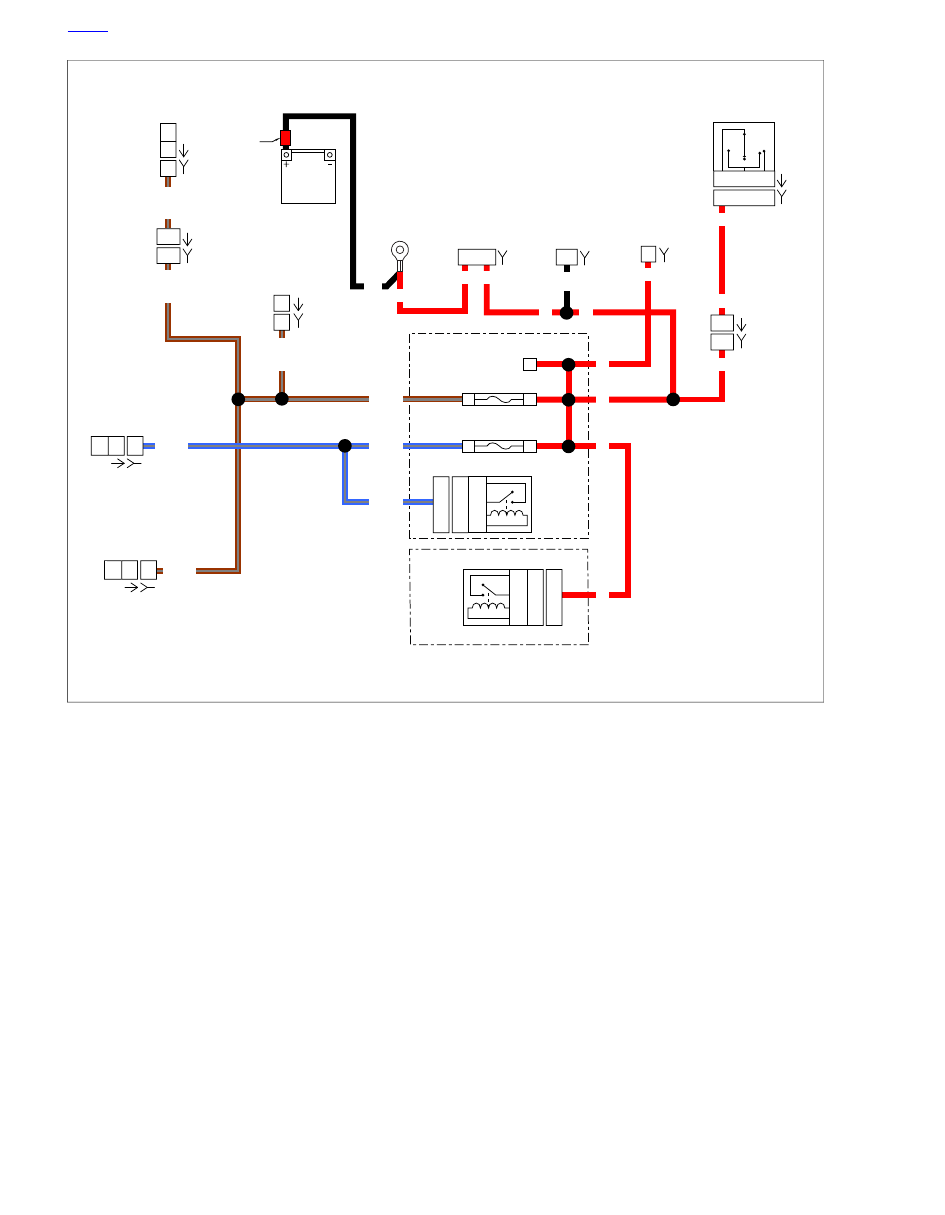

2011 TOURING WIRING DIAGRAMS

Wiring Diagram List

LOCATION

DIAGRAM

Figure B-3

Battery Power: FLHR/C

Figure B-4

Battery Power: Except FLHR/C

Figure B-5

Ignition Power: FLHR/C

Figure B-6

Ignition Power: Except FLHR/C

Figure B-7

Accessory Power: FLHR/C

Figure B-8

Accessory Power: Except FLHR/C

Figure B-9

Sensor Grounds

Figure B-10

Right GND2: FLHR/C

Figure B-11

Right GND2: Except FLHR/C

Figure B-12

Left GND1: FLHR/C

Figure B-13

Left GND1: 2011 Touring (Except FLHR/C)

Figure B-14

MAIN HARNESS (1 OF 5): 2011 Touring (Except FLHR/C) without ABS

Figure B-15

MAIN HARNESS (2 OF 5): 2011 Touring (Except FLHR/C) with ABS

Figure B-16

MAIN HARNESS (3 OF 5): 2011 Touring (FLHR/C) without ABS

Figure B-17

MAIN HARNESS (4 OF 5): 2011 Touring (FLHR/C) with ABS

Figure B-18

MAIN HARNESS (5 OF 5): 2011 Touring

Figure B-19

Fairing Harness: 2011 Touring

Figure B-20

Indicators, Fairing Switches, Handlebar Switches: 2011 Touring

Figure B-21

Starting Circuit: 2011 Touring

Figure B-22

Rear Lighting, Charging System: 2011 Touring

Figure B-23

Front Lighting, Console Harness, ABS: 2011 Touring

Figure B-24

Security Circuit: 2011 Touring

Figure B-25

Security Circuit: 2011 Touring With Anti-Theft Tracking Module

Figure B-26

Ultra Radio RF Interconnect Circuit: 2011 Touring

Figure B-27

Classic Radio Circuit: 2011 Touring

Figure B-28

Ultra Radio Circuit: 2011 Touring

Figure B-29

2-Place Intercom and Headset Audio: 2011 Touring

Figure B-30

CAN and Module Audio Inputs to Ultra Radio: 2011 Touring

HOME

2011 Touring Diagnostics:  Appendix B Wiring  B-9

TSM/TSSM/HFSM

Speedometer

Optional

Security

Siren

(GY)

1

1

3

5

5

A

A

BE/GY

BE/GY

BN/GY

BN/GY

BE/GY

BN/GY

BN/GY

[142A]

[142B]

[30B]

[30A]

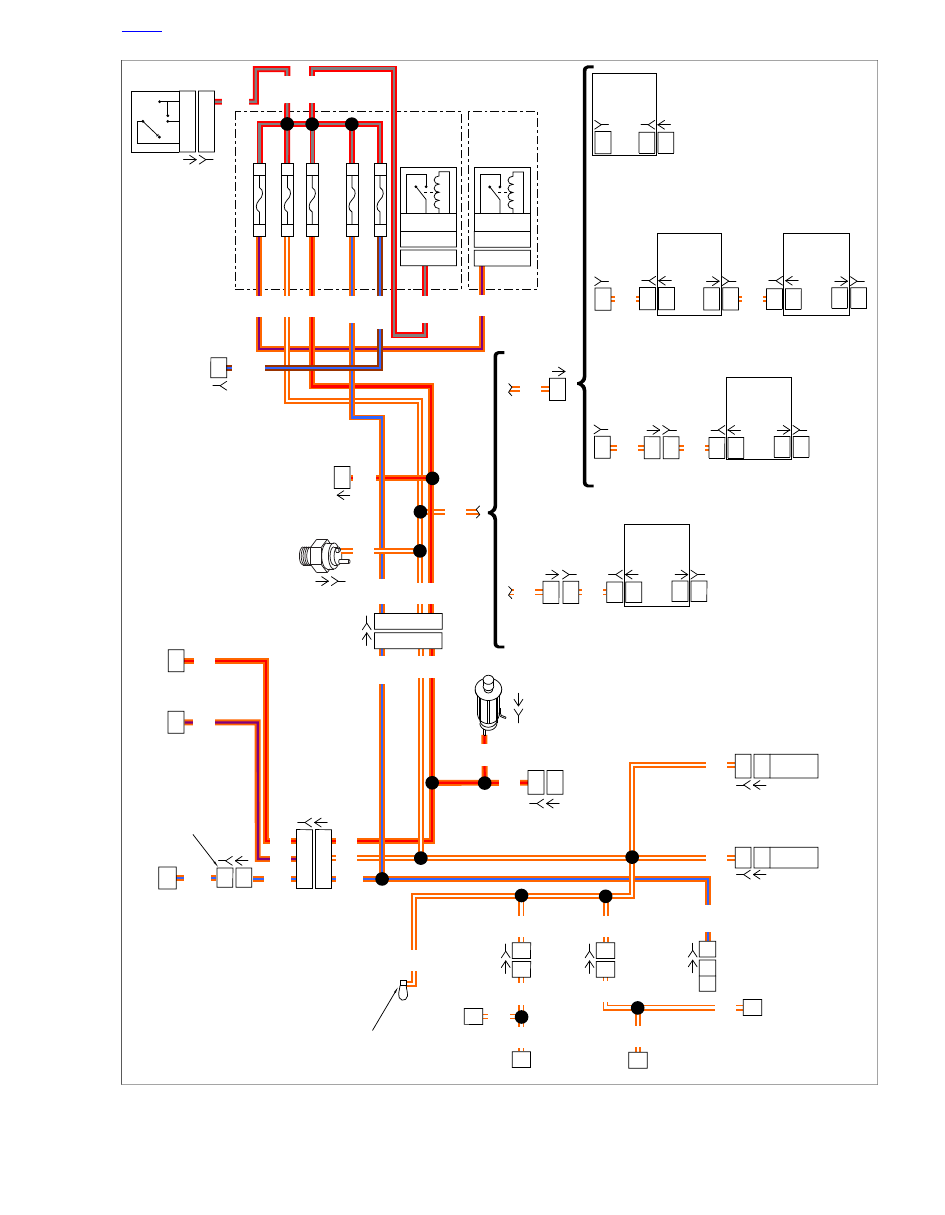

Main Power

At Starter

Battery

Main Fuse

40A

Voltage

Regulator

Ignition Switch

B+

Connector

[BATT]

A

B

B

B

+

BK

BK

R

R

R

R

R

R

R

R

R

System

Relay

Lighting

Relay

64-2B

64-1B

Battery 15A

ECM Power 15A

R

R

R

R

[160B]

[77B]

[5B]

2F

2E

2D

2C

2A

Red

Band

[33A]

[33B]

[222A]

[222B]

ECM

71

71

[78B]

[78A]

[39A]

[39B]

[20A]

[20B]

BN/GY

3

B+

IGN

ACC

OFF

IGN

B

ACC

30

3

3D

30

3

1J

em00683

Figure B-3. Battery Power: FLHR/C

HOME

B-10  2011 Touring Diagnostics:  Appendix B Wiring

[33A]

[33B]

TSM/TSSM/

HFSM

ECM

Speedometer

Tachometer

Optional

Security

Siren

A

A

BN/GY

A

4

4

(GY)

R/O

BN/GY

BE/GY

BN/GY

BN/GY

BN/GY

Main Power

At Starter

Battery

Main Fuse

40A

Voltage

Regulator

Ignition Switch

B+

Connector

[BATT]

A

B

+

BK

BK

BK

R

R

R

R

R

System

Relay

Lighting

Relay

64-2B

64-1B

Battery 15A

Radio Memory 15A

ECM Power 15A

R/O

R

R

R

R

R

R

BE/GY

BE/GY

BN/GY

[160B]

[77B]

[5B]

[142A]

[142B]

[30B]

[30A]

[78B]

[78A]

2F

2E

2D

2C

2B

2A

Red

Band

71

71

1

1

[2B]

[2A]

[15B]

[15A]

5

5

5

5

[39A]

[39B]

[27A]

[27B]

20

10

10

20

[108A]

[108B]

A

3

R/O

Radio

Hands Free Module

Bluetooth

Antenna

1

(Beige)

XM

9

9

Future

ACC

9

C.B.

5

5

1

(If Equipped)

3

9

9

C.B.

Future ACC

R/O

R/O

R/O

R/O

R/O

R/O

R/O

R/O

R/O

R/O

R/O

R/O

R/O

[186B]

[185B]

[184D]

[194B]

[187B]

[187A]

[175B]

[184C]

[184B]

[6A]

[6B]

B+

IGN

ACC

OFF

IGN

2

ACC

30

3

3D

30

3

1J

em00852

Figure B-4. Battery Power: Except FLHR/C

HOME

2011 Touring Diagnostics:  Appendix B Wiring  B-11

[21B]

[21A]

TSM/

TSSM/

HFSM

Speedometer

Fuel Gauge

Engine

Stop

Switch

(GY)

2

2

1

1

3

GY

GY

GY

GY

O

O

LGN/R

LGN/R

O

O

GY

[117B]

Lighting

Relay

64-2B

64-1B

P&A IGN (MAX) 2A

Instruments 15A

Ignition 15A

Exhaust Control 15A

R/BK

R/BK

R/BK

3B

3A

1F

1E

1D

1C

1B

1A

A

A

R/BK

R/BK

[222A]

[222B]

Active Exhaust

(HDI Only)

1

DLC

4

4

ABS

Module

(If Equipped)

19

19

1

3

1

O

1

1

6

6

Neutral

Oil

Pressure

O

O

O

Ignition Switch

[179A]

[179B]

[39A]

[39B]

[20A]

[20B]

[166A]

[166B]

B+

IGN

ACC

OFF

IGN

A

ACC

[91A]

[91B]

[30B]

[30A]

[22B]

[22A]

85

86

30

87

2

1

3

5

1G

[33A]

[33B]

em00685

Figure B-5. Ignition Power: FLHR/C

HOME

B-12  2011 Touring Diagnostics:  Appendix B Wiring

[21B]

[21A]

[30B]

[30A]

[179B]

[179A]

[1B]

[1A]

TSM/TSSM/HFSM

1

3

(GY)

(BK)

2

2

GY

GY

GY

O

R/BK

Lighting

Relay

64-2B

64-1B

P&A IGN (MAX) 2A

Instruments 15A

Ignition 15A

Exhaust Control 15A

GY

GY

GY

O

R/BK

R/BK

R/BK

DLC

4

4

3B

3A

1F

1E

1D

1C

1B

1A

(BK)

Tachometer

Speedometer

(GY)

1

1

+

1

1

+

1

1

+

1

1

+

3

6

1

1

1

1

1

3

Air

Temperature

Oil

Pressure

Indicator

Lamps

Fuel

Voltmeter

O

O

O

O

O

O

O

O

GY

GY

O

O

O

O

O

O

O

[108B]

[108A]

(BK)

[39B]

[39A]

[115A]

[115B]

[113A]

[113B]

[111A]

[111B]

[117A]

[117B]

[114A]

[114B]

[112A]

[112B]

[110A]

[110B]

[116A]

[116B]

3

Right

Turn

Switch

BE

GY

ABS Module

(If Equipped)

19

19

LGN/R

Active Exhaust

(HDI Only)

1

1

6

Neutral

Oil

Pressure

Ignition Switch

B+

IGN

ACC

OFF

IGN

3

ACC

[33A]

[33B]

85

86

30

87

2

1

3

5

1G

[166A]

[166B]

[91A]

[91B]

[22B]

[22A]

em00814

Figure B-6. Ignition Power: Except FLHR/C

HOME

2011 Touring Diagnostics:  Appendix B Wiring  B-13

[67A]

[222A]

[222B]

[32A]

[32B]

[20A]

[20B]

[39A]

[39B]

[4A]

[94A]

[94B]

[93A]

[93B]

[33A]

[33B]

Rear

Lighting

Accessory
Connector

Accessory

Switch

Tail Lamp

Rear

Stop Lamp

Switch

2

2

1

4

1

2

O/W

O/R

[121B-2]

Ignition Switch

R/GY

R/GY

Start

Relay

Brake
Relay

64-2B

64-1B

Brake 15A

Accessory 15A

P&A 15A

O/V

O/R

O/R

O/W

O/V

R/GY

R/GY

R/GY

C

C

1B

1A

1D

1C

1F

1E

Fender

Tip Lamp

1

1

O/W

1

1

2

2

4

4

O/W

6

6

O/W

O/W

O/W

O/W

Speedometer

[29B-1]

Position Lamp

(HDI Only)

1

1

1

Front Stop/Lamp

Switch

Horn

Switch

Cruise On/Off

Switch

Left Turn

Switch

Right Turn

Switch

O/W

O/W

1

O/W

O/W

O/W

O/W

O/W

O/W

O/W

O/W

B+

IGN

ACC

OFF

IGN

B

C

A

ACC

87

5

3A

30

3

3H

[7B]

[7A]

[24A]

[24B]

[22A]

[22B]

em00681

Figure B-7. Accessory Power: FLHR/C

HOME

B-14  2011 Touring Diagnostics:  Appendix B Wiring

P

o

w

er

Outlet

2H

2G

1

P

o

w

er

Outlet

(If

Equipped)

BN/BE

BN/BE

[258B]

O/W

[7A]

[7B]

[94B]

[94A]

[93A]

[93B]

[133A]

[133B]

[108B]

[108A]

[39B]

[39A]

[22B]

[22A]

[24B]

[24A]

[27B]

[27A]

[1B]

[1A]

4

5

9

O/W

O/R

O/BE

Rear

Lighting

Accessor

y

Connector

T

aillamp

Rear

Stop

Lamp

Switch

(BK)

2

2

1

2

O/W

O/W

O/W

O/R

[121B-2]

Ignition

Switch

R/GY

Star

t

Rela

y

Br

ak

e

Rela

y

64-2B

64-1B

Br

ak

e

15A

Accessor

y

15A

P&A

15A

Radio

PWR/

Siren

5A

O/V

O/R

O/W

O/V

R/GY

R/GY

R/GY

O/BE

1B

1A

1D

1C

1F

1E

1H

1G

[4A]

[29B]

[29B-1]

HDI

Only

Cigar

Lighter

Heated

Hand

Gr

ips

(If

Equipped)

T

achometer

Speedometer

1

1

1

1

4

9

12

12

6

6

Accessory

6

6

Accessory

4

5

9

Radio

F

ront

Stop/

Lamp

Switch

Hor

n

Switch

Left

T

ur

n

Switch

Right

T

ur

n

Switch

(BK)

(BK)

O/BE

O/BE

O/W

O/W

O/W

O/W

O/R

O/R

O/R

O/R

O/W

O/W

O/W

O/W

O/W

O/W

O/BE

O/W

1

1

[189B]

[189A]

[132A]

[132B]

1

O/W

O/W

1

1

2

2

A

CC

CR

UISE

SPKR

1

4

9

1

1

Connectors

On

FL

TR

Only

O/R

O/V

O/V

O/R

O/BE

O/BE

[105D]

[105C]

[105B]

[105A]

B+

IGN

A

CC

OFF

IGN

1

A

CC

87

5

3A

30

3

3H

O/W

[262A]

[262B]

[93A]

[93B]

Rear

Lighting

T

aillamp

10

10

O/W

1

1

2

2

[257B]

[226B]

[226A]

F

acia/

Con

v

er

ter

Module

2

12

12

[7A]

[7B]

[94B]

[94A]

[93A]

[93B]

Rear

Lighting

T

aillamp

2

2

O/W

1

1

2

2

O/W

[257B]

2

[226B]

[226A]

[94A]

[94B]

12

12

O/W

(FL/HTCU/HTK/TR

U)

(Except

FL/HTCU/HTK/TR

U)

(FLHTC

Only)

[257A]

[257B]

2

2

(FL/TRX/HX)

Canada

Only)

F

acia/

Con

v

er

ter

Module

Circuit

Board

Circuit

Board

Circuit

Board

(FL/TRX/HX)

10

em00853

Figure B-8. Accessory Power: Except FLHR/C

HOME

2011 Touring Diagnostics:  Appendix B Wiring  B-15

TGS

TCA

4

4

1

1

TMAP

Sensor

1

1

1

1

BK/GY

BK/GY

BK/GY

GN/W

GN/W

BK/W

BK/W

BK

BK

BK/W

GN/W

BK/W

[80A]

[80B]

[204A]

[204B]

[211A]

[211B]

Front HO2

Sensor

2

2

Rear HO2

Sensor

2

2

ET

Sensor

B

B

[90A]

[90B]

CKP

ECM

2

2

31

43

61

62

31

43

61

62

[79A]

[79B]

[78B]

[78A]

[138B]

[138A]

[137B]

[137A]

em00679

Figure B-9. Sensor Grounds

HOME

B-16  2011 Touring Diagnostics:  Appendix B Wiring
