2015 Touring Models Parts Catalog
Alphabetical List
Parts
Hardware List
New Parts List
Numerical Index
Component Types and Introduction Dates
Common Service Parts
GUARDS, SADDLEBAG
ACTIVE INTAKE & EXHAUST

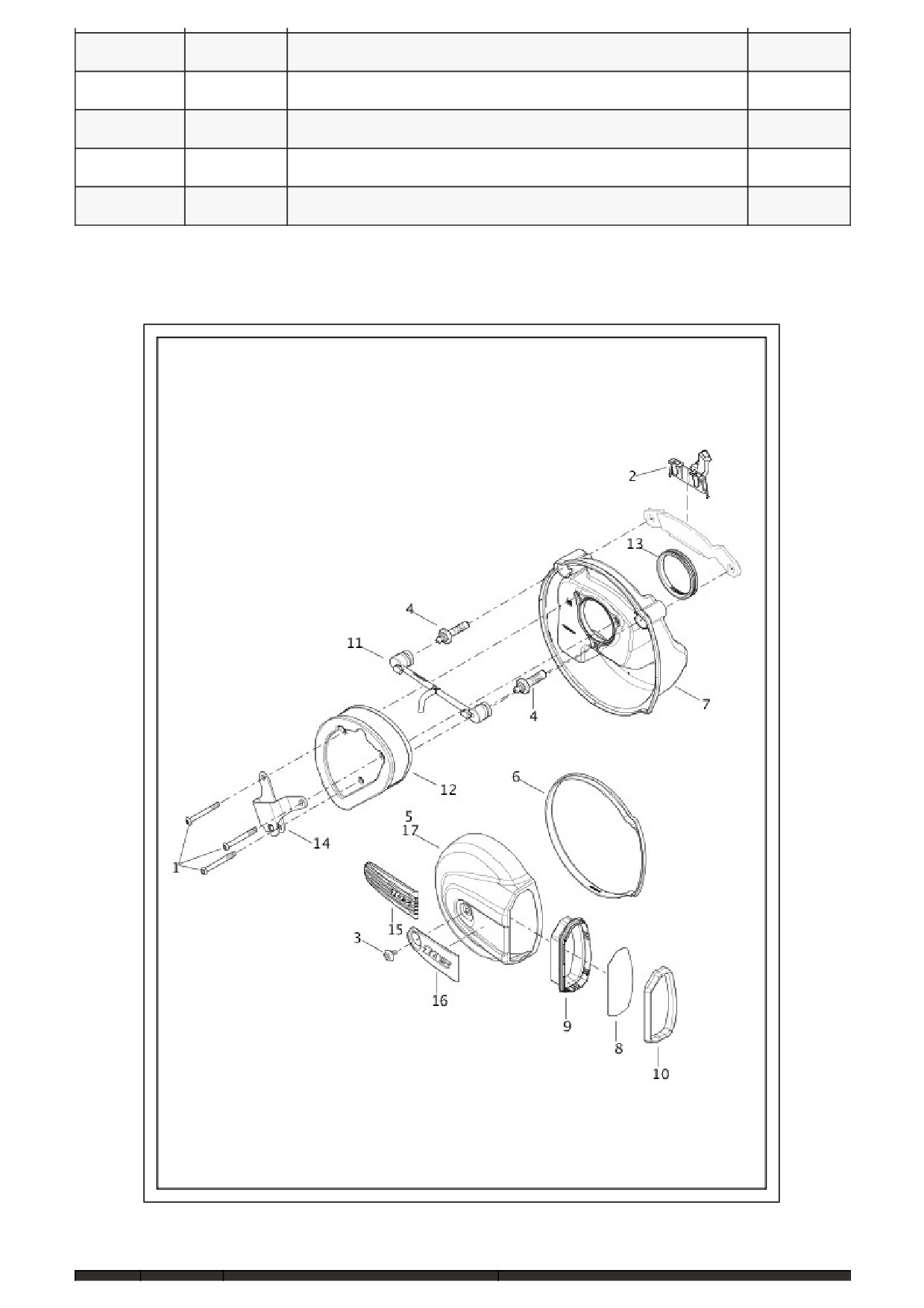

AIR CLEANER
ALTERNATOR & REGULATOR
ANTENNAS
AUXILIARY/FOG LAMPS & TURN SIGNALS, FRONT - FLHR & FLHRC
AUXILIARY/FOG LAMPS & TURN SIGNALS, FRONT - FLHTCU, FLHTCUL, FTHTK & FLHTKL
BATTERY
BELT, CHAINS & SPROCKETS
BRAKE CALIPER, FRONT
BRAKE CALIPER, REAR
BRAKE CONTROL, FRONT
BRAKE CONTROL, REAR
BRAKE LINE, FRONT - NON-ABS
BRAKE LINES & MODULE, REAR - ABS
BRAKE LINES, FRONT - ABS

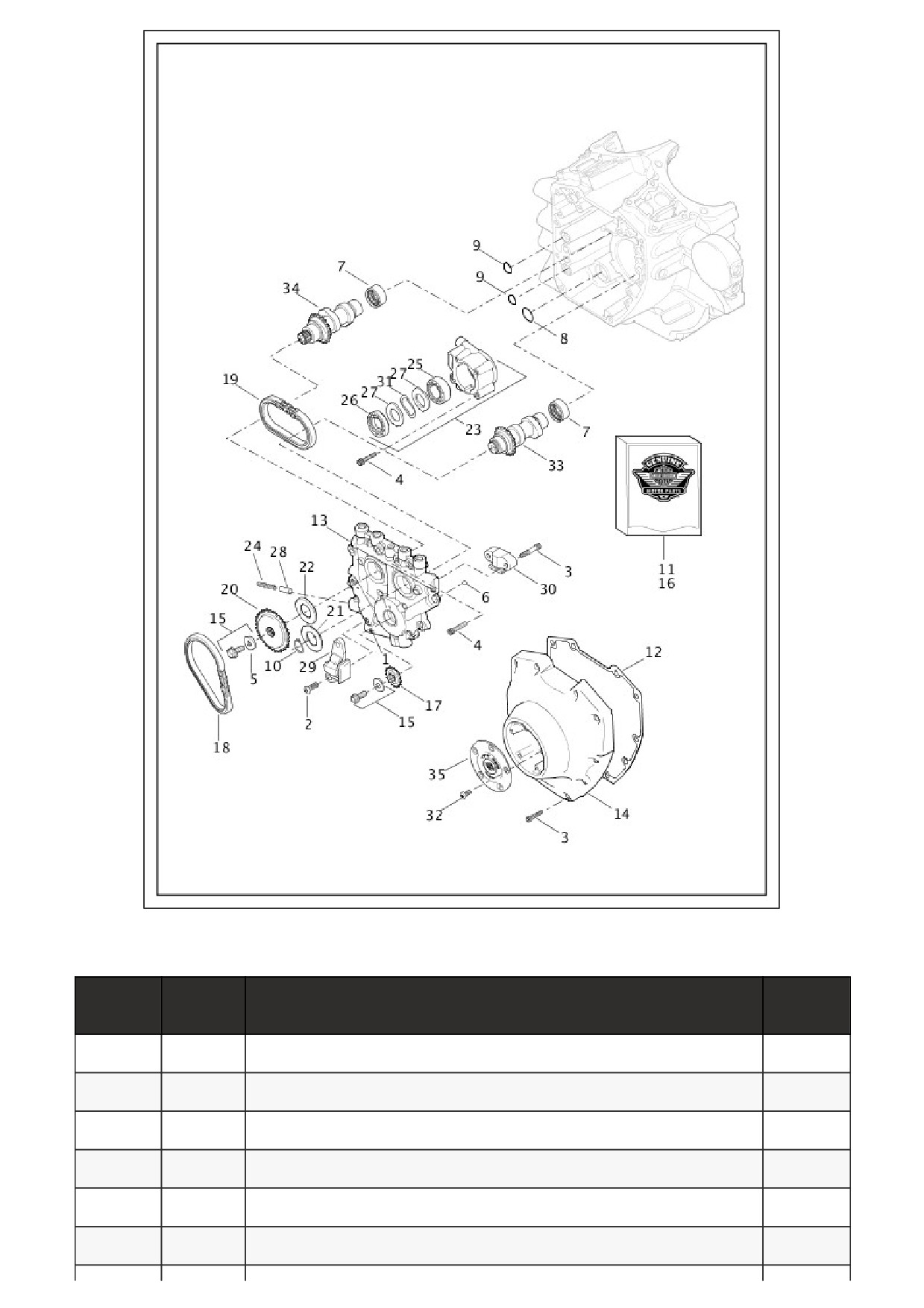

CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 103™
CB & INTERCOM CONTROL POD
CLUTCH - ASSIST & SLIP - TWIN CAM 103™ - FLHTCUL & FLHTKL
CLUTCH - CONVENTIONAL - TWIN CAM 103™ - FLHR/C, FLHTCU, FLHTK, FLHX/S & FLTRX/S
CLUTCH CONTROL (NON-FAIRING MODELS)
CLUTCH CONTROL (FAIRING MODELS)
CONSOLE, FUEL TANK - FLHTCU, FLHTCUL, FLHTK, FLHTKL, FLHX, FLHXS, FLTRX & FLTRXS (1 OF
2)
CONSOLE, FUEL TANK - FLHTCU, FLHTCUL, FLHTK, FLHTKL, FLHX, FLHXS, FLTRX & FLTRXS (2 OF
2)
COOLANT DISTRIBUTION
COOLING SYSTEM, ENGINE, TWIN-COOLED™ - TWIN CAM 103™

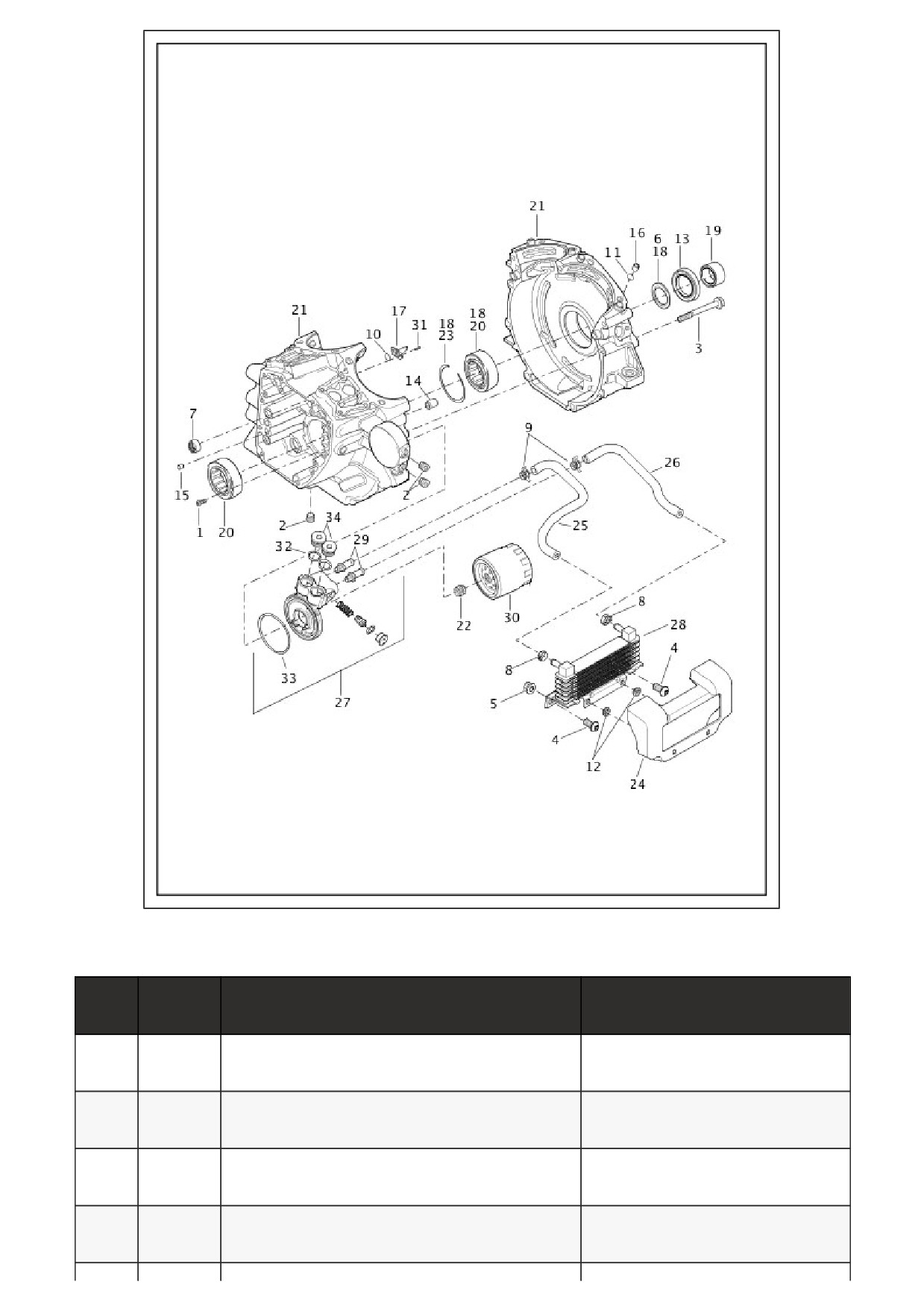

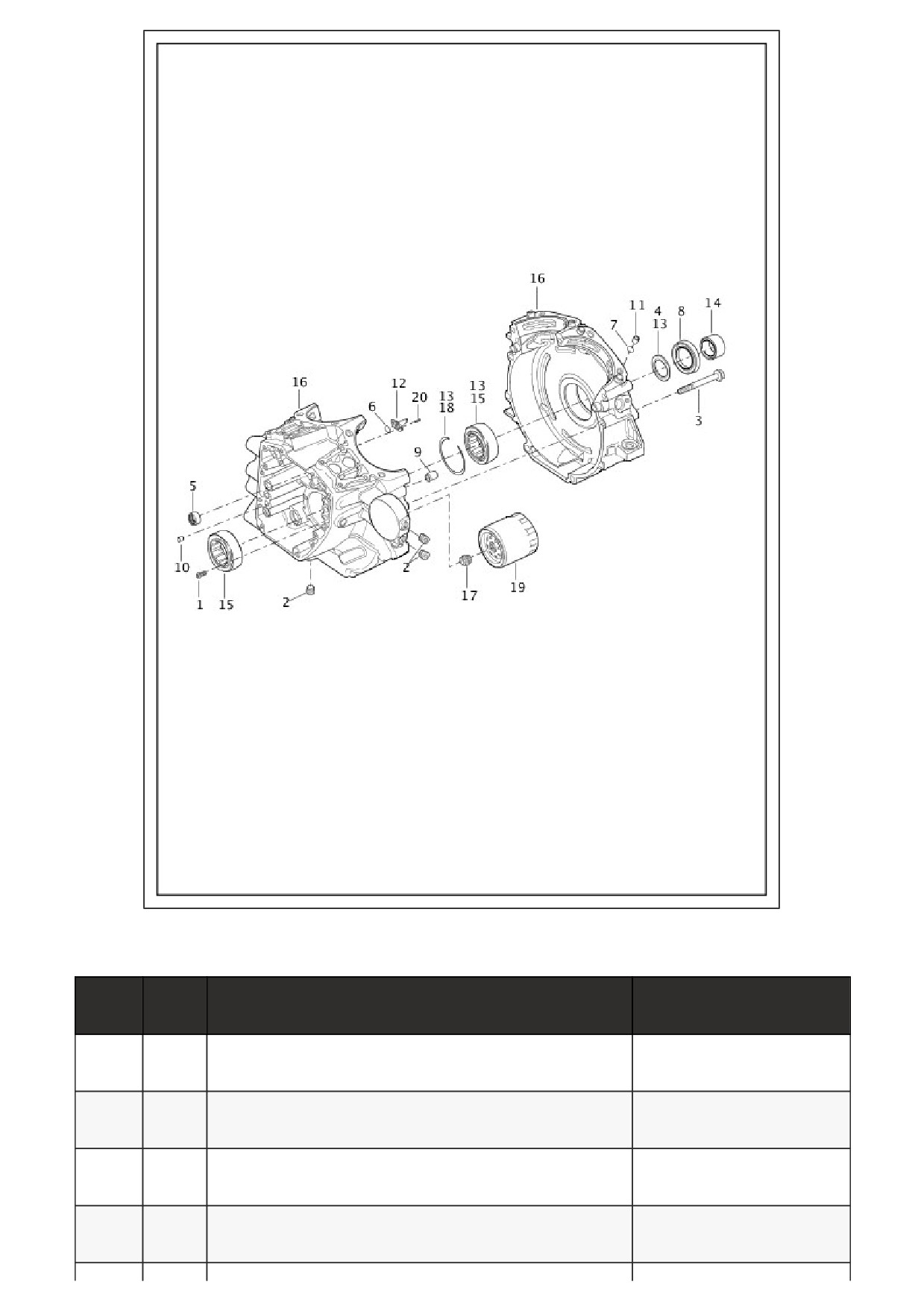

CRANKCASE & ENGINE OIL FILTER - TWIN-COOLED™ TWIN CAM 103™

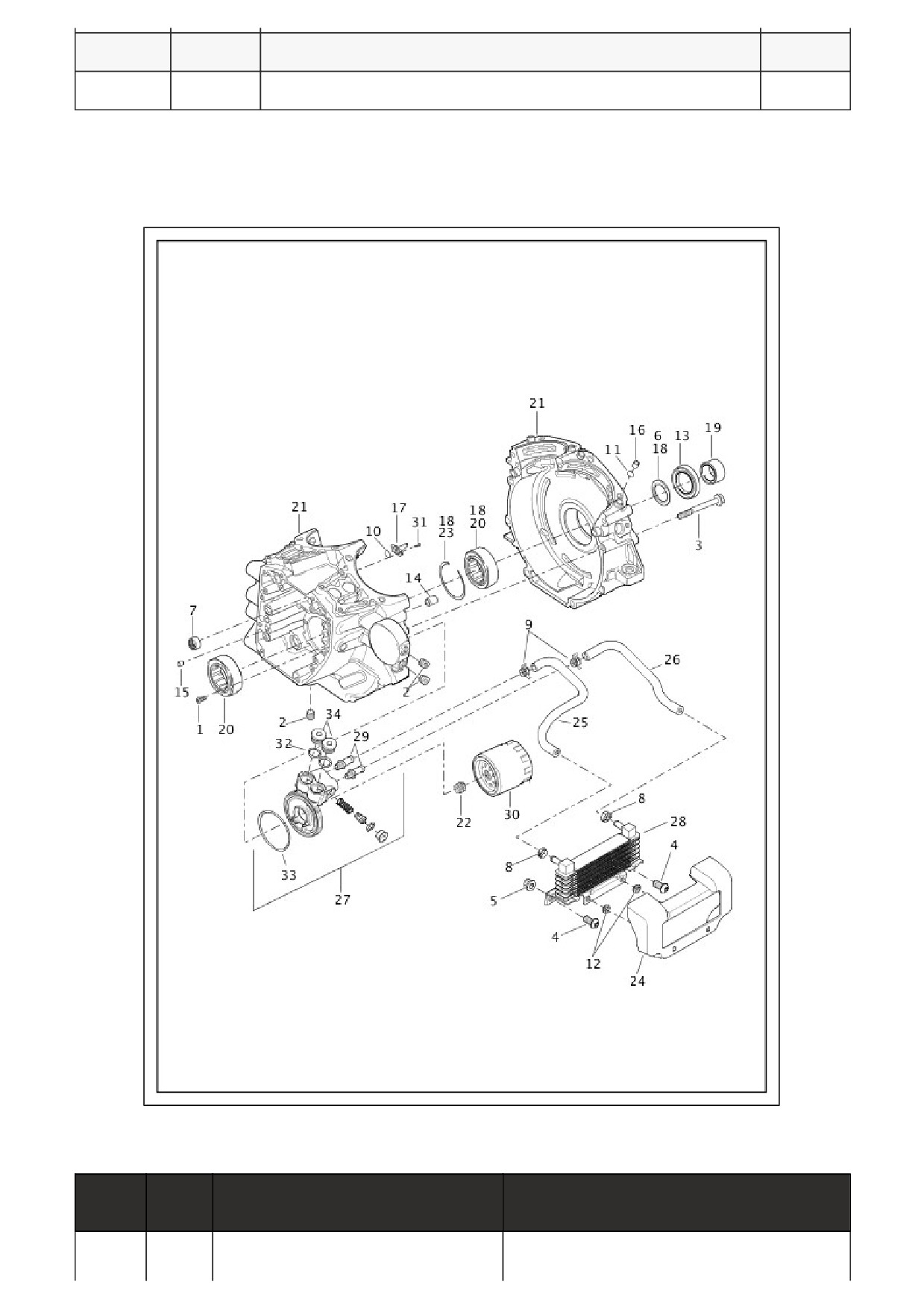

CRANKCASE, ENGINE OIL FILTER & COOLER - TWIN CAM 103™ (1 OF 2)
CRANKCASE, ENGINE OIL FILTER & COOLER - TWIN CAM 103™ (2 OF 2)
CYLINDERS, HEADS & VALVES - TWIN CAM 103™
CYLINDERS, HEADS & VALVES, TWIN-COOLED™ - TWIN CAM 103™
ELECTRONIC CONTROL MODULE (ECM) & COIL
ENGINE ASSEMBLY - TWIN CAM 103™
ENGINE ASSEMBLY, TWIN-COOLED™ - TWIN CAM 103™

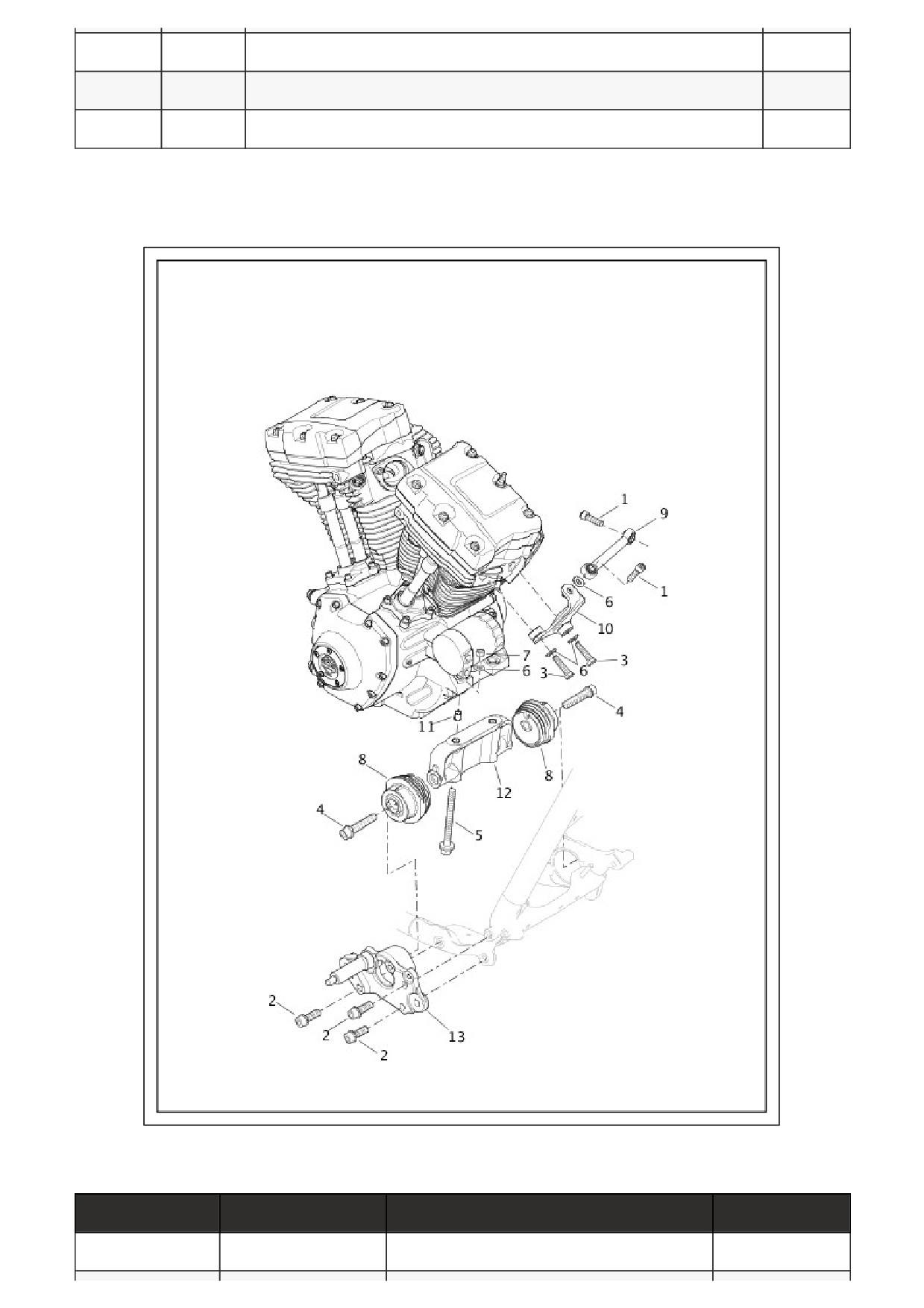

ENGINE MOUNTS & STABILIZER LINK
EVAPORATIVE EMISSIONS COMPONENTS
EXHAUST SYSTEM
FAIRING LOWERS - ULTRA - AIR COOLED
FAIRING LOWERS - ULTRA - TWIN-COOLED™
FAIRING, INNER - FLHTCU, FLHTCUL, FLHTK, FLHTKL, FLHX & FLHXS (1 OF 2)
FAIRING, INNER - FLHTCU, FLHTCUL, FLHTK, FLHTKL, FLHX & FLHXS (2 OF 2)
FAIRING, INNER - FLTRX & FLTRXS (1 OF 2)
FAIRING, INNER - FLTRX & FLTRXS (2 OF 2)
FENDERS, FRONT
FENDERS, REAR (1 OF 2)
FENDERS, REAR (2 OF 2)
FOOTBOARDS & FOOTPEGS
FORK BRACKETS, FRONT
FORK, FRONT, LEFT & RIGHT - LOW
FORK, FRONT, LEFT & RIGHT - STANDARD
FRAME & FORK, REAR & TOUR-PAK SUPPORT
FRAME & JIFFY STAND (1 OF 2)
FRAME & JIFFY STAND (2 OF 2)
FUEL PUMP - FLHR & FLHRC
FUEL PUMP - FLHTCU, FLHTCUL, FLHTK, FLHTKL, FLHX, FLHXS, FLTRX & FLTRXS
FUEL TANK - FLHR & FLHRC
FUEL TANK - FLHTCU, FLHTCUL, FLHTK, FLHTKL, FLHX, FLHXS, FLTRX & FLTRXS
FUEL TANK TRIM
HANDLEBAR
HORN
INDUCTION MODULE, FUEL
INSTRUMENT HOUSING - FLTRX & FLTRXS
INSTRUMENTS - FLHTCU, FLHTCUL, FLHTK, FLHTKL, FLHX & FLHXS
INSTRUMENTS - FLTRX & FLTRXS
INSTRUMENTS, FUEL TANK - FLHR & FLHRC
LABELS
LAMPS & SPEAKER HOUSINGS, ULTRA TOUR-PAK (1 OF 2)
LAMPS & SPEAKER HOUSINGS, ULTRA TOUR-PAK (2 OF 2)
LICENSE PLATE BRACKETS
LOOSE PARTS (1 OF 2)
LOOSE PARTS (2 OF 2)
MIRRORS
NACELLE & HEADLAMP - FLHR & FLHRC

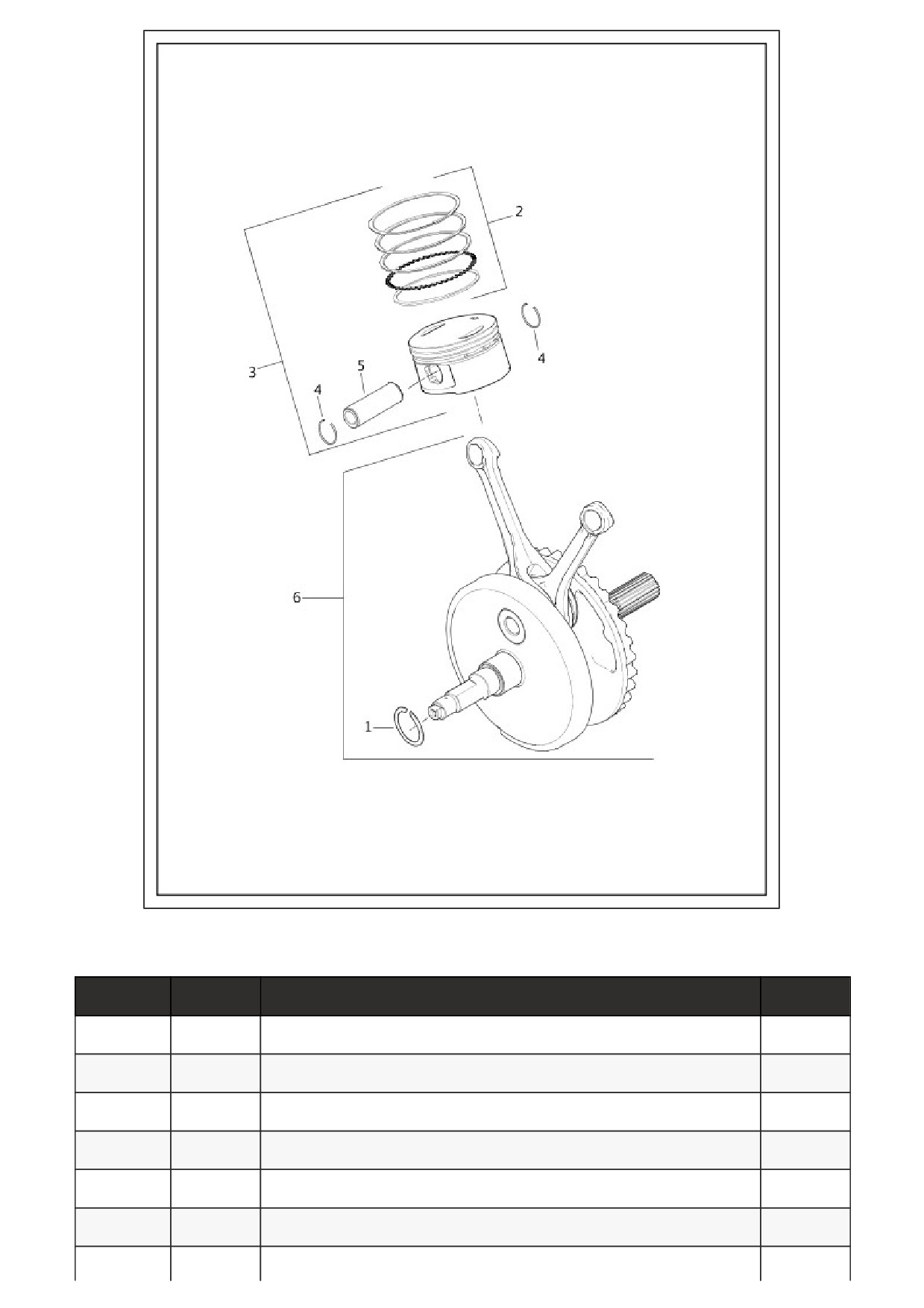

PISTONS & FLYWHEEL ASSEMBLY - TWIN CAM 103™
PRIMARY HOUSING
RADIATOR, COOLANT HOSES & BOTTLE

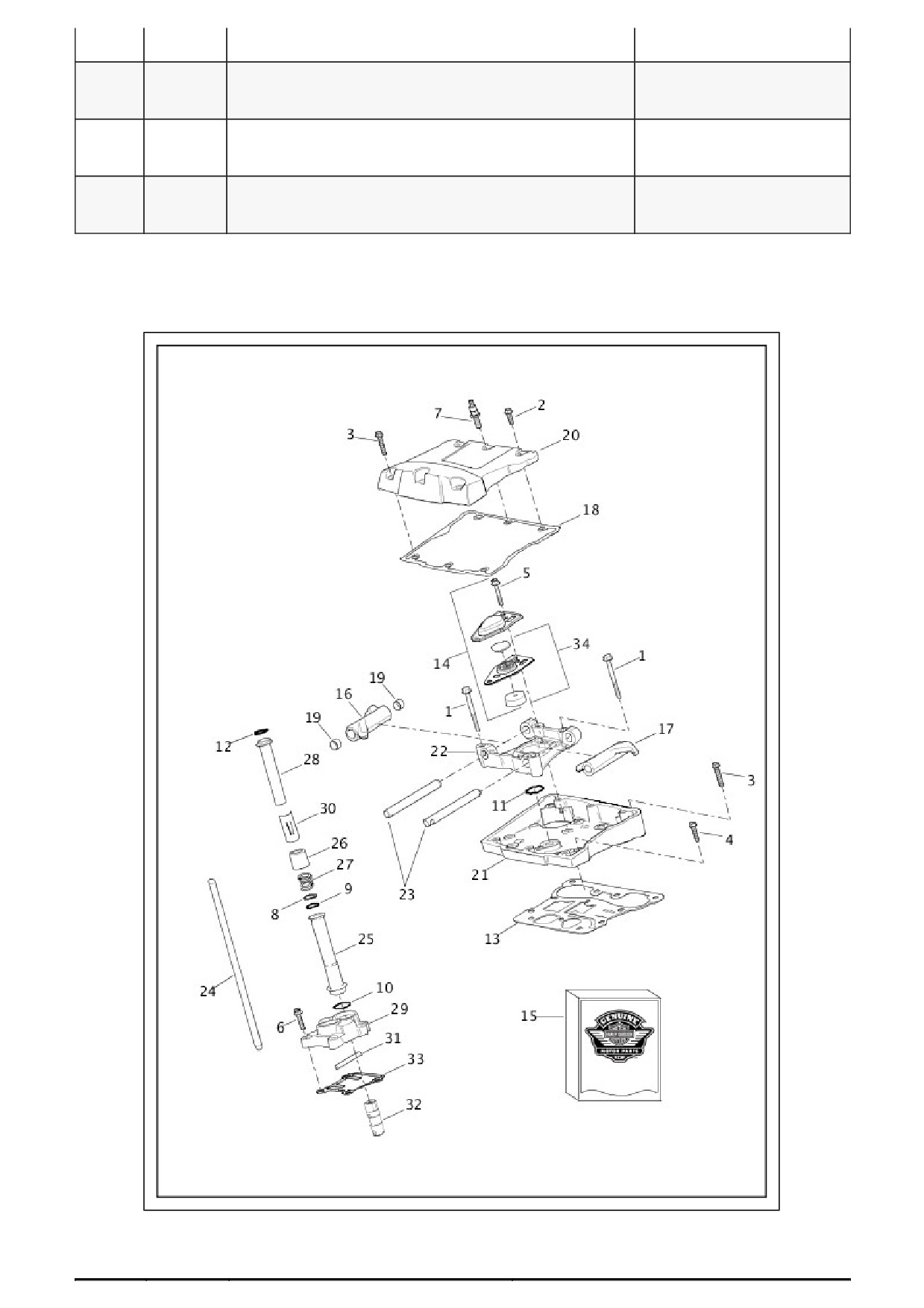

ROCKER ARM ASSEMBLY & PUSHRODS - TWIN CAM 103™
SADDLEBAGS (1 OF 2)
SADDLEBAGS (2 OF 2)
SADDLEBAGS - FLHRC
SEATS
SENSORS & SWITCHES, ENGINE
SHIFTER, GEAR
SHOCK ABSORBERS, REAR & AIR SUSPENSION SYSTEM - FLHR, FLHRC, FLHTCU, FLHTK, FLHX &
FLTRX
SHOCK ABSORBERS, REAR - FLHTCUL, FLHTKL, FLHXS & FLTRXS
SOUND SYSTEM - FLHTCU/L, FLHTK/L, FLHX & FLHXS (1 OF 2)
SOUND SYSTEM - FLHTCU/L, FLHTK/L, FLHX & FLHXS (2 OF 2)
SOUND SYSTEM - FLTRX & FLTRXS
STARTER MOTOR
SWITCHES
SWITCHES, HANDLEBAR, LEFT
SWITCHES, HANDLEBAR, RIGHT
TAIL LAMP
TAIL LAMP & TURN SIGNALS, REAR (1 OF 2)
TAIL LAMP & TURN SIGNALS, REAR (2 OF 2)
THROTTLE CONTROL
TOUR-PAK (BOTTOM)
TOUR-PAK (COVER)
TRANSMISSION BEARINGS & COVERS
TRANSMISSION GEARS
TRANSMISSION HOUSING, TOP COVER & OIL PAN
TURN SIGNALS, FRONT - FLHX & FLHXS
WHEELS, FRONT
WHEELS, REAR
WINDSHIELD - FLHR & FLHRC
WINDSHIELD, FAIRING & HEADLAMP - FLHTCU/L, FLHTK/L, FLHX & FLHXS (1 OF 2)
WINDSHIELD, FAIRING & HEADLAMP - FLHTCU/L, FLHTK/L, FLHX & FLHXS (2 OF 2)
WINDSHIELD, FAIRING & HEADLAMP - FLTRX & FLTRXS
WIRING HARNESS, CONSOLE - FLHR & FLHRC
WIRING HARNESS, FAIRING - FLHTCU/L, FLHTK/L, FLHX & FLHXS (1 OF 2)
WIRING HARNESS, FAIRING - FLHTCU/L, FLHTK/L, FLHX & FLHXS (2 OF 2)
WIRING HARNESS, FAIRING - FLTRX & FLTRXS
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLHTCU/L & FLHTK/L (1 OF 8)
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLHTCU/L & FLHTK/L (2 OF 8)
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLHTCU/L & FLHTK/L (3 OF 8)
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLHTCU/L & FLHTK/L (4 OF 8)
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLHTCU/L & FLHTK/L (5 OF 8)
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLHTCU/L & FLHTK/L (6 OF 8)
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLHTCU/L & FLHTK/L (7 OF 8)
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLHTCU/L & FLHTK/L (8 OF 8)
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLHX & FLHXS (1 OF 8)
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLHX & FLHXS (2 OF 8)
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLHX & FLHXS (3 OF 8)
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLHX & FLHXS (4 OF 8)
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLHX & FLHXS (5 OF 8)
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLHX & FLHXS (6 OF 8)
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLHX & FLHXS (7 OF 8)
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLHX & FLHXS (8 OF 8)
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLTRX & FLTRXS (1 OF 8)
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLTRX & FLTRXS (2 OF 8)
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLTRX & FLTRXS (3 OF 8)
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLTRX & FLTRXS (4 OF 8)
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLTRX & FLTRXS (5 OF 8)
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLTRX & FLTRXS (6 OF 8)
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLTRX & FLTRXS (7 OF 8)
WIRING HARNESS, MAIN, ABS (FAIRING MODELS) - FLTRX & FLTRXS (8 OF 8)
WIRING HARNESS, MAIN, ABS (NON-FAIRING MODELS) (1 OF 8)
WIRING HARNESS, MAIN, ABS (NON-FAIRING MODELS) (2 OF 8)
WIRING HARNESS, MAIN, ABS (NON-FAIRING MODELS) (3 OF 8)
WIRING HARNESS, MAIN, ABS (NON-FAIRING MODELS) (4 OF 8)
WIRING HARNESS, MAIN, ABS (NON-FAIRING MODELS) (5 OF 8)
WIRING HARNESS, MAIN, ABS (NON-FAIRING MODELS) (6 OF 8)
WIRING HARNESS, MAIN, ABS (NON-FAIRING MODELS) (7 OF 8)
WIRING HARNESS, MAIN, ABS (NON-FAIRING MODELS) (8 OF 8)
WIRING HARNESS, MAIN, NON-ABS (FAIRING MODELS) - FLHX (1 OF 8)
WIRING HARNESS, MAIN, NON-ABS (FAIRING MODELS) - FLHX (2 OF 8)
WIRING HARNESS, MAIN, NON-ABS (FAIRING MODELS) - FLHX (3 OF 8)
WIRING HARNESS, MAIN, NON-ABS (FAIRING MODELS) - FLHX (4 OF 8)
WIRING HARNESS, MAIN, NON-ABS (FAIRING MODELS) - FLHX (5 OF 8)
WIRING HARNESS, MAIN, NON-ABS (FAIRING MODELS) - FLHX (6 OF 8)
WIRING HARNESS, MAIN, NON-ABS (FAIRING MODELS) - FLHX (7 OF 8)
WIRING HARNESS, MAIN, NON-ABS (FAIRING MODELS) - FLHX (8 OF 8)
WIRING HARNESS, MAIN, NON-ABS (FAIRING MODELS) - FLTRX & FLTRXS (1 OF 8)
WIRING HARNESS, MAIN, NON-ABS (FAIRING MODELS) - FLTRX & FLTRXS (2 OF 8)
WIRING HARNESS, MAIN, NON-ABS (FAIRING MODELS) - FLTRX & FLTRXS (3 OF 8)
WIRING HARNESS, MAIN, NON-ABS (FAIRING MODELS) - FLTRX & FLTRXS (4 OF 8)
WIRING HARNESS, MAIN, NON-ABS (FAIRING MODELS) - FLTRX & FLTRXS (5 OF 8)
WIRING HARNESS, MAIN, NON-ABS (FAIRING MODELS) - FLTRX & FLTRXS (6 OF 8)
WIRING HARNESS, MAIN, NON-ABS (FAIRING MODELS) - FLTRX & FLTRXS (7 OF 8)
WIRING HARNESS, MAIN, NON-ABS (FAIRING MODELS) - FLTRX & FLTRXS (8 OF 8)
WIRING HARNESS, MAIN, NON-ABS (NON-FAIRING MODELS) (1 OF 8)
WIRING HARNESS, MAIN, NON-ABS (NON-FAIRING MODELS) (2 OF 8)
WIRING HARNESS, MAIN, NON-ABS (NON-FAIRING MODELS) (3 OF 8)
WIRING HARNESS, MAIN, NON-ABS (NON-FAIRING MODELS) (4 OF 8)
WIRING HARNESS, MAIN, NON-ABS (NON-FAIRING MODELS) (5 OF 8)
WIRING HARNESS, MAIN, NON-ABS (NON-FAIRING MODELS) (6 OF 8)
WIRING HARNESS, MAIN, NON-ABS (NON-FAIRING MODELS) (7 OF 8)
WIRING HARNESS, MAIN, NON-ABS (NON-FAIRING MODELS) (8 OF 8)
Parts

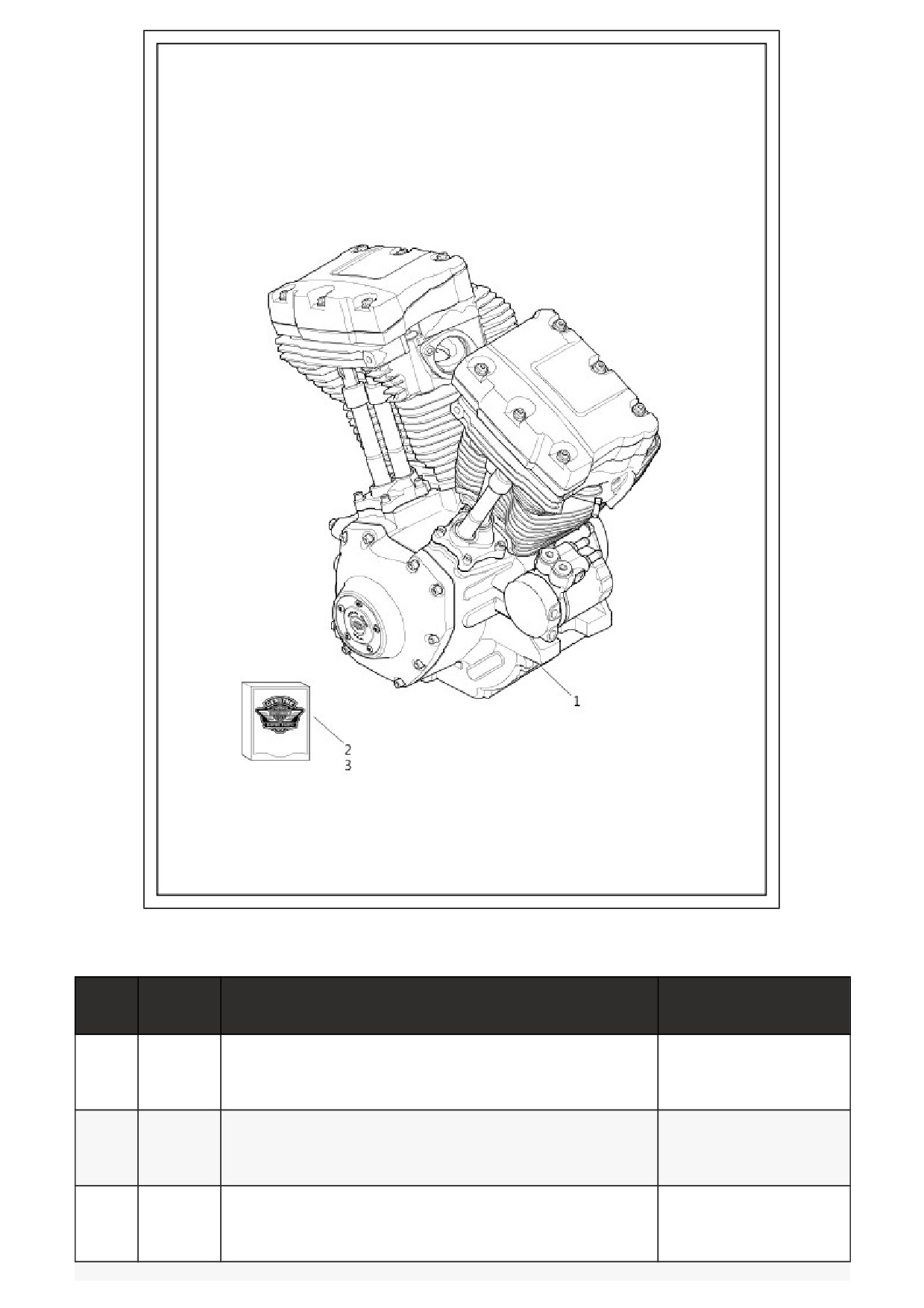

ENGINE ASSEMBLY - TWIN CAM 103™
Index
Part No.
Description
Model(s)
No.
1
19678-15
ENGINE ASSEMBLY, complete
FLHR, FLHTCU, FLHRC,
FLHX, FLHXS, FLTRX,
FLTRXS, FLHTCUL
2
16200068
ENGINE ASSEMBLY, shortblock, w/ 91800042, crankcase,
FLHR, FLHTCU, FLHRC,
flywheel assembly, camshaft support plate assembly, oil pump &
FLHX, FLHXS, FLTRX,
cylinder studs (See Note)
FLTRXS, FLHTCUL
3
91800042
KIT, shortblock installation, w/ 17052-99C upper end gasket kit,
FLHR, FLHTCU, FLHRC,
25700226 inner primary gasket kit, camshaft sprockets, camshaft
FLHX, FLHXS, FLTRX,
drive chains & camshaft tensioners
FLTRXS, FLHTCUL
Note: Cylinders, cylinder heads, camshafts, rocker arms, pushrods, pushrod covers, piston assemblies, tappets, oil filter
adapter, oil filter and cosmetic covers are not included with the shortblock assembly. These parts must be removed from
the original engine and installed on the replacement shortblock assembly.

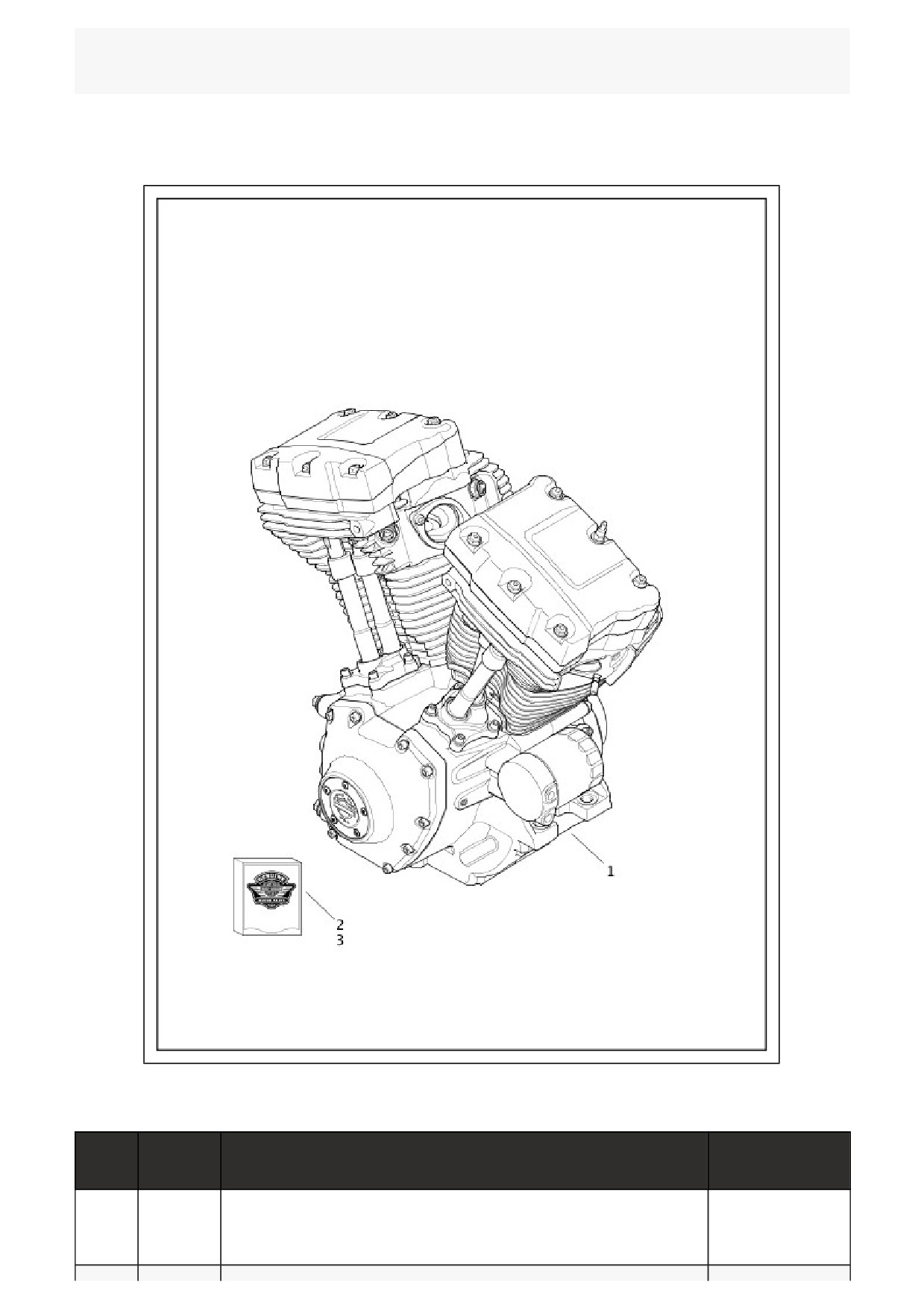

ENGINE ASSEMBLY, TWIN-COOLED™ - TWIN CAM 103™
Index
Part No.
Description
Model(s)
No.
1
19291-15
ENGINE ASSEMBLY, complete
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
2
16200068
ENGINE ASSEMBLY, shortblock, w/ 91800042, crankcase, flywheel
FLHTCU TC,
assembly, camshaft support plate assembly, oil pump & cylinder studs
FLHTK, FLHTCUL
(See Note)
TC, FLHTKL
3
91800042
KIT, shortblock installation, w/ 17052-99C upper end gasket kit, 25700226
FLHTCU TC,
inner primary gasket kit, camshaft sprockets, camshaft drive chains &
FLHTK, FLHTCUL
camshaft tensioners
TC, FLHTKL
Note: Cylinders, cylinder heads, camshafts, rocker arms, pushrods, pushrod covers, piston assemblies, tappets, oil filter
adapter, oil filter and cosmetic covers are not included with the shortblock assembly. These parts must be removed from
the original engine and installed on the replacement shortblock assembly.

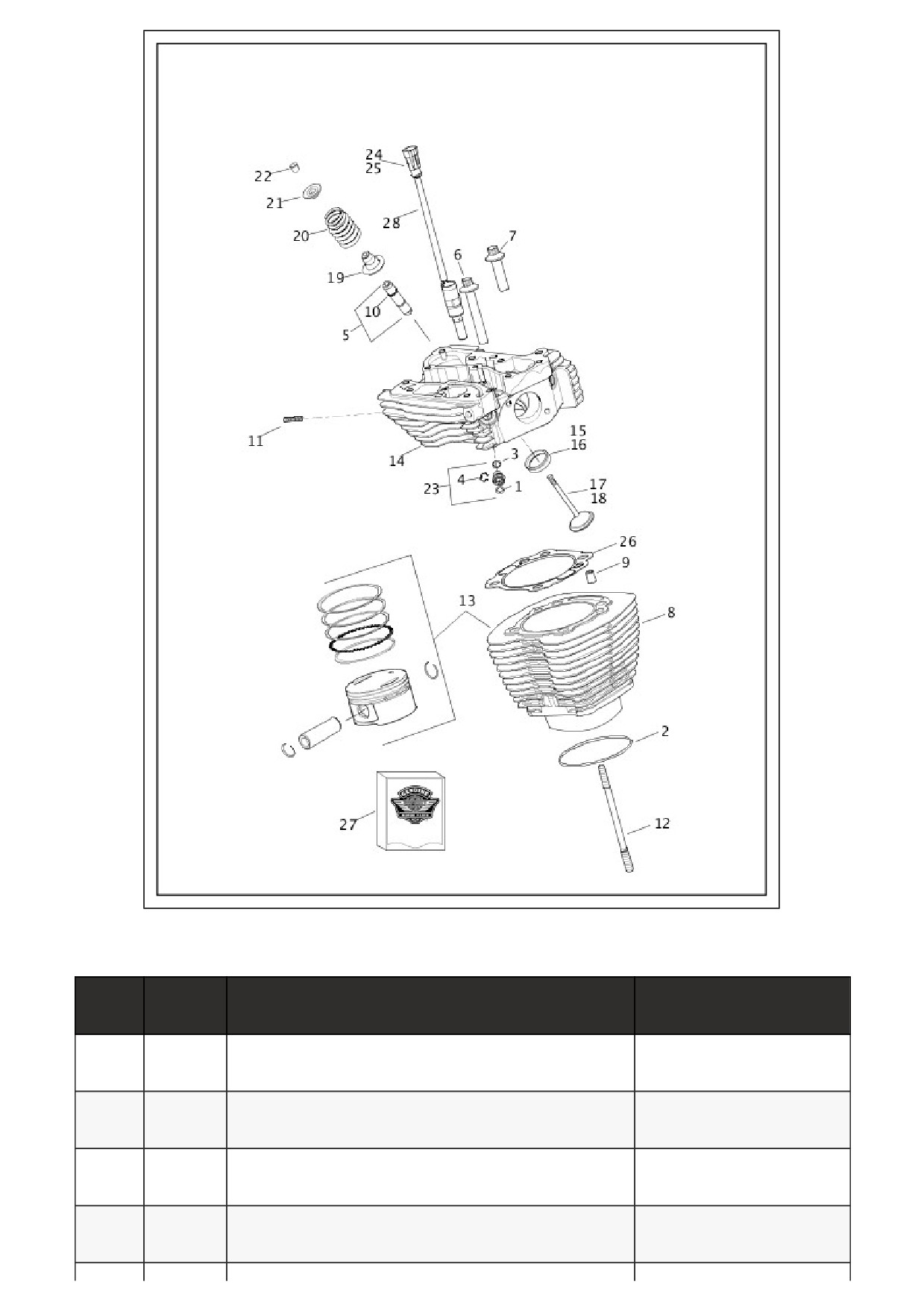

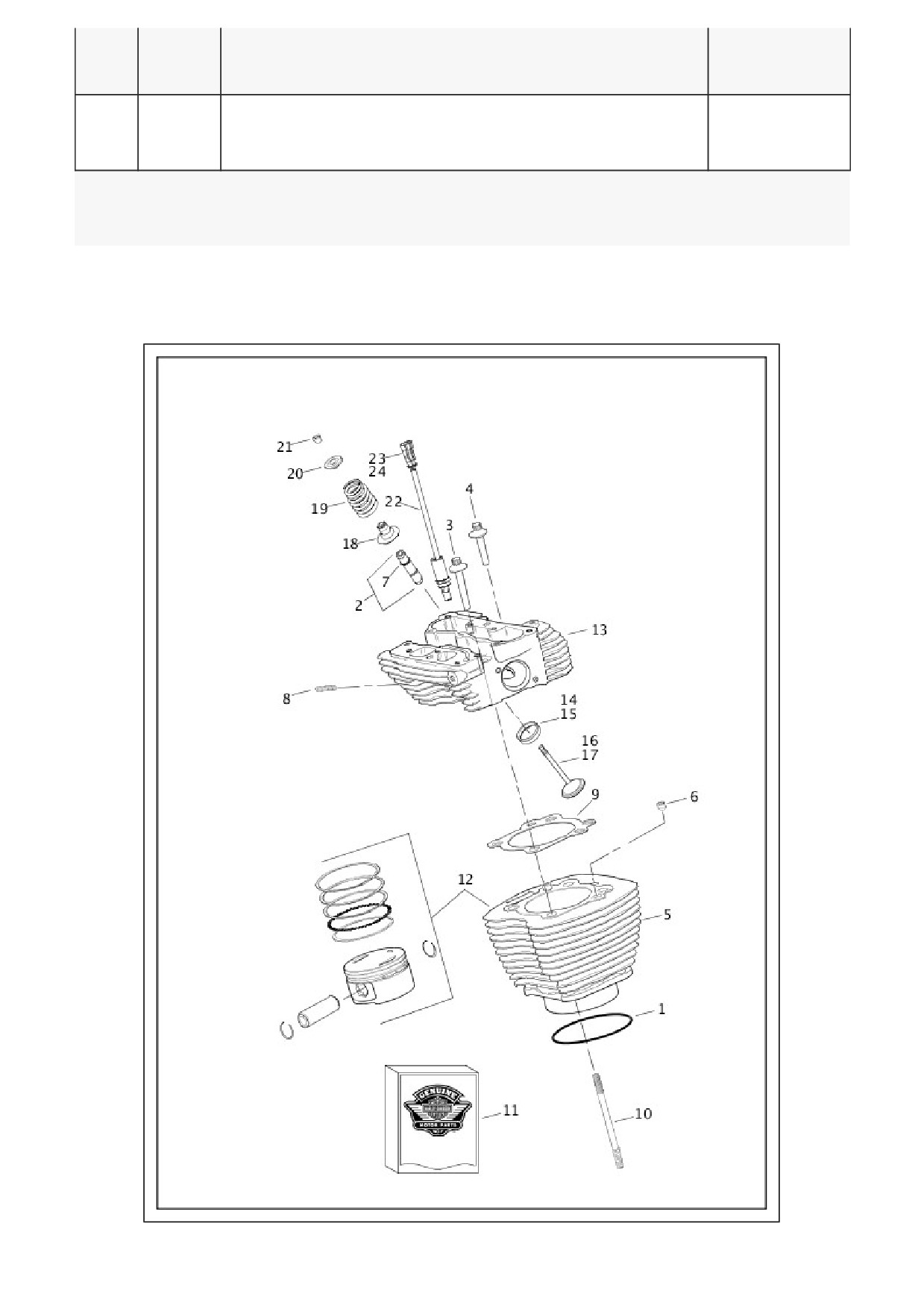

CYLINDERS, HEADS & VALVES - TWIN CAM 103™
Index
Part
Description
Model(s)
No.
No.
1
11256
O-RING, cylinder base (2)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
FLTRX, FLTRXS, FLHTCUL
2
16465-
VALVE GUIDE ASSEMBLY, intake & exhaust, w/
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
06
16699-06 (4)
FLTRX, FLTRXS, FLHTCUL
3
16478-
SCREW, internal thread 3-3/16 in. long (4)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
85A
FLTRX, FLTRXS, FLHTCUL
4
16480-
SCREW, internal thread 1-7/8 in. long (4)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
92A
FLTRX, FLTRXS, FLHTCUL
5
16547-
CYLINDER ASSEMBLY, w/ 16595-99A (black) (2)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
99A
FLTRX, FLTRXS, FLHTCUL
6
16595-
DOWEL, pin (4)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
99A
FLTRX, FLTRXS, FLHTCUL
7
16699-
SNAP RING (4)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
06
FLTRX, FLTRXS, FLHTCUL
8
16715-
STUD, exhaust port (4)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
83
FLTRX, FLTRXS, FLHTCUL
9
16787-
GASKET, cylinder head (2)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
99A
FLTRX, FLTRXS, FLHTCUL
10
16834-
STUD, cylinder (8)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
99A
FLTRX, FLTRXS, FLHTCUL
11
17052-
GASKET KIT, top end
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
99C
FLTRX, FLTRXS, FLHTCUL
17053-
GASKET KIT, engine overhaul
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
99C
FLTRX, FLTRXS, FLHTCUL
12
17460-
CYLINDER ASSEMBLY, w/ piston, rings, piston pin
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
07A
& retaining rings (black) (2)
FLTRX, FLTRXS, FLHTCUL
13
17728-
CYLINDER HEAD, front, w/ 16465-06, 18011-86 &
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
08
18020-83 (black)
FLTRX, FLTRXS, FLHTCUL
17729-
CYLINDER HEAD, rear, w/ 16465-06, 18011-86 &
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
08
18020-83 (black)
FLTRX, FLTRXS, FLHTCUL
14
18011-
INSERT, exhaust valve seat (2)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
86
FLTRX, FLTRXS, FLHTCUL
15
18020-
INSERT, intake valve seat (2)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
83
FLTRX, FLTRXS, FLHTCUL
16
18074-
INTAKE VALVE (2)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
05A
FLTRX, FLTRXS, FLHTCUL
17
18085-
EXHAUST VALVE (2)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
05B
FLTRX, FLTRXS, FLHTCUL
18
18094-
SEAL KIT, valve
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
02A
FLTRX, FLTRXS, FLHTCUL
19
18245-
VALVE SPRING (4)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
02
FLTRX, FLTRXS, FLHTCUL
20
18258-
COLLAR, valve spring (4)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
02
FLTRX, FLTRXS, FLHTCUL
21
18260-
KEEPER, valve (8)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
02
FLTRX, FLTRXS, FLHTCUL
22
28861-
SOLENOID, auto compression release, w/ 72009-
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
07A
05 & 72011-05 (2)
FLTRX, FLTRXS, FLHTCUL
23
72009-
HOUSING, 2-way, pin (2)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
05
FLTRX, FLTRXS, FLHTCUL
24
72011-
WIRE SEAL, 16-20 AWG (yellow) (4)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS,
05
FLTRX, FLTRXS, FLHTCUL
CYLINDERS, HEADS & VALVES, TWIN-COOLED™ - TWIN CAM 103™
Index
Part No.
Description
Model(s)
No.
1
11110
O-RING (4)
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
2
11256
O-RING, cylinder base (2)
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
3
11290
O-RING (4)
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
4
11408
RETAINER, wire clip (4)
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
5
16465-06
VALVE GUIDE ASSEMBLY, intake & exhaust, w/ 16699-06
FLHTCU TC, FLHTK,
(4)
FLHTCUL TC, FLHTKL
6
16478-
SCREW, internal thread 3-3/16 in. long (4)
FLHTCU TC, FLHTK,
85A
FLHTCUL TC, FLHTKL
7
16480-
SCREW, internal thread 1-7/8 in. long (4)
FLHTCU TC, FLHTK,
92A
FLHTCUL TC, FLHTKL
8
16547-
CYLINDER ASSEMBLY, w/ 16595-99A (black) (2)
FLHTCU TC, FLHTK,
99A
FLHTCUL TC, FLHTKL
9
16595-
DOWEL, pin (4)
FLHTCU TC, FLHTK,
99A
FLHTCUL TC, FLHTKL
10
16699-06
SNAP RING (4)
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
11
16715-83
STUD, exhaust port (4)
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
12
16834-
STUD, cylinder (8)
FLHTCU TC, FLHTK,
99A
FLHTCUL TC, FLHTKL
13
17460-
CYLINDER ASSEMBLY, w/ piston, rings, piston pin &
FLHTCU TC, FLHTK,
07A
retaining rings (black) (2)
FLHTCUL TC, FLHTKL
14
17732-14
CYLINDER HEAD ASSEMBLY, complete, front, w/ 5, 11, 15 -
FLHTCU TC, FLHTK,
23, 28 & 65324-83B (black)
FLHTCUL TC, FLHTKL
17733-14
CYLINDER HEAD ASSEMBLY, complete, rear, w/ 5, 11, 15 -
FLHTCU TC, FLHTK,
23, 28 & 65324-83B (black)
FLHTCUL TC, FLHTKL
15
18011-86
INSERT, exhaust valve seat (2)
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
16
18020-83
INSERT, intake valve seat (2)
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
17
18074-
INTAKE VALVE (2)
FLHTCU TC, FLHTK,
05A
FLHTCUL TC, FLHTKL
18
18085-
EXHAUST VALVE (2)
FLHTCU TC, FLHTK,
05B
FLHTCUL TC, FLHTKL
19
18094-
SEAL KIT, valve
FLHTCU TC, FLHTK,
02A
FLHTCUL TC, FLHTKL
20
18245-02
VALVE SPRING (4)
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
21
18258-02
COLLAR, valve spring (4)
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
22
18260-02
KEEPER, valve (8)
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
23
26064-08
FITTING ASSEMBLY, w/ 11110, 11290 & 11408 (4)
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
24
72009-05
HOUSING, 2-way, pin (2)
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
25
72011-05
WIRE SEAL, 16-20 AWG (yellow) (4)
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
26
16500066
GASKET, cylinder head (2)
FLHTCU TC, FLHTK
27
16500244
GASKET KIT, top end
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
16500245
GASKET KIT, engine overhaul
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
28
18400035
SOLENOID, auto compression release, w/ 72009-05 & 72011-
FLHTCU TC, FLHTK,
05 (2)
FLHTCUL TC, FLHTKL
ROCKER ARM ASSEMBLY & PUSHRODS - TWIN CAM 103™
Index
Part No.
Description
Model(s)
No.
1
1039
SCREW (8)
2
3692A
SCREW (6)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS, FLTRX,
FLTRXS, FLHTCUL
2
3692A
SCREW (5)
FLHTCU TC, FLHTK, FLHTCUL TC, FLHTKL
3
3693A
SCREW (10)
4
3736B
SCREW (8)
5
4400
BOLT (4)
6
4741A
SCREW (8)
7
4881
BOLT, dual threaded (rear cylinder only)
FLHTCU TC, FLHTK, FLHTCUL TC, FLHTKL
8
6762B
WASHER (4)
9
11132A
O-RING, pushrod cover (4)
10
11145A
O-RING, pushrod cover (4)
11
11270
O-RING (2)
12
11293
O-RING (4)
13
16719-
GASKET, rocker housing (2)
99B
14
17025-
BREATHER ASSEMBLY, w/ 4400 (2)
03A
15
17045-
GASKET KIT, cam service
99D
16
17360-
ROCKER ARM, front intake, rear exhaust,
83A
w/ 17429-91 (2)
17
17375-
ROCKER ARM, rear intake, front exhaust,
83A
w/ 17429-91 (2)
18
17386-
GASKET, rocker cover (2)
99A
19
17429-91
BEARING, rocker arm (8)
20
17572-99
ROCKER COVER, (chrome) (2)
21
17573-
ROCKER HOUSING, (chrome) (2)
99A
22
17594-99
SUPPORT, rocker arm (2)
23
17611-83
SHAFT, rocker arm (4)
24
17922-99
PUSHROD, exhaust, 10.536 in. long
(black rings) (2)
17923-99
PUSHROD, intake, 10.418 in. long (plain
finish) (2)
25
17939-99
COVER, pushrod, lower (4)
26
17945-
CAP, cover spring (4)
36B
27
17947-36
SPRING, pushrod cover (4)
28
17948-99
COVER, pushrod, upper (4)
29
17964-99
LIFTER COVER, front (chrome)
17966-99
LIFTER COVER, rear (chrome)
30
17968-99
RETAINER, spring cap (4)
31
18535-99
PIN, anti-rotation (2)
32
18538-
HYDRAULIC LIFTER (4)
99C
33
18635-
GASKET, lifter cover (2)
99B
34
26500002
BREATHER, baffle assembly, w/ breather
valve & filter (2)

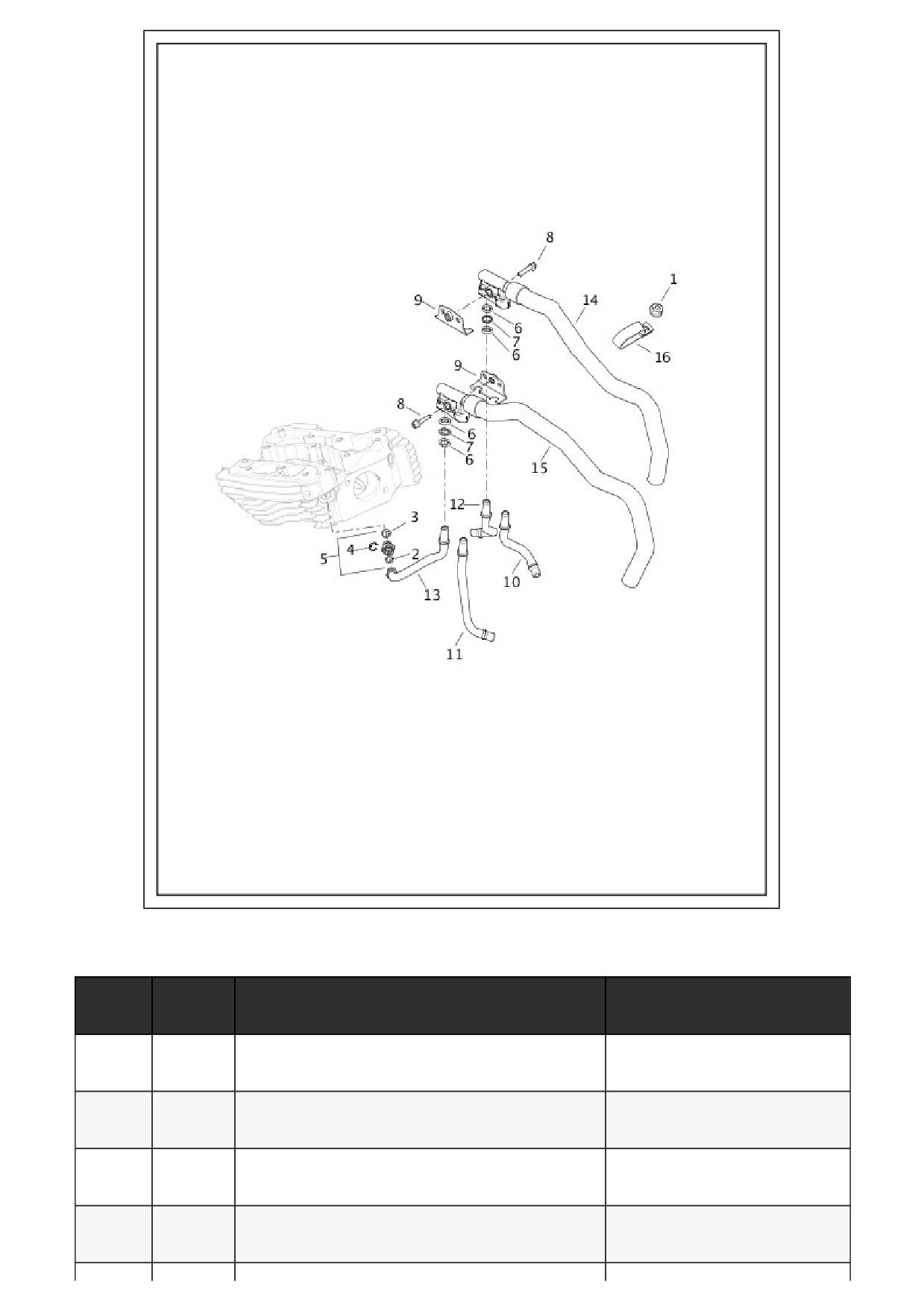

COOLING SYSTEM, ENGINE, TWIN-COOLED™ - TWIN CAM 103™
Index
Part No.
Description
Model(s)
No.
1
7716
LOCKNUT
FLHTCU TC, FLHTK, FLHTCUL
TC, FLHTKL
2
11110
O-RING (4)
FLHTCU TC, FLHTK, FLHTCUL
TC, FLHTKL
3
11290
O-RING (4)
FLHTCU TC, FLHTK, FLHTCUL
TC, FLHTKL
4
11408
RETAINER, wire clip (4)
FLHTCU TC, FLHTK, FLHTCUL
TC, FLHTKL
5
26064-08
FITTING ASSEMBLY, w/ 11110, 11290 & 11408 (4)
FLHTCU TC, FLHTK, FLHTCUL
TC, FLHTKL
6
28004-01
O-RING (8)
FLHTCU TC, FLHTK, FLHTCUL
TC, FLHTKL
7
28005-01
WASHER (4)
FLHTCU TC, FLHTK, FLHTCUL
TC, FLHTKL
8
10200258
SCREW (2)
FLHTCU TC, FLHTK, FLHTCUL
TC, FLHTKL
9
16400028
LOCKING PLATE ASSEMBLY (2)
FLHTCU TC, FLHTK, FLHTCUL
TC, FLHTKL
10
26900021
COOLANT LINE, front head inlet
FLHTCU TC, FLHTK, FLHTCUL
TC, FLHTKL
11
26900022
COOLANT LINE, front head outlet
FLHTCU TC, FLHTK, FLHTCUL
TC, FLHTKL
12
26900023
COOLANT LINE, rear head inlet
FLHTCU TC, FLHTK, FLHTCUL
TC, FLHTKL
13
26900024
COOLANT LINE, rear head outlet
FLHTCU TC, FLHTK, FLHTCUL
TC, FLHTKL
14
26900027
COMPLIANCE ASSEMBLY, left hand side, w/ w/ 28004-
FLHTCU TC, FLHTK, FLHTCUL
01 & 28005-01
TC, FLHTKL
15
26900028
COMPLIANCE ASSEMBLY, right hand side, w/ 28004-
FLHTCU TC, FLHTK, FLHTCUL
01 & 28005-01
TC, FLHTKL
16
26900029
P-CLAMP, coolant hose
FLHTCU TC, FLHTK, FLHTCUL
TC, FLHTKL

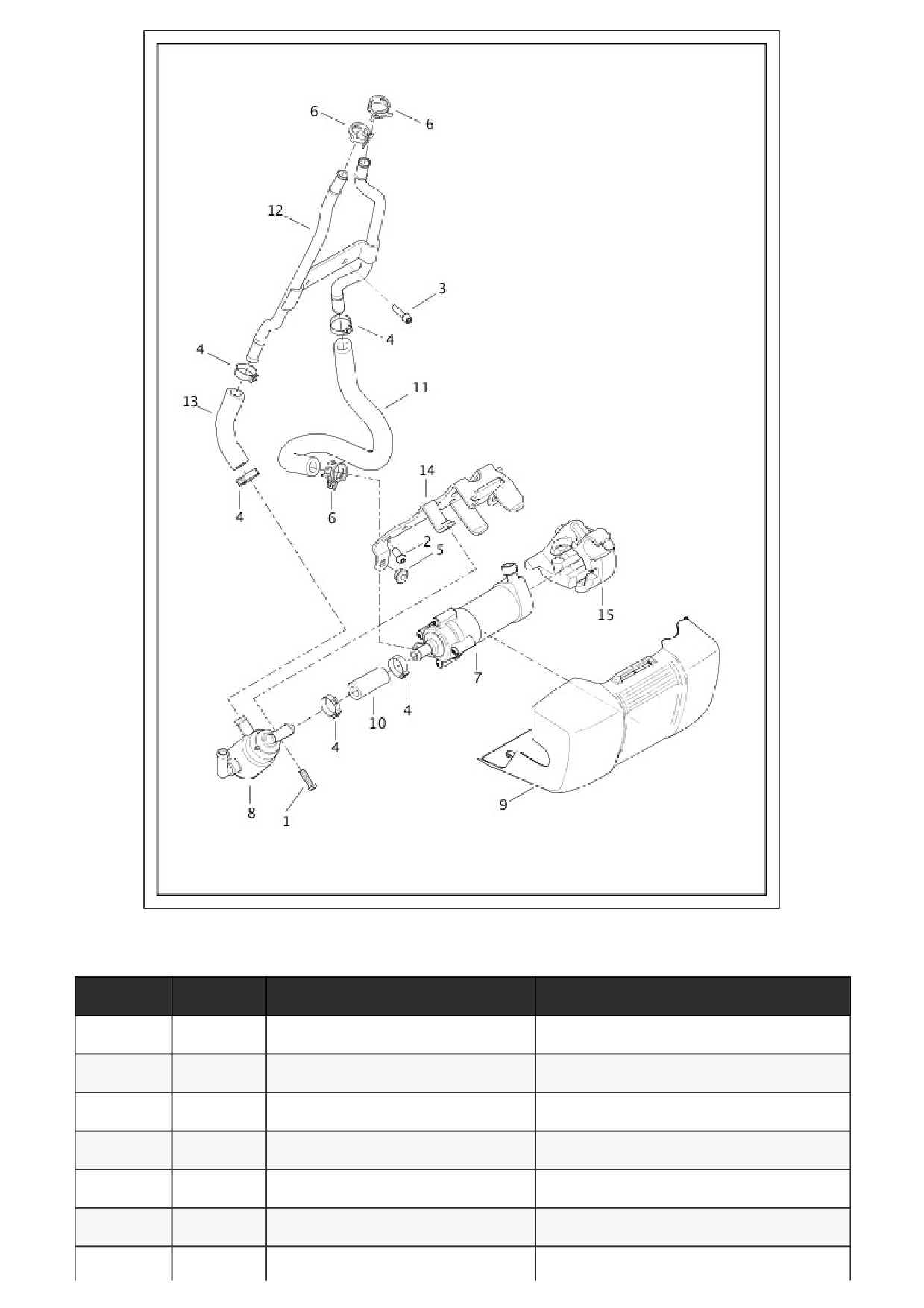

COOLANT DISTRIBUTION
Index No.
Part No.
Description
Model(s)
1
926
BOLT
FLHTCU TC, FLHTK, FLHTCUL TC, FLHTKL
2
4266A
SCREW (2)
FLHTCU TC, FLHTK, FLHTCUL TC, FLHTKL
3
4741A
SCREW (2)
FLHTCU TC, FLHTK, FLHTCUL TC, FLHTKL
4
10344
CLAMP (5)
FLHTCU TC, FLHTK, FLHTCUL TC, FLHTKL
5
11692
GROMMET (2)
FLHTCU TC, FLHTK, FLHTCUL TC, FLHTKL
6
10800052
CLAMP (3)
FLHTCU TC, FLHTK, FLHTCUL TC, FLHTKL
7
26600012
PUMP, coolant
FLHTCU TC, FLHTK, FLHTCUL TC, FLHTKL
8
26700001A
THERMOSTAT
FLHTCU TC, FLHTK, FLHTCUL TC, FLHTKL
9
26800002
COVER, coolant pump
FLHTCU TC, FLHTK, FLHTCUL TC, FLHTKL
10
26900001
HOSE, thermostat to pump
FLHTCU TC, FLHTK, FLHTCUL TC, FLHTKL
11
26900002
HOSE, pump to engine
FLHTCU TC, FLHTK, FLHTCUL TC, FLHTKL
12
26900003
TUBE ASSEMBLY, coolant downtubes
FLHTCU TC, FLHTK, FLHTCUL TC, FLHTKL
13
26900006
HOSE, engine to thermostat
FLHTCU TC, FLHTK, FLHTCUL TC, FLHTKL
14
62800001
BRACKET, coolant pump & thermostat
FLHTCU TC, FLHTK, FLHTCUL TC, FLHTKL
15
62800003
ISOLATOR, coolant pump
FLHTCU TC, FLHTK, FLHTCUL TC, FLHTKL

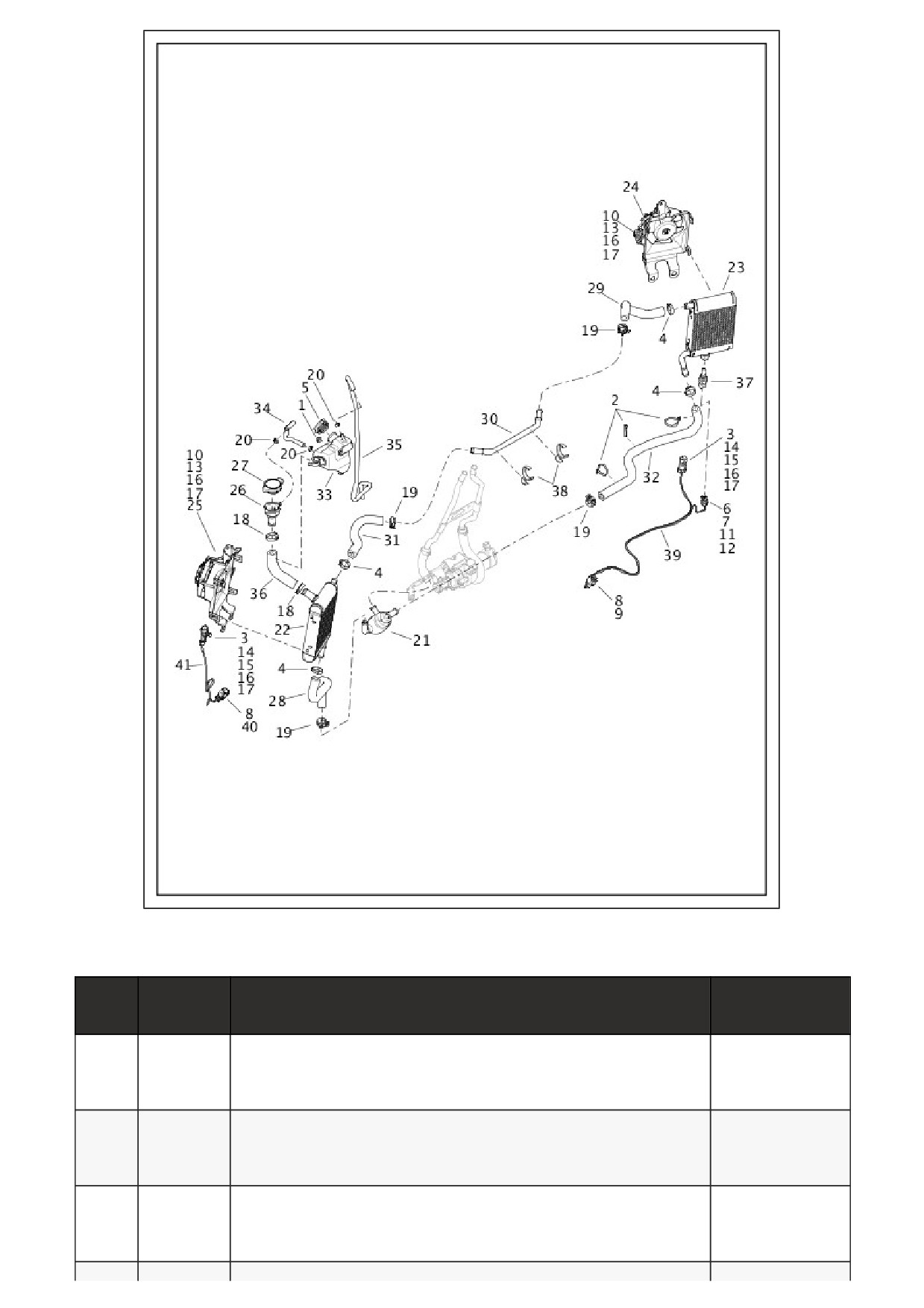

RADIATOR, COOLANT HOSES & BOTTLE
Index
Part No.
Description
Model(s)
No.
1
7716
LOCKNUT
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
2
10006
CABLE STRAP (7)
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
3
10147
CLIP, connector (2)
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
4
10344
CLAMP (4)
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
5
26780-05A
CAP ASSEMBLY, coolant bottle
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
6
72063-06
HOUSING, 2-way
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
7
72111-06
LOCK, secondary, 2-way, female (gray)
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
8
72168-07
TERMINAL, socket, 18-20 AWG (6)
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
9
72177-
HOUSING, 4-way, socket (black)
FLHTCU TC,
07BK
FLHTK, FLHTCUL
TC, FLHTKL
10
72213-94
TERMINAL, socket, female, 16-20 AWG (4)
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
11
72484-08
TERMINAL, socket, 20 AWG (8)
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
12
72486-08
SEAL WIRE, 20 AWG (green) (8)
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
13
72606-08
SOCKET HOUSING, 2-way (2)
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
14
72607-08
HOUSING, 2 way pin (2)
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
15
72608-08
TERMINAL PIN, 16-20 awg (2)
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
16
72609-08
SECONDARY LOCK, 2-way (black) (2)
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
17
72610-08
SEAL, 18-20 awg (white) (8)
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
18
10800023
CLAMP (2)
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
19
10800052
CLAMP (4)
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
20
10800078
CLAMP (3)
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
21
26700001A
THERMOSTAT
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
22
26800005
CORE, radiator, right
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
23
26800006
CORE, radiator, left
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
24
26800007A
FAN ASSEMBLY, left, w/ 72213-94, 72606-08, 72609-08 & 72610-08
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
25
26800019A
FAN ASSEMBLY, right, w/ 72213-94, 72606-08, 72609-08 & 72610-08
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
26
26800020A
FILL NECK, coolant
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
27
26800021
CAP, pressure
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
28
26900007
HOSE, thermostat to radiator
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
29
26900008
HOSE, coolant, left cross tube
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
30
26900009
LINE, coolant, right to left
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
31
26900010
HOSE, coolant, right cross tube
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
32
26900011
HOSE, radiator to thermostat
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
33
26900014
BOTTLE ASSEMBLY, coolant, w/ 26780-05A
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
34
26900016
HOSE, coolant vent
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
35
26900017
HOSE, coolant overflow
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
36
26900018
HOSE, coolant fill
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
37
32700028
SENSOR, coolant temperature
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
38
62800004
CLIP, coolant line to frame (2)
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
39
69200133
WIRE HARNESS, twin cooling jumper, left, w/ 10147, 72063-06, 72111-
FLHTCU TC,
06, 72168-07, 72177-07BK, 72484-08, 72486-08, 72607-08, 72608-08,
FLHTK, FLHTCUL
72609-08 & 72610-08
TC, FLHTKL
40
69200271
SOCKET HOUSING, 2-way
FLHTCU TC,
FLHTK, FLHTCUL
TC, FLHTKL
41
69200311
WIRE HARNESS, twin cooling jumper, right, w/ 10147, 72168-07, 72607-
FLHTCU TC,
08, 72608-08, 72609-08, 72610-08 & 69200271
FLHTK, FLHTCUL
TC, FLHTKL
PISTONS & FLYWHEEL ASSEMBLY - TWIN CAM 103™
Index No.
Part No.
Description
Model(s)
1
11177A
RETAINING RING
2
21918-99
PISTON RING SET, standard (2)
21919-99
PISTON RING SET, 0.005 in. O.S. (2)
21945-99
PISTON RING SET, 0.010 in. O.S. (2)
3
21962-07
PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings, standard (2)
21964-07
PISTON & RINGS ASSEMBLY, w/ piston pin & lock rings, 0.010 in. O.S. (2)
4
22097-99
LOCK RING, piston pin (4)
5
22131-05
PISTON PIN (2)
6
23729-07B
FLYWHEEL ASSEMBLY KIT
CRANKCASE, ENGINE OIL FILTER & COOLER - TWIN CAM 103™ (1
OF 2)
Index
Part
Description
Model(s)
No.
No.
1
703B
SCREW (2)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS, FLTRX,
FLTRXS, FLHTCUL
2
765
PLUG (3)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS, FLTRX,
FLTRXS, FLHTCUL
3
895
SCREW (9)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS, FLTRX,
FLTRXS, FLHTCUL
4
4266A
SCREW (2)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS, FLTRX,
FLTRXS, FLHTCUL
5
7601
LOCKNUT (2)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS, FLTRX,
FLTRXS, FLHTCUL
6
8972
WASHER (2)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS, FLTRX,
FLTRXS, FLHTCUL
7
9215
NEEDLE BEARING, left side, camshaft (2)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS, FLTRX,
FLTRXS, FLHTCUL
8
10198
CLAMP (2)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS, FLTRX,
FLTRXS, FLHTCUL
9
10354
CLAMP (2)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS, FLTRX,
FLTRXS, FLHTCUL
10
11140
O-RING (2)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS, FLTRX,
FLTRXS, FLHTCUL
11
11273
O-RING (2)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS, FLTRX,
FLTRXS, FLHTCUL
12
11692
GROMMET, oil cooler cover (2)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS, FLTRX,
FLTRXS, FLHTCUL
13
12068
SEAL, oil
FLHR, FLHTCU, FLHRC, FLHX, FLHXS, FLTRX,
FLTRXS, FLHTCUL
14
16574-
DOWEL PIN (2)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS, FLTRX,
99A
FLTRXS, FLHTCUL
15
16589-
DOWEL PIN (2)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS, FLTRX,
99A
FLTRXS, FLHTCUL
16
16595-
DOWEL PIN (4)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS, FLTRX,
99A
FLTRXS, FLHTCUL
17
22307-
JET, cooling, piston, w/ 11140 (2)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS, FLTRX,
99
FLTRXS, FLHTCUL
18
24004-
BEARING KIT, w/ 8972, 24605-07, 35114-
FLHR, FLHTCU, FLHRC, FLHX, FLHXS, FLTRX,
03B
02, & inner race
FLTRXS, FLHTCUL
19
24009-
SPACER, sprocket shaft
FLHR, FLHTCU, FLHRC, FLHX, FLHXS, FLTRX,
06
FLTRXS, FLHTCUL
20
24605-
BEARING, main (2)
FLHR, FLHTCU, FLHRC, FLHX, FLHXS, FLTRX,
07
FLTRXS, FLHTCUL
CRANKCASE, ENGINE OIL FILTER & COOLER - TWIN CAM 103™ (2
OF 2)
Index
Part No.
Description
Model(s)
No.
21
24621-
CRANKCASE SET, w/ 1, 2, 3, 7, 10, 14, 15, 16, 17,
FLHR, FLHTCU, FLHRC, FLHX,
06B
20, 23, 31 & 3983 (not shown) bolts (black)
FLHXS, FLTRX, FLTRXS, FLHTCUL
22
26041-
ADAPTER
FLHR, FLHTCU, FLHRC, FLHX,
05A
FLHXS, FLTRX, FLTRXS, FLHTCUL
23
35114-02
RING, retaining, internal
FLHR, FLHTCU, FLHRC, FLHX,
FLHXS, FLTRX, FLTRXS, FLHTCUL
24
62533-11
COVER, oil-cooler
FLHR, FLHTCU, FLHRC, FLHX,
FLHXS, FLTRX, FLTRXS, FLHTCUL
25
62629-11
HOSE, oil cooler, right
FLHR, FLHTCU, FLHRC, FLHX,
FLHXS, FLTRX, FLTRXS, FLHTCUL
26
62641-11
HOSE, oil cooler, left
FLHR, FLHTCU, FLHRC, FLHX,
FLHXS, FLTRX, FLTRXS, FLHTCUL
27
63059-
ADAPTER ASSEMBLY, oil cooler w/ 63533-41A,
FLHR, FLHTCU, FLHRC, FLHX,
09A
11900010, 11900039 & 62800013
FLHXS, FLTRX, FLTRXS, FLHTCUL
28
63083-
OIL COOLER CORE, w/ mounting bracket
FLHR, FLHTCU, FLHRC, FLHX,
11A
FLHXS, FLTRX, FLTRXS, FLHTCUL
29
63533-
FITTING (2)
FLHR, FLHTCU, FLHRC, FLHX,
41A
FLHXS, FLTRX, FLTRXS, FLHTCUL
30
63731-
OIL FILTER, (black)
FLHR, FLHTCU, FLHRC, FLHX,
99A
FLHXS, FLTRX, FLTRXS, FLHTCUL
31
68042-99
SCREW (4)
FLHR, FLHTCU, FLHRC, FLHX,
FLHXS, FLTRX, FLTRXS, FLHTCUL
32
11900010
O-RING (2)
FLHR, FLHTCU, FLHRC, FLHX,
FLHXS, FLTRX, FLTRXS, FLHTCUL
33
11900039
O-RING
FLHR, FLHTCU, FLHRC, FLHX,
FLHXS, FLTRX, FLTRXS, FLHTCUL
34
62800013
PLUG ASSEMBLY, w/ 11900010 (2)
FLHR, FLHTCU, FLHRC, FLHX,
FLHXS, FLTRX, FLTRXS, FLHTCUL
CRANKCASE & ENGINE OIL FILTER - TWIN-COOLED™ TWIN CAM
103™
Index
Part
Description
Model(s)
No.
No.
1
703B
SCREW (2)
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
2
765
PLUG (3)
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
3
895
SCREW (9)
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
4
8972
WASHER (2)
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
5
9215
NEEDLE BEARING, left side, camshaft (2)
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
6
11140
O-RING (2)
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
7
11273
O-RING (2)
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
8
12068
SEAL, oil
FLHTCU TC, FLHTK,
FLHTCUL TC, FLHTKL
9
16574-
DOWEL PIN (2)
FLHTCU TC, FLHTK,
99A
FLHTCUL TC, FLHTKL
10
16589-
DOWEL PIN (2)
FLHTCU TC, FLHTK,
99A
FLHTCUL TC, FLHTKL
11
16595-
DOWEL PIN (4)
FLHTCU TC, FLHTK,
99A
FLHTCUL TC, FLHTKL
12
22307-
JET, cooling, piston, w/ 11140 (2)
FLHTCU TC, FLHTK,
99
FLHTCUL TC, FLHTKL
13
24004-
BEARING KIT, w/ 8972, 24605-07, 35114-02, & inner race
FLHTCU TC, FLHTK,
03B
FLHTCUL TC, FLHTKL
14
24009-
SPACER, sprocket shaft
FLHTCU TC, FLHTK,
06
FLHTCUL TC, FLHTKL
15
24605-
BEARING, main (2)
FLHTCU TC, FLHTK,
07
FLHTCUL TC, FLHTKL
16
24621-
CRANKCASE SET, w/ 1, 2, 3, 5, 6, 9, 10, 11, 12, 15, 18, 20 &
FLHTCU TC, FLHTK,
06B
3983 (not shown) bolts (black)
FLHTCUL TC, FLHTKL
17
26352-
ADAPTER
FLHTCU TC, FLHTK,
95A
FLHTCUL TC, FLHTKL
18
35114-
RING, retaining, internal
FLHTCU TC, FLHTK,
02
FLHTCUL TC, FLHTKL
19
63731-
OIL FILTER, (black)
FLHTCU TC, FLHTK,
99A
FLHTCUL TC, FLHTKL
20
68042-
SCREW (4)
FLHTCU TC, FLHTK,
99
FLHTCUL TC, FLHTKL
CAMSHAFTS & CAMSHAFT COVER - TWIN CAM 103™
Index
Part No.
Description
Model(s)
No.
1
601
ROLL PIN
2
942
SCREW (2)
3
4740A
SCREW (12)
4
4741A
SCREW (10)
5
6294
WASHER
6
8873
BALL (12)
7
9215
NEEDLE BEARING, camshaft (2)
8
11293
O-RING
9
11301
O-RING (2)
10
11461
RETAINING RING
11
17045-
GASKET KIT, cam service
99D
12
25244-
GASKET, cam cover
99A
13
25355-
CAM SUPPORT PLATE, w/ bypass valve
06A
14
25369-
CAM COVER, (chrome)
01B
15
25566-06
CAM DRIVE SPROCKET RETENTION KIT, w/ 6294, screws & washer
16
25585-06
CAMSHAFT CHAIN & FASTENER KIT, w/ 25573-06, 25673-06, 25675-06 &
25728-06
17
25673-06
SPROCKET, cam drive on crankshaft, 17 T
18
25675-06
CHAIN, primary cam drive
19
25683-06
CHAIN, secondary cam drive
20
25728-06
SPROCKET, cam drive, 34 T
21
25729-06
SPACER, cam drive sprocket alignment 0.100 in. thick
22
25731-06
SPACER, cam drive sprocket alignment 0.110 in. thick (use as required)
25734-06
SPACER, cam drive sprocket alignment 0.120 in. thick (use as required)
25736-06
SPACER, cam drive sprocket alignment 0.130 in. thick (use as required)
25737-06
SPACER, cam drive sprocket alignment 0.140 in. thick (use as required)
25738-06
SPACER, cam drive sprocket alignment 0.150 in. thick (use as required)
23
26037-06
OIL PUMP ASSEMBLY, w/ 26278-06, 26281-06, 26282-06, 40323-00 & body
24
26210-99
SPRING, relief valve
25
26278-06
GEROTOR ASSEMBLY, scavenge
26
26281-06
GEROTOR ASSEMBLY, pressure
27
26282-06
SEPARATOR PLATE, gerotor (2)
28
26400-
RELIEF VALVE, oil pump
82B
29
39968-06
CHAIN TENSIONER, primary cam drive chain
30
39969-06
CHAIN TENSIONER, secondary cam drive chain
31
40323-00
SPRING, separator
32
68120-00
SCREW (5)
33
25400002
CAMSHAFT, front
34
25400003
CAMSHAFT, rear
35
25600012
COVER, timer cover
ENGINE MOUNTS & STABILIZER LINK
Index No.
Part No.
Description
Model(s)
1
4313
SCREW (2)
2
4688
SCREW (3)
3
4721
BOLT (2)
4
4838
SCREW (2)
5
4868
SCREW (2)
6
6127
WASHER (5)
7
7783
NUT (2)
8
16207-09
ENGINE MOUNT, front (2)
9
16219-09
STABLIZER LINK
10
16321-08
WELDMENT, engine strap
11
24754-75A
DOWEL BUSHING (2)
12
47159-09BHP
BRACKET, front engine mount
13
16400004
END CAP, front mount

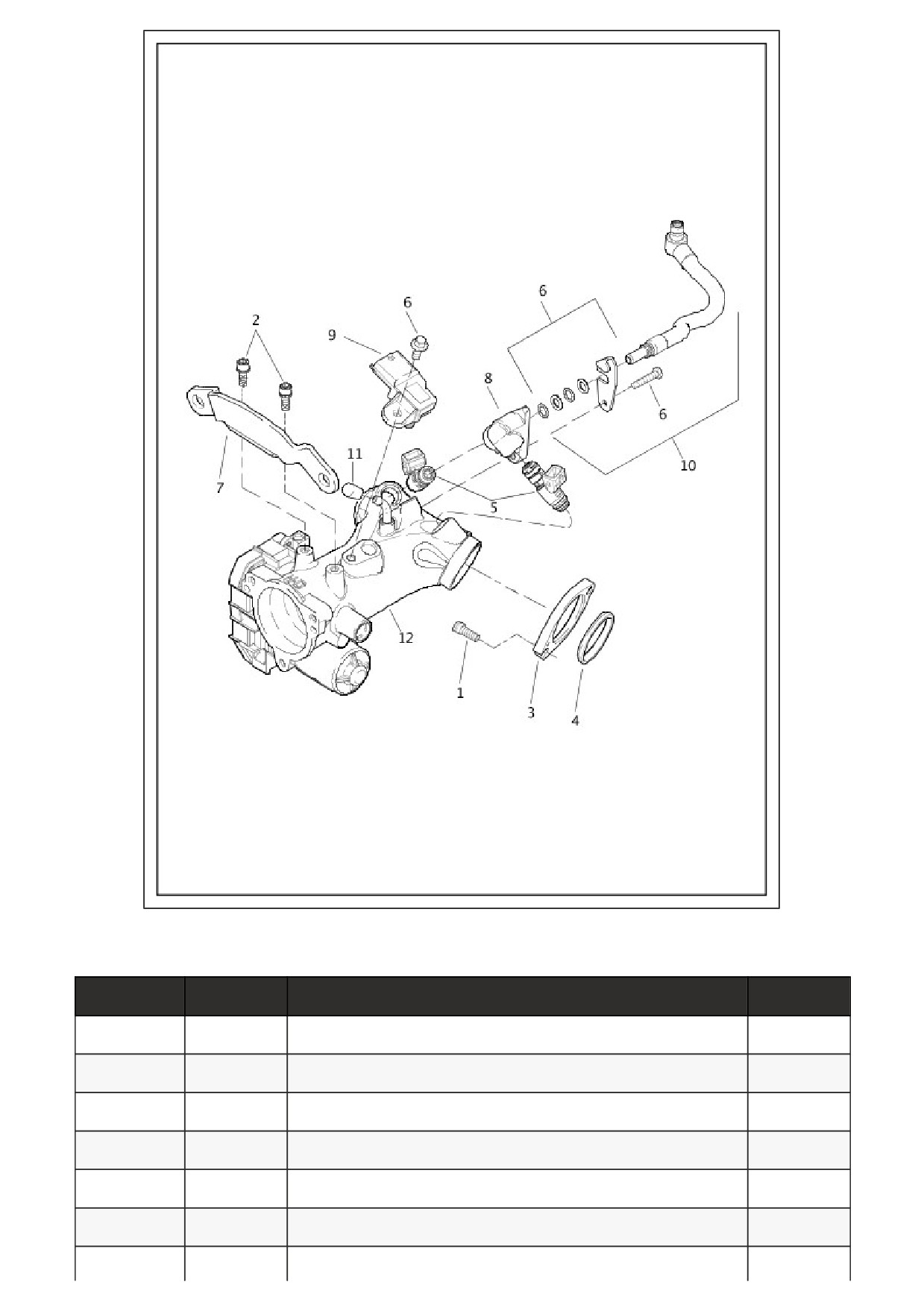

INDUCTION MODULE, FUEL
Index No.
Part No.
Description
Model(s)
1
3275
SCREW (4)
2
4705
SCREW (2)
3
26993-06
FLANGE, mounting (2)
4
26995-86B
SEAL, intake manifold (2)
5
27609-01B
FUEL INJECTOR ASSEMBLY, w/ o-ring (2)
6
27711-08
INDUCTION MODULE SERVICE KIT
7
27712-08
BRACKET, induction module
8
27721-08
FUEL RAIL
9
32319-07A
SENSOR, temperature manifold absolute pressure, w/ o-ring
10
61208-10
FUEL LINE KIT
11
90383-98
CAP, purge tube
12
27200002
INDUCTION MODULE KIT, w/ 27711-08 & 90383-98
AIR CLEANER
Index
Part No.
Description
Model(s)
No.
1
946
SCREW (3)
2
10398
CLIP, ACR connector retention
3
29269-
SCREW
83A
4
29465-
BREATHER BOLT (2)
08A
5
14000347
WARNING LABEL, air cleaner (chrome)
FLHR, FLHTCU, FLHX, FLHTCUL, FLTRX, FLTRXS,
(Domestic, California)
FLHTK, FLHXS, FLHTKL
6
29000026
SEAL, air cleaner cover
7
29000033
BACKPLATE ASSEMBLY
8
29200014
SCREEN, air cleaner
9
29200015
SNORKEL, air cleaner cover (Domestic,
FLHR, FLHTCU, FLHRC, FLHX, FLHTK, FLHXS,
California, Canada)
FLHTCUL, FLTRXS, FLHTKL
29200018
SNORKEL, air cleaner cover (HDI)
FLHTCU TC, FLHRC, FLHTK, FLHXS, FLHTCUL
TC, FLTRXS, FLHTKL
10
29200017
BEZEL, air cleaner
11
29400043
BREATHER HOSE
12
29400045
FILTER ELEMENT
13
29400046
GASKET, induction module to backplate
14
60900005
BRACKET ASSEMBLY, air cleaner
cover
15
61300054
INSERT, air cleaner cover
FLHTK, FLHTKL
61300064
INSERT, air cleaner cover
FLHXS, FLTRXS
16
61300063
INSERT, air cleaner cover
FLHR, FLHTCU, FLHTCU TC, FLHRC, FLHX,
FLHTCUL, FLHTCUL TC, FLTRX
17
61300273
COVER KIT, air cleaner, w/ 14000347

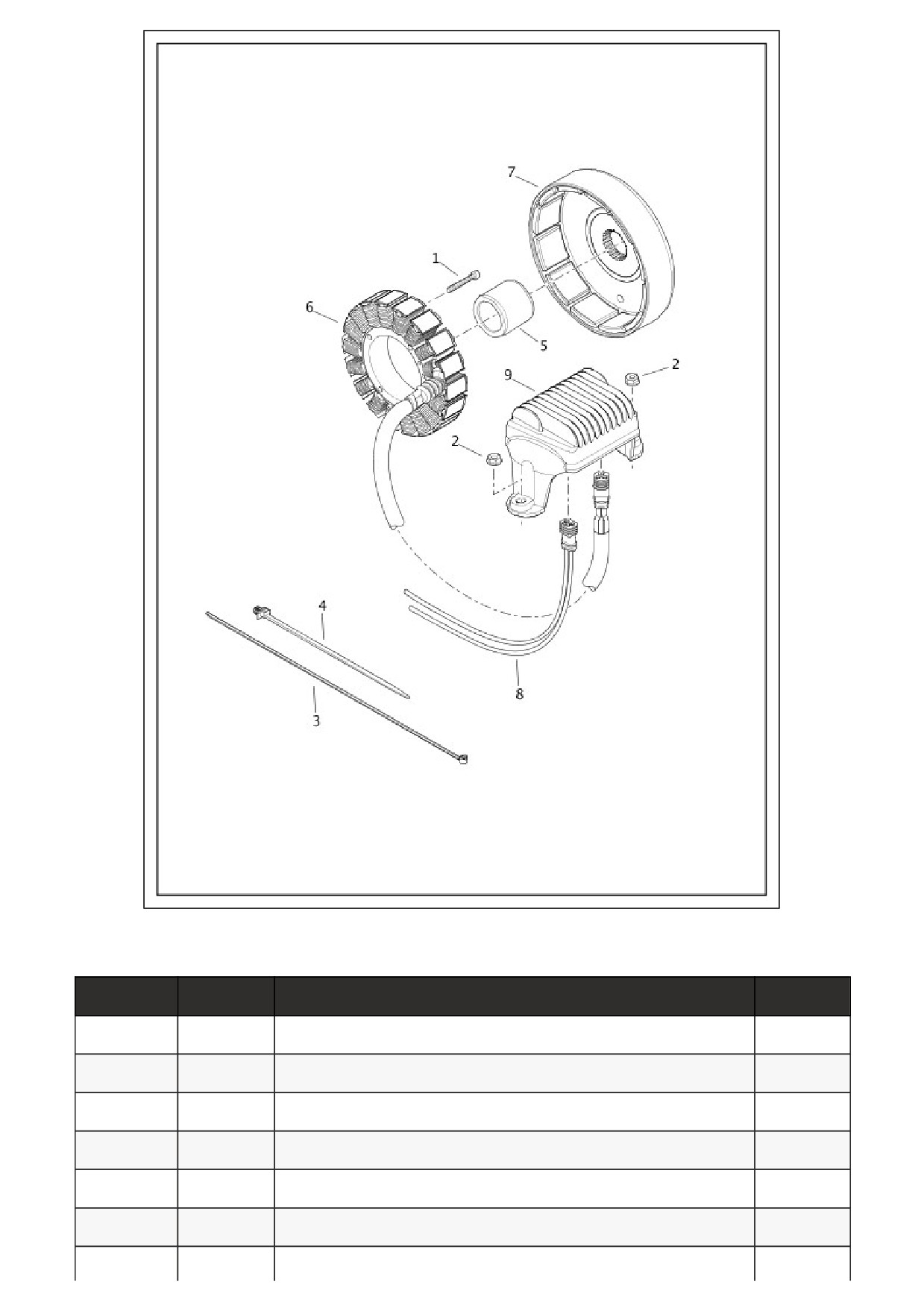

ALTERNATOR & REGULATOR
Index No.
Part No.
Description
Model(s)
1
3050
SCREW (4)
2
7716
LOCKNUT (2)
3
10039
CABLE STRAP (3)
4
10177
CABLE STRAP, tree mount
5
24009-06
SPACER, rotor shell
6
29987-06D
STATOR ASSEMBLY, 3-phase, 50 AMP
7
30041-08A
ROTOR ASSEMBLY
8
74120-08
DC LEAD ASSEMBLY, voltage regulator (from main wiring harness)
9
74505-09A
VOLTAGE REGULATOR ASSEMBLY

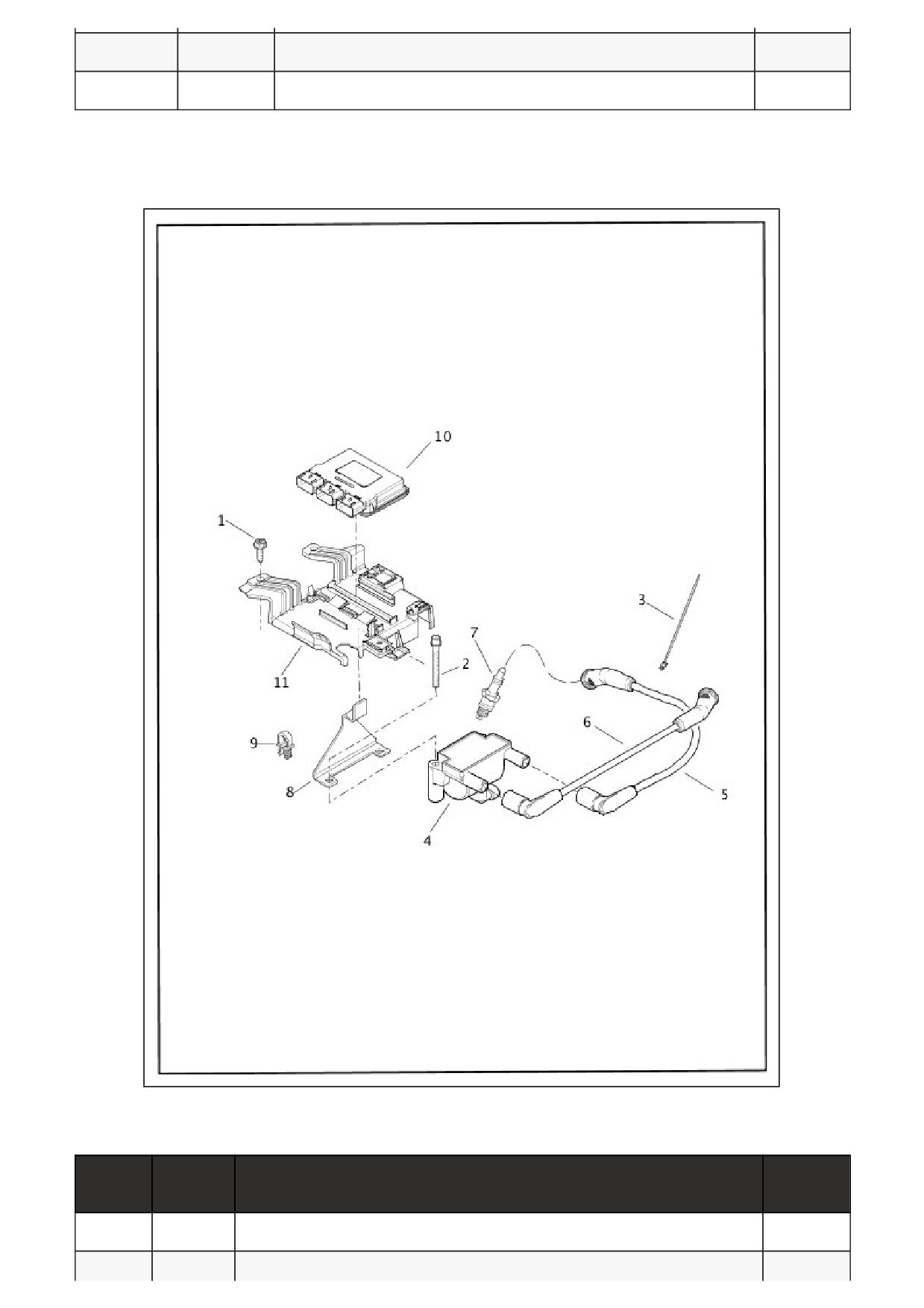

ELECTRONIC CONTROL MODULE (ECM) & COIL
Index
Part No.
Description
Model(s)
No.
1
3634
SCREW (2)
2
4826
SCREW (2)
3
10177
CABLE STRAP, tree mount (3)
4
31696-
IGNITION COIL
07A
5
32013-
SPARK PLUG CABLE, front cylinder, w/ 10177
09A
6
32014-
SPARK PLUG CABLE, rear cylinder, w/ 10177
09A
7
32362-
SPARK PLUG, 6R12 (2)
04A
8
66200-09
BRACKET, battery hold down
9
70681-09
RETAINER, wire harness
10
41000057
ELECTRONIC CONTROL MODULE (ECM), base level (Domestic, HDI) Requires
digital programming.
11
69200174
CADDY, electronic control module (ECM)
SENSORS & SWITCHES, ENGINE
///////////////////////////////////////
