Harley Davidson 2008 Touring Models. Service Manual - page 29





B.1

CONNECTORS

CONNECTOR LOCATIONS

Function/Location

Refer to

Table B-1

,

Table B-2

 or

Table B-3

. On the motorcycle,

a connector can be identified by its function and location.

Place and Color

The place (number of wire cavities of a connector housing)
and color of the connector can also aid identification.

Connector Number

On wiring diagrams and in service/repair instructions, con-
nectors are identified by a number in brackets.

Repair Instructions

The repair instructions in this Service Manual are by connector
type. Refer to

Table B-1

,

Table B-2

 or

Table B-3

.

[204] [1]

[108]

[21]

[39]

[50]

[6] [107]

[24]

[31L]

[2]

[184]

[32]

[167]

[51]

[28]

[33]

[105]

[15]

[38]

[27]

[22]

[31R]

ed01271

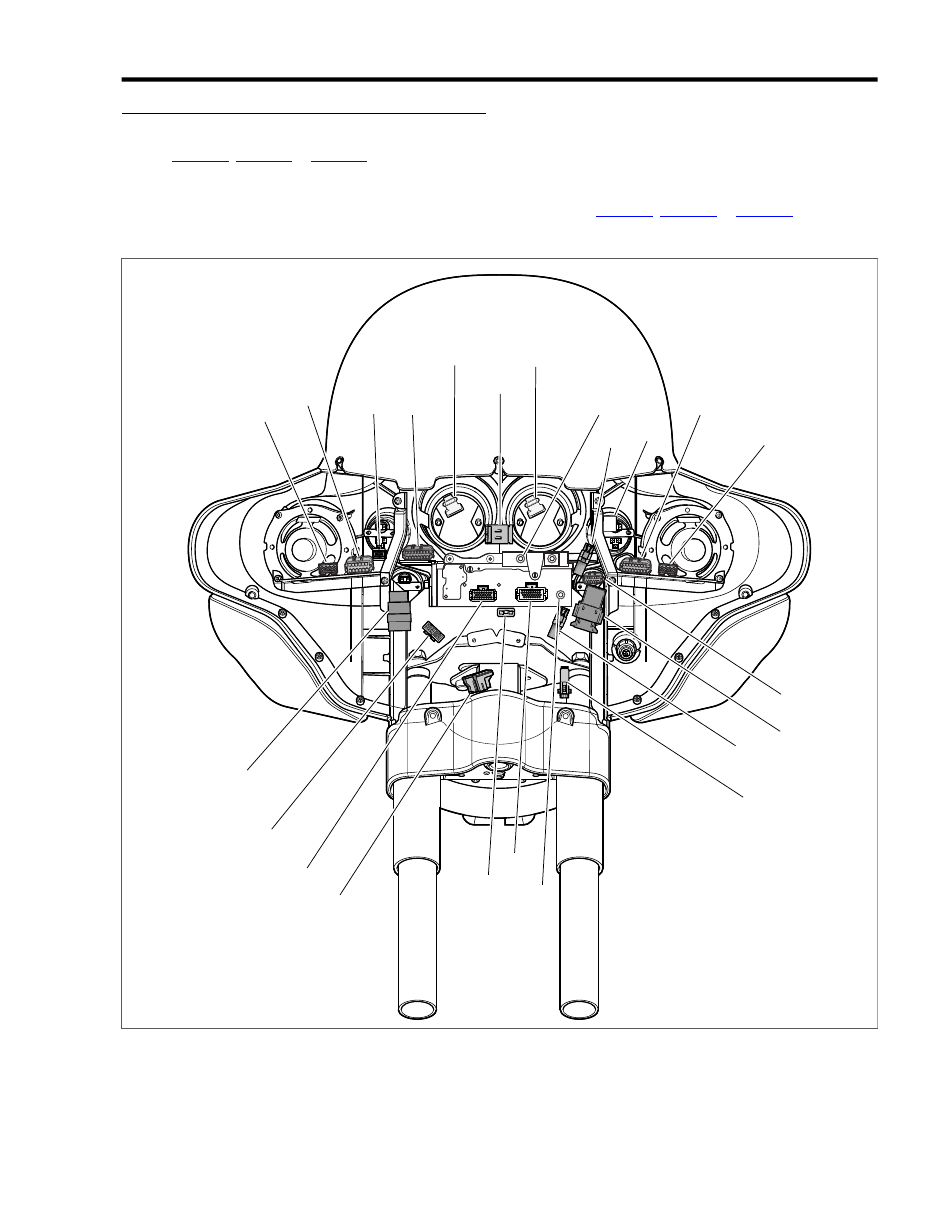

Figure B-1. Inner Fairing Connectors (FLHX, FLHT/C/U)

2008 Touring Service:  Appendix B Wiring  B-1

Table B-1. FLHX, FLHT/C/U Connector Locations

LOCATION

TYPE

DESCRIPTION

NO.

Inner fairing - right radio support
bracket

16-place Molex (black)

Main to interconnect harness

[1]

Inner fairing - left radio support bracket

12-place Molex (gray)

Main to interconnect harness

[2]

Under seat

4-place Deutsch

Accessory

[4]

Under left side cover

2-place Packard

MAXIFUSE

[5]

Top of rear fender (under seat)

8-place Multilock

Rear fender lights harness

[7]

Inside Tour-Pak (inboard of upper
frame tube on FLHX)

3-place Multilock

Tour-Pak lights (rear facia lamp on
FLHX)

[12]

Behind fuel tank (under seat)

4-place Multilock

Fuel tank harness

[13]

Inner fairing - right fairing bracket

4-place Delphi

Main to interconnect harness

[15]

Circuit board under tail lamp assembly

2-place Multilock

Left rear turn signal

[18]

Circuit board under tail lamp assembly

2-place Multilock

Right rear turn signal

[19]

Under seat

16-place Molex

Console harness

[20]

Inner fairing - above radio

10-place Multilock

Indicator lamps

[21]

Inner fairing - right fairing support brace

12-place Molex (black)

Interconnect to right handlebar
switches

[22]

Inner fairing - left fairing support brace

16-place Molex (gray)

Interconnect to left handlebar switches

[24]

Inner fairing - back of radio (right side)

23-place Amp (Tyco)

Radio*

[27]

Inner fairing - back of radio (left side)

35-place Amp (Tyco)

Radio**

[28]

Crossmember at rear of battery box
(under seat)

12-place Deutsch

TSM/TSSM/HFSM

[30]

Inner fairing - left fairing support brace
(outboard side)

4-place Multilock

Left front turn signal/auxiliary lamp

[31L]

Inner fairing - right fairing support brace
(outboard side)

4-place Multilock

Right front turn signal/auxiliary lamp

[31R]

Inner fairing - below upper for bracket
(left side)

2-place Multilock (black)

Front fender tip lamp jumper harness
(DOM)

[32]

Inner fairing - under radio (front of
ignition switch housing)

3-place Packard

Ignition Switch

[33]

Inner fairing (back of speaker)

Spade terminals

Right front speaker

[34]

Inner fairing (back of speaker)

Spade terminals

Left front speaker

[34]

Inner fairing (back of headlamp)

Headlamp connector

Headlamp

[38]

Inner fairing - back of speedometer

12-place Packard

Speedometer

[39]

Inside rear right speaker box

6-place Deutsch

Rear right speaker/passenger con-
trols**

[41]

Inside rear left speaker box

6-place Deutsch

Rear left speaker/passenger controls**

[42]

Circuit board under tail lamp assembly

3-place Multilock

Rear fender tip lamp (DOM)

[45]

Bottom of voltage regulator (left side)

3-place Lyall

Stator

[47]

Inner fairing - back of CB module

-

CB antenna cable**

[50]

Inner fairing - back of radio (left side)

-

Radio antenna cable**

[51]

Rear of battery box (under seat)

12-place Deutsch

Console pod**

[53]

Under left side cover

Packard

Fuse block

[64]

Top of transmission case (under
starter)

3-place Delphi

Vehicle Speed Sensor (VSS)

[65]

Below rear left speaker box

7-place DIN

Passenger headset

[76]

Bottom of voltage regulator (right side)

2-place Lyall

Voltage regulator

[77]

Under seat

73-place Delphi

Electronic Control Module (ECM)

[78]

B-2  2008 Touring Service:  Appendix B Wiring

Table B-1. FLHX, FLHT/C/U Connector Locations

LOCATION

TYPE

DESCRIPTION

NO.

Electrical caddy at bottom of lower
frame crossmember

2-place Deutsch

Crankshaft Position (CKP) sensor

[79]

Top of induction module

4-place Bosch

Temperature Manifold Absolute Pres-
sure (TMAP) sensor

[80]

Below fuel tank (left side)

4-place Delphi

Ignition coil

[83]

Below fuel tank (left side)

2-place Delphi

Front injector

[84]

Below fuel tank (left side)

2-place Delphi

Rear injector

[85]

Top of induction module

4-place Delphi

Idle Air Control (IAC)

[87]

Back of front cylinder (left side)

2-place Delphi

Engine Temperature (ET) sensor

[90]

Under left side cover

4-place Deutsch

Data link connector

[91]

Circuit board under tail lamp assembly

4-place Multilock

Tail lamp

[93]

Circuit board under tail lamp assembly

6-place Multilock

Rear fender lights harness in circuit
board

[94]

Below fuel tank (left side)

2-place Delphi

Purge solenoid

[95]

Inner fairing - above upper fork bracket
(right side)

12-place Multilock

Fairing cap switches

[105]

Inner fairing - left fairing bracket (out-
board side)

3-place Multilock

Ambient Air Temperature (AAT)
sensor*

[107]

Inner fairing (back of tachometer)

12-place Packard

Tachometer

[108]

Inner fairing (back of voltmeter)

Spade terminals

Voltmeter lamp

[111]

Inner fairing (back of oil pressure
gauge)

Spade terminals

Oil pressure gauge lamp

[112]

Inner fairing (back of oil pressure
gauge)

Spade terminals

Oil pressure gauge

[113]

Inner fairing (back of air temperature
gauge)

Spade terminals

Air temperature gauge lamp

[114]

Inner fairing (back of air temperature
gauge)

Spade terminals

Air temperature gauge

[115]

Inner fairing (back of fuel gauge)

Spade terminals

Fuel gauge lamp

[116]

Inner fairing (back of fuel gauge)

Spade terminals

Fuel gauge

[117]

Fuse block (under right side cover)

Fuse terminals

EFI fuses

[119]

Bottom of rear frame downtube (right
side)

Spade terminals

Rear brake light switch

[121]

Between cylinders (right side)

Spade terminals

Horn

[122]

Crossmember at rear of battery box
(under seat)

Relay

Lighting relay

[126]

Top of starter

Spade terminals

Starter solenoid

[128]

Upper frame crossmember (under seat)

Ring terminals

Harness grounds

[129]

Top of transmission (right side)

Post terminals

Neutral switch

[131]

Inner fairing

Spade terminals

Cigarette lighter*

[132]

Domestic (not used): Electrical caddie
at bottom of lower frame crossmember.

3-place Molex (black)

Jiffy Stand Sensor

[133]

HDI: Electrical caddie at bottom of
lower frame crossmember.

Under seat

3-place Packard

Sidecar Bank Angle Sensor (BAS)

[134]

Right side frame, beneath gearcase
cover

1-place molded jumper, black

Neutral switch

[136]

Under chrome starter cover

2-place Amp (Tyco)

O

2

 sensor rear exhaust header

[137]

2008 Touring Service:  Appendix B Wiring  B-3

Table B-1. FLHX, FLHT/C/U Connector Locations

LOCATION

TYPE

DESCRIPTION

NO.

Back of cross brace between front
frame downtubes (left side)

2-place Amp (Tyco)

O

2

 sensor front exhaust header

[138]

Front right crankcase

4-place Packard

Fuel pump and fuel level sender

[141]

Under right side cover (behind elec-
trical bracket)

3-place Delphi

Security siren (optional)

[142]

Under front fender tip lamp bracket

2-place Multilock

Front fender tip lamp (DOM)

[143]

Upper frame crossmember (under seat)

1-place Delphi

B+

[160]

Under right side cover

20-place Molex

ABS module

[166]

Inner fairing - below upper fork bracket
(left side)

2-place Packard

Front wheel speed sensor

[167]

Under right side cover

2-place Packard

Rear wheel speed sensor

[168]

Domestic (not used): Under right side
cover

5-place Amp (Tyco)

Active exhaust actuator

[179]

HDI: Under right side cover (behind
electrical bracket)

Inner fairing - left side of radio

12-place Deutsch

CB module

[184]

Under left side cover (below fuse box)

4-place Deutsch

ABS diode

[201]

Inner fairing - right radio support
bracket

6-place Molex (black)

Twist Grip Sensor (TGS) harness

[204]

HFSM in crossmember at rear of bat-
tery box (under seat)

4-place Deutsch

HFSM antenna jumper harness

[208]

Top of rear fender - under seat

2-place Molex

HFSM antenna

[209]

Throttle body

6-place Molex

Throttle Control Actuator

[211]

Rear of fuel tank

4-place Packard

Main to ignition harness

[222]

Handlebar throttle (inside right side
handlebar)

7-place Amp (Tyco)

Twist Grip Sensor (TGS)

[224]

*Classic and Ultra

**Ultra Only

B-4  2008 Touring Service:  Appendix B Wiring

[168]

[166]

[179]

ed01274

1.

[166] ABS Control Module

2.

[167] Front Wheel Speed Sensor

3.

[168] Rear Wheel Speed Sensor

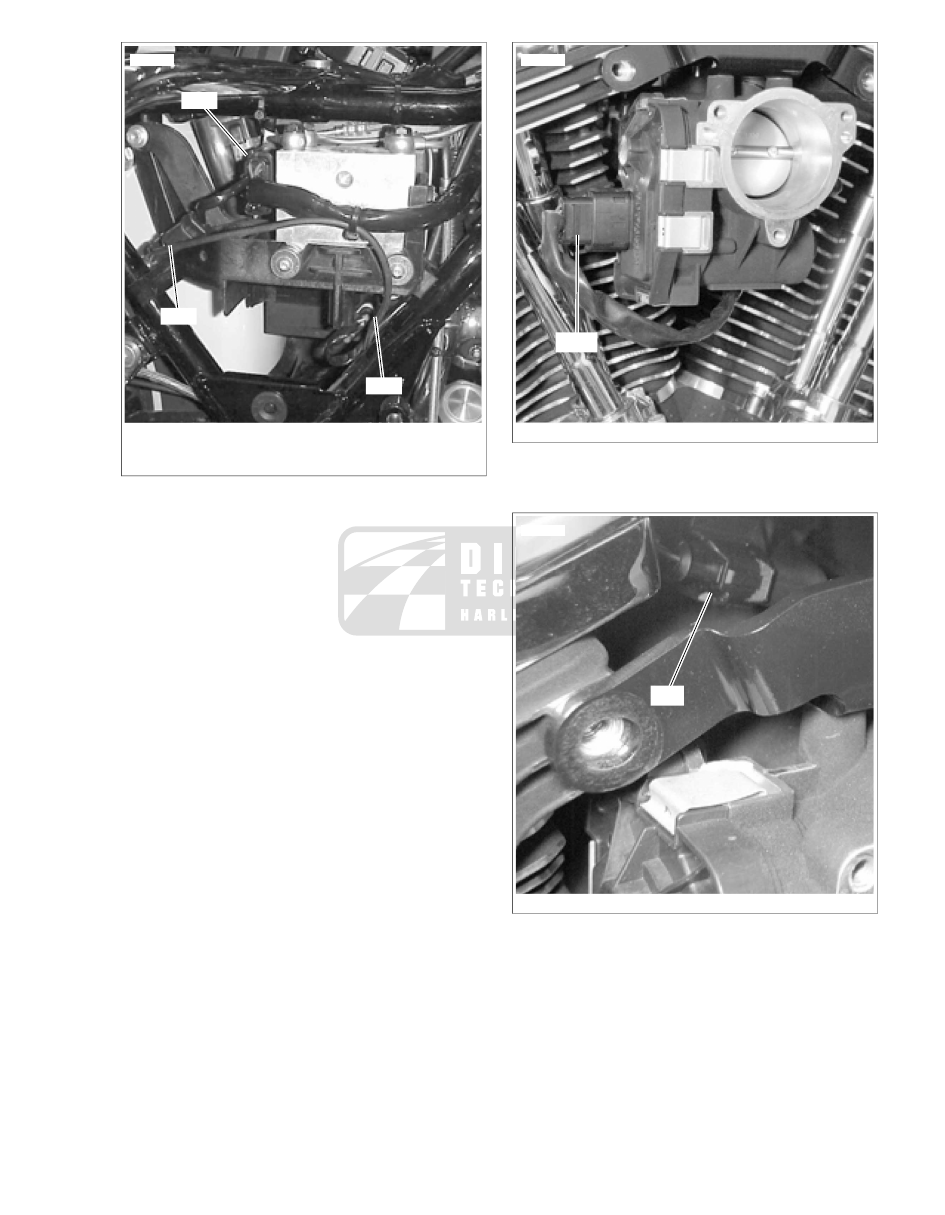

Figure B-2. ABS Connector

[211]

ed01275

1.

[211] Throttle Control Actuator and TP Sensor

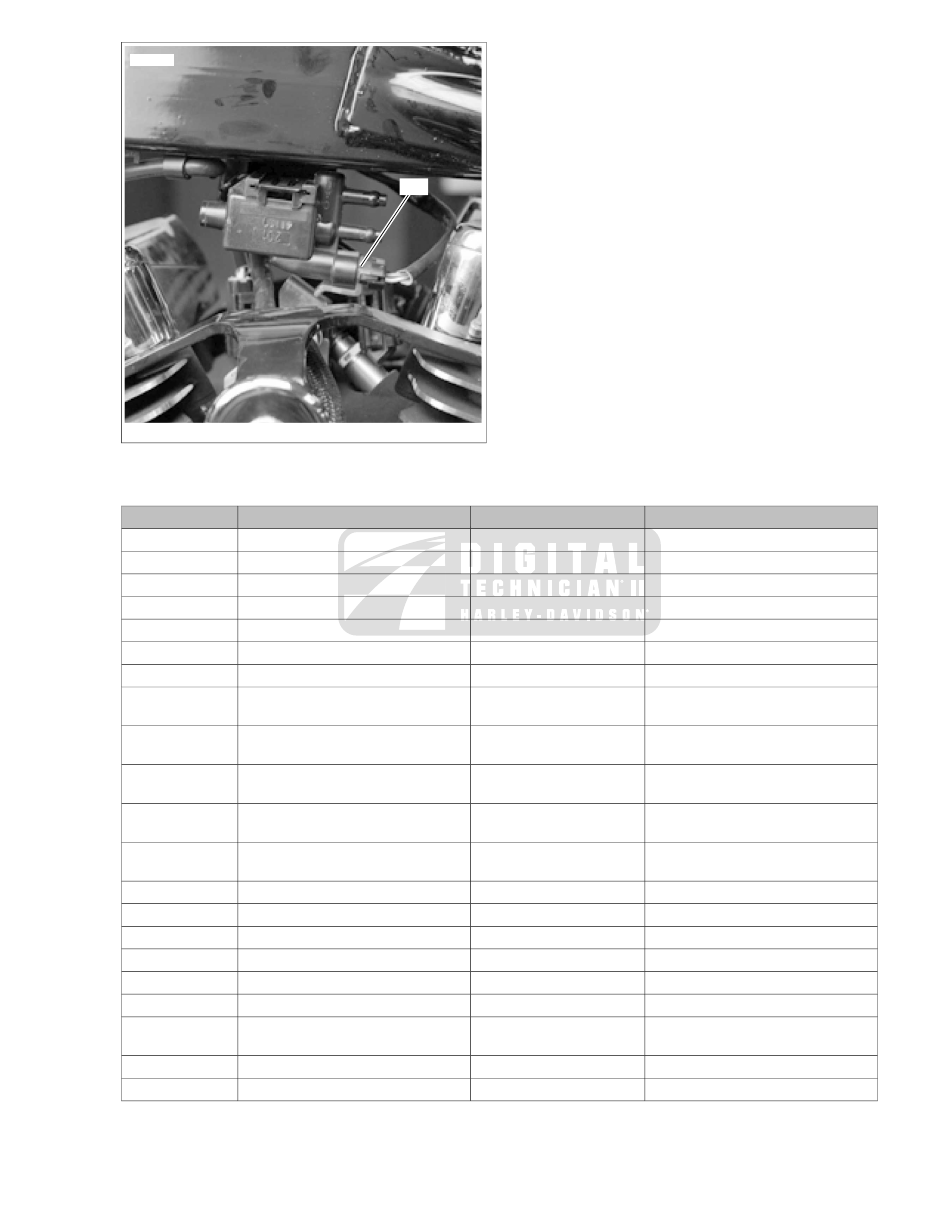

Figure B-3. Throttle Control Connector

[80]

ed01276

1.

[80] TMAP Sensor

Figure B-4. TMAP Connector

2008 Touring Service:  Appendix B Wiring  B-5

15

14

16

17

18

19

1

2

3

4

5

10

11

12

13

6

7

8

9

ed01260

11.

1.

Spare

Accessory

2.

12.

Battery

Lights

13.

3.

Headlamp

P&A

4.

14.

Radio power/Siren (if equipped)

ABS (if equipped)

15.

5.

Brake relay

ECM power

6.

16.

System relay

Instruments

17.

7.

Fuel pump

Start relay

8.

18.

Engine control

Radio memory (if equipped)

19.

9.

Brake/Cruise

MAXIFUSE

10. Ignition

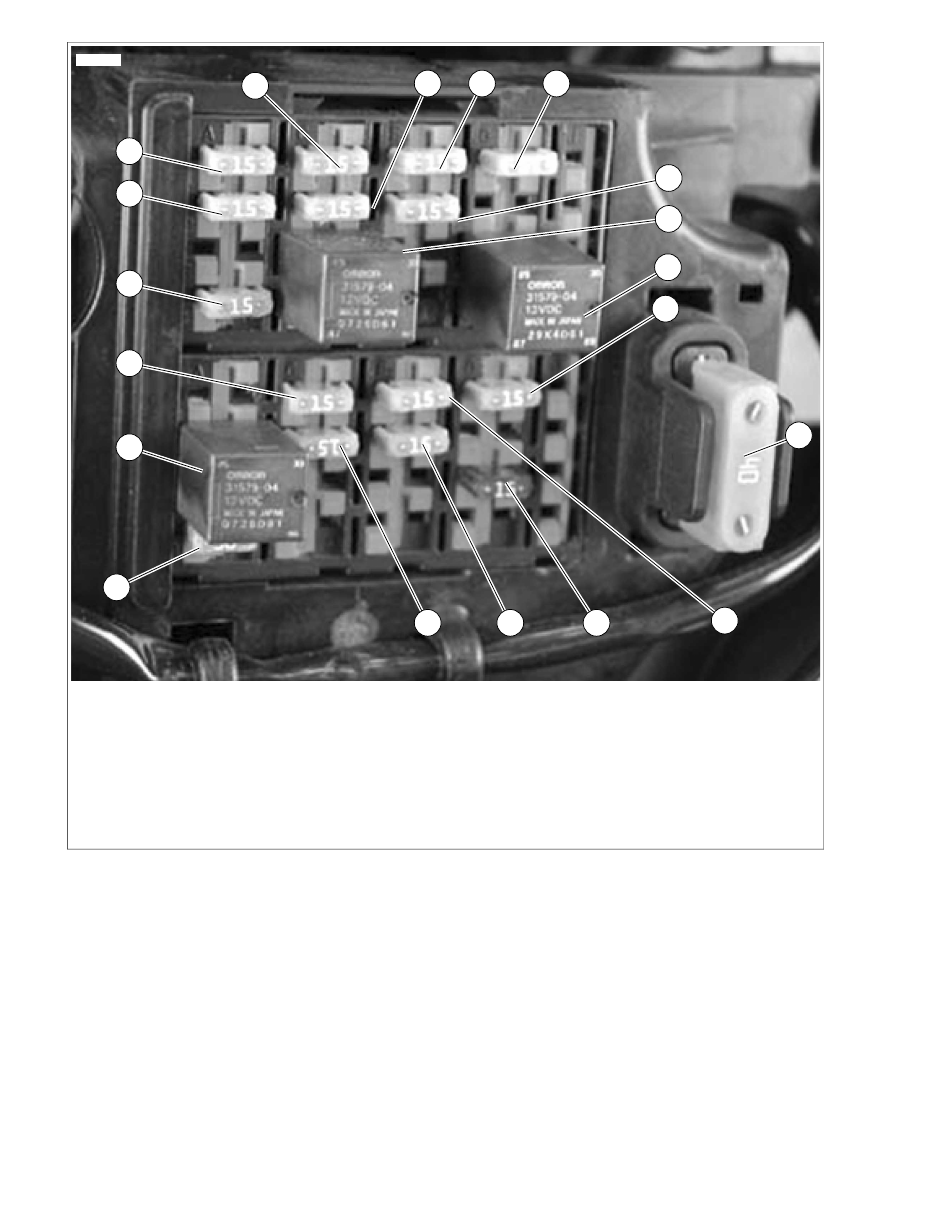

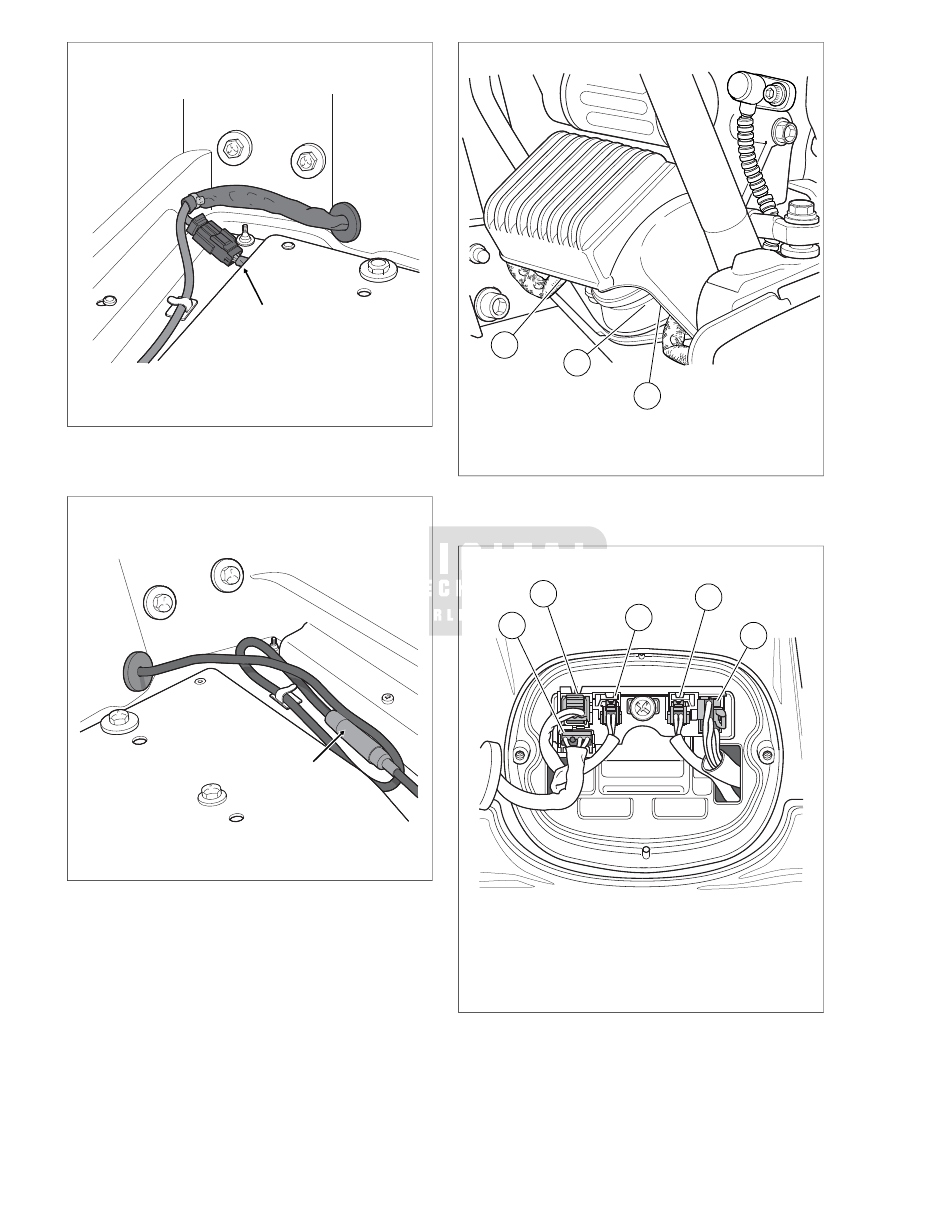

Figure B-5. Fuse and Relay Locations

B-6  2008 Touring Service:  Appendix B Wiring

4

11

12

3

5

7

6

1

2

10

9

8

ed01270

1.

Negative Battery Terminal

2.

[78] ECM

3.

[30] HFSM

4.

[7] Tail Light Connector

5.

[126] Lighting Relay

6.

[4] P&A Accessory Connector

7.

Positive Battery Terminal

8.

[13] Fuel Pump Subharness Connector

9.

[GND2] Rear (clean) Ground

10. [GND1] Front (dirty) Ground
11. [160] B+ Connector
12. [209] Hands-Free Antenna Connector

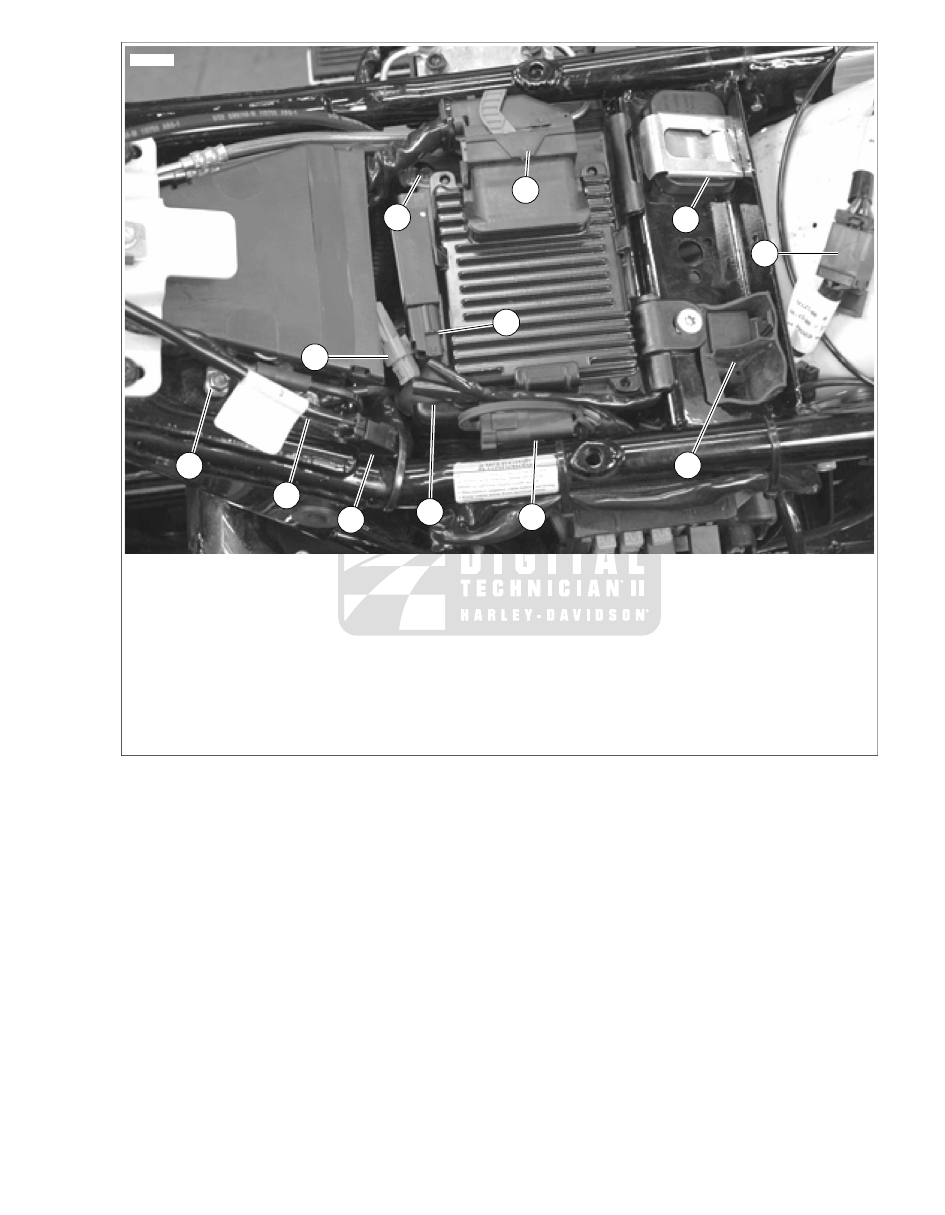

Figure B-6. Electrical Connectors - Under Seat

2008 Touring Service:  Appendix B Wiring  B-7

ed02690

Figure B-7. Tour-Pak Connectors (Left Side)

ed02691

Figure B-8. Tour-Pak Connectors (Right Side)

[79]

1

2

3

ed01265

1.

Voltage Regulator [77]

2.

CKP Sensor [79]

3.

Stator [47]

Figure B-9. Voltage Regulator (Left Side View)

94

19

18

45

93

ed02694

1.

[18] Left Turn Signal Lamp

2.

[19] Right Turn Signal Lamp

3.

[45] Fender Tip Lamp

4.

[91] Tail Lamp

5.

[94] Fender Lights Harness

Figure B-10. Rear Fender Lights Assembly

B-8  2008 Touring Service:  Appendix B Wiring

[2]

[1]

[27]

[51]

[24]

[15]

[204]

[31R]

[38]

[167]

[31L]

[22]

ed01272

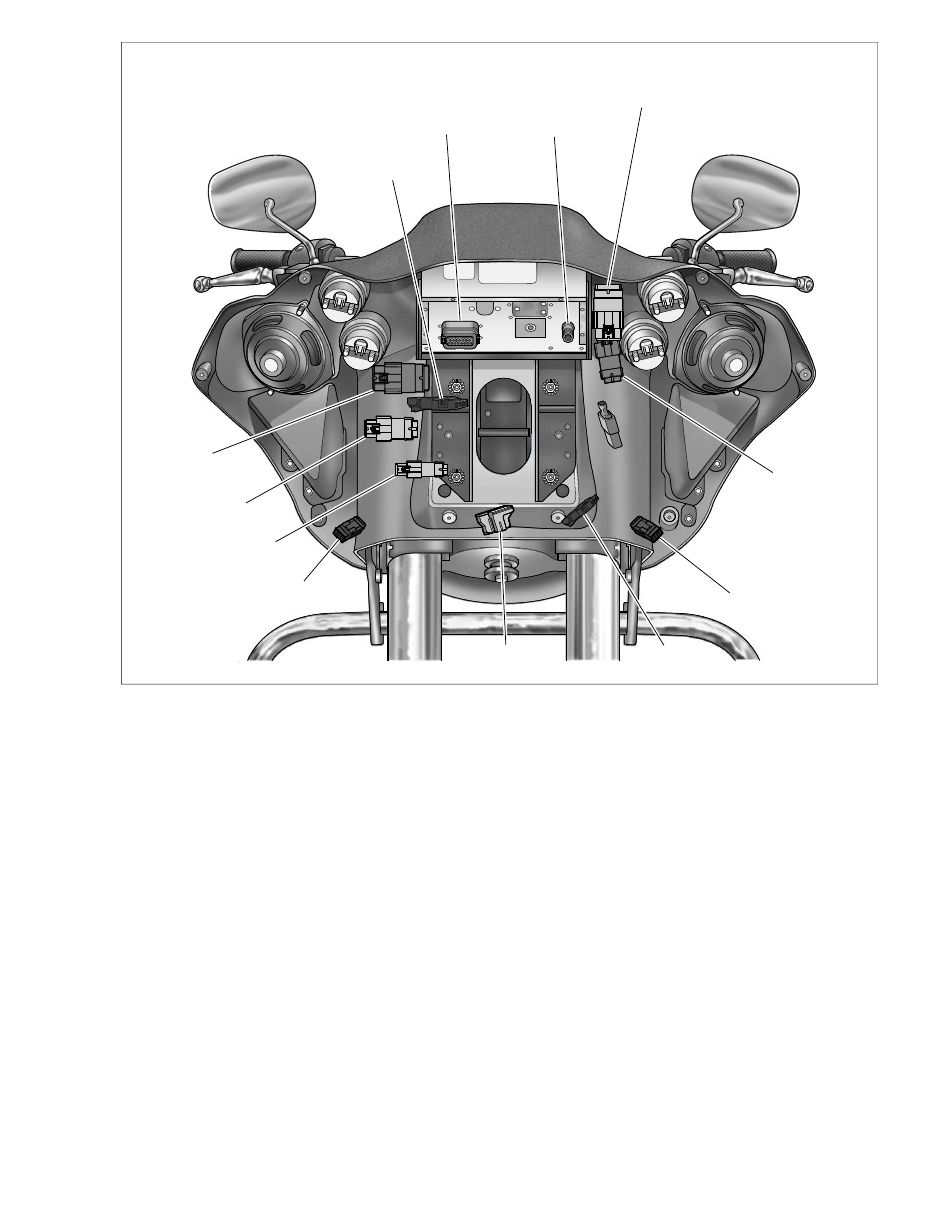

Figure B-11. Inner Fairing Connectors (FLTR)

2008 Touring Service:  Appendix B Wiring  B-9

[105A/B]

[21]

[39]

[105C/D]

[10B]

[107]

ed02696

1.

[21] Indicator Lamps

2.

[39] Speedometer

3.

[105A/B] Instrument Nacelle Switches

4.

[105C/D] Speaker Switch

5.

[107] Ambient Temperature Sensor

6.

[108] Tachometer

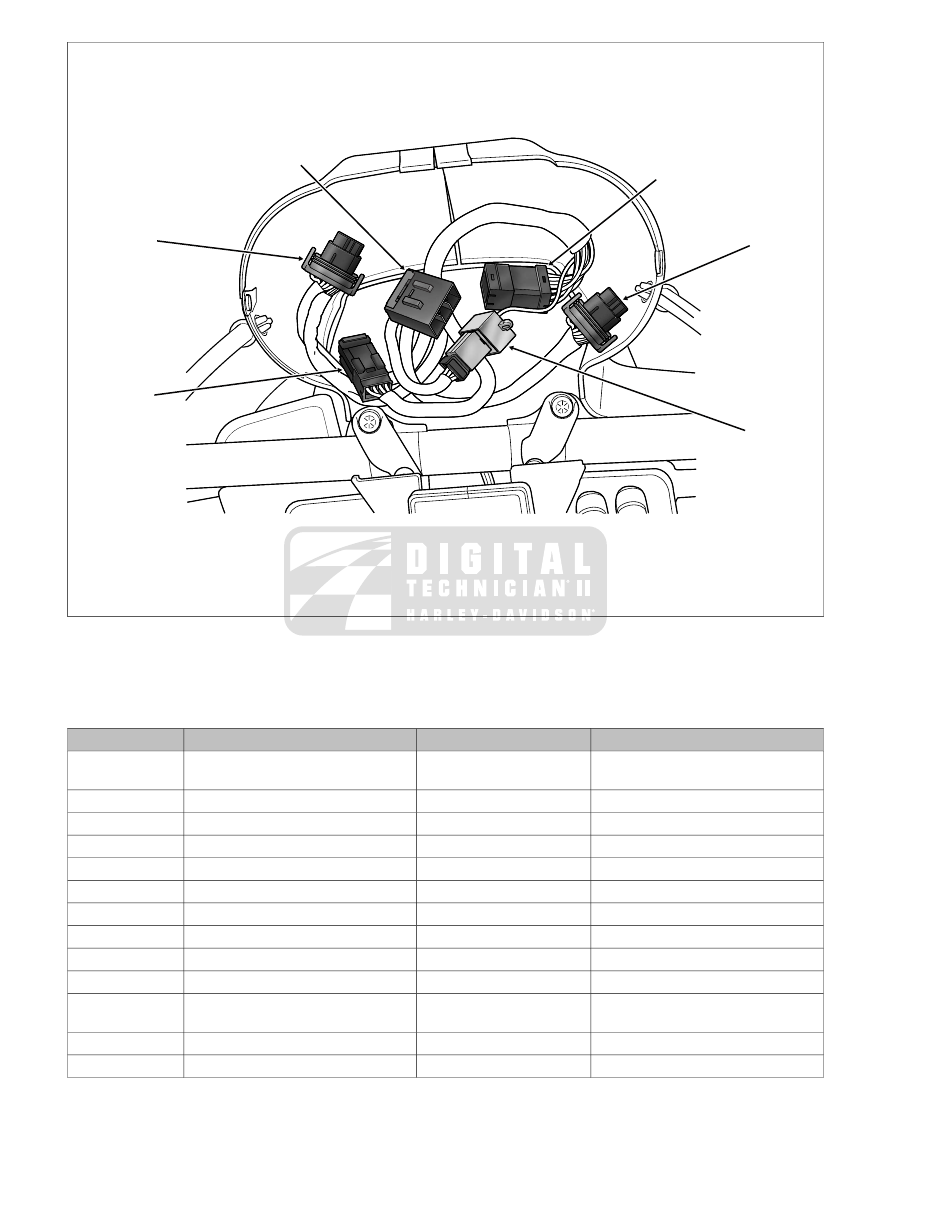

Figure B-12. Instrument Nacelle Connectors (FLTR)

Table B-2. FLTR Connector Locations

LOCATION

TYPE

DESCRIPTION

NO.

Inner fairing - right radio support
bracket

16-place Molex (black)

Main to interconnect harness

[1]

Inner fairing - leftt radio support bracket

12-place Molex (gray)

Main to interconnect harness

[2]

Upper frame crossmember (under seat)

4-place Deutsch

Accessory

[4]

Under left side cover

2-place Packard

MAXIFUSE

[5]

Top of rear fender (under seat)

8-place Multilock

Rear fender lights harness

[7]

Behind fuel tank (under seat)

4-place Multilock

Fuel tank harness

[13]

Inner fairing - below radio (right side)

4-place Delphi

Main to interconnect harness

[15]

Circuit board under tail lamp assembly

2-place Multilock

Left rear turn signal

[18]

Circuit board under tail lamp assembly

2-place Multilock

Right rear turn signal

[19]

Inner fairing - above radio

10-place Multilock

Indicator lamps

[21]

Inner fairing - right fairing support brace

12-place Molex (black)

Interconnect to right handlebar
switches

[22]

Inner fairing - left fairing support brace

16-place Molex (gray)

Interconnect to left handlebar switches

[24]

Inner fairing - back of radio (right side)

23-place Amp (Tyco)

Radio

[27]

B-10  2008 Touring Service:  Appendix B Wiring

Table B-2. FLTR Connector Locations

LOCATION

TYPE

DESCRIPTION

NO.

Crossmember at rear of battery box
(under seat)

12-place Deutsch

TSM/HFSM

[30]

Inner fairing - left fairing support brace
(outboard side)

4-place Multilock

Left front turn signal/auxiliary lamp

[31L]

Inner fairing - right fairing support brace
(outboard side)

4-place Multilock

Right front turn signal/auxiliary lamp

[31R]

Inner fairing - under radio (front of
ignition switch housing)

3-place Packard

Ignition switch

[33]

Inner fairing (back of speaker)

Spade terminals

Right front speaker

[34]

Inner fairing (back of speaker)

Spade terminals

Left front speaker

[34]

Inner fairing (back of headlamp)

Headlamp connector

Headlamp

[38]

Inner fairing - back of speedometer

12-place Packard

Speedometer

[39]

Circuit board under tail lamp assembly

3-place Multilock

Rear fender tip lamp (DOM)

[45]

Bottom of voltage regulator (left side)

3-place Lyall

Stator

[47]

Inner fairing - back of radio (left side)

-

Radio antenna cable

[51]

Under left side cover

Packard

Fuse block

[64]

Top of transmission case (under
starter)

3-place Delphi

Vehicle Speed Sensor (VSS)

[65]

Bottom of voltage regulator (right side)

2-place Lyall

Voltage regulator

[77]

Under seat

73-place Delphi

Electronic Control Module (ECM)

[78]

Electrical caddie at bottom of lower
frame crossmember

2-place Deutsch

Crankshaft Position (CKP) sensor

[79]

Top of induction module

4-place Bosch

Temperature Manifold Absolute Pres-
sure (TMAP) sensor

[80]

Below fuel tank (left side)

4-place Delphi

Ignition coil

[83]

Below fuel tank (left side)

2-place Delphi

Front injector

[84]

Below fuel tank (left side)

2-place Delphi

Rear injector

[85]

Below fuel tank (right side)

4-place Delphi

Idle Air Control (IAC)

[87]

Back of front cylinder (left side)

2-place Delphi

Engine Temperature (ET) sensor

[90]

Under left side cover

4-place Deutsch

Data link connector

[91]

Circuit board under tail lamp assembly

4-place Multilock

Tail lamp

[93]

Circuit board under tail lamp assembly

6-place Multilock

Rear fender lights harness in circuit
board

[94]

Below fuel tank (left side)

2-place Delphi

Purge solenoid

[95]

Instrument nacelle switches

[105]

Inside instrument nacelle (under bezel)

12-place Multilock

Interconnect to nacelle switch harness
(105A, 105B)

Inside instrument nacelle (under bezel)

4-place Multilock

Nacelle switch harness to speaker
switch (105C, 105D)

Inside instrument nacelle (under bezel)

3-place Multilock

Ambient Air Temperature (AAT) sensor

[107]

Inside instrument nacelle (back of
tachometer)

12-place Packard (gray)

Tachometer

[108]

Inner fairing (back of voltmeter)

Spade terminals

Voltmeter lamp

[111]

Inner fairing (back of oil pressure
gauge)

Spade terminals

Oil pressure gauge lamp

[112]

Inner fairing (back of oil pressure
gauge)

Spade terminals

Oil pressure gauge

[113]

2008 Touring Service:  Appendix B Wiring  B-11

Table B-2. FLTR Connector Locations

LOCATION

TYPE

DESCRIPTION

NO.

Inner fairing (back of air temperature
gauge)

Spade terminals

Air temperature gauge lamp

[114]

Inner fairing (back of air temperature
gauge)

Spade terminals

Air temperature gauge

[115]

Inner fairing (back of fuel gauge)

Spade terminals

Fuel gauge lamp

[116]

Inner fairing (back of fuel gauge)

Spade terminals

Fuel gauge

[117]

Fuse block (under right side cover)

Fuse terminals

EFI fuses

[119]

Bottom of rear frame downtube (right
side)

Spade terminals

Rear brake light switch

[121]

Between cylinders (right side)

Spade terminals

Horn

[122]

Fuse block (under left side cover)

Relay

Start relay

[123]

Fuse block (under left side cover)

Relay

Brake light relay

[124]

Crossmember at rear of battery box
(under seat)

Relay

Lighting relay

[126]

Top of starter

Spade terminals

Starter solenoid

[128]

Upper frame crossmember (under seat)

Ring terminals

Harness grounds

[129]

Top of transmission (right side)

Post terminals

Neutral switch

[131]

Inner fairing

Spade terminals

Cigarette lighter

[132]

Domestic (not used): Electrical caddie
at bottom of lower frame crossmember.

3-place Molex (black)

Jiffy Stand Sensor

[133]

HDI: Electrical caddy at bottom of lower
frame crossmember.

Fuse block (under right side cover)

Relay

EFI system relay

[135]

Under chrome starter cover

2-place Amp (Tyco)

O

2

 sensor rear exhaust header

[137]

Back of cross brace between front
frame downtubes (left side)

2-place Amp (Tyco)

O

2

 sensor front exhaust header

[138]

Top of canopy (under console)

4-place Packard

Fuel pump and fuel level sender

[141]

Under right side cover (behind elec-
trical bracket)

3-place Delphi

Security siren (optional)

[142]

Upper frame crossmember (under seat)

1-place Delphi

B+

[160]

Under right side cover

20-place Molex

ABS module

[166]

Inner fairing - below upper fork bracket
(left side)

2-place Delphi (black)

Front wheel speed sensor

[167]

Under right side cover

2-place Delphi (black)

Rear wheel speed sensor

[168]

Domestic (not used): Under right side
cover

5-place Amp (Tyco)

Active exhaust actuator

[179]

HDI: Under right side cover (behind
electrical bracket)

Under left side cover (below fuse box)

4-place Deutsch

ABS diode

[201]

Inner fairing - right radio support
bracket

6-place Molex (black)

Twist Grip Sensor (TGS)

[204]

HFSM in crossmember at rear of bat-
tery box (under seat)

4-place Deutsch

HFSM antenna jumper harness

[208]

Top of rear fender - under seat

2-place Molex

HFSM antenna

[209]

Throttle body

6-place Molex

Throttle Control Actuator (TCA)

[211]

Under seat

4-place Packard

Console ignition switch interconnect

[222]

B-12  2008 Touring Service:  Appendix B Wiring

[95]

ed01277

1.

[95] Purge Solenoid

Figure B-13. Below Fuel Tank (Left Side)

Table B-3. FLHR/C/S Connector Locations

LOCATION

TYPE

DESCRIPTION

NO.

Upper frame crossmember (under seat)

4-place Deutsch

Accessory

[4]

Under left side cover

2-place Packard

MAXIFUSE

[5]

Top of rear fender (under seat)

6-place Multilock

Rear fender lights harness

[7]

Circuit board under tail lamp assembly

2-place Multilock

Left rear turn signal

[18]

Circuit board under tail lamp assembly

2-place Multilock

Right rear turn signal

[19]

Under seat

16-place Molex

Console harness

[20]

Under console

8-place Deutsch

Indicator lamps

[21]

Inside headlamp nacelle - fork stern
nut lock plate (right side)

6-place Molex (black)

Right handlebar switches

[22]

Inside headlamp nacelle - fork stern
nut lock plate (left side)

8-place Molex (gray)

Left handlebar switches

[24]

Crossmember at rear of battery box
(under seat)

12-place Deutsch

TSM//HFSM

[30]

Inside headlamp nacelle - fork stern
nut lock plate (left side)

6-place Multilock

Front turn signals

[31]

Inside headlamp nacelle

2-place Multilock

Front fender tip lamp jumper harness
(DOM)

[32]

Under console

3-place Packard

Ignition switch

[33]

Inside headlamp nacelle

Headlamp connector

Headlamp

[38]

Back of speedometer (back of console)

12-place Packard

Speedometer

[39]

Circuit board under tail lamp assembly

3-place Multilock

Rear fender tip lamp (DOM)

[45]

Bottom of voltage regulator (left side)

3-place Lyall

Stator

[47]

Under left side cover

Packard

Fuse block

[64]

Top of transmission case (under
starter)

3-place Delphi

Vehicle Speed Sensor (VSS)

[65]

Inside headlamp nacelle

4-place Amp (Tyco)

Accessory switch

[67]

Inside headlamp nacelle

2-place Multilock (white)

Auxiliary lamps

[73]

2008 Touring Service:  Appendix B Wiring  B-13

Table B-3. FLHR/C/S Connector Locations

LOCATION

TYPE

DESCRIPTION

NO.

Right side of steering head

Spade terminals

Cruise roll-off switch**

[75]

Bottom of voltage regulator (right side)

2-place Lyall

Voltage regulator

[77]

Under seat

73-place Delphi

Electronic Control Module (ECM)

[78]

Electrical caddie at bottom of lower
frame crossmember

2-place Deutsch

Crankshaft Position (CKP) sensor

[79]

Top of induction module

3-place Packard

Temperature Manifold Absolute Pres-
sure (TMAP) sensor

[80]

Below fuel tank (left side)

4-place Delphi

Ignition coil

[83]

Below fuel tank (left side)

2-place Delphi

Front injector

[84]

Below fuel tank (left side)

2-place Delphi

Rear injector

[85]

Below fuel tank (right side)

4-place Delphi

Idle Air Control (IAC)

[87]

Back of front cylinder (left side)

2-place Delphi

Engine Temperature (ET) sensor

[90]

Under right side cover

4-place Deutsch

Data link connector

[91]

Circuit board under tail lamp assembly

4-place Multilock

Tail lamp

[93]

Circuit board under tail lamp assembly

6-place Multilock

Rear fender lights harness in circuit
board

[94]

Below fuel tank (left side)

2-place Delphi

Purge solenoid

[95]

Inside headlamp nacelle

1-place Amp (Tyco)

Optional tachometer

[108]

Inside headlamp nacelle

4-place Amp (Tyco)

Auxiliary lamps switch

[109]

Inner fairing (back of fuel gauge)

Spade terminals

Fuel gauge

[117]

Fuse block (under right side cover)

Fuse terminals

EFI fuses

[119]

Bottom of rear frame downtube (right
side)

Spade terminals

Rear brake light switch

[121]

Front right crankcase

Post terminal

Oil pressure switch

[119]

Between cylinders (right side)

Spade terminals

Horn

[122]

Fuse block (under left side cover)

Relay

Start relay

[123]

Fuse block (under left side cover)

Relay

Brake light relay

[124]

Crossmember at rear of battery box
(under seat)

Relay

Lighting relay

[126]

Top of starter

Spade terminals

Starter solenoid

[128]

Upper frame crossmember (under seat)

Ring terminals

Harness grounds

[129]

Top of transmission (right side)

Post terminals

Neutral switch

[131]

Domestic (not used): Electrical caddie
at bottom of lower frame crossmember.

3-place Molex (black)

Jiffy Stand Sensor

[133]

HDI: Electrical caddie at bottom of
lower frame crossmember.

Fuse block (under right side cover)

Relay

EFI system relay

[135]

Under chrome starter cover

2-place Amp (Tyco)

O

2

 sensor rear exhaust header

[137]

Back of cross brace between front
frame downtubes (left side)

2-place Amp (Tyco)

O

2

 sensor front exhaust header

[138]

Top of canopy (under console)

4-place Packard

Fuel pump and fuel level sender

[141]

Under right side cover (behind elec-
trical bracket)

3-place Delphi

Security siren (optional)

[142]

Under front fender tip lamp bracket

2-place Multilock (black)

Front fender tip lamp (DOM)

[143]

Inside headlamp nacelle

3-place Molex (black)

Left handlebar switches (cruise con-
trol)**

[158]

B-14  2008 Touring Service:  Appendix B Wiring

Table B-3. FLHR/C/S Connector Locations

LOCATION

TYPE

DESCRIPTION

NO.

Inside headlamp nacelle

3-place Molex (gray)

Right handlebar switches (cruise con-
trol)**

[159]

Upper frame crossmember (under seat)

1-place Packard

B+

[160]

Under right side cover

20-place Molex

ABS module

[166]

Inner fairing - below upper fork bracket
(left side)

2-place Delphi (black)

Front wheel speed sensor

[167]

Under right side cover

2-place Delphi (black)

Rear wheel speed sensor

[168]

2-place Amp (Tyco)

Active intake solenoid

[178]

Domestic (not used): Under right side
cover

5-place Amp (Tyco)

Active exhaust actuator

[179]

HDI: Under right side cover (behind
electrical bracket)

Under left side cover (below fuse box)

4-place Deutsch

ABS diode

[201]

Inner fairing - right radio support
bracket

6-place Molex (black)

Twist Grip Sensor (TGS)

[204]

HFSM in crossmember at rear of bat-
tery box (under seat)

4-place Deutsch

HFSM antenna jumper harness

[208]

Top of rear fender (under seat)

2-place Molex

HFSM antenna

[209]

Throttle body

6-place Molex

Throttle Control Actuator (TCA)

[211]

Under seat

4-place Packard

Console ignition switch interconnect

[222]

** FLHRC Only

2008 Touring Service:  Appendix B Wiring  B-15















Content      ..     27      28      29      30     ..
