Harley Davidson Softail Delux FLSTN BIKE 2011-2015. Service Manual

1.17

SPARK PLUGS

REMOVAL

Disconnecting spark plug cable with engine running can
result in electric shock and death or serious injury.
(00464b)

NOTE

Allow the engine to cool before servicing.

Disconnect spark plug cables.

Remove spark plugs.

INSPECTION

NOTE

Discard plugs with eroded electrodes, heavy deposits or a
cracked insulator.

See

Figure 1-38

. Compare plug deposits to

Table 1-14

sm00099a

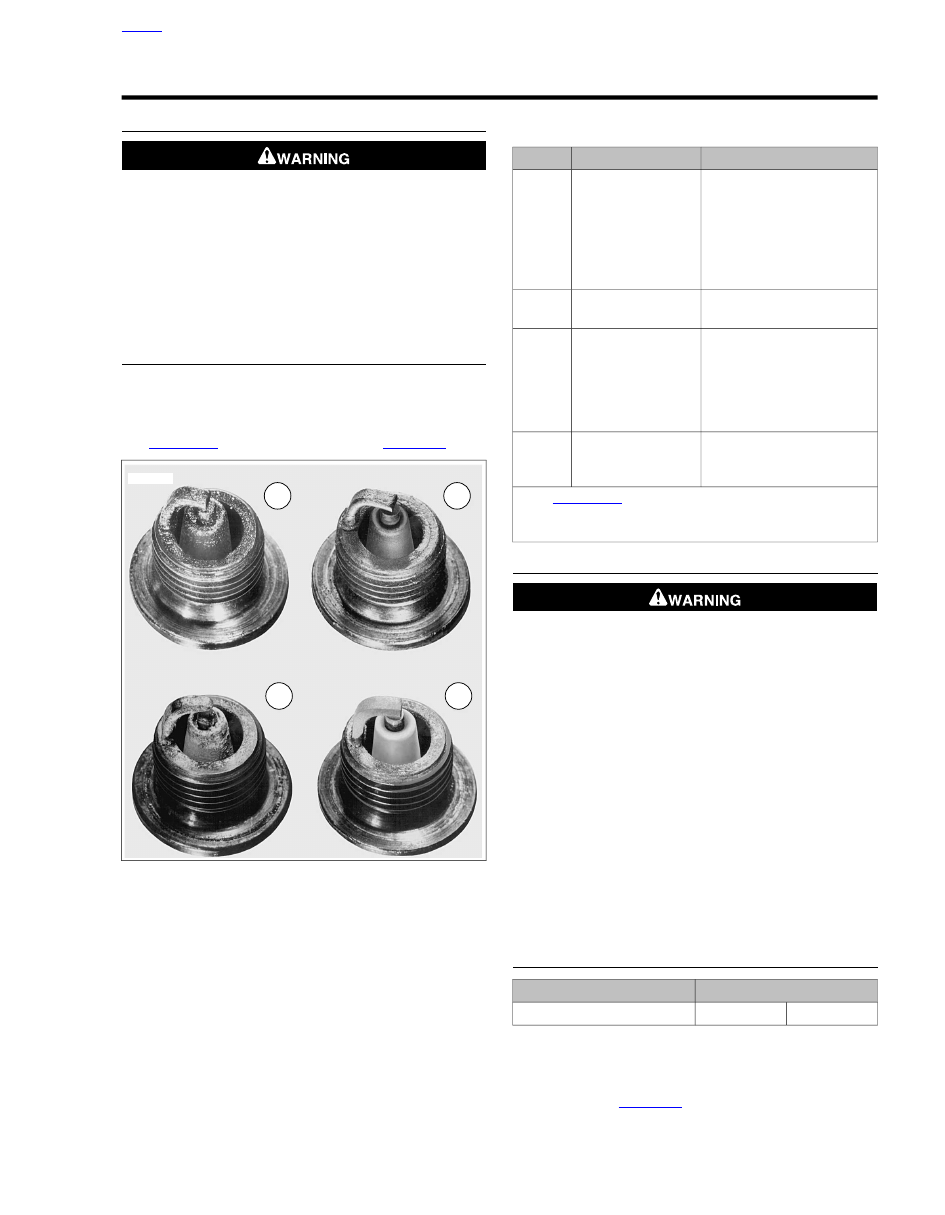

Figure 1-38. Spark Plug Deposits

Table 1-14. Spark Plug Deposit Analysis

POSSIBLE CAUSE

DEPOSITS

PLUG*

Worn pistons
Worn piston rings
Worn valves
Worn valve guides
Worn valve seals
Weak battery
Faulty ignition system

Wet, black and shiny

Air-fuel mixture too rich

Dry, fluffy or sooty
and black

Air-fuel mixture too lean
Hot running engine
Valves not seating
Improper ignition timing

Light brown and
glassy**
May be accompanied
by cracks in the insu-
lator or by electrode
erosion.

Balanced combustion
Clean off deposits at regular
intervals.

White, gray or tan
and powdery

* See

Figure 1-38

** The glassy deposit on a spark plug may cause high-speed
misfiring.

CLEANING

Compressed air can pierce the skin and flying debris from
compressed air could cause serious eye injury. Wear
safety glasses when working with compressed air. Never
use your hand to check for air leaks or to determine air
flow rates. (00061a)

If the plugs require cleaning between tune-ups:

Clean electrodes and insulator with electrical contact
cleaner. Dry plug with compressed air.

Use a thin file to flatten electrodes.

NOTE

Electrodes with sharp edges require 25-40 percent less voltage
than ones with rounded edges.

Check condition of threads in cylinder head. Use a penet-
rating oil and clean out with a thread chaser. Verify that
plug threads are clean.

If necessary, replace with

new

spark plugs.

INSTALLATION

TORQUE VALUE

FASTENER

16.3-24.4 Nm

12-18 ft-lbs

Spark plug

Verify proper gap before installing

new

or cleaned spark

plugs.

Select a wire-type feeler gauge within specification.
Refer to

Table 1-15

HOME

2013 Softail Service: Maintenance 1-43

NOTE

The spark plug gap is within specification when there is a
slight drag on the gauge.

Pass the wire gauge between the center and the outer
electrodes.

If necessary use the proper tool to bend the outer
electrode to bring the gap to within specification.

Apply ANTI-SEIZE LUBRICANT to the spark plug threads.
Tighten to 12-18 ft-lbs (16.3-24.4 Nm).

See

Figure 1-39

. Connect spark plug cables. Verify cables

are connected to coil, spark plugs and anchor clips or
harness caddies.

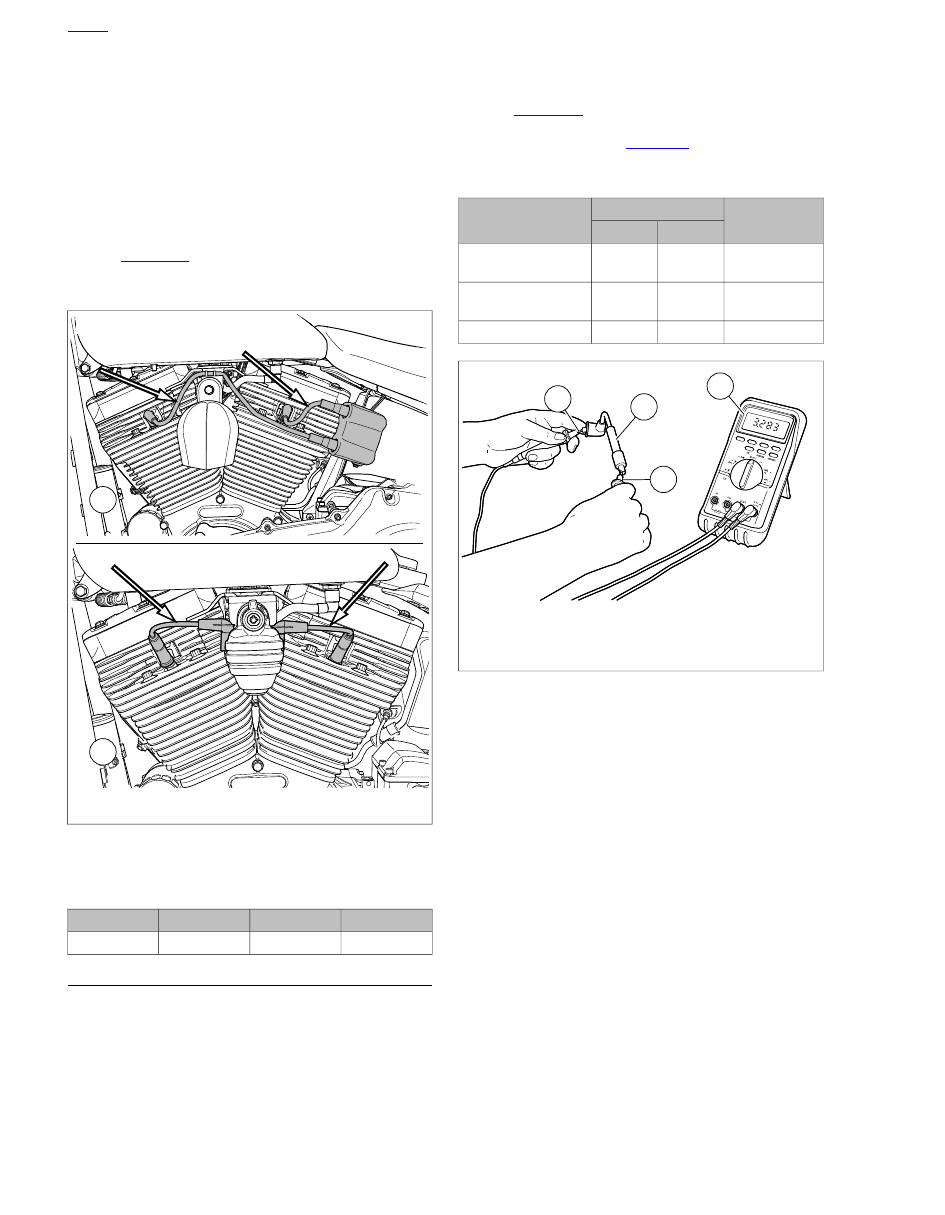

sm07491

1. All models except FXS/FXSB
2. FXS/FXSB

Figure 1-39. Spark Plug Cable Routing

Table 1-15. Spark Plug Gap

TYPE

MODEL

0.97-1.09

0.038-0.043

HD-6R12

All Models

SPARK PLUG CABLE INSPECTION

Inspect spark plug cables. Replace if necessary.

Check for cracks or loose terminals.

Check for loose fit on ignition coil and spark plugs.

Check cable boots/caps for cracks or tears. Replace
boots/caps that are worn or damaged.

See

Figure 1-40

. Check spark plug cable resistance with

an ohmmeter. Replace cables not meeting resistance
specifications. Refer to

Table 1-16

Table 1-16. SPARK PLUG CABLE RESISTANCE VALUES

Resistance

Value (Ohms)

Length

Description

In.

4750-12,675

483

19.00

All except FXS: front
cable

1625-4350

165

6.50

All except FXS: rear
cable

1813-4833

184

7.25

FXS/B: both cables

sm02659a

1. Ohmmeter positive lead
2. Ohmmeter negative lead
3. Spark plug cable
4. Ohmmeter

Figure 1-40. Testing Resistance

HOME

1-44 2013 Softail Service: Maintenance

1.18

STEERING HEAD BEARINGS

ADJUSTMENT: FLSTC, FLSTF/B, FLSTN,
FLS

TORQUE VALUE

FASTENER

33.9-40.7 Nm

25-30 ft-lbs

Fork bracket pinch bolt, upper,
FLSTC, FLSTF/B, FLSTN,
FLS

74.6-81.4 Nm

55-60 ft-lbs

Fork bracket pinch bolts,
lower, FLSTC, FLSTF/B,
FLSTN, FLS

33.9-40.7 Nm

25-30 ft-lbs

Fork bracket pinch bolt, upper,
FLSTC, FLSTF/B, FLSTN,
FLS

74.6-81.4 Nm

55-60 ft-lbs

Fork bracket pinch bolts,
lower, FLSTC, FLSTF/B,
FLSTN, FLS

Bearing Adjustment (Fall-away)

Support motorcycle upright so the front end is completely
suspended and the vehicle is level.

Remove all accessory weight, such as a windshield, that
may influence the way the front end swings. If clutch cable
is routed so it pulls the front end one way or the other,
disconnect it.

sm07287

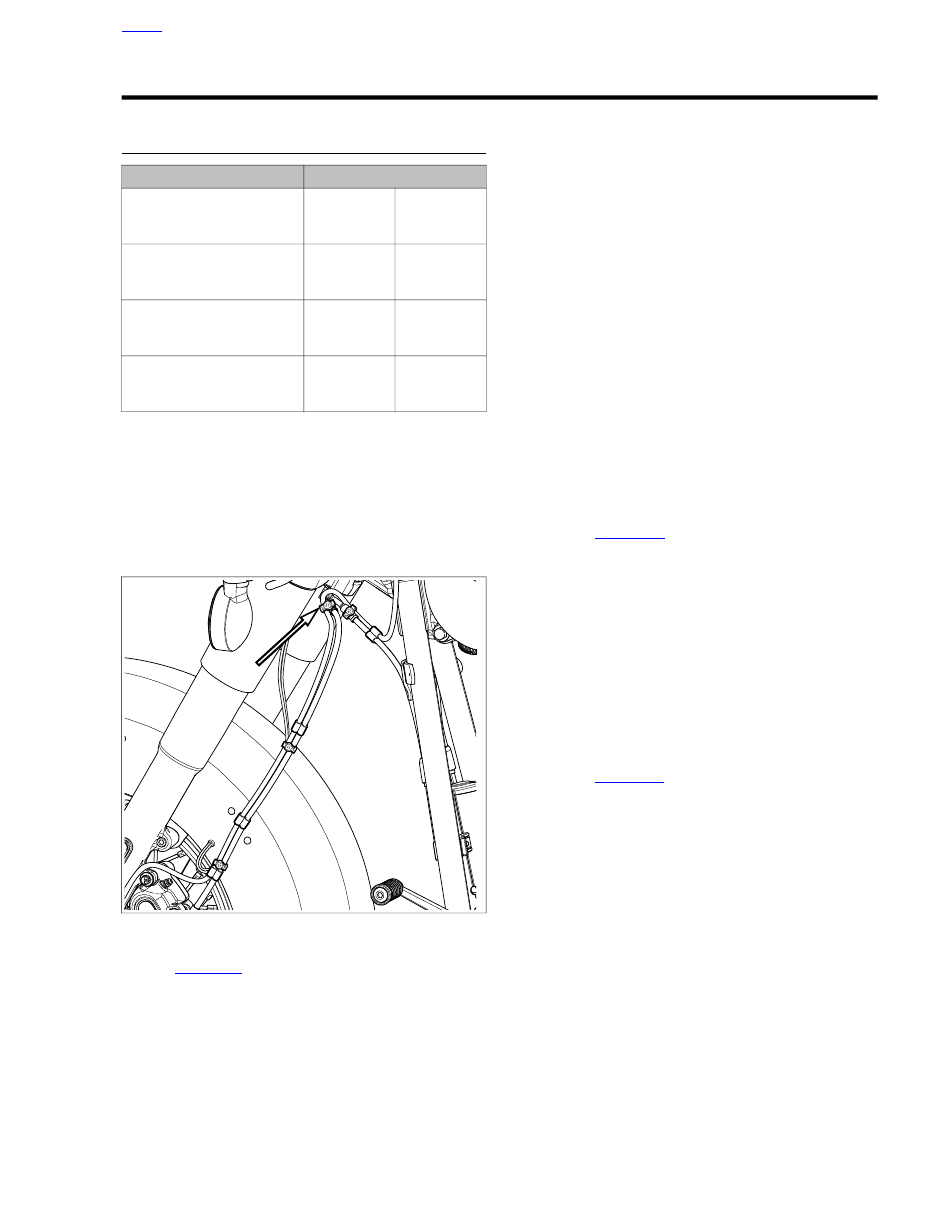

Figure 1-41. Front ABS Brake Line

See

Figure 1-41

ABS models:

disconnect brake line from

steering head.

Place a suitable marking material, such as masking tape,
over the fender tip.

Install a pointer so the base is stationary on the floor and
the pointer indicates the center of the fender. The front
end should be straight ahead, however the balance point
may be slightly off center.

Check steering head bearing tension.

Rotate the front end from steering stop to steering
stop three times. Center front end moving from the
left steering stop to the center.

Tap the fender on right side toward the left steering
stop until the front end begins to fall-away by itself.
Label this point on the marking material.

Rotate the front end from steering stop to steering
stop three times. Center front end moving from the
right steering stop to the center.

Repeat steps a through d until the points become
consistent.

Measure distance between the two marks. This is the
fall-away measurement.

The distance between the fall-away marks must be 1.0-
2.0 in. (25.4-50.8 mm).

If the distance exceeds 2.0 in. (50.8 mm), proceed to
step 8.

If it is less than 1.0 in. (25.4 mm), proceed to step 9.

Distance exceeds 2.0 in. (50.8 mm).

See

Figure 1-42

. Loosen the upper fork stem pinch

bolt (4).

Loosen lower fork bracket pinch bolts.

Loosen the fork stem bolt (2) slightly.

Tighten the upper fork bracket pinch bolt to 25-30 ft-
lbs (33.9-40.7 Nm).

Tighten the lower fork bracket pinch bolts to 55-60 ft-
lbs (74.6-81.4 Nm).

Repeat procedure to determine if fall-away is within
specifications.

Distance is less than 1.0 in. (25.4 mm).

See

Figure 1-42

. Loosen the pinch bolt (4).

Loosen lower fork bracket pinch bolts.

Tighten the fork stem bolt (2) slightly.

Tighten the upper fork bracket pinch bolt to 25-30 ft-
lbs (33.9-40.7 Nm).

Tighten the lower fork bracket pinch bolts to 55-60 ft-
lbs (74.6-81.4 Nm).

Repeat procedure to determine if fall-away is within
specifications.

NOTE

If adjustment seems to have no impact, check to see if fork
tubes are stuck in clamps. If necessary, strike tubes with a
dead blow hammer to free. Test steering head bearing tension
after freeing forks.

HOME

2013 Softail Service: Maintenance 1-45

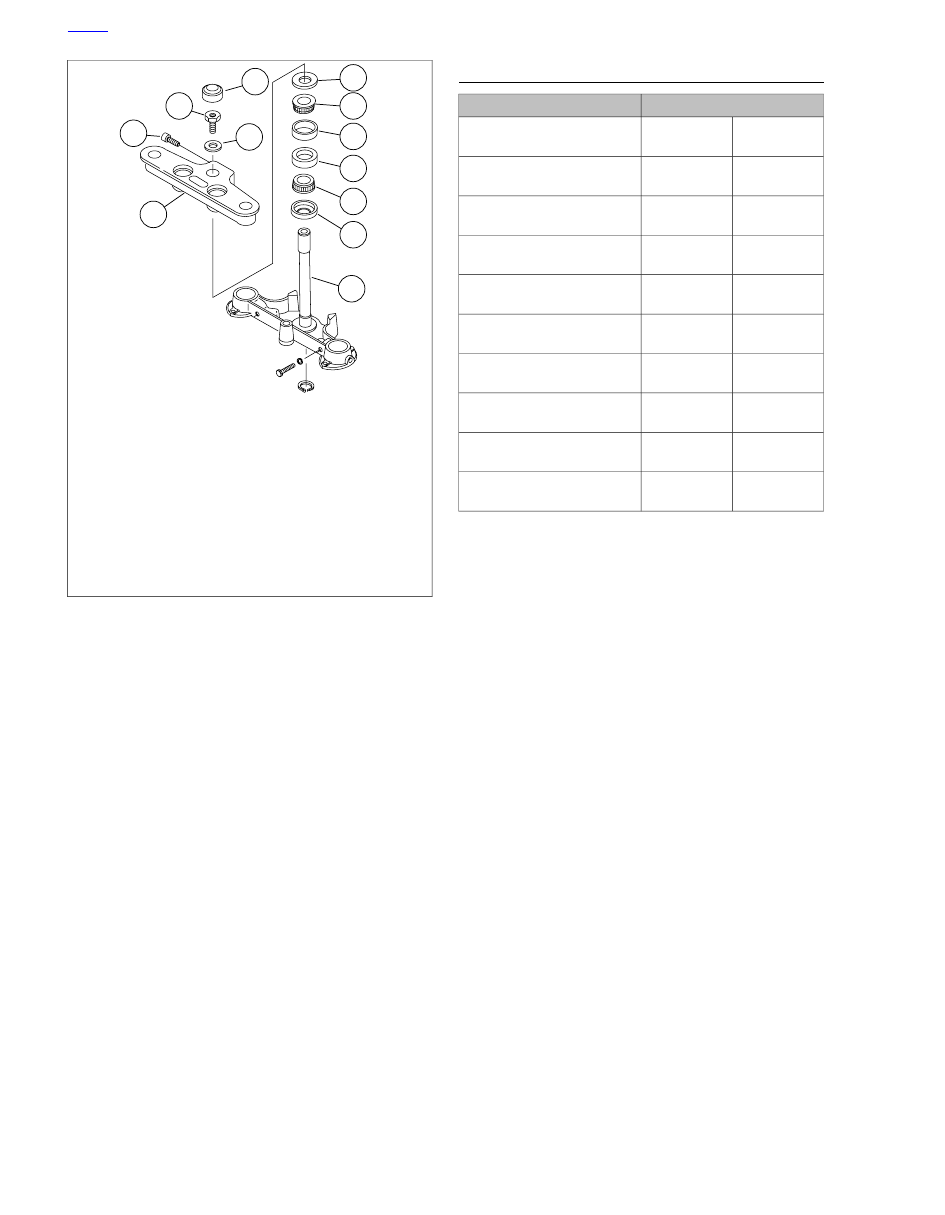

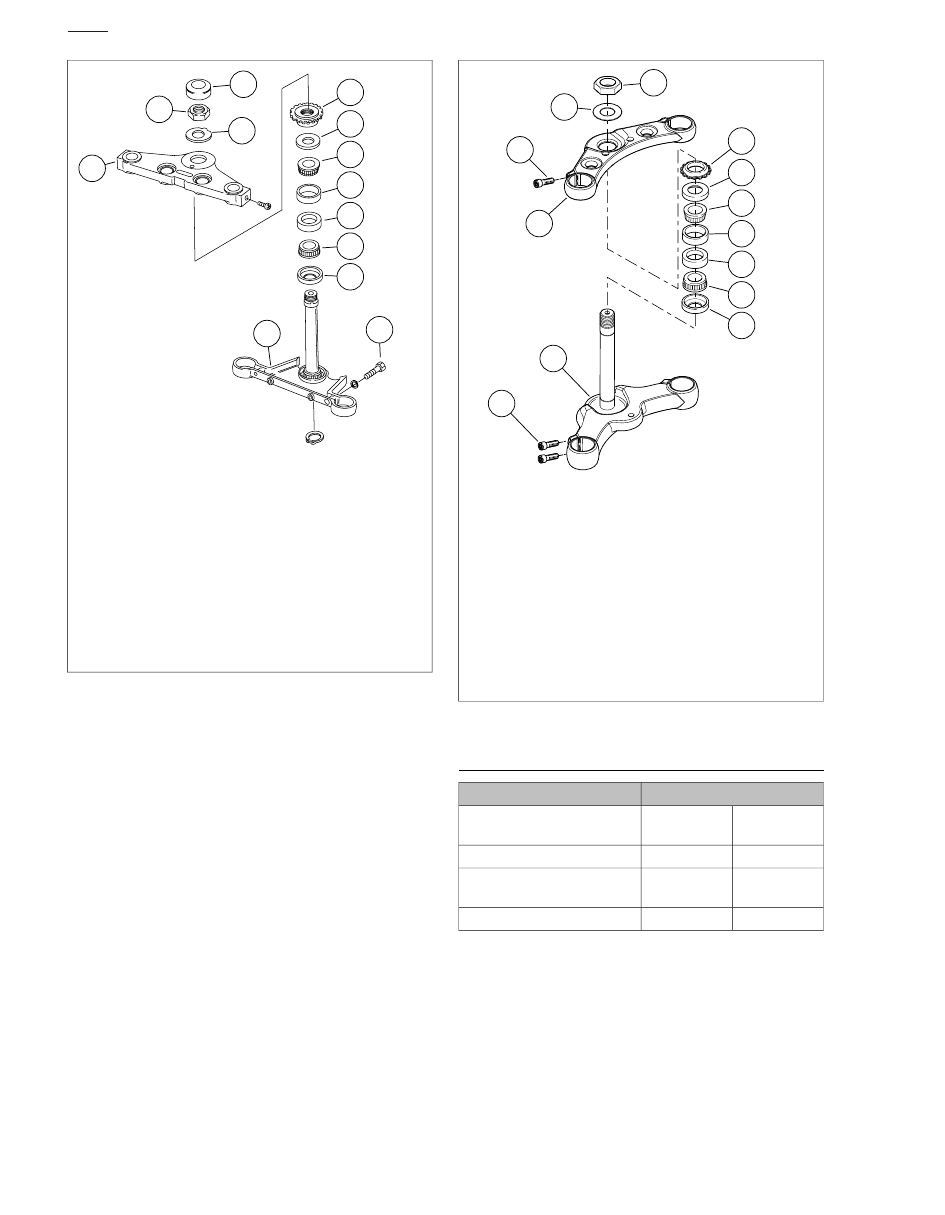

sm03245

1. Fork stem cap
2. Fork stem bolt
3. Washer
4. Pinch bolt
5. Upper bracket
6. Upper dust shield
7. Upper bearing
8. Upper bearing race
9. Lower bearing race
10. Lower bearing
11. Lower dust shield
12. Fork stem and bracket

Figure 1-42. Steering Head: FLSTC, FLSTF/B, FLSTN, FLS

ADJUSTMENT: FXST, FXS

TORQUE VALUE

FASTENER

94.9-108.4

70-80 ft-lbs

Fork stem nut

74.6-81.4 Nm

55-60 ft-lbs

Fork bracket pinch bolt, lower,
FXST

94.9-108.4

70-80 ft-lbs

Fork stem nut

16.3-21.7 Nm

12-16 ft-lbs

Fork bracket pinch bolt, lower,
1st torque, FXS

16.3-21.7 Nm

12-16 ft-lbs

Fork bracket pinch bolt, lower,
final torque, FXS

94.9-108.4

70-80 ft-lbs

Fork stem nut

74.6-81.4 Nm

55-60 ft-lbs

Fork bracket pinch bolt, lower,
FXST

94.9-108.4

70-80 ft-lbs

Fork stem nut

16.3-21.7 Nm

12-16 ft-lbs

Fork bracket pinch bolt, lower,
1st torque, FXS

16.3-21.7 Nm

12-16 ft-lbs

Fork bracket pinch bolt, lower,
final torque, FXS

Bearing Adjustment (Fall-away)

Support motorcycle in an upright position so the front end
is completely suspended and the vehicle is level.

Remove all accessory weight, such as a windshield, that
may influence the way the front end swings. If clutch cable
is routed so it pulls the front end one way or the other,
disconnect it.

If equipped with ABS brakes, disconnect brake line from
steering head.

Place a suitable marking material, such as masking tape,
over the fender tip.

Check steering head bearing tension.

Rotate the front end from steering stop to steering
stop three times and then center the front end.

Tap the fender on one side until the front end begins
to "fall-away" by itself. Label this point on the marking
material.

Repeat the previous step in the other direction.

Repeat until marks are consistent. If marks vary, use
the average.

Measure distance between marks.

The distance between the "fall-away" marks must be 1.0-
2.0 in. (25.4-50.8 mm). If "fall-away is not within specifica-
tions, see next steps.

HOME

1-46 2013 Softail Service: Maintenance

FXST

If the distance exceeds 2.0 in. (50.8 mm).

See

Figure 1-43

. Loosen the upper fork stem bracket

pinch bolts (5).

Loosen the lower fork stem pinch bolts.

Loosen the fork stem nut (2).

Loosen the bearing adjustment nut (6) slightly.

Tighten the fork stem nut to 70-80 ft-lbs (94.9-108.4
Nm).

Tighten lower fork bracket pinch bolts to 55-60 ft-lbs
(74.6-81.4 Nm).

Repeat procedure to determine if fall-away is within
specifications.

FXS

If the distance exceeds 2.0 in. (50.8 mm).

Remove

speedometer

but

not

disconnect

speedometer wiring. See

7.26 SPEEDOMETER

Protect and secure speedometer.

See

Figure 1-44

. Loosen the lower fork stem pinch

bolts (13).

Loosen the fork stem nut (1).

Loosen the bearing adjustment nut (5) slightly.

Tighten the fork stem nut to 70-80 ft-lbs (94.9-108.4
Nm).

Tighten lower fork bracket pinch bolts to 12-16 ft-lbs
(16.3-21.7 Nm).

Loosen lower fork bracket pinch bolts.

Final tighten lower fork bracket pinch bolts to 12-16
ft-lbs (16.3-21.7 Nm).

Install speedometer. See

7.26 SPEEDOMETER

Repeat procedure to determine if fall-away is within
specifications.

10.

FXST

If the distance is less than 1.0 in. (25.4 mm).

See

Figure 1-43

. Loosen the upper fork stem bracket

pinch bolts (5).

Loosen the lower fork stem pinch bolts.

Loosen the fork stem nut (2).

Tighten the bearing adjustment nut (6) slightly.

Tighten the fork stem nut to 70-80 ft-lbs (94.9-108.4
Nm).

Tighten lower fork bracket pinch bolts to 55-60 ft-lbs
(74.6-81.4 Nm).

Repeat procedure to determine if fall-away is within
specifications.

11.

FXS

If the distance is less than 1.0 in. (25.4 mm).

Remove

speedometer

but

not

disconnect

speedometer wiring. See

7.26 SPEEDOMETER

Protect and secure speedometer.

See

Figure 1-44

. Loosen the lower fork stem pinch

bolts (13).

Loosen the fork stem nut (1).

Tighten the bearing adjustment nut (5) slightly.

Tighten the fork stem nut to 70-80 ft-lbs (94.9-108.4
Nm).

Tighten lower fork bracket pinch bolts to 12-16 ft-lbs
(16.3-21.7 Nm).

Final tighten lower fork bracket pinch bolts to 12-16
ft-lbs (16.3-21.7 Nm).

Install speedometer. See

7.26 SPEEDOMETER

Repeat procedure to determine if fall-away is within
specifications.

NOTE

HOME

2013 Softail Service: Maintenance 1-47

sm03246

1. Fork stem cap
2. Fork stem nut
3. Lockwasher
4. Upper bracket
5. Pinch bolt
6. Adjusting nut
7. Upper dust shield
8. Upper bearing
9. Upper bearing race
10. Lower bearing race
11. Lower bearing
12. Lower dust shield
13. Fork stem and bracket

Figure 1-43. Steering Head: FXST

sm07160

1. Fork stem nut
2. Washer
3. Upper bracket pinch bolt (2)
4. Upper bracket
5. Adjusting nut
6. Upper dust shield
7. Upper bearing
8. Upper bearing race
9. Lower bearing race
10. Lower bearing
11. Lower dust shield
12. Fork stem and bracket
13. Lower bracket pinch bolt (4)

Figure 1-44. Steering Head: FXS

ADJUSTMENT: FXSB

TORQUE VALUE

FASTENER

94.9-108.4

70-80 ft-lbs

Fork stem nut

40.7-47.5 Nm

30-35 ft-lbs

Fork bracket pinch bolt, lower

94.9-108.4

70-80 ft-lbs

Fork stem nut

40.7-47.5 Nm

30-35 ft-lbs

Fork bracket pinch bolt, lower

Bearing Adjustment (Fall-away)

Support motorcycle in an upright position. make sure front
end is completely suspended and the vehicle is level.

Remove all accessory weight, such as a windshield, that
may influence the way the front end swings.

ABS models:

disconnect brake line from steering head.

Place a suitable marking material, such as masking tape,
over the fender tip.

HOME

1-48 2013 Softail Service: Maintenance

Check steering head bearing tension.

Rotate the front end from steering stop to steering
stop three times and then center the front end.

Tap the fender on one side until the front end begins
to "fall-away" by itself. Label this point on the marking
material.

Repeat the previous step in the other direction.

Repeat until marks are consistent. If marks vary, use
the average.

Measure distance between marks.

The distance between the "fall-away" marks must be 2.0-
4.0 in. (50.8-101.6 mm). If "fall-away" is not within specific-
ations, see next steps.

If the distance exceeds 4.0 in. (101.6 mm).

See

Figure 1-45

. Loosen the lower pinch bolts (5).

Remove fork stem cap (1).

Loosen the fork stem nut (2).

Loosen the bearing adjustment nut (4) slightly.

Tighten the fork stem nut to 70-80 ft-lbs (94.9-108.4
Nm).

Tighten pinch bolts to 30-35 ft-lbs (40.7-47.5 Nm).

Install fork stem cap (1).

Repeat procedure to determine if fall-away is within
specifications.

If the distance is less than 2.0 in. (50.8 mm).

See

Figure 1-45

. Loosen lower pinch bolts (5).

Remove fork stem cap (1).

Loosen fork stem nut (2).

Tighten bearing adjustment nut (4) slightly.

Tighten fork stem nut to 70-80 ft-lbs (94.9-108.4 Nm).

Tighten lower pinch bolts to 30-35 ft-lbs (40.7-47.5
Nm).

Install fork stem cap (1).

Repeat procedure to determine if fall-away is within
specifications.

NOTE

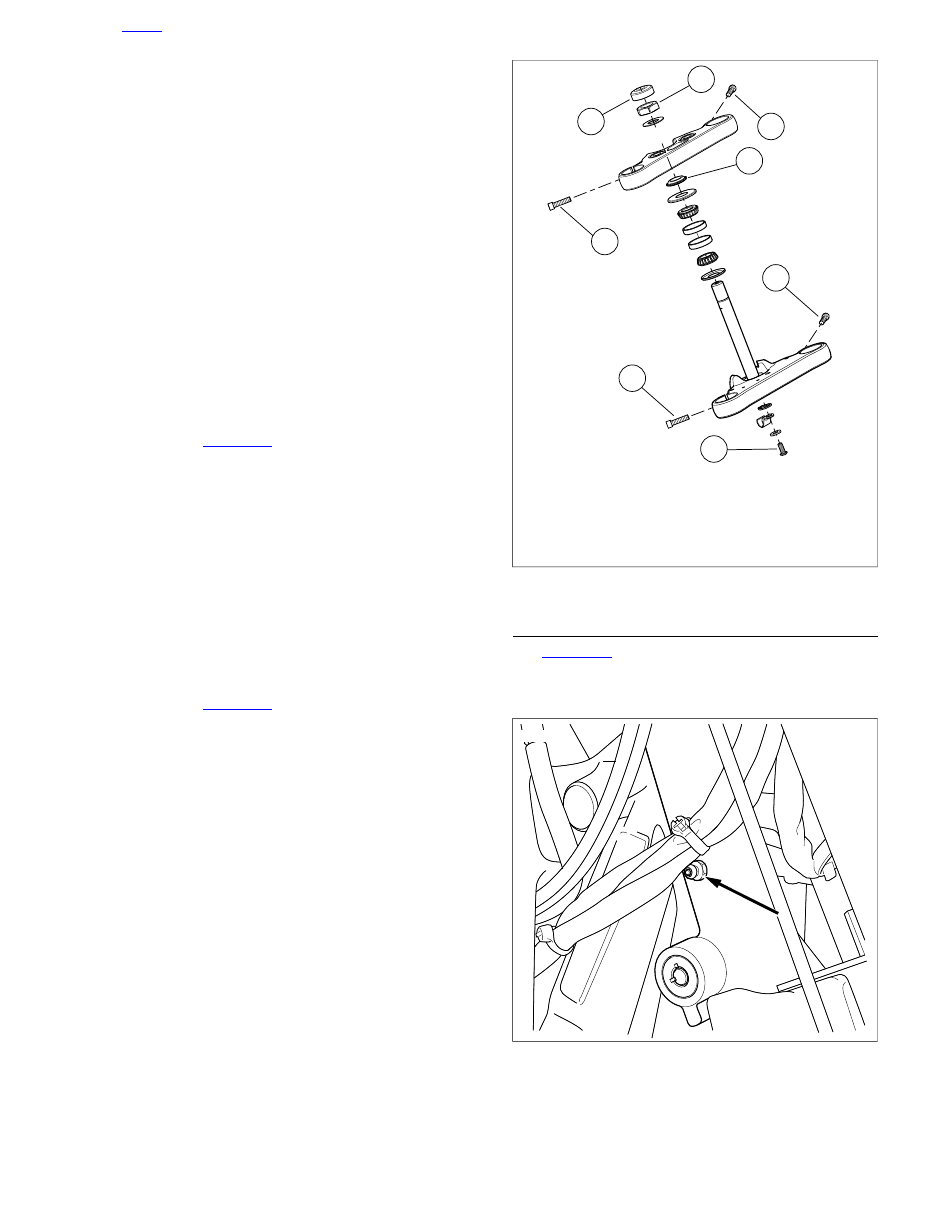

sm07676

1. Fork stem cap
2. Fork stem nut
3. Upper pinch bolts
4. Adjusting nut
5. Lower pinch bolts
6. Clamp fastener

Figure 1-45. Steering Head: FXSB

LUBRICATION

See

Figure 1-46

. Use SPECIAL PURPOSE GREASE every

10,000 mile (16,000 km) service interval. Fill grease fitting on
steering neck until grease begins to come out the top and
bottom of the steering head.

sm03087

Figure 1-46. Grease Fitting

HOME

2013 Softail Service: Maintenance 1-49

1.19

CRITICAL FASTENERS

INSPECTION

Checking Fastener Torque

Inspect critical fasteners at the scheduled service intervals.
Replace any damaged or missing fasteners.

Attempt to turn the fastener using a torque wrench set to
the minimum torque specification for that fastener. Refer
to

Table 1-17

If the fastener does not rotate, the fastener torque
has been maintained. No further attention is neces-
sary.

If the fastener rotates, remove it to determine if it has
a locking agent.

If it has a locking agent, clean all locking material from
the threaded hole. Replace the fastener with a

new

one or clean the original fastener threads and apply
the appropriate locking agent (see appropriate pro-
cedure).

Install fastener. Tighten to specification.

If the fastener does not have a locking agent, install
fastener. Tighten to specification.

Table 1-17. Critical Fasteners

TORQUE

FASTENER

SYSTEM

3.9-5.1 Nm

35-45

in-lbs

Upper and lower switch housing screws

Hand controls

6.8-9.0 Nm

60-80

in-lbs

Clutch lever handlebar clamp screws

6.8-9.0 Nm

60-80

in-lbs

Master cylinder handlebar clamp screws

23.1-29.9 Nm

17-22 ft-lbs

Banjo bolts (all but front and rear HCU)

Brakes

13.6-16.3 Nm

120-144

in-lbs

Banjo bolts (front and rear HCU)

38.0-51.5 Nm

28-38 ft-lbs

Front brake caliper mounting bolts

20.3-22.6 Nm

15-16 ft-lbs

Front brake bridge bolt/pad pin

13.6-18.9 Nm

120-168

in-lbs

Rear brake caliper mounting bolts

9.0-13.6 Nm

80-120

in-lbs

Rear brake pad pin

21.7-32.5 Nm

16-24 ft-lbs

Brake disc screws, front

40.7-61.0 Nm

30-45 ft-lbs

Brake disc screws, rear

1.4-1.7 Nm

12-15

in-lbs

Reservoir cover screws: front

0.7-0.9 Nm

6-8

in-lbs

Reservoir cover screws: rear

40.7-54.2 Nm

30-40 ft-lbs

Rear master cylinder mounting nut

95.0-101.8 Nm

70-75 ft-lbs

Front axle

Axle nuts

128.1-142.4 Nm

95-105 ft-lbs

Rear axle

74.6-81.4 Nm

55-60 ft-lbs

Lower fork pinch bolts: all but FXS

Front fork/handlebars

16.3-21.7 Nm

12-16 ft-lbs

Lower fork pinch bolts: FXS

40.7-47.5 Nm

30-35 ft-lbs

Fork pinch bolts: FXSB

33.9-40.7 Nm

25-30 ft-lbs

Upper bracket pinch bolt: FLSTC, FLSTN, FLS, FLSTF/B

16.3-20.3 Nm

12-15 ft-lbs

Handlebar clamp mounting screws

40.7-54.2 Nm

30-40 ft-lbs

Lower clamp (riser) bolts

HOME

1-50 2013 Softail Service: Maintenance

1.20

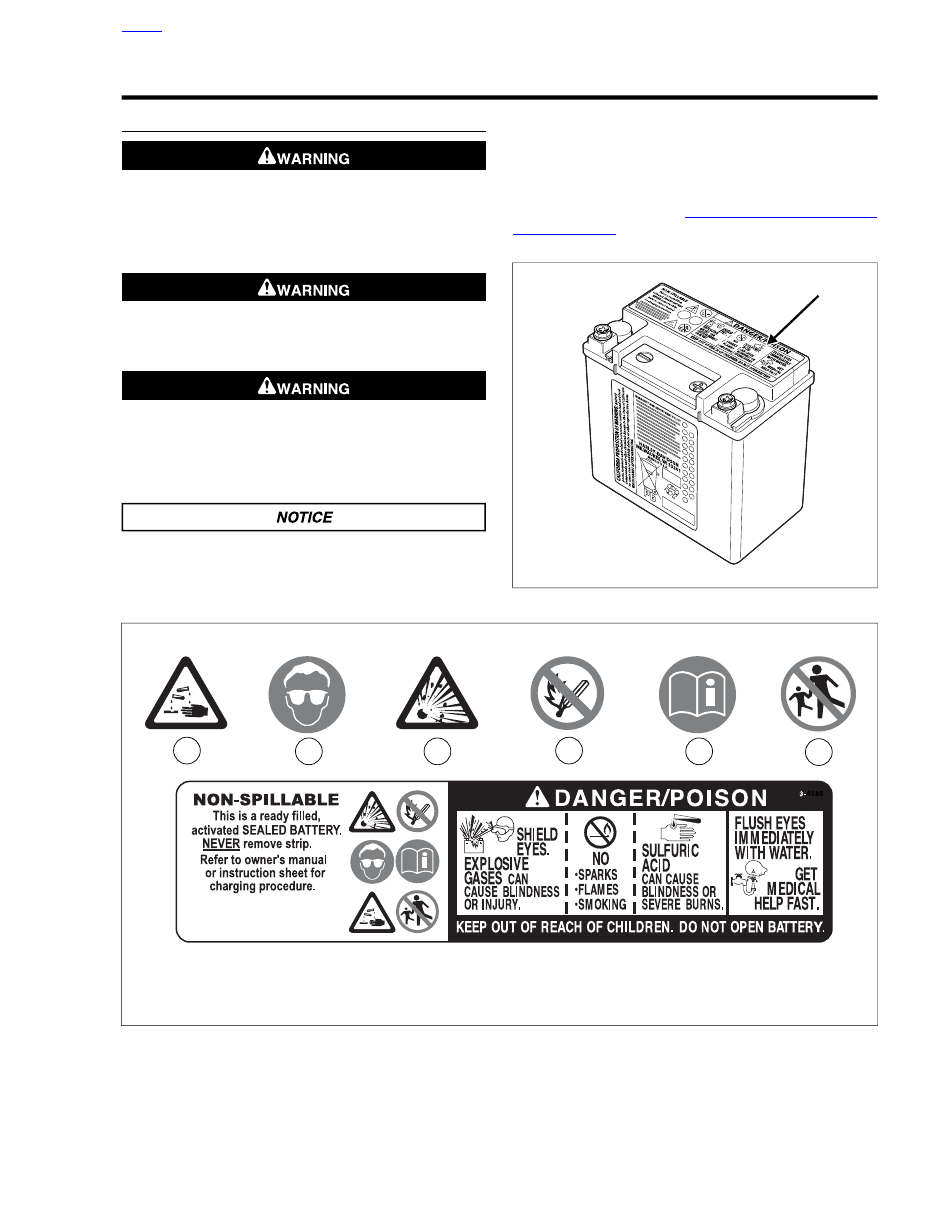

BATTERY MAINTENANCE

GENERAL

Batteries contain sulfuric acid, which could cause severe
burns to eyes and skin. Wear a protective face shield,
rubberized gloves and protective clothing when working
with batteries. KEEP BATTERIES AWAY FROM CHILDREN.
(00063a)

Never remove warning label attached to top of battery.
Failure to read and understand all precautions contained
in warning, could result in death or serious injury. (00064a)

Batteries, battery posts, terminals and related accessories
contain lead and lead compounds, and other chemicals
known to the State of California to cause cancer, and birth
defects or other reproductive harm. Wash hands after
handling. (00019e)

Keep battery clean and lightly coat terminals with petro-
leum jelly to prevent corrosion. Failure to do so could
result in damage to battery terminals. (00217a)

AGM batteries are permanently sealed, maintenance-free,
valve-regulated, lead/calcium and sulfuric acid batteries. The
batteries are shipped pre-charged and ready to be put into
service. Do not attempt to open these batteries for any reason.

NOTE

For charging information, see

1.20 BATTERY MAINTENANCE,

Charging Battery

. For testing information, see the electrical

diagnostic manual.

om01163

Figure 1-47. Battery Warning Label

sm02241

Keep flames away

Contents are corrosive

Wear safety glasses

Read instructions

Keep away from children

Contents are explosive

Figure 1-48. Battery Warning Label

HOME

2013 Softail Service: Maintenance 1-51

Table 1-18. Antidotes for Battery Acid

TREATMENT

CONTACT

Flush with water.

External

Drink large quantities of milk or water, followed
by milk of magnesia, vegetable oil or beaten
eggs. Get immediate medical attention.

Internal

Flush with water. Get immediate medical
attention.

Eyes

CLEANING AND INSPECTION

NOTE

Battery top must be clean and dry. Dirt and electrolyte on top
of the battery causes battery to self-discharge.

Clean battery top with a solution of baking soda (sodium
bicarbonate) and water (5 teaspoons baking soda per
quart or liter of water).

When the solution stops bubbling, rinse off the battery with
clean water.

Clean cable connectors and battery terminals using a wire
brush or sandpaper. Remove any oxidation.

Inspect the battery screws, and cables for breakage, loose
connections and corrosion.

Check the battery terminals for melting or damage caused
by over-tightening.

Inspect the battery for discoloration, raised top or a warped
or distorted case. This might indicate that the battery has
been frozen, overheated or overcharged.

Inspect the battery case for cracks or leaks.

VOLTMETER TEST

Never remove warning label attached to top of battery.
Failure to read and understand all precautions contained
in warning, could result in death or serious injury. (00064a)

Voltmeter Test

The voltmeter test provides a general indicator of battery con-
dition. Check the voltage of the battery to verify that it is fully
charged.

If the open circuit (disconnected) voltage reading is below
12.6 V:

Charge the battery.

Check the voltage after the battery has set for at least
one hour.

If the voltage reading is 12.7 V or above:

Perform a battery diagnostic test. See the electrical
diagnostic manual for the load test procedure.

Refer to

Table 1-19

Table 1-19. Voltmeter Test For Battery Charge Conditions

STATE OF CHARGE

VOLTAGE (OCV)

100%

12.7 V

75%

12.6 V

50%

12.3 V

25%

12.0 V

11.8 V

CHARGING BATTERY

Safety Precautions

An automatic, constant monitoring battery charger/tender with
a charging rate of 5 amps or less at less than 14.6 volts is
recommended. The use of constant current chargers (including
trickle chargers) to charge sealed AGM batteries is not
recommended.

Any overcharge will cause dry-out and premature battery
failure. Always review charger instructions before charging a
battery. In addition to the manufacturer's instructions, follow
these general safety precautions:

•

Always wear eye, face and hand protection.

•

Always charge batteries in a well-ventilated area.

•

Turn the charger off before connecting or disconnecting
the leads to the battery to avoid dangerous sparks.

•

Never try to charge a visibly damaged or frozen battery.

•

Connect the charger leads to the battery. Red positive
lead to the positive terminal. Black negative lead to the
negative terminal. If the battery is still in the vehicle, con-
nect the negative lead to the chassis ground. Verify that
the ignition and all electrical accessories are turned off.

•

Verify that charger leads to battery are not separated,
frayed or loose.

•

If the battery temperature exceeds 110 °F (43 °C) during
charging, discontinue charger and allow the battery to
cool.

Using a Battery Charger

Charge the battery if:

•

Vehicle lights appear dim.

•

Electric starter sounds weak.

•

Battery has not been used for an extended period of time.

Explosive hydrogen gas, which escapes during charging,
could cause death or serious injury. Charge battery in a
well-ventilated area. Keep open flames, electrical sparks
and smoking materials away from battery at all times.
KEEP BATTERIES AWAY FROM CHILDREN. (00065a)

HOME

1-52 2013 Softail Service: Maintenance

If battery releases an excessive amount of gas during
charging, decrease the charging rate. Overheating can
result in plate distortion, internal shorting, drying out or
damage. (00413b)

Check charge state with voltmeter test. If battery voltage
is less than 12.7 volts, see the next step.

NOTES

•

Most constant monitoring battery chargers are completely
automatic. They can be left connected to both AC power
and to the battery that is being charged. When leaving this
type of charger connected for extended periods of time,
periodically check the battery to see if it is unusually warm.
This is an indication that the battery may have a weak cell
or internal short. Read the manufacturer's instructions for
the charger.

•

Do not use battery chargers that produce excessively high
voltage designed for flooded batteries or excessively high
current designed for much larger batteries. Charging
should be limited to 5 amps maximum at no more than
14.6 volts.

Unplug or turn OFF battery charger before connecting
charger cables to battery. Connecting cables with charger
ON can cause a spark and battery explosion, which could
result in death or serious injury. (00066a)

Do not reverse the charger connections described in the
following steps or the charging system of the motorcycle
could be damaged. (00214a)

Connect red battery charger lead to the positive terminal
and black battery charger lead to the negative terminal of
the battery.

NOTE

If the battery is still in the vehicle, connect the negative lead
to the chassis ground. Be sure that the ignition and all electrical
accessories are turned off.

Step away from the battery and turn on the charger.

Unplug or turn OFF battery charger before disconnecting
charger cables from battery. Disconnecting clamps with
charger ON can cause a spark and battery explosion, which
could result in death or serious injury. (00067a)

After the battery is fully charged, turn the charger OFF.
Disconnect the black battery charger lead to the negative
terminal of the battery.

Disconnect the red battery charger lead to the positive
terminal of the battery.

Mark the charging date on the battery.

Perform a battery diagnostic test to determine the condition
of the battery. See the electrical diagnostic manual.

If charging a battery because voltmeter test reading was
below 12.6 V, perform voltmeter test. See the electrical
diagnostic manual.

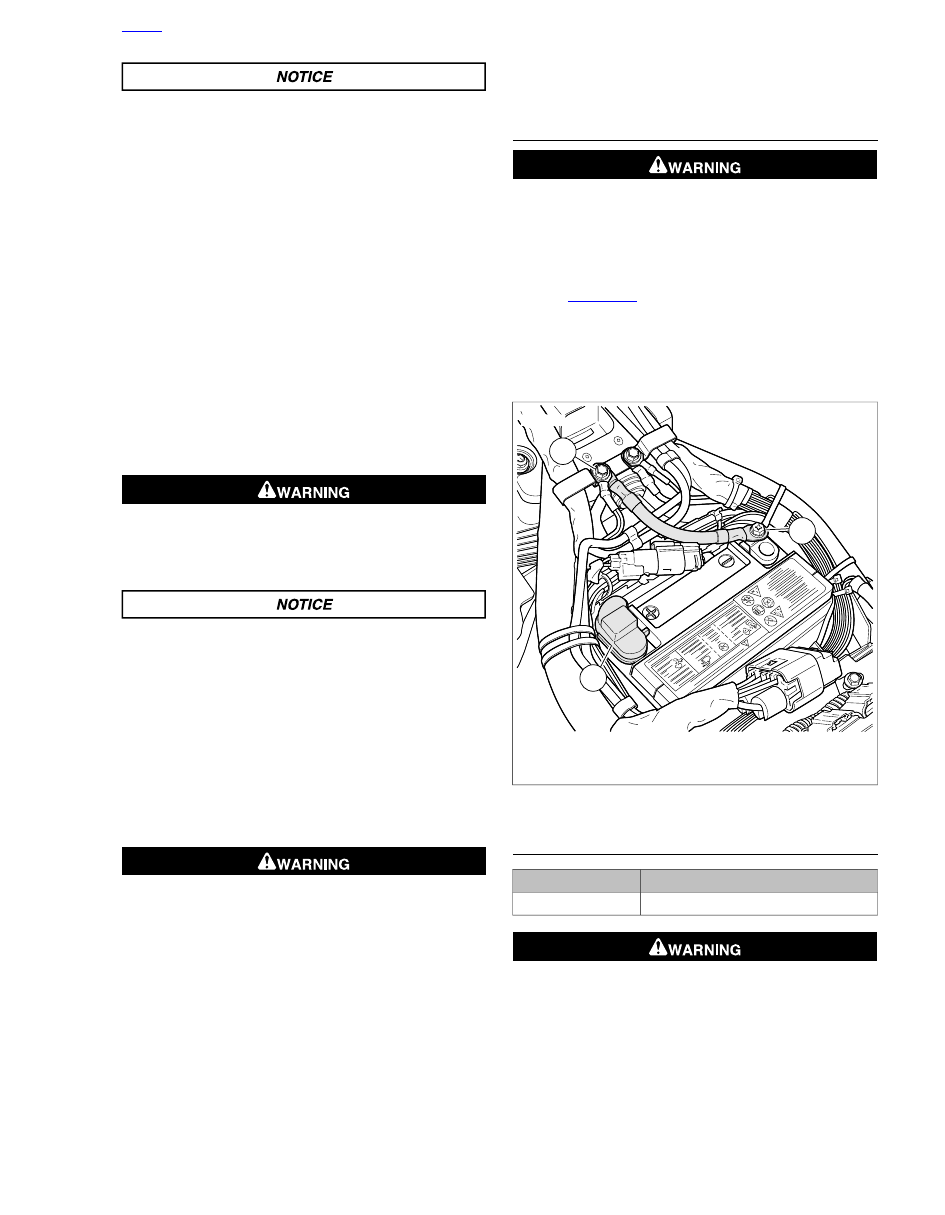

DISCONNECTION AND REMOVAL

Disconnect negative (-) battery cable first. If positive (+)
cable should contact ground with negative (-) cable con-
nected, the resulting sparks can cause a battery explosion,
which could result in death or serious injury. (00049a)

Remove the seat.

See

Figure 1-49

. Remove battery negative cable (black)

from battery negative (-) terminal.

Remove battery positive cable (red) from battery positive
(+) terminal.

Remove battery.

sm03813c

1. Battery frame ground
2. Negative battery cable
3. Positive battery cable

Figure 1-49. Battery Connections

STORAGE

TOOL NAME

PART NUMBER

GLOBAL BATTERY CHARGER

99863-01A

If the motorcycle is stored with the security system armed,
connect

automatic,

constant

monitoring

battery

HOME

2013 Softail Service: Maintenance 1-53

charger/tender to maintain battery charge. Refer to the Harley-
Davidson Parts and Accessories catalog.

If the motorcycle is stored with the battery installed, without a
GLOBAL BATTERY CHARGER, and with the security system

not

armed, remove main fuse.

If the motorcycle will not be operated for several weeks, such
as during the winter season, remove the battery from the
motorcycle and fully charge.

See

Figure 1-50

. A battery that is removed from the vehicle is

affected by self-discharge. A battery that is stored in the vehicle
is affected by self-discharge and, more significantly, by parasitic
loads. A parasitic load is caused by things like diode leakage
or maintaining computer memory with the vehicle turned off.

Batteries self-discharge at a faster rate at higher ambient
temperatures. To reduce the self-discharge rate, store battery
in a cool, dry place.

Charge the battery every two weeks if stored in the vehicle.
Charge the battery once per month if stored out of the vehicle.

NOTE

Use the GLOBAL BATTERY CHARGER (Part No. 99863-01A)
to maintain battery charge for extended periods of time without
risk of overcharging or boiling.

50 %

75 %

100 %

105 °F (40.5 °C)

77 °F (25 °C)

sm02838

1. Capacity
2. Months of non-use

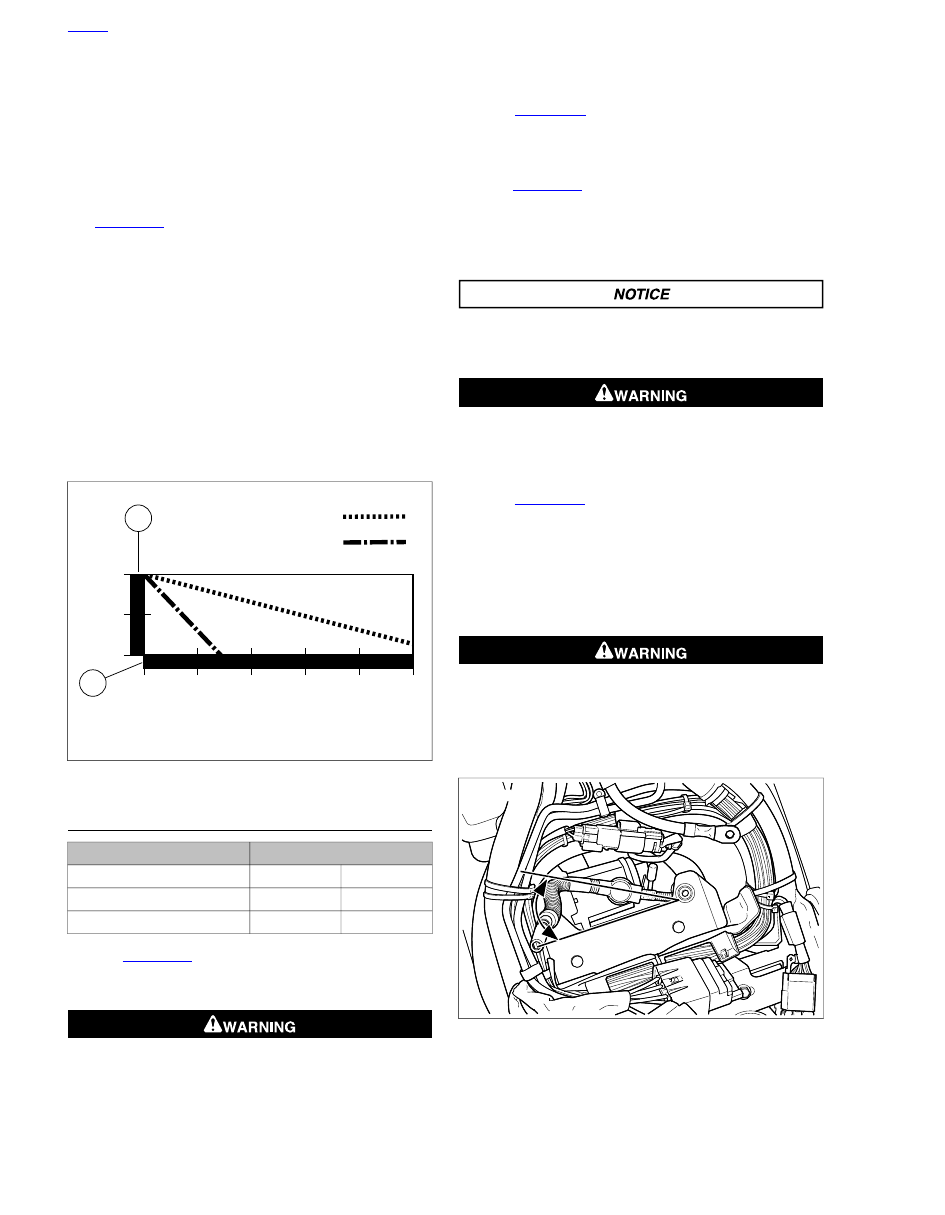

Figure 1-50. Battery Self-Discharge Rate

INSTALLATION AND CONNECTION

TORQUE VALUE

FASTENER

7.9-10.2 Nm

70-90

in-lbs

Starter nut

6.8-8.1 Nm

60-72

in-lbs

Battery terminal fasteners

6.8-8.1 Nm

60-72

in-lbs

Battery terminal fasteners

See

Figure 1-51

. Position positive battery cable properly

at starter. Cable end must face 35 +/-10 degrees forward
from left side of vehicle.

Be sure rubber boot covers starter solenoid terminal
connected to positive (+) battery cable. An uncovered ter-
minal can short and cause sparks, which could result in
a battery explosion and death or serious injury. (00463c)

Tighten starter nut to 70-90

in-lbs

(7.9-10.2 Nm). Cover

with boot.

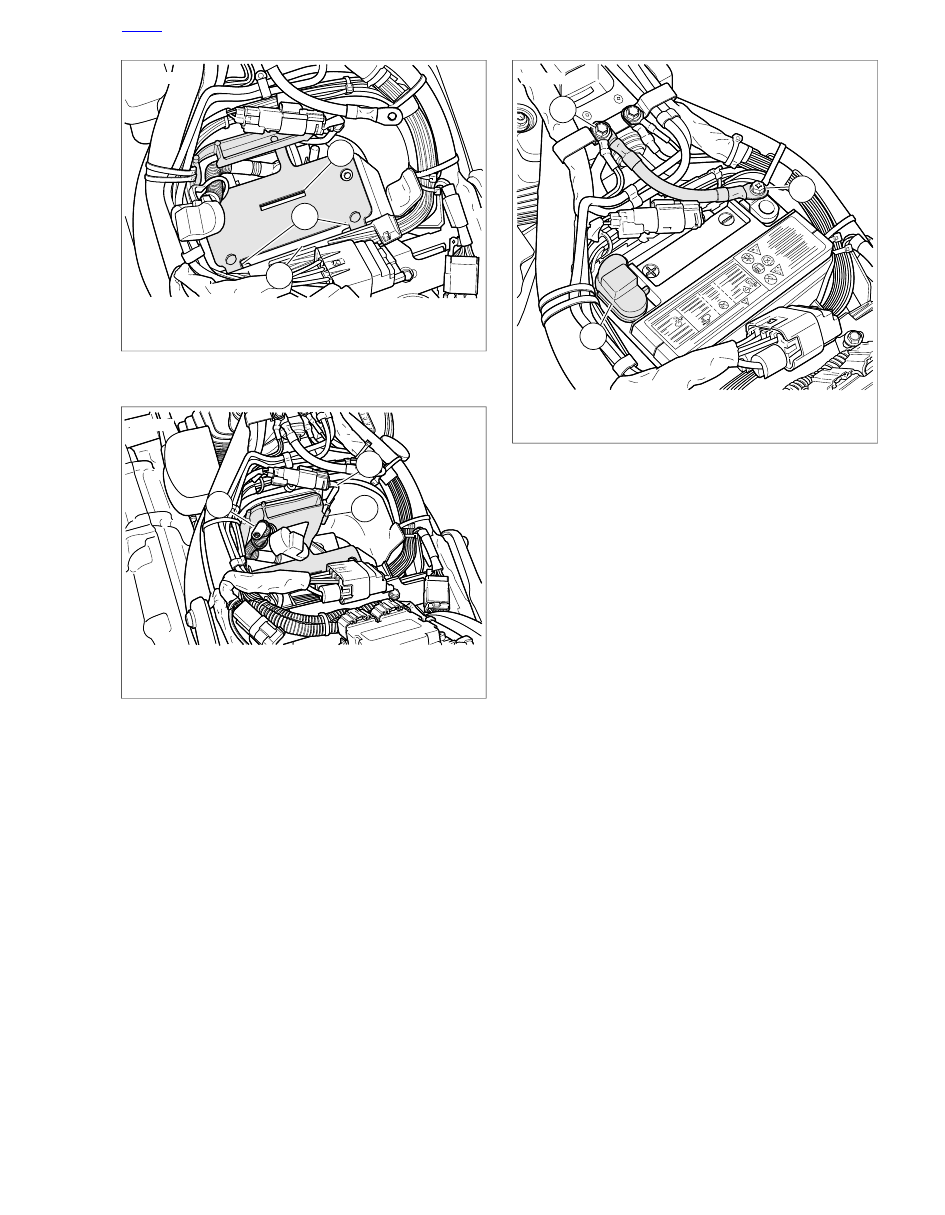

See

Figure 1-52

. Place battery caddy into position and

install battery caddy clip (1) under front of battery tray (3).
Make sure tabs (2) of battery caddy fit over rear of battery
tray.

See

Figure 1-53

. Install positive battery cable (1) into clip

in caddy. Place an S-shaped bend in the positive battery
cable at the starter end of the cable. This will help properly
position the terminal end for battery installation.

Route rear O2 sensor harness (2) through clip (3).

Connect the cables to the correct battery terminals. Failure
to do so could result in damage to the motorcycle electrical
system. (00215a)

Connect positive (+) battery cable first. If positive (+) cable
should contact ground with negative (-) cable connected,
the resulting sparks can cause a battery explosion, which
could result in death or serious injury. (00068a)

See

Figure 1-54

. Install battery. Tighten positive battery

terminal fastener to 60-72

in-lbs

(6.8-8.1 Nm).

Install negative battery cable at battery frame ground (1)
before any accessory ground wires.

Install negative battery cable (2) at battery. Tighten neg-
ative battery terminal fastener to 60-72

in-lbs

(6.8-8.1

Nm).

After installing seat, pull upward on seat to be sure it is
locked in position. While riding, a loose seat can shift
causing loss of control, which could result in death or
serious injury. (00070b)

Install seat.

sm03809b

Figure 1-51. Positive Battery Cable Routing

HOME

1-54 2013 Softail Service: Maintenance

1.21

HEADLAMP ALIGNMENT

The automatic-on headlamp feature provides increased
visibility of the rider to other motorists. Be sure headlamp
is on at all times. Poor visibility of rider to other motorists
can result in death or serious injury. (00030b)

NOTE

Adjust the headlamps of motorcycles with multiple beam
headlamps to converge into one pattern.

Check the tire pressure.

Adjust the rear shocks for the rider and intended load.

Fill fuel tank or add an equal amount of ballast.

NOTE

Choose a wall in minimum light.

See

Figure 1-55

. Park the motorcycle in a line (1) perpen-

dicular to the wall.

Position motorcycle so that front axle is 25 ft (7.6 m) from
wall.

Draw a vertical line (2) on the wall.

With the motorcycle loaded, point the front wheel straight
forward at wall. Measure the distance (4) from the floor to
the center of the high beam bulb.

Draw a horizontal line (5) through the vertical line on the
wall. Place line 2.1 in (53.3 mm) lower than the measured
bulb centerline.

NOTE

See

Figure 1-55

. The headlamp is aligned when the light beam

hot spot is located over the intersection of the lines.

With the high beam activated, verify headlamp alignment.
Adjust as necessary.

om00124

1. Perpendicular line
2. Vertical line
3. 25 ft (7.6 m)
4. High beam bulb centerline
5. Horizontal line 2.1 in (53.3 mm) lower than bulb

centerline

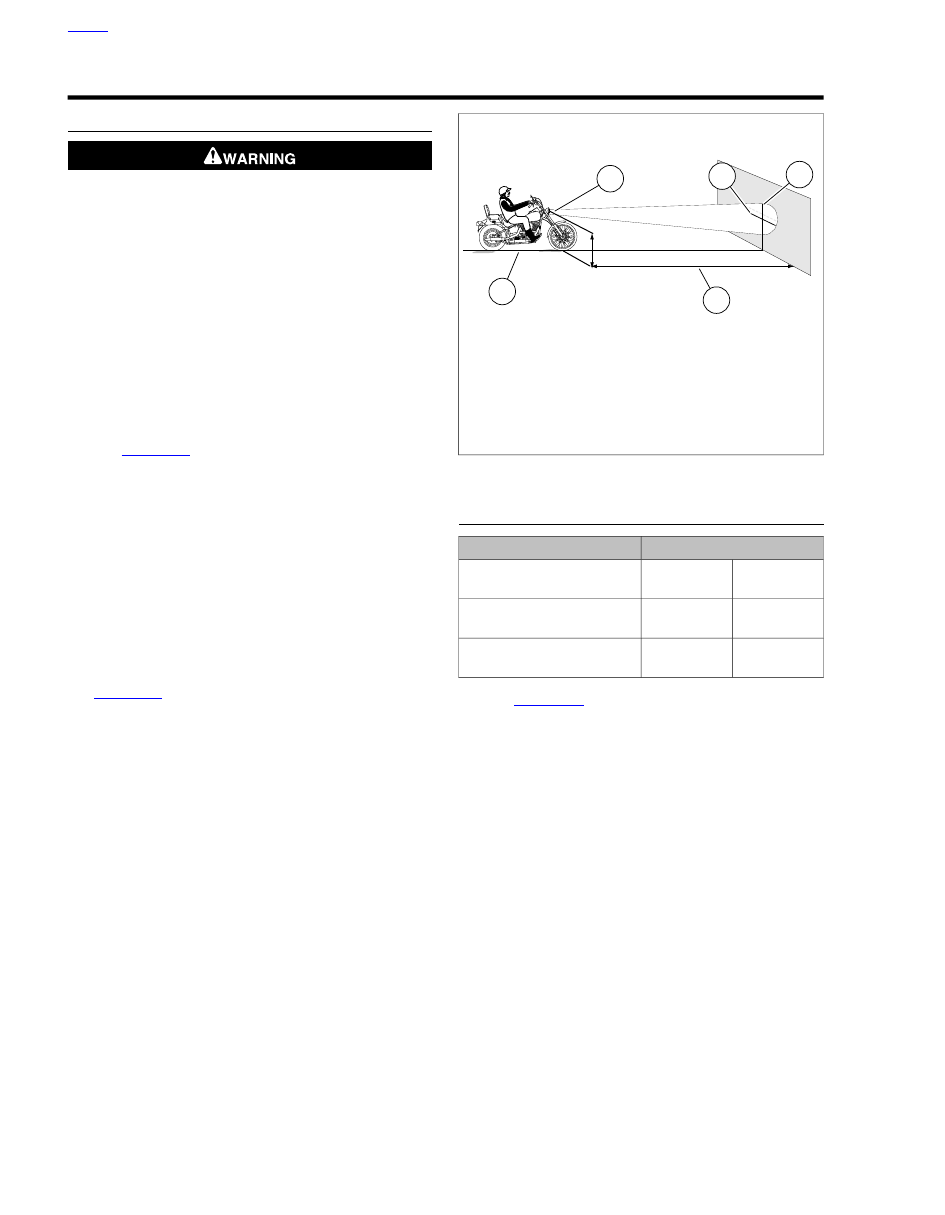

Figure 1-55. Headlamp Alignment

HEADLAMP ADJUSTMENT

TORQUE VALUE

FASTENER

40.7-47.5 Nm

30-35 ft-lbs

Headlamp horizontal adjust-
ment fastener

40.7-47.5 Nm

30-35 ft-lbs

Headlamp vertical adjusting
bolt: FXS, FXSB

47.5-61.0 Nm

35-45 ft-lbs

Headlamp vertical adjusting
bolt: Except FXS, FXSB

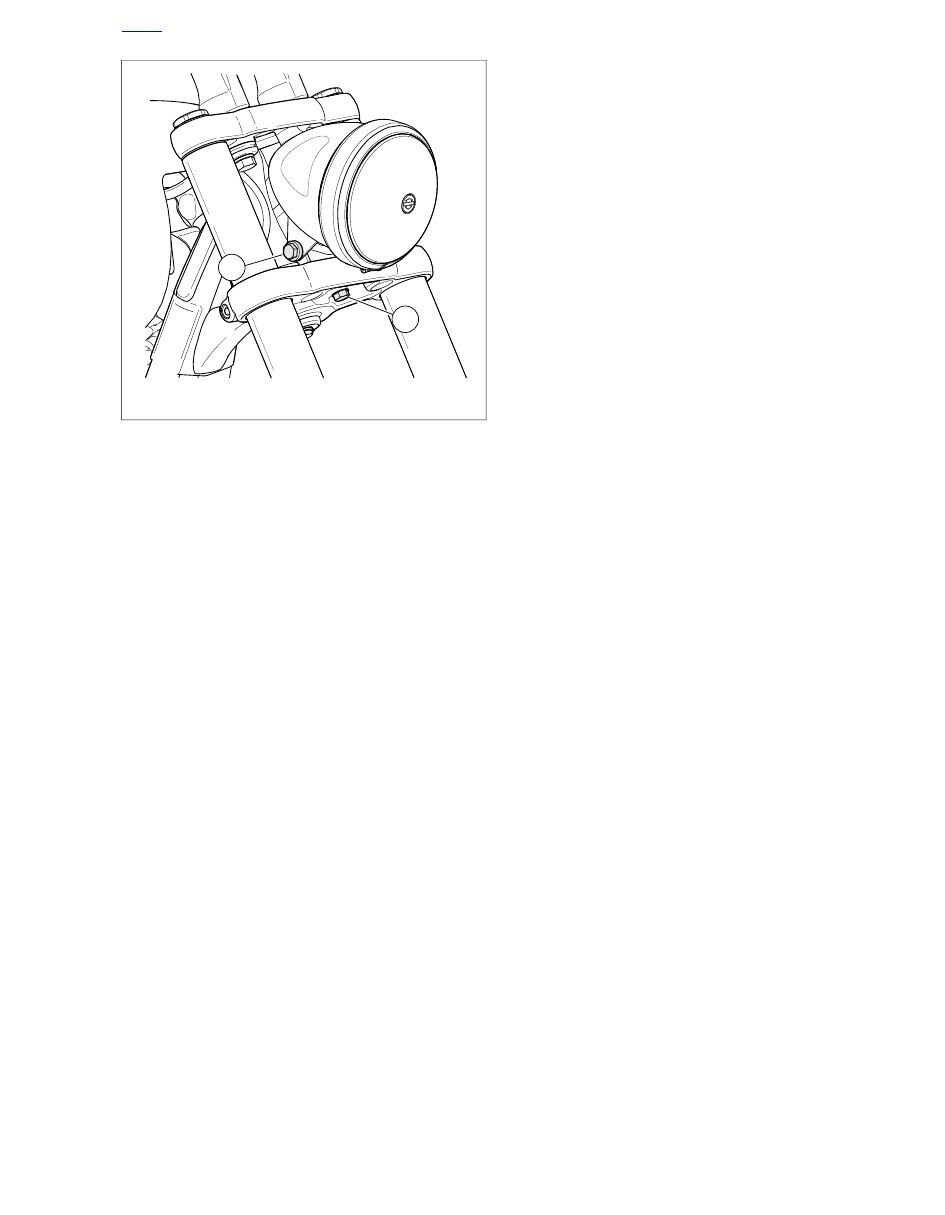

See

Figure 1-56

. Loosen horizontal adjustment fastener

(2). Tilt headlamp left or right to direct light beam straight
ahead.

Tighten horizontal adjustment fastener (2) to 30-35 ft-lbs
(40.7-47.5 Nm).

Loosen vertical adjustment fastener (1). Tilt headlamp up
or down in relationship to the horizontal line from the
headlamp alignment inspection.

Tighten vertical adjustment fastener (1) to:

FXS, FXSB:

30-35 ft-lbs (40.7-47.5 Nm).

All but FXS, FXSB:

35-45 ft-lbs (47.5-61.0 Nm).

HOME

1-56 2013 Softail Service: Maintenance

1.22

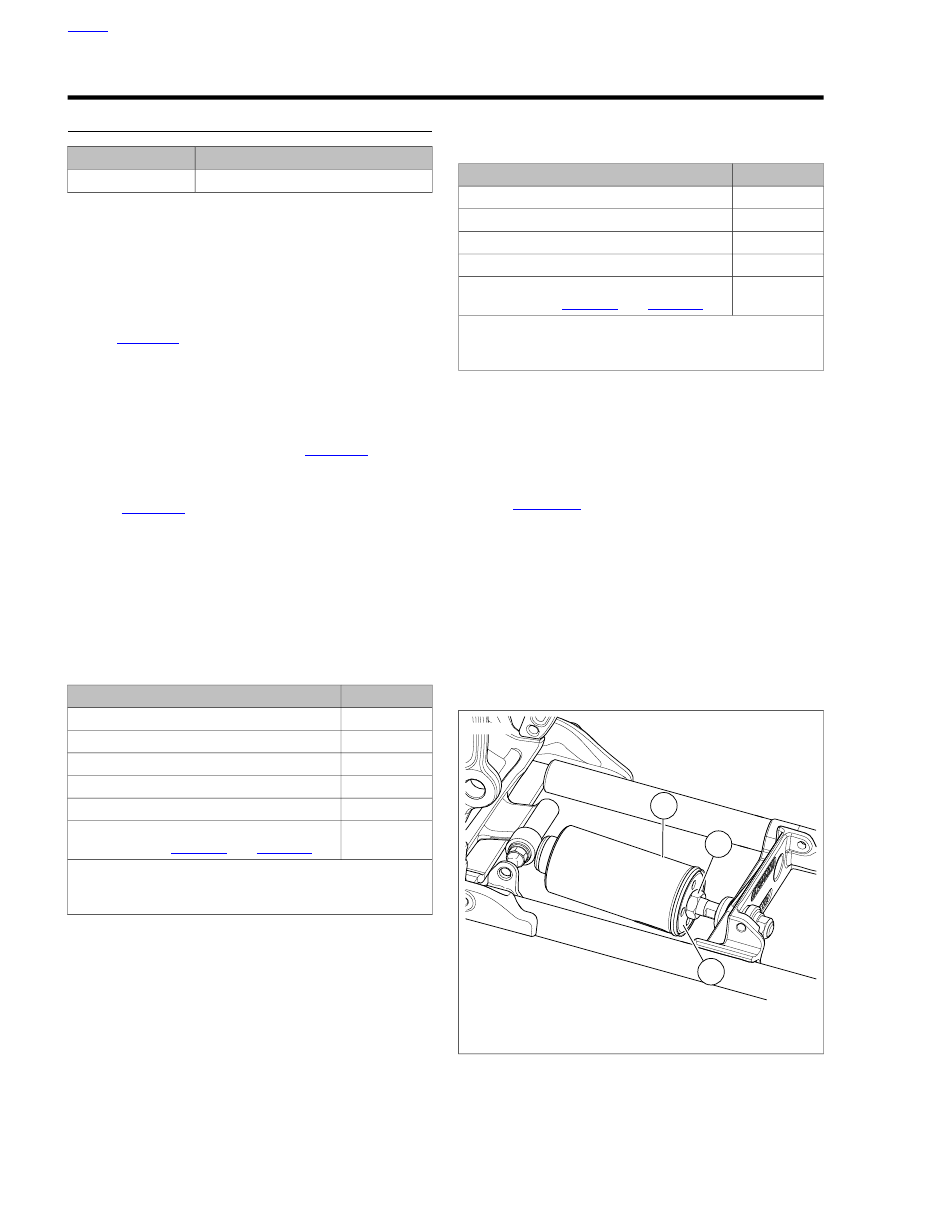

SUSPENSION ADJUSTMENTS

SHOCK ABSORBERS

TOOL NAME

PART NUMBER

SHOCK ADJUSTMENT SPANNER

94448-82B

Calculate Number of Turns

Softail models feature adjustable rear shock absorbers located
under the motorcycle. The rear shock spring preload is adjusted
to the total load or may be varied to suit your own personal
comfort.

NOTE

Refer to

Table 2-11

. To determine the motorcycle configuration

for an FLS or FLSTFB, check the configuration/calibration
character stamped on the VIN.

Identify the number of preload turns for the weight of the
rider.

FLSTC, FLSTF, FXST, FLS (APC/AUS), FLSTFB
(HDI/ENG/IND/BRZ):

Refer to

Table 1-20

FXS, FXSB, FLSTN, FLS (all except APC/AUS),
FLSTFB (all except HDI/ENG/IND/BRZ):

Refer to

Table 1-21

Calculate the number of turns for the intended passenger
and cargo.

Add the number of turns for the rider to the number of
additional turns required for the total weight of the pas-
senger and/or cargo.

Table 1-20. Shock Preload: FLSTC, FLSTF, FXST, FLS

(APC/AUS), FLSTFB (HDI/ENG/IND/BRZ)

TURNS**

RIDER WEIGHT*

Less than 165 lb (75 kg)

165-220 lb (75-100 kg)

220-275 lb (100-125 kg)

275-335 lb (125-152 kg)

335-395 lb (152-179 kg)

395 lb (179 kg) to maximum added weight
allowed (refer to

Table 2-4

and

Table 2-5

)

Passenger/Cargo:

For every 40 lb (18.1 kg) increase preload

one turn.
**Turns out (counterclockwise) from minimum preload.

Table 1-21. Shock Preload: FXS, FXSB, FLSTN, FLS (all

except APC/AUS), FLSTFB (all except HDI/ENG/IND/BRZ)

TURNS**

RIDER WEIGHT*

Less than 185 lb (84 kg)

185-235 lb (84-107 kg)

235-285 lb (107-129 kg)

285-340 lb (129-154 kg)

340 lb (154 kg) to maximum added weight
allowed (refer to

Table 2-4

and

Table 2-5

)

Passenger/Cargo:

For every 35 lb (15.8 kg) increase preload

one turn.
**Turns out (counterclockwise) from minimum preload.

Adjustment

NOTES

•

Adjust the shocks with the motorcycle resting on the jiffy
stand.

•

Adjust both shocks the same number of turns.

See

Figure 1-57

. Hold the shaft with a wrench on the flats

of the shock shaft and loosen the jamnut (2).

Use the tangs of the SHOCK ADJUSTMENT SPANNER
(Part No. 94448-82B) in the holes in the rear shock can-
ister (1) to turn the canister clockwise until it stops. This
is the minimum preload position.

Mark the face of the canister for reference.

Turn the canister counterclockwise the number of turns
calculated for the total load.

Tighten the jamnut.

sm03080

1. Rear shock canister
2. Jamnut
3. Spring adjuster plate

Figure 1-57. Rear Shock Adjustment

HOME

1-58 2013 Softail Service: Maintenance

Harley Davidson Softail Delux FLSTN BIKE 2011-2015. Service Manual - page 9
