Harley Davidson Softail Delux FLSTN BIKE 2011-2015. Service Manual - page 4

1.5

MAINTENANCE SCHEDULE

GENERAL

TORQUE VALUE

FASTENER

19.0-28.5 Nm

14-21 ft-lbs

Engine oil drain plug

19.0-28.5 Nm

14-21 ft-lbs

Primary chaincase drain plug

8-13.6 Nm

72-120

in-lbs

Clutch adjuster screw jamnut

9.5-12.2 Nm

84-108

in-lbs

Clutch inspection cover
screws

19.0-28.5 Nm

14-21 ft-lbs

Transmission drain plug

2.8-8.5 Nm

25-75

in-lbs

Transmission filler plug

16.3-24.4 Nm

12-18 ft-lbs

Spark plug

6.8-8.1 Nm

60-72

in-lbs

Battery terminal fasteners

6.2 Nm

in-lbs

Spoke nipple

6.2 Nm

in-lbs

Spoke nipple

1.4-1.7 Nm

12-15

in-lbs

Brake master cylinder, front,
reservoir cover screws

0.7-0.9 Nm

6-8

in-lbs

Brake master cylinder, rear,
reservoir cover screws

4.5-6.8 Nm

40-60

in-lbs

Air cleaner bracket screws

4.1-6.8 Nm

36-60

in-lbs

Air cleaner cover screw

16.3-20.3 Nm

12-15 ft-lbs

Handlebar clamp screws

4.0-5.1 Nm

35-45

in-lbs

Handlebar switch housing
screws

At each regular service interval, perform the required mainten-
ance. Refer to

Table 1-4

Use the quick reference maintenance chart for torque values,
lubricants or cross references to maintenance procedures.
Refer to

Table 1-5

Use the lubricants, greases and sealants table to identify
maintenance supplies. Refer to

Table 1-6

Disposal and Recycling

Help protect our environment! Many communities maintain
facilities for recycling used fluids, plastics and metals. Dispose
of or recycle used oil, lubricants, fuel, coolant, brake fluid and
batteries in accordance with local regulations. Many Harley-
Davidson parts and accessories are made of plastics and
metals which can also be recycled.

Table 1-4. Regular Service Intervals: 2013 Softail Models

NOTES

50000

80000

45000

72000

40000

64000

35000

56000

30000

48000

25000

40000

20000

32000

15000

24000

10000

16000

5000 MI

8000 KM

1000 MI

1600 KM

PROCEDURE

ITEM SERVICED

3, 7

Replace

Engine oil and filter

1, 3

Inspect for leaks,
contact, or abrasion

Oil lines and brake
system

Inspect, service as
required

Air cleaner

Check pressure,
inspect tread

Tires

1, 5, 7

Check tightness

Wheel spokes (if
equipped)

Replace

Primary chaincase
lubricant

Replace

Transmission lub-
ricant

1, 7

Check adjustment

Clutch

Inspect, adjust belt

Drive belt and
sprockets

Check, adjust and
lubricate

Throttle, brake, and
clutch controls

Inspect and lub-
ricate

Jiffy stand

HOME

2013 Softail Service: Maintenance 1-11

Table 1-4. Regular Service Intervals: 2013 Softail Models

NOTES

50000

80000

45000

72000

40000

64000

35000

56000

30000

48000

25000

40000

20000

32000

15000

24000

10000

16000

5000 MI

8000 KM

1000 MI

1600 KM

PROCEDURE

ITEM SERVICED

1, 3

Inspect for leaks,
contact or abrasion

Fuel lines and fit-
tings

Replace every 100,000 mi (160,000 km)

Fuel filter element

Inspect sight glass

Brake fluid

Inspect for wear

Brake pads and
discs

Replace

Spark plugs

Check operation

Electrical equip-
ment and switches

1, 8

Rebuild

Front forks

Adjust

Steering head
bearings

Lubricate

Steering head
bearings

Inspect

Windshield bush-
ings (if equipped)

1, 3

Check tightness

Critical fasteners

Check battery and clean connections annually.

Battery

3, 7

Inspect for leaks,
cracks, and loose
or missing
fasteners or
exhaust shields

Exhaust system

Verify component
and system func-
tions

Road test

1. Should be performed by an authorized Harley-Davidson dealer, unless you have the proper tools, service data and are mechanically qualified.

NOTES:

2. Disassemble, lubricate and inspect every 30,000 mi (48,000 km).
3. Perform annually or at specified intervals, whichever comes first.
4. Change DOT 4 brake fluid and flush system every two years.
5. Perform spoke tension check at the 1000 mi (1600 km), 5000 mi (8000 km), 20,000 mi (32,000 km) services and every 15,000 mi (24,000
km) interval thereafter. Not all vehicles are equipped with spoke wheels. Consult appropriate topic in service manual.
6. Perform every two years or at specified intervals, whichever comes first.
7. Perform maintenance more frequently in severe riding conditions (such as extreme temperatures, dusty environments, mountainous or rough
roads, long storage conditions, short runs, heavy stop/go traffic or poor fuel quality).
8. Disassemble, inspect, rebuild forks and replace fork oil every 50,000 mi (80,000 km).

Table 1-5. Quick Reference Maintenance Chart

DATA

SPECIFICATION

ITEM SERVICED

14-21 ft-lbs (19.0-28.5 Nm)

Drain plug

Engine oil and filter

3.0 qt (2.84 L) wet

Oil capacity (with filter)

3.5 qt (3.31 L) dry

Hand tighten 1/2-3/4 turn after gasket contact

Filter

FORMULA+ TRANSMISSION AND PRIMARY
CHAIN LUBRICATION

Lubricant type

Primary chain lubricant

32 oz (0.95 L) wet

Lubricant capacity

40 oz (1.18 L) dry

14-21 ft-lbs (19.0-28.5 Nm)

Primary chaincase drain plug

1/2-1 turn

Free play at adjuster screw

Clutch adjustment

72-120

in-lbs

(8-13.6 Nm)

Adjuster screw jamnut

1/16-1/8 in. (1.6-3.2 mm)

Free play at hand lever

84-108

in-lbs

(9.5-12.2 Nm)

Clutch inspection cover screws

HOME

1-12 2013 Softail Service: Maintenance

Table 1-5. Quick Reference Maintenance Chart

DATA

SPECIFICATION

ITEM SERVICED

Dipstick between ADD and FULL marks with
motorcycle on jiffy stand. Thread dipstick in until
O-ring makes contact with case. Do not tighten..

Lubricant level (cold)

Transmission lubricant

FORMULA+ TRANSMISSION AND PRIMARY
CHAIN LUBRICATION

Lubricant type and capacity *

or
SYN3 20W50 OIL
32 oz (0.95 L)

14-21 ft-lbs (19.0-28.5 Nm)

Transmission drain plug

25-75

in-lbs

(2.8-8.5 Nm)

Filler plug

HD-6R12

Type

Spark plugs

0.038-0.043 in. (0.97-1.09 mm)

Gap

12-18 ft-lbs (16.3-24.4 Nm)

Torque

950-1050 RPM

Idle speed

Engine idle speed

HYDRAULIC FORK OIL (TYPE E)

Type

Front fork oil

See

2.16 FRONT FORK: TELESCOPIC

ELECTRICAL CONTACT LUBRICANT

Lubricant

Battery

60-72

in-lbs

(6.8-8.1 Nm)

Battery terminal

FLSTC, FLSTN, FLS Models:

Pressure for rider and passenger

Tire condition and pres-
sure

Front: 36 psi (248 kPa)
Rear: 40 psi (276 kPa)

FXST Model:
Front: 30 psi (207 kPa)
Rear: 42 psi (290 kPa)

FLSTF/B Models:
Front: 36 psi (248 kPa)
Rear: 42 psi (290 kPa)

FXS Models:
Front: 30 psi (207 kPa)
Rear: 40 psi (276 kPa)

FXSB Models:
Front: 36 psi (248 kPa)
Rear: 42 psi (290 kPa)

Replace tire if 1/32 in. (0.8 mm) or less of tread
pattern remains.

Wear

Steel laced wheel:

Spoke nipple torque (minimum)

Wheel spokes

in-lbs

(6.2 Nm)

Chrome aluminum laced wheel:
55

in-lbs

(6.2 Nm)

SPECIAL PURPOSE GREASE

Lubricant for neck fitting

Steering head bearings

DOT 4 hydraulic brake fluid

Type

Brake fluid reservoir level
(Check sight glass. If
fluid is low, remove
reservoir cover and re-
check.)

1/4 ± 1/8 in. (6.35 ± 3.18 mm) from top

Proper fluid level

12-15

in-lbs

(1.4-1.7 Nm)

Master cylinder cover screw: front

6-8

in-lbs

(0.7-0.9 Nm)

Master cylinder cover screw: rear

0.04 in. (1.02 mm)

Minimum brake pad thickness

Brake pad linings and
discs

See stamp on side of disc

Minimum brake disc thickness

HOME

2013 Softail Service: Maintenance 1-13

Table 1-5. Quick Reference Maintenance Chart

DATA

SPECIFICATION

ITEM SERVICED

10 lb (4.5 kg)

Upward measurement force applied at midpoint of
bottom off belt strand

Drive belt

FXS, FXSB, FLS, FLSTN, FLSTFB (LO): 1/4-5/16
in. (6.4-7.9 mm)

With motorcycle on Jiffy Stand without rider or
luggage

FXST, FLSTC, FLSTF/B: 9/16-5/8 in. (14.3-15.9
mm)

FXS, FXSB, FLS, FLSTN, FLSTFB (LO): 5/16-3/8
in. (7.9-9.5 mm)

Vehicle upright with rear wheel in air

FXST, FLSTC, FLSTF/B: 11/16-3/4 in. (17.5-19.1
mm)

40-60

in-lbs

(4.5-6.8 Nm)

Air cleaner bracket screws

Air cleaner

36-60

in-lbs

(4.1-6.8 Nm)

Air cleaner cover screw

LOCTITE 243 MEDIUM STRENGTH THREAD-
LOCKER AND SEALANT (blue)

Adhesive for air cleaner cover screw

HARLEY LUBE

Lubricant

Clutch and throttle
cables

12-15 ft-lbs (16.3-20.3 Nm)

Handlebar clamp screw

35-45

in-lbs

(4.0-5.1 Nm)

Handlebar switch housing screws

* Capacity is approximate. When changing lubricant, initially add 28 oz (0.83 L). Check and fill as necessary.

HOME

1-14 2013 Softail Service: Maintenance

Table 1-6. Lubricants, Greases, Sealants

PACKAGE

PART NUMBER

ITEM

5 oz tube

021200-19718 *

3M 847 Adhesive

15 oz. aerosol

3M General Purpose Adhesive Remover

1 oz squeeze tube

98960-97

Anti-Seize Lubricant

squeeze packet (included in master cylinder
rebuild kit)

42830-05

CCI #20 Brake Grease

12 oz bottle

99953-99A

DOT 4 Brake Fluid

2 cc packet

94674-99

Dow Corning Moly 44 Grease

1 oz squeeze tube

99861-02

Electrical Contact Lubricant

1 qt bottle

99851-05

Formula+ Transmission and Primary Chaincase
Lubricant

squeeze packet

42820-04

G40M Brake Grease

1 gal container

99822-02

Genuine Harley-Davidson Extended Life Antifreeze
and Coolant

1 qt bottle

99816-2050/00QT

Genuine Harley-Davidson H-D 360 20W50
Motorcycle Oil

10 g tube

99839-95

Harley-Davidson Adhesive (Griplock)

1.9 oz squeeze tube

99650-02

Harley-Davidson High Performance Sealant - Gray

6 oz can

98261-91V

Harley-Davidson Leather Dressing

1 oz tube

11300005

Harley-Davidson Seal Grease

1/4 oz needle dispenser

94968-09

Harley Lube

3.5 oz tube

99653-85

Hylomar Gasket and Thread Sealant

6 mL tube

99811-97

Loctite 222 Low Strength Threadlocker and Sealant (purple)

6 mL tube

99642-97

Loctite 243 Medium Strength Threadlocker and Sealant (blue)

50 mL bottle

11100005

Loctite 246 Medium Strength/High Temperature Threadlocker
(blue)

6 mL tube

94759-99

Loctite 262 High Strength Threadlocker and Sealant (red)

50 mL bottle

11100006

Loctite 411 Prism Instant Adhesive

Loctite 420 Super Bonder Adhesive

6 mL tube

99818-97

Loctite 565 Thread Sealant

Loctite 770 Prism Primer

1.75 oz bottle

98968-99

Loctite 7649 Cleaner/Primer

1.9 oz tube

99650-02

RTV Silicone Sealer

4 oz bottle

94971-09

Screamin' Eagle Assembly Lube

1 qt bottle

99824-03/00QT

Screamin' Eagle SYN3 Full Synthetic Motorcycle
Lubricant 20W50

14 oz cartridge

99857-97A

Special Purpose Grease

16 oz bottle

62600026

Type "E" Hydraulic Fork Oil

1 lb can

99855-89

Wheel Bearing Grease

14 oz cartridge

99856-92

* Not a Harley-Davidson part number

HOME

2013 Softail Service: Maintenance 1-15

1.6

ENGINE OIL AND FILTER

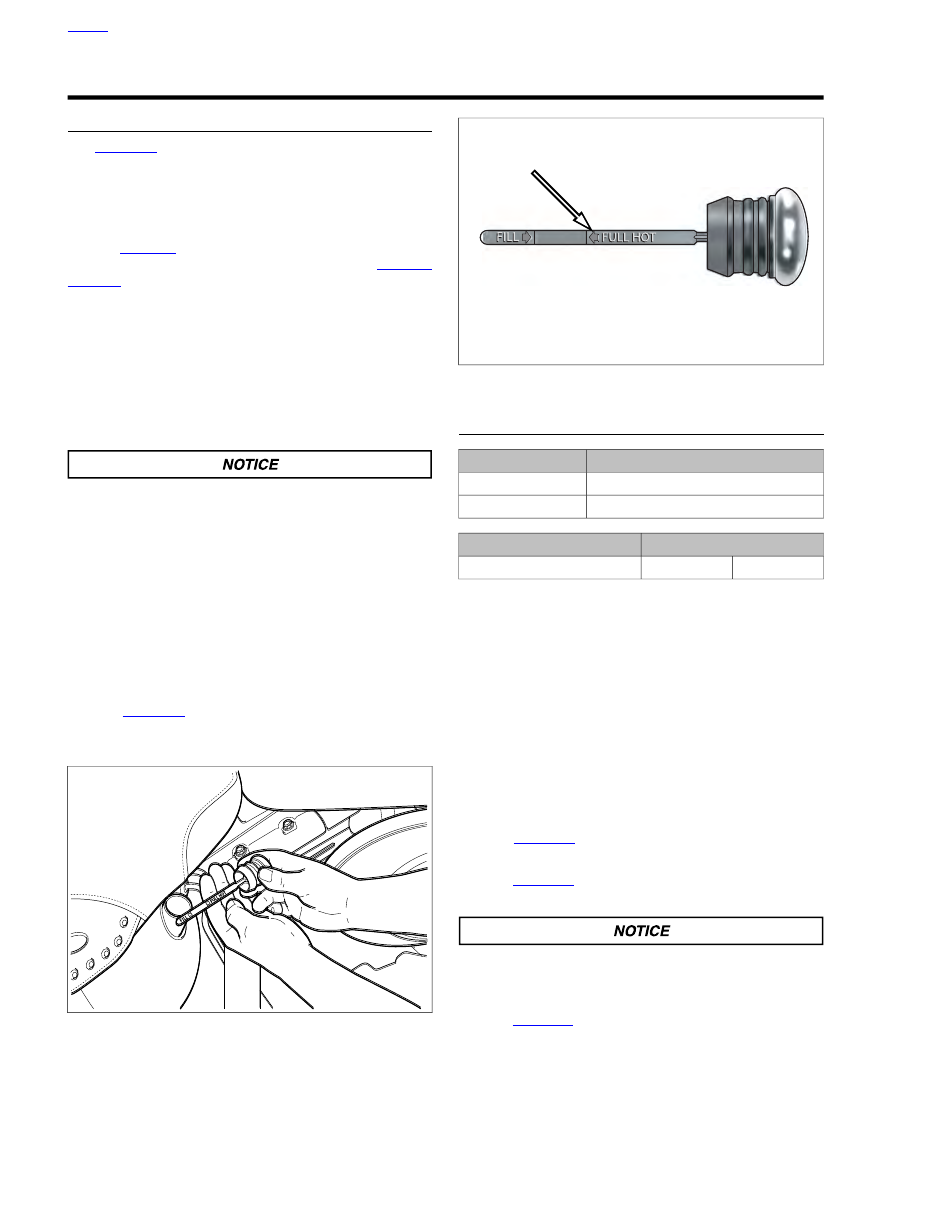

CHECKING AND ADDING OIL

See

Figure 1-1

. Checking engine oil level:

•

As part of the pre-ride inspection.

•

At every scheduled service interval.

Type of Oil

Refer to

Table 1-2

. Use the proper grade of oil for the lowest

temperature expected before the next oil change. See

1.3 FUEL

AND OIL

for specific information regarding winter needs.

If it is necessary to add oil and Harley-Davidson oil is not
available, use an oil certified for diesel engines. Acceptable
diesel engine oil designations include CF-4, CG-4, CH-4, and
CI-4. The preferred viscosities for the diesel engine oils, in
descending order, are 20W-50, 15W-40 and 10W-40. At the
first opportunity, see a Harley-Davidson dealer to change back
to 100 percent Harley-Davidson oil.

Checking Oil Level

Oil level cannot be accurately measured on a cold engine.
For pre-ride inspection, with motorcycle leaning on jiffy
stand on level ground, oil should register on dipstick
between arrows when engine is cold. Do not add oil to
bring the level to the FULL mark on a COLD engine.
(00185a)

Ride motorcycle until engine is warmed up to operating temper-
ature, then do the following.

Idle motorcycle on jiffy stand for 1-2 minutes.

Shut motorcycle off and leave motorcycle

resting on jiffy

stand

See

Figure 1-2

. Check oil level on dipstick. If necessary,

add oil until oil registers at upper groove on dipstick. Do
not overfill oil tank.

sm03037a

Figure 1-1. Checking Oil Tank Level

sm03039

Figure 1-2. Oil Tank Dipstick Upper Groove

CHANGING OIL AND FILTER

TOOL NAME

PART NUMBER

OIL FILTER WRENCH

HD-42311

OIL FILTER WRENCH

HD-44067

TORQUE VALUE

FASTENER

19.0-28.5 Nm

14-21 ft-lbs

Engine oil drain plug

NOTES

•

If the motorcycle is ridden hard, under dusty conditions,
or in cold weather, the oil and filter should be changed
more often.

•

All Softail models are shipped from the factory with SAE
20W50 Harley-Davidson 360 Motor Oil.

•

All Softail models come equipped from the factory with a
premium 5 micron synthetic media oil filter, Part No.
63798-99a (Chrome) or 63731-99a (Black). These are the
only recommended replacement filters.

Ride motorcycle until engine is warmed up to normal
operating temperature.

See

Figure 1-1

. Remove the engine oil filler plug/dipstick

by pulling steadily while moving plug back and forth.

See

Figure 1-3

. Remove the engine oil drain plug with O-

ring (2). Allow oil to drain into a suitable container.

Use Harley-Davidson oil filter wrench for filter removal.
This tool can prevent damage to crankshaft position sensor
and/or sensor cable. (00192b)

See

Figure 1-4

. Remove the oil filter using the OIL FILTER

WRENCH (Part No. HD-42311) or OIL FILTER WRENCH
(Part No. HD-44067). Clean the oil filter mounting surface
of any old gasket material.

HOME

1-16 2013 Softail Service: Maintenance

See

Figure 1-5

. Lube the gasket on

new

oil filter with

engine oil and install

new

filter. Hand tighten oil filter 1/2

to 3/4 turn after gasket contacts filter mounting surface.
DO NOT use oil filter wrench for oil filter installation.

See

Figure 1-3

. Install oil tank drain plug (2).

Inspect O-ring for tears or damage. Replace if
required. Wipe any foreign material from plug.

Install O-ring and drain plug. Tighten to 14-21 ft-lbs
(19.0-28.5 Nm).

Fill oil tank with the correct amount of oil. Use the proper
grade of oil for the lowest temperature expected before
next oil change. Refer to

Table 1-2

Use 3.0 quarts (2.84 liters) of engine oil for a wet
capacity refill.

Use 3.5 quarts (3.31 liters) for a dry capacity refill.

NOTE

Use wet capacity values for engines that have just had
the oil drained. Use dry capacity values for engines that
have been disassembled, cleaned in solvent and dried.

Check engine oil level using cold check procedure.

Start engine and carefully check for oil leaks around drain
plug and oil filter.

10. Check engine oil level using hot check procedure.

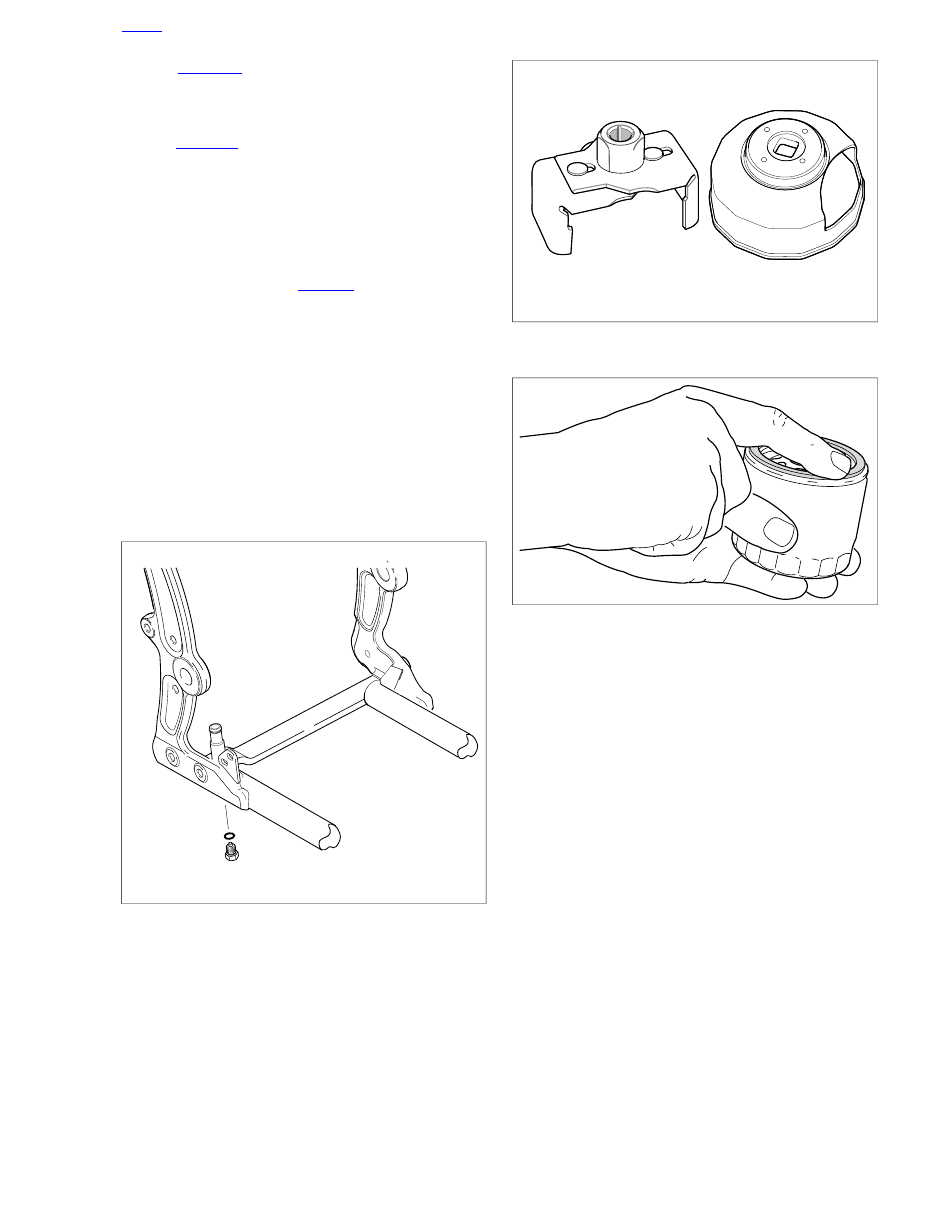

sm03041

1. Frame connection for oil tank drain hose
2. Oil tank drain plug and O-ring

Figure 1-3. Oil Tank Drain Plug

sm01673

Figure 1-4. Oil Filter Wrenches

sm01414

Figure 1-5. Lubricating New Oil Filter Gasket

HOME

2013 Softail Service: Maintenance 1-17

1.7

AIR CLEANER AND EXHAUST SYSTEM

REMOVAL

See

Figure 1-6

. Remove screw (1) and air cleaner cover

(2).

Remove three screws (4) and bracket (5) from filter ele-
ment (6).

Gently pull both rubber breather hoses (9) from the ele-
ment. Remove filter element (6) and gasket (7).

Replace the filter element if damaged or if filter media
cannot be adequately cleaned.

Cleaning and Inspection

Do not use gasoline or solvents to clean filter element.
Flammable cleaning agents can cause an intake system
fire, which could result in death or serious injury. (00101a)

Gently pull the breather hoses from the breather bolts on
the backplate (8).

Compressed air can pierce the skin and flying debris from
compressed air could cause serious eye injury. Wear
safety glasses when working with compressed air. Never
use your hand to check for air leaks or to determine air
flow rates. (00061a)

Clean filter element.

Wash the paper/wire mesh air filter element and
breather hoses in lukewarm water with a mild deter-
gent. Do not strike filter element on a hard surface to
dislodge dirt.

Allow filter to either air dry or blow it dry, from the
inside, with low pressure air. Do not use air cleaner
filter oil on the Harley-Davidson paper/wire mesh air
filter element.

Hold the filter element up to a strong light source. If
light is uniformly visible through the element, it is
sufficiently clean.

Inspect seal ring (3) on cover for cracks or tears. Verify
that it seals tightly to backplate. Replace as required.

Inspect breather hoses for tears, cuts, holes or other
damage. Replace as necessary.

NOTE

The breather hoses allow crankcase vapors to be directed into
the air filter element. By providing effective recirculation of
crankcase vapor, the hoses serve to eliminate the pollutants
normally discharged from the crankcase. Unless breather hoses
are properly mounted, crankcase vapors can be vented into
the atmosphere. This is a violation of legal emissions standards.
This will also cause problems with the engine's breather
system. It will cause the umbrella valve to flutter.

Wipe inside of air cleaner cover and backplate with damp
cloth to remove dust.

HOME

1-18 2013 Softail Service: Maintenance

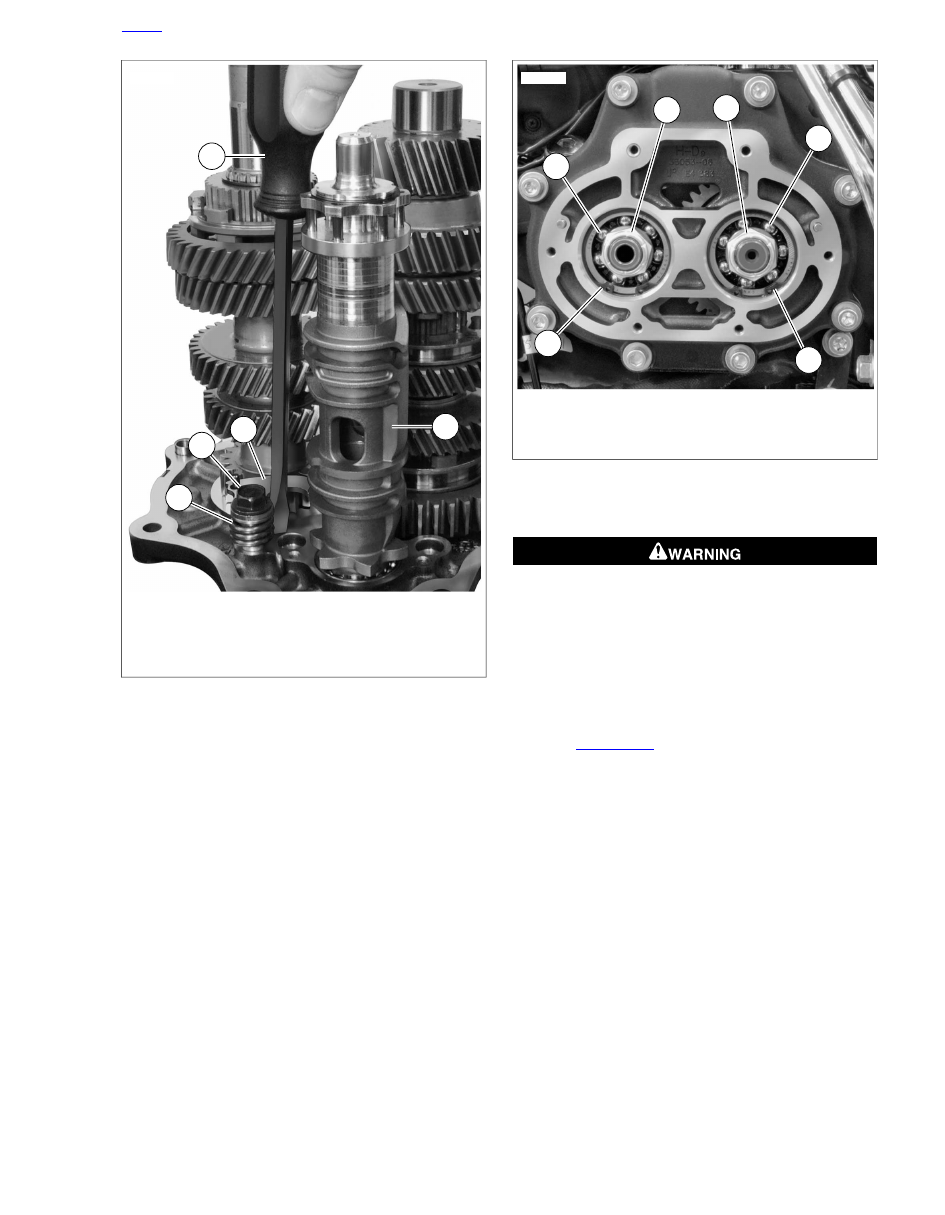

sm03601a

1. Screwdriver
2. Detent fastener
3. Detent spring
4. Detent arm
5. Shift cam

Figure 6-14. Detent Assembly

sm03676

1. Retaining ring (2)
2. Bearing (2)
3. Mainshaft locknut
4. Countershaft locknut

Figure 6-15. Bearing Housing Locknuts

Mainshaft

Wear safety glasses or goggles when removing or
installing retaining rings. Retaining rings can slip from the
pliers and could be propelled with enough force to cause
serious eye injury. (00312a)

NOTE

The mainshaft 4th gear, 3rd gear, 2nd gear and 1st gear are
integral parts of the shaft. Damage to any gear requires main-
shaft replacement.

See

Figure 6-16

. Using

TRANSMISSION SHAFT

RETAINING RING PLIERS (Part No. J-5586A), remove
retaining ring. Remove dog ring (3), guiding hub (2),
mainshaft 5th gear (4) and bearing.

NOTE

Do not press directly on the end of the mainshaft. Place a
spacer such as a washer between the end of the mainshaft
and the press ram.

Place transmission assembly in arbor press. Press main-
shaft out of bearing housing bearings.

HOME

2013 Softail Service: Transmission 6-13

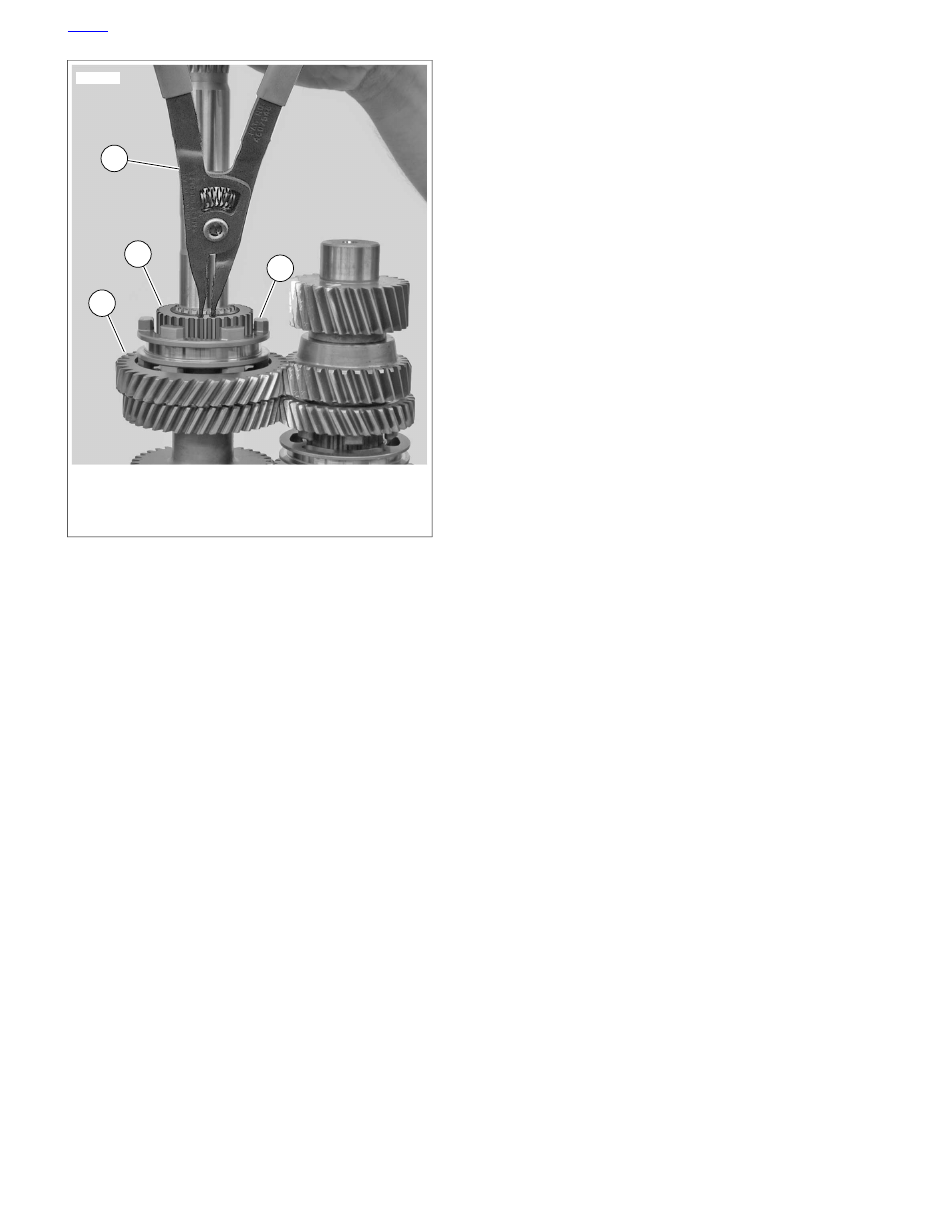

sm03599a

1. Retaining ring pliers
2. Guiding hub
3. Dog ring
4. Mainshaft 5th gear

Figure 6-16. Mainshaft Retaining Ring

HOME

6-14 2013 Softail Service: Transmission

Content .. 2 3 4 5 ..
