Ford F150 Pickup. Manual - part 989

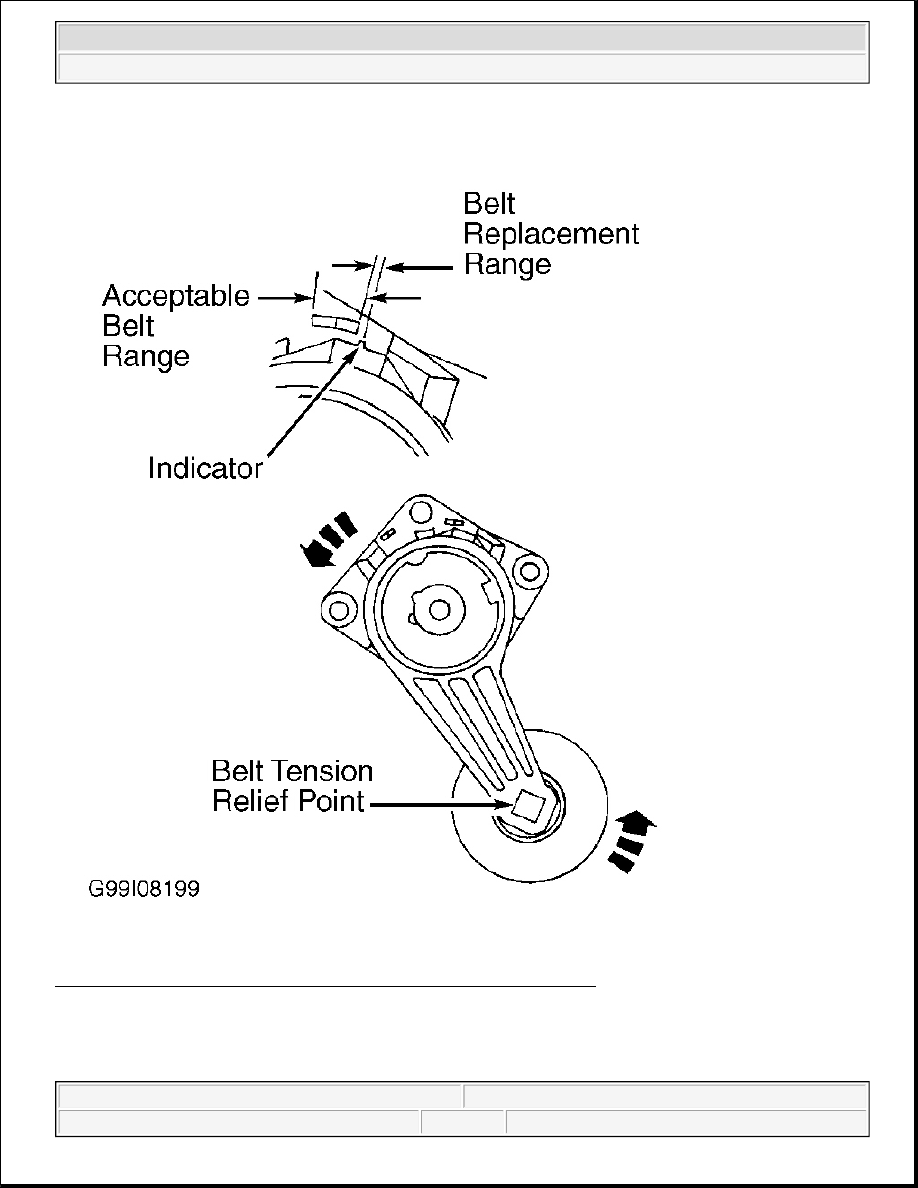

Fig. 3: Locating Tensioner Wear Indicator (4.6L & 5.4L Without A/C)
Courtesy of FORD MOTOR CO.

DRIVE BELT ROUTING

2003 Ford Pickup F150

2003-04 ENGINE COOLING Specifications & Drive Belt Routing - Blackwood, F150 Heritage Pickup & F150 Pickup

2003 Ford Pickup F150

2003-04 ENGINE COOLING Specifications & Drive Belt Routing - Blackwood, F150 Heritage Pickup & F150 Pickup

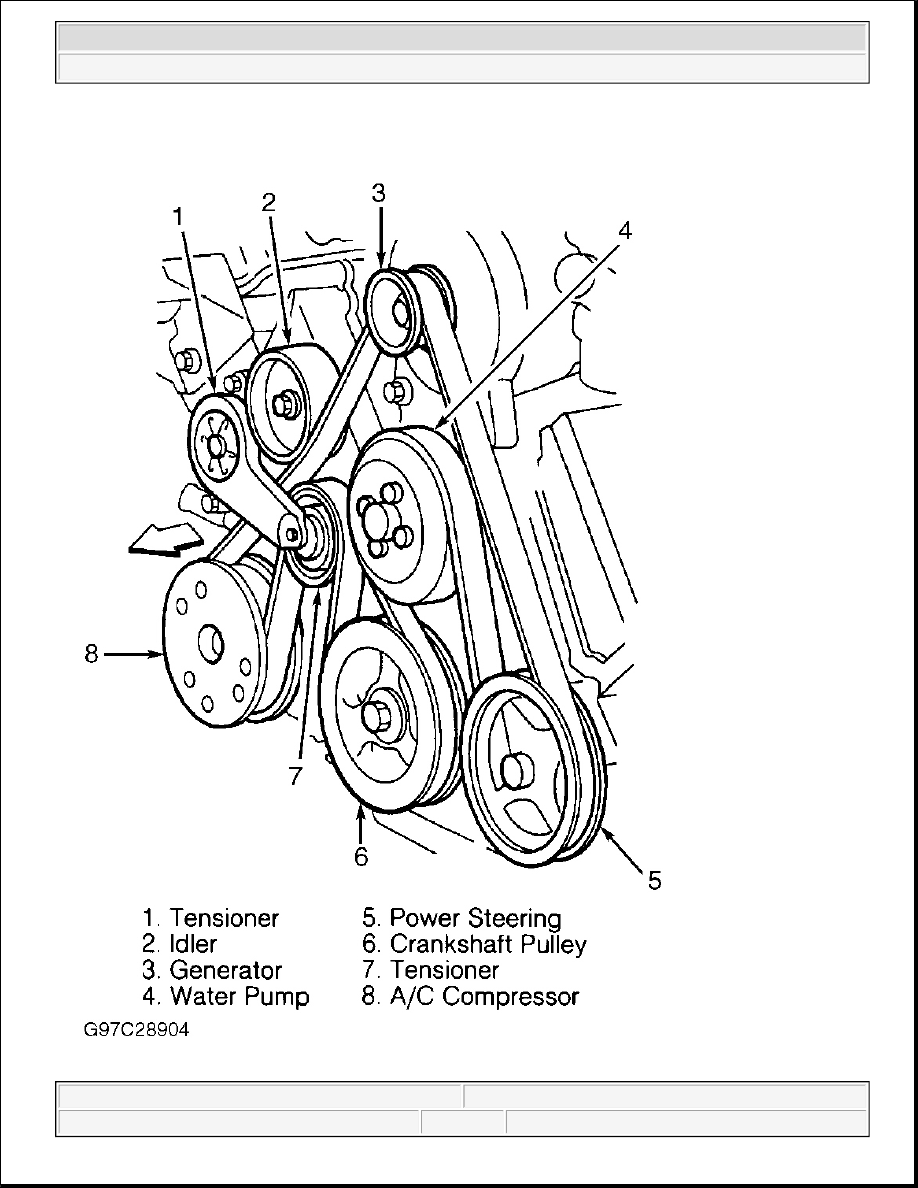

Fig. 4: Checking Belt Routing (Blackwood - 5.4L)
Courtesy of FORD MOTOR CO.

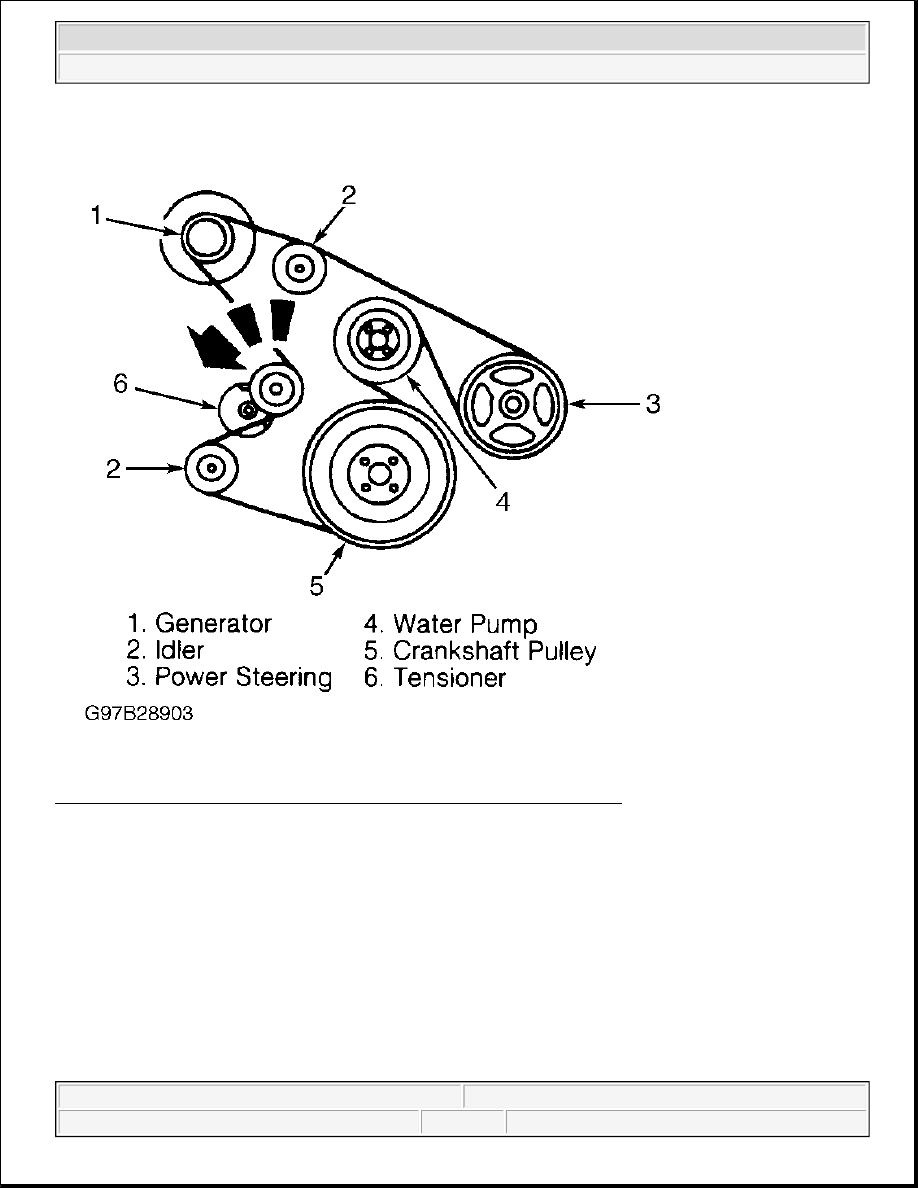

Fig. 5: Checking Belt Routing (F150 Heritage Pickup - 4.2L With A/C)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003-04 ENGINE COOLING Specifications & Drive Belt Routing - Blackwood, F150 Heritage Pickup & F150 Pickup

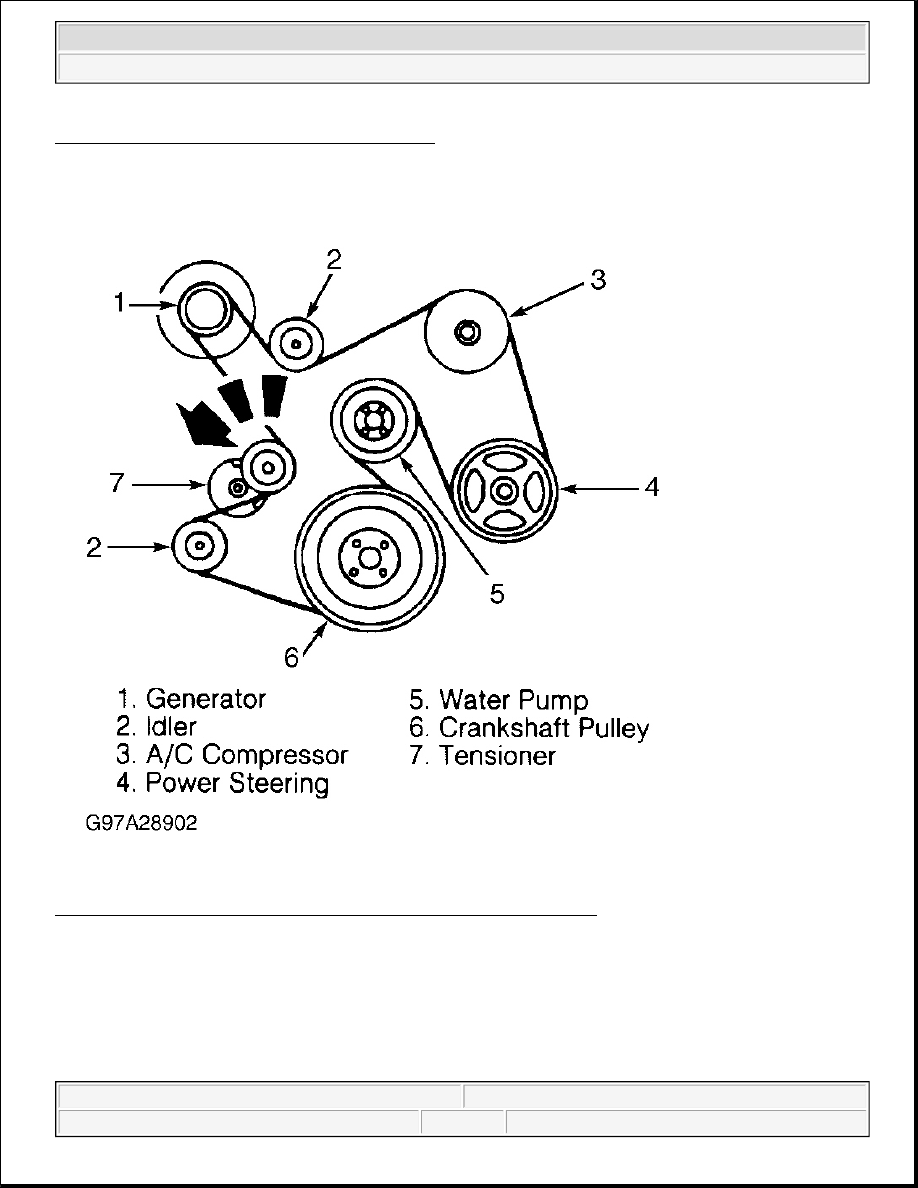

Fig. 6: Checking Belt Routing (F150 Heritage Pickup - 4.2L Without A/C)
Courtesy of FORD MOTOR CO.
