Ford F150 Pickup. Manual - part 722

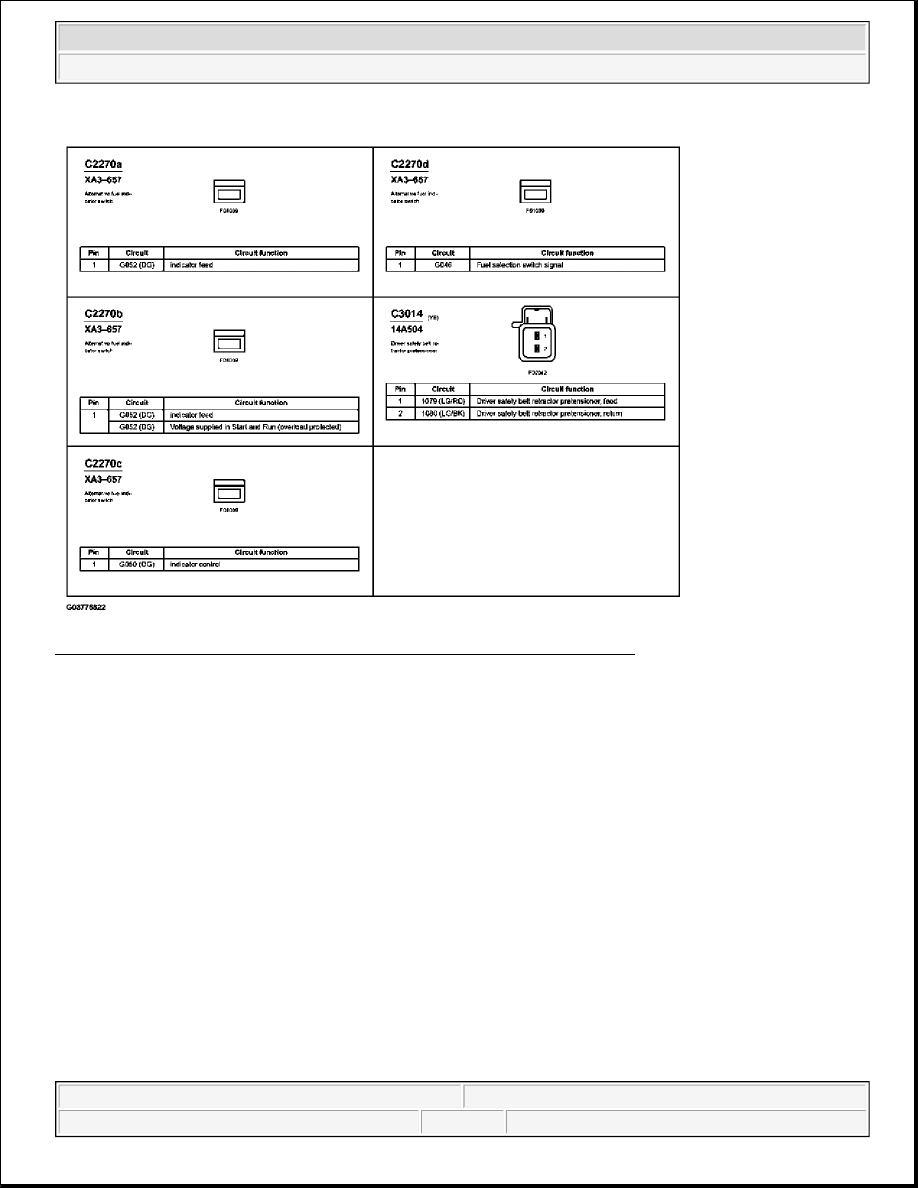

Fig. 108: Identifying Connector C2270a, C2270b, C2270c, C2270d & C3014
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup

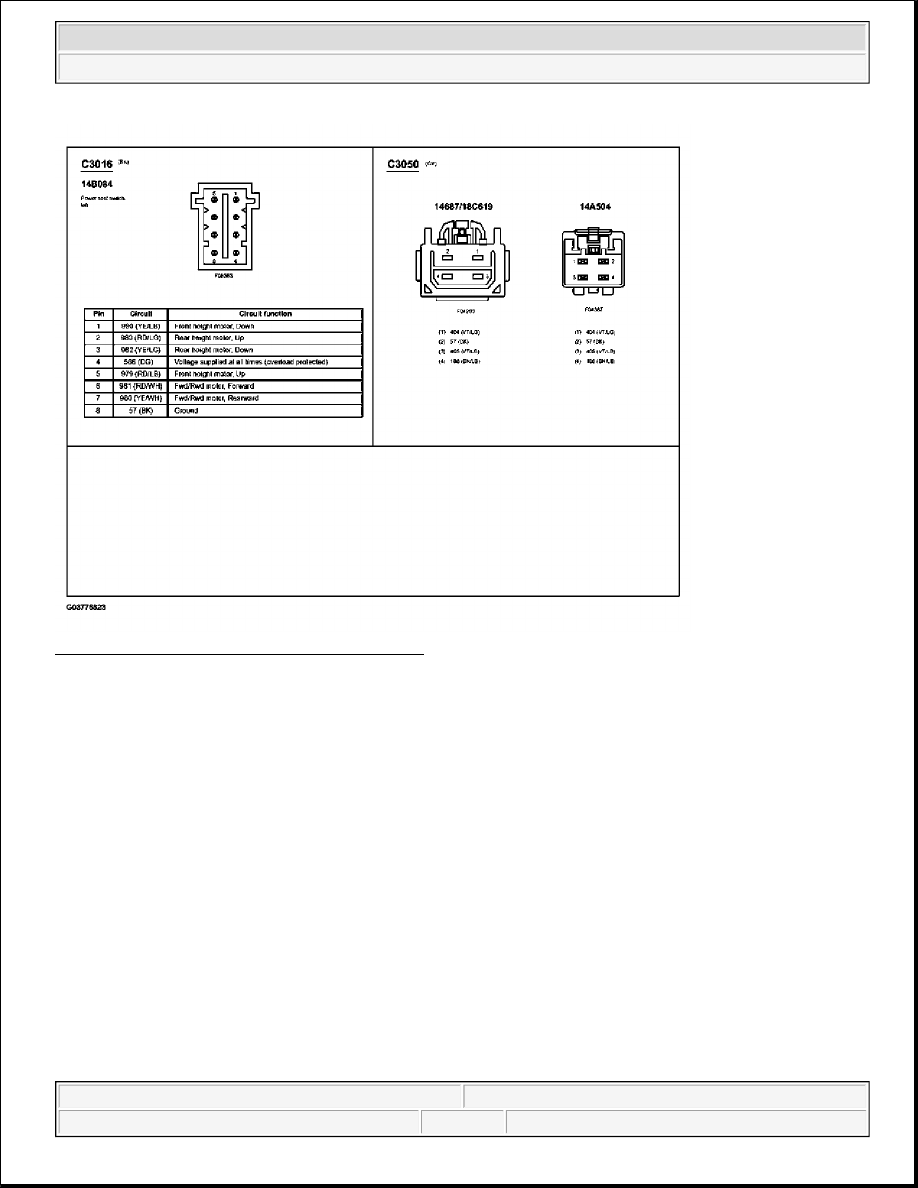

Fig. 109: Identifying Connector C3016 & C3050
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup

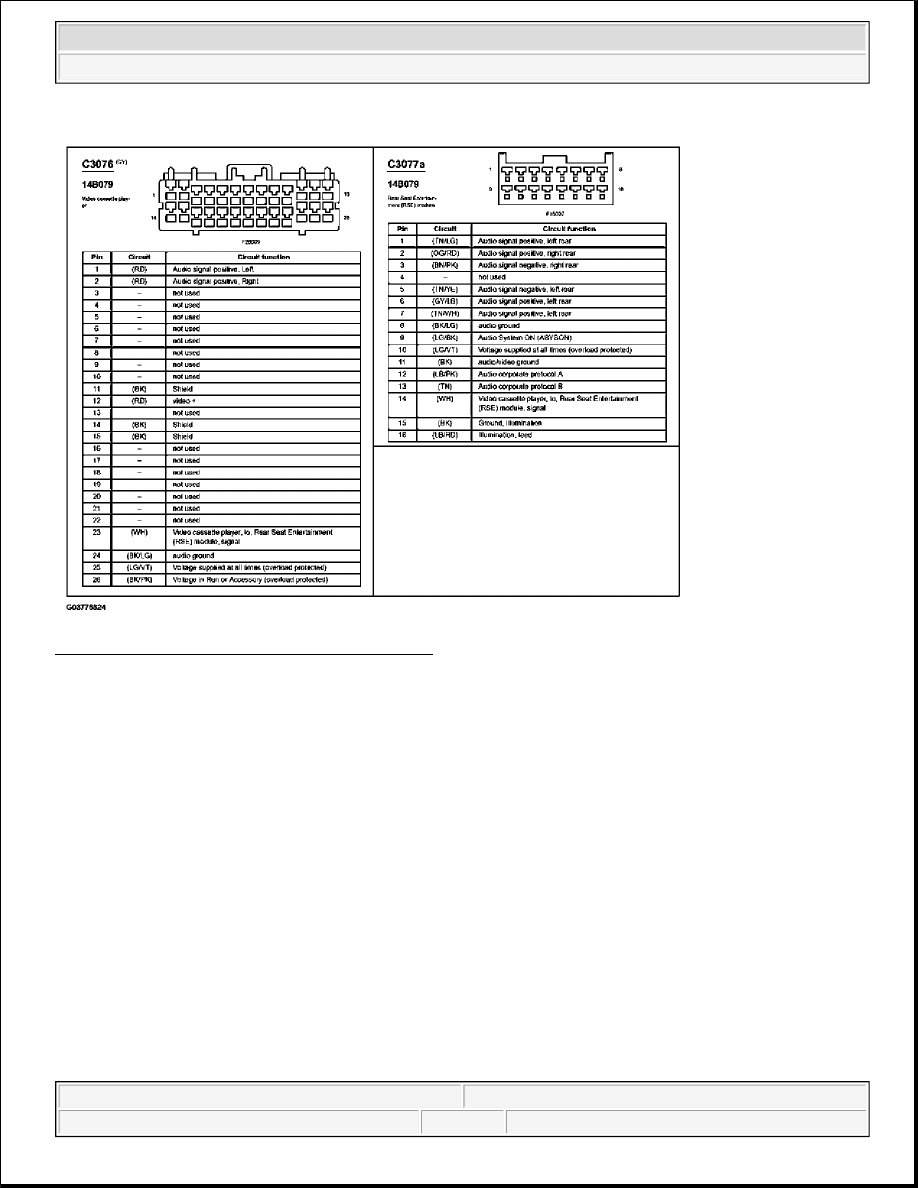

Fig. 110: Identifying Connector C3076 & C3077a
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup

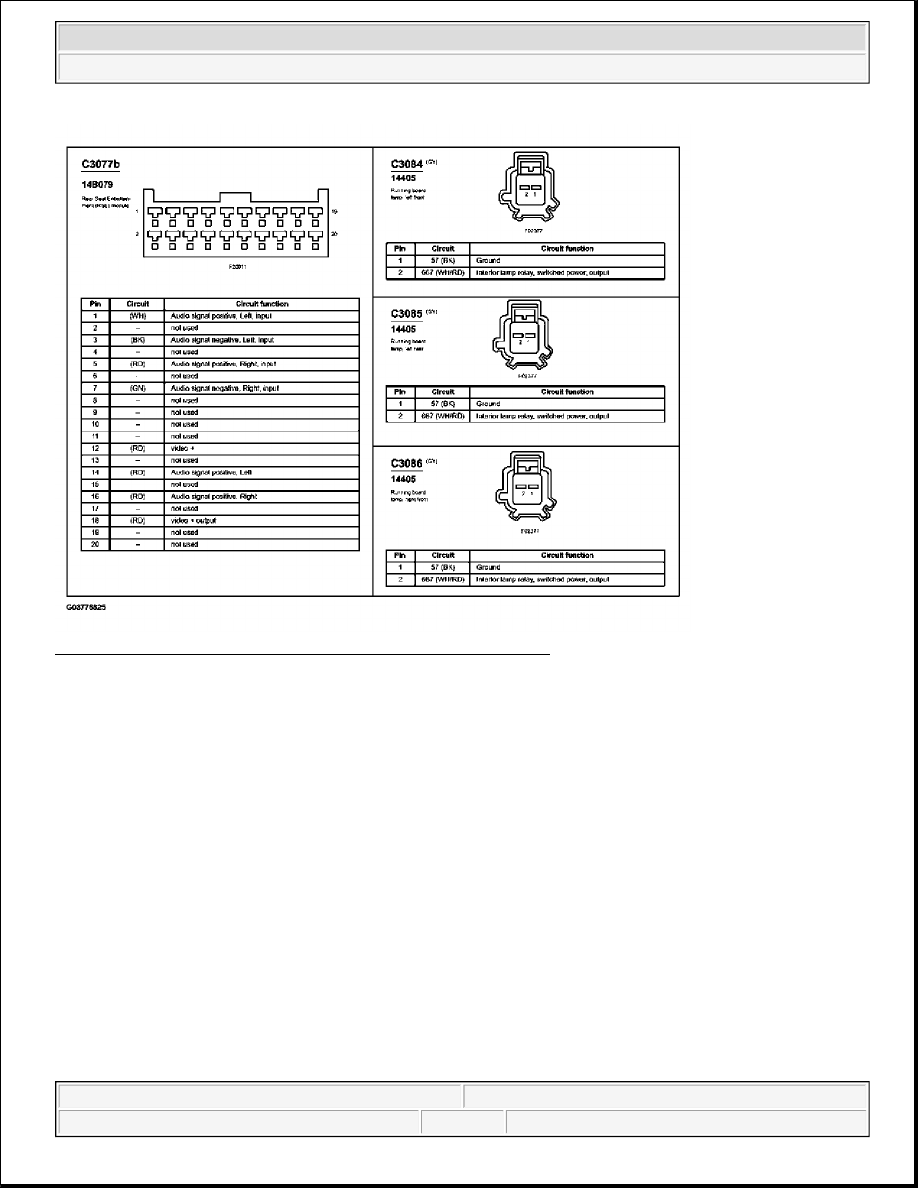

Fig. 111: Identifying Connector C3077b, C3084, C3085 & C3086
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup
