Ford F150 Pickup. Manual - part 703

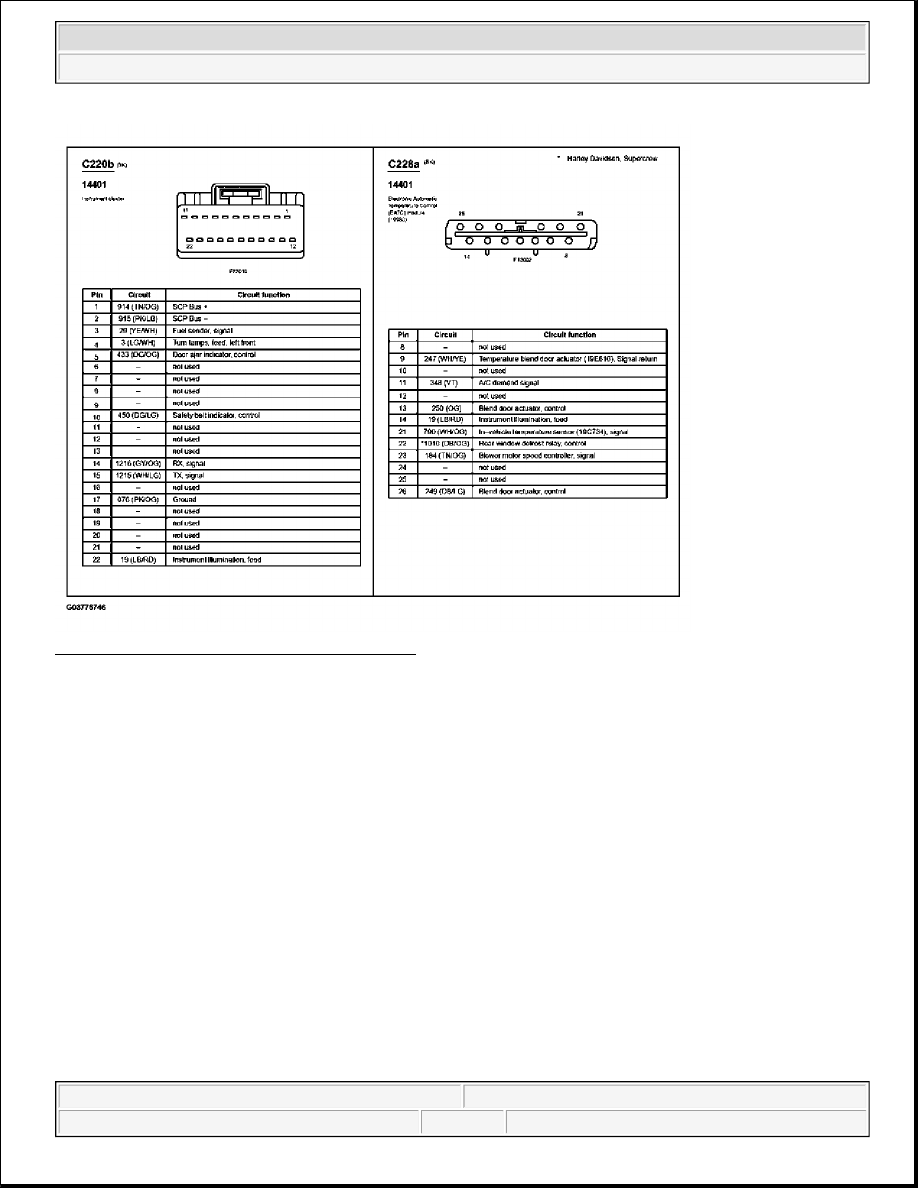

Fig. 32: Identifying Connector C220b & C228a
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup

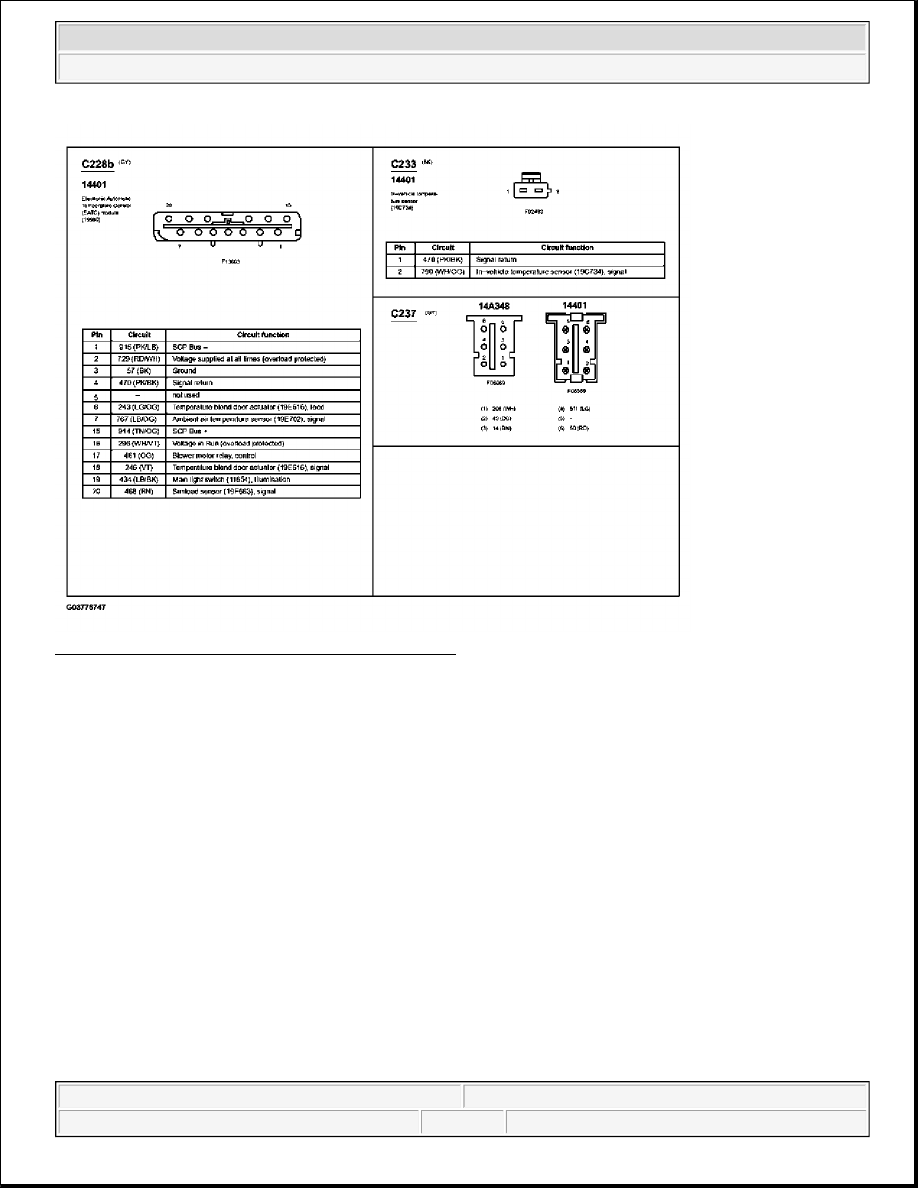

Fig. 33: Identifying Connector C228b, C233 & C237
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup

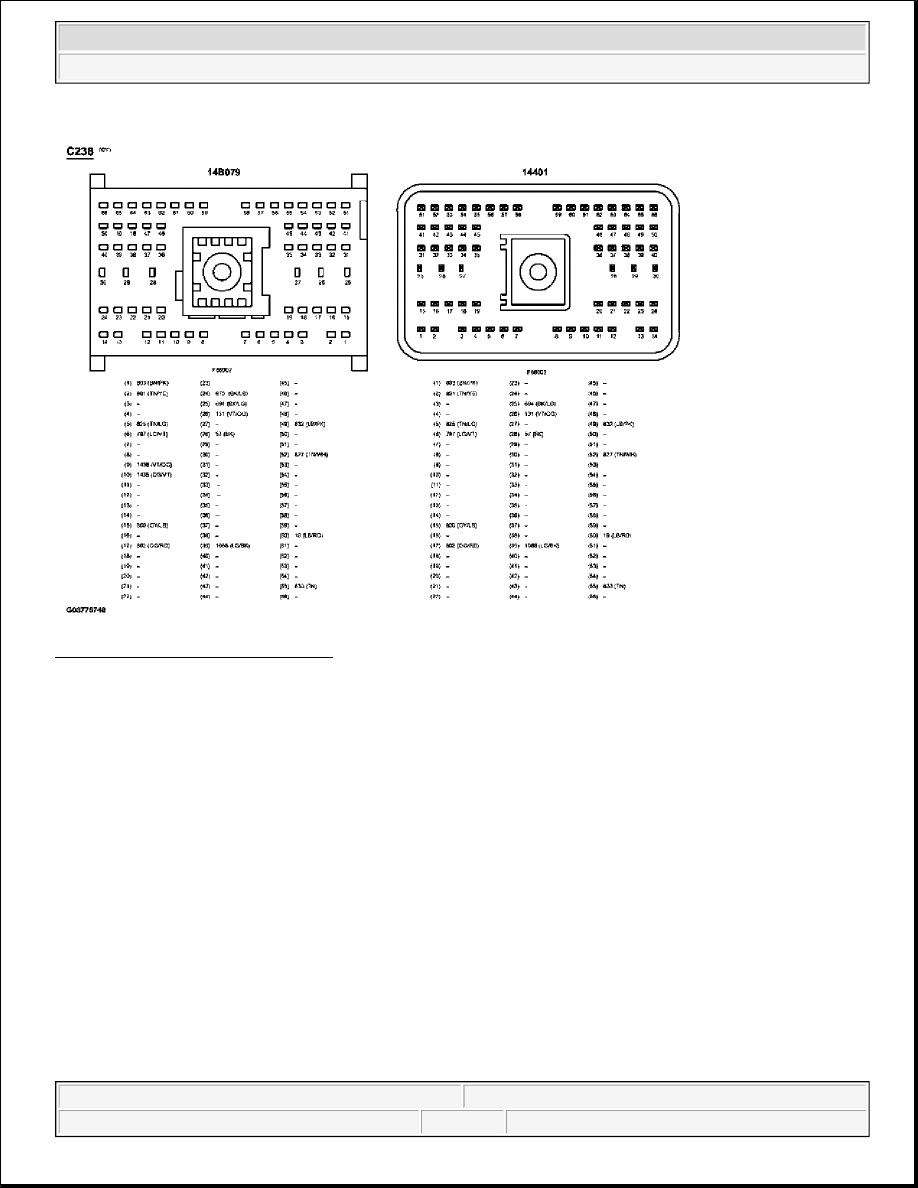

Fig. 34: Identifying Connector C238
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup

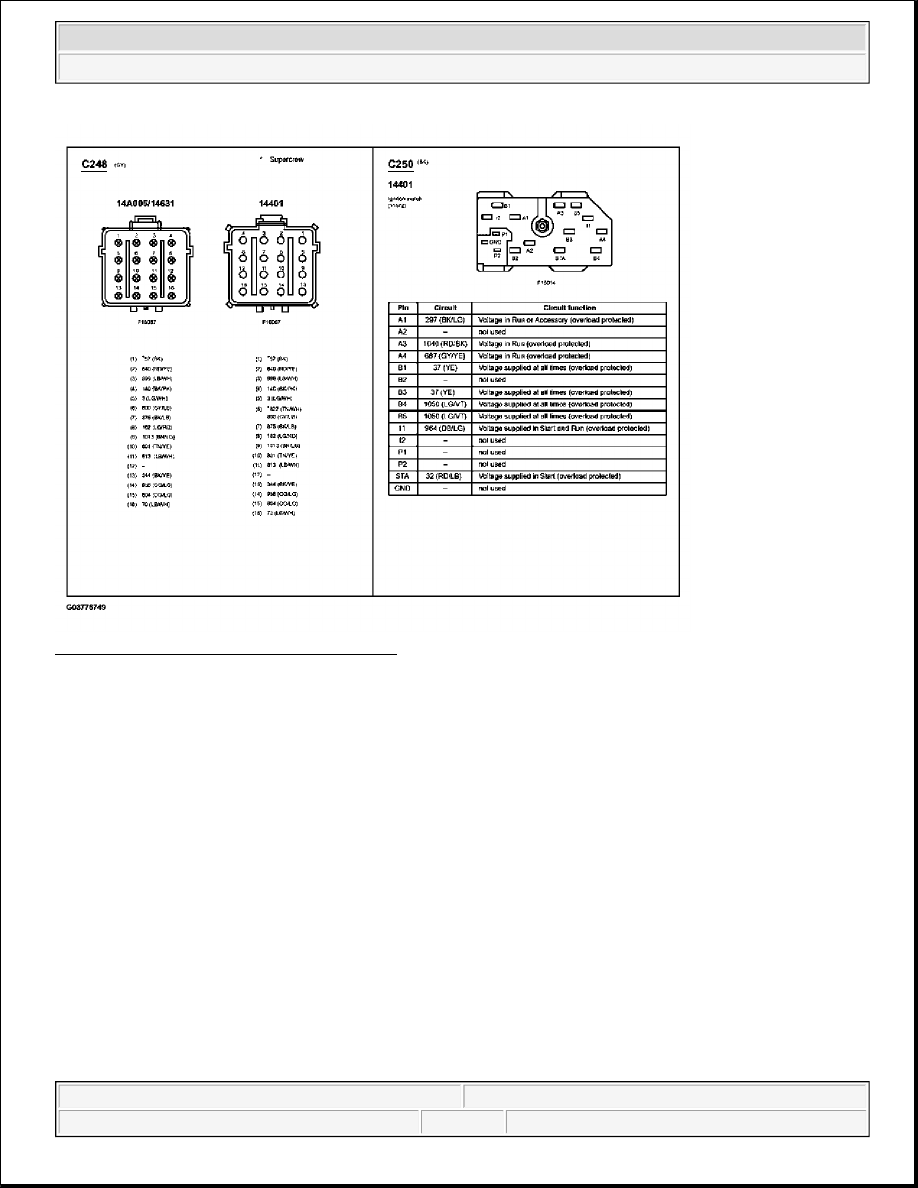

Fig. 35: Identifying Connector C248 & C250
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup
