Ford F150 Pickup. Manual - part 699

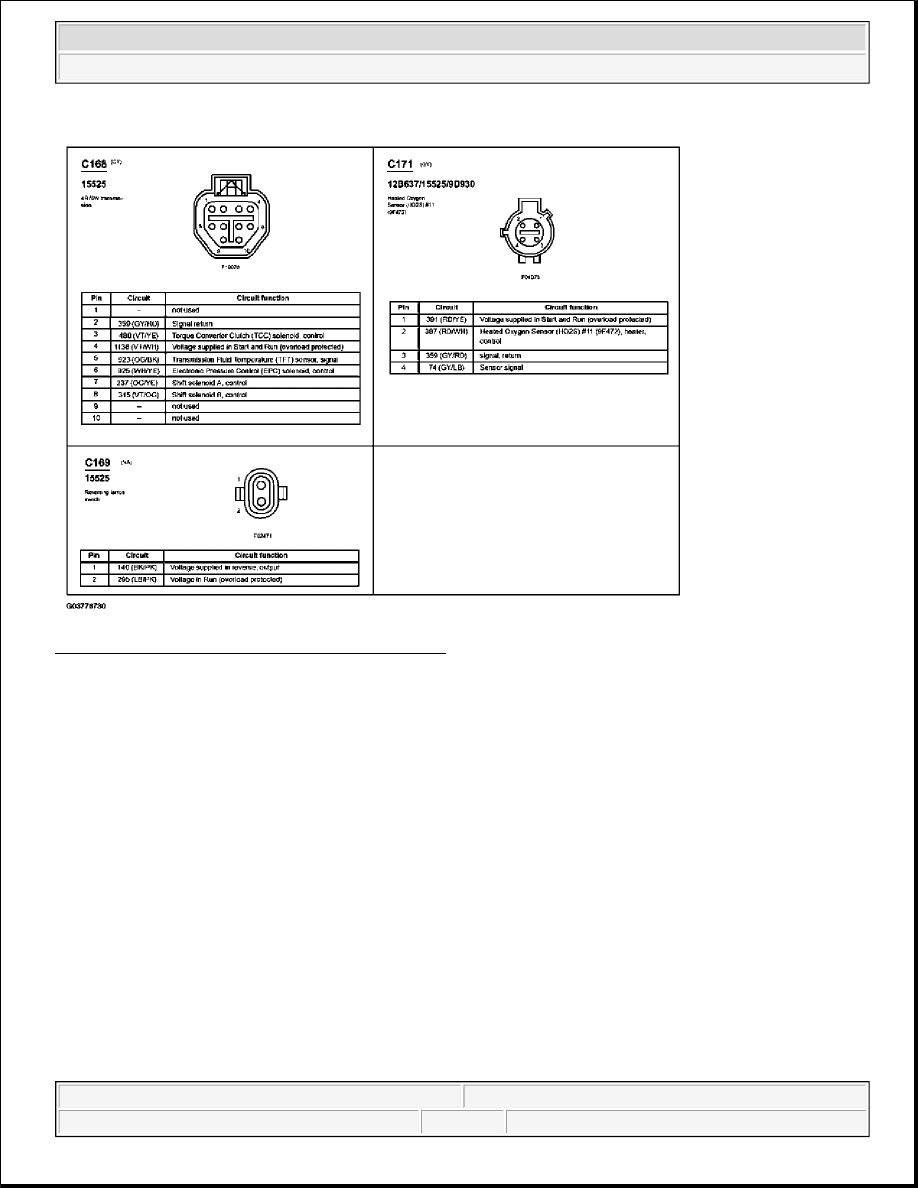

Fig. 16: Identifying Connector C168, C169 & C171
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup

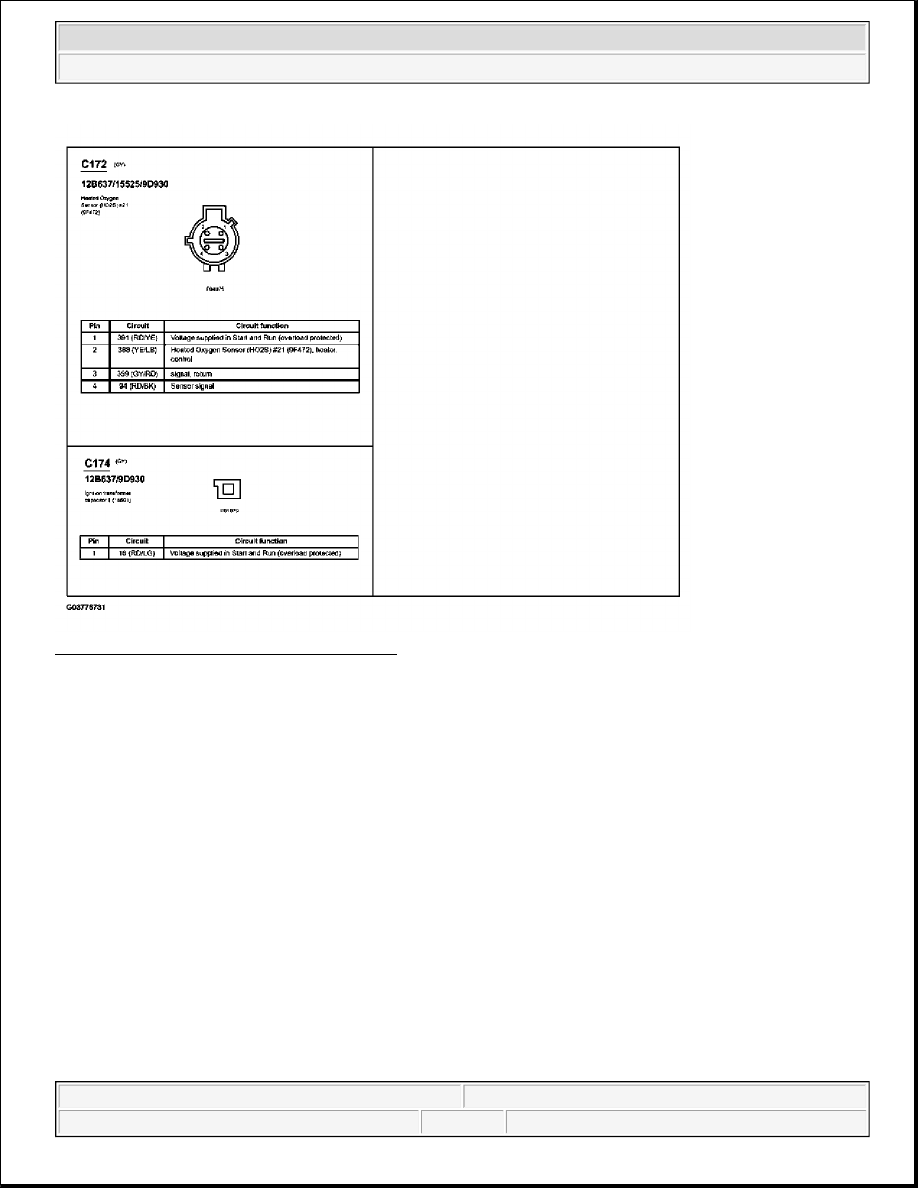

Fig. 17: Identifying Connector C172 & C174
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup

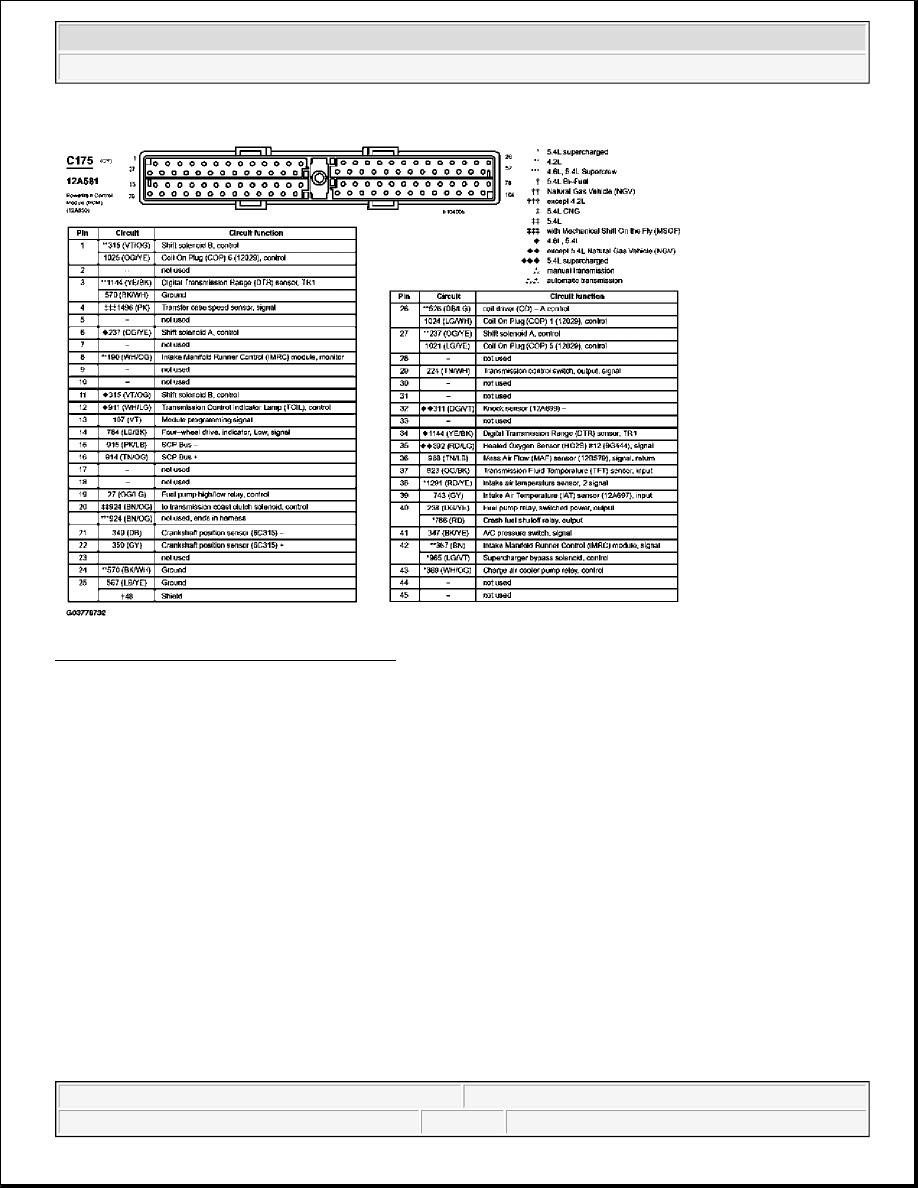

Fig. 18: Identifying Connector C175 (1 Of 3)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup

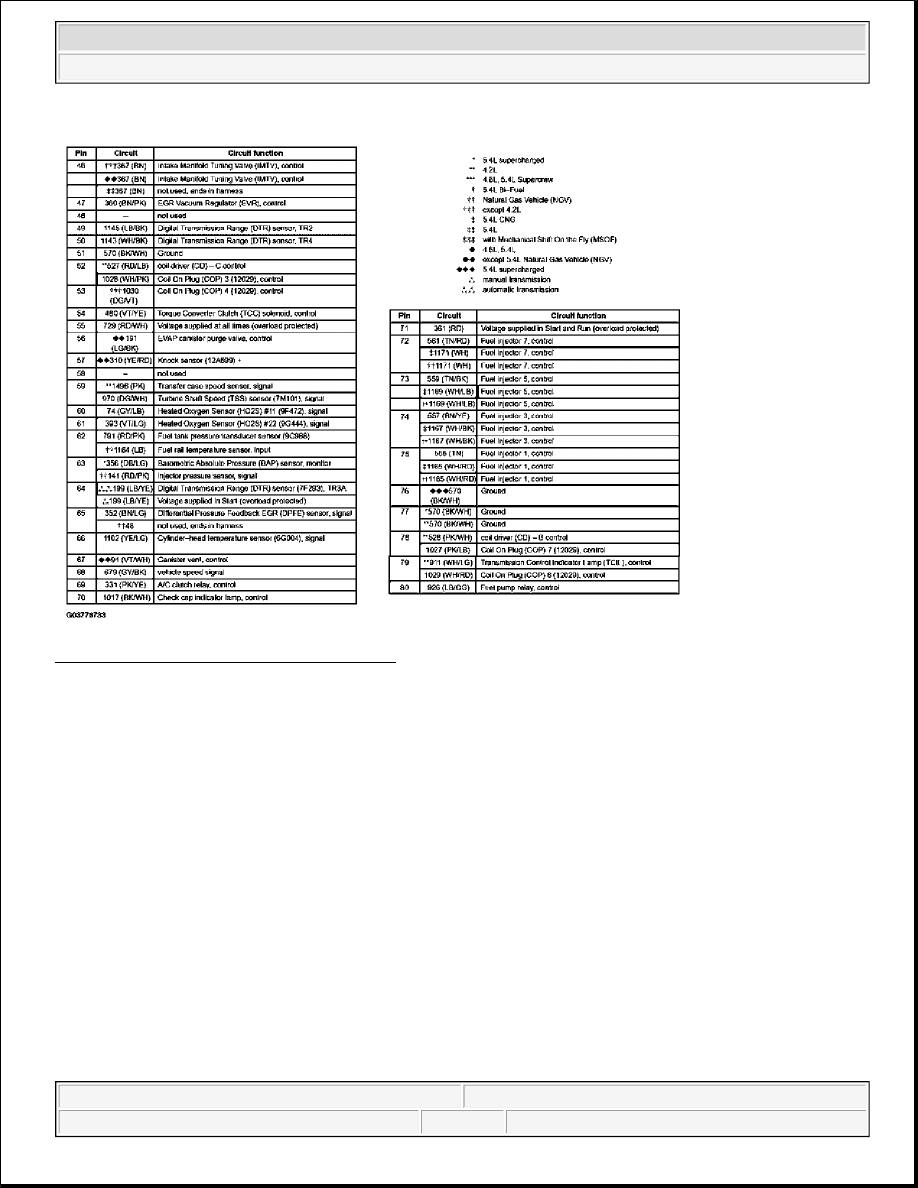

Fig. 19: Identifying Connector C175 (2 Of 3)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ELECTRICAL Connector Views - F150 Pickup
