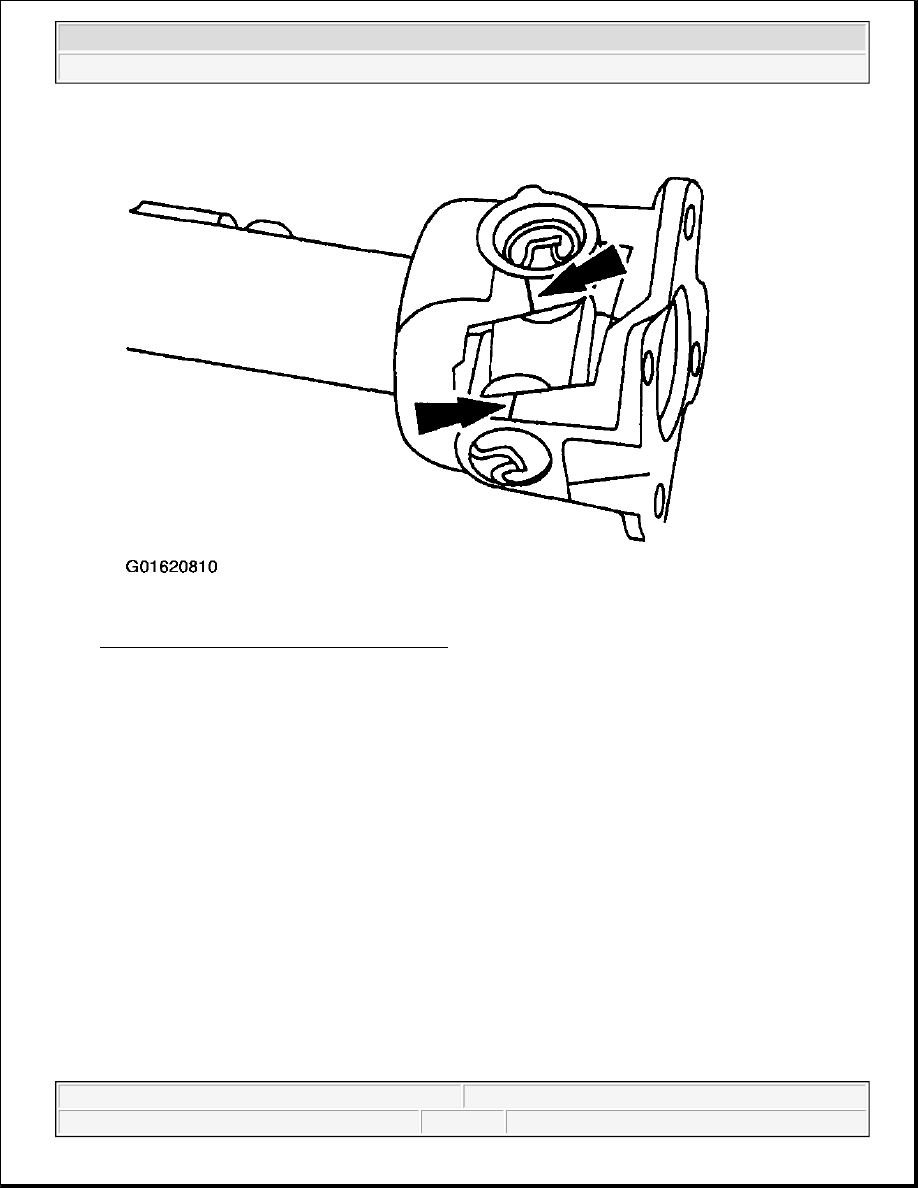

Fig. 51: Driveshaft Component Match Marks
Courtesy of FORD MOTOR CO.

2. Index-mark the driveshaft components.

3. Remove and discard all four of the snap rings.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Driveshaft & Universal Joints - F150 Pickup

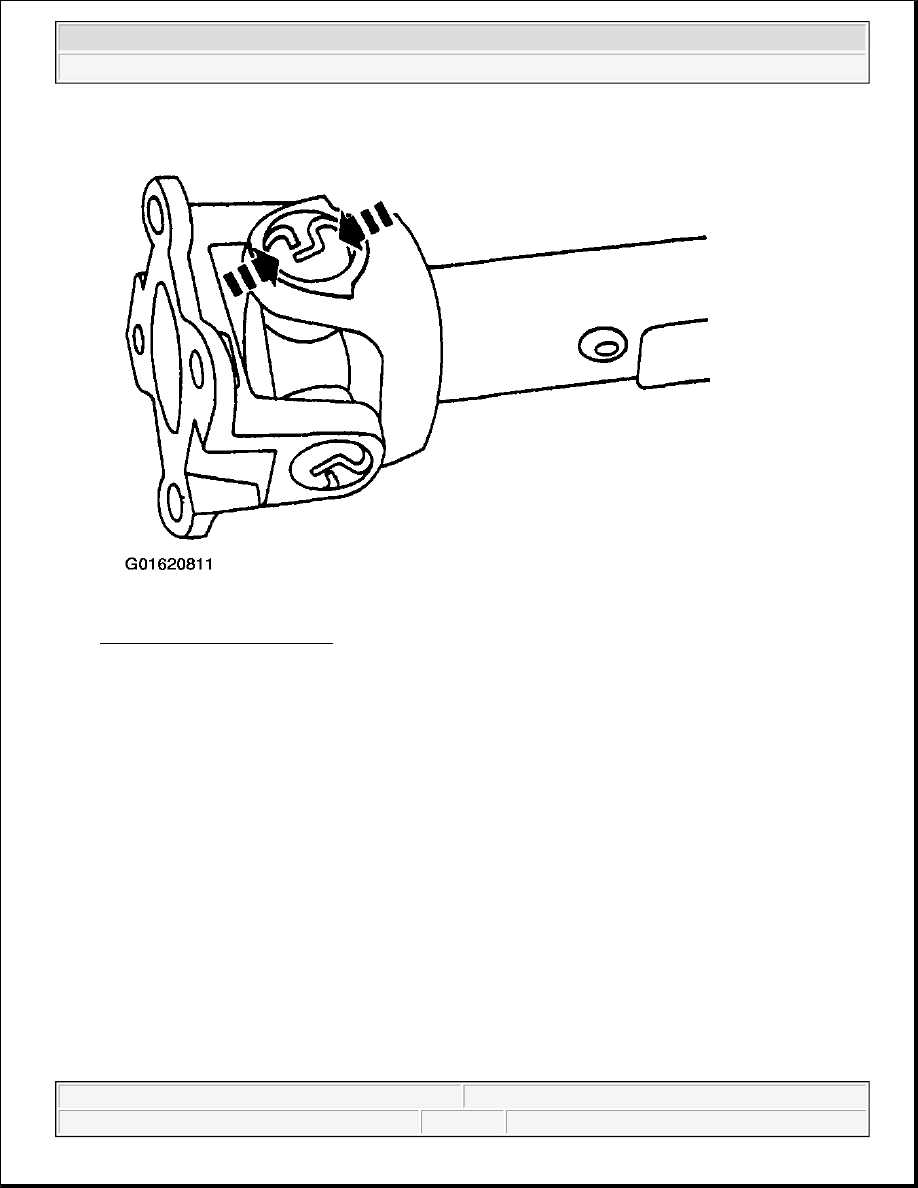

Fig. 52: Removing Snap Rings
Courtesy of FORD MOTOR CO.

4. Clamp the special tool in a vise.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Driveshaft & Universal Joints - F150 Pickup

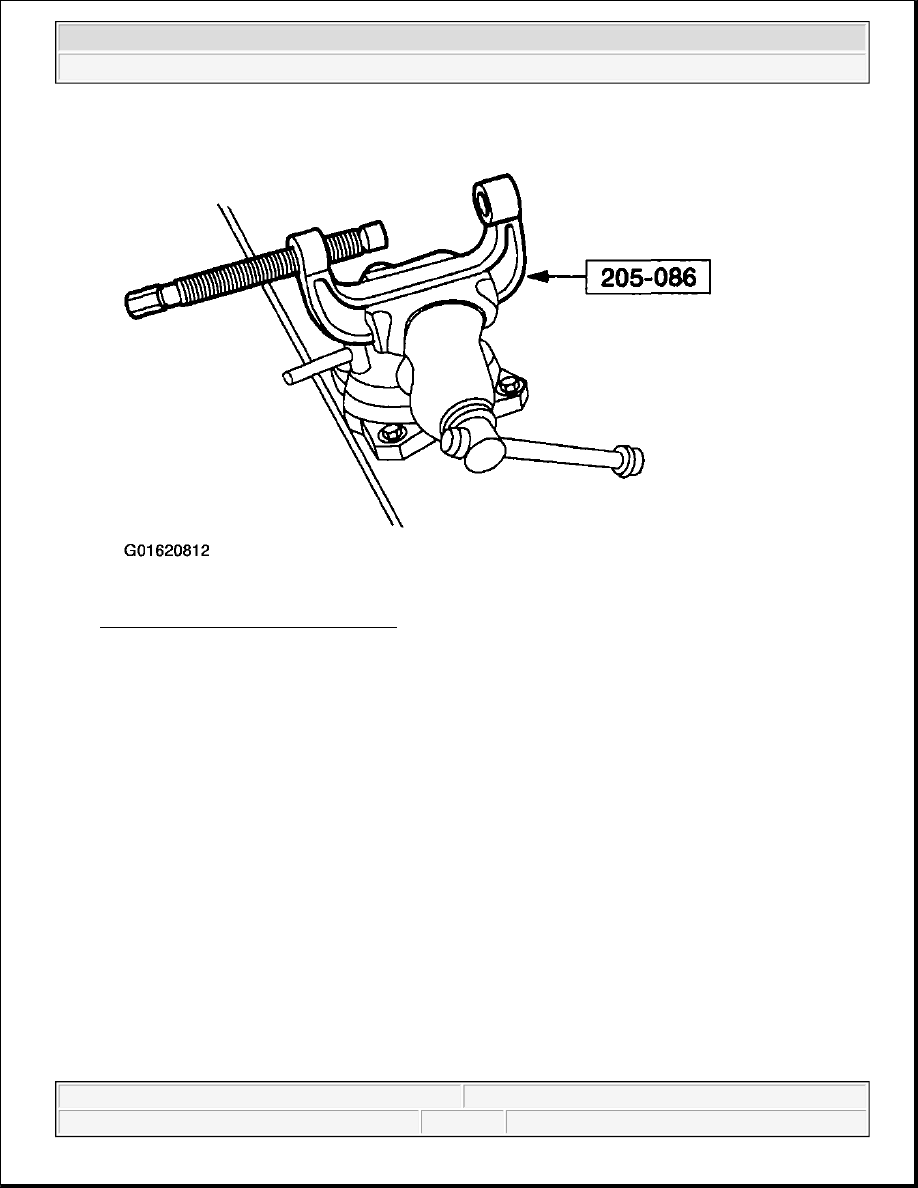

Fig. 53: Clamping Special Tool In Vise
Courtesy of FORD MOTOR CO.

Bearing Cup Removal

NOTE:

If necessary, use a pair of pliers to remove a bearing cup that fails to press
out all the way.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Driveshaft & Universal Joints - F150 Pickup

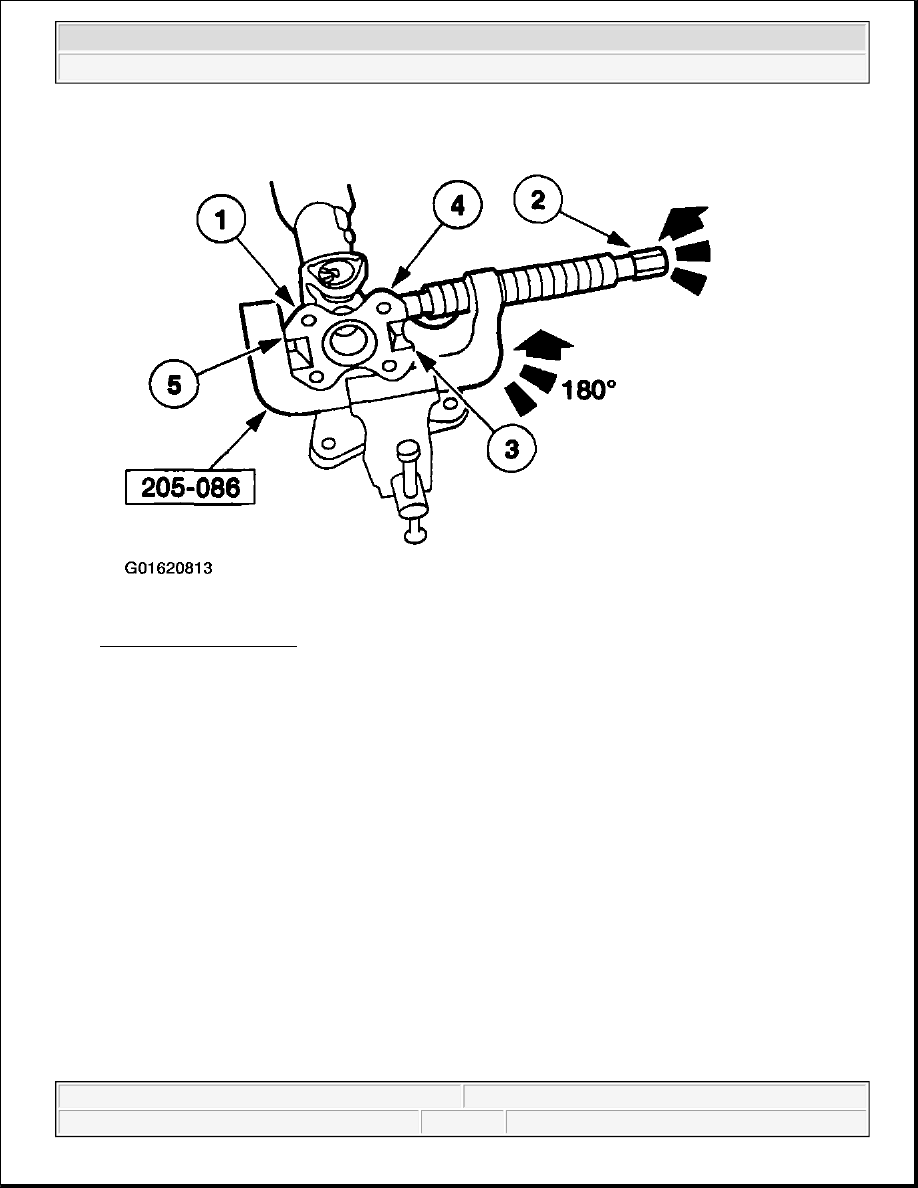

Fig. 54: Removing Flange
Courtesy of FORD MOTOR CO.

5. Remove the bearing cups and the flange.

1. Position the flange in the special tool.

2. Press out a bearing cup.

3. Rotate the flange 180 degrees.

4. Press on the spider to remove the remaining bearing cup.

5. Remove the flange.

Final Disassembly

6. Repeat Bearing cup removal in this procedure to remove the remaining bearing cups and the spider from

the driveshaft.
