Ford F150 Pickup. Manual - part 588

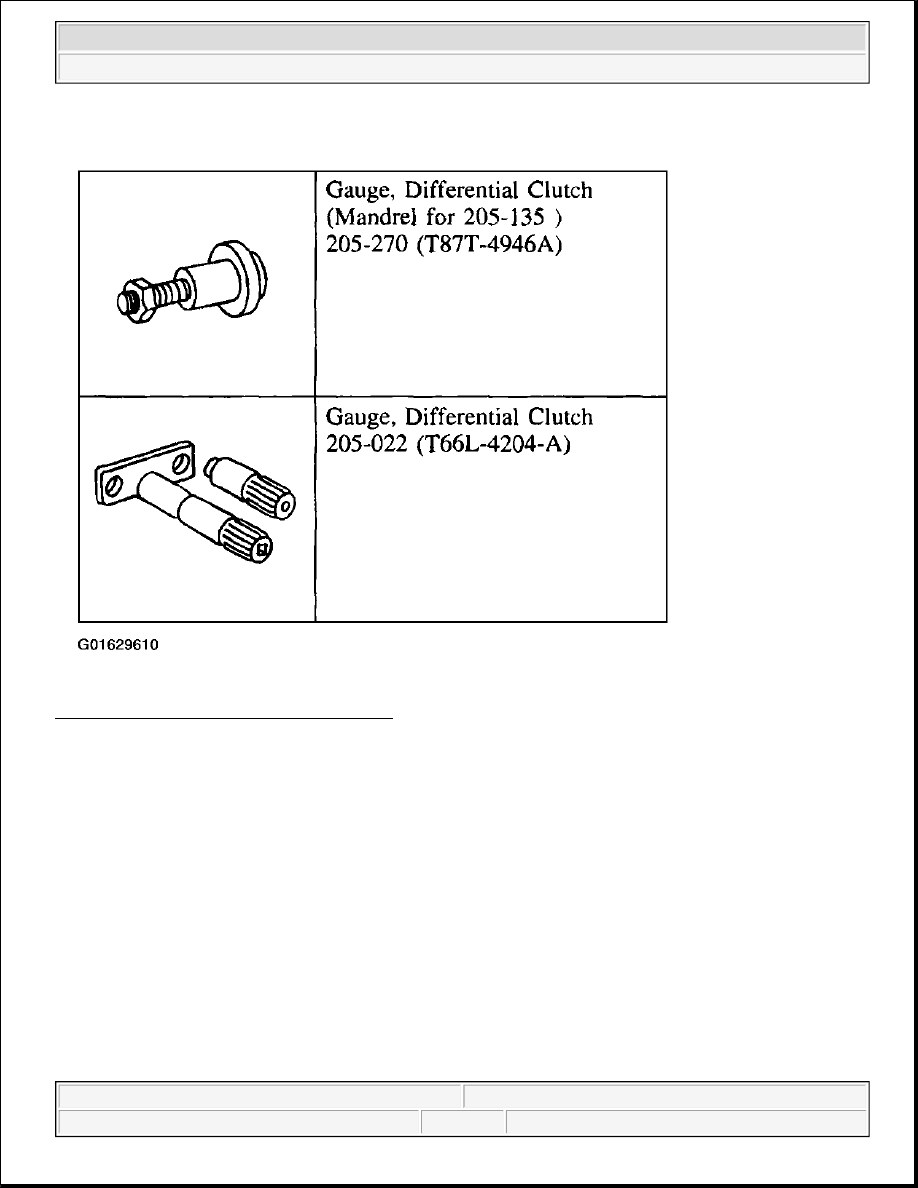

Fig. 149: Identifying Special Tool(s) (2 Of 2)
Courtesy of FORD MOTOR CO.

Material



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup

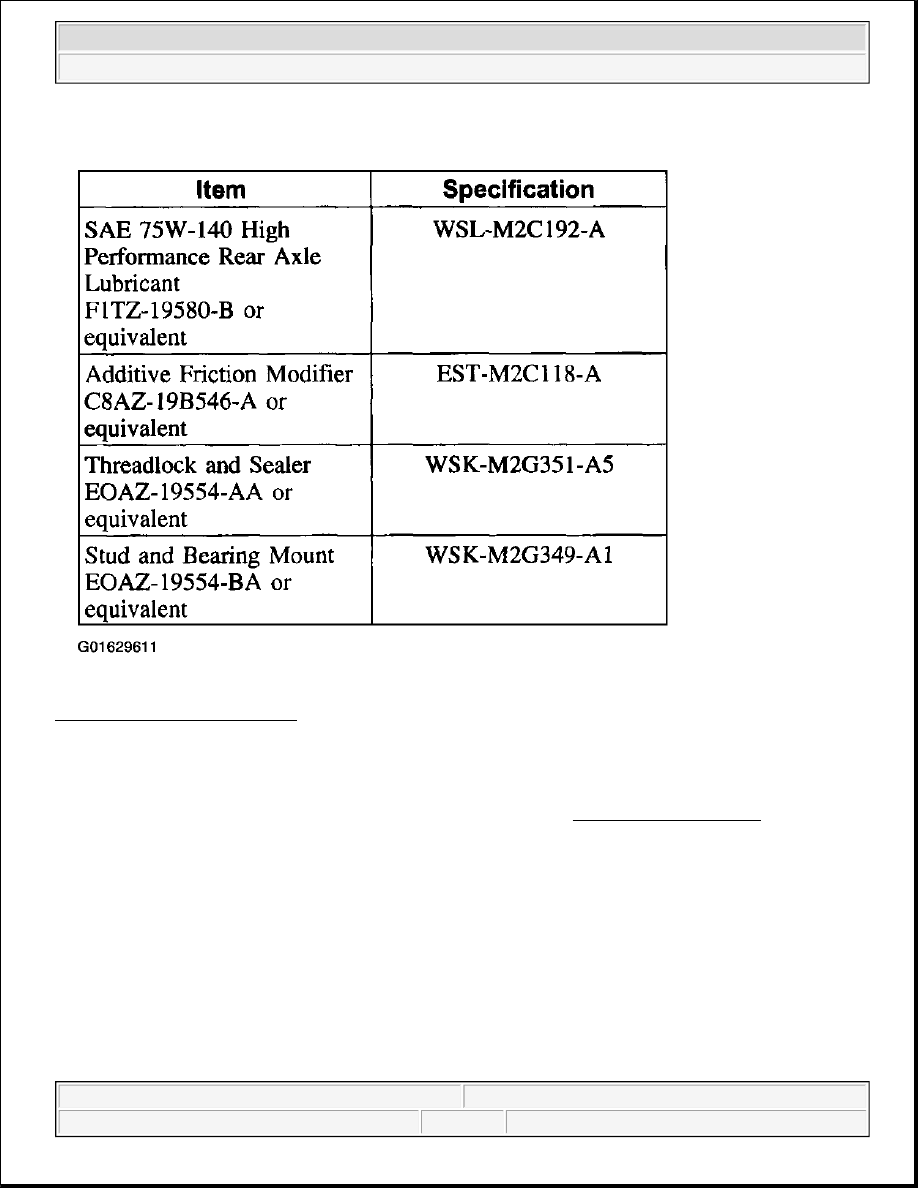

Fig. 150: Material Specification
Courtesy of FORD MOTOR CO.

Disassembly

1. Remove the differential case. For additional information, refer to DIFFERENTIAL CASE .

2. Remove the 10 ring gear bolts.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup

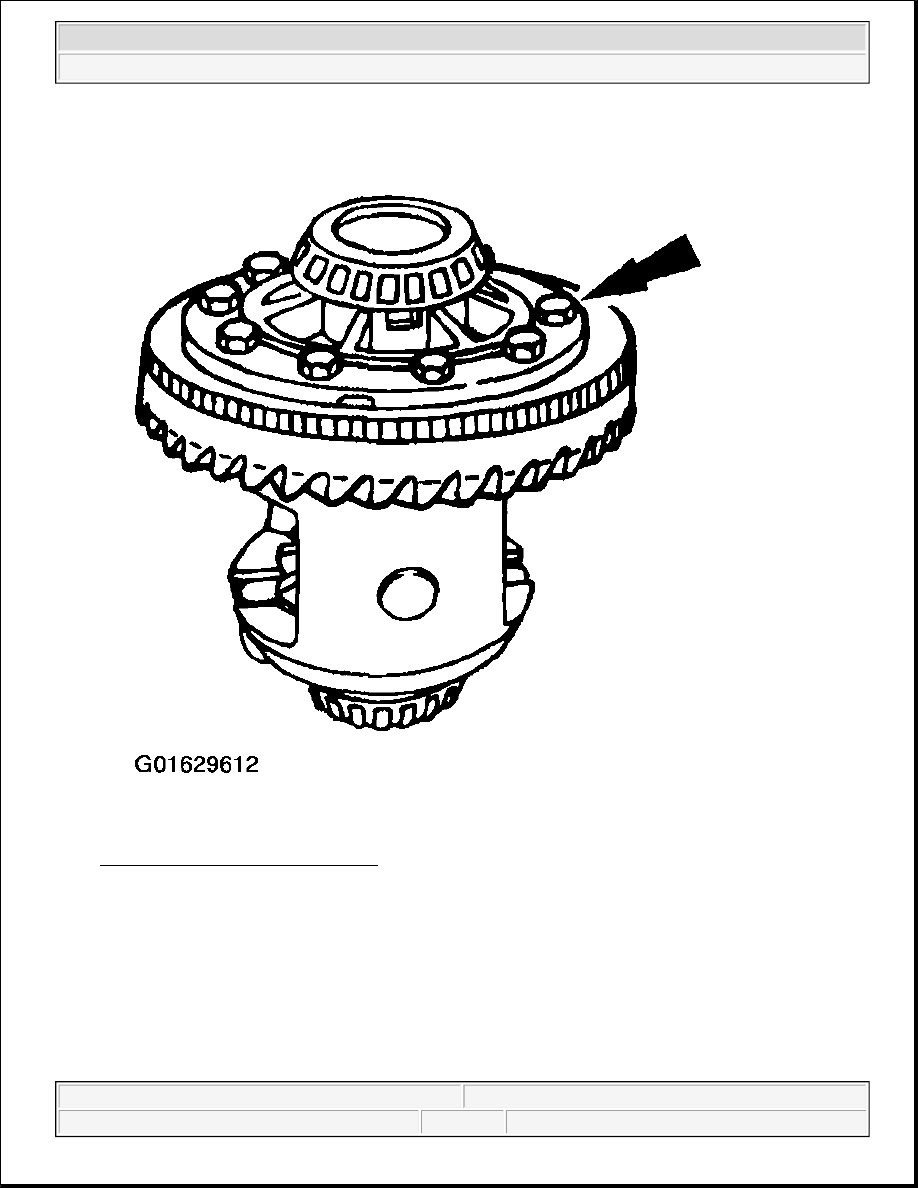

Fig. 151: Removing Ring Gear Bolts
Courtesy of FORD MOTOR CO.

CAUTION: Care should be taken not to damage the bolt hole threads.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup

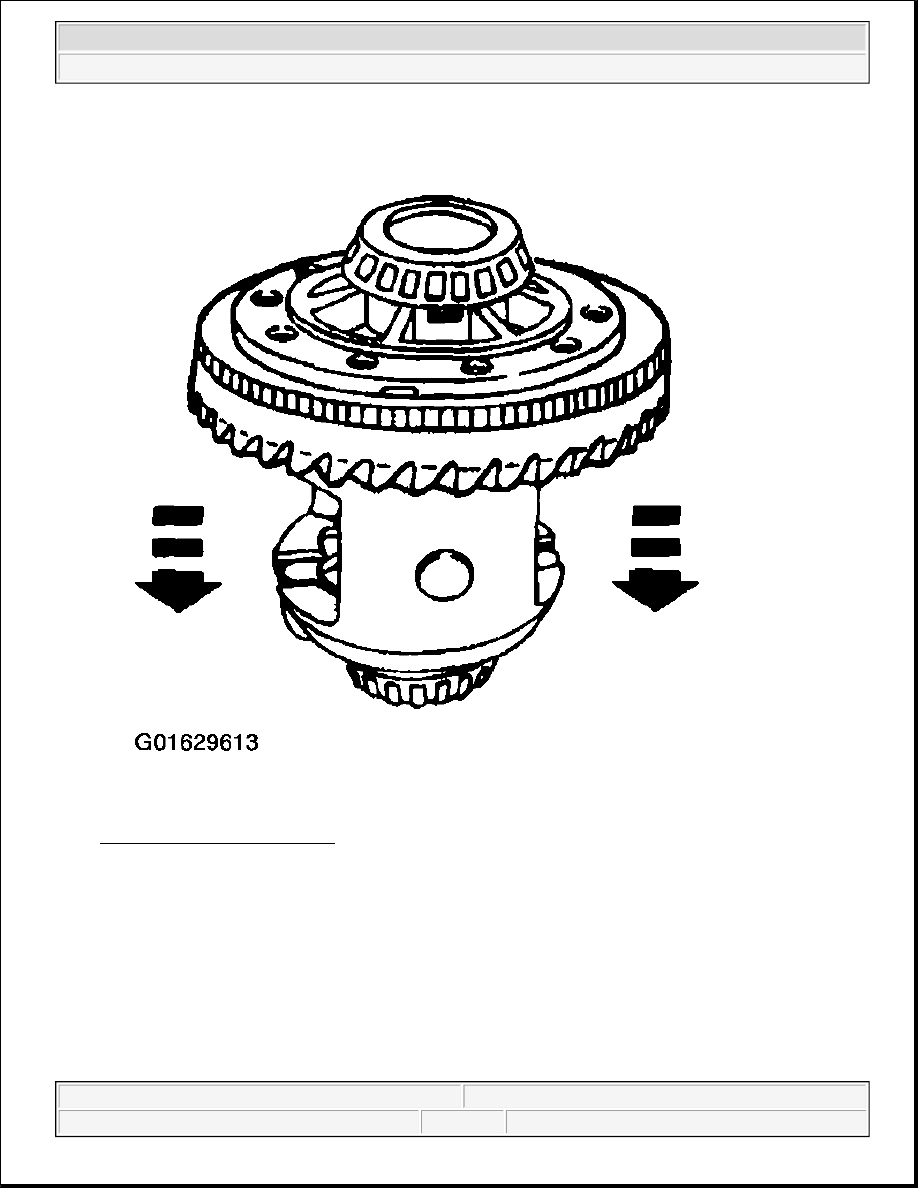

Fig. 152: Removing Ring Gear
Courtesy of FORD MOTOR CO.

3. Insert a punch in the bolt holes and drive the ring gear off.

NOTE:

The anti-lock speed sensor ring cannot be reused once removed.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup
