2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup

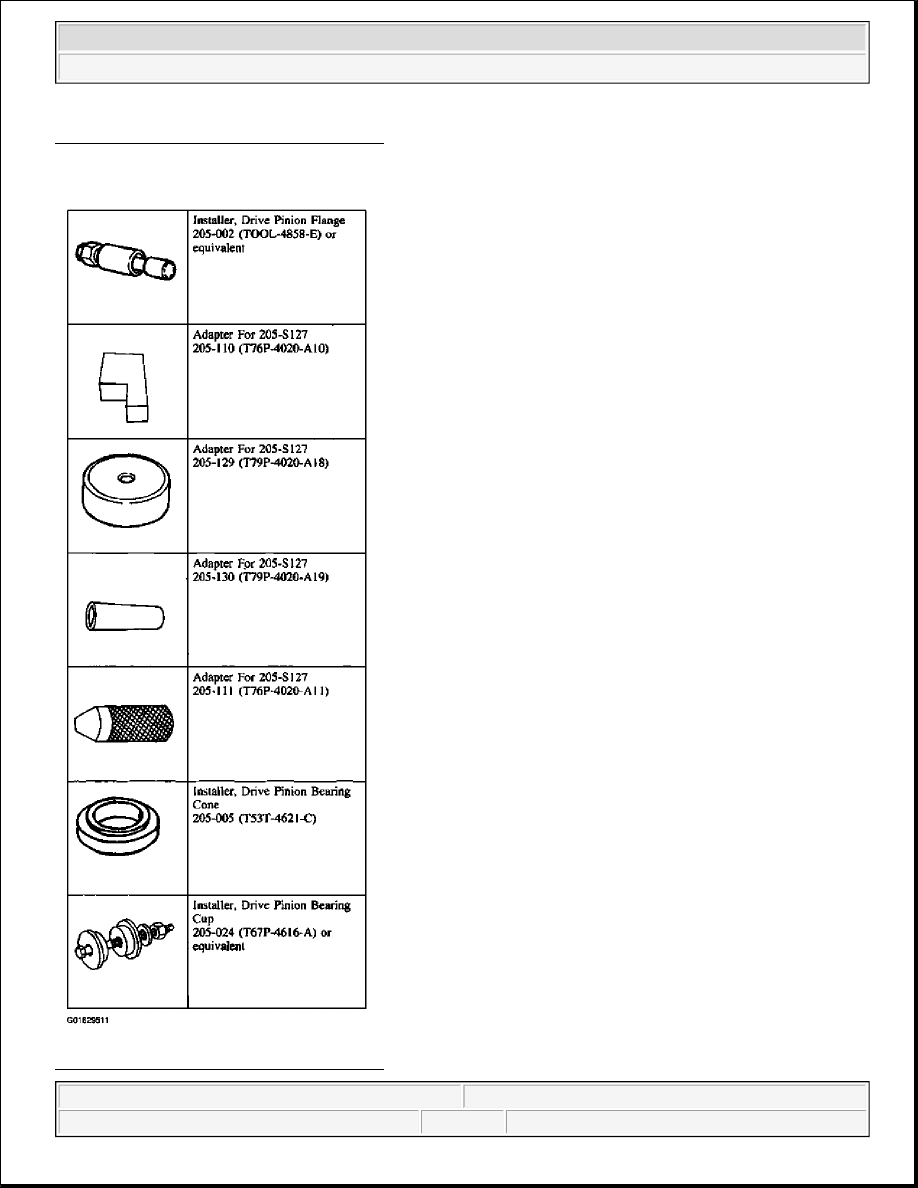

Fig. 49: Identifying Special Tool(s) (1 Of 3)
Courtesy of FORD MOTOR CO.

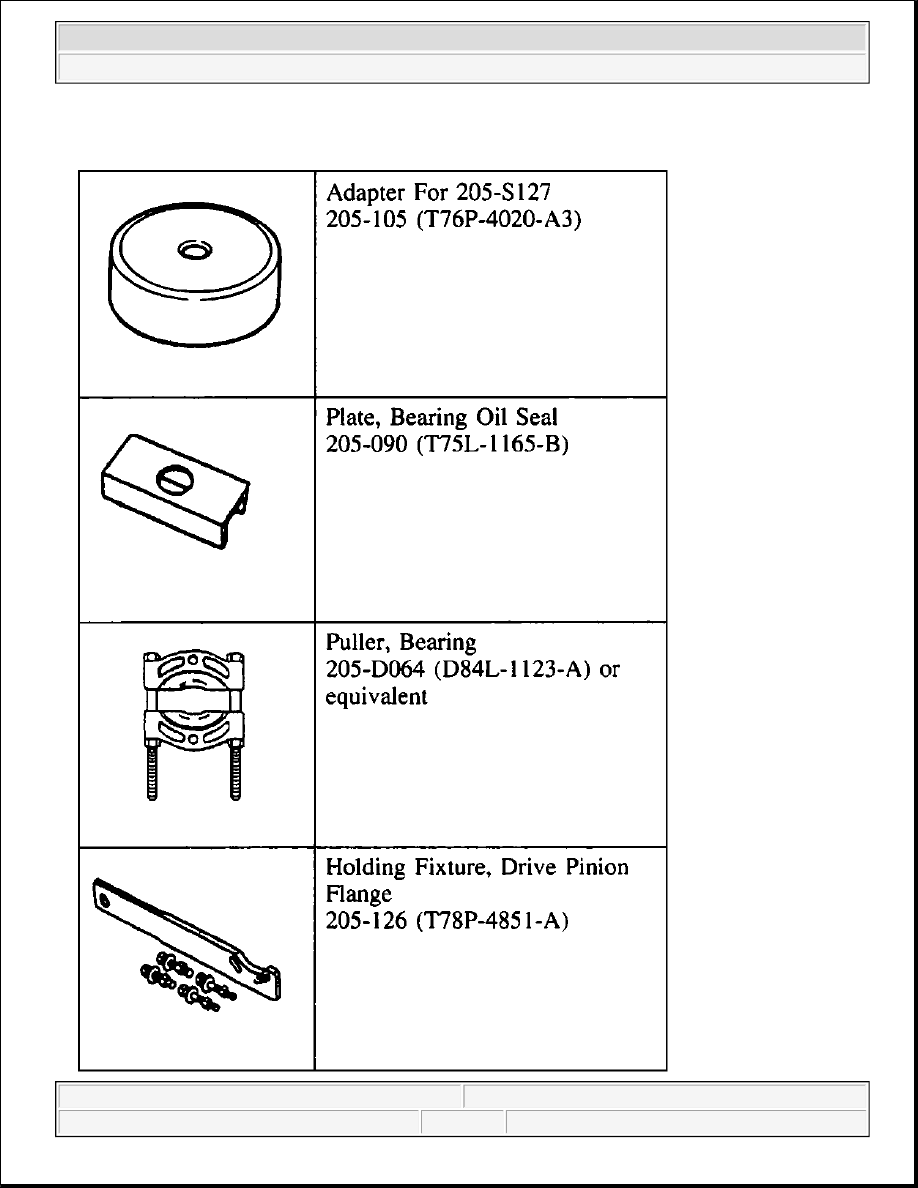

Fig. 50: Identifying Special Tool(s) (2 Of 3)



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



Courtesy of FORD MOTOR CO.

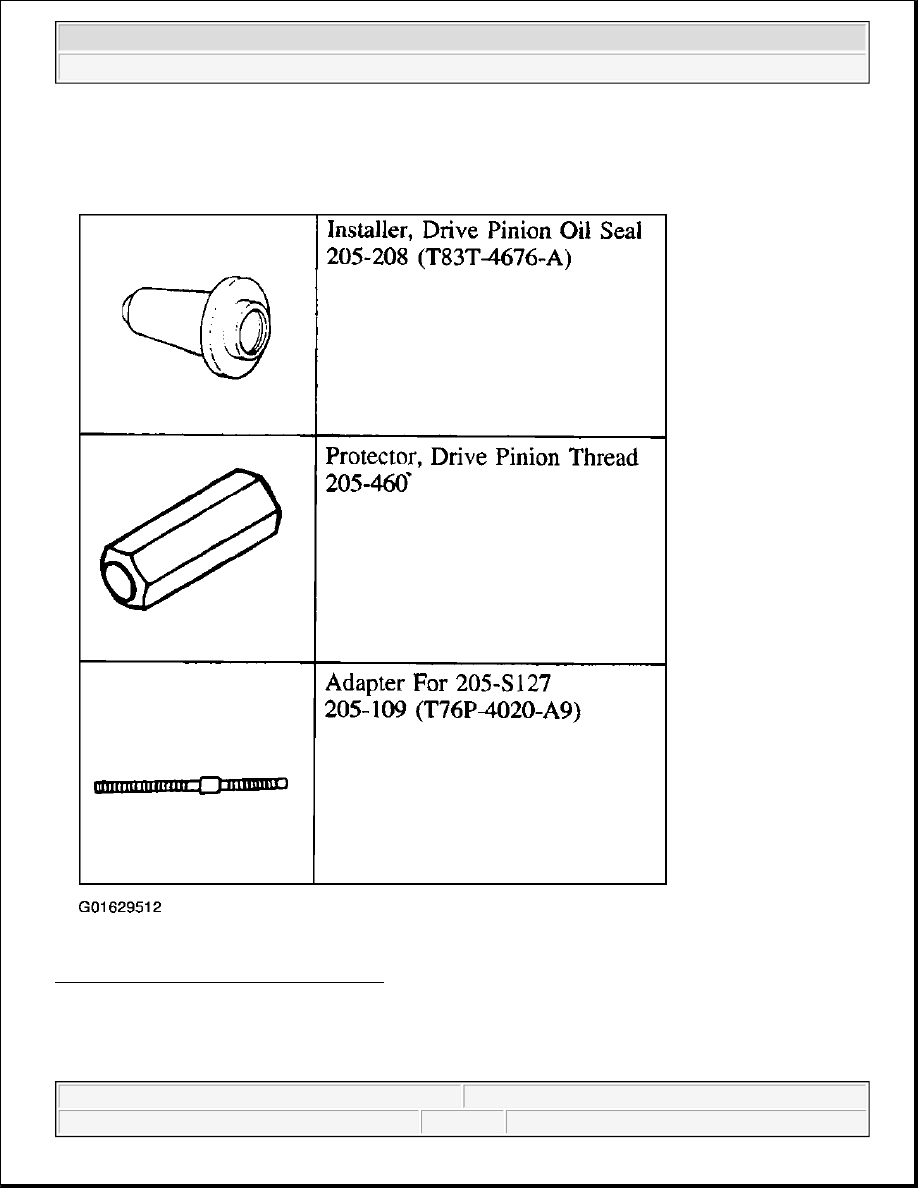

Fig. 51: Identifying Special Tool(s) (3 Of 3)
Courtesy of FORD MOTOR CO.

Removal

1. Remove the differential case. For additional information, refer to DIFFERENTIAL CASE .



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear - F150 Pickup



2. Mark the driveshaft flange and the pinion flange for correct alignment during installation.

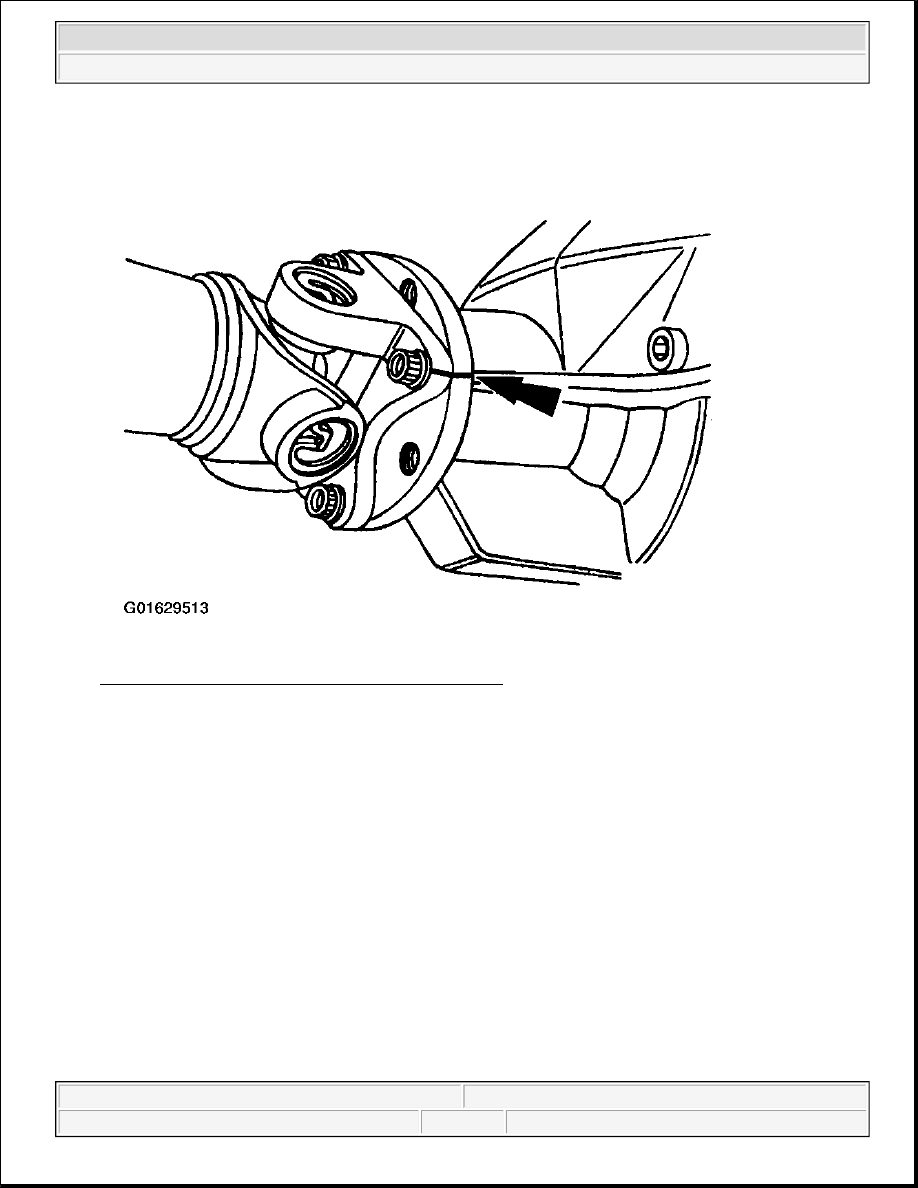

Fig. 52: Marking Driveshaft Flange & Pinion Flange
Courtesy of FORD MOTOR CO.

3. Remove the four driveshaft bolts.
