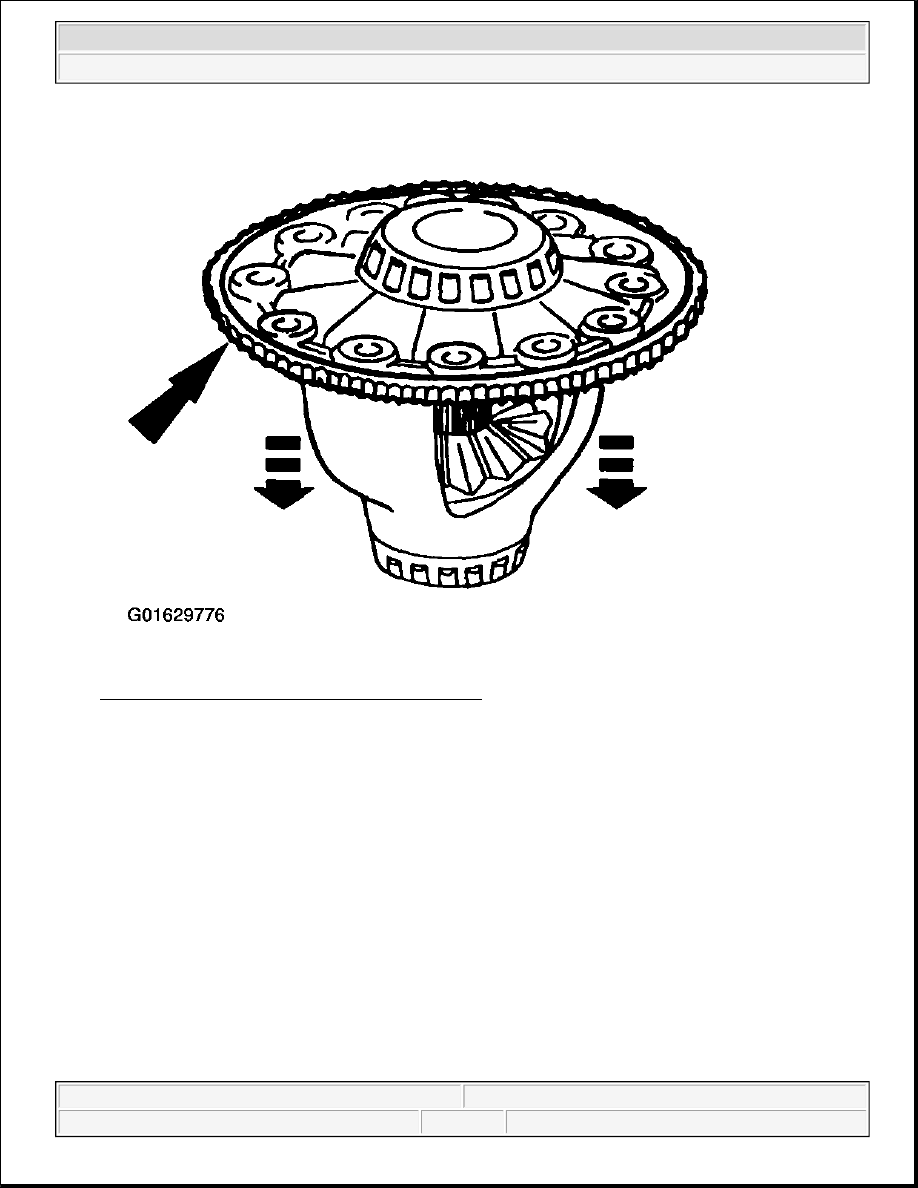

Fig. 140: Removing Ring Gear
Courtesy of FORD MOTOR CO.

NOTE:

The anti-lock speed sensor ring cannot be reused once removed.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup

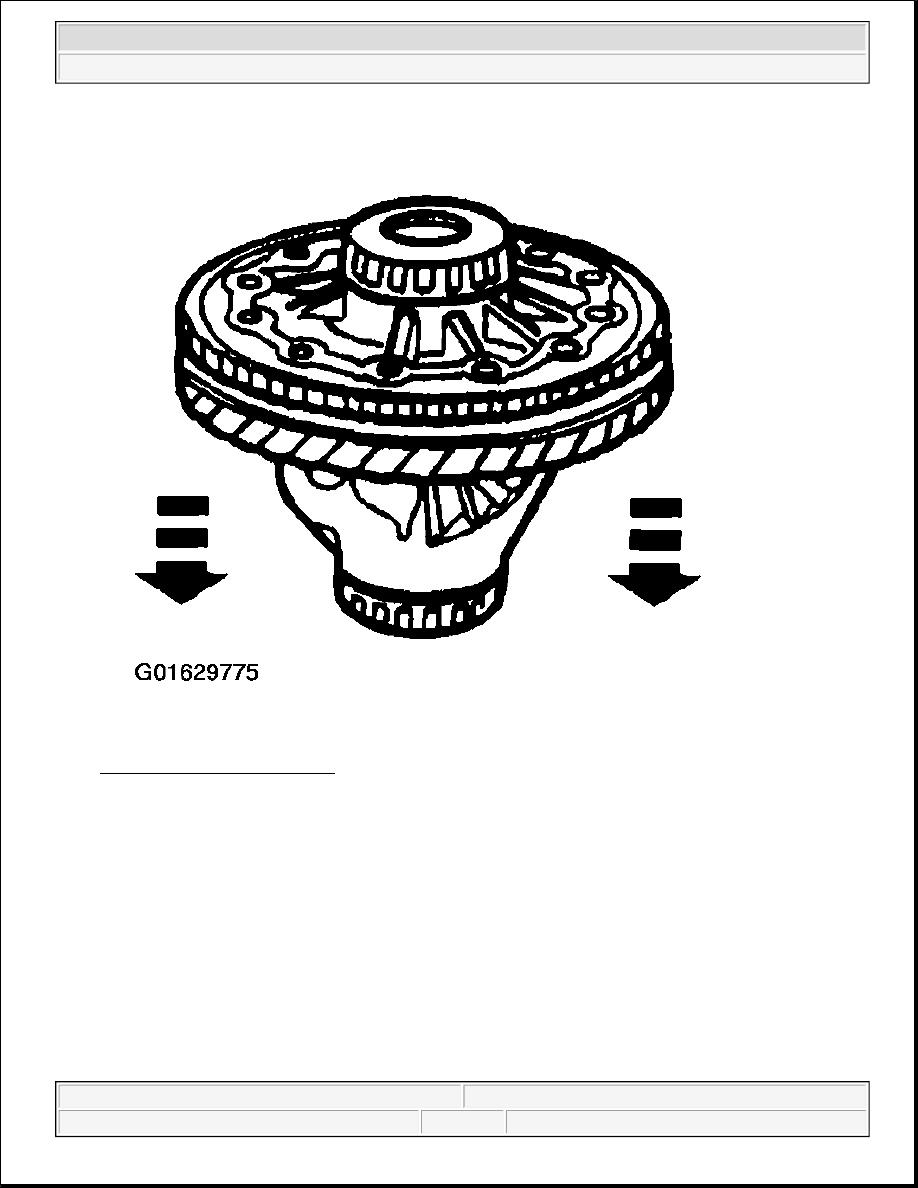

Fig. 141: Removing Anti-Lock Speed Sensor Ring
Courtesy of FORD MOTOR CO.

4. Remove the anti-lock speed sensor ring.

5. If required, remove the differential bearings (4221) with the special tools.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup

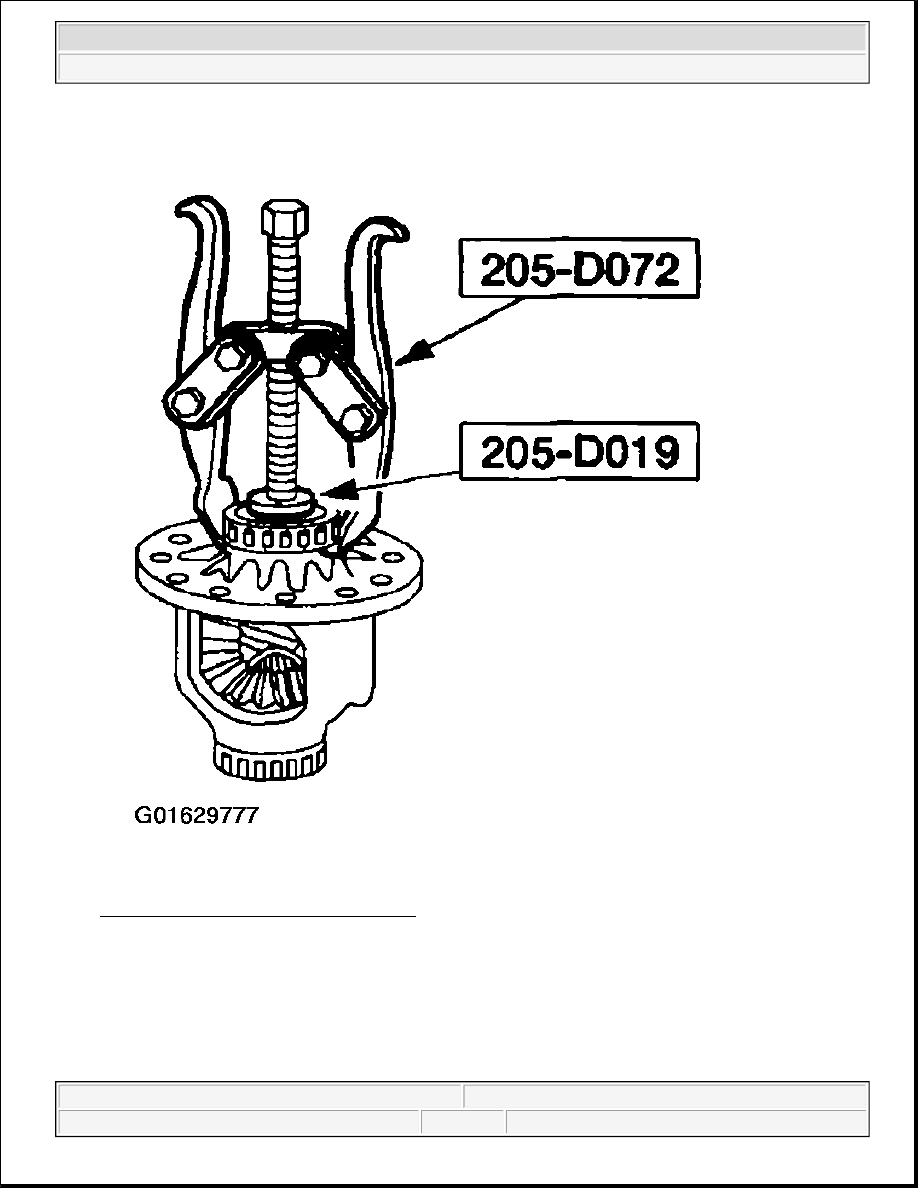

Fig. 142: Removing Differential Bearings
Courtesy of FORD MOTOR CO.

6. Remove the differential pinion shaft lock bolt and the differential pinion shaft (4211).



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup

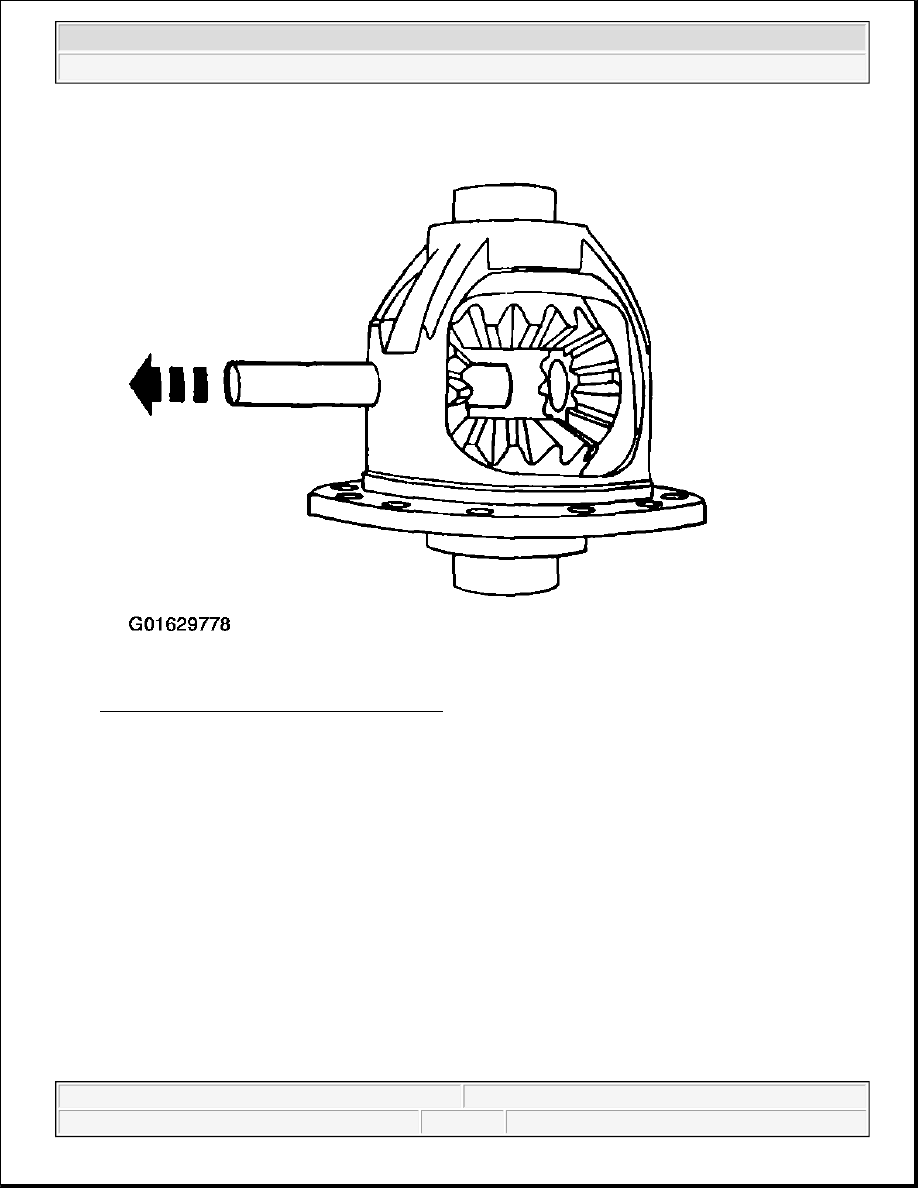

Fig. 143: Removing Differential Pinion Shaft
Courtesy of FORD MOTOR CO.

7. Rotate and remove the differential pinion gears and differential pinion thrust washers.
