Fig. 128: Removing Parking Brake Cables
Courtesy of FORD MOTOR CO.

4. Disconnect the rear brake anti-lock sensor electrical connector.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



Fig. 129: Disconnecting Rear Brake Anti-Lock Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

5. Mark the driveshaft flange and the rear axle pinion flange for correct alignment during the installation.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup



Fig. 130: Index Marking Driveshaft Flange & Rear Axle Pinion Flange
Courtesy of FORD MOTOR CO.

6. Remove the four driveshaft bolts.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Rear Drive Axle/Differential - Ford 10.25-inch - F150 Pickup

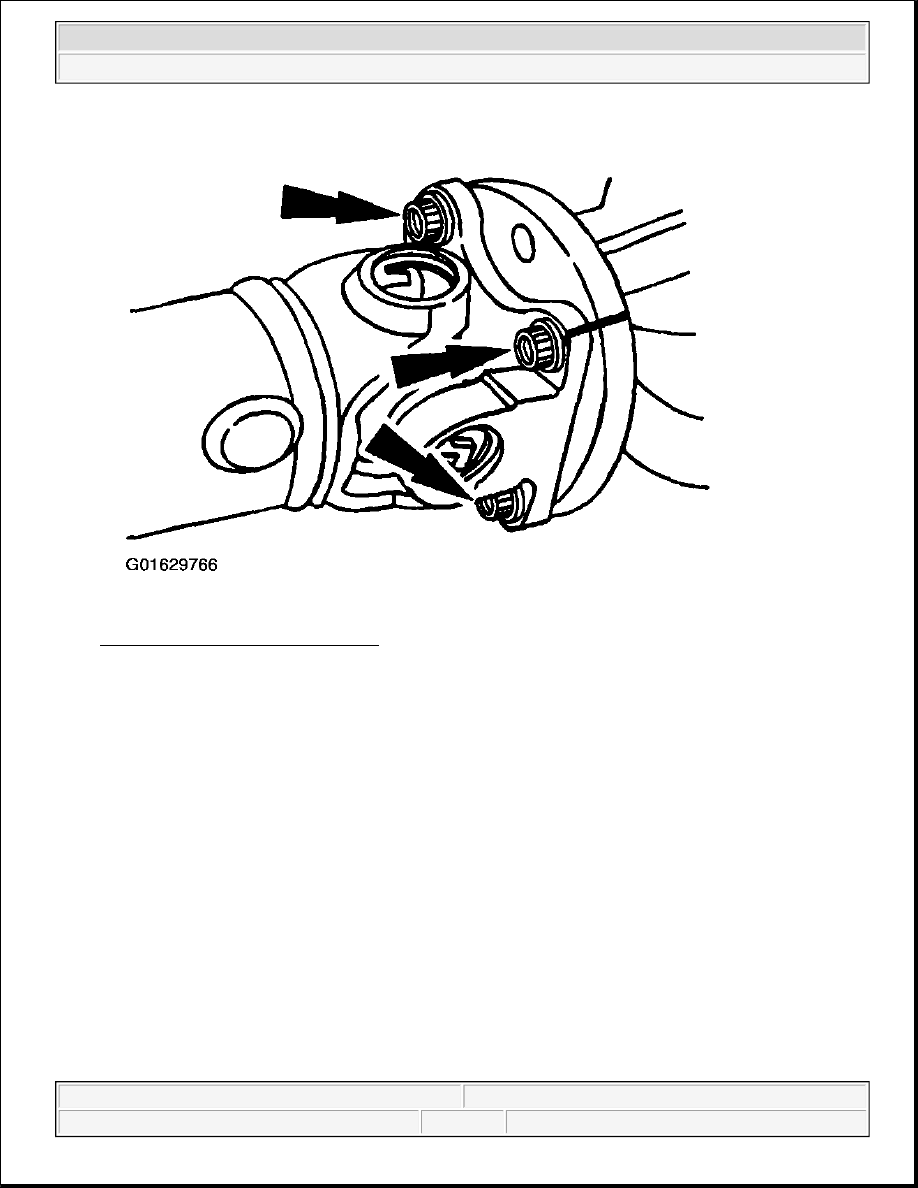

Fig. 131: Removing Driveshaft Bolts
Courtesy of FORD MOTOR CO.

CAUTION: The driveshaft centering socket yoke fits tightly on the rear axle

pinion flange pilot. Never hammer on the driveshaft or ant of its
components to disconnect the yoke from he flange. Pry only in the
area shown with a suitable tool to disconnect the yoke from the
flange.
