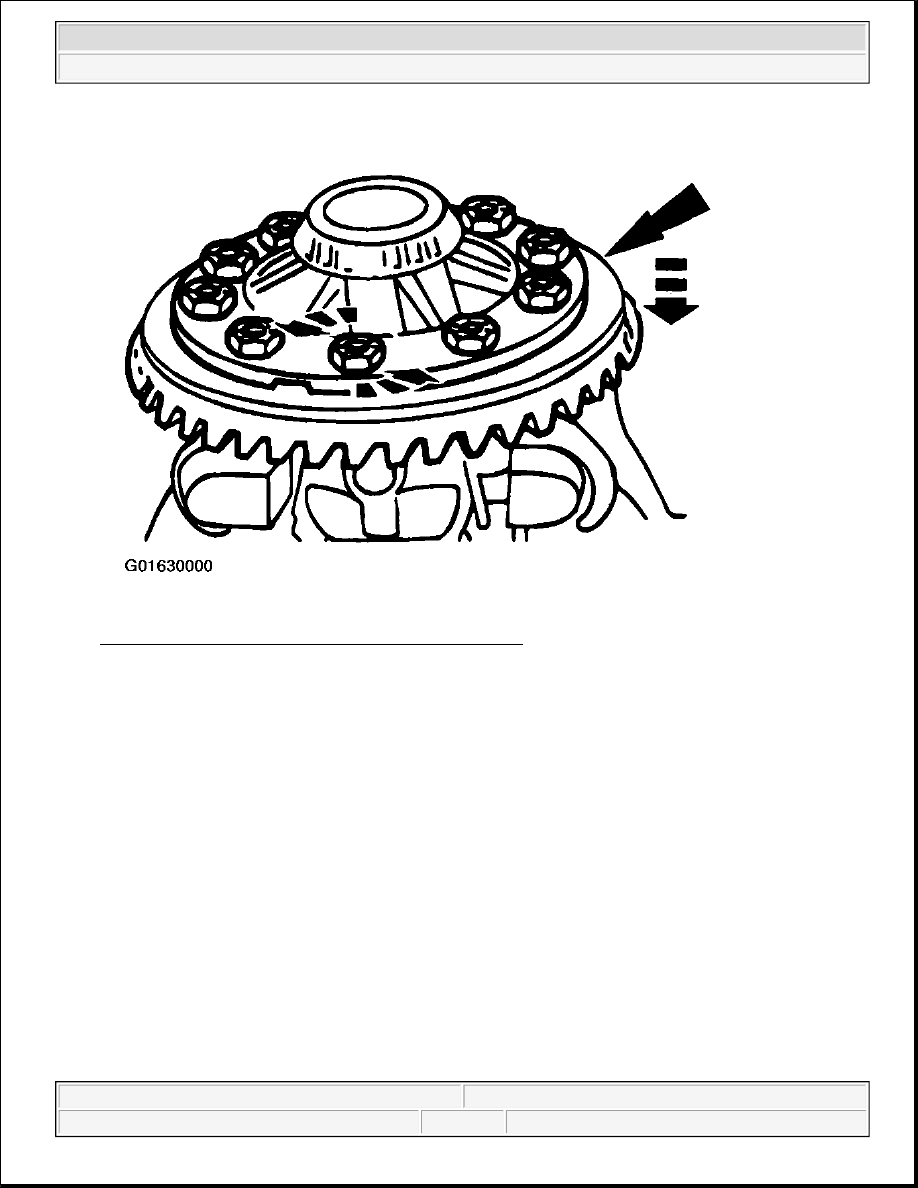

Fig. 183: Separating Ring Gear From Differential Case
Courtesy of FORD MOTOR CO.

3. Remove the differential pinion shaft bolt.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

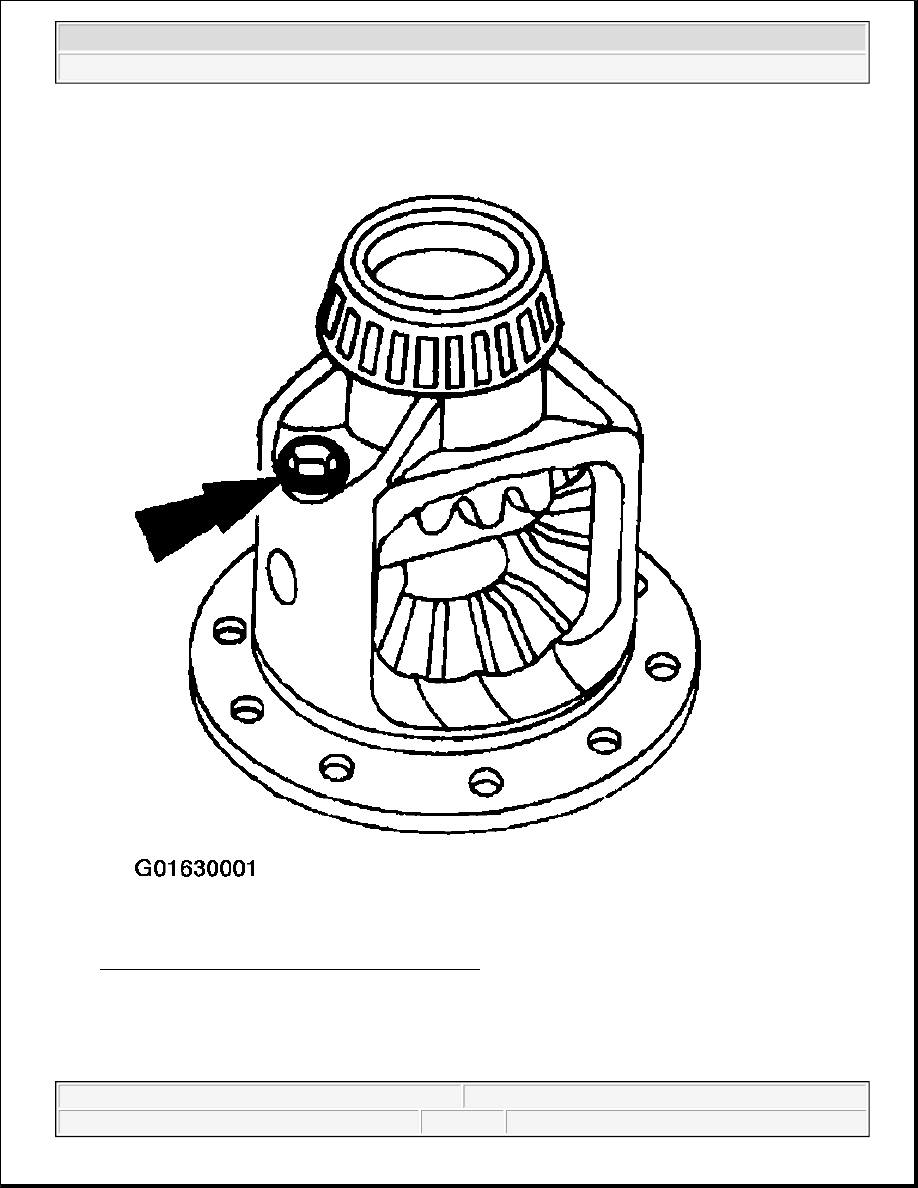

Fig. 184: Removing Differential Pinion Shaft Bolt
Courtesy of FORD MOTOR CO.

4. Remove the differential pinion shaft (4211).



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

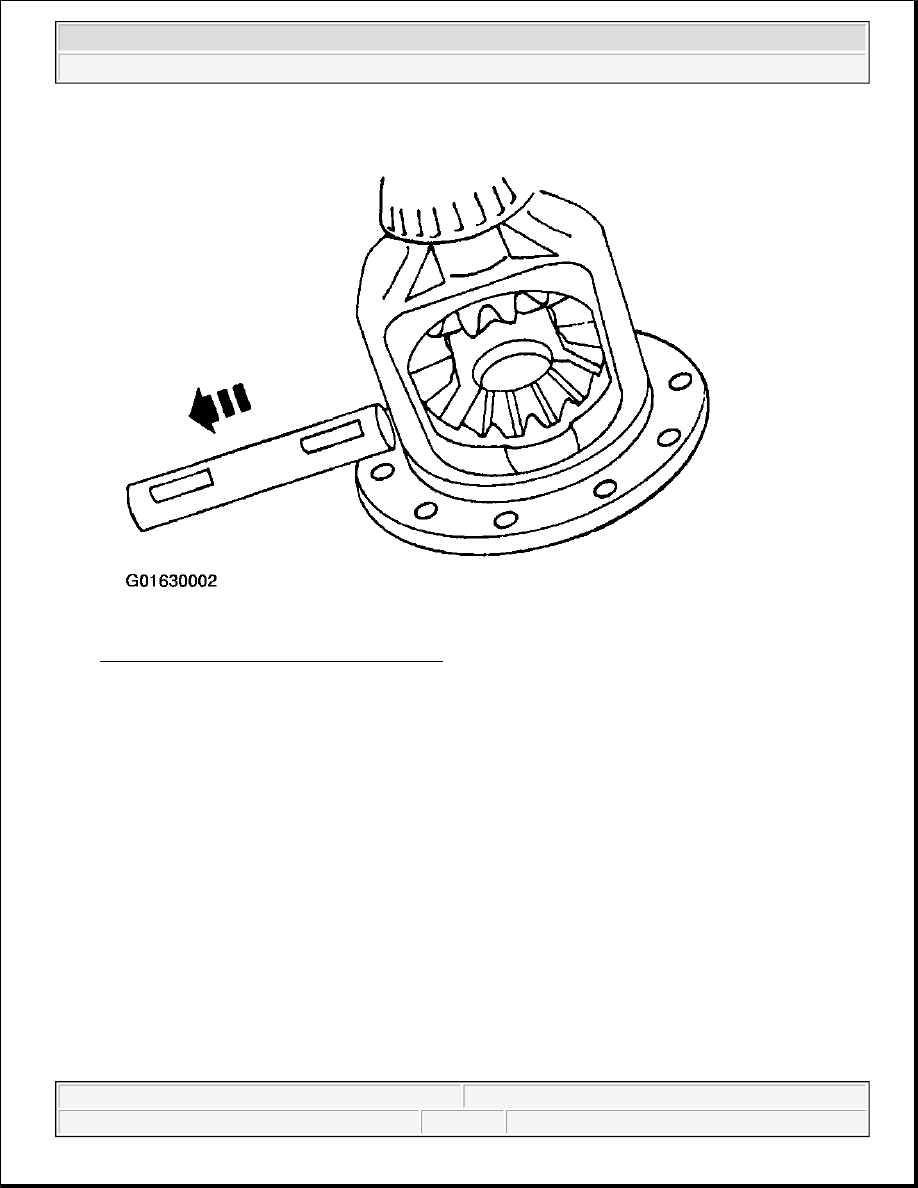

Fig. 185: Removing Differential Pinion Shaft
Courtesy of FORD MOTOR CO.

5. Remove the differential pinion thrust washers (4230) and the differential pinion gears (4215).

1. Rotate the differential pinion gears to the differential case window, and remove them.

2. Separate the thrust washers from the gears.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

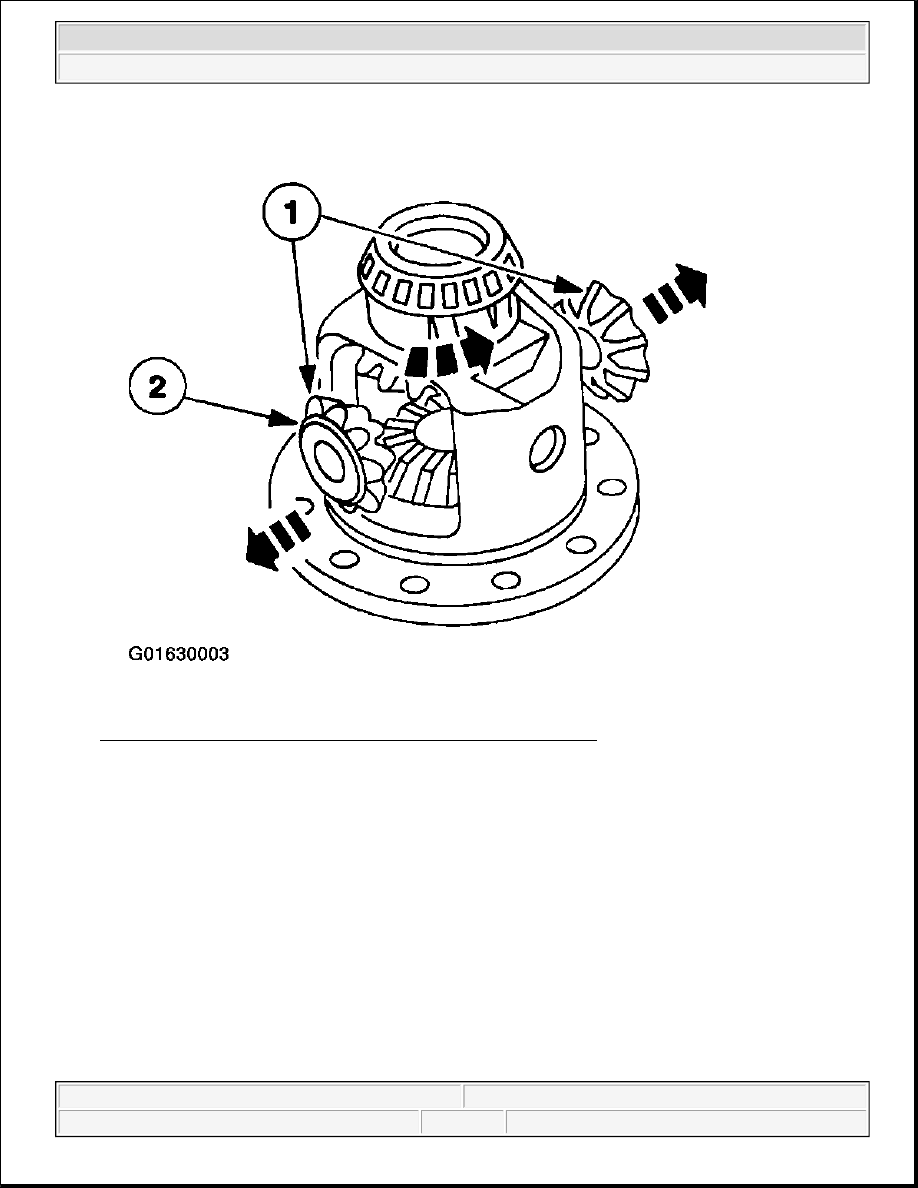

Fig. 186: Removing Thrust Washers & Differential Pinion Gears
Courtesy of FORD MOTOR CO.

6. Remove the differential side gears (4236) and the differential side gear thrust washers (386984).



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup
