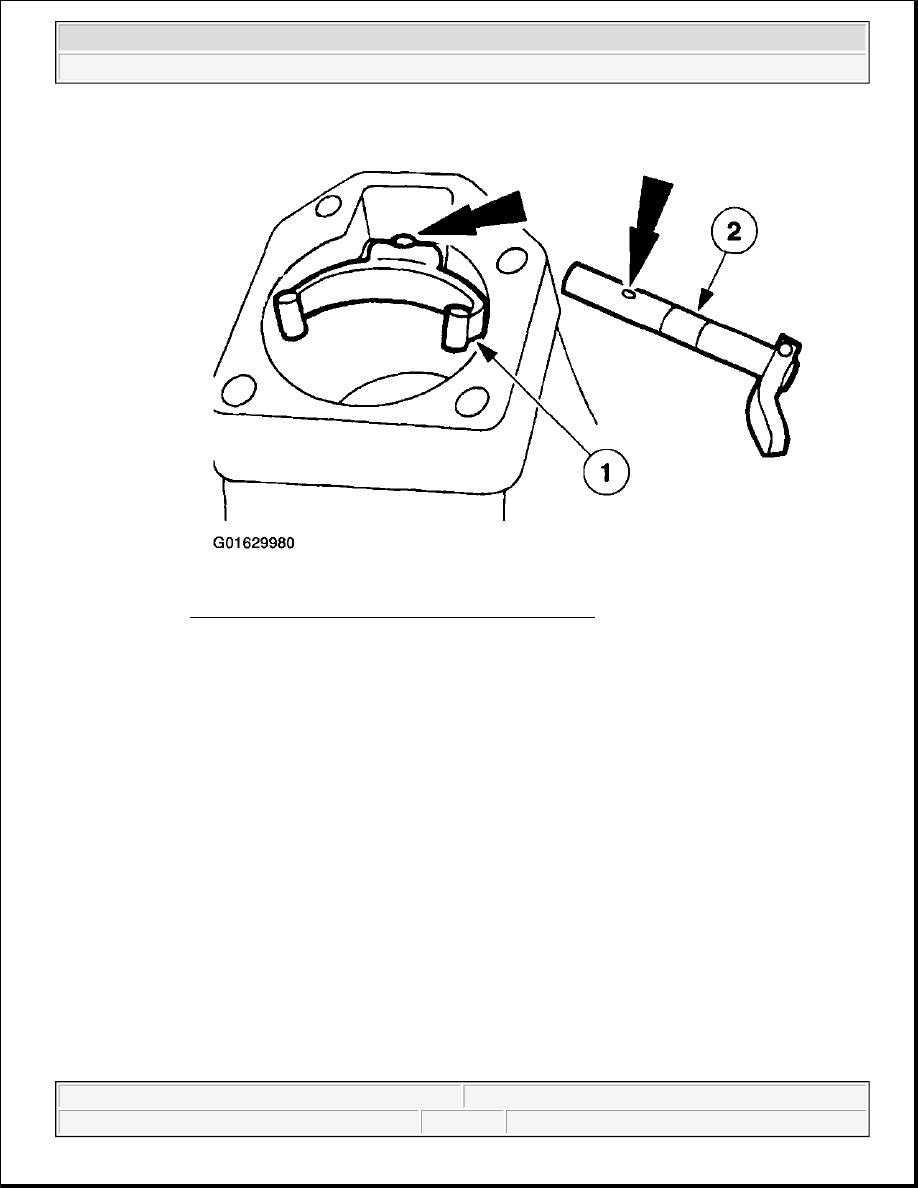

Fig. 163: Aligning Manual Shaft Retaining Pin Holes
Courtesy of FORD MOTOR CO.

54. Install the manual shaft retaining pin flush with the axle shaft shift lever.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup



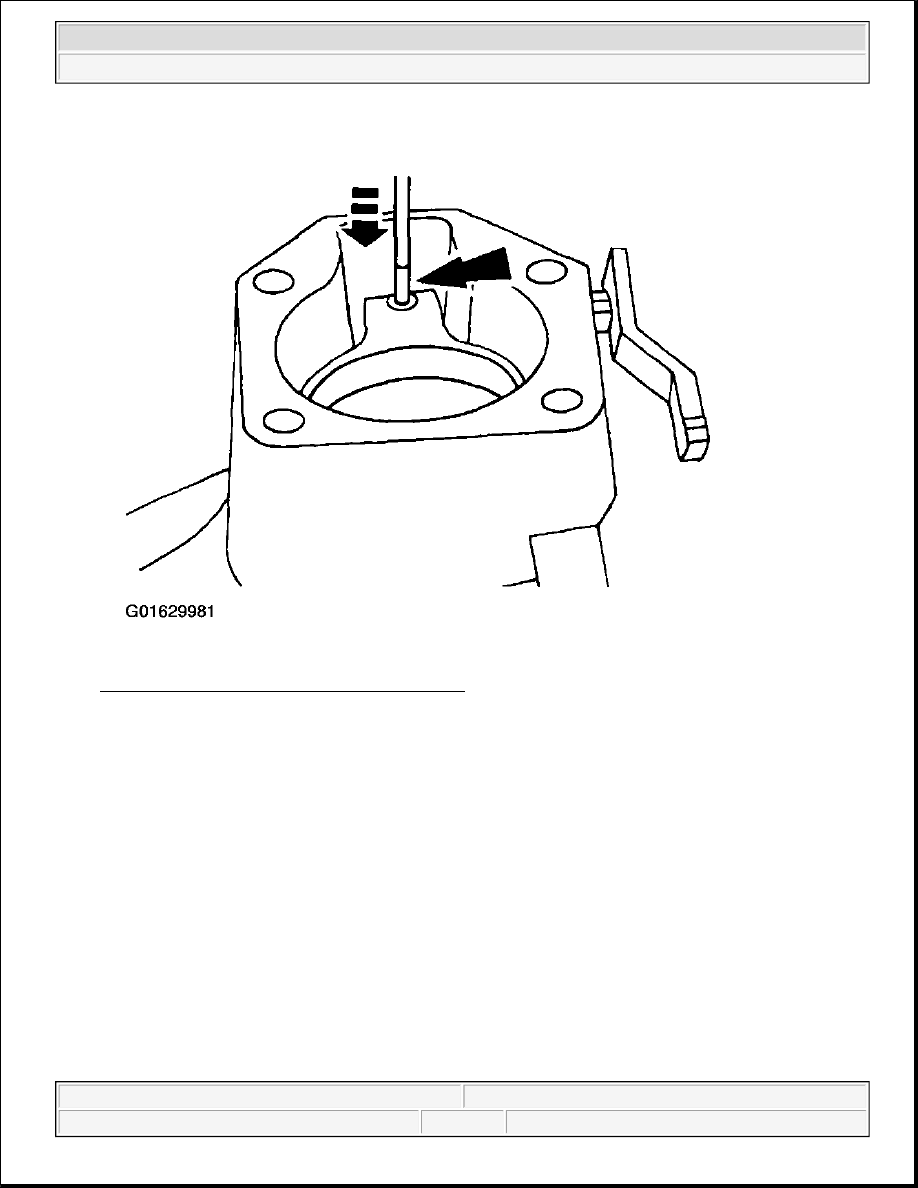

Fig. 164: Installing Manual Shaft Retaining Pin
Courtesy of FORD MOTOR CO.

55. Lift the axle shaft shift lever, and position the coupler shift selector gear, tapered end downward, into the

clutch fork.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

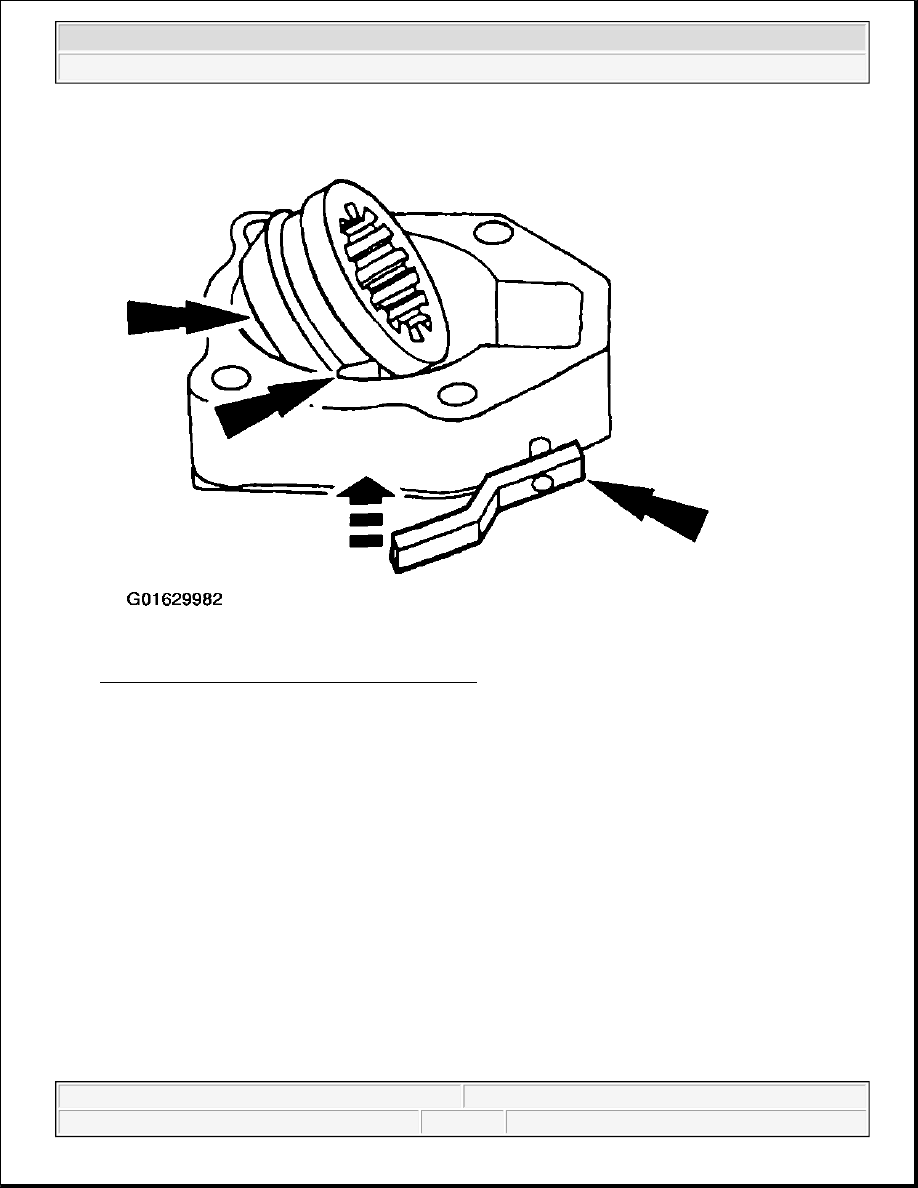

Fig. 165: Positioning Coupler Shift Selector Gear
Courtesy of FORD MOTOR CO.

56. Using the special tools, install the pilot bearing assembly into the axle cluster gear shaft.



2003 Ford Pickup F150

2003 DRIVELINE/AXLES Front Drive Axle/Differential - Ford 8.8-Inch - F150 Pickup

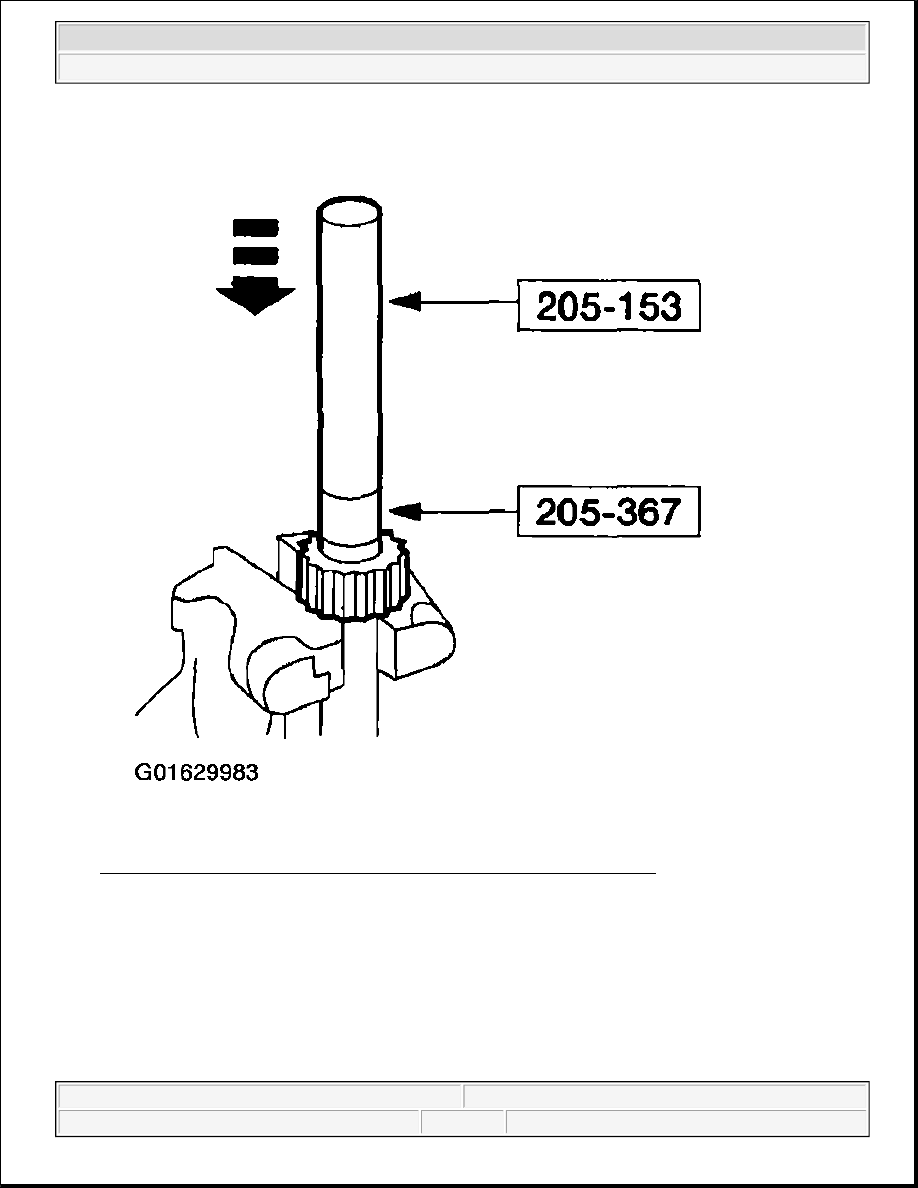

Fig. 166: Installing Pilot Bearing Assembly Into Axle Cluster Gear Shaft
Courtesy of FORD MOTOR CO.

57. Insert the axle cluster gear shaft through the coupler shift selector gear and engage the splines.
