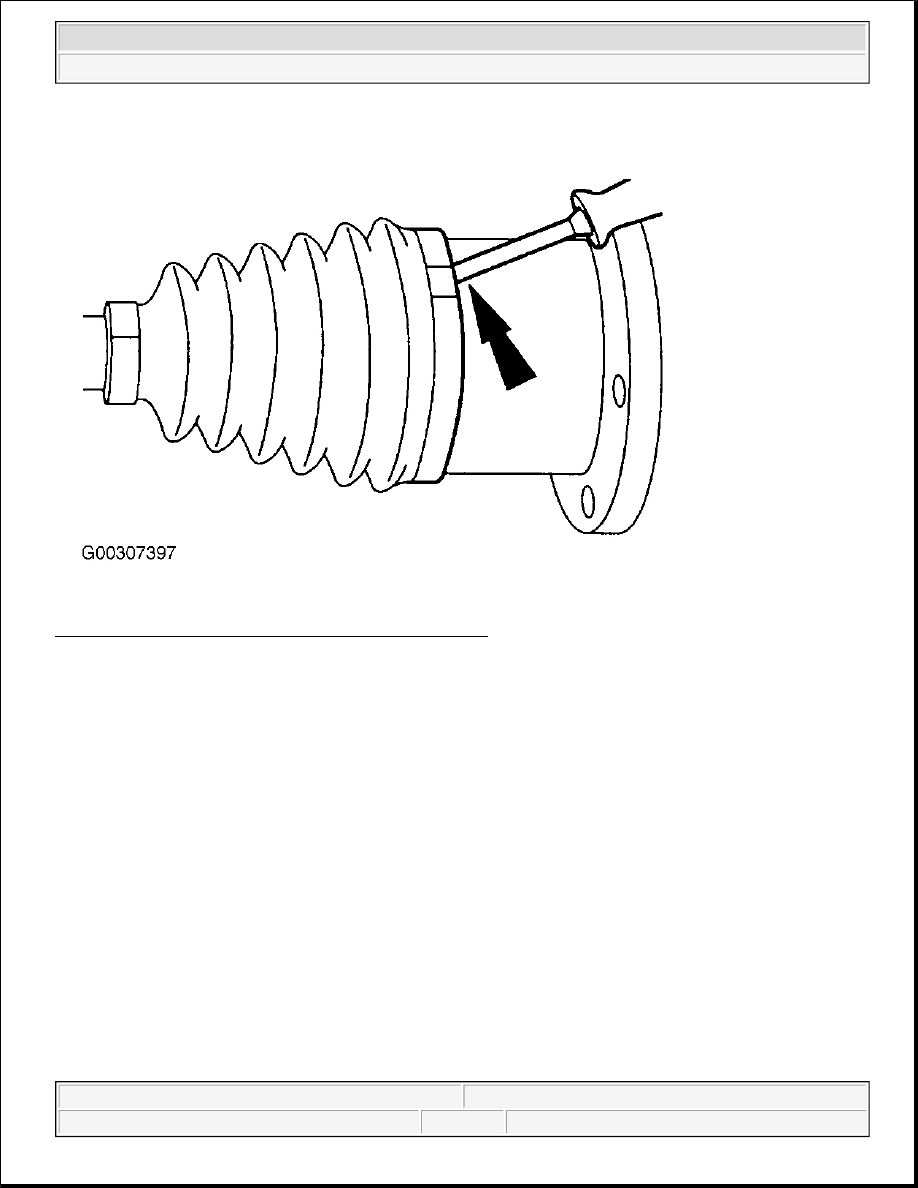

Fig. 21: Releasing Pressure from Inboard CV Joint Boot
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2000-03 DRIVE AXLES Axle Shafts - Front - F150 Pickup (4WD)



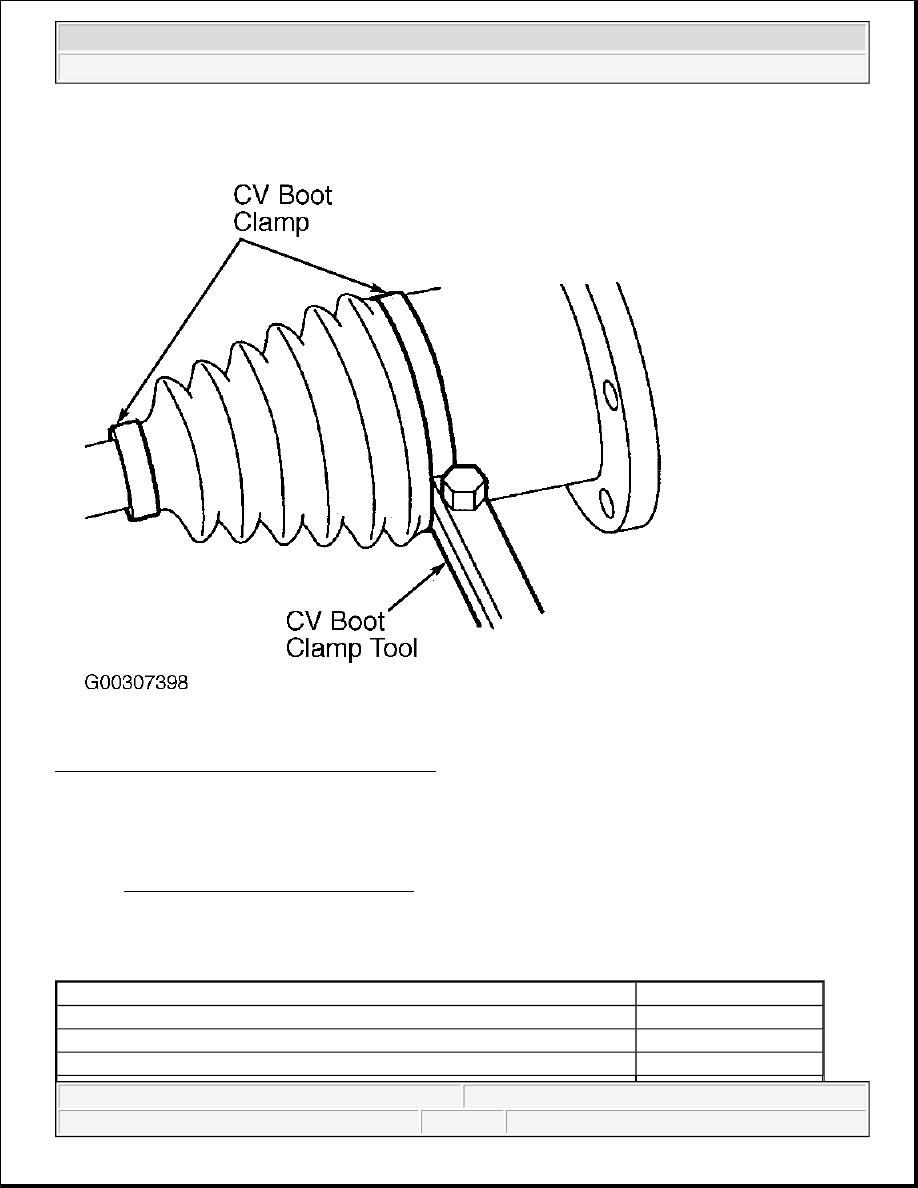

Fig. 22: Installing Inboard CV Joint Boot Clamps
Courtesy of FORD MOTOR CO.

Disassembly & Reassembly (Outboard Joint)

The outboard CV joint is part of the axle shaft and can not be serviced separately. To replace the outer CV joint
boot, see DISASSEMBLY (INBOARD JOINT) .

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

Application

Ft. Lbs. (N.m)

Axle Shaft Hub Nut

221 (300)

Axle Shaft-To-Axle Bolts

60 (82)

Front Disc Brake Caliper-To-Anchor Plate Bolts

24 (32)



2003 Ford Pickup F150

2000-03 DRIVE AXLES Axle Shafts - Front - F150 Pickup (4WD)



Steering Knuckle-To-Suspension Upper Arm

66 (90)

Wheel Lug Nuts

100 (135)
