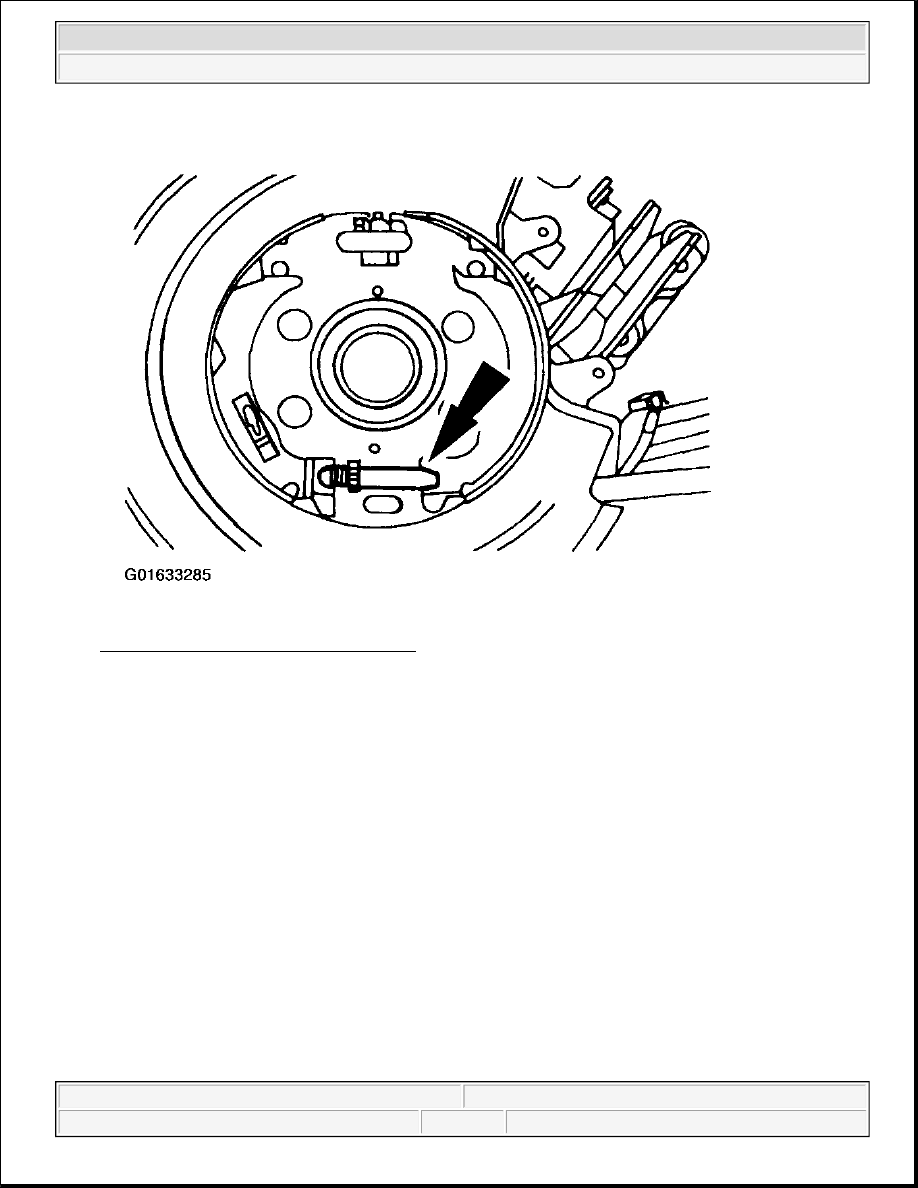

Fig. 34: Removing Brake Adjuster Screw
Courtesy of FORD MOTOR CO.

9. Remove the rear brake shoe hold-down springs (2068).



2003 Ford Pickup F150

2003 BRAKES Parking Brake & Actuation - F150 Pickup

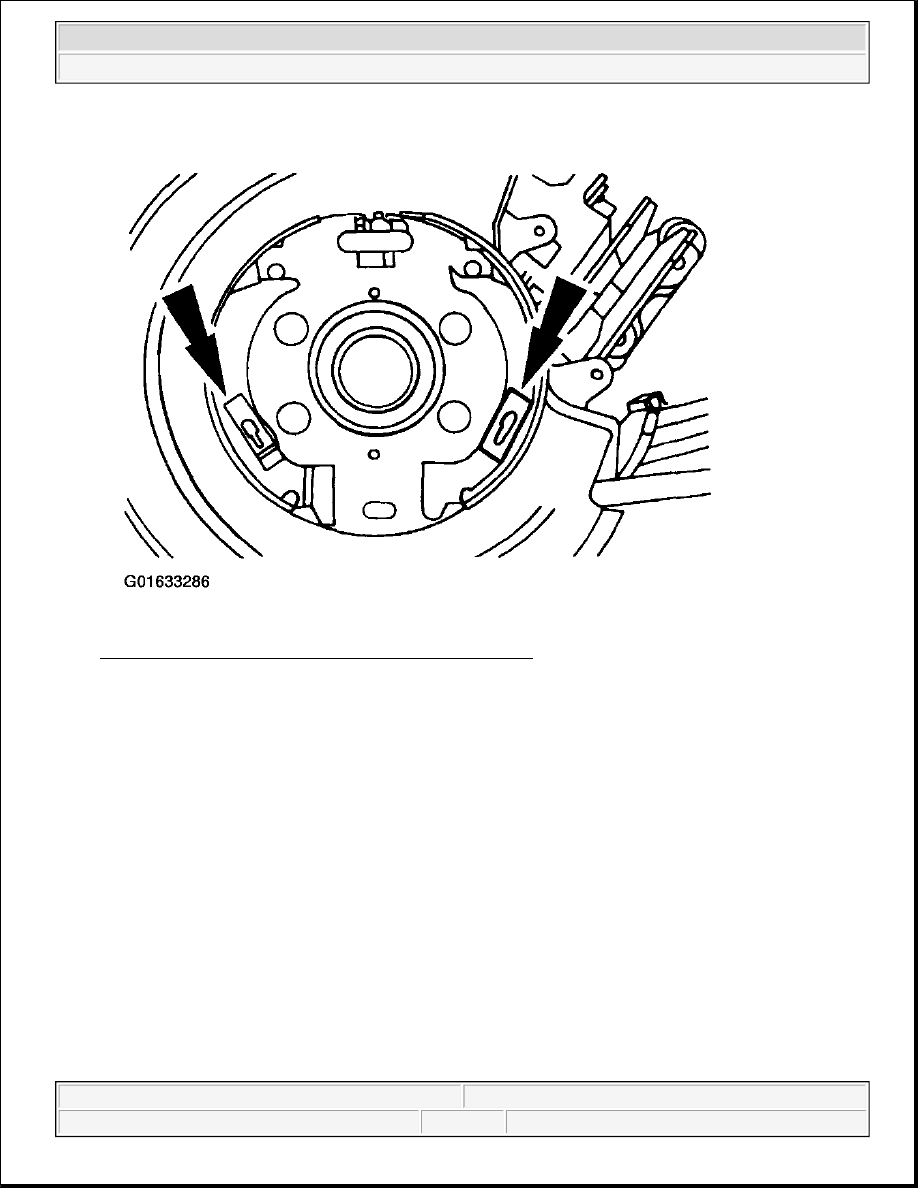

Fig. 35: Removing Rear Brake Shoe Hold-Down Springs
Courtesy of FORD MOTOR CO.

10. Remove the rear brake shoes and linings (2200) along with the inboard brake shoe retracting spring.



2003 Ford Pickup F150

2003 BRAKES Parking Brake & Actuation - F150 Pickup

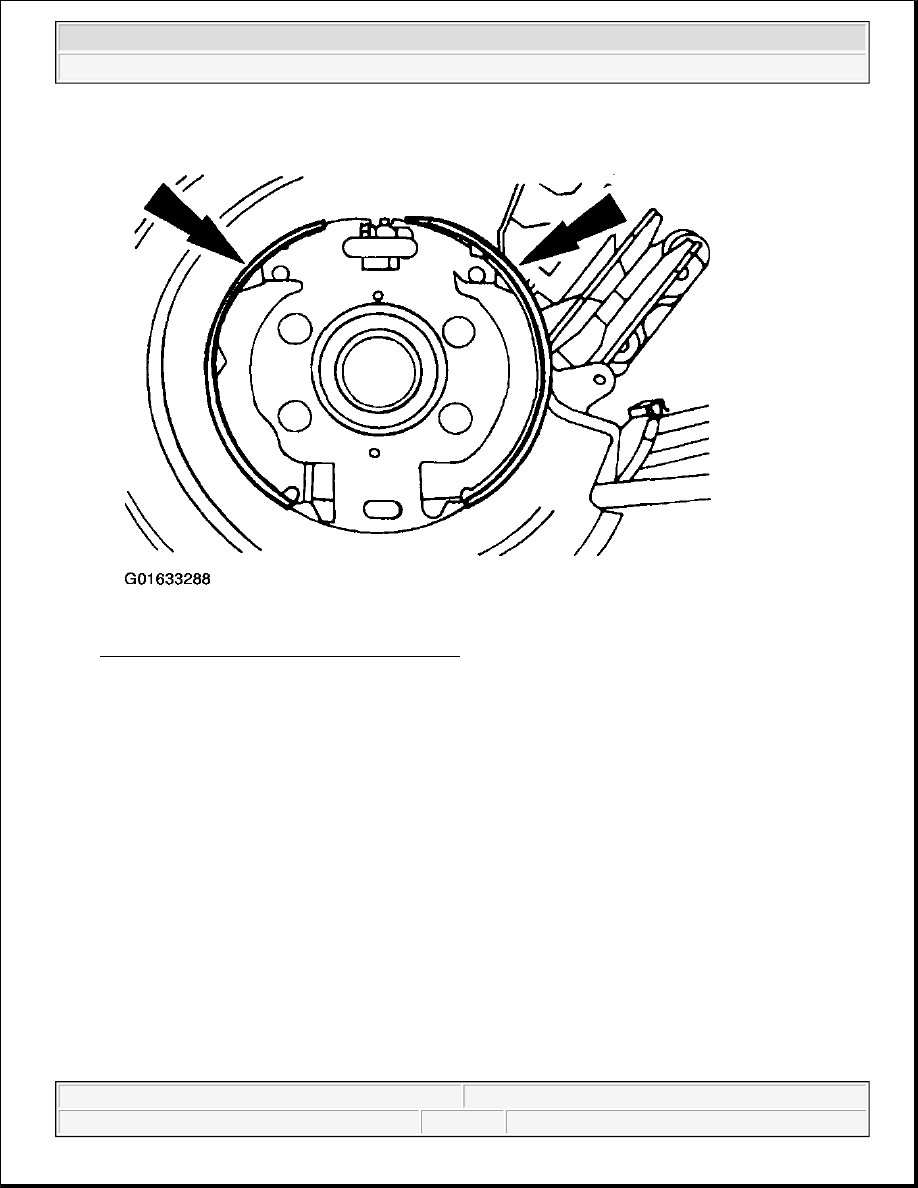

Fig. 36: Removing Rear Brake Shoes & Linings
Courtesy of FORD MOTOR CO.

11. Inspect the components for excessive wear or damage and install new components as required.

Installation

NOTE:

Lubricate the brake shoe contact point before installation of rear brake
shoes using Silicone Brake Caliper Grease and Dielectric Compound
D7AZ-19A331-A (Motorcraft WA-10) or an equivalent silicone compound
meeting Ford specification ESE-M1C171-A.



2003 Ford Pickup F150

2003 BRAKES Parking Brake & Actuation - F150 Pickup



Fig. 37: Installing Rear Brake Shoes & Linings
Courtesy of FORD MOTOR CO.

1. Install the rear brake shoes and linings along with the inboard brake shoe retracting spring.

2. Install the brake shoe hold-down springs.



2003 Ford Pickup F150

2003 BRAKES Parking Brake & Actuation - F150 Pickup
