Ford F150 Pickup. Manual - part 437

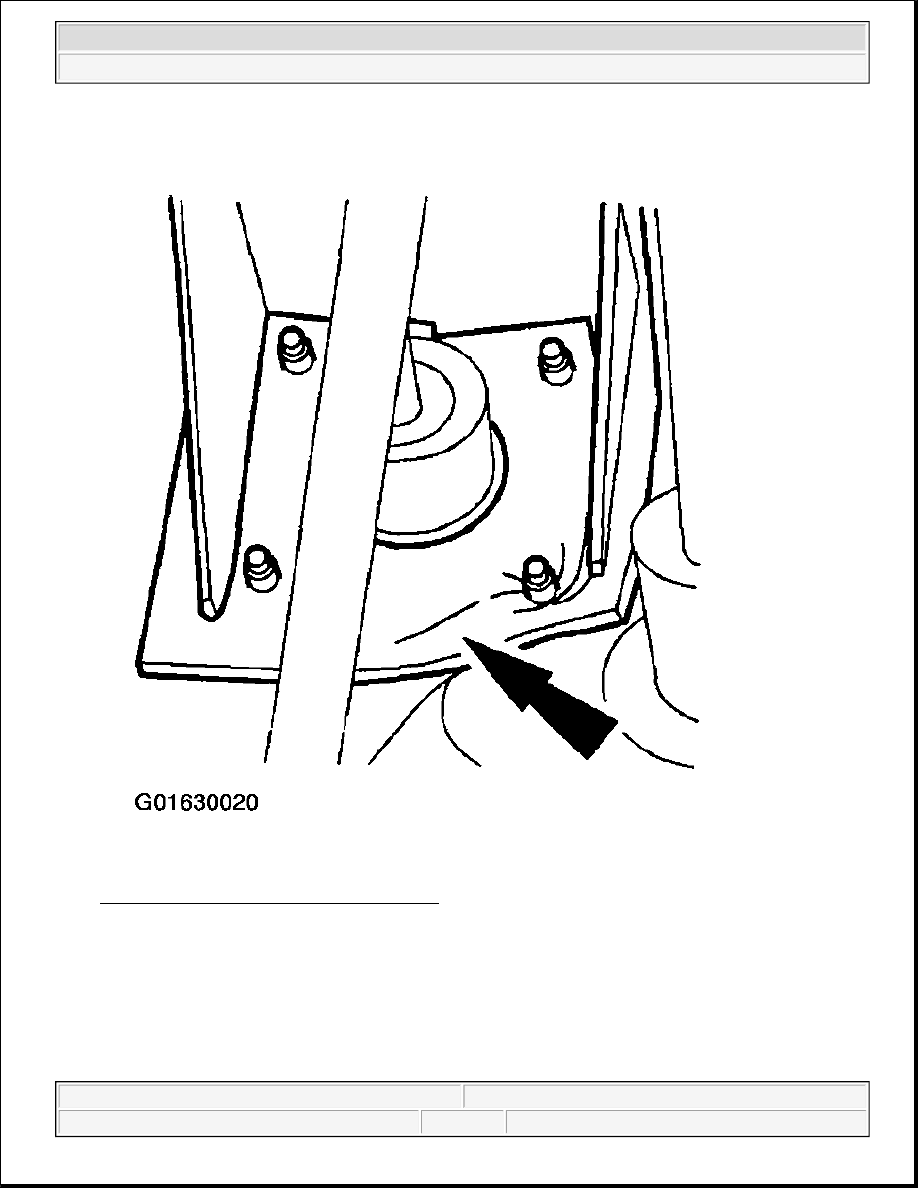

Fig. 7: Removing Bulkhead Sound Insulator
Courtesy of FORD MOTOR CO.

6. Remove the power brake booster nuts and remove booster.



2003 Ford Pickup F150

2003 BRAKES Power Brake Actuation - F150 Pickup

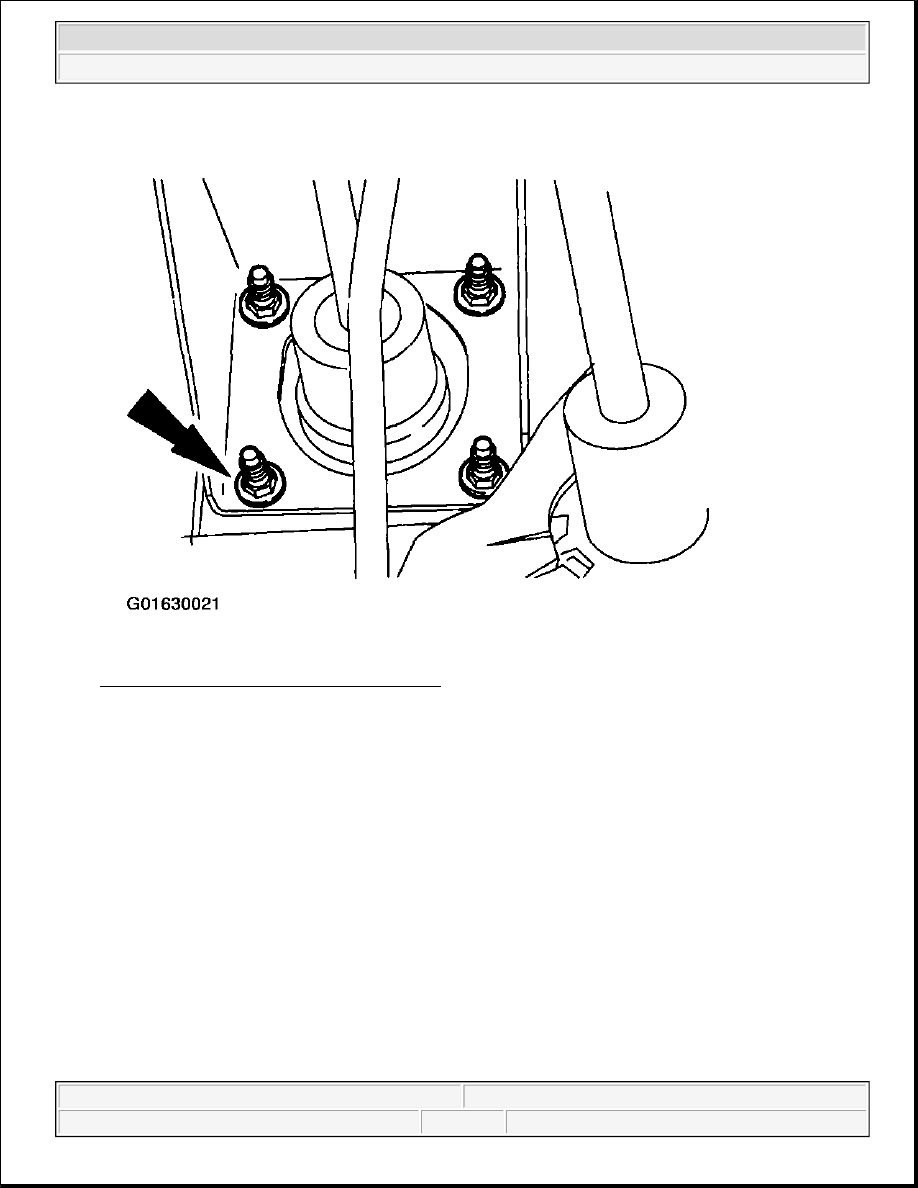

Fig. 8: Removing Power Brake Booster Nuts
Courtesy of FORD MOTOR CO.

Installation

1. Follow the removal procedure in reverse order.



2003 Ford Pickup F150

2003 BRAKES Power Brake Actuation - F150 Pickup

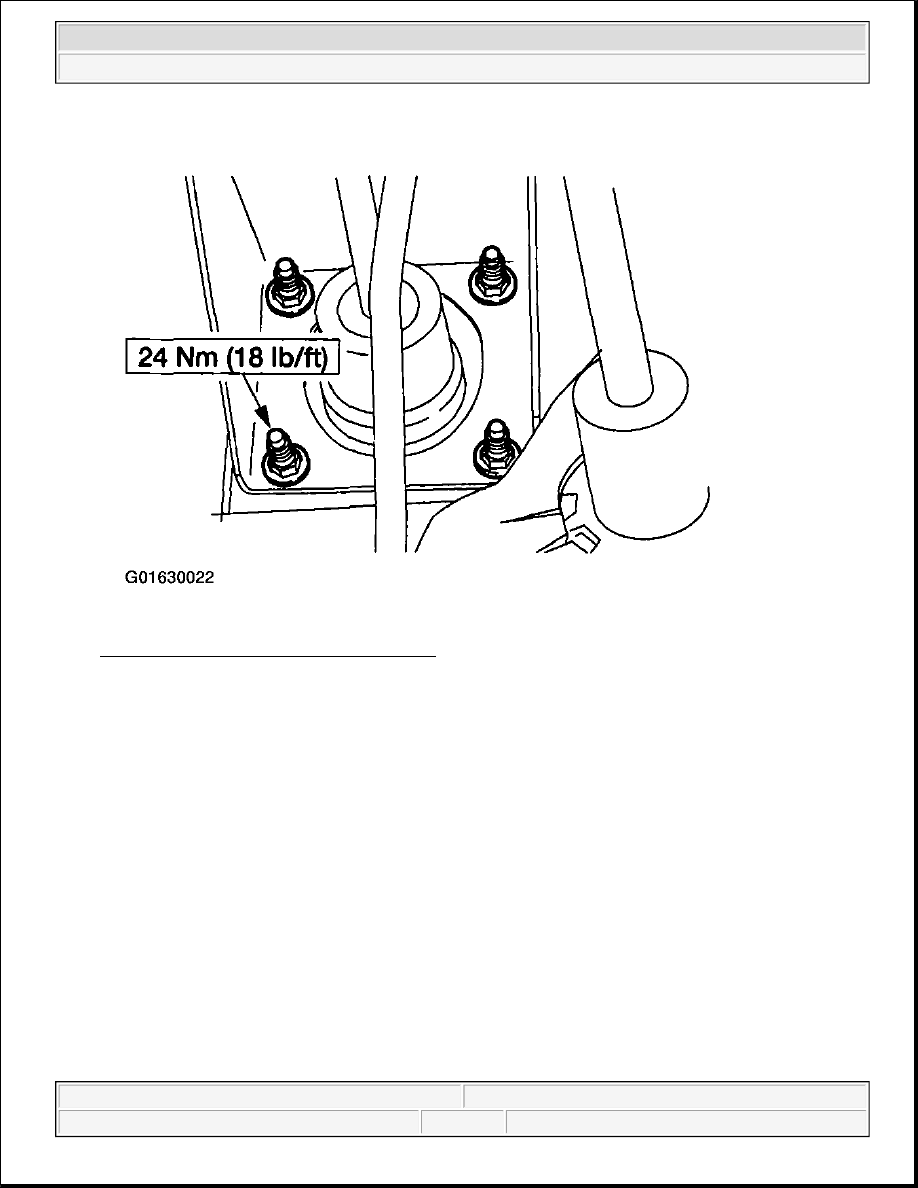

Fig. 9: Installing Power Brake Booster Nuts
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Power Brake Actuation - F150 Pickup



2003 BRAKES

Parking Brake & Actuation - F150 Pickup

SPECIFICATIONS

TORQUE SPECIFICATION

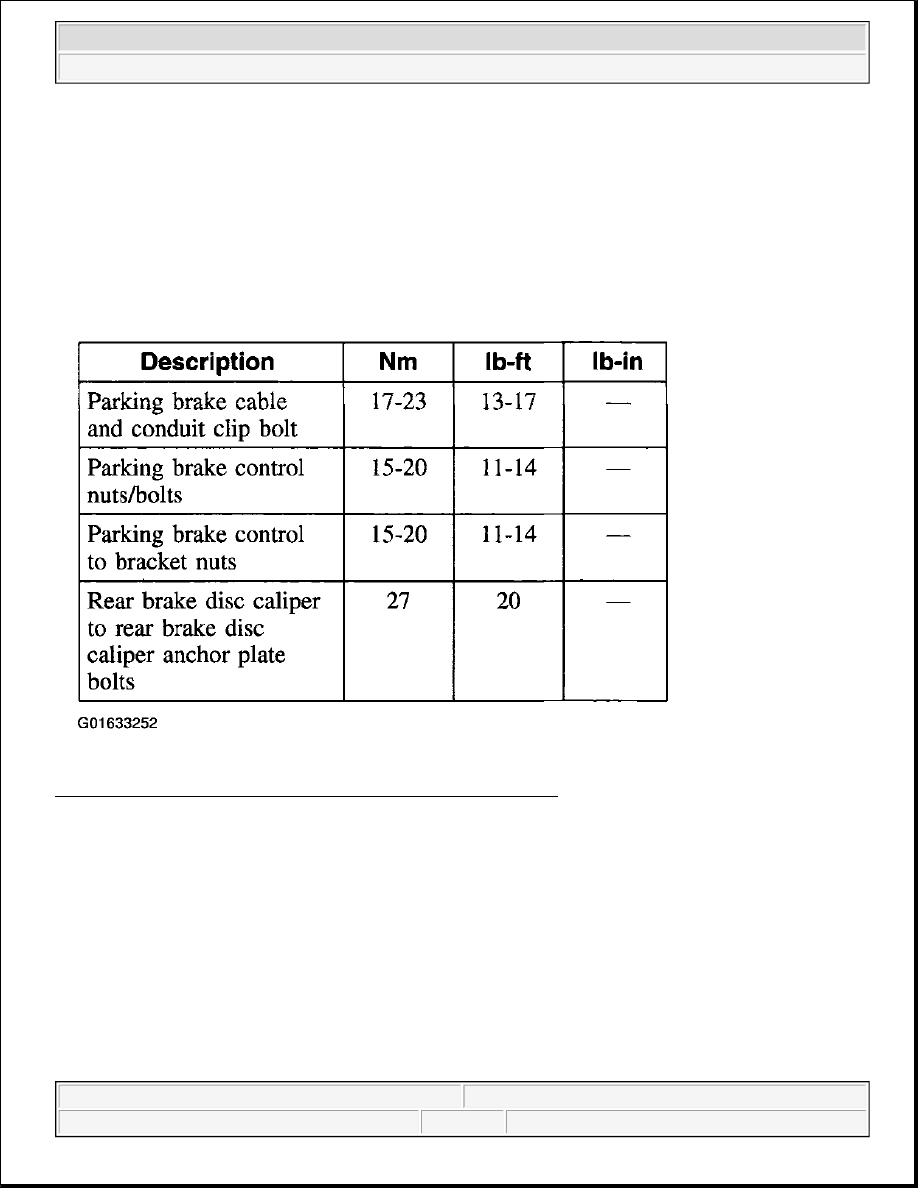

Fig. 1: Parking Brake & Actuation Torque Specifications (1 Of 2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Parking Brake & Actuation - F150 Pickup





2003 Ford Pickup F150

2003 BRAKES Parking Brake & Actuation - F150 Pickup
