Fig. 70: Disconnecting Transmission Shift Cable
Courtesy of FORD MOTOR CO.

6. Remove the spotlight switch retaining pin.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



Fig. 71: Removing Spotlight Switch Retaining Pin
Courtesy of FORD MOTOR CO.

7. Slide the stoplight switch (13480) and booster push rod from the brake pedal pin.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



Fig. 72: Sliding Stoplight Switch & Booster Push Rod
Courtesy of FORD MOTOR CO.

8. Remove the brake pedal motor bolts.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup



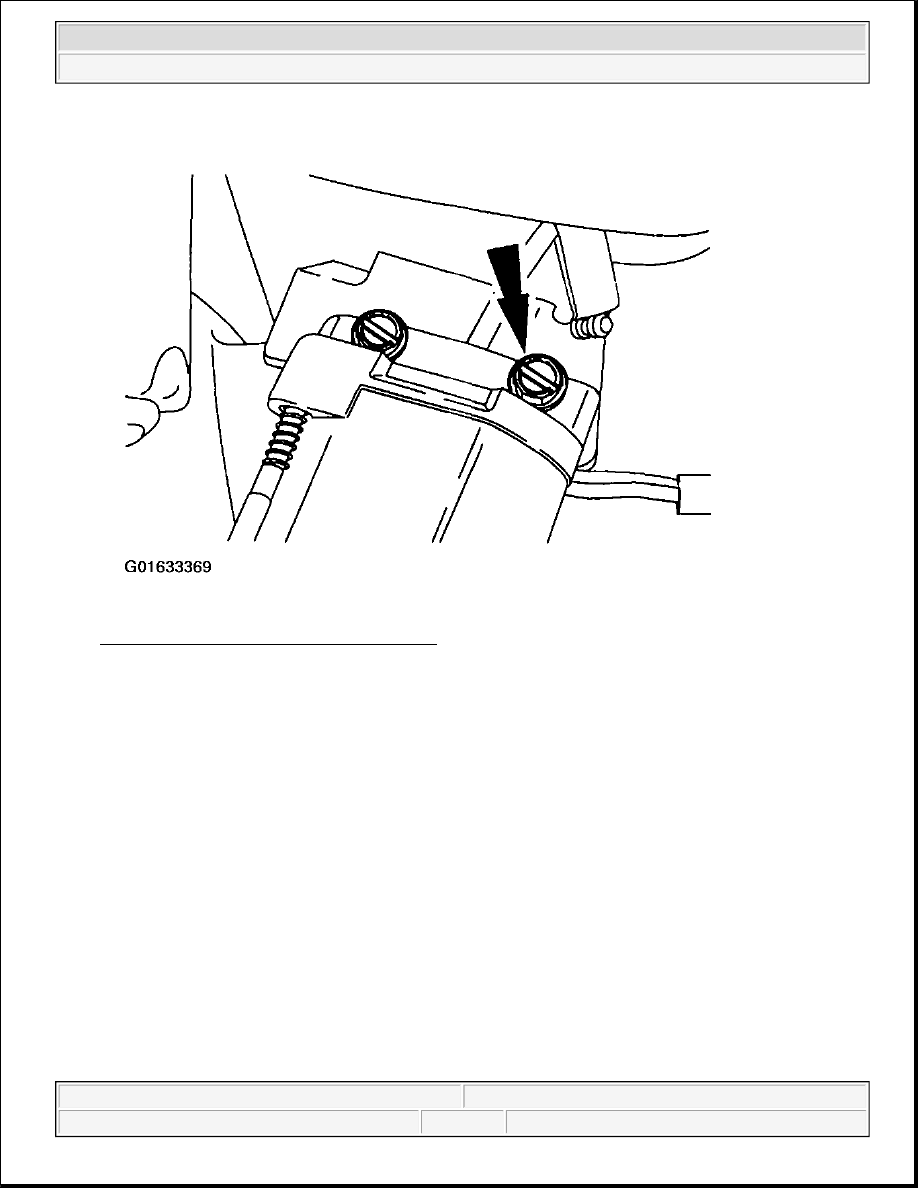

Fig. 73: Removing Brake Pedal Motor Bolts
Courtesy of FORD MOTOR CO.

9. To install, reverse the removal procedure.

BRAKE PEDAL MOTOR CABLE

Removal & Installation

1. Disconnect the brake pedal motor electrical connector.

NOTE:

Brake pedal motor-to-pedal cable must be routed around the main wiring
(14401) harness to prevent cable binding.

NOTE:

Hand-tighten the bolts.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup
