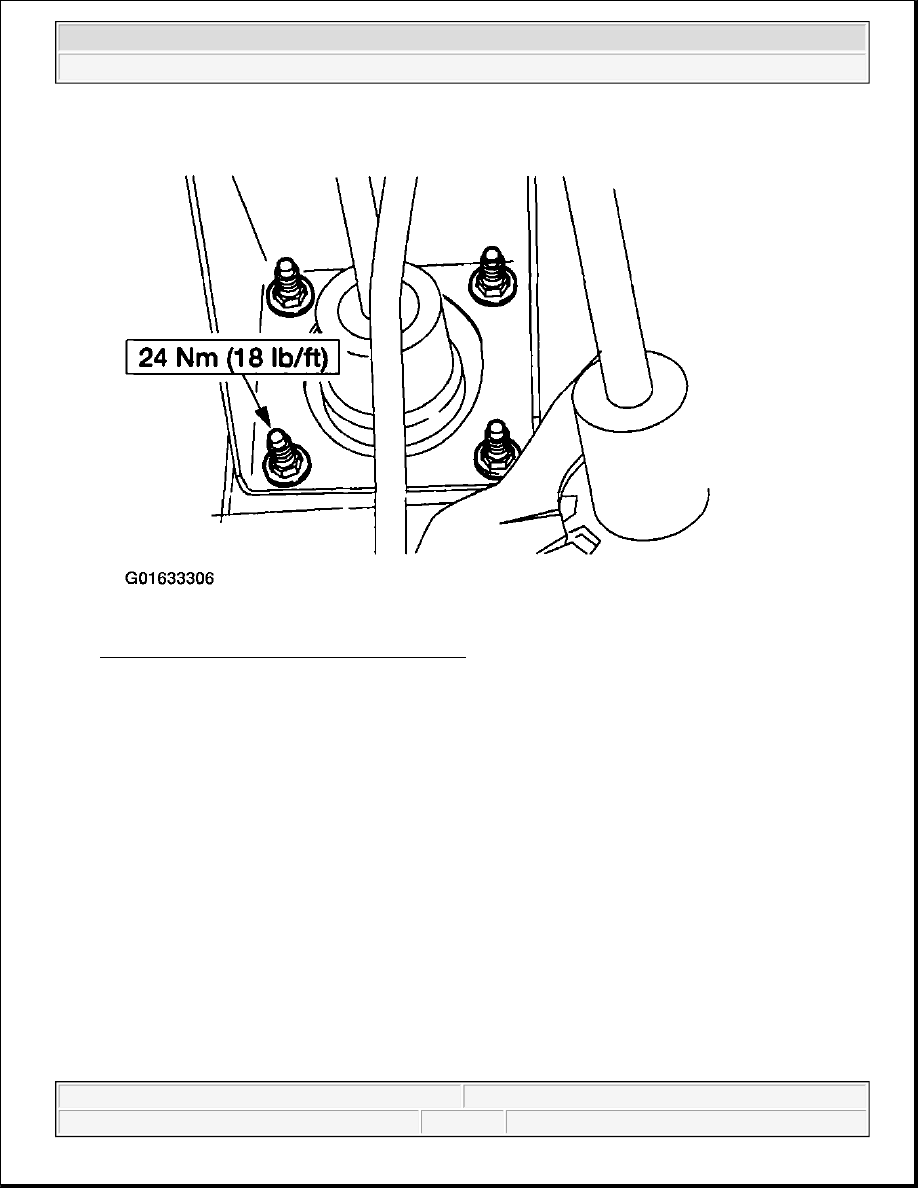

Fig. 10: Tightening brake pedal & bracket Nuts
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup

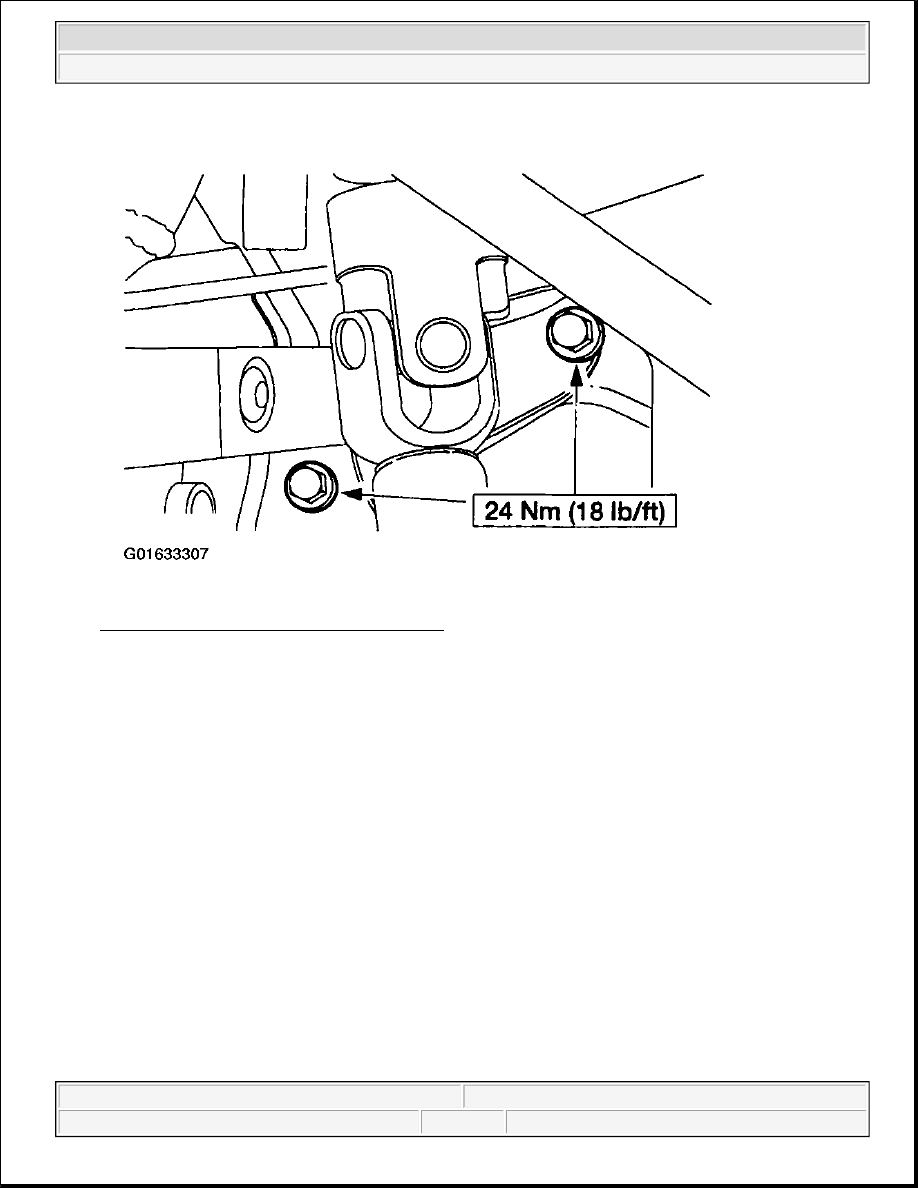

Fig. 11: Installing Brake Pedal Bracket Bolts
Courtesy of FORD MOTOR CO.

1. To install, reverse the removal procedure.

PEDAL AND BRACKET - FIXED, MANUAL TRANSMISSION

Removal

1. Disconnect the clutch master cylinder push rod.



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup

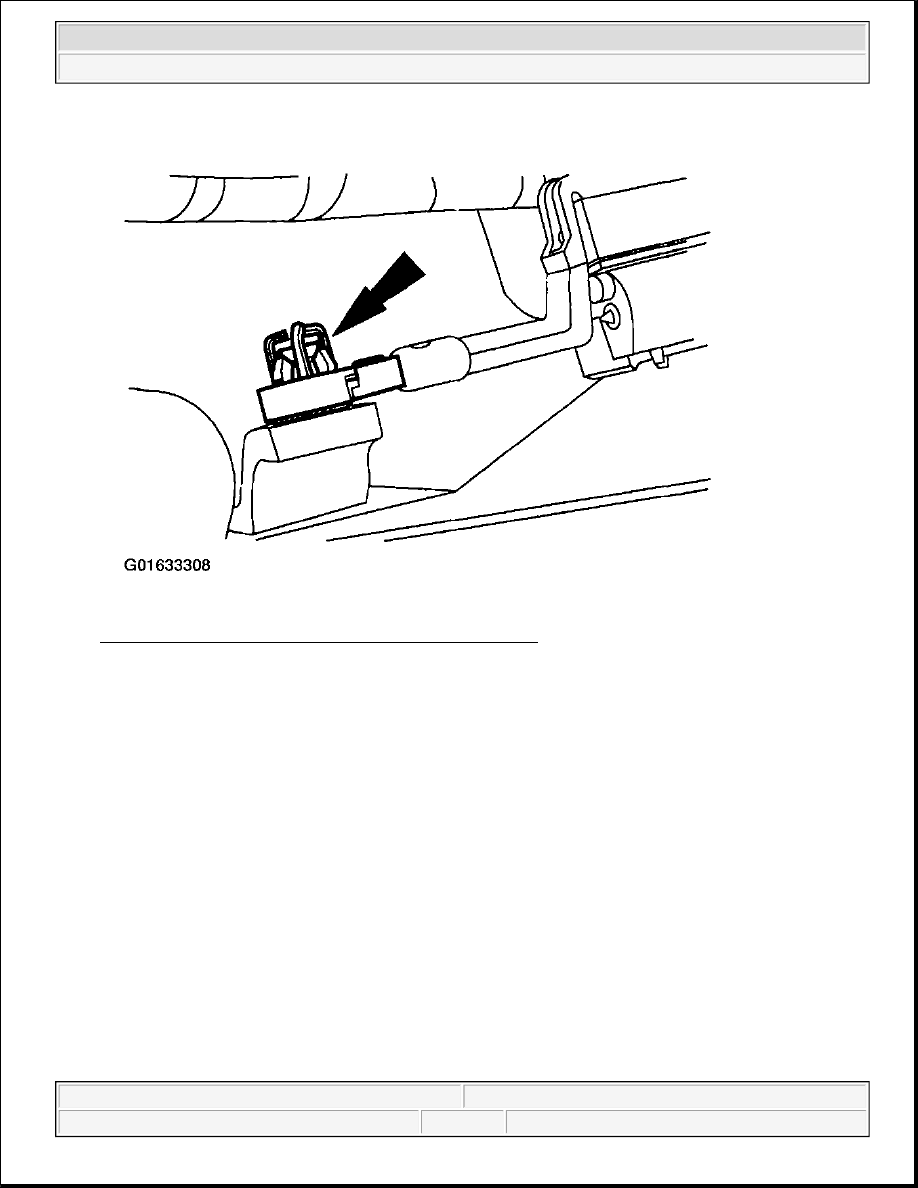

Fig. 12: Disconnecting Clutch Master Cylinder Push Rod
Courtesy of FORD MOTOR CO.

2. Disconnect the Clutch Pedal Position switch (CPP).



2003 Ford Pickup F150

2003 BRAKES Hydraulic Brake Actuation - F150 Pickup

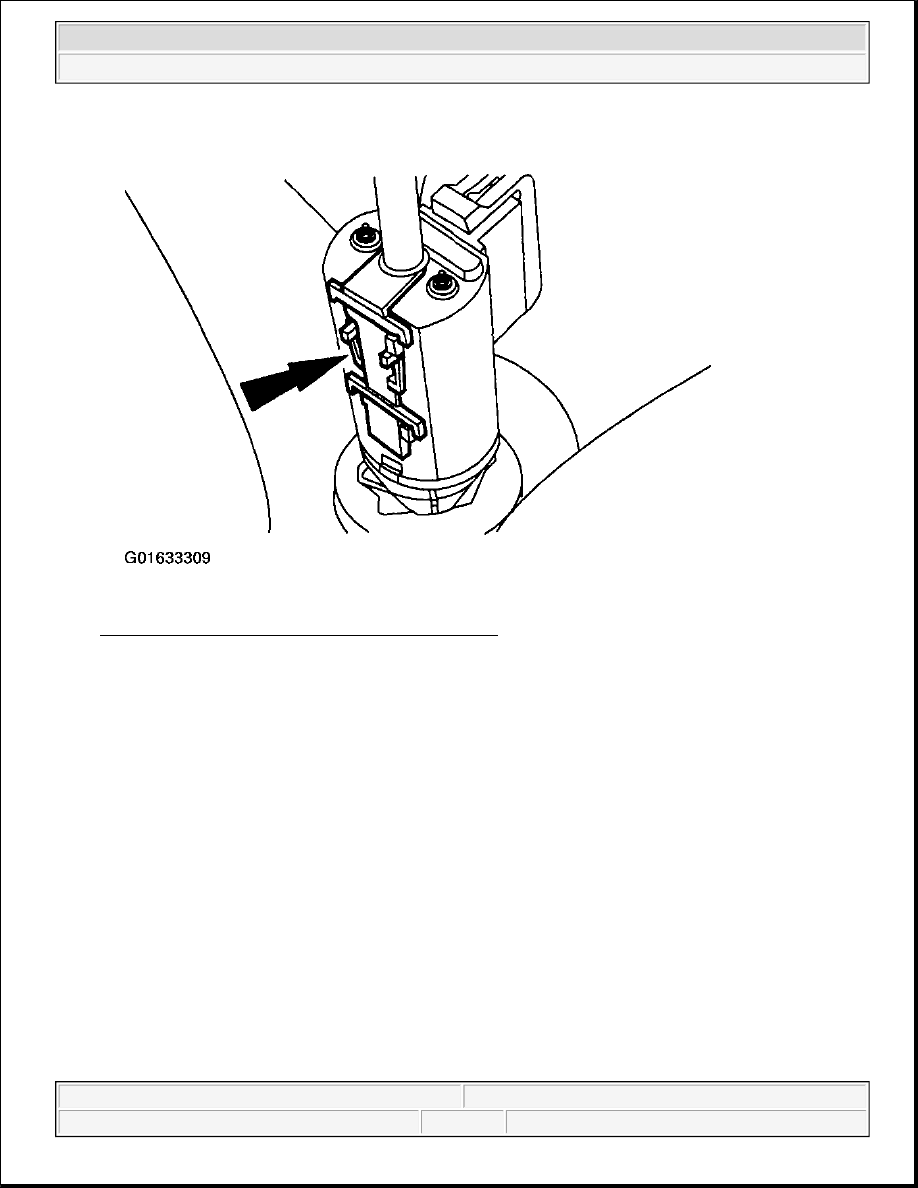

Fig. 13: Disconnecting Clutch Pedal Position Switch
Courtesy of FORD MOTOR CO.

3. Remove the clutch master cylinder by rotating the clutch master cylinder 45 degrees clockwise.
