Ford F150 Pickup. Manual - part 392

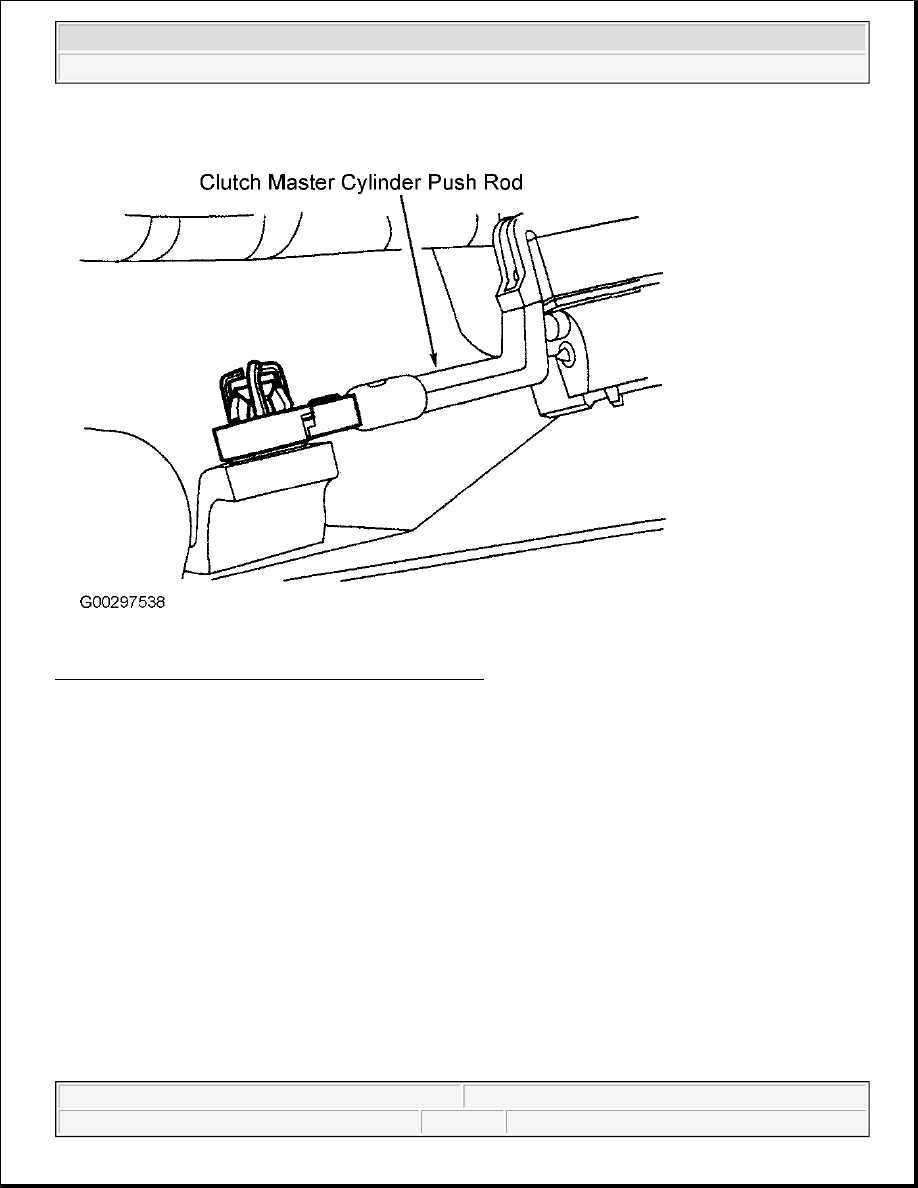

Fig. 34: Disconnecting Clutch Master Cylinder Pushrod
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup



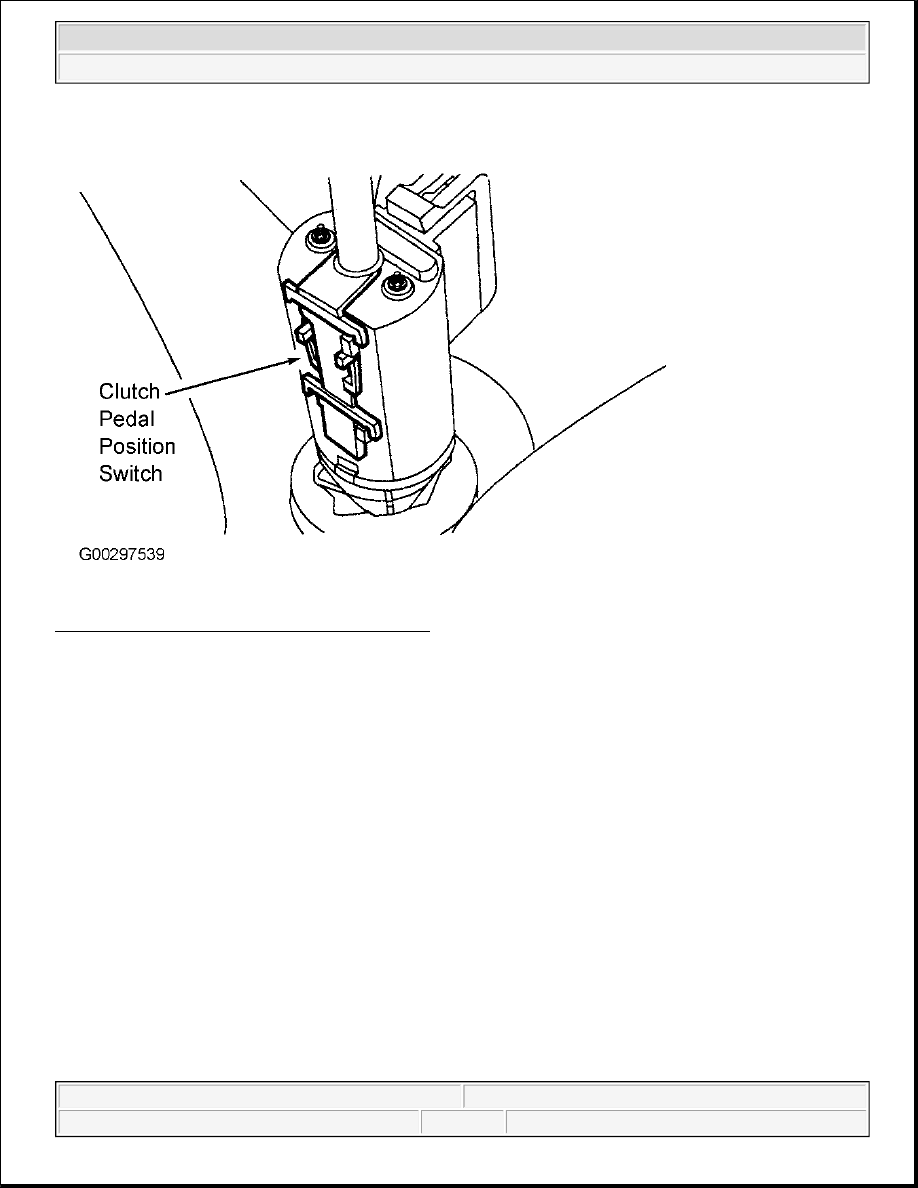

Fig. 35: Identifying Clutch Pedal Position Switch
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup

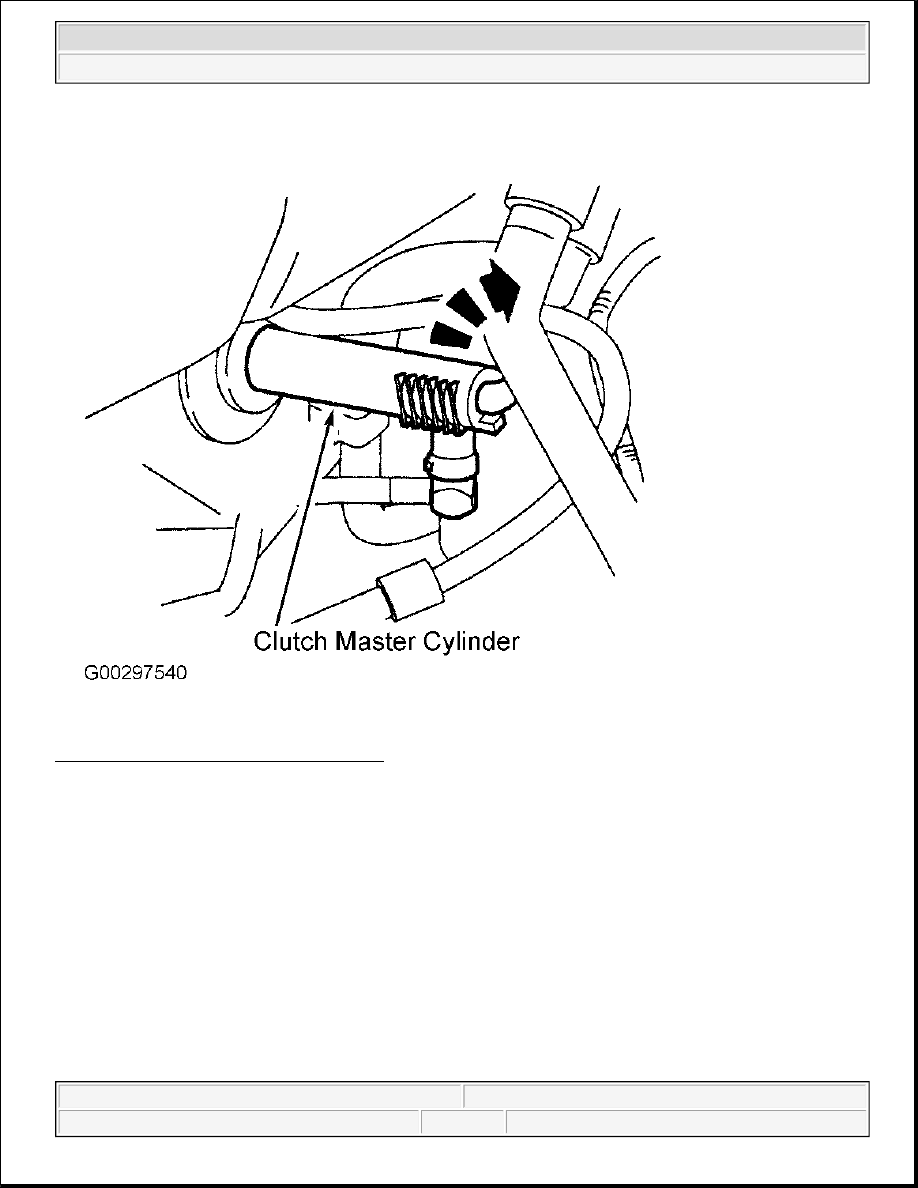

Fig. 36: Removing Clutch Master Cylinder
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2002-04 BRAKES Disc & Drum - Blackwood, F150 Heritage Pickup & F150 Pickup

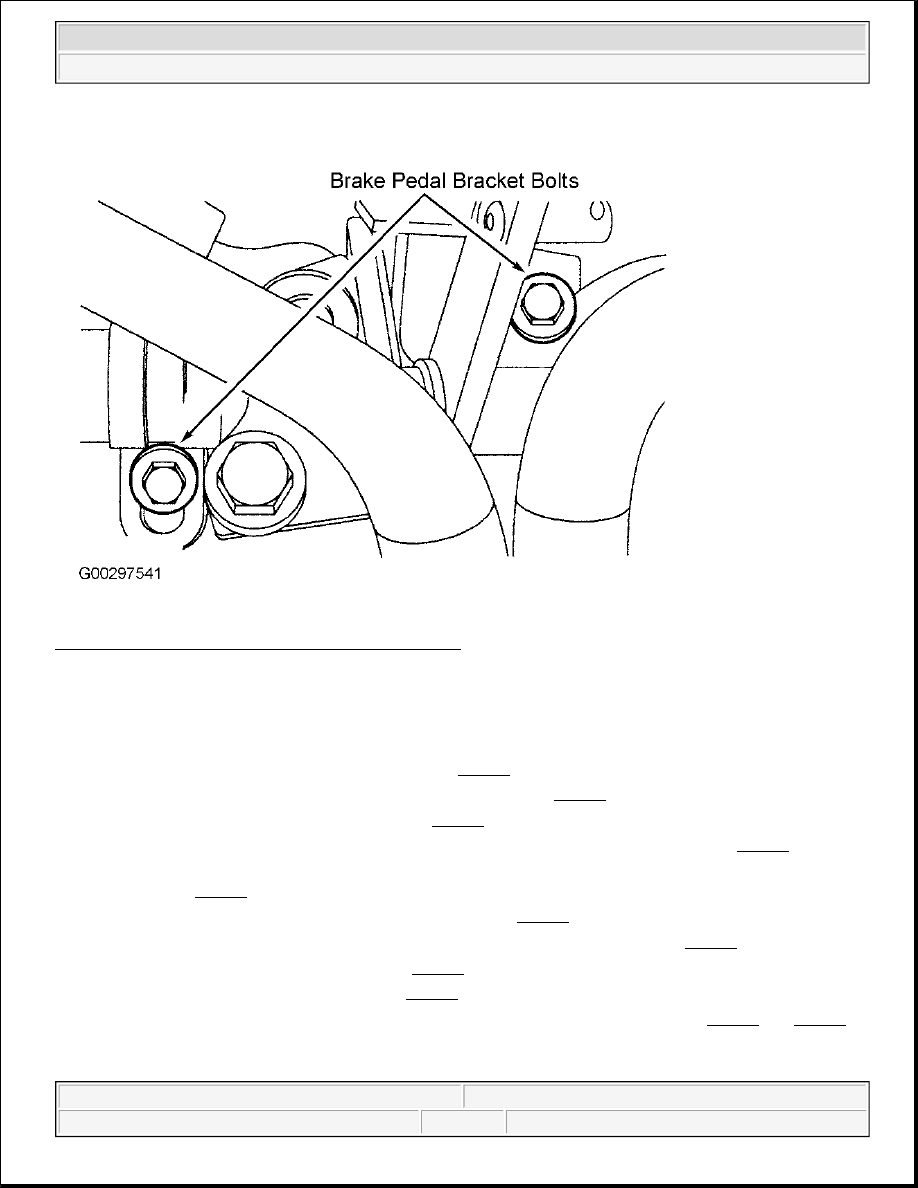

Fig. 37: Identifying Brake Pedal Bracket Bolts (M/T)
Courtesy of FORD MOTOR CO.

Removal & Installation (Adjustable Pedals)

1. Disconnect the battery ground cable.

2. Remove the instrument panel opening cover. See Fig. 62 .

3. Remove the nuts and the steering column support bracket. See Fig. 38 .

4. Remove the stoplight switch hairpin clip. See Fig. 30 .

5. Slide the stoplight switch, booster push rod and the bushing off the brake pedal pin. See Fig. 31 .

6. Remove the brake pedal-to-accelerator pedal cable from the accelerator pedal by pulling on the cable

retainer. See Fig. 39 .

7. Disconnect the brake pedal motor harness connector. See Fig. 40 .

8. Disconnect the transmission shift cable from the steering column shift lever. See Fig. 41 .

9. Remove the bulkhead sound insulator. See Fig. 32 .

10. Remove the brake pedal bracket nuts. See Fig. 32 .

11. Remove the brake pedal bracket bolts, and remove the brake pedal and bracket. See Fig. 42 and Fig. 43 .

CAUTION: Ensure the bulkhead sound insulator is not between the brake pedal
