Ford F150 Pickup. Manual - part 367

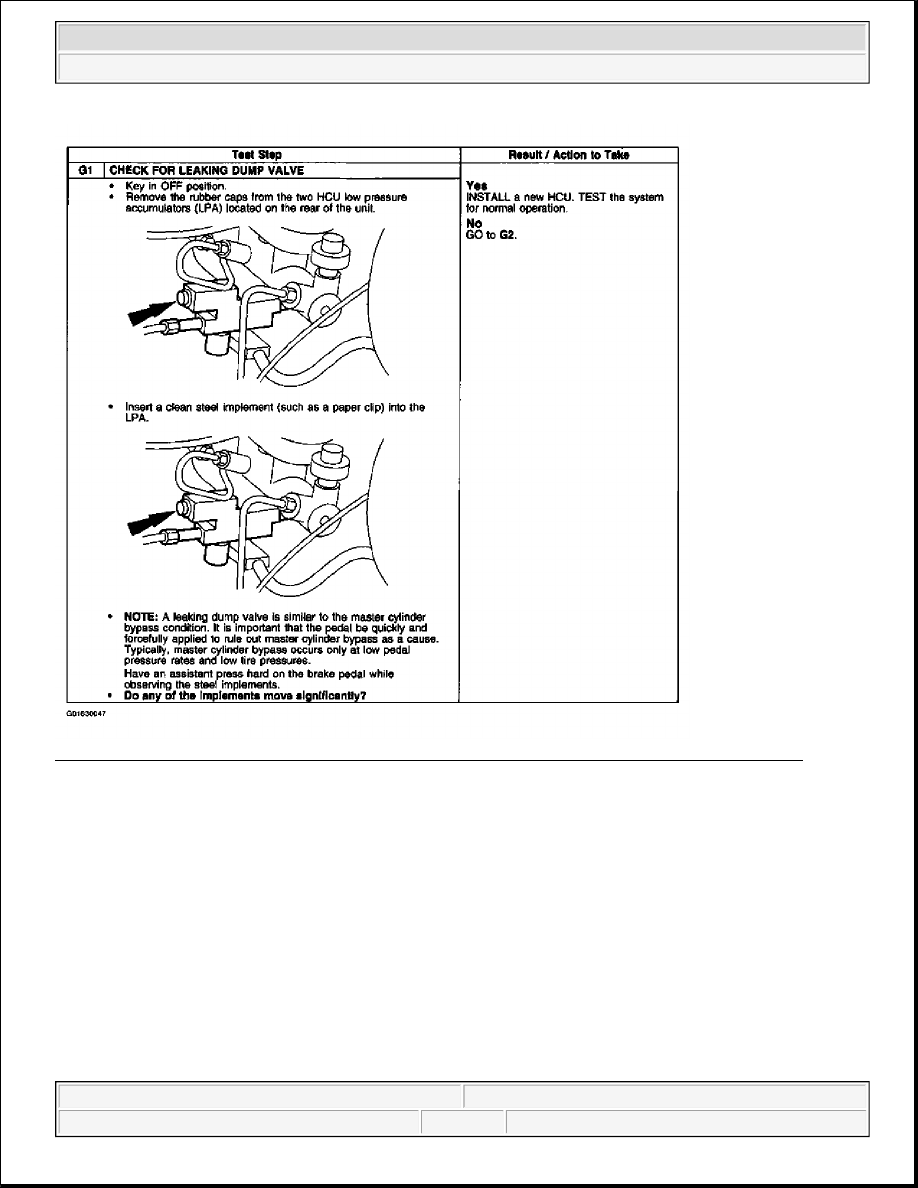

Fig. 20: Pinpoint Test G: DTC 5 - Excessive Dump Solenoid Activity - Diagnostic Chart (Step G1)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup

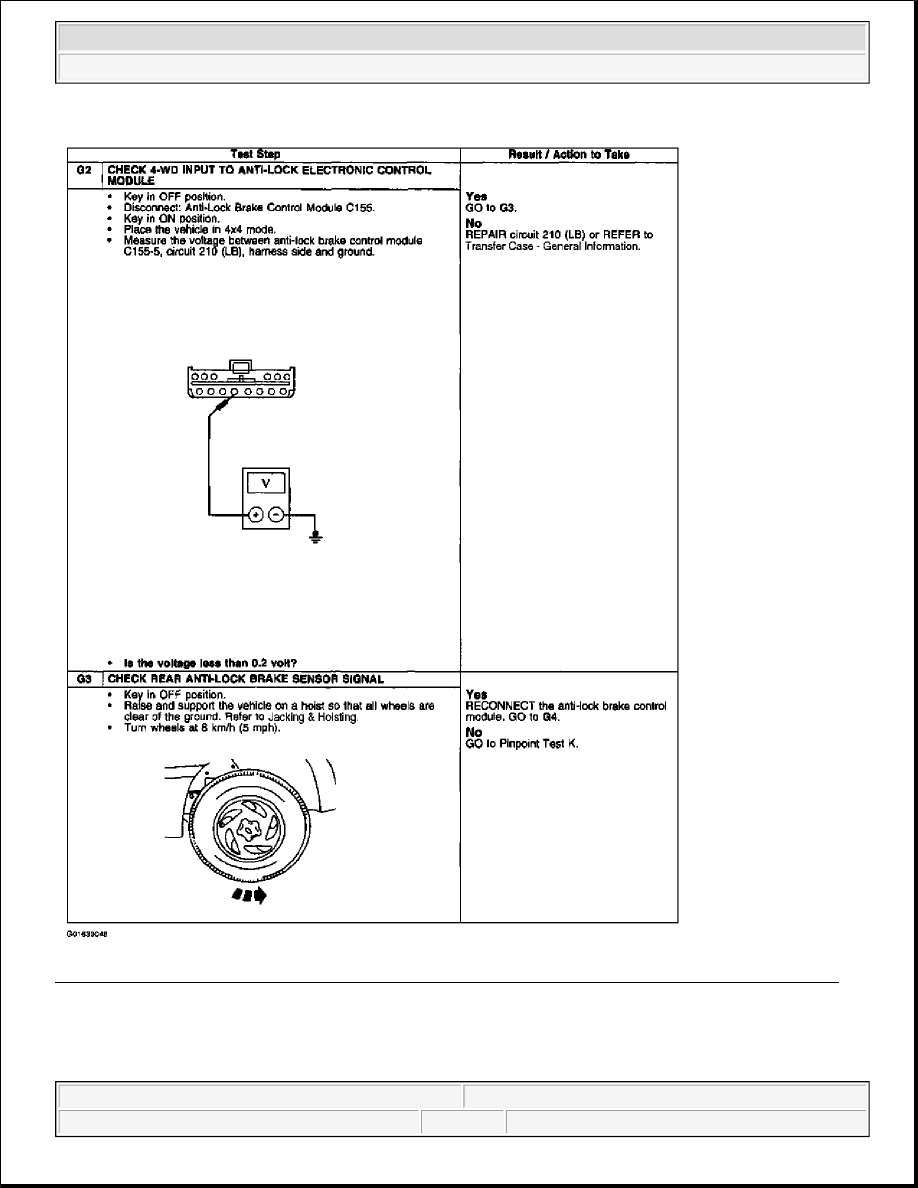

Fig. 21: Pinpoint Test G: DTC 5 - Excessive Dump Solenoid Activity - Diagnostic Chart (Steps G2-G3)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup

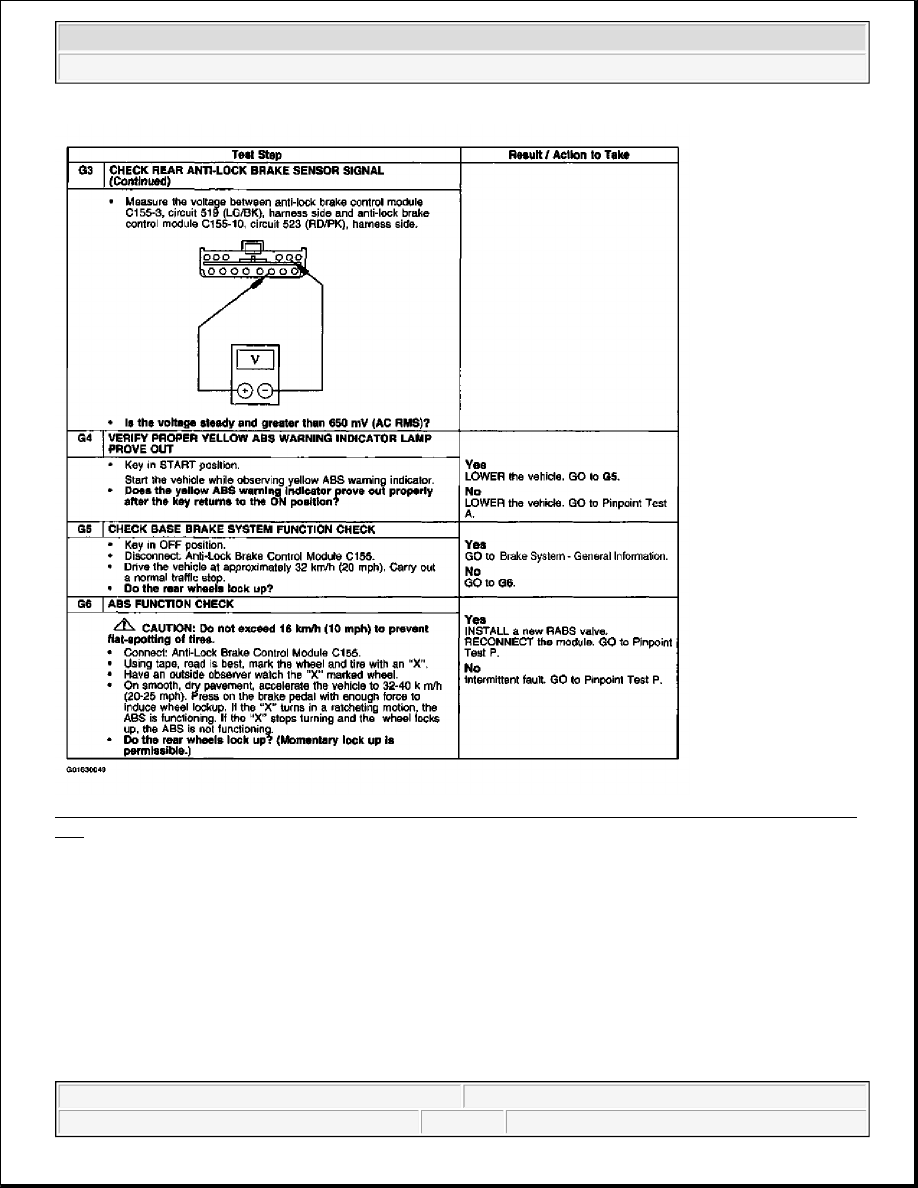

Fig. 22: Pinpoint Test G: DTC 5 - Excessive Dump Solenoid Activity - Diagnostic Chart (Steps G3 Cont.-
G6)
Courtesy of FORD MOTOR CO.

Pinpoint Test H: Diagnostic Trouble Code (DTC) 6 - Erratic Rear Anti-Lock Brake Sensor Circuit

NOTE:

Records maintained by the manufacturer show that a module replacement
rarely corrects DTC 6.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup

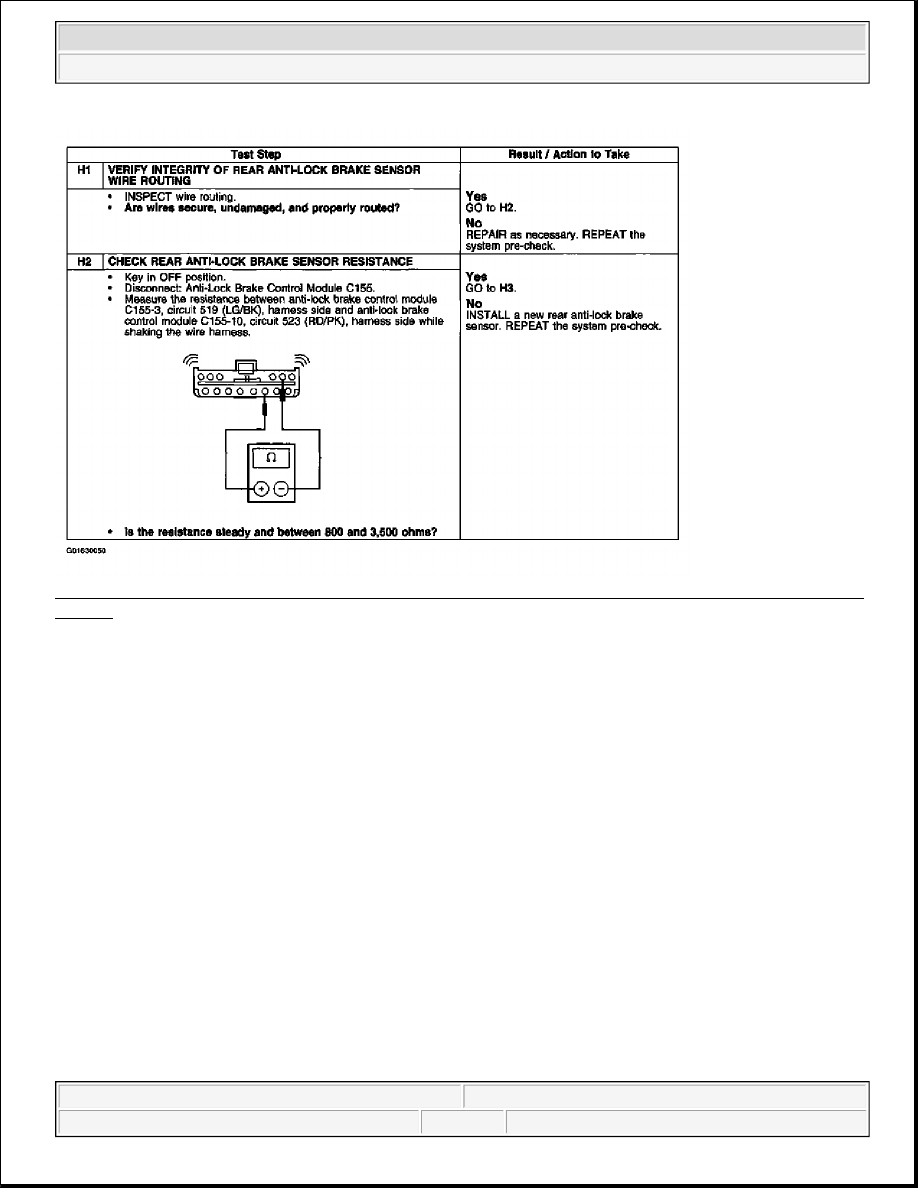

Fig. 23: Pinpoint Test H: DTC 6 - Erratic Rear Anti-Lock Brake Sensor Circuit - Diagnostic Chart (Steps
H1-H2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 BRAKES Anti-Lock Control-Rear - F150 Pickup
