Ford F150 Pickup. Manual - part 330

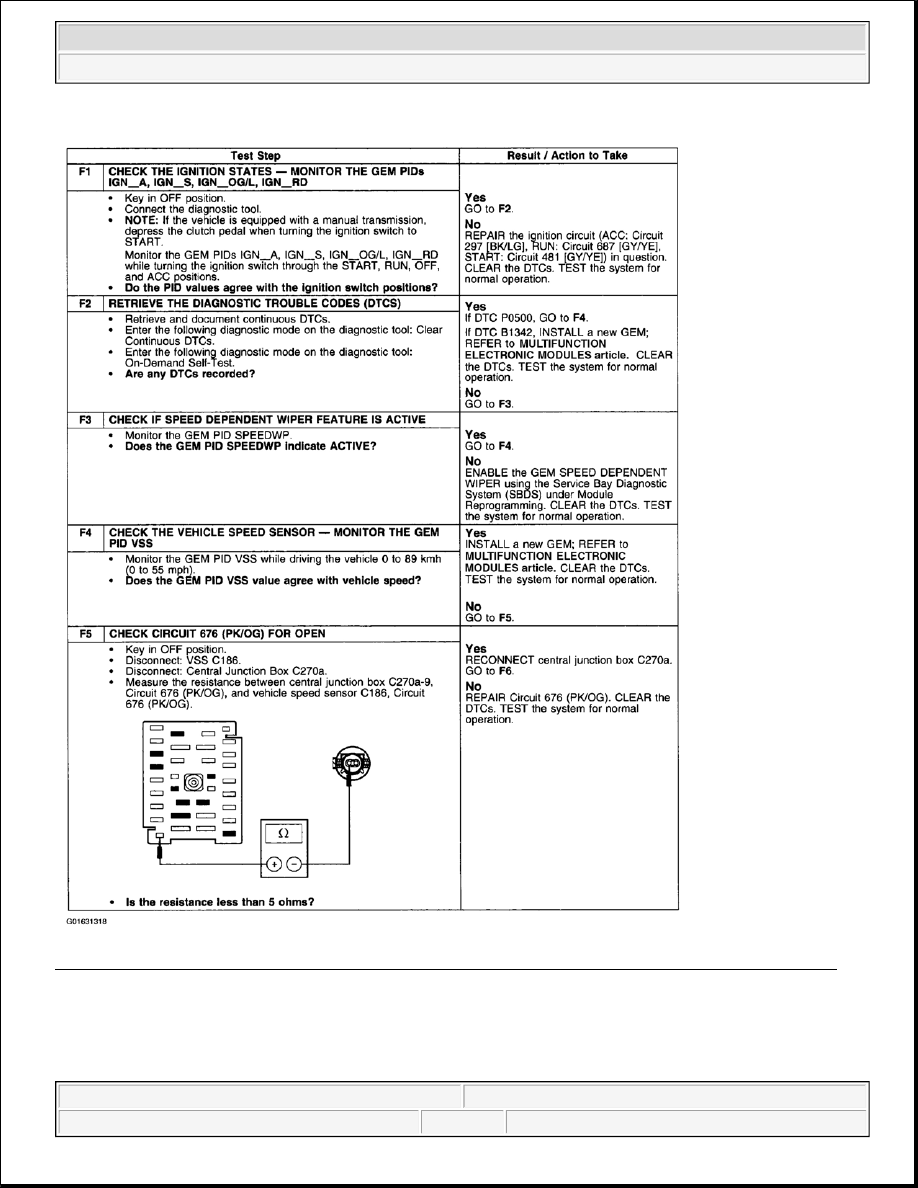

Fig. 33: Pinpoint Test F: Speed Dependent Interval Mode Does Not Operate-correctly -GEM (F1 - F5)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup

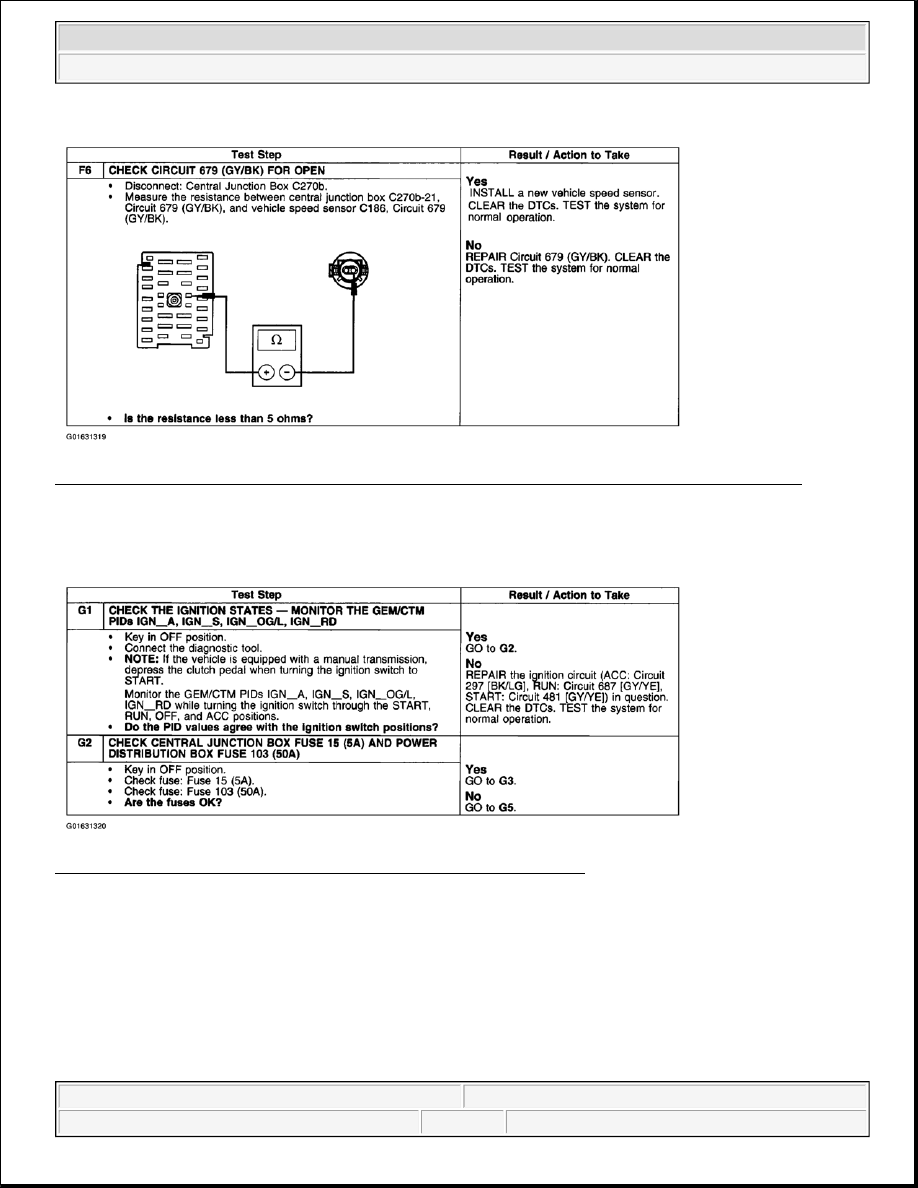

Fig. 34: Pinpoint Test F: Speed Dependent Interval Mode Does Not Operate-correctly -GEM (F6)
Courtesy of FORD MOTOR CO.

PINPOINT TEST G: NO COMMUNICATION WITH MODULE

Fig. 35: Pinpoint Test G: No Communication With Module (G1 - G2)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup

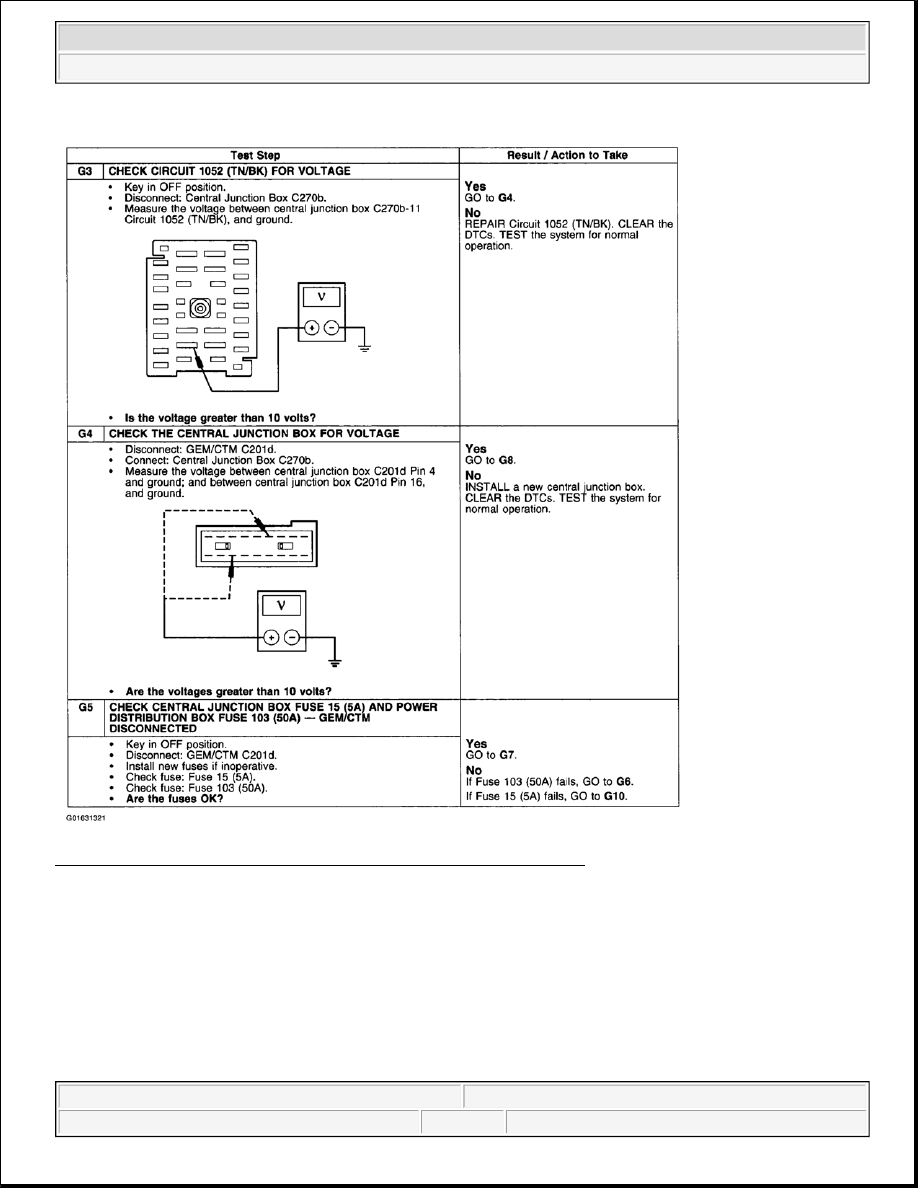

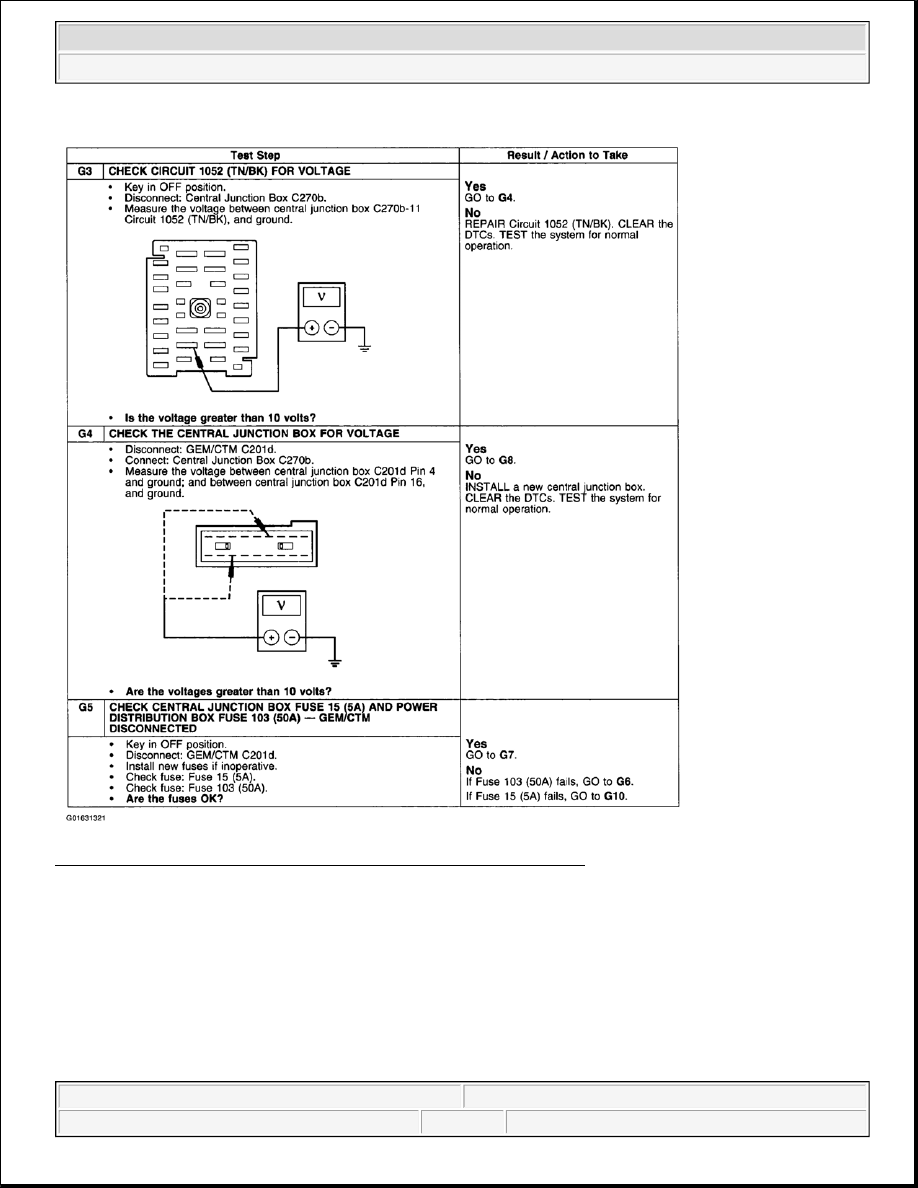

Fig. 36: Pinpoint Test G: No Communication With Module (G3 - G5)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup

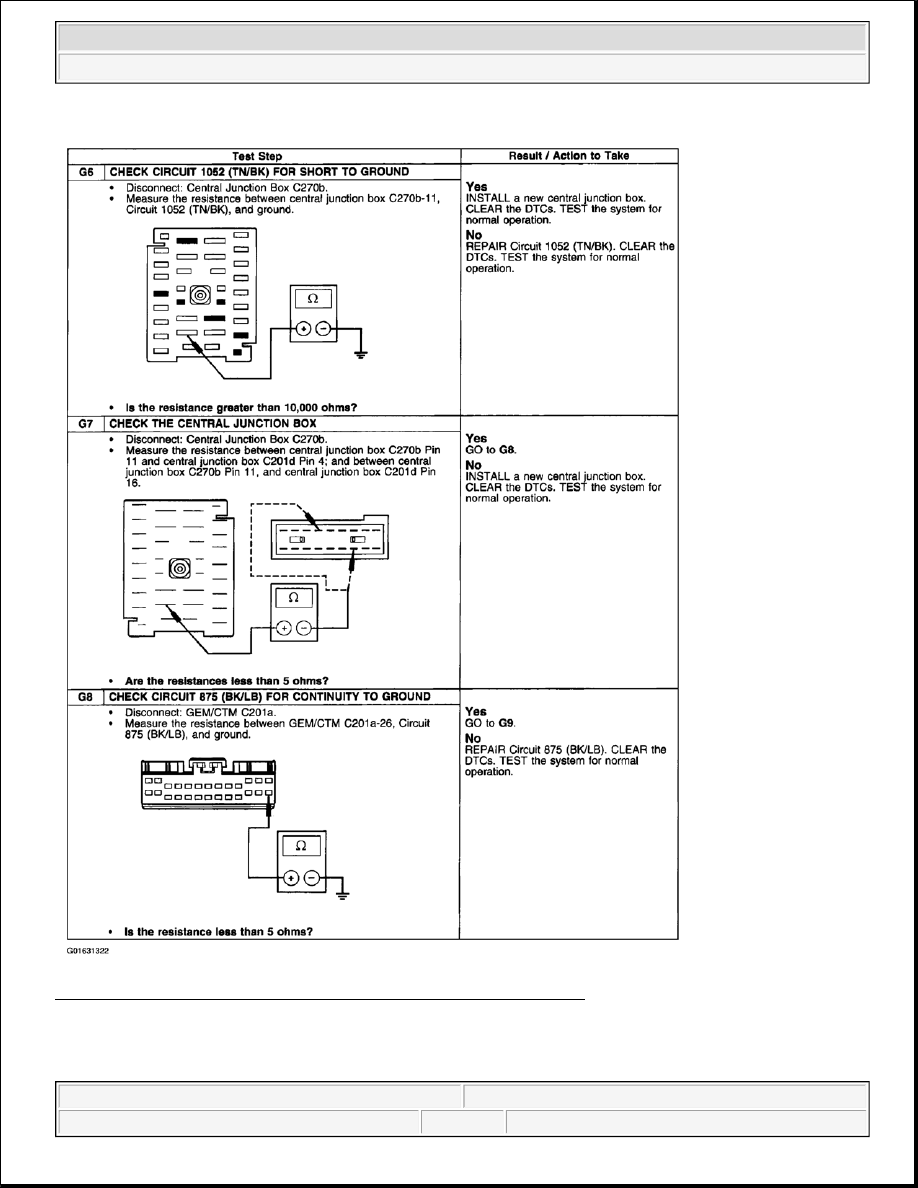

Fig. 37: Pinpoint Test G: No Communication With Module (G6 - G8)
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup
