Ford F150 Pickup. Manual - part 326

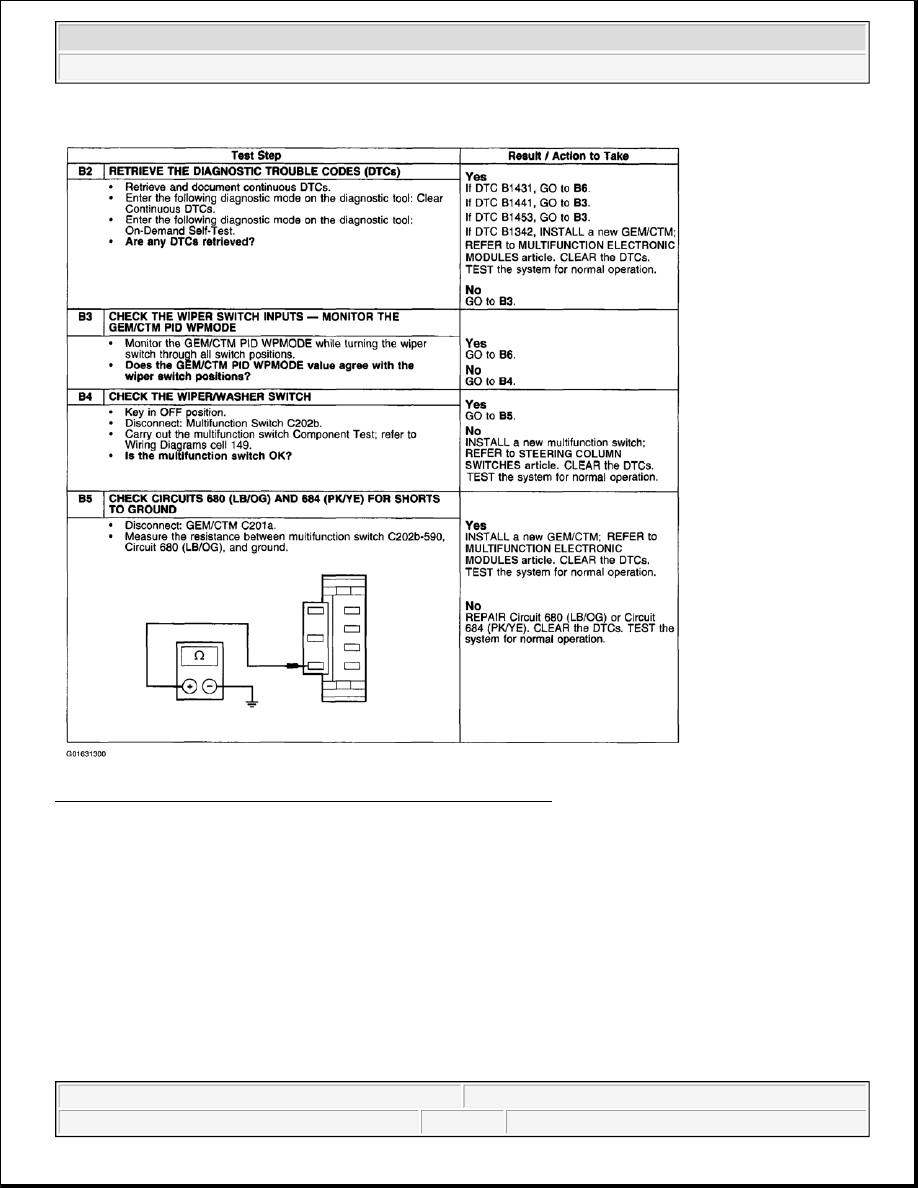

Fig. 15: Pinpoint Test B: Wipers Stay On Continuously (B2 - B5)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup

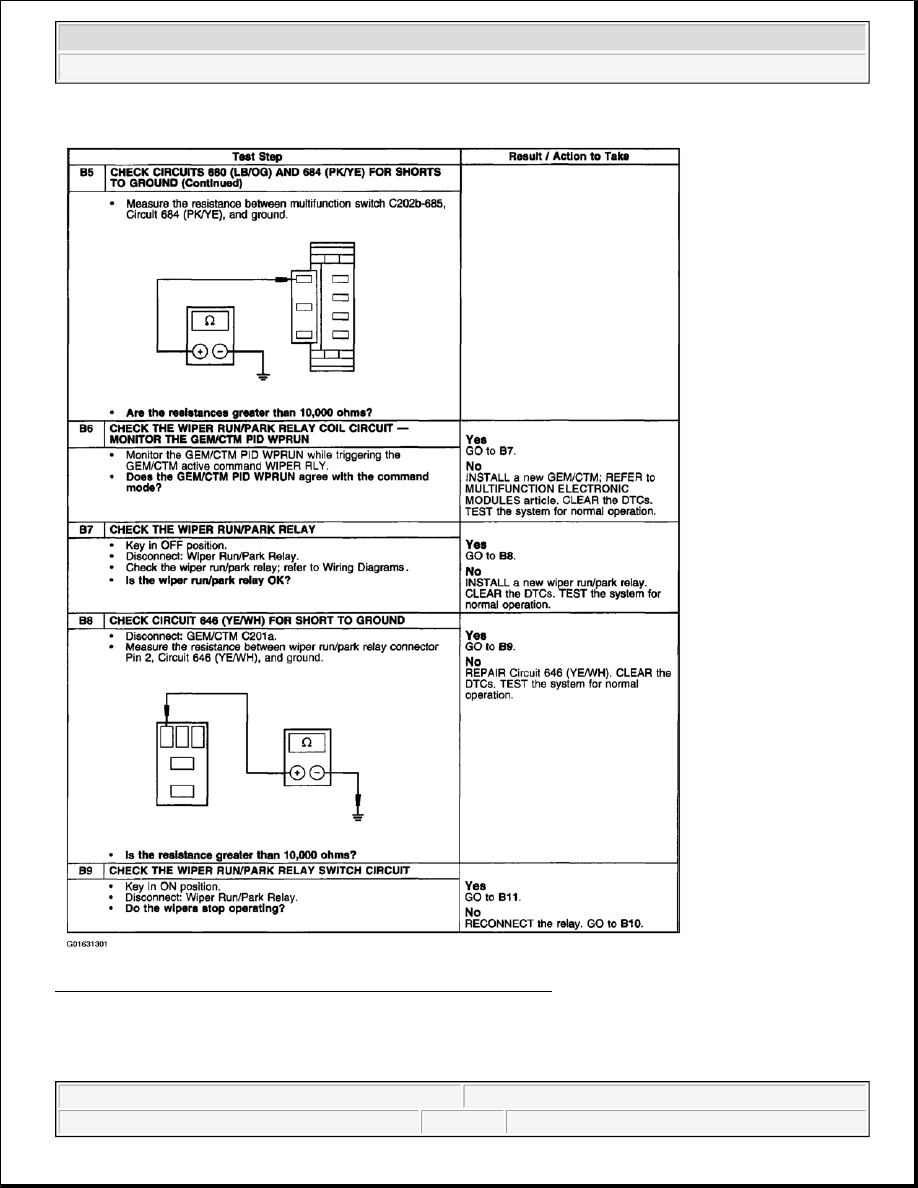

Fig. 16: Pinpoint Test B: Wipers Stay On Continuously (B5 - B9)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup

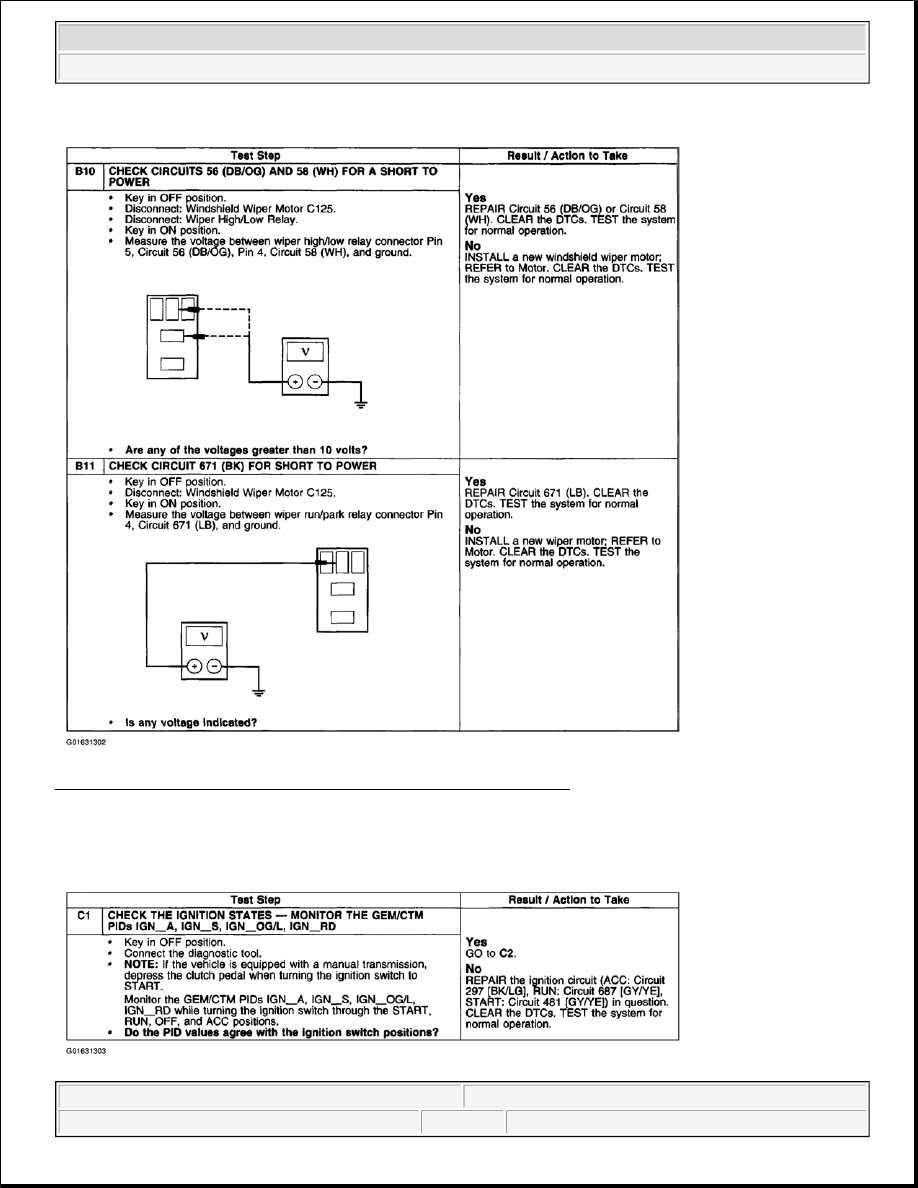

Fig. 17: Pinpoint Test B: Wipers Stay On Continuously (B10 - B11)
Courtesy of FORD MOTOR CO.

PINPOINT TEST C: HIGH/LOW WIPER SPEEDS DO NOT OPERATE CORRECTLY

2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup

Fig. 18: Pinpoint Test C: High/Low Wiper Speeds Do Not Operate Correctly (C1)
Courtesy of FORD MOTOR CO.

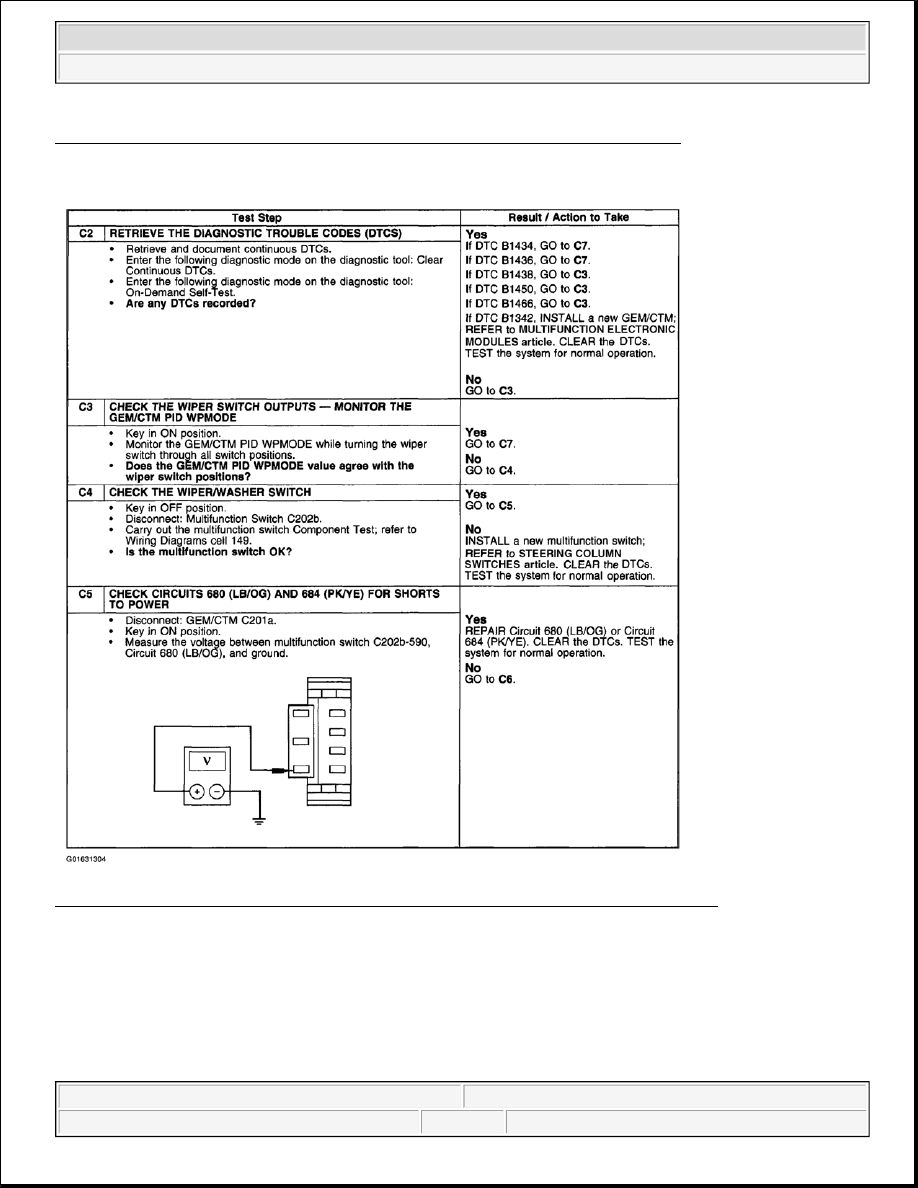

Fig. 19: Pinpoint Test C: High/Low Wiper Speeds Do Not Operate Correctly (C2 - C5)
Courtesy of FORD MOTOR CO.

2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Wipers and Washers - F150 Pickup
