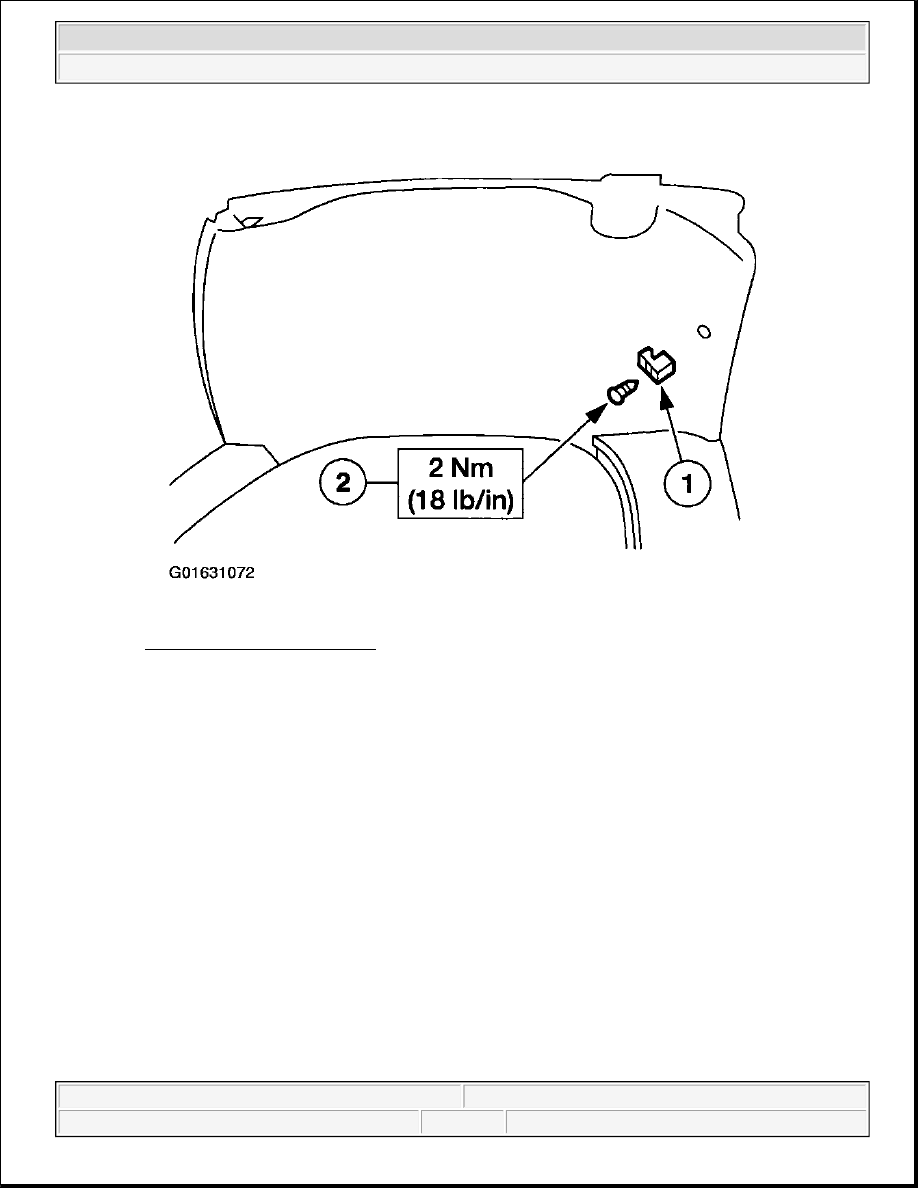

Fig. 86: Installing Coat Hooks
Courtesy of FORD MOTOR CO.

11. Install the upper rear corner trim panels.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

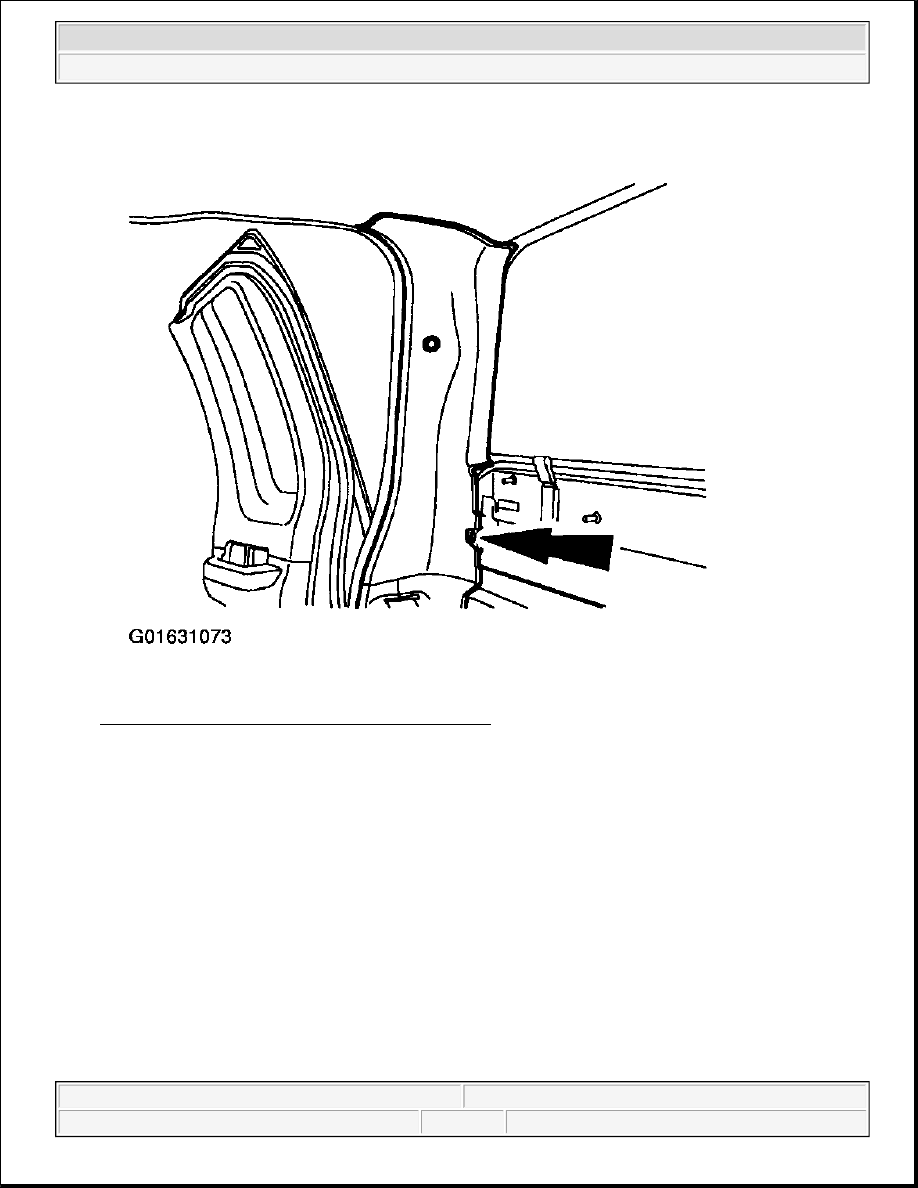

Fig. 87: Installing Upper Rear Corner Trim Panels
Courtesy of FORD MOTOR CO.

12. Install the safety belt guides.

1. Install the safety belt guide bolts.

2. Install the safety belt guide covers.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

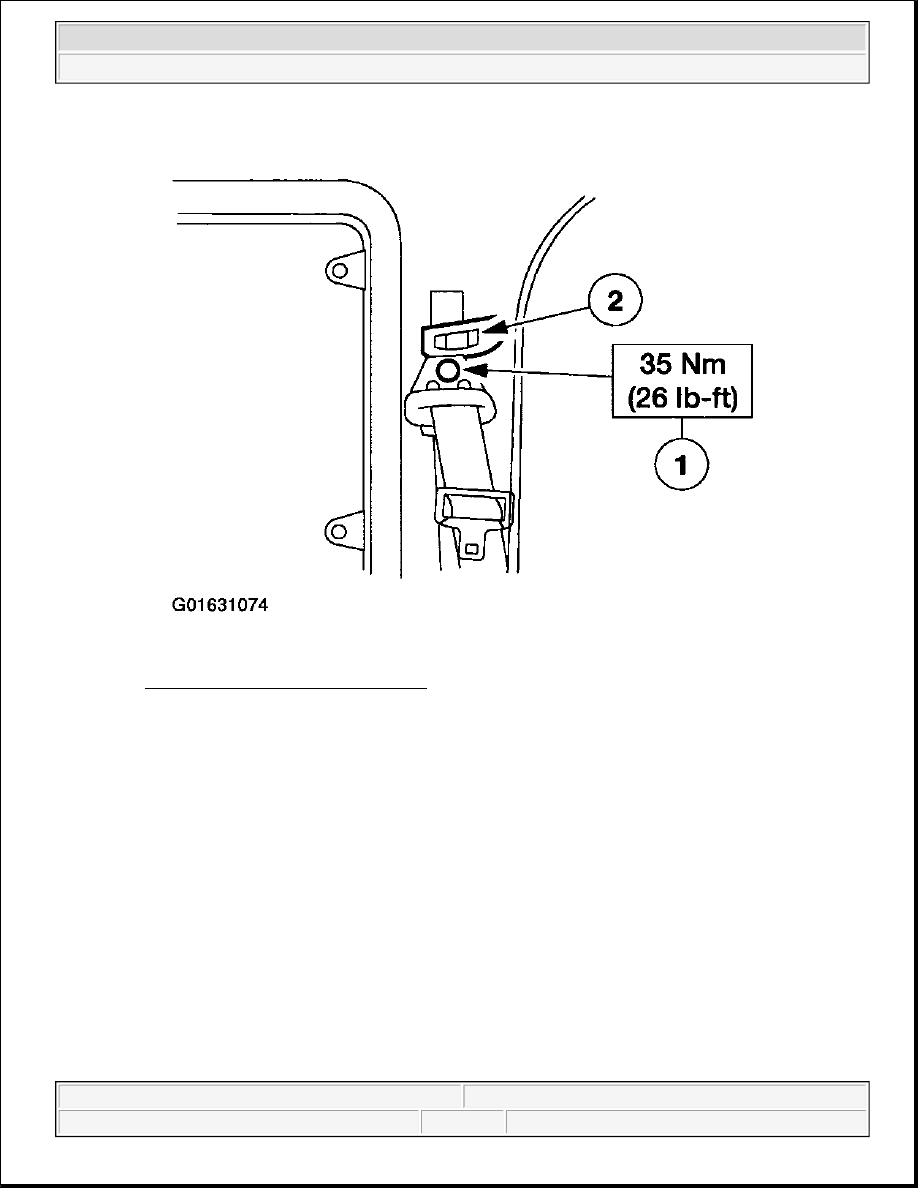

Fig. 88: Installing Safety Belt Guides
Courtesy of FORD MOTOR CO.

Vehicles with rear bucket seats

13. Install the rear trim panel.

1. Install the four pin-type retainers.

2. Install the three bolts and one nut.

NOTE:

RH side shown, LH side similar.



2003 Ford Pickup F150

2003 ACCESSORIES AND EQUIPMENT Glass, Frames and Mechanisms - F150 Pickup

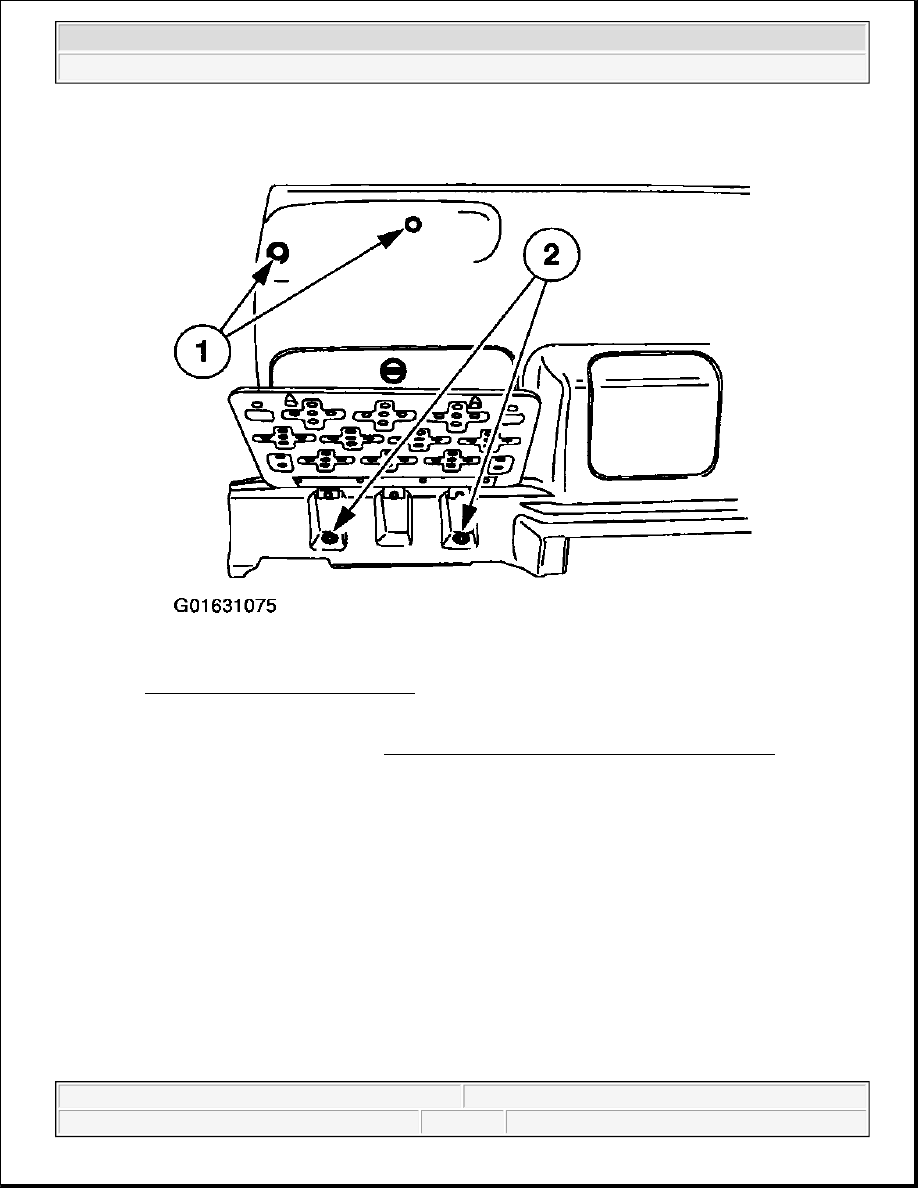

Fig. 89: Installing Rear Trim Panel
Courtesy of FORD MOTOR CO.

14. Install the rear center console. Refer to REAR DOOR WINDOW GLASS - SUPERCREW .

Vehicles with rear bench seat

15. Install the rear seat back.
