Ford F150 Pickup. Manual - part 238

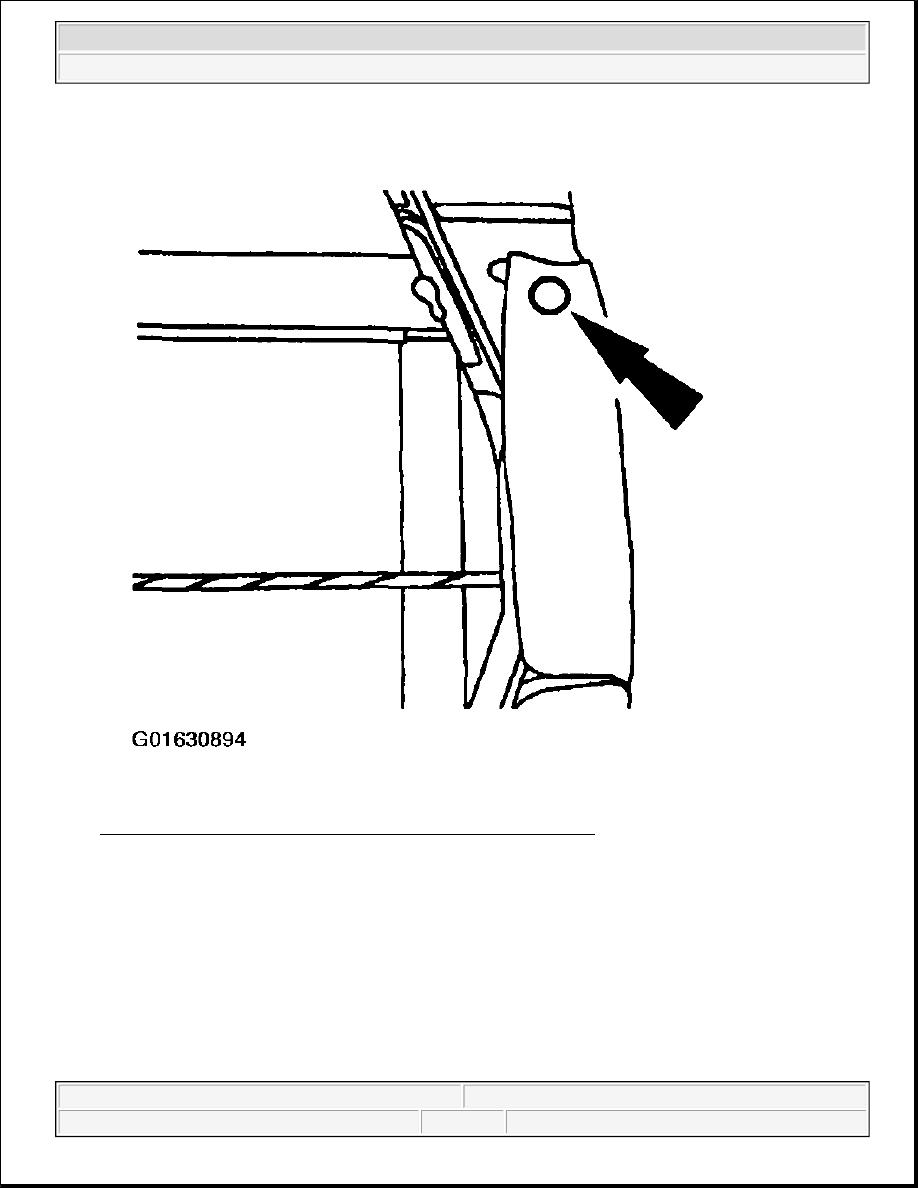

Fig. 290: Installing Front Seat Cushion Foam Pin-Type Retainer
Courtesy of FORD MOTOR CO.

3. Position the front seat cushion trim cover.

2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

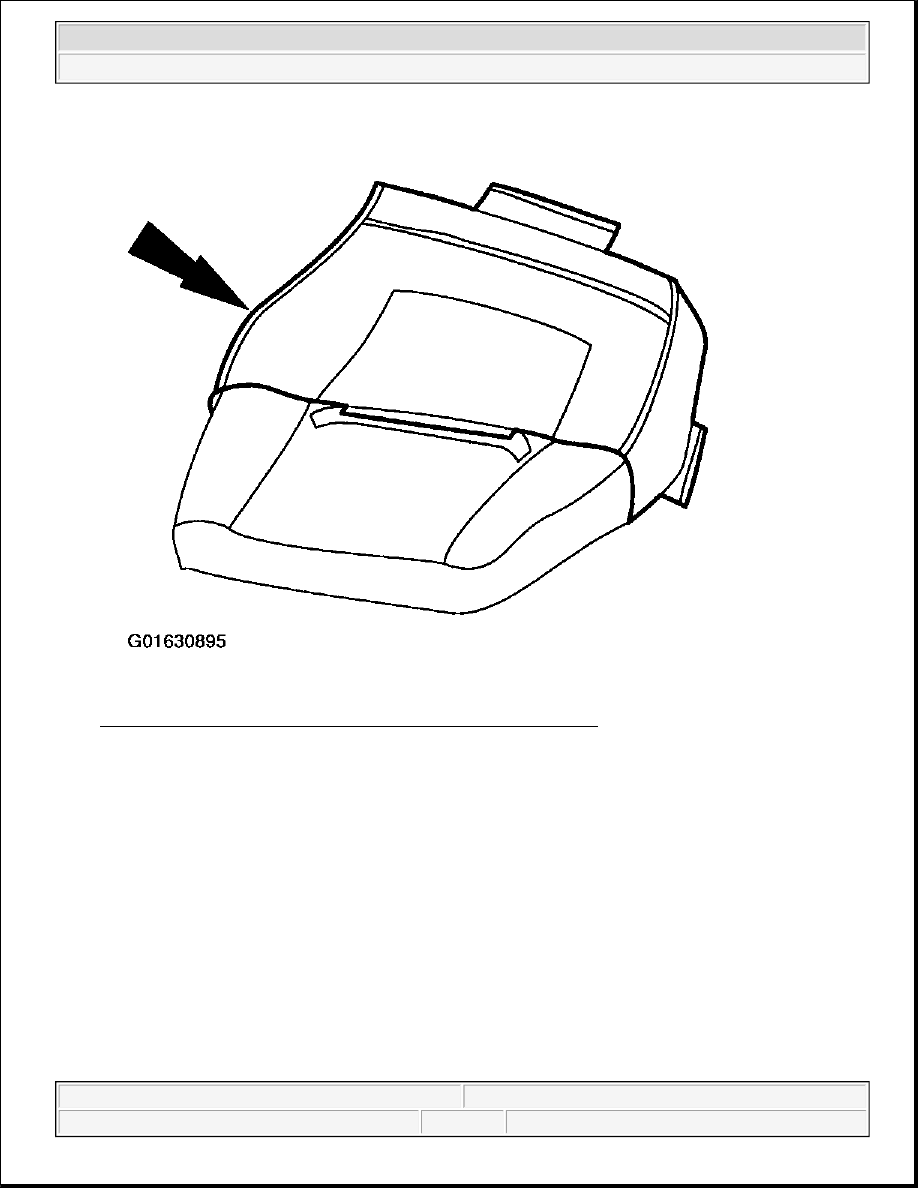

Fig. 291: Identifying Position Of Front Seat Cushion Trim Cover
Courtesy of FORD MOTOR CO.

4. Install the hog rings.

2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

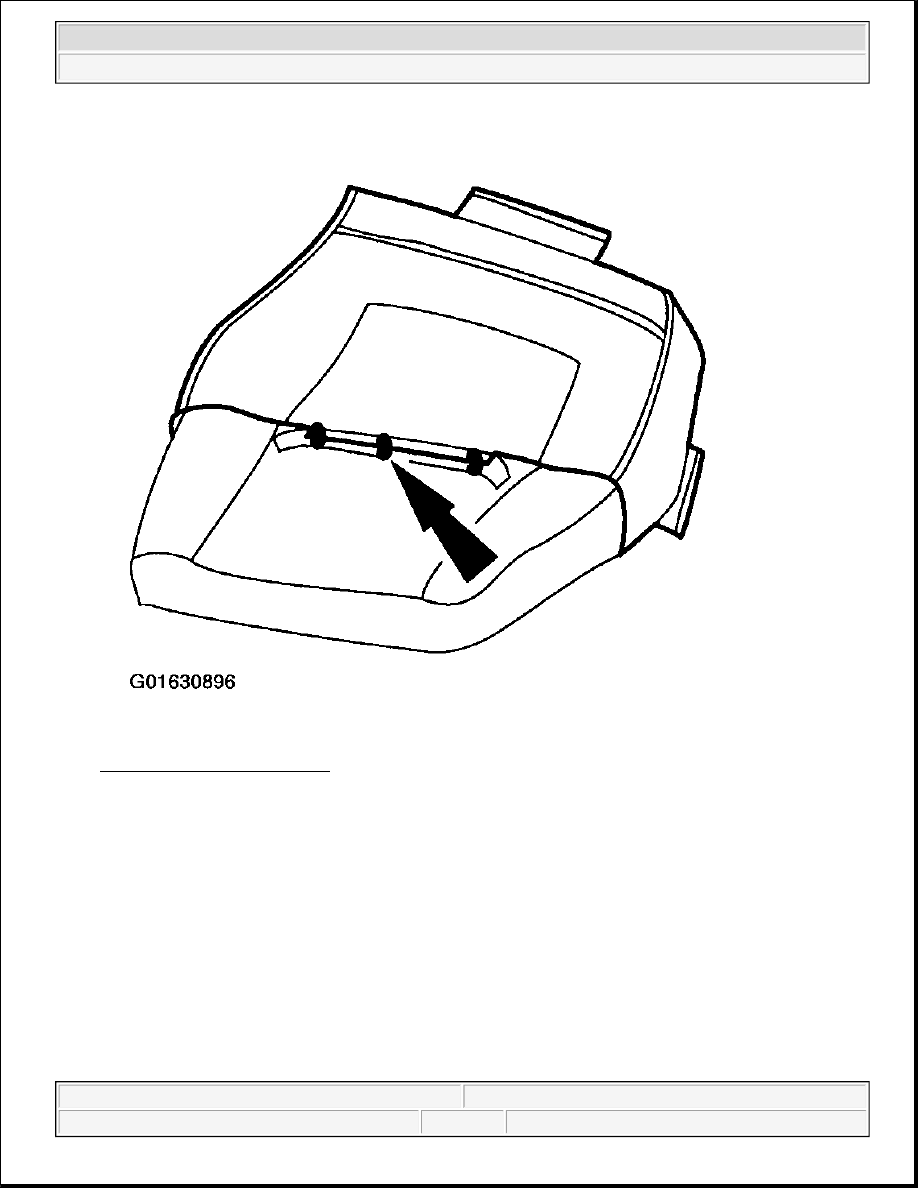

Fig. 292: Installing Hog Rings
Courtesy of FORD MOTOR CO.

5. Position the front seat cushion trim cover.

2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

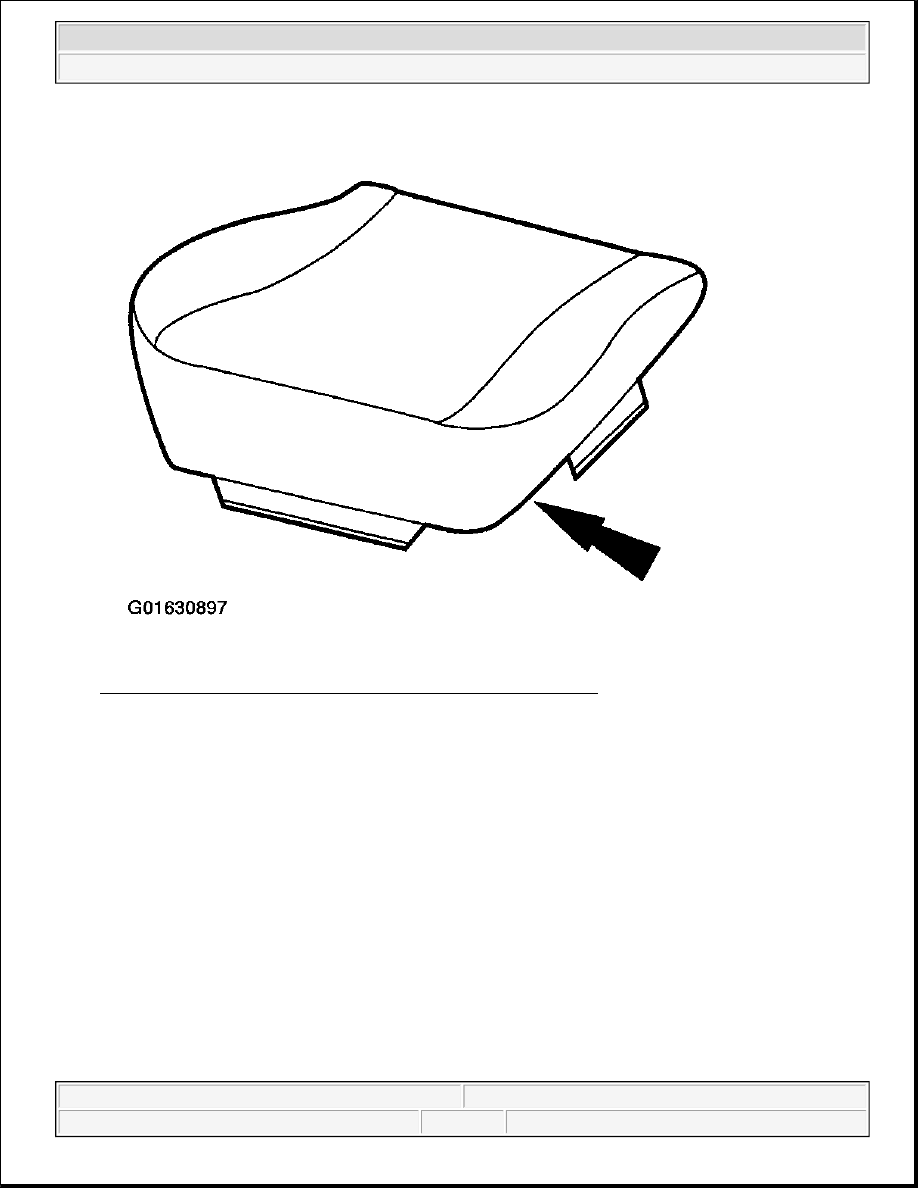

Fig. 293: Identifying Position Of Front Seat Cushion Trim Cover
Courtesy of FORD MOTOR CO.

6. Fasten the front seat cushion trim cover J-clips.

2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup
