Ford F150 Pickup. Manual - part 228

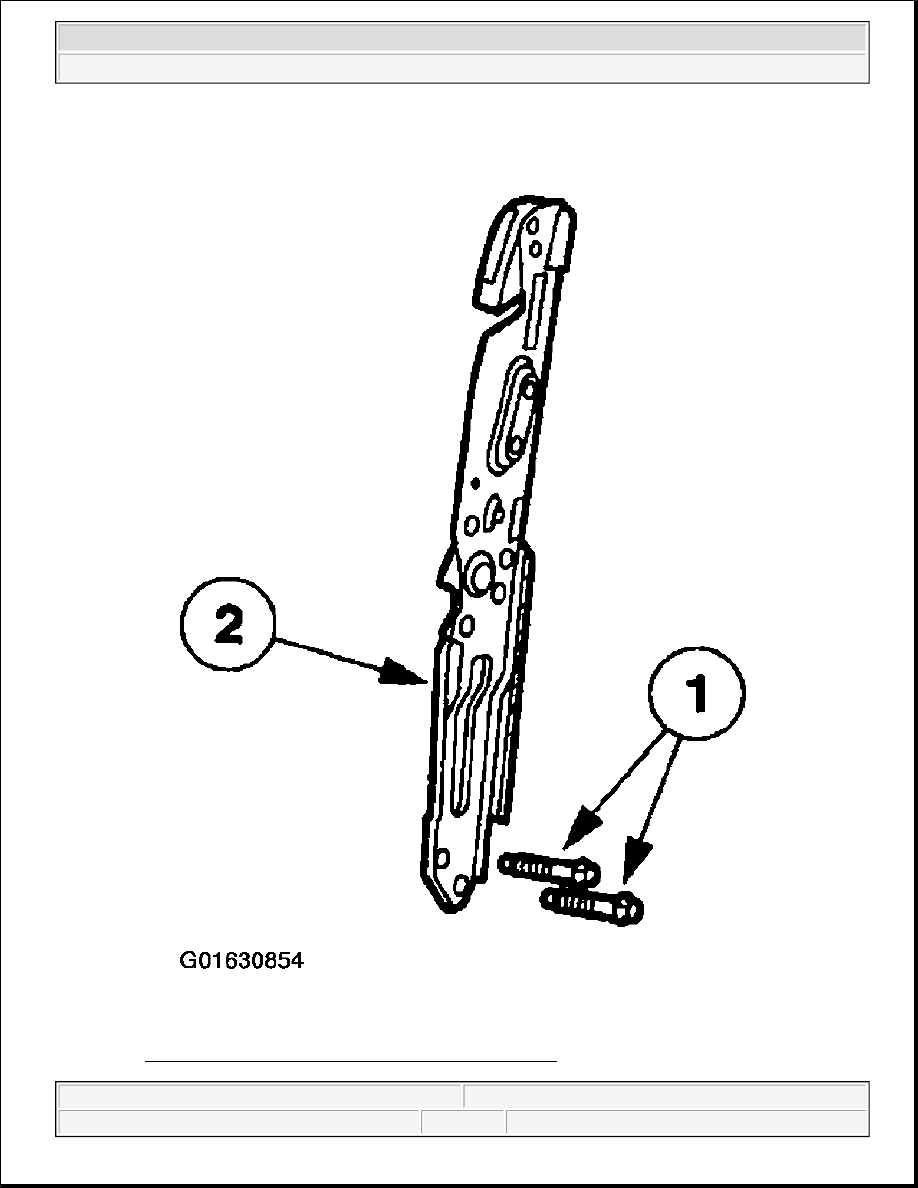

Fig. 250: Removing Front Seat Center Armrest Latch
Courtesy of FORD MOTOR CO.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup



Assembly

1. Install the front seat center armrest latch.

1. Position the front seat center armrest latch.

2. Install the bolts.

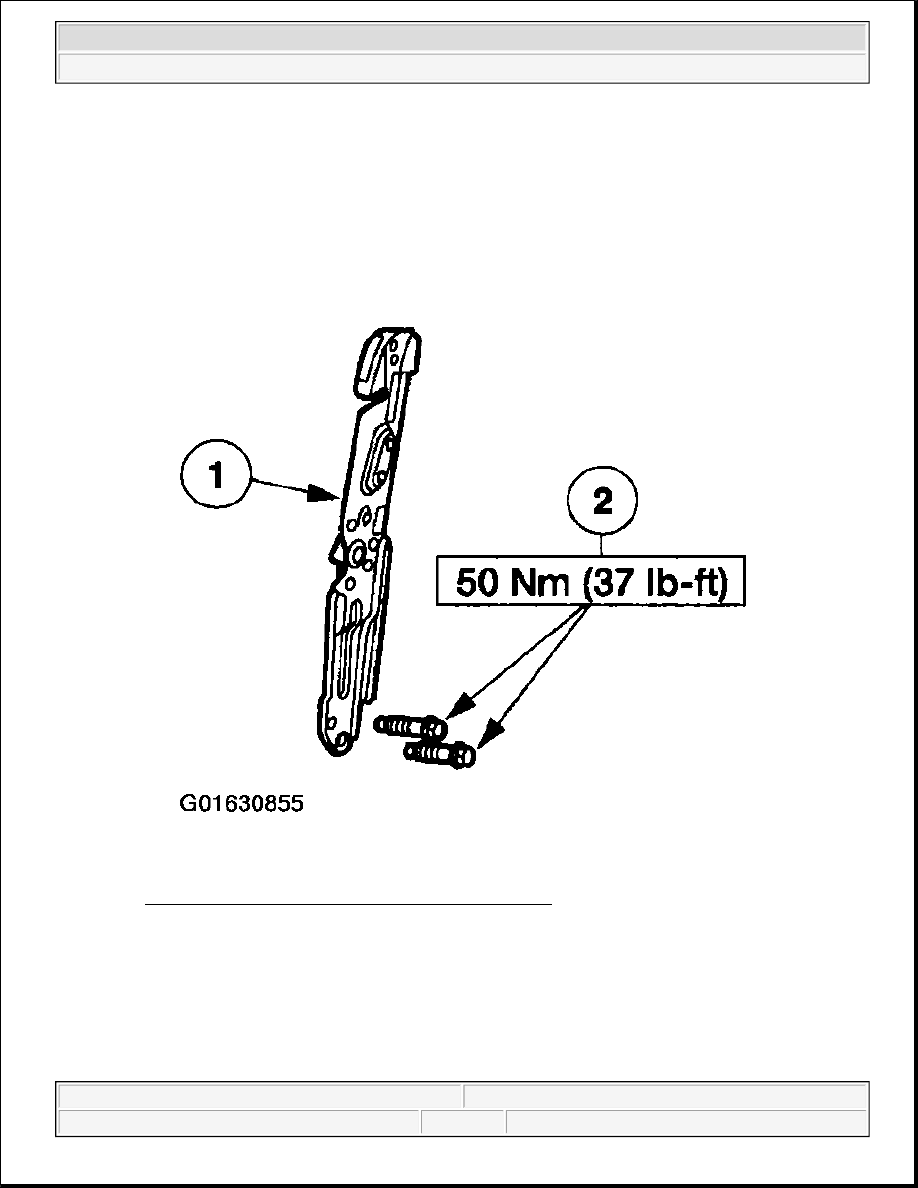

Fig. 251: Installing Front Seat Center Armrest Latch
Courtesy of FORD MOTOR CO.

2. Install the front seat center armrest mounting bracket.

1. Position the front seat center armrest mounting bracket.

2. Install the bolts.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

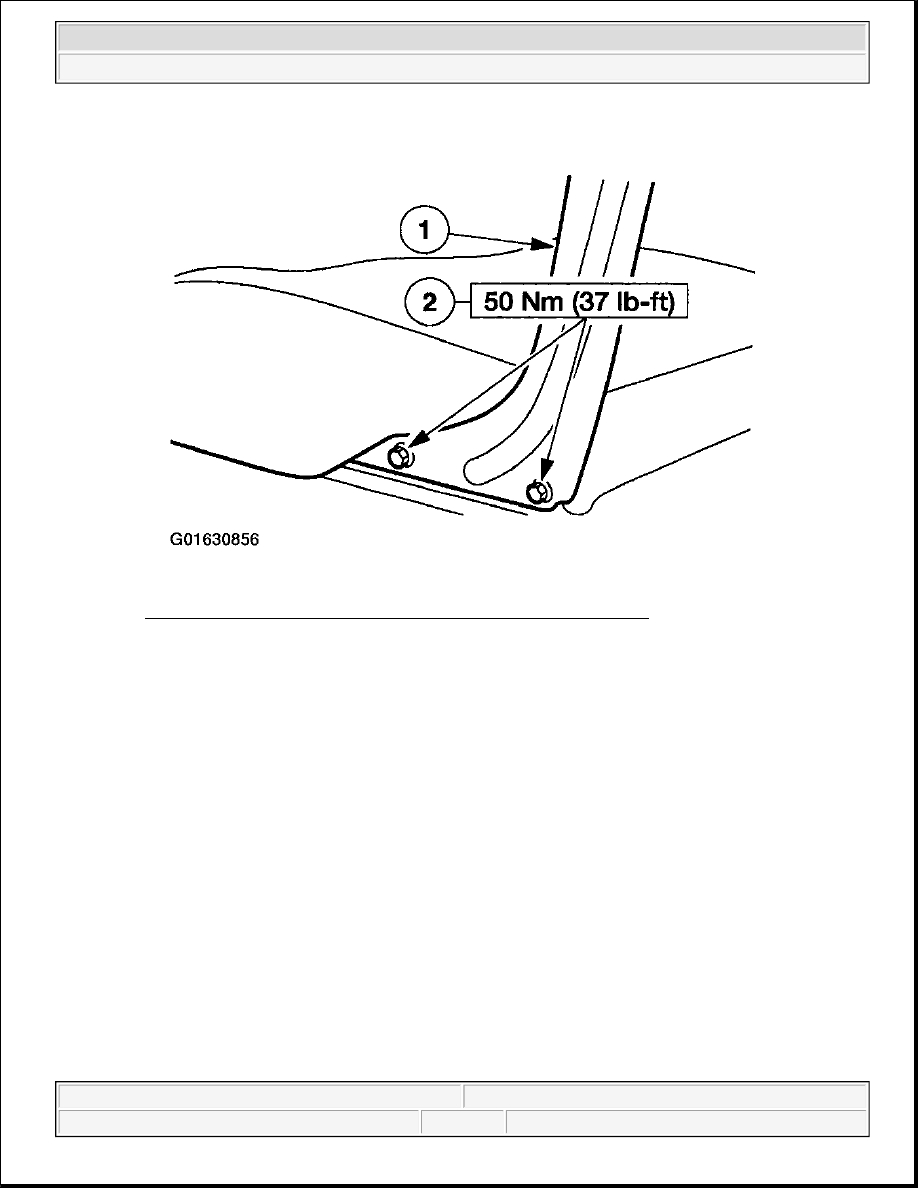

Fig. 252: Installing Front Seat Center Armrest Mounting Bracket
Courtesy of FORD MOTOR CO.

3. Install the front seat center armrest.

1. Position the front seat center armrest.

2. Install the bolts.



2003 Ford Pickup F150

2003 ACCESSORIES AND BODY, CAB Seating - F150 Pickup

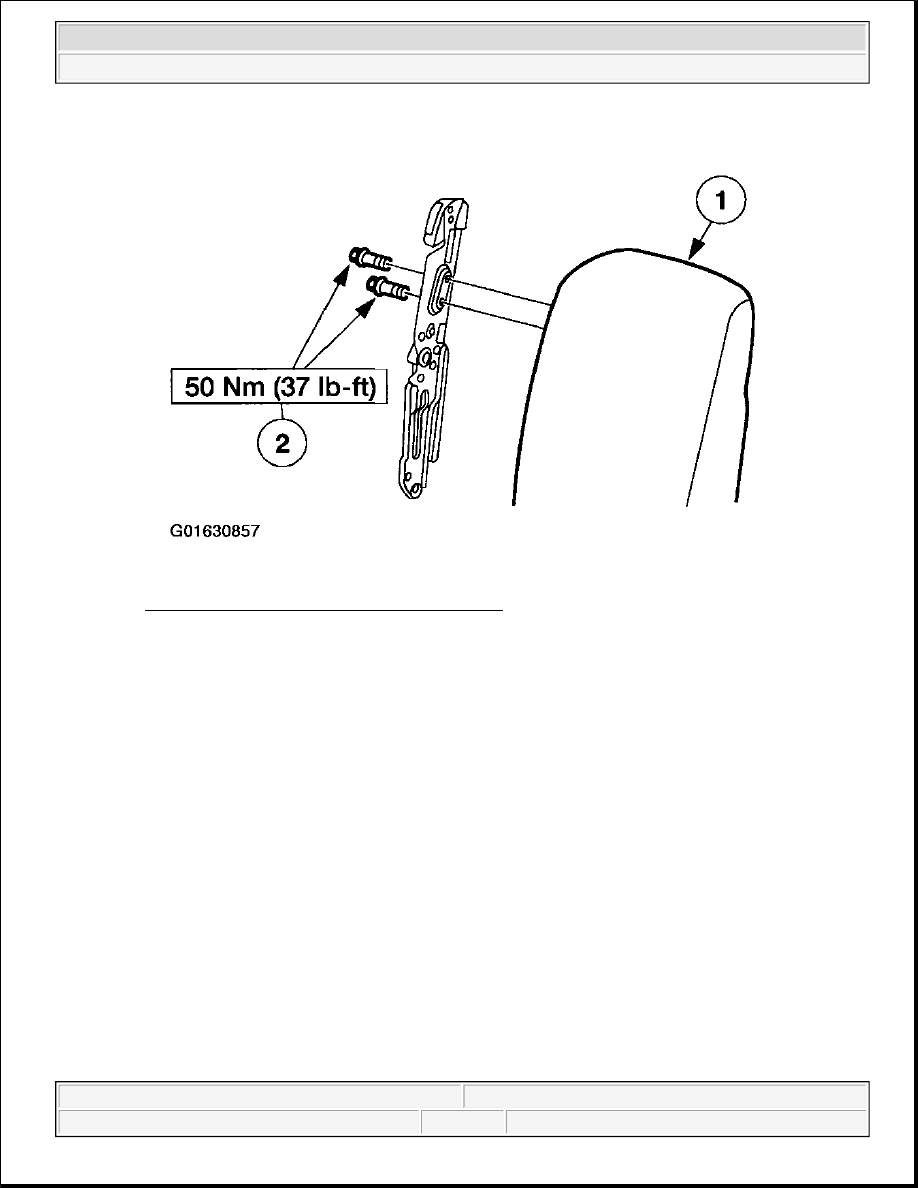

Fig. 253: Installing Front Seat Center Armrest
Courtesy of FORD MOTOR CO.

4. Install the front seat center armrest bracket bolt.
